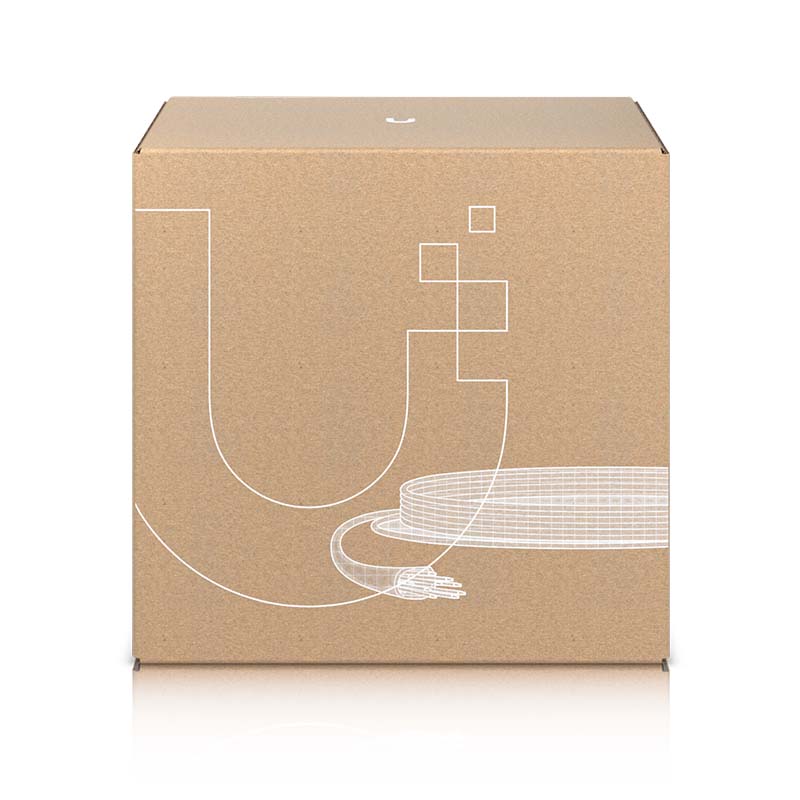

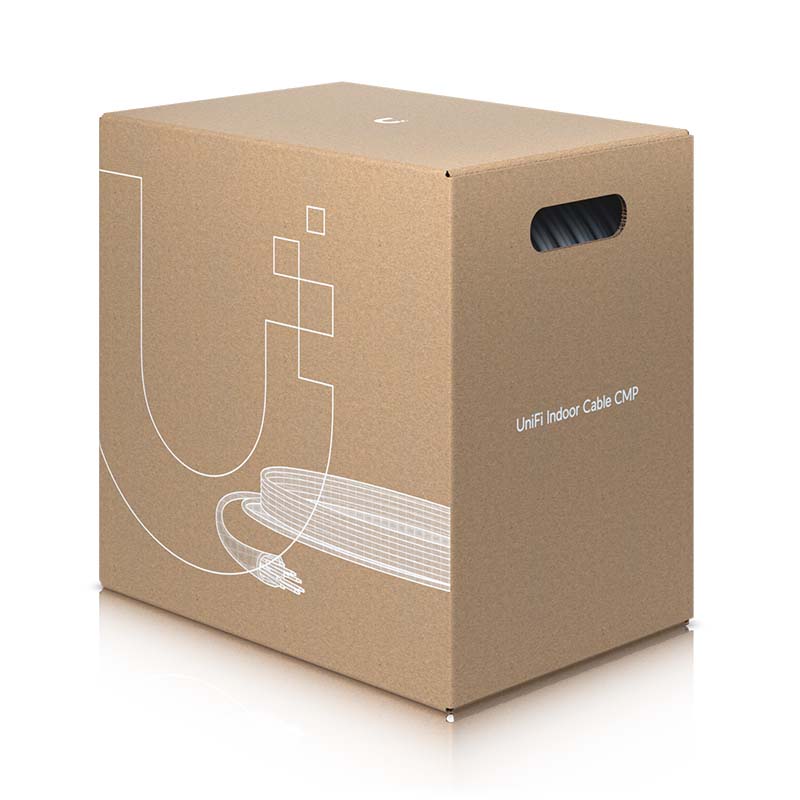

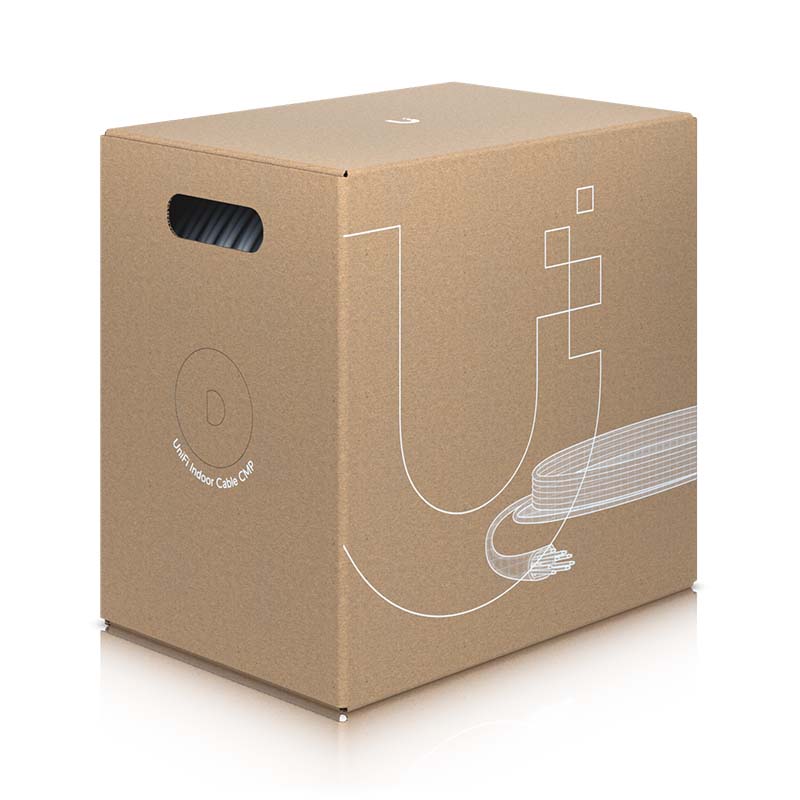

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
U-CABLE-C6-CMP
U-Cable-C6-CMP Ubiquiti UniFi Indoor Cable CMP (304m)
$589.45 AUD
Unit price
/
Unavailable
Not in stock locally
In stock inUnited Kingdom
Contact us for options
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
Description
Description
Category 6 Ethernet cable for high-speed deployments located in environments that require plenum-rated cabling.
Features:
Category 6 UTP communications multipurpose cable
Plenum (CMP)-rated, fire-resistant jacket
Anti-crosstalk divider
Cable length 305 m
Frequently asked questions5 questions
What category and construction is this cable?
It is a Category 6 UTP (unshielded) Ethernet cable with four colour-coded twisted pairs and 23 AWG solid bare copper conductors. It includes an anti-crosstalk divider and a white jacket.
Is this cable plenum-rated?
Yes. It carries a CMP flame rating, tested to NFPA 262, and has a flame retardant PVC (FRPVC) jacket. It is designed for indoor environments that require plenum-rated cabling.
How much cable is in the box?
The box holds 305 m (1,000 ft) of cable. The box measures 476 x 306 x 419 mm and weighs 14.7 kg.
What are the installation and operating temperature limits?
The cable can be installed between 0 and 60°C and operates between -20 and 60°C. Ambient storage is rated from -20 to 75°C.
What is the minimum bend radius and jacket diameter?
The minimum bend radius is 22.4 mm (0.88"). The jacket diameter is 5.6 ± 0.2 mm.
Specifications20 specifications · 1 sections
| Overview | |
|---|---|
| Length | 305 m (1,000 ft) |
| Type | Category 6 |
| Flame Rating | CMP |
| Operating Environment | Indoor |
| Box Dimensions | 476 x 306 x 419 mm / (18.7 x 12 x 16.5") |
| Box Weight | 14.7 kg (32.4 lb) |
| Cable · Jacket Color | White |
| Cable · Jacket Diameter | 5.6 ± 0.2 mm |
| Cable · Jacket Material | Flame retardant polyvinyl chloride (FRPVC) |
| Cable · Shielding Type | UTP |
| Cable · Conductor Type | Solid bare copper |
| Cable · Conductor Wire Gage | 23 AWG |
| Cable · Bend Radius | Min. 22.4 mm (0.88'') |
| Cable · Twisting | 4 Twisted pairs with color code. / Pair 1: white-blue / blue / Pair 2: white-orange / orange / Pair 3: white-green / green / Pair 4: white-brown / brown |
| Standards · Electrical Transmission | ANSI/TIA-568.2-D / ISO/IEC 11801 (Edition 2.2) / IEC 61156-5 (Edition 2.1) |
| Standards · Flame Test | NFPA 262 (CMP) |
| Standards · Material and Construction | UL 444 / CSA 22.2 NO.214 / EU Directive 2011/65/EU (RoHS2) / EU Directive 2006/95/EC (LVD) |
| Installation Temperature | 0 to 60°C (32 to 140°F) |
| Ambient Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model U-CABLE-C6-CMP · Ubiquiti's spec sheet
