Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
U6-ENTERPRISE-IW
U6-ENTERPRISE-IW Ubiquiti UniFi U6 Enterprise In-Wall AP
$668.98 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes
Pickup may be possible in North Lakes, Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Sleek, wall-mounted WiFi 6E access point with an integrated four-port switch designed for high-density office networks.
Features:
WiFi 6 support (2.4/5/6 GHz bands)
10.2 Gbps aggregate throughput rate
4-port Gigabit switch with (1) PoE output
(1) 2.5GbE RJ45 port (PoE In)
Powered with PoE+ or PoE++ (required for PoE output)
Use with our USW Enterprise switches for maximum throughput
Frequently asked questions5 questions
What is the UniFi U6 Enterprise In-Wall used for?
It is a wall-mounted WiFi 6E access point with an integrated four-port switch, designed for high-density office networks. It supports 2.4, 5 and 6 GHz bands and is rated for 600+ clients.
How is the U6-ENTERPRISE-IW powered?
It is powered over PoE+ or PoE++ through its 2.5GbE RJ45 PoE In port, within a 44-57V DC range. PoE+ or PoE++ is also required to use the PoE output on the built-in switch.
What ports does it have?

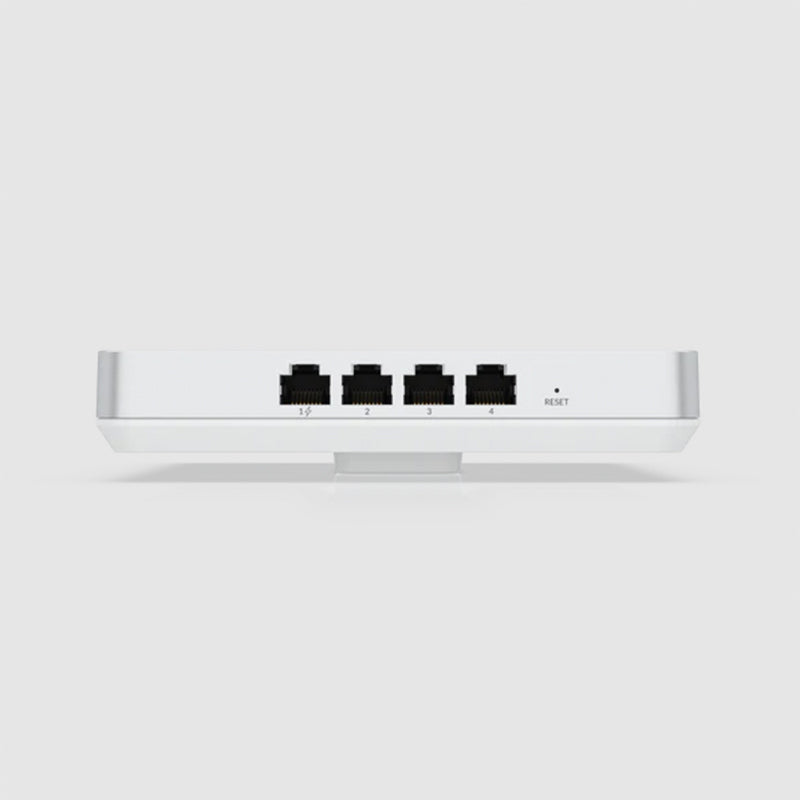

It has one 1/2.5 GbE RJ45 data-in port (PoE In) and four GbE RJ45 data-out ports on the built-in switch. One of the four switch ports provides PoE output.
What speeds and coverage can I expect?
Peak rates are 4.8 Gbps on 6 GHz and 5 GHz (BW160) and 573.5 Mbps on 2.4 GHz (BW40), with 10 spatial streams in total. Coverage area is 115 m² (1,250 ft²).
How do I mount and manage it?

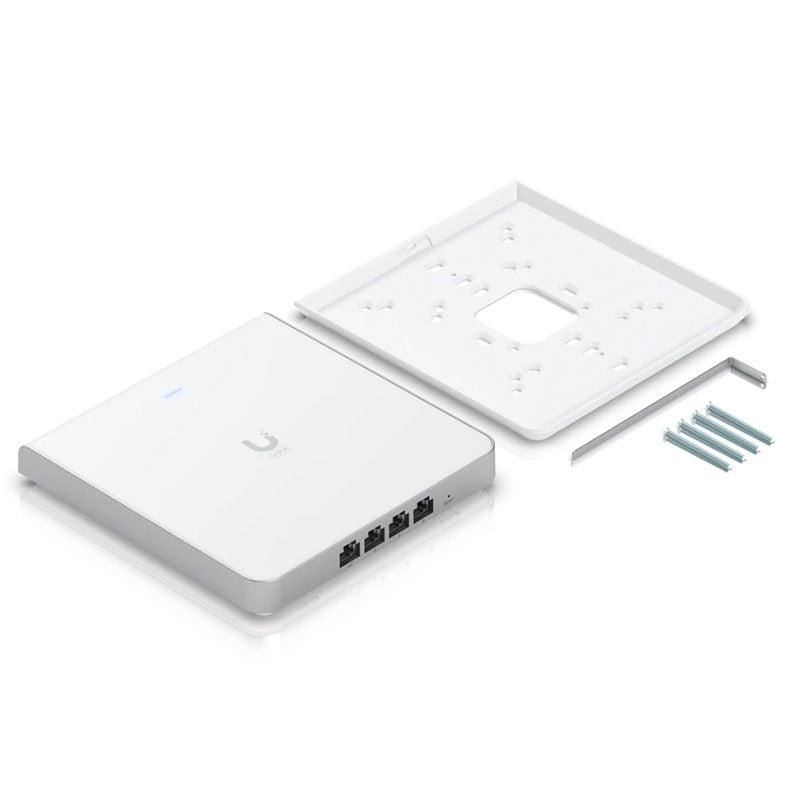

It mounts on a wall using the included aluminium mount. Management is via Ethernet or Bluetooth, and it requires UniFi Network version 6.0.45 or later.
Specifications39 specifications · 4 sections
| Overview | |
|---|---|

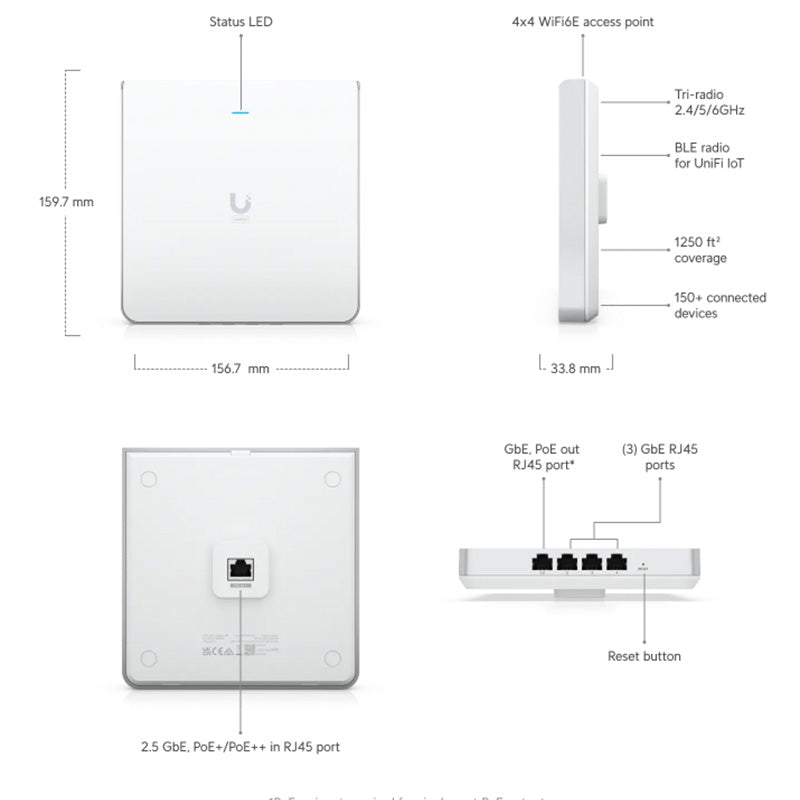

| Dimensions | 159.7 x 156.7 x 33.8 mm / (6.3 x 6.2 x 1.3") |
| WiFi Standard | WiFi 6E |
| Spatial Streams | 10 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 600+ |
| Uplink | 2.5 GbE |
| Mounting | Wall / (Mount Included) |
| Power Method | PoE+ / PoE++ (Required for PoE output) |
| Performance | |
| MIMO · 6 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 6 GHz | 4.8 Gbps (BW160) |
| Max. Data Rate · 5 GHz | 4.8 Gbps (BW160) |
| Max. Data Rate · 2.4 GHz | 573.5 Mbps (BW40) |
| Antenna Gain · 6 GHz | 5.8 dBi |
| Antenna Gain · 5 GHz | 5.8 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 6 GHz | 26 dBm |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40) |
| Hardware | |
| Max. Power Consumption | 21W (Excluding PoE output) |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) Data in: 1/2.5 GbE RJ45 port / (4) Data out: GbE RJ45 ports |
| Weight | 884 g (1.9 lb) |
| Management | Ethernet / Bluetooth |
| Built-In Switch | (4) GbE ports with (1) PoE output |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / U-NII-5 to U-NII-8: 6100 - 7125 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz / 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04643-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.0.45 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model U6-ENTERPRISE-IW · Ubiquiti's spec sheet
