U6-IW - Ubiquiti UniFi Wi-Fi 6 In-Wall Wall-Mounted Access Point with Built-in PoE Switch, 115 m² Coverage
$397.94 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

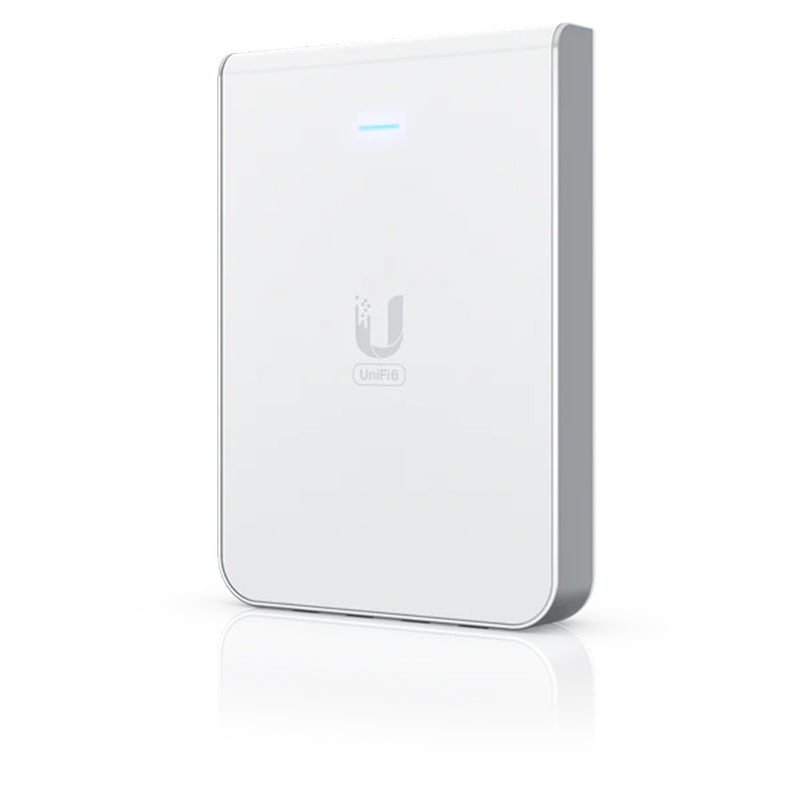

The Ubiquiti UniFi U6 In-Wall (U6-IW) is a low-profile, wall-mounted Wi-Fi 6 access point with a built-in 4-port PoE switch, designed for reliable single-room coverage. With 6 spatial streams across dual 2.4 GHz and 5 GHz radios, the U6-IW delivers up to 115 m² (1,250 ft²) of coverage while giving you extra wired ports right where you need them, making it a neat fit for hotel rooms, apartments, student accommodation and small offices.
Powered by PoE from a UniFi PoE switch (or an optional 48V, 0.5A PoE adapter), the U6-IW is managed through the UniFi Network application and can be set up over Ethernet or Bluetooth. A wall mount is included, so installation is quick and tidy.
Key Features
- Wi-Fi 6 (802.11ax) dual-radio access point with 6 spatial streams
- 115 m² (1,250 ft²) coverage area, ideal for single-room deployments
- 5 GHz radio with 4 x 4 DL/UL MU-MIMO and up to 4.8 Gbps data rate
- 2.4 GHz radio with 2 x 2 MU-MIMO and up to 573.5 Mbps data rate
- Built-in 4-port Gigabit switch with 1 PoE output (PoE+ input required for PoE output)
- Gigabit uplink (1 x GbE data-in, 4 x GbE data-out)
- Powered via PoE/PoE+, with maximum power consumption of 13 W (excluding PoE output)
- Supports WPA3, WPA-Enterprise, 802.1Q VLAN, guest network isolation and per-user rate limiting
- Hospitality-friendly features including captive portal, voucher and payment-based authentication, Passpoint (Hotspot 2.0) and Private Pre-Shared Key (PPSK)
- Roaming and radio management tools: band steering, 802.11r fast roaming, 802.11k and 802.11v, and wireless meshing
- Compact 139.7 x 96 x 31.2 mm design weighing 460 g, with aluminium mount included
- Wide operating range of -30 to 60° C
Ideal for: hotels and hospitality venues, apartments, student housing, home offices and small businesses that want a discreet in-wall Wi-Fi 6 access point with extra wired ports for TVs, consoles, VoIP phones or other devices.
Compatible Products
Works with any UniFi PoE switch for power and management. A PoE+ switch is required if you want to use the single-port PoE output. An optional 48V, 0.5A PoE adapter can also be used. The U6-IW is managed with the UniFi Network application (version 6.0.45 and later).
Order the Ubiquiti U6-IW from The Tech Geeks for dependable, scalable UniFi Wi-Fi 6 networking.
Frequently asked questions5 questions
How is the U6-IW powered?
It is powered by PoE or PoE+ from a UniFi PoE switch, or by an optional 48V, 0.5A PoE adapter. Maximum power consumption is 13 W, excluding PoE output. PoE+ input is required if you want to use the PoE output port.
What ports does the U6-IW have?

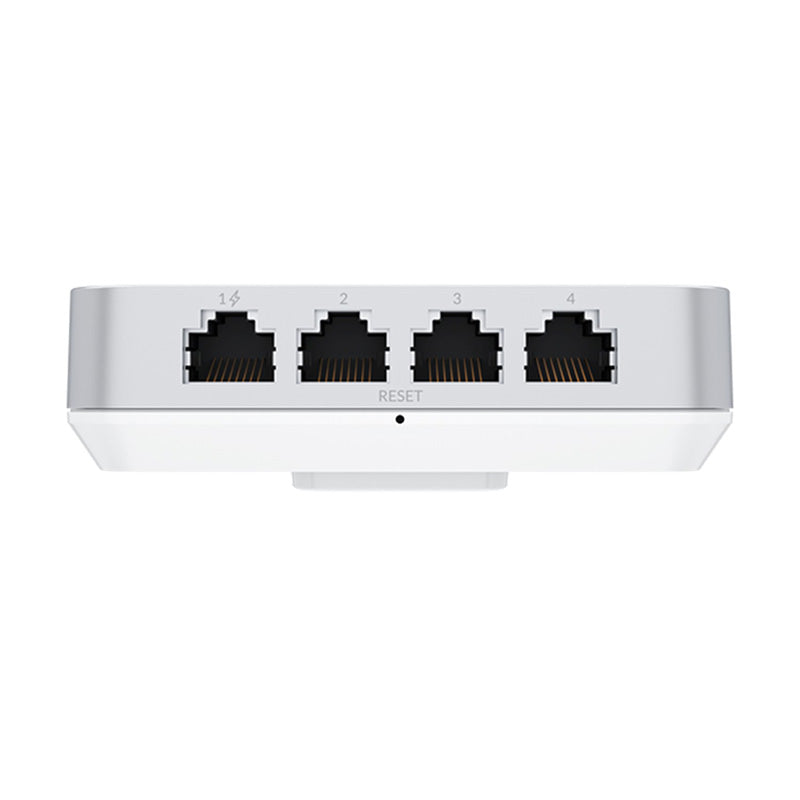

It has one Gigabit data-in RJ45 port and four Gigabit data-out RJ45 ports through its built-in switch. One of the four ports provides PoE output, which needs a PoE+ input to operate.
How much area does the U6-IW cover, and how fast is it?
It is designed for single-room coverage of up to 115 m² (1,250 ft²). The 5 GHz radio delivers up to 4.8 Gbps and the 2.4 GHz radio up to 573.5 Mbps, with support for 250+ clients.
How is the U6-IW managed and set up?
It is managed through the UniFi Network application, version 6.0.45 or later. Setup can be done over Ethernet or Bluetooth.
Is the U6-IW suitable for hotels and apartments?
Yes, it suits hotel rooms, apartments, student accommodation and small offices. It supports captive portal, voucher and payment-based authentication, Passpoint (Hotspot 2.0) and Private Pre-Shared Key (PPSK), and a wall mount is included.
Customer reviews
5.0
· 1 review
Specifications34 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 139.7 x 96 x 31.2 mm / (5.5 x 3.8 x 1.3") |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 6 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 250+ |
| Uplink | GbE |
| Mounting | Wall / (Mount Included) |
| Power Method | PoE / PoE+ (Required for PoE output) |
| Performance | |
| MIMO · 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 5 GHz | 4.8 Gbps (BW160) |
| Max. Data Rate · 2.4 GHz | 573.5 Mbps (BW40) |
| Antenna Gain · 5 GHz | 5.9 dBi |
| Antenna Gain · 2.4 GHz | 5 dBi |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 13W (Excluding PoE output) |
| Networking Interface | (1) Data-in: GbE RJ45 port / (4) Data-out: GbE RJ45 ports |
| Weight | 460 g (1 lb) |
| Management | Ethernet / Bluetooth |
| Built-In Switch | (4) GbE ports with (1) PoE output |
| Enclosure Material | Plastic, aluminum |
| Mount Material | Aluminum |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 11546-22-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 6.0.45 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model U6-IW · Ubiquiti's spec sheet
