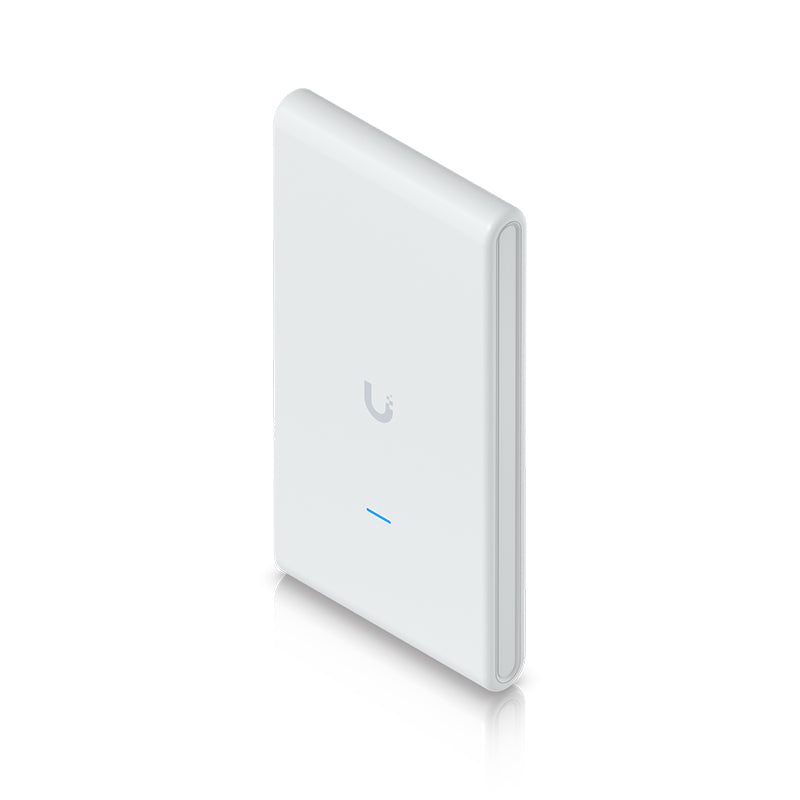

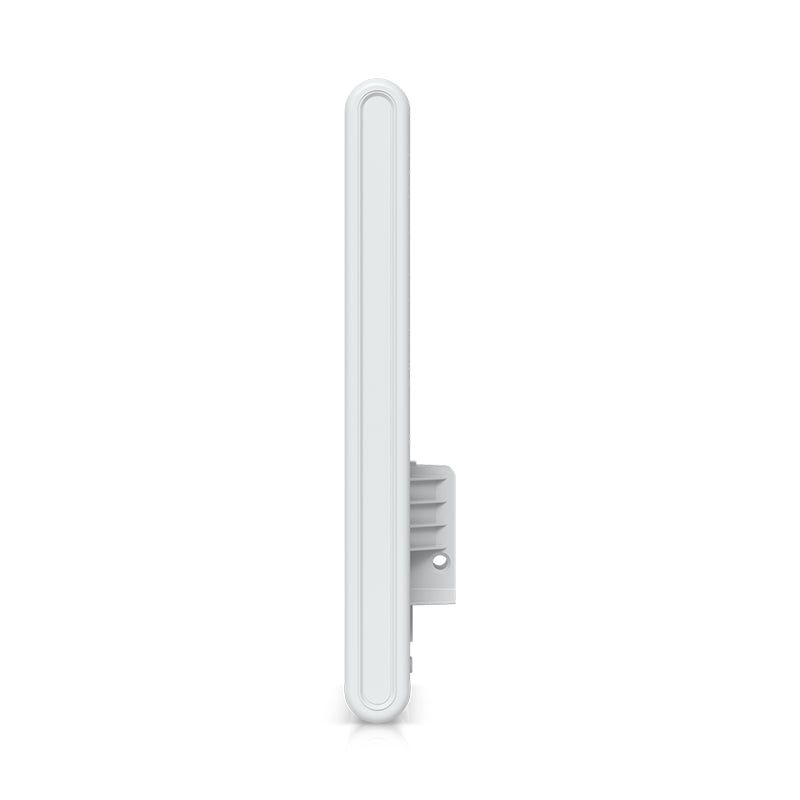

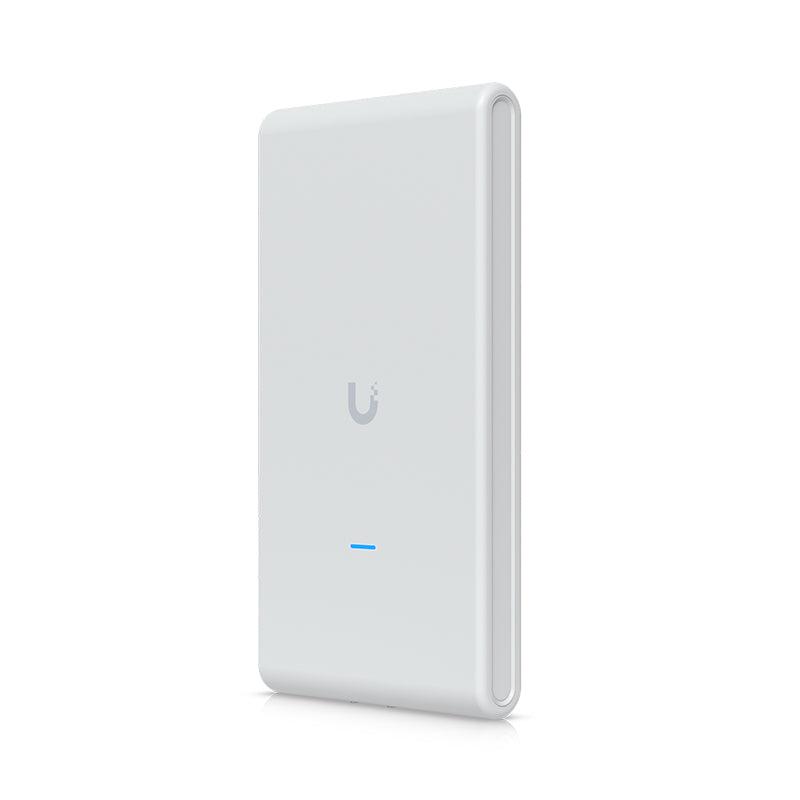

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
U6-Mesh-Pro
U6-Mesh-Pro Ubiquiti UniFi U6 Mesh Pro
$413.72 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

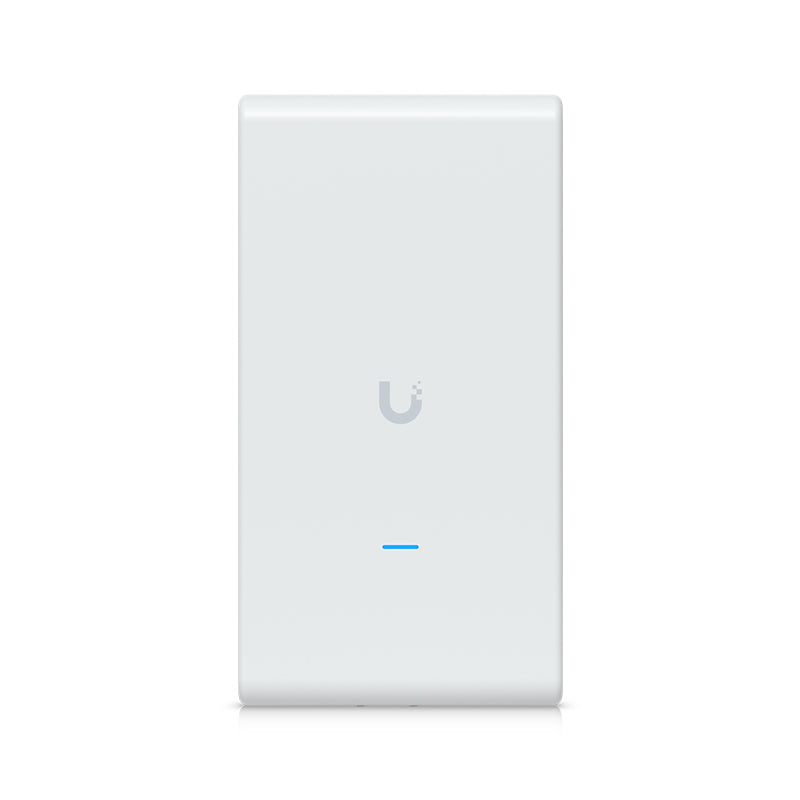

Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
Features:
WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices
Powered using PoE
GbE uplink with (1) GbE passthrough port

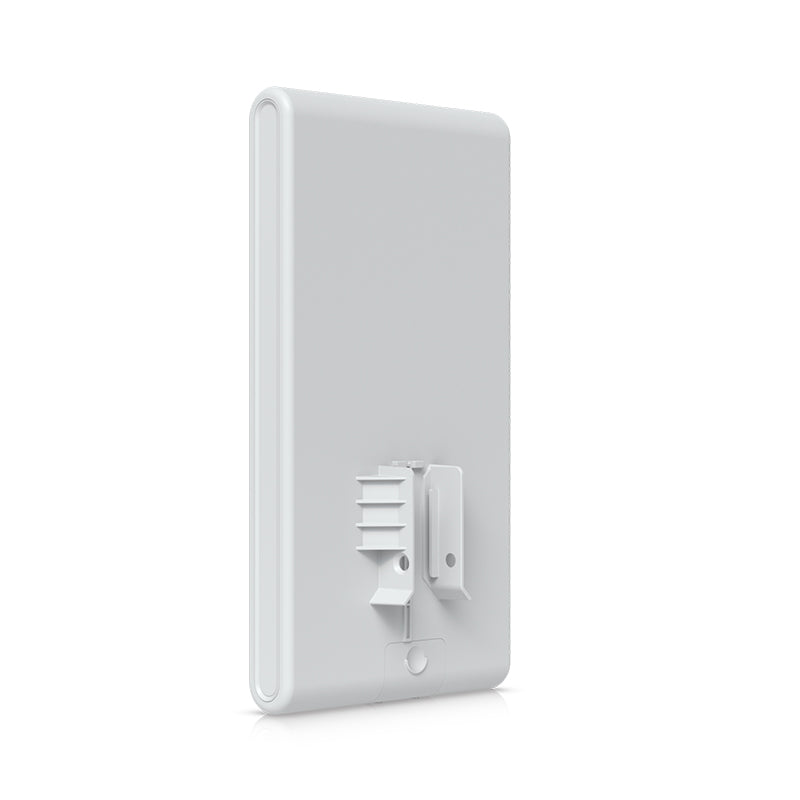

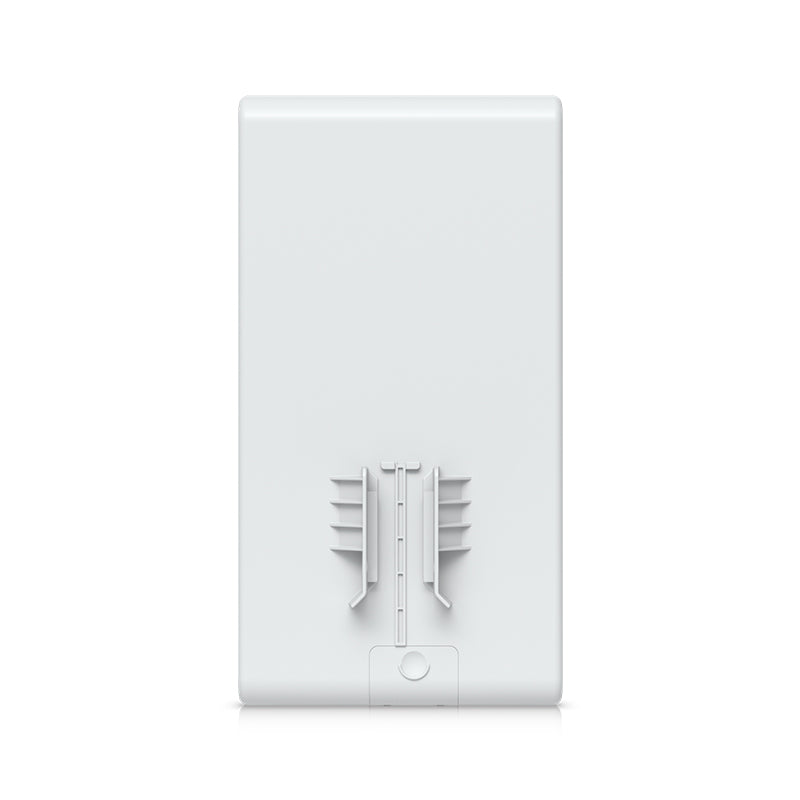

Versatile wall and pole mounting (pole shown in images not included in purchase)
Weatherproof (outdoor exposed)
Frequently asked questions5 questions
Can the U6-Mesh-Pro be used outdoors?
Yes. It is an indoor/outdoor access point with an IPX6 weatherproof rating and a UV-stabilised polycarbonate enclosure. It operates in ambient temperatures from -30 to 60° C.
How is the U6-Mesh-Pro powered?
It is powered over PoE, with a supported voltage range of 42.5–57V DC and maximum power consumption of 9W. No separate power adapter is mentioned for it.
What WiFi speeds and coverage does it offer?
It is a WiFi 6 access point with 4 spatial streams, offering up to 2.4 Gbps on 5 GHz (BW160) and 573.5 Mbps on 2.4 GHz (BW40). The integrated omnidirectional super antenna covers around 185 m² (2,000 ft²).

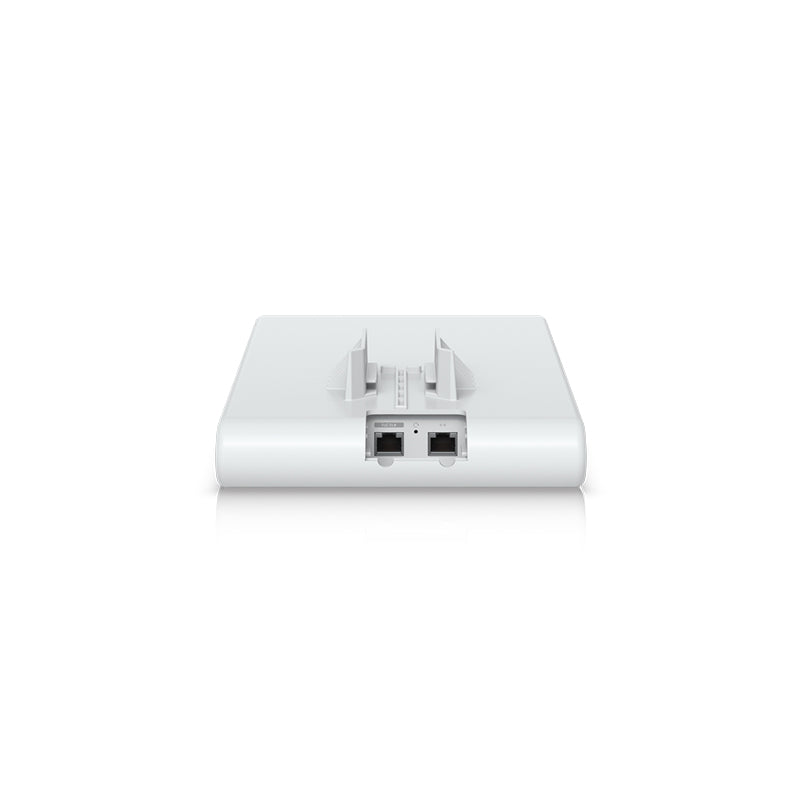

What network ports does it have?
It has two GbE RJ45 ports: a gigabit uplink and a gigabit passthrough port. It can be managed over Ethernet or WiFi using UniFi Network version 8.1.127 or later.

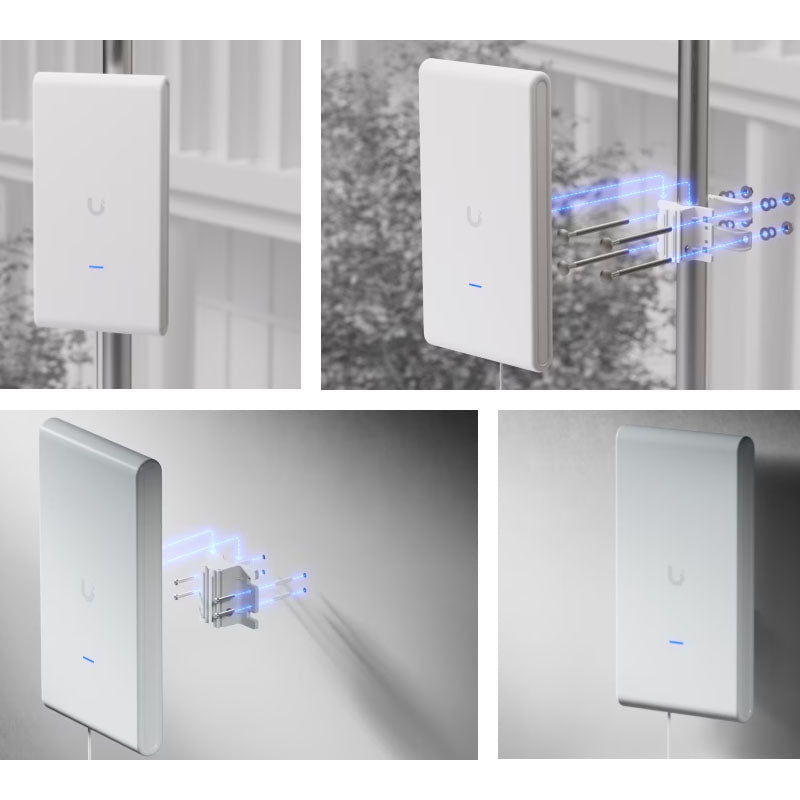

How can I mount the U6-Mesh-Pro?

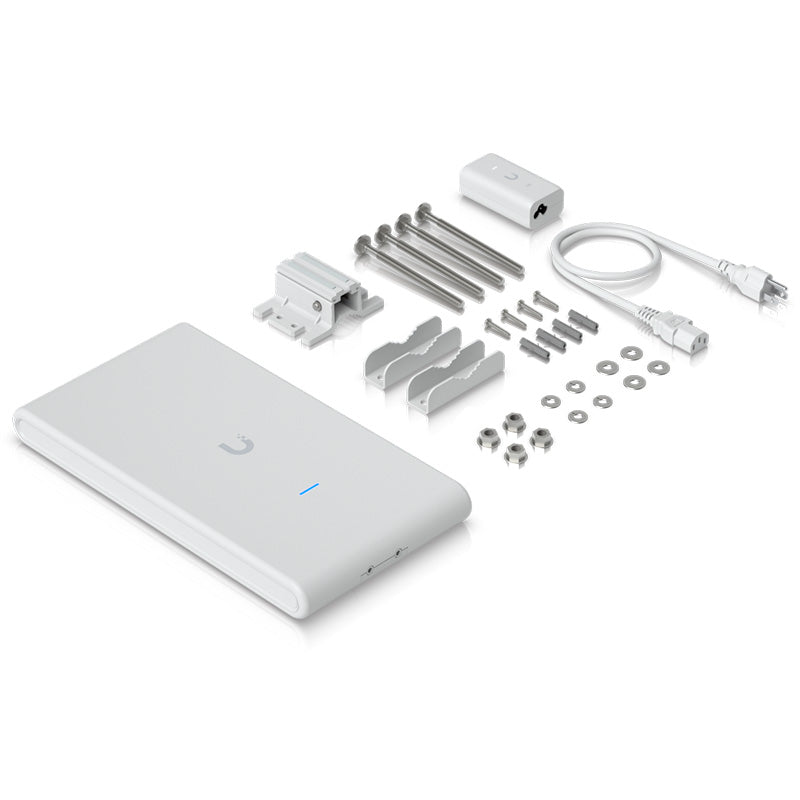

It supports wall and pole mounting, and the mounts are included. The pole mount fits poles from 1–2.5" (25–63.5 mm) in diameter. The pole shown in product images is not included.
Customer reviews
5.0
· 1 review
Specifications36 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 343.2 x 181.2 x 60.2 mm / (13.5 x 7.1 x 2.4") |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 4 |
| Coverage Area | 185 m² (2,000 ft²) |
| Max. Client Count | 250+ |
| Uplink | GbE |
| Mounting | Wall, Pole / (Mounts Included) |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 5 GHz | 2.4 Gbps (BW160) |
| Max. Data Rate · 2.4 GHz | 573.5 Mbps (BW40) |
| Antenna Gain · 5 GHz | 8 dBi |
| Antenna Gain · 2.4 GHz | 8 dBi |
| Max. TX Power · 5 GHz | 27 dBm |
| Max. TX Power · 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40) |
| Hardware | |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (2) GbE RJ45 ports |
| Weight | 819 g (1.8 lb) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet / WiFi |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | Aluminum alloy, steel |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06377-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.1.127 and later |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model U6-Mesh-Pro · Ubiquiti's spec sheet
