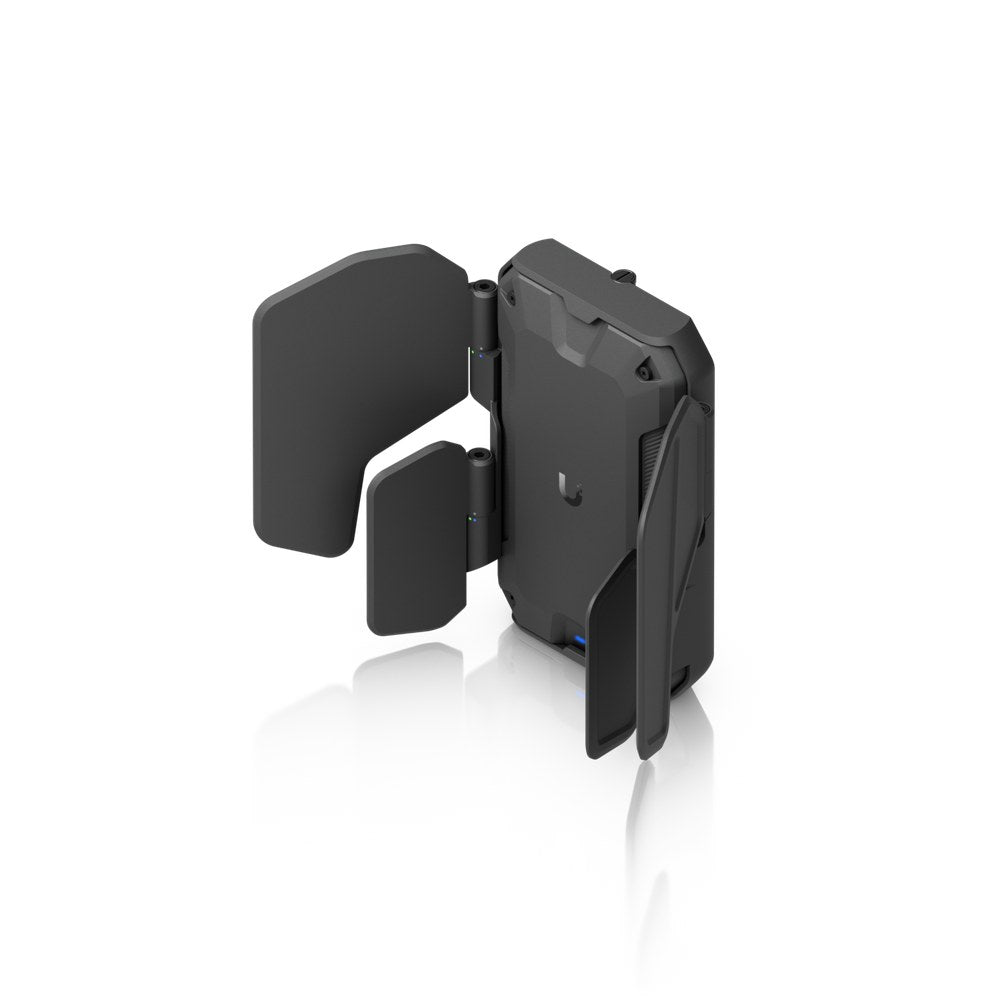

U7-Industrial - Ubiquiti Access Point U7 Industrial
- Order today · 15 OctAdded to our next Ubiquiti order
- Ship date confirmedBy email once Ubiquiti allocates stock
- Delivered · by 4 – 13 NovOur aim: 14–21 working days from your order
Confirmation now, tracking the moment it ships.
How pre-orders work
How pre-orders work
We are just not quite the same as many of the other online stores. I know it is easy to say that, but we just aren't.
The Tech Geeks, under their parent company Twelve Times (Worldwide) Pty Ltd trade in Australia, New Zealand and the United Kingdom.
This allows us to purchase stock from suppliers from locations where they have it available. We are then able to import those products directly, along with providing localised Warranty and Replacement as required.
We only list items that we know have been, or are about to be released to us and since we purchase only in small batches these are often flown in on short time frames.
We list on each product our expected shipments and ones that we have already sent out to customers. Please use these dates as a guideline as we always suggest 14-21 days just to allow for air freight or customs hold ups.
Want to know when new product stock is released? why not sign up here to our alerts.
Description
Description

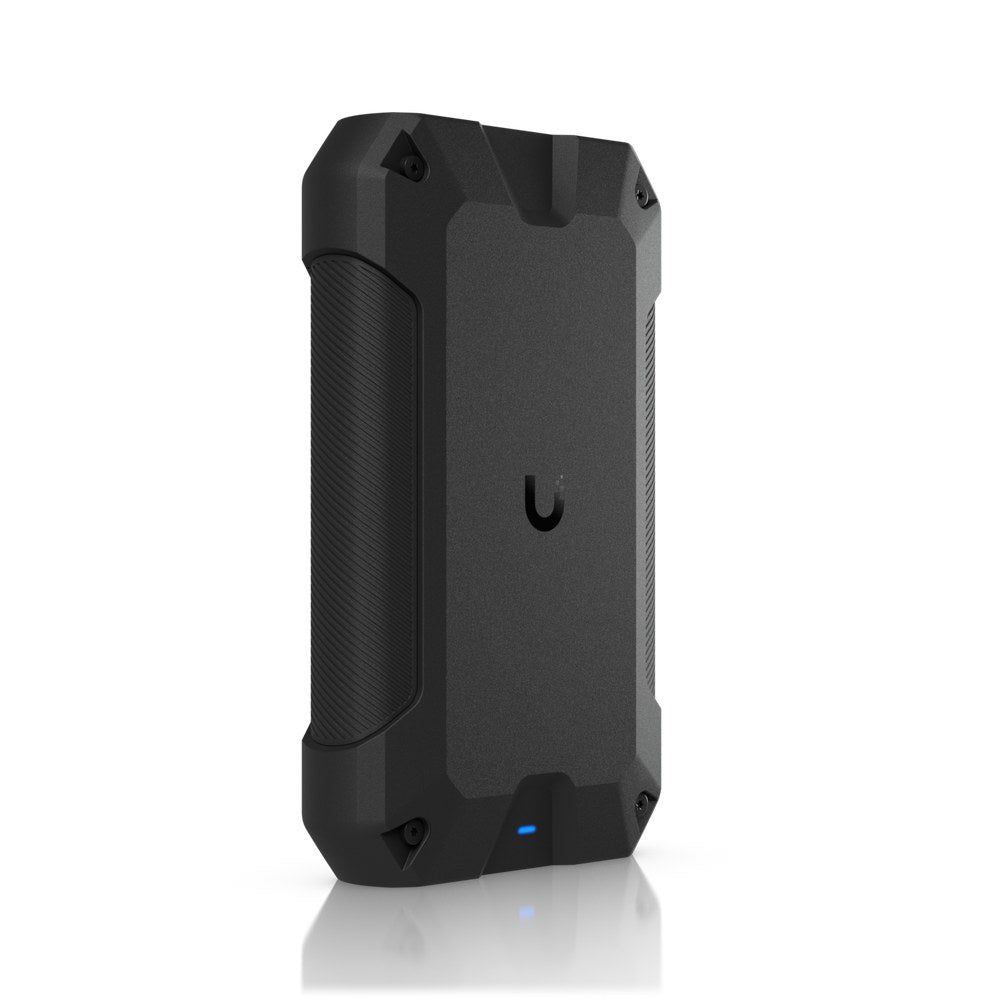

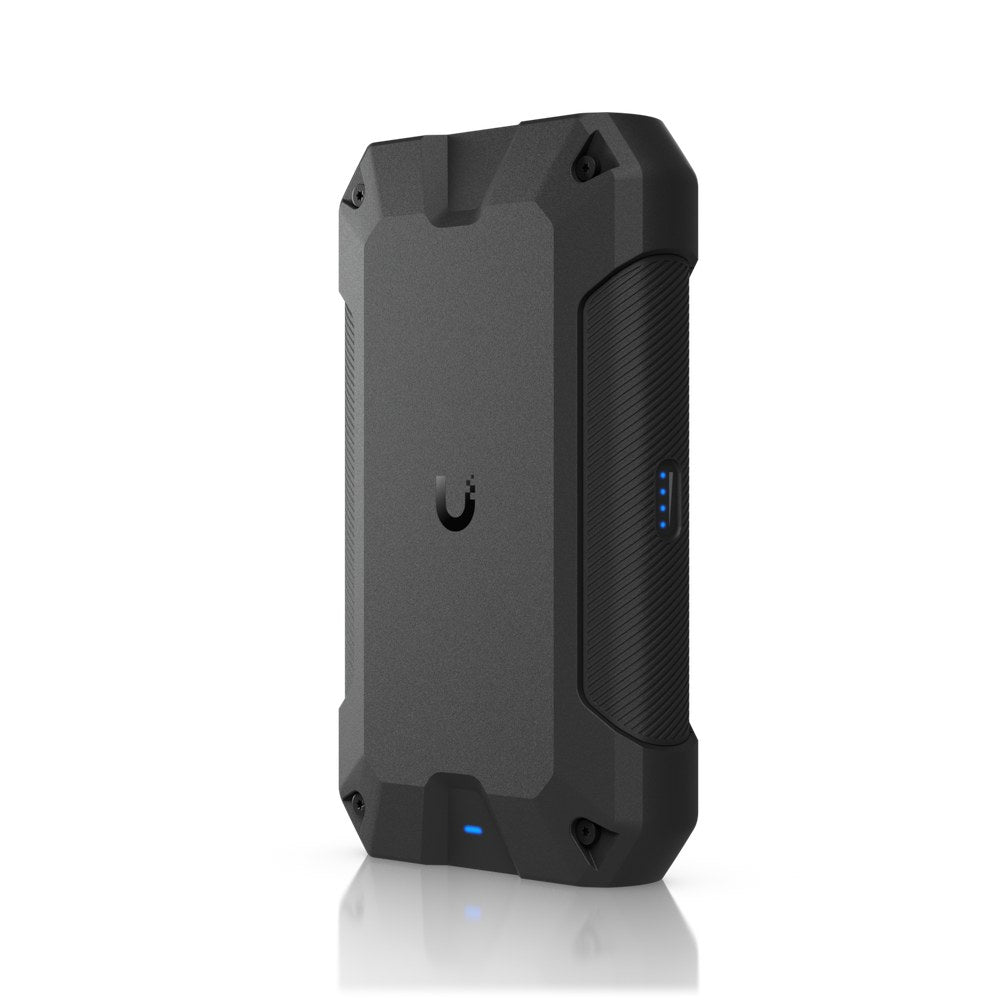

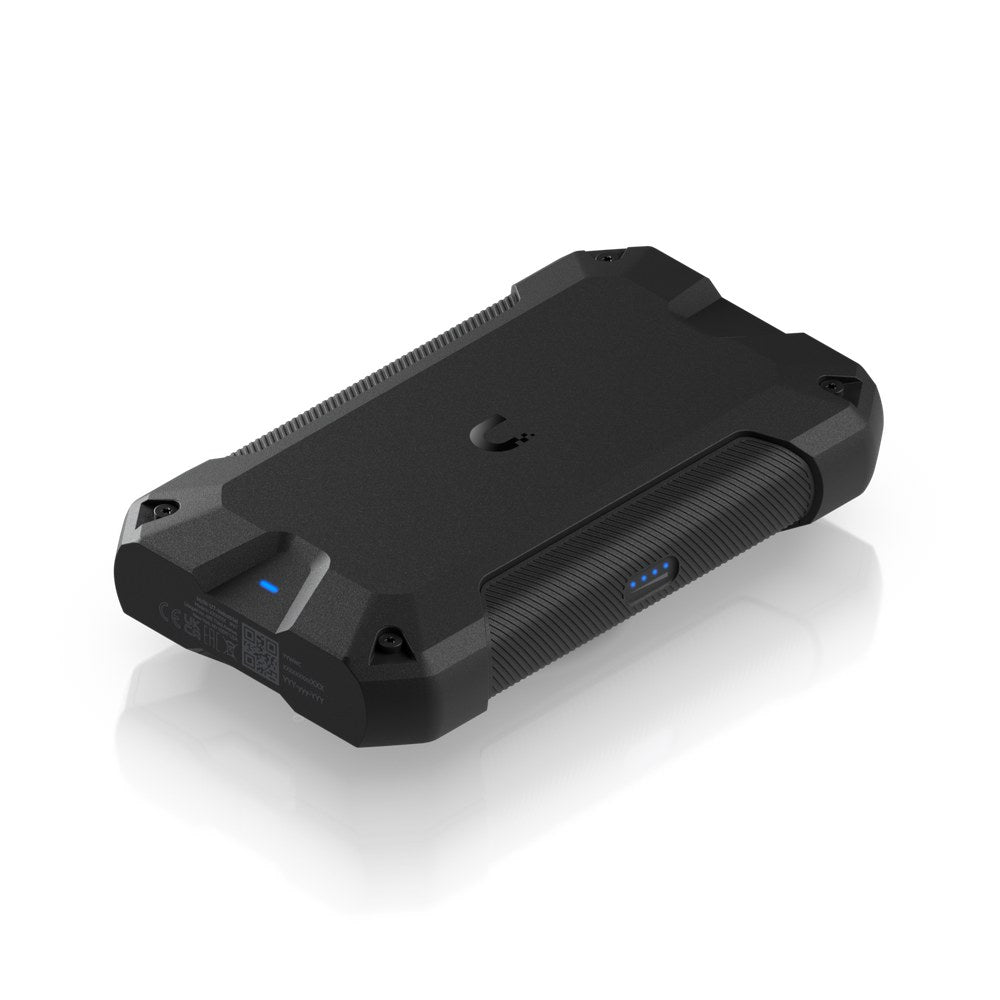

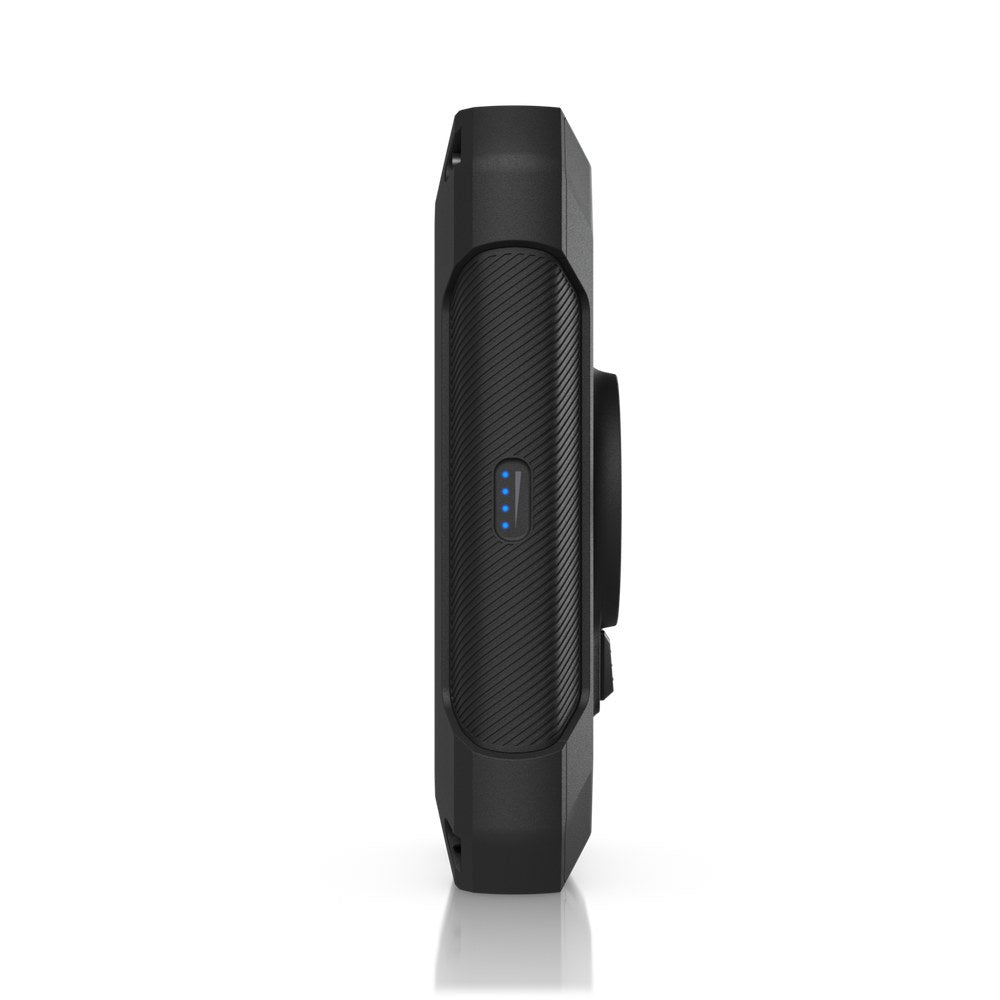

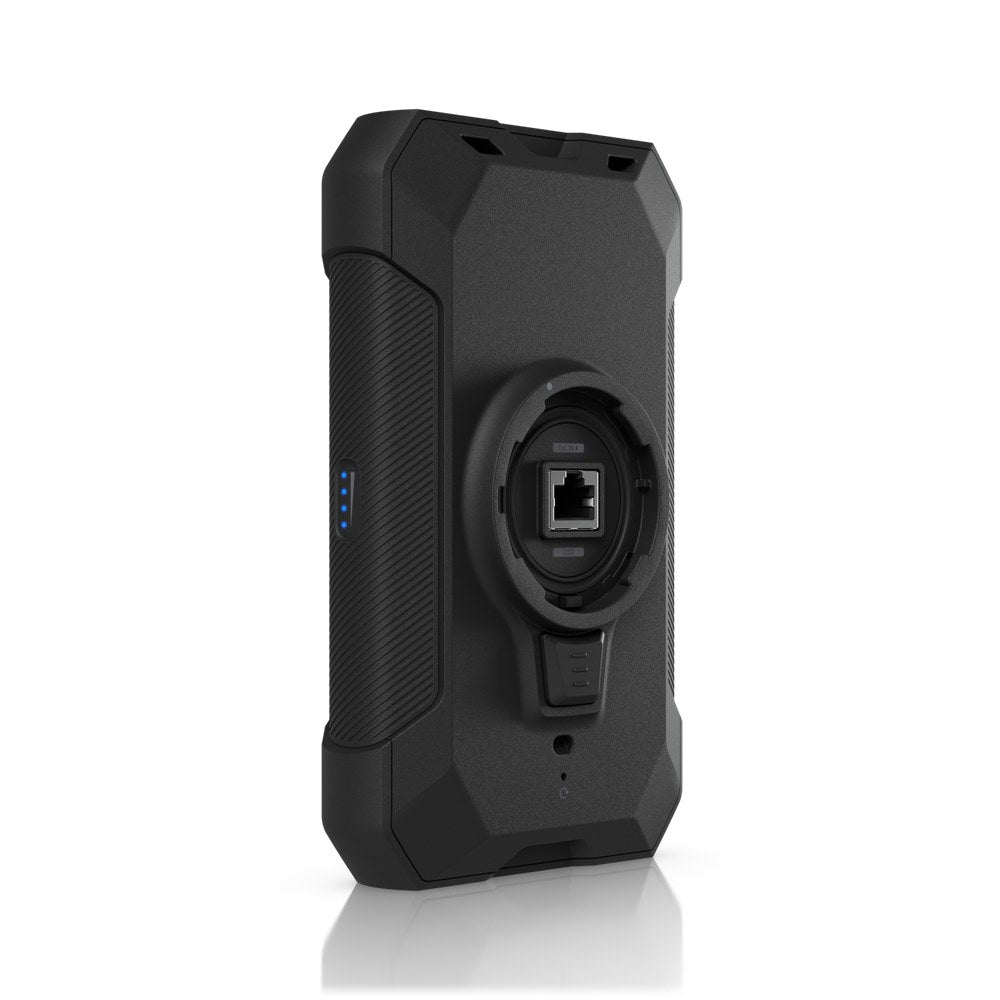

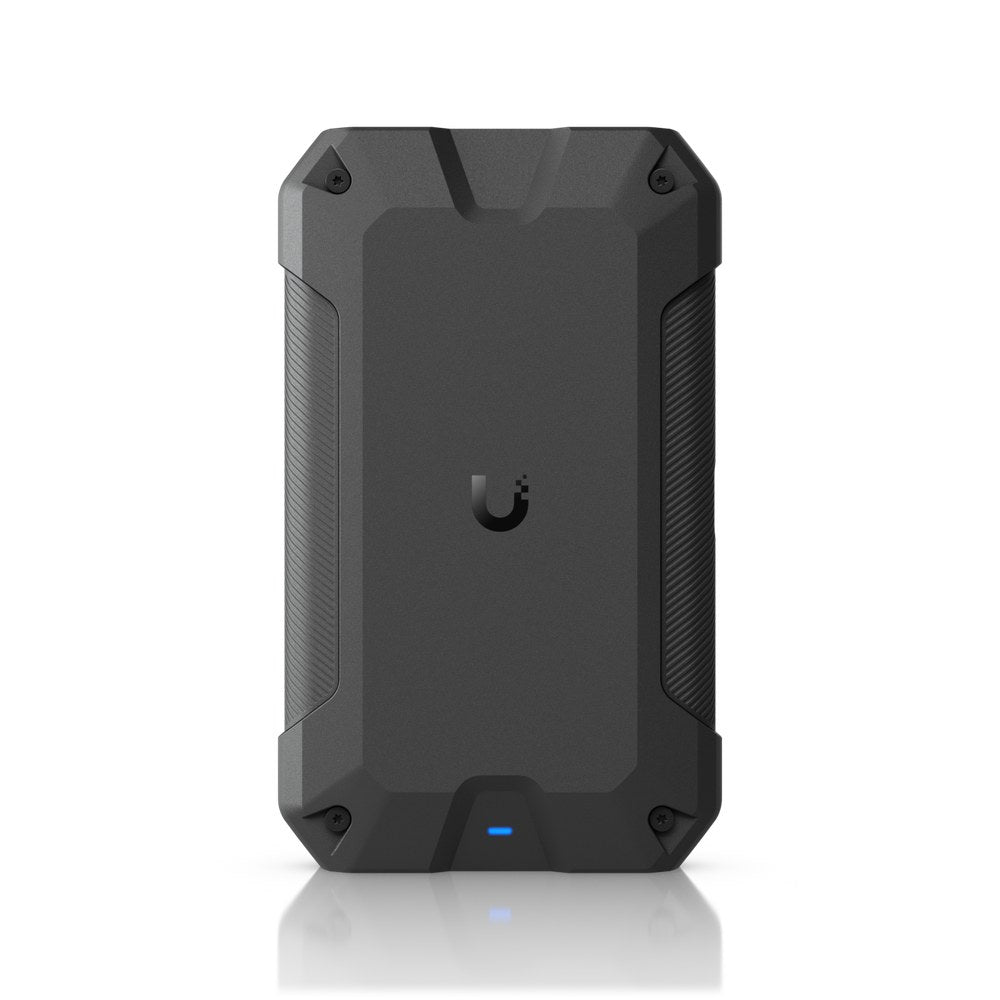

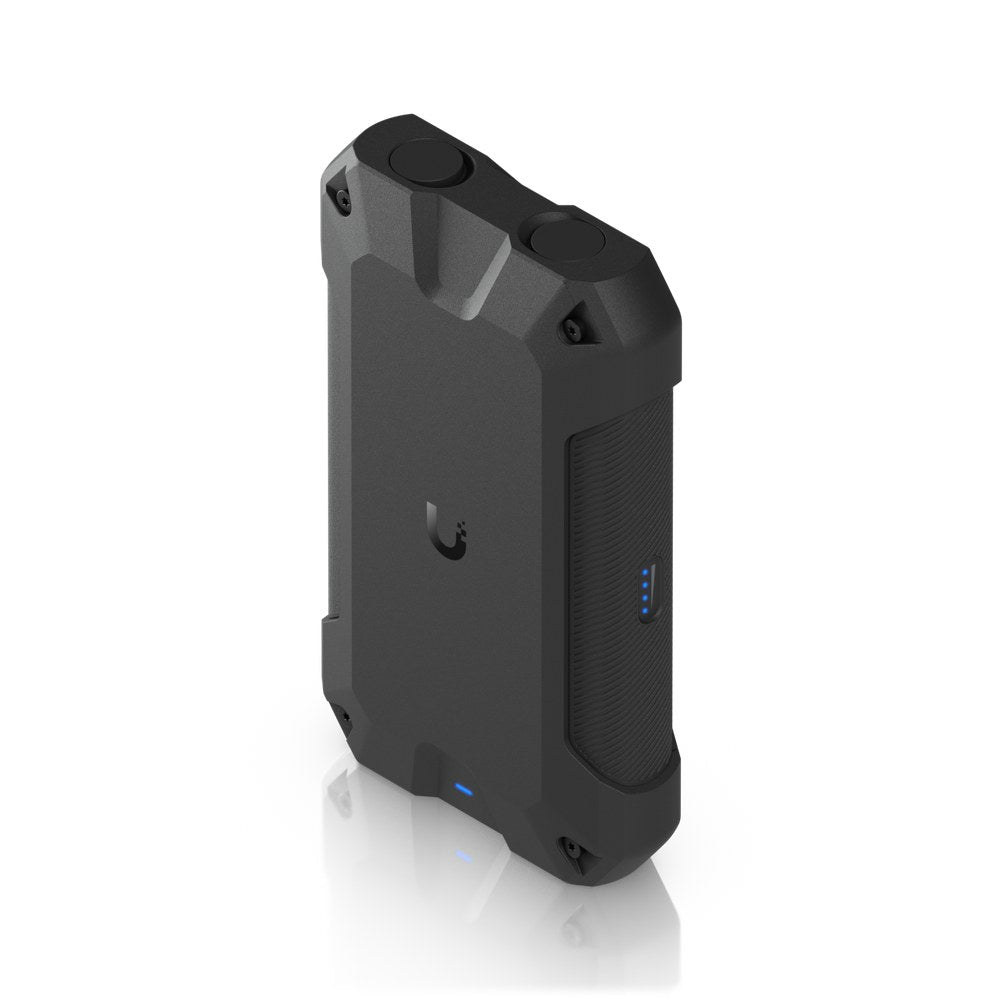

The Ubiquiti Access Point U7 Industrial (U7-Industrial) is an IP67 industrial WiFi 7 access point with extended-temperature operation and an integrated high-gain directional RF system featuring adjustable isolation and beamwidth control. It is designed to deliver high-speed WiFi 7 connectivity for campuses, warehouses, manufacturing facilities and other demanding environments.
Housed in a UV-stabilised polycarbonate and aluminium alloy enclosure, the U7-Industrial is rated to operate from -40 to 70°C, making it a dependable rugged outdoor access point where standard hardware would struggle. With 4 spatial streams, a 2.5 GbE uplink and a coverage area of up to 465 m², it pairs durability with serious wireless performance.
Key Features
- WiFi 7 with 4 spatial streams, 2 x 2 DL/UL MU-MIMO on both 5 GHz and 2.4 GHz
- Data rates up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz
- IP67 weatherproofing with an ambient operating temperature of -40 to 70°C

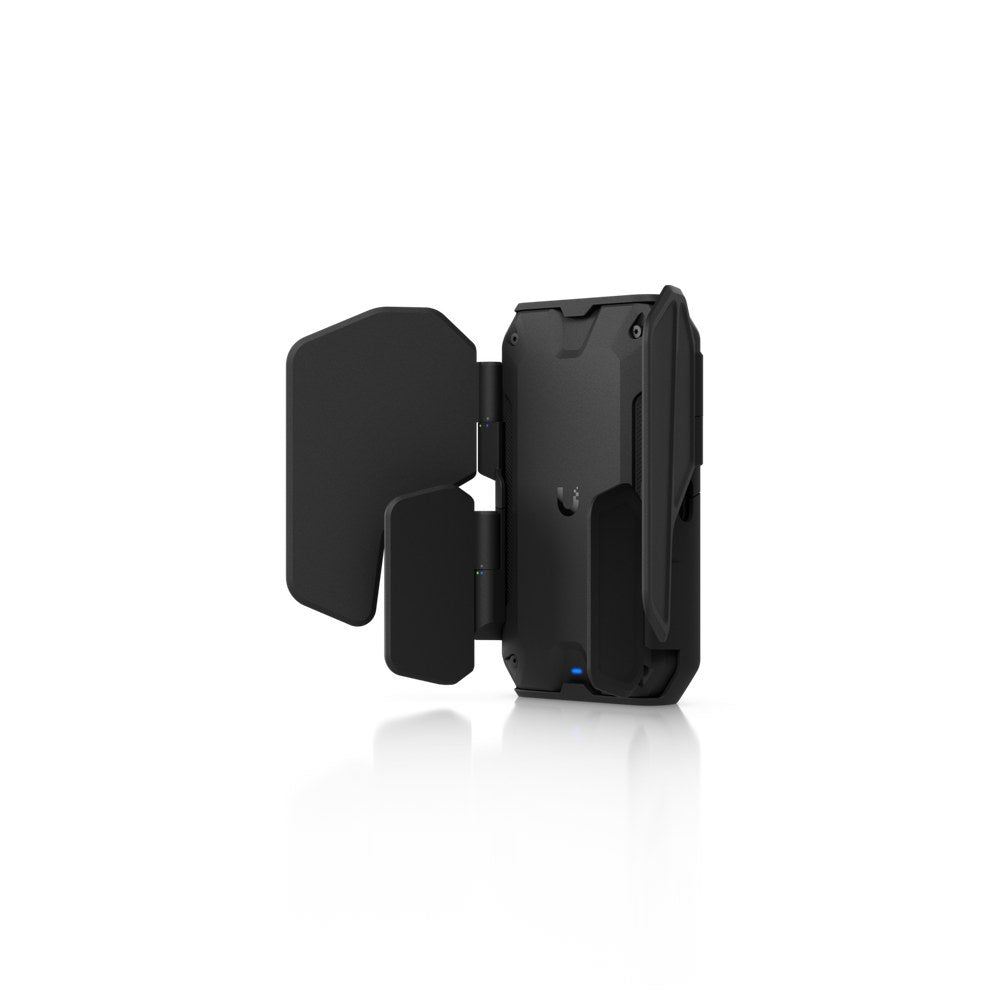

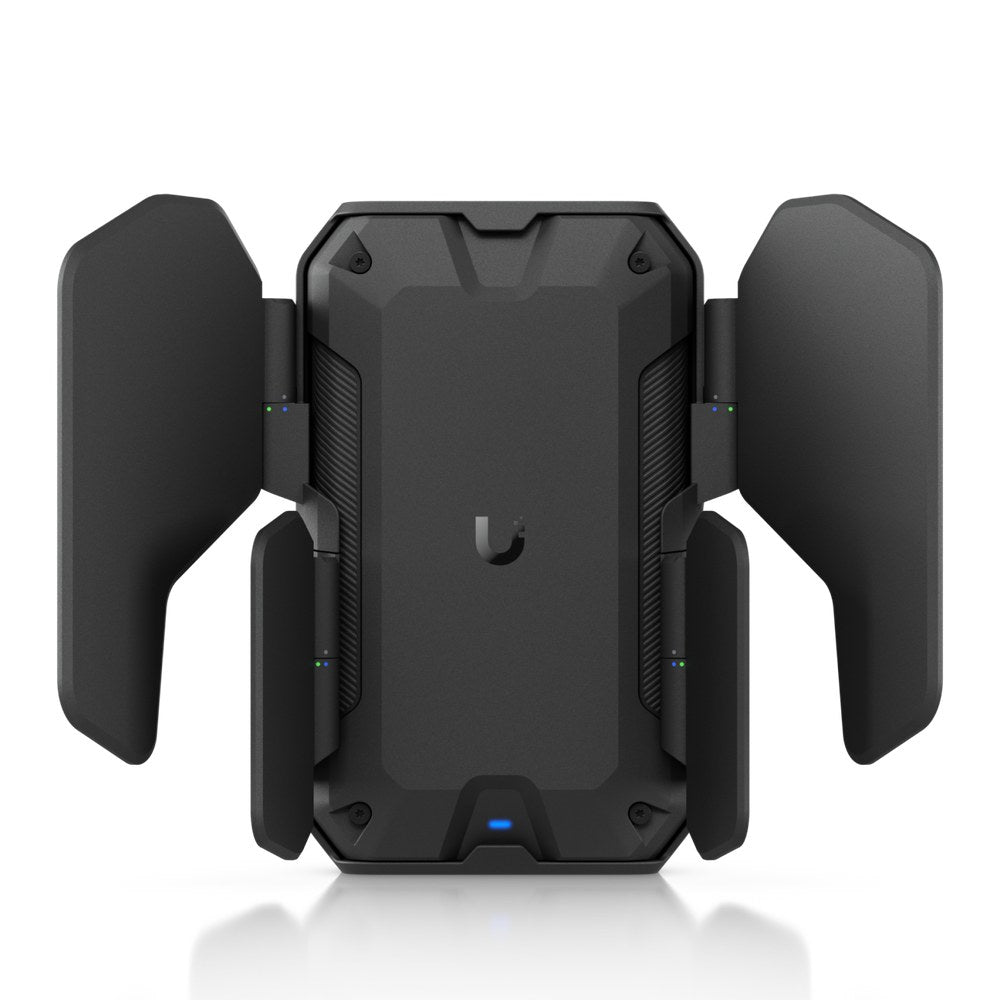

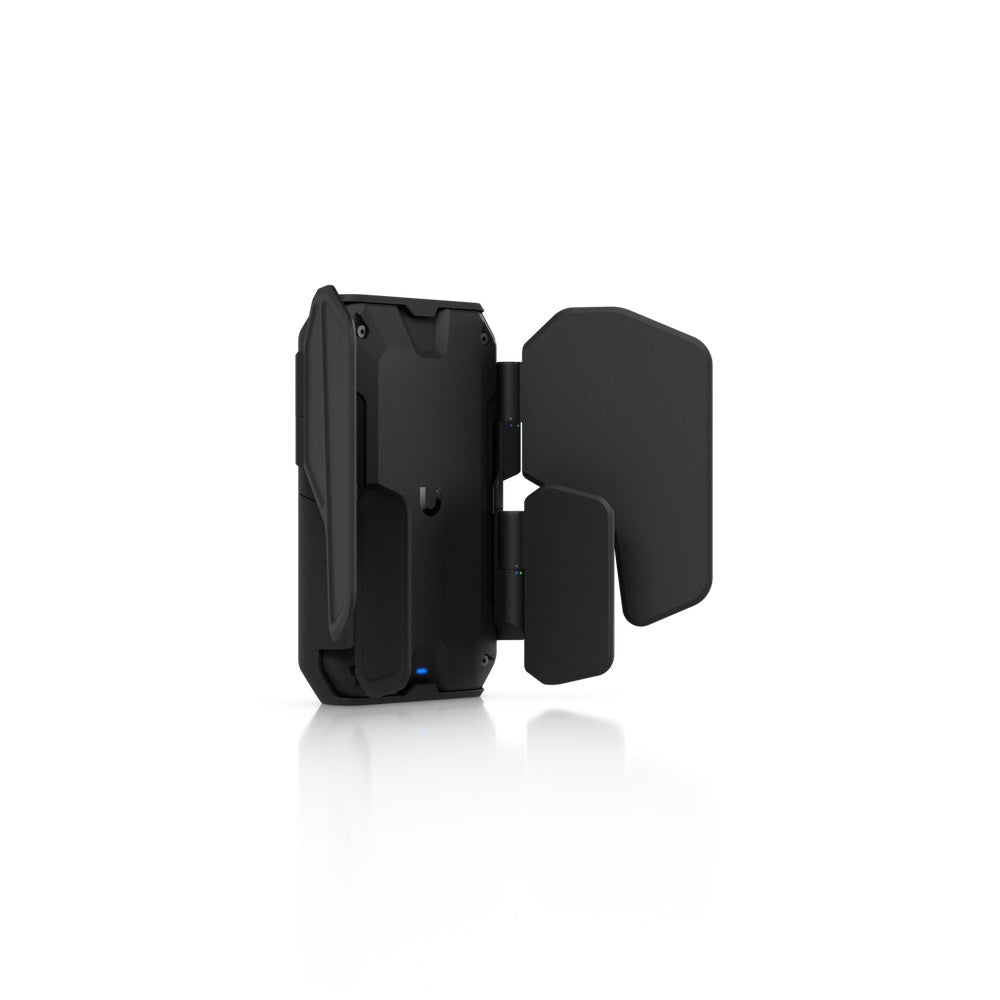

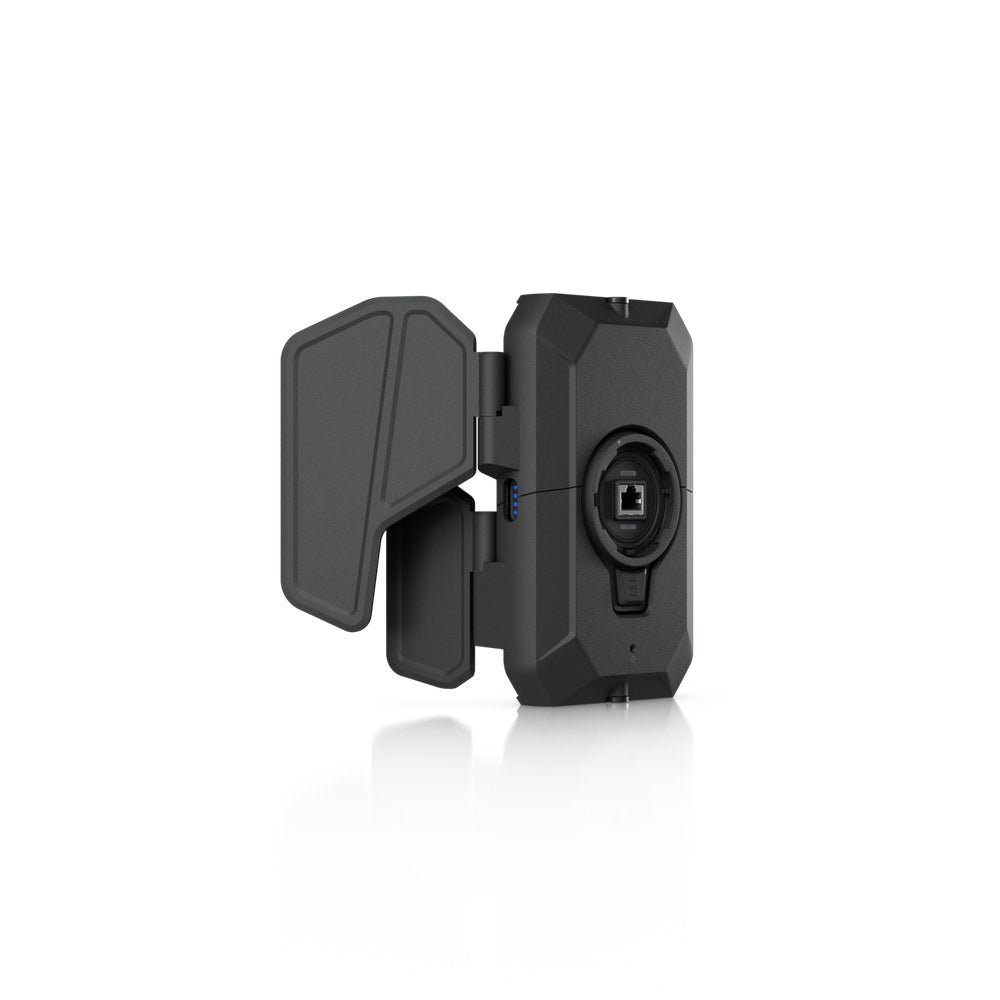

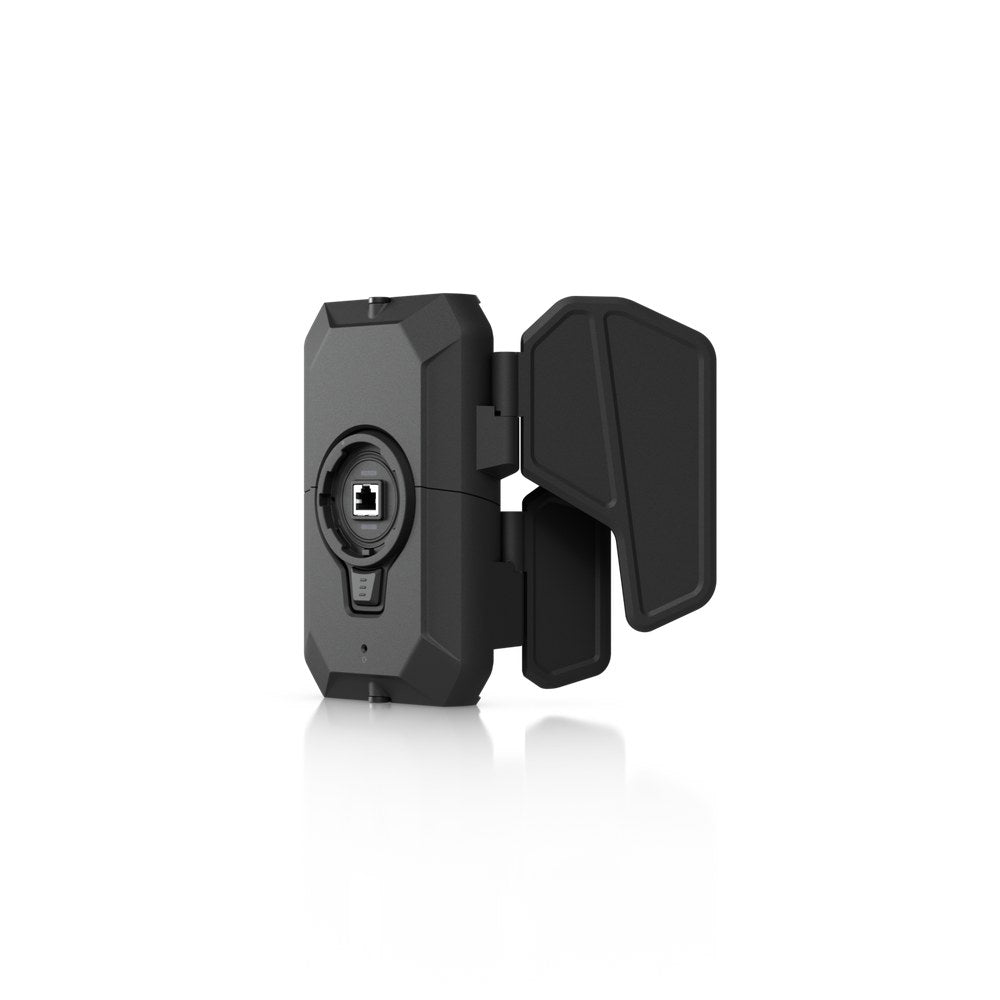

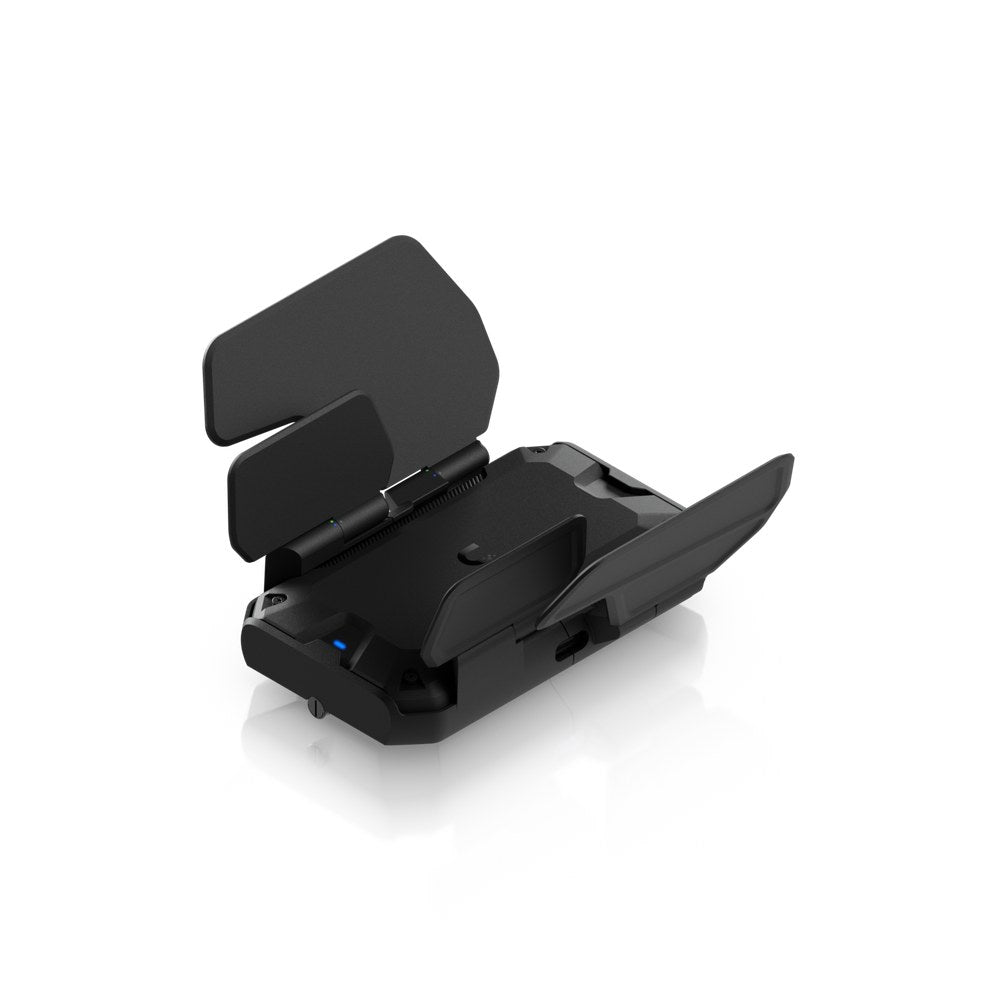

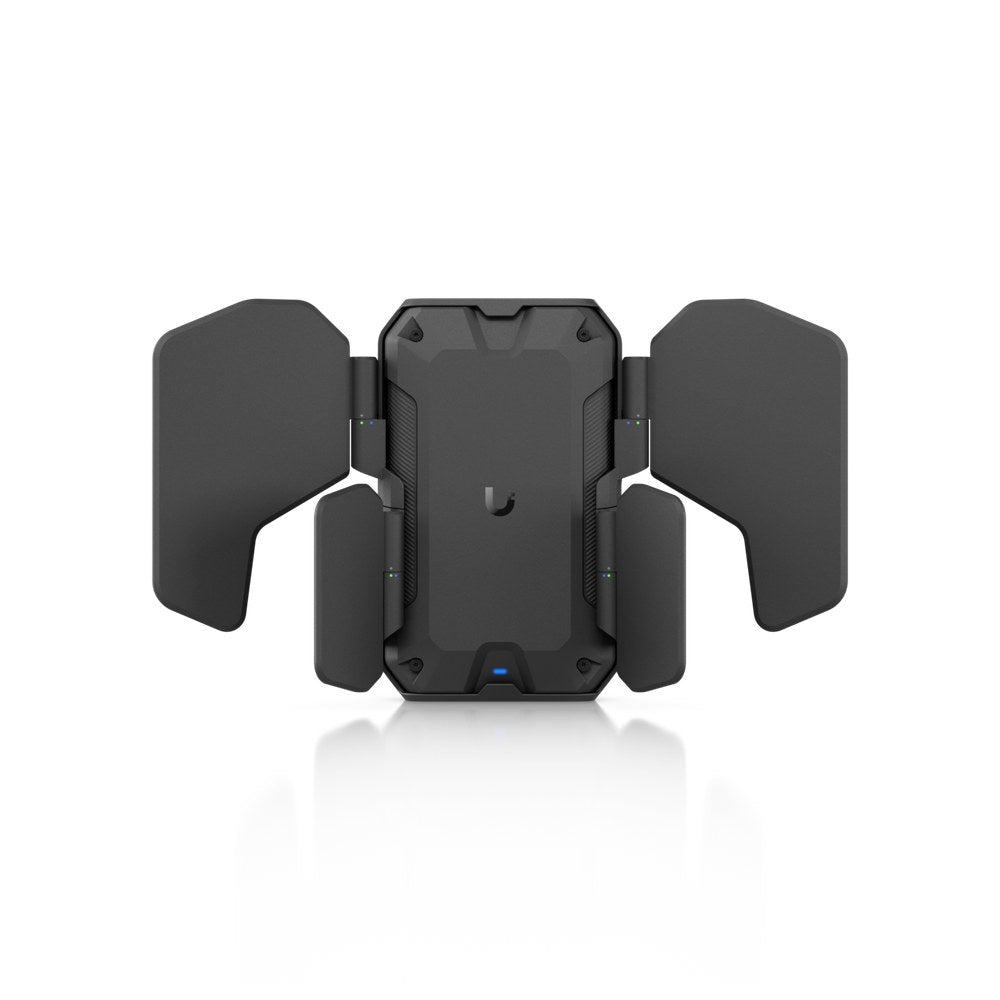

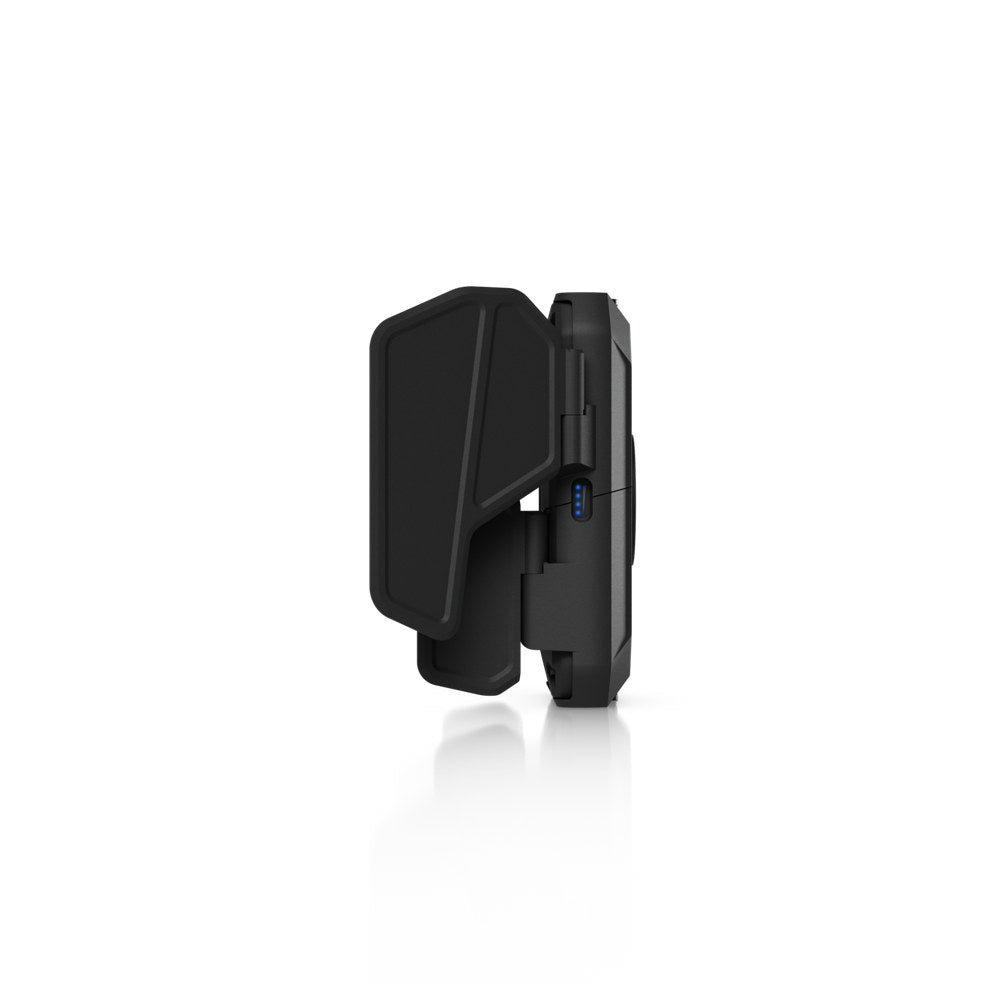

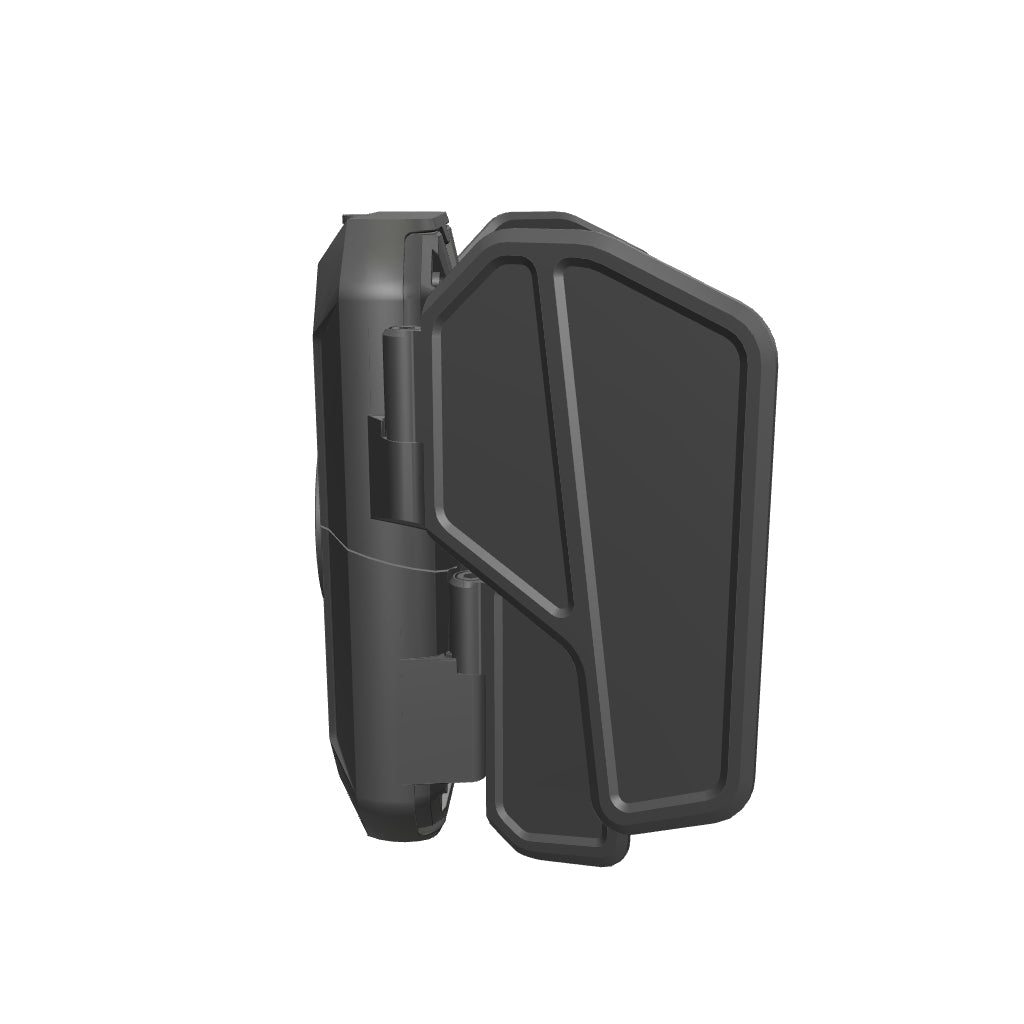

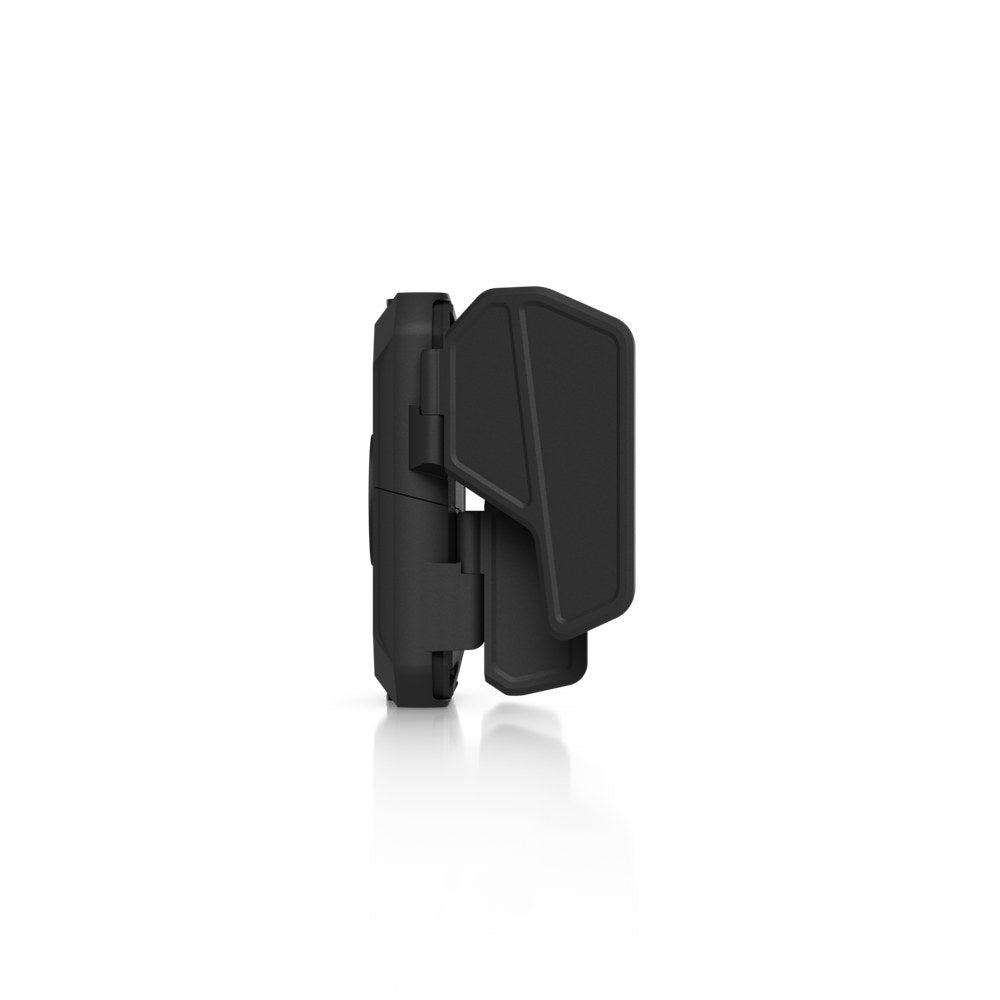

- Integrated high-gain directional antenna (10 dBi on 5 GHz and 8 dBi on 2.4 GHz), with reflector options for wide or narrow angle coverage

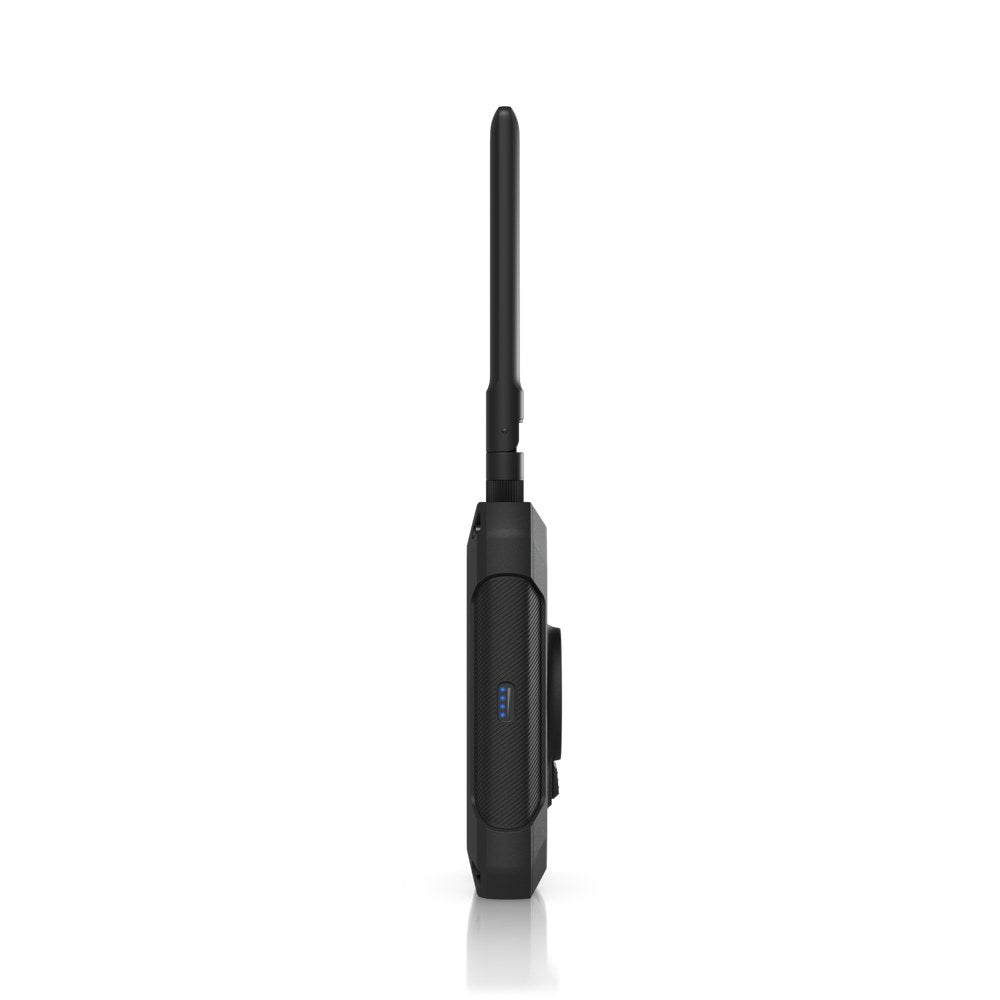

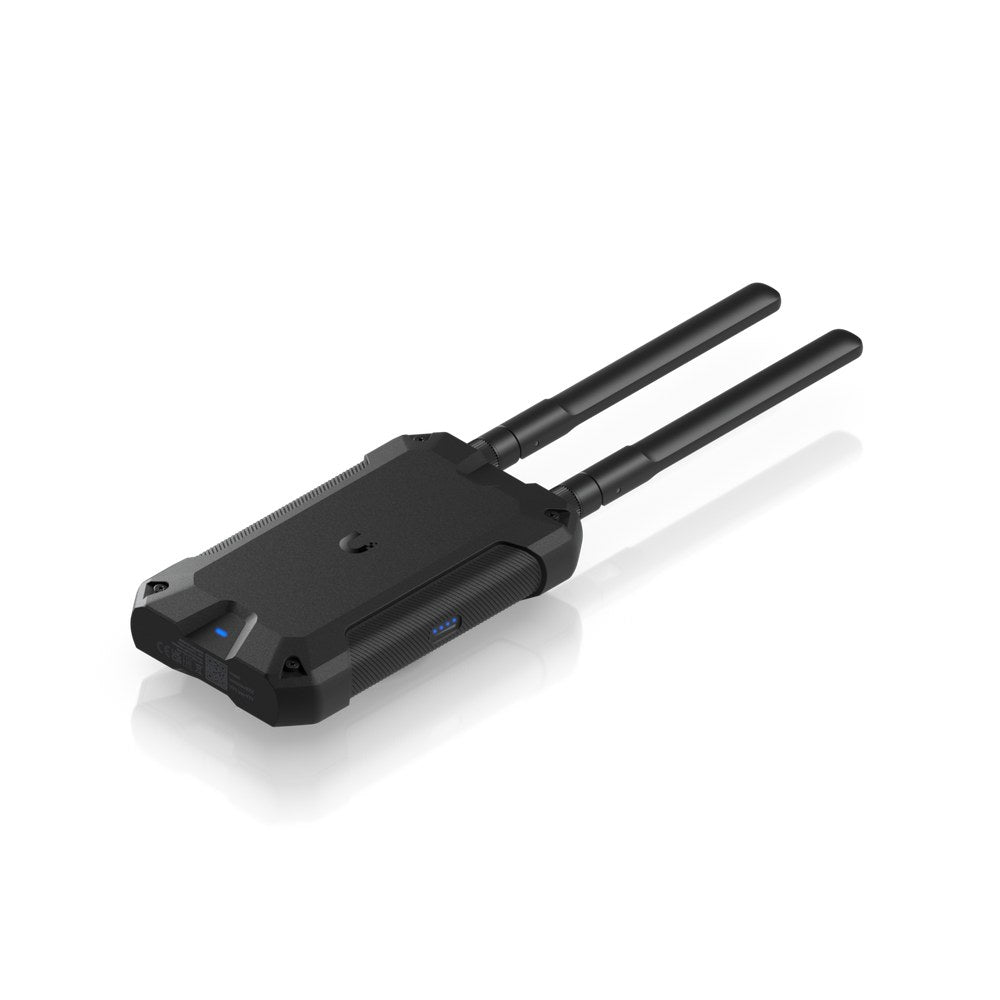

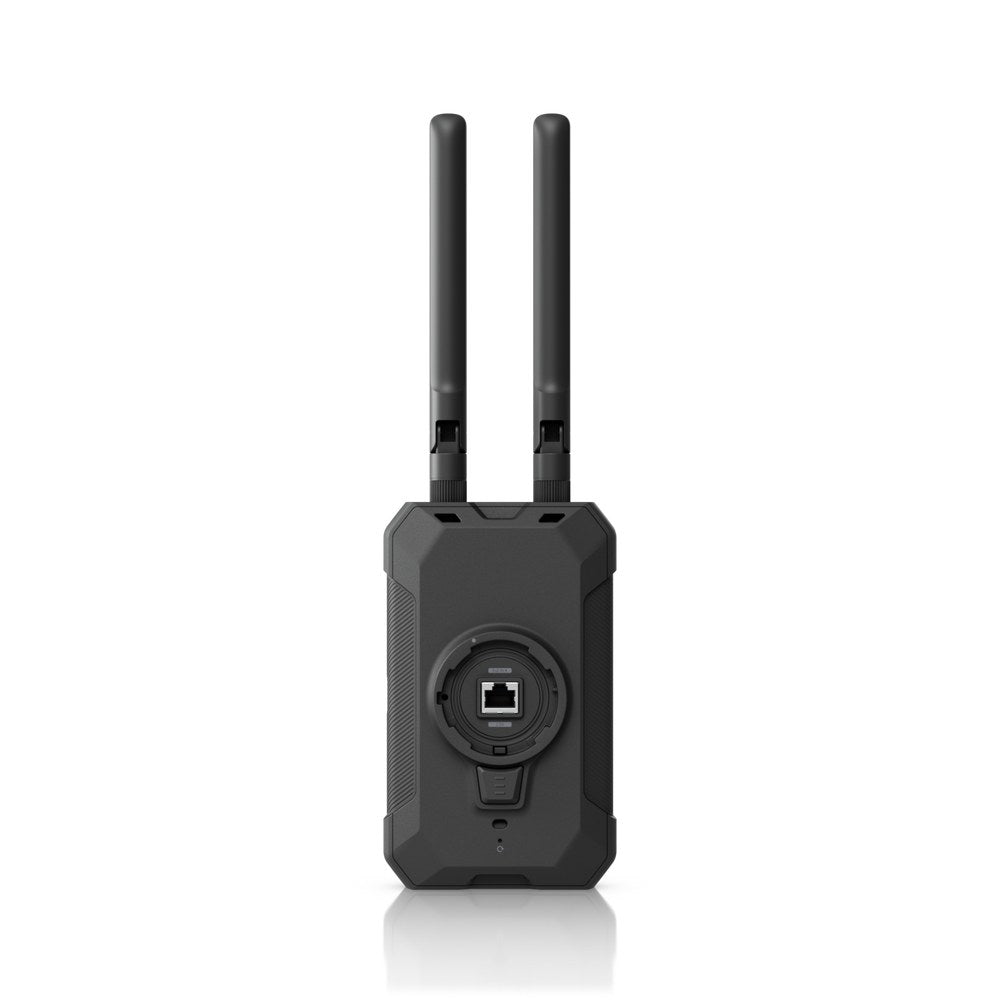

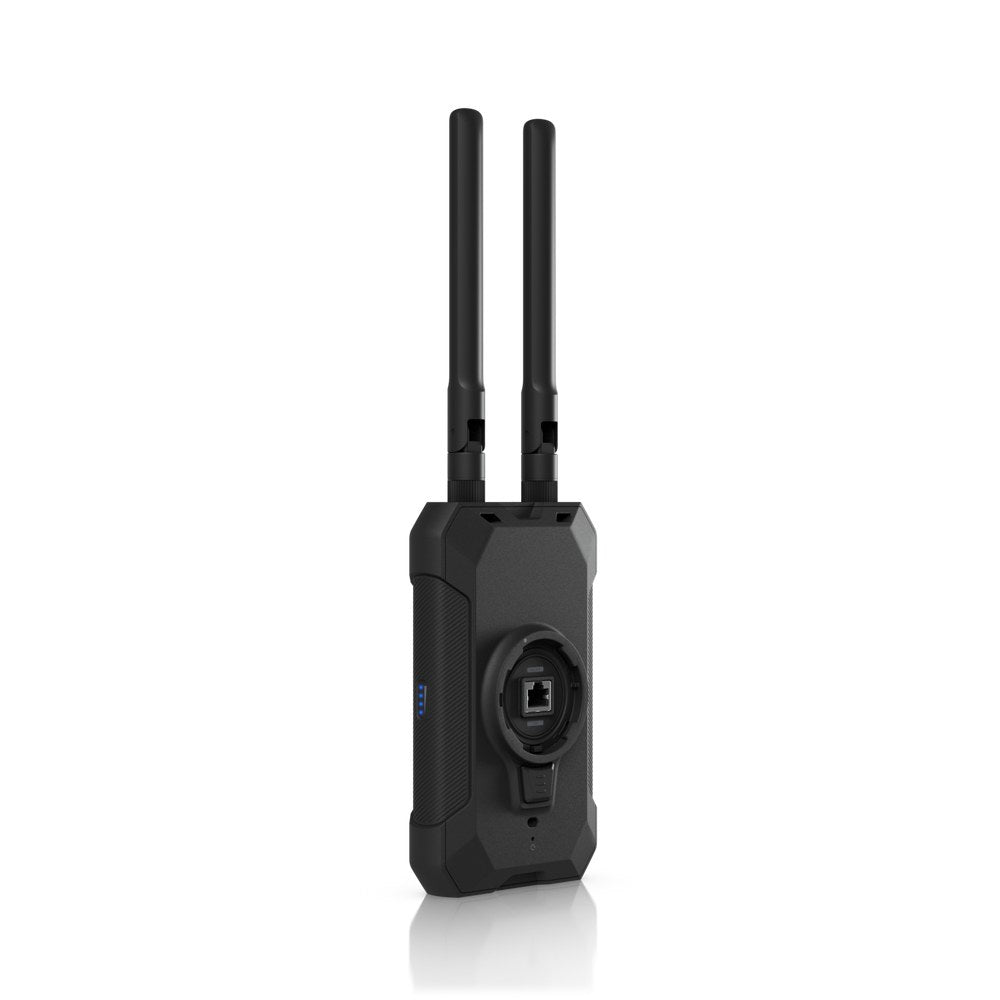

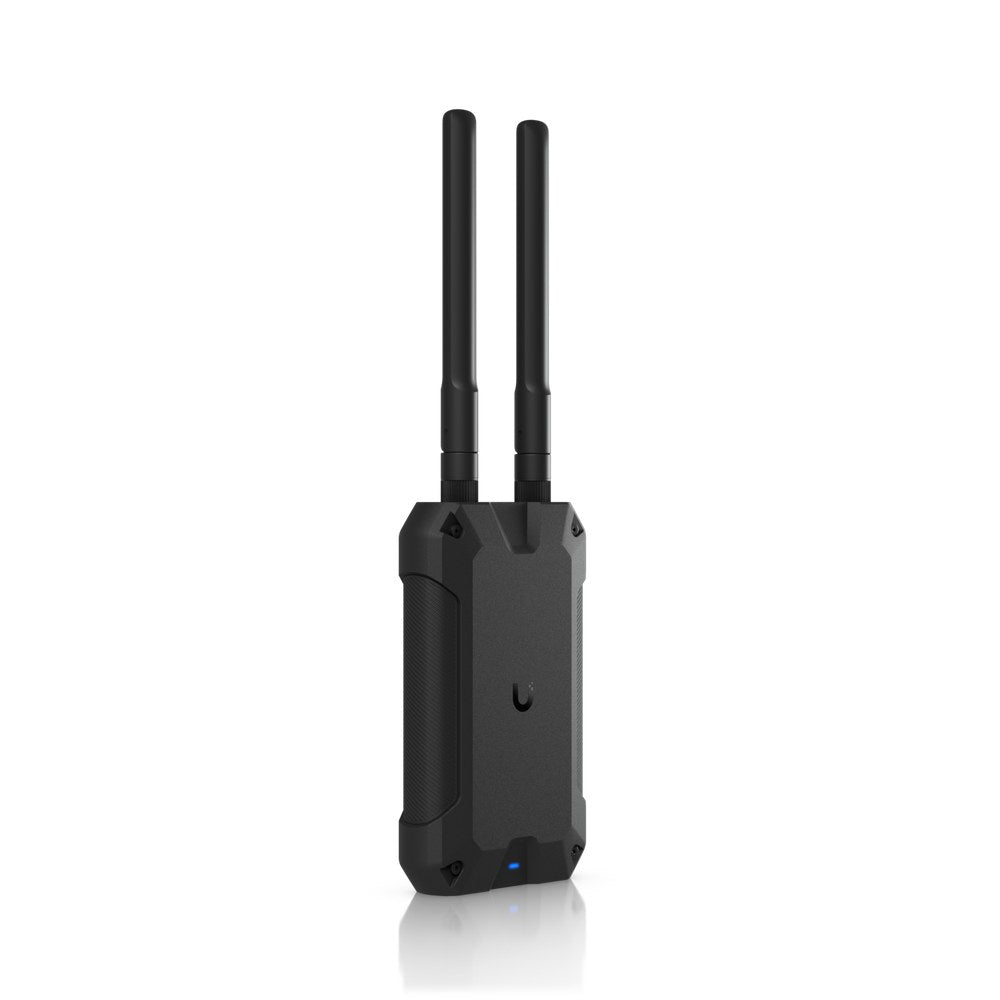

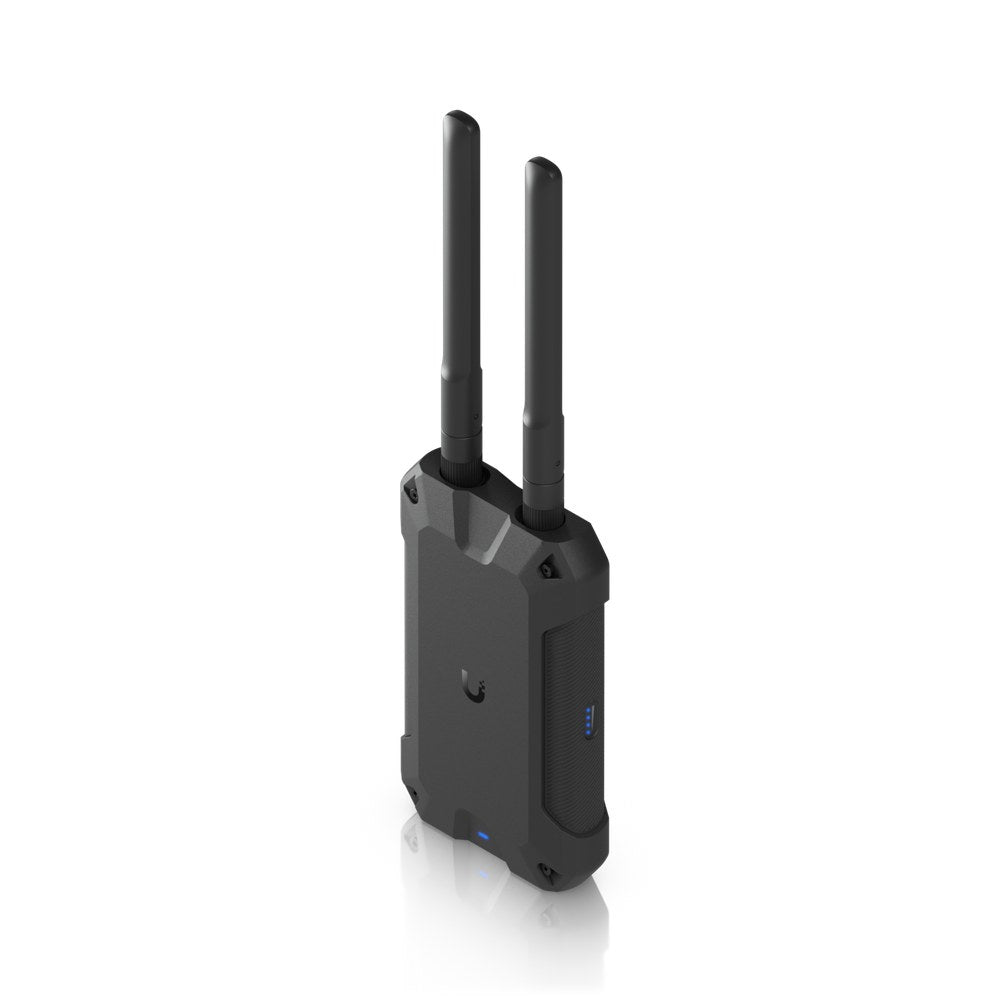

- External omni antennas for 360° coverage (6 dBi on 5 GHz, 5 dBi on 2.4 GHz)
- Adjustable RF isolation and beamwidth control for noisy RF environments

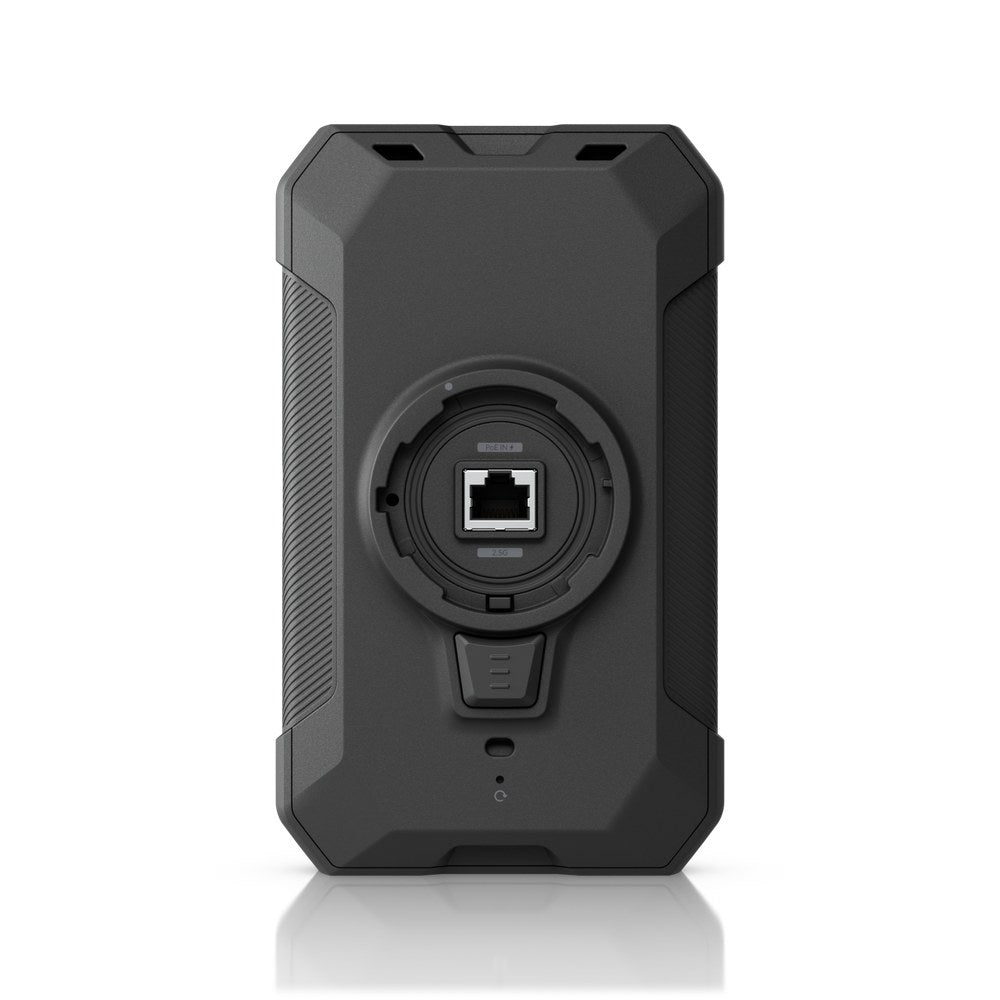

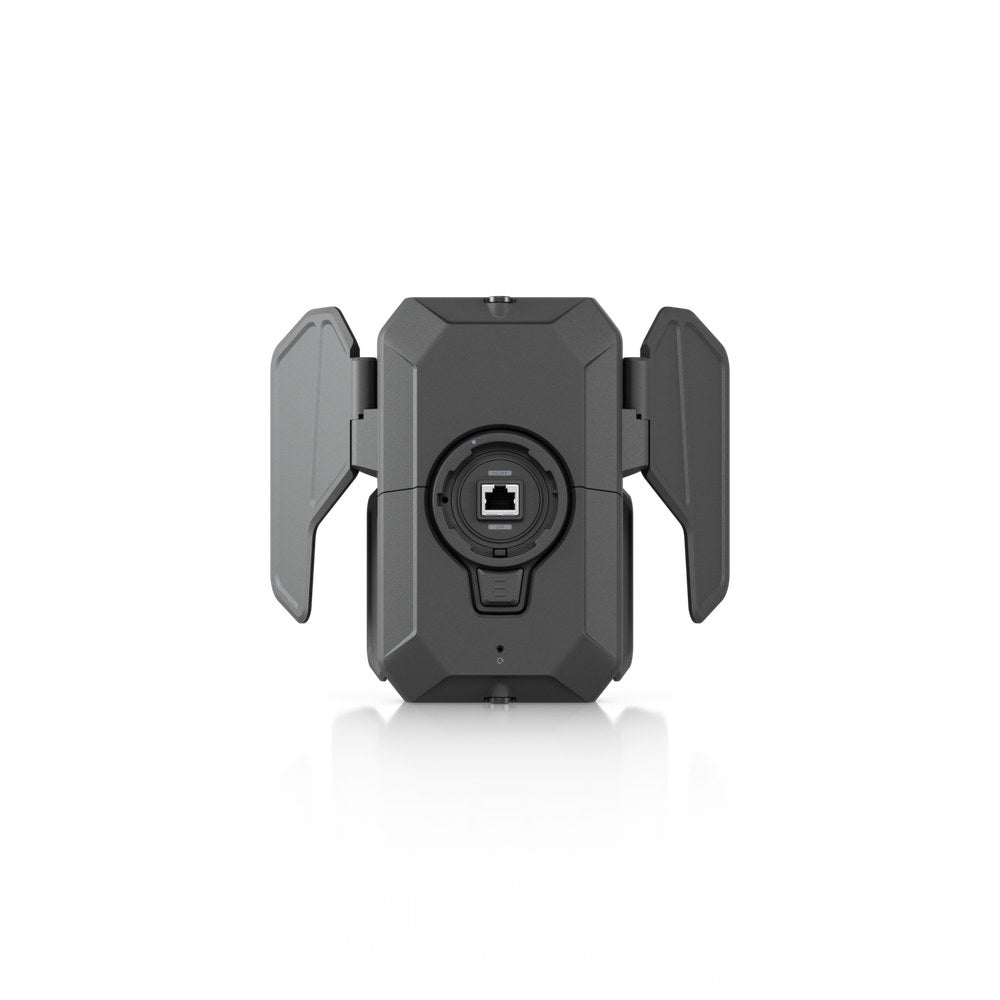

- 2.5 GbE RJ45 uplink, powered over PoE with a maximum power consumption of just 13W
- Coverage of up to 465 m² and support for 200+ connected clients

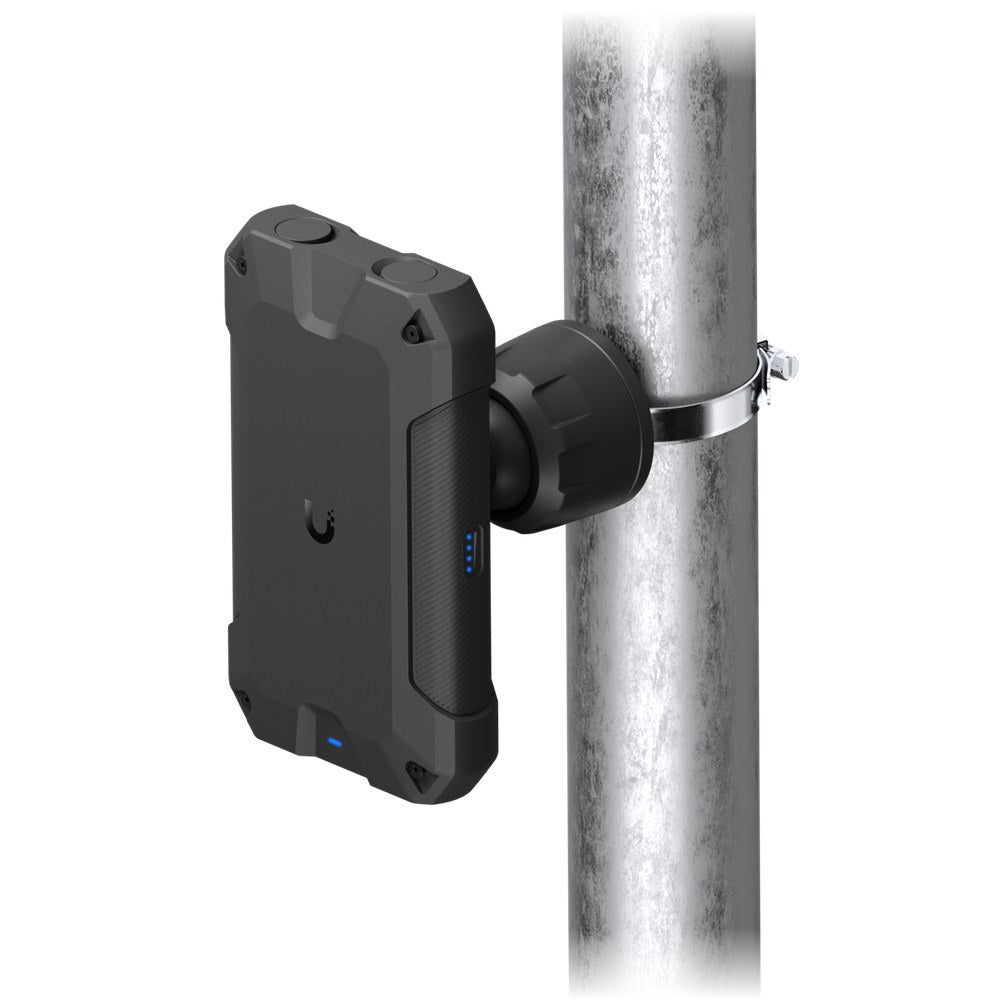

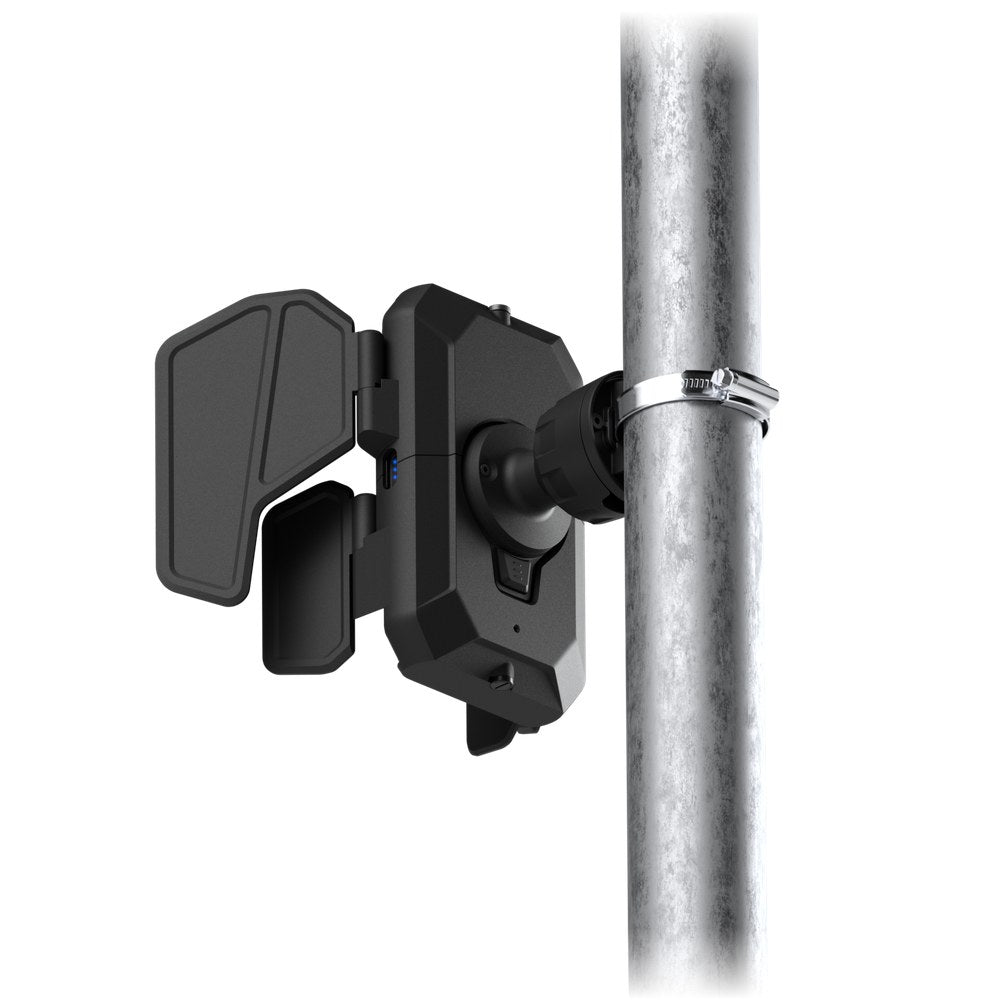

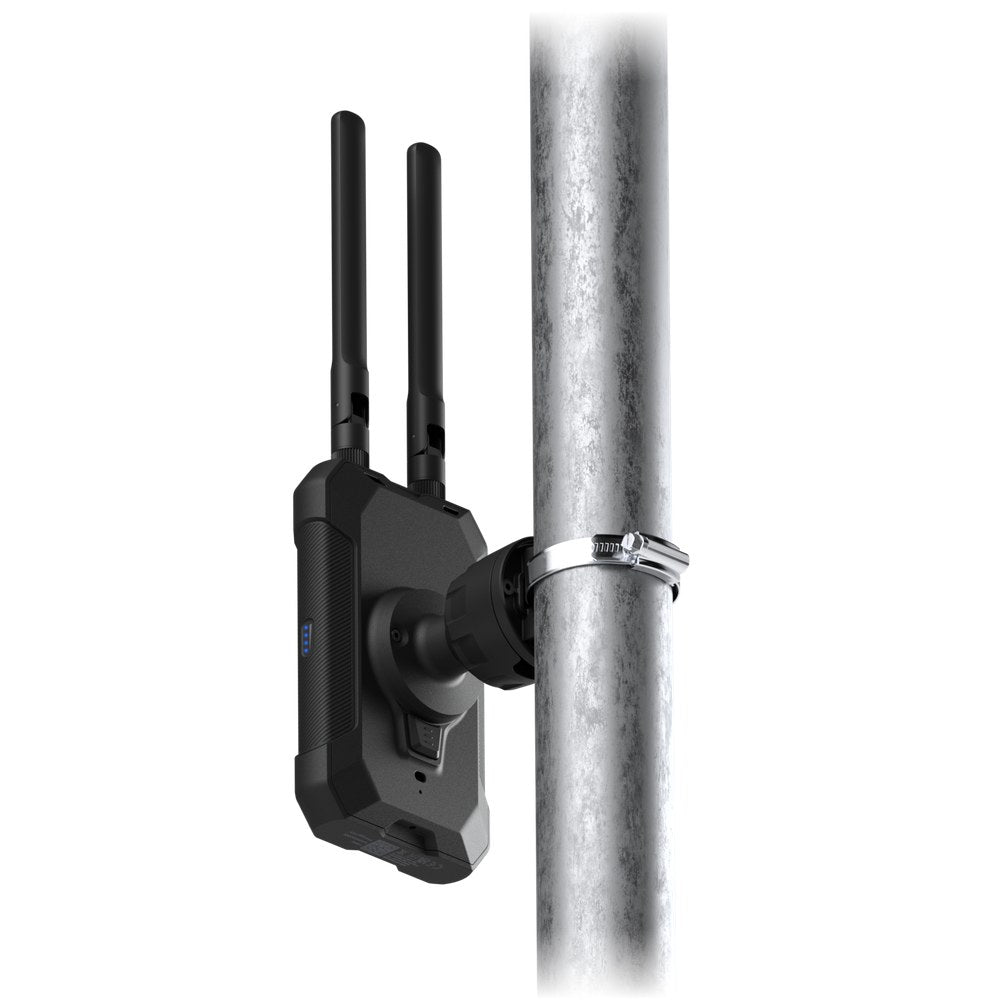

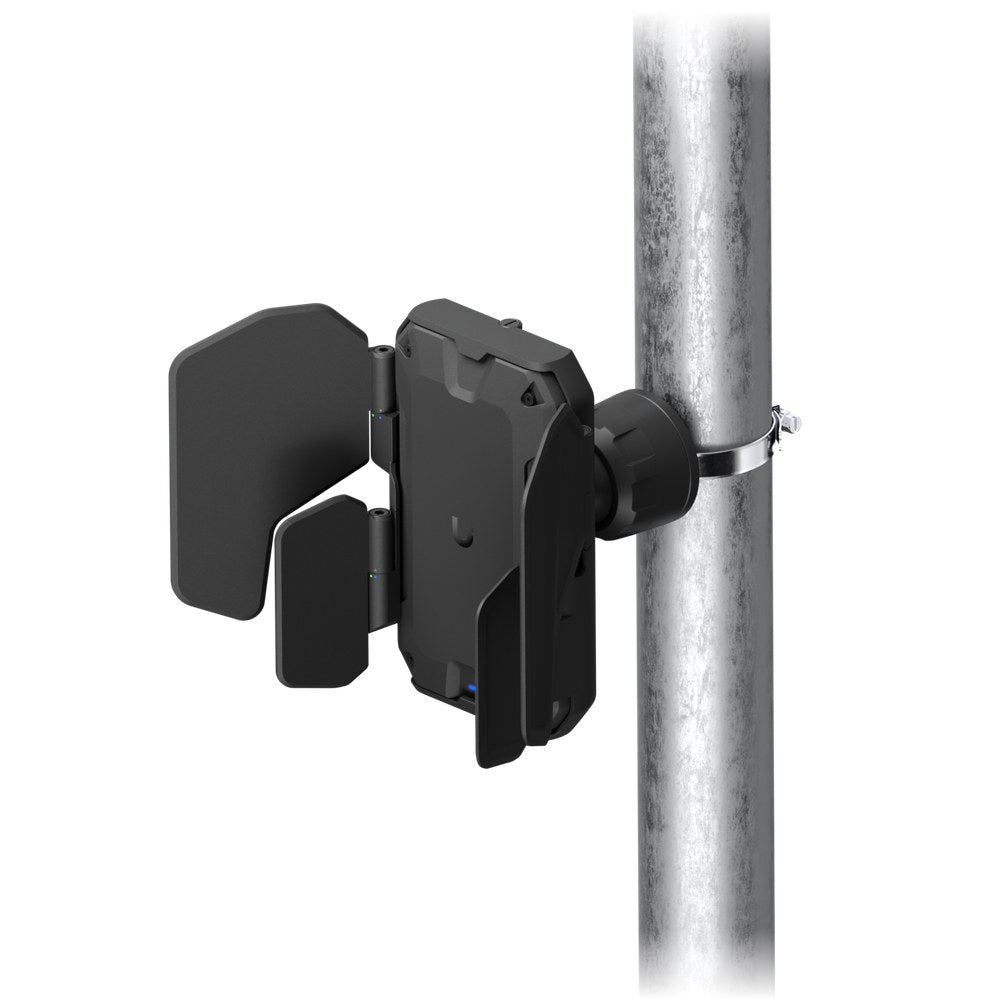

- Wall and pole mounting, with mounts included (pole diameter 1–2.5 inches)
- Wireless meshing, band steering, 802.11r fast roaming and 802.11k/v support
- Guest portal tools, Private Pre-Shared Key (PPSK), client device isolation and RADIUS over TLS (RadSec)
- NDAA compliant, with CE, FCC and IC certifications
Ideal for: IT managers, network integrators and facilities teams deploying reliable wireless in warehouses, manufacturing sites, campuses and other harsh indoor or outdoor environments.
Compatible Products
Designed for use with the UniFi ecosystem and managed through UniFi Network. Ubiquiti notes that it requires UniFi Network 11 RC and Access Point firmware 8.8.12. Power it from any suitable PoE source, such as a UniFi PoE switch or PoE adapter.
FAQs
What WiFi standard does the U7-Industrial support?
It is a WiFi 7 access point with 4 spatial streams and 2 x 2 MU-MIMO on both the 5 GHz and 2.4 GHz bands.
How is the U7-Industrial powered?
It is powered over PoE, with a supported voltage range of 42.5–57V DC and a maximum power consumption of 13W.
Can it be used outdoors?
Yes. It has IP67 weatherproofing and an ambient operating temperature range of -40 to 70°C.
What mounting options are included?

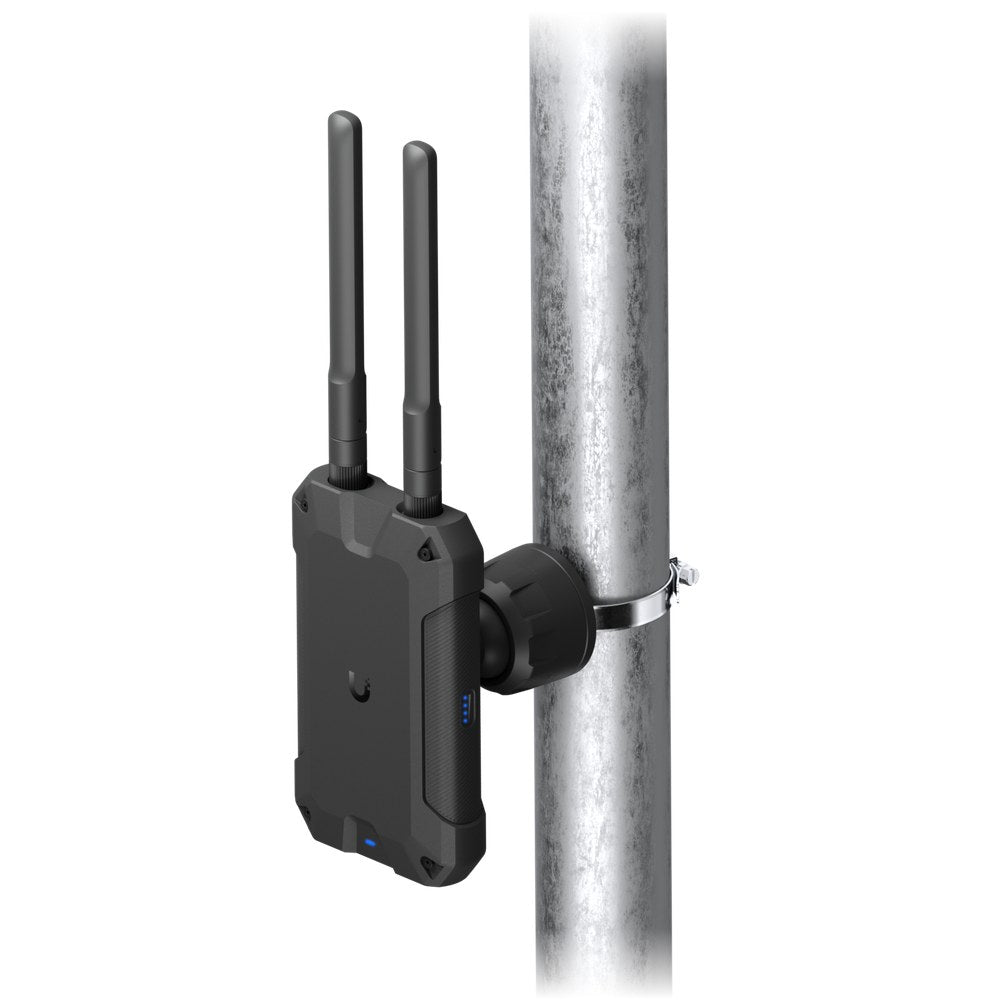

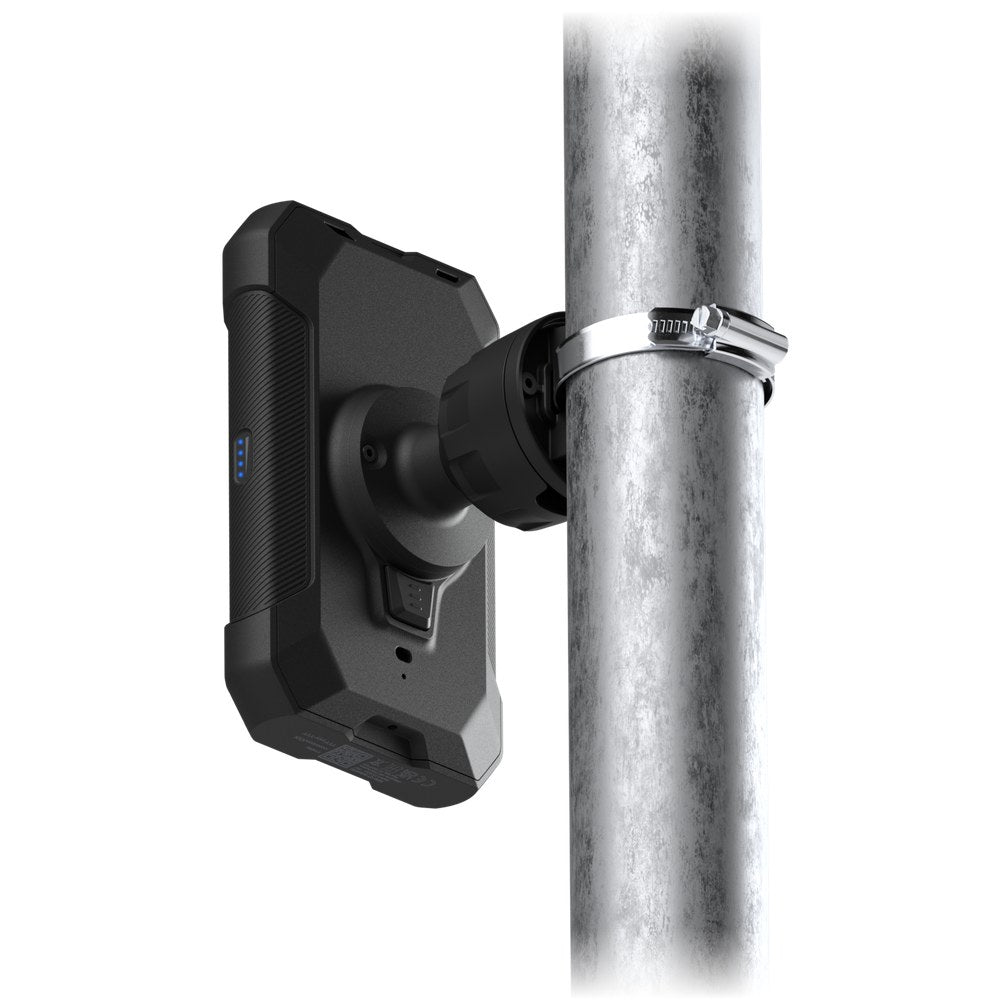

Wall and pole mounts are included, and the pole mount supports diameters from 1 to 2.5 inches (25–63.5 mm).
Can it provide 360° coverage?

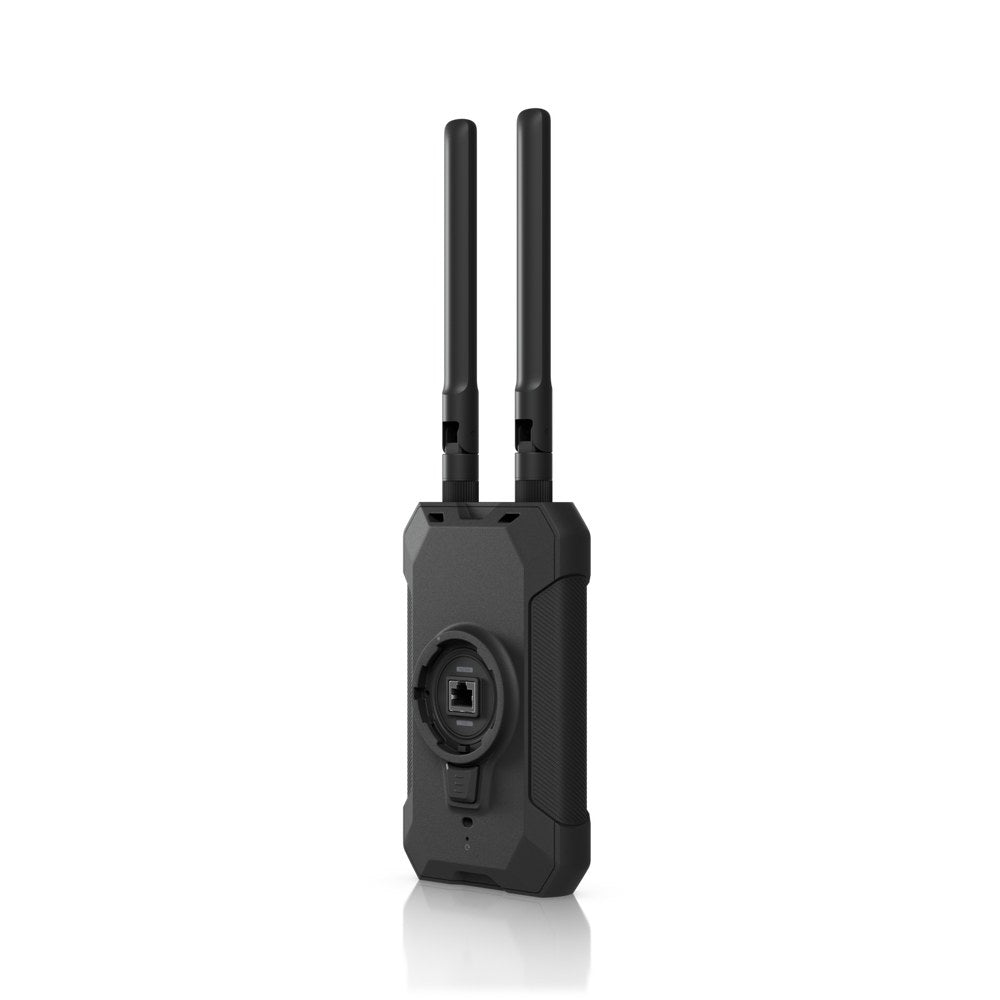

Yes. It offers a high-gain directional antenna out of the box, and external omni antennas can be used for 360° coverage.
Specifications30 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | Device: 170 × 103 × 41.2 mm (6.7 × 4.1 × 1.6") / Ball mount installed: 170 × 103 × 107.6 mm (6.7 × 4.1 × 4.2") / Adjustable reflectors installed: 177.6 x 299.7 × 177.8 mm (7 x 11.8 × 7") / Omnidirectional antennas installed: 341.8 × 103 × 107.6 mm (13.5 × 4.1 × 4.2") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, Pole (Mounts included) |
| Weatherproofing | IP67 |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 5 GHz | 4.3 Gbps (BW240) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 5 GHz | Directional internal (Built-in): 10 dBi, 95° x 45° / Directional internal (Reflector Wide Angle): 11 dBi, 70° x 45° / Directional internal (Reflector Narrow Angle): 12 dBi, 55° x 45° / External omni: 6 dBi, 360° x 45° |
| Antenna Gain · 2.4 GHz | Directional internal (Built-in): 8 dBi, 100° x 45° / Directional internal (Reflector Wide Angle): 9 dBi, 80° x 45° / Directional internal (Reflector Narrow Angle): 10 dBi, 65° x 45° / External omni: 5 dBi, 360° x 45° |
| Max. TX Power · 5 GHz | 24 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Hardware | |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5–57V DC |

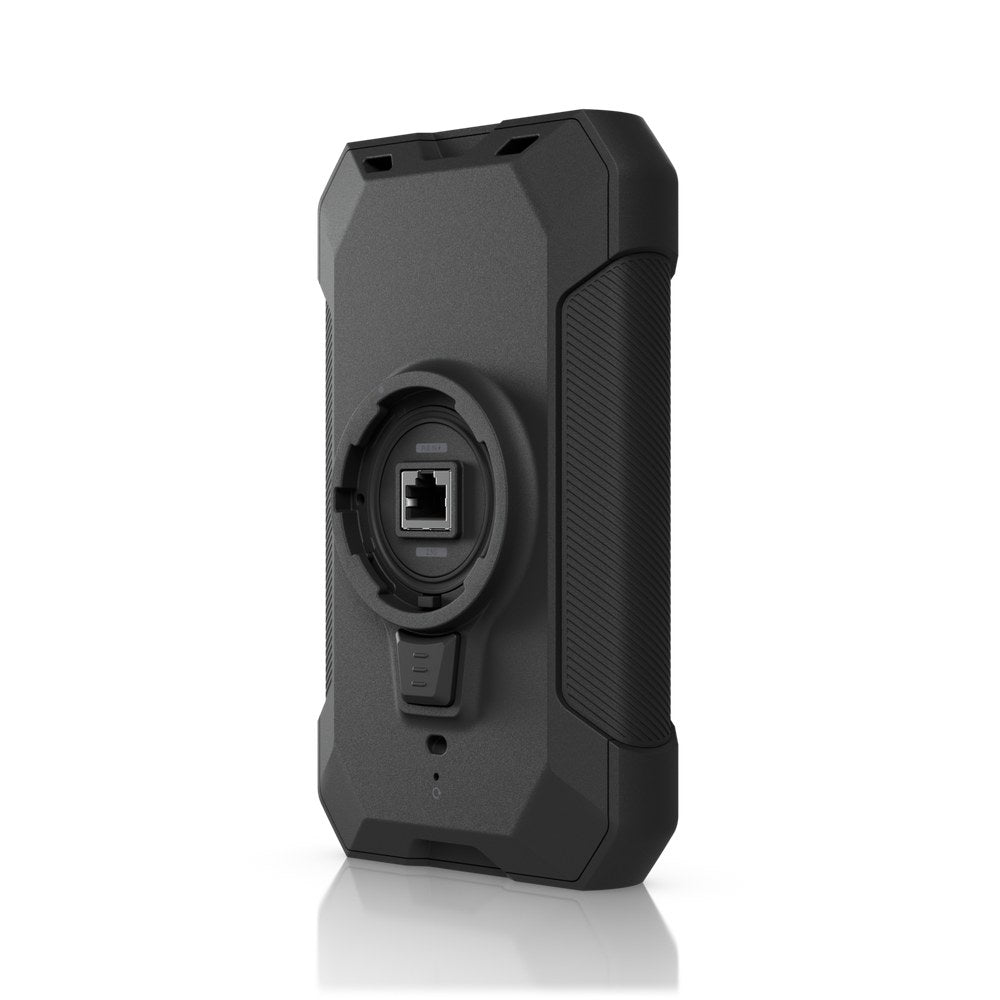

| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | Device: 577 g (1.3 lb) / Ball mount: 163 g (5.8 oz) / Reflector antenna set: 500 g (1.1 lb) / Omni antenna set: 52 g (1.8 oz) |
| Wind Loading | 97.3 N at 200 km/h (21.9 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| LEDs · System | (4) Blue: signal / (1) White/Blue: indicator |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
