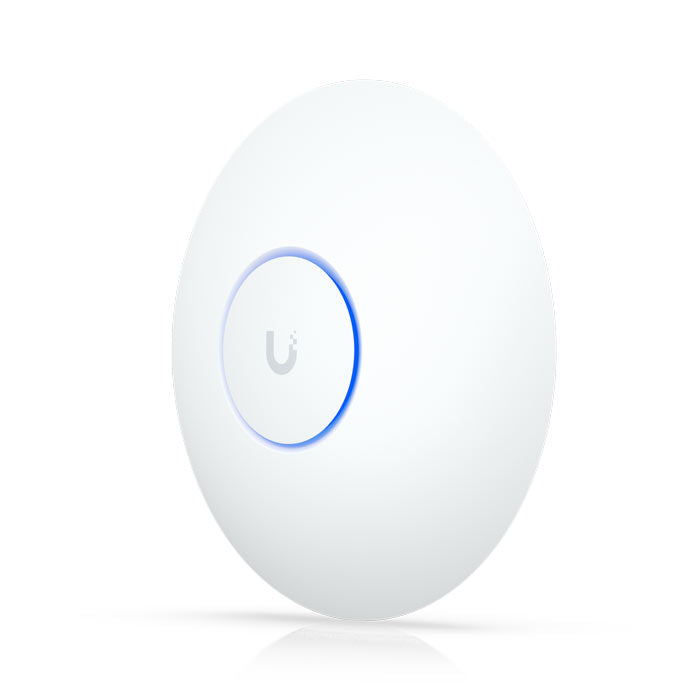

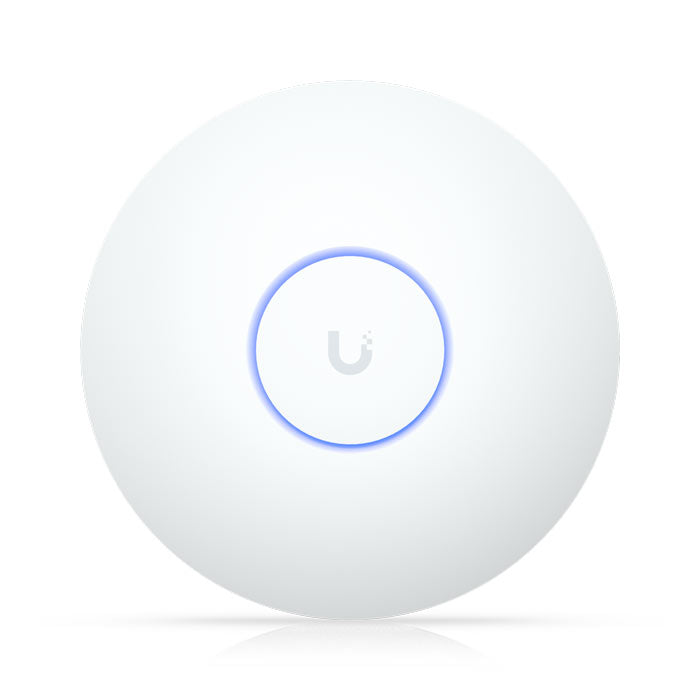

U7-LR Ubiquiti Unifi Wireless 7 Long Range Access Point
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The Ubiquiti UniFi U7 Long‑Range access point brings next‑generation WiFi 7 performance to demanding indoor environments, delivering exceptional speed, stability and extended coverage. Designed for high‑density deployments, the U7-LR supports over 300 concurrent clients while maintaining reliable throughput across large areas such as offices, schools and retail spaces.
Powered by WiFi 7 (802.11be) with 5 spatial streams, the U7‑LR delivers blazing‑fast wireless performance with a combined data rate of up to 4.3 Gbps. A 2.5 GbE uplink ensures there are no bottlenecks between your wired and wireless network, while PoE power allows for clean, flexible installation.
Key features:
- WiFi 7 (802.11be) support for future‑ready networks
- 5 spatial streams (3x3 5 GHz, 2x2 2.4 GHz)
- Long‑range coverage up to 160 m²
- 2.5 GbE PoE uplink for high‑speed connectivity
- 300+ client capacity for high‑density environments
- Advanced UniFi features including fast roaming, band steering and guest portals
Ideal for:
Businesses, education facilities, hospitality venues, retail stores and large residential installs requiring high‑performance, long‑range wireless coverage.
Compatible products:
UniFi Network Controller
UniFi Cloud Gateways
UniFi PoE Switches
UniFi Protect and UniFi Access ecosystems
Frequently asked questions3 questions
Does the U7‑LR include a PoE injector?
Can the U7‑LR be wall or ceiling mounted?
Is the U7‑LR backward compatible with older WiFi devices?
Specifications34 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | ⌀175.7 x 43 mm / (⌀6.9 x 1.7") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 5 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |

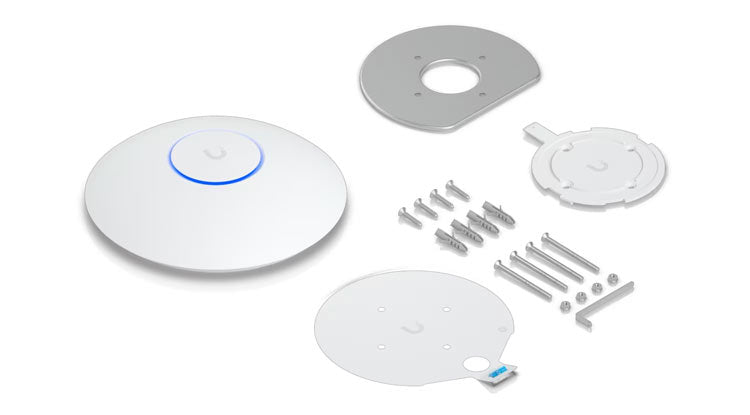

| Mounting | Ceiling, Wall / (Plastic Mounting Plate included) |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 3 x 3 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 5 GHz | 4.3 Gbps (BW160) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 5 GHz | 6 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 5 GHz | 27 dBm |
| Max. TX Power · 2.4 GHz | 26 dBm |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160) |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40) |
| Hardware | |
| Max. Power Consumption | 14W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 448 g (15.8 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, galvanized steel (SGCC) |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, SRRC, Anatel: 04071-25-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 9.1.120 and later |
| Application Requirements · Mobile App | iOS™ version 10.20.2 and later / Android™ version 10.21.7 and later |
