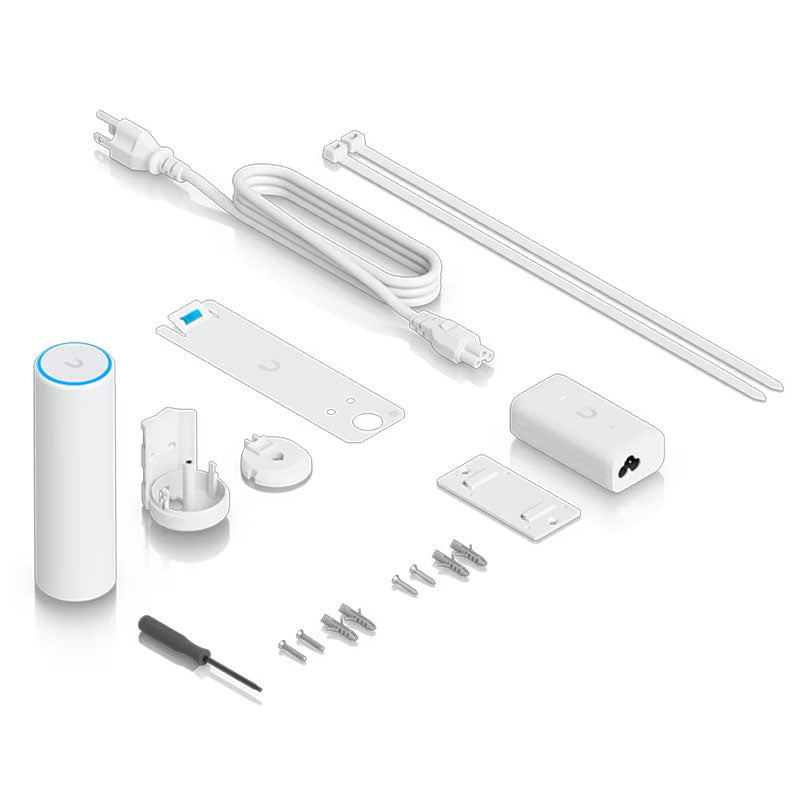

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
U7‑Mesh – Ubiquiti UniFi U7 Mesh WiFi 7 Indoor/Outdoor Access Point
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The U7‑Mesh is a compact, high‑performance WiFi 7 mesh access point designed for flexible indoor and outdoor wireless deployments. Powered by next‑generation 802.11be (WiFi 7) technology, it delivers ultra‑fast throughput, lower latency and improved efficiency for modern networks with high client density.
Featuring a redesigned hybrid antenna system, the U7‑Mesh combines omnidirectional coverage with a long‑range directional beam, making it ideal for extending UniFi networks across large areas, outdoor spaces, or between buildings. With support for over 200 concurrent clients and a 2.5 GbE PoE uplink, this access point is built for demanding real‑world environments.

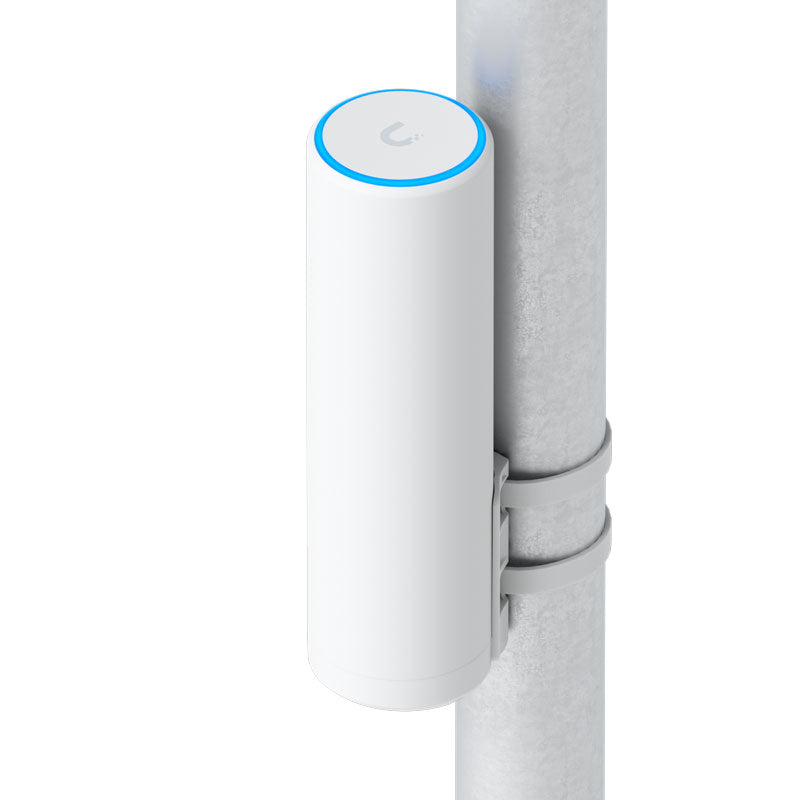

The IPX6‑rated enclosure ensures reliable outdoor operation, while multiple mounting options allow installation on walls, poles or flat surfaces. Managed centrally via the UniFi Network application, the U7‑Mesh integrates seamlessly into existing UniFi ecosystems.
Key Features:
- WiFi 7 (802.11be) dual‑band performance (2.4 GHz and 5 GHz)
- Up to 4.3 Gbps wireless throughput
- Hybrid omni and directional antenna design for extended mesh range
- 2.5 GbE PoE network interface (PoE adapter included)
- IPX6 weather‑resistant housing for outdoor use
- 200+ client support with advanced RF management
- Seamless UniFi Network integration
Ideal for:
- Extending WiFi to gardens, patios and outdoor areas
- Warehouses, retail spaces and hospitality venues
- Campus and multi‑building mesh deployments
- Homes and businesses needing flexible AP placement
Compatible Products:
UniFi Network Application
Frequently asked questions3 questions
Does the U7‑Mesh support outdoor installation?
Does the U7‑Mesh require a UniFi controller?
Is a PoE adapter included?
Is the U7‑Mesh suitable for outdoor use?
Yes — it’s IPX6 rated, meaning it can handle powerful water jets and harsh weather.
Does it support WiFi 7?
It’s a WiFi 7 access point and is MLO‑ready, offering improved speed and reliability.
How is it powered?
Through 2.5 GbE PoE, allowing both data and power over a single cable.
Can it be used as part of a mesh network?
Yes — it’s designed for mesh deployments, extending coverage seamlessly across large areas.
Specifications36 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | ⌀48.5 x 159.5 mm / (⌀1.9 x 6.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, Pole, Table stand / (Mounts included) |
| Weatherproofing | IPX6 (Installed with the outdoor mount) |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 5 GHz | 4.3 Gbps (BW240) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 5 GHz | Omnidirectional: 6 dBi / Directional: 10 dBi |
| Antenna Gain · 2.4 GHz | 3 dBi |
| Max. TX Power · 5 GHz | 24 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| Supported Data Rates · 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5–57V DC |

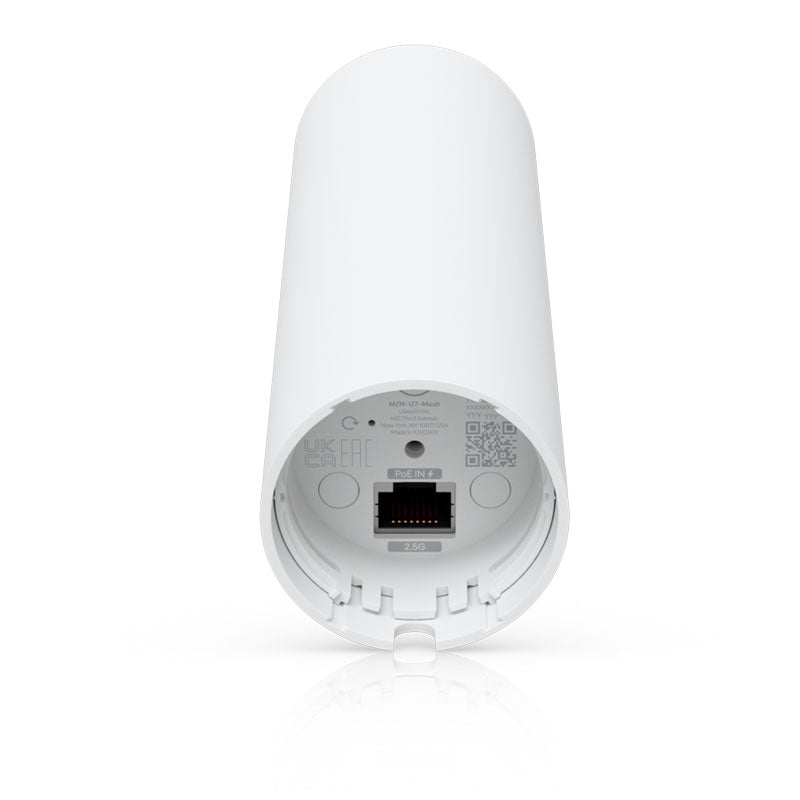

| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g (11 oz) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| LEDs · System | R/G/B/W |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements · UniFi Network | Version 10.1.85 and later |
| Application Requirements · Mobile App | UniFi iOS™: Version 10.32.1 and later / Android™: Version 10.35.1 and later |
