Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

SKU: U7-Outdoor

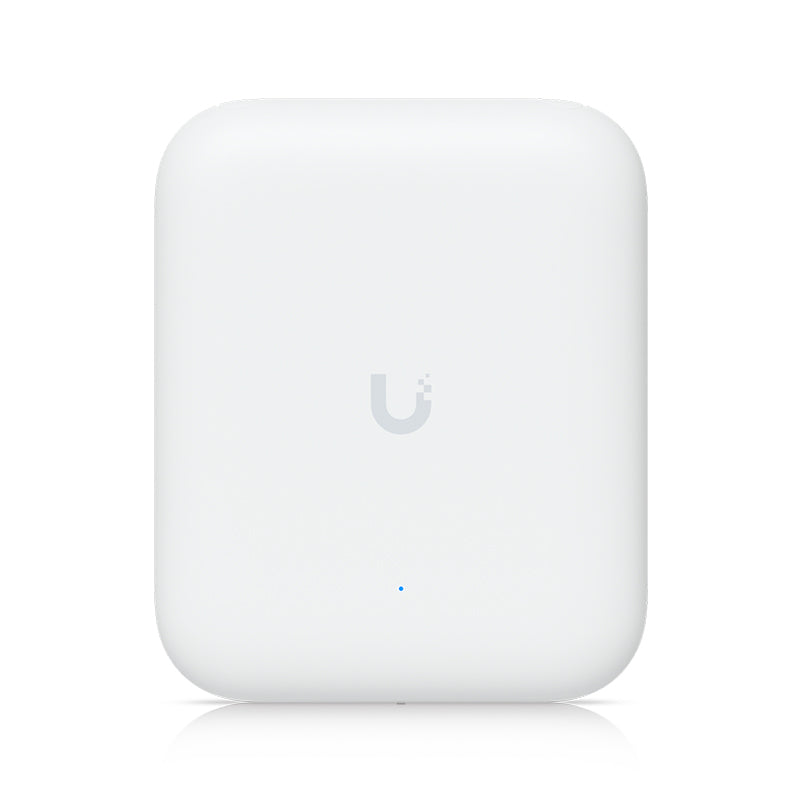

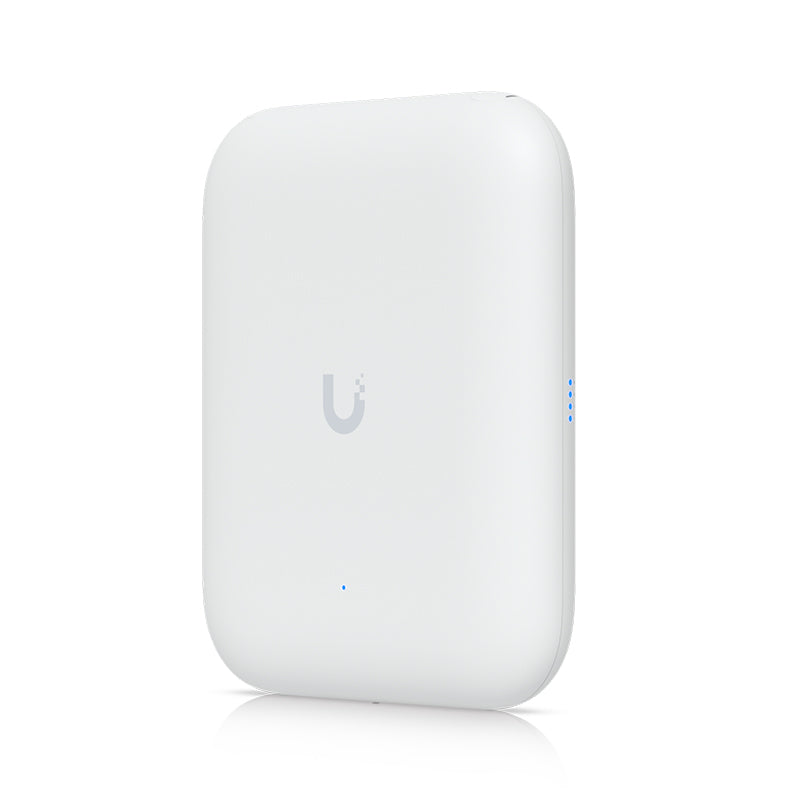

U7-Outdoor Ubiquiti Unifi Wireless 7 Outdoor Access Point

Q: How is the U7-Outdoor powered?

It is powered using PoE+ through its single 1\/2.5 GbE RJ45 port, which also serves as the 2.5 GbE uplink. Maximum power consumption is 19W, and the supported voltage range is 42.5–57V DC.

$405.91 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.

Features:

WiFi 7

4 spatial streams

465 m² (5,000 ft²) open space coverage with the integrated directional super antenna

Software-adjustable antenna beamwidth for balanced coverage with the included omni antennas

200+ connected devices

Powered using PoE+

2.5 GbE uplink

Versatile wall and pole mounting

Weatherproof (outdoor exposed)

Frequently asked questions5 questions

How is the U7-Outdoor powered?

It is powered using PoE+ through its single 1/2.5 GbE RJ45 port, which also serves as the 2.5 GbE uplink. Maximum power consumption is 19W, and the supported voltage range is 42.5–57V DC.

What WiFi standard does it support and how fast is it?

It is a WiFi 7 access point with 4 spatial streams. Peak rates reach 4.3 Gbps on 5 GHz (240 MHz channel width) and 688 Mbps on 2.4 GHz.

Is it suitable for outdoor installation?

Yes. It has an IPX6 weatherproof rating, a UV-stabilised polycarbonate and aluminium alloy enclosure, and an ambient operating range of -30 to 60°C. It is rated for wind loading of 74.6 N at 200 km/h.

How can it be mounted?

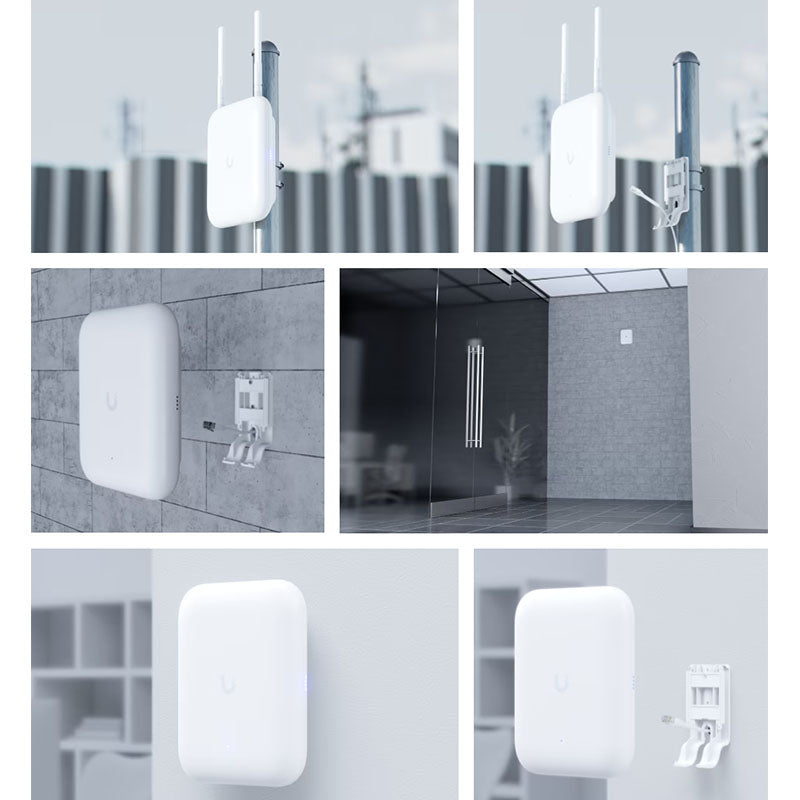

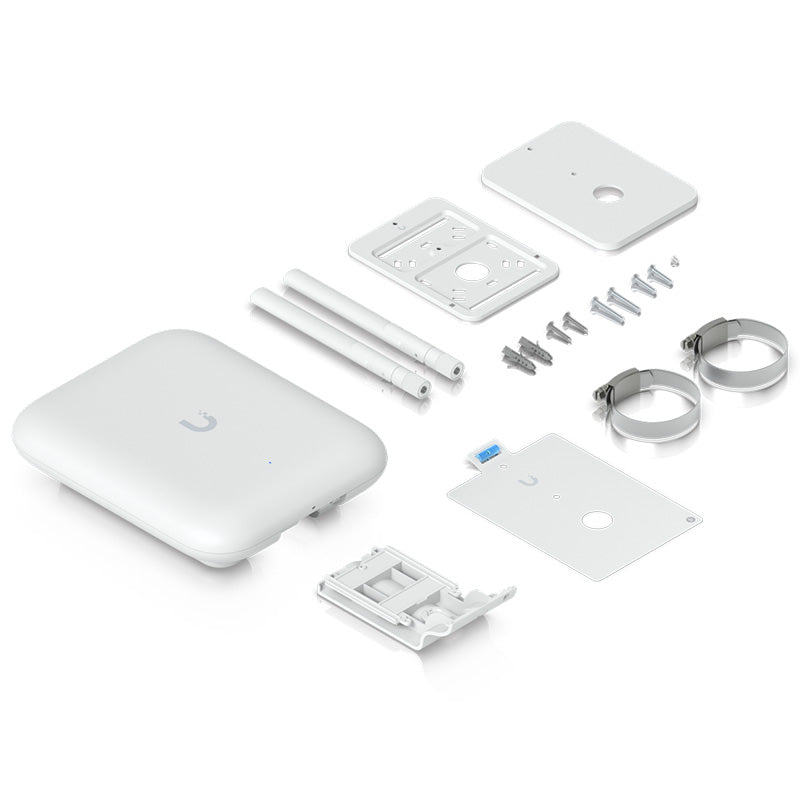

It supports wall and pole mounting, and the mounts are included. Pole mounting suits poles with a diameter of 25–60 mm (1–2.36 inches).

What coverage and antennas does it have?

The integrated directional super antenna covers up to 465 m² (5,000 ft²) of open space. It also has two external omni antennas via RP-SMA connectors, with software-adjustable beamwidth for balanced coverage.

Customer reviews

4.8 · 6 reviews

Write a review

5 ★ 54 ★ 13 ★ 02 ★ 01 ★ 0

★★★★★Collected by reviews.io · Nov 2024

This was hard to set up for me. I rang for help, the person took my details and nature of my issue to be passed on for someone to call me back, no one did. I managed to fumble my way through and got it working. I live on acreage and use Starlink for my wifi. This works great! I now have wifi across my two cottages and paddocks where I need it. The range it covers is excellent.

Anonymous

★★★★★Collected by reviews.io · Nov 2024

Second item I have ordered. Both delivered promptly with good communication when a delay for rural delivery occurred. Will use again.

Michael

★★★★★Collected by reviews.io · Oct 2024

Works a treat - Great range around my farm, has made the workplace safer due to better wifi calling

Andrew

★★★★★Collected by reviews.io · Oct 2024

Works as stated. Delivered before expected. Great service

Neil

★★★★★Collected by reviews.io · Aug 2024

Really good access point

Anonymous

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications41 specifications · 4 sections

Overview

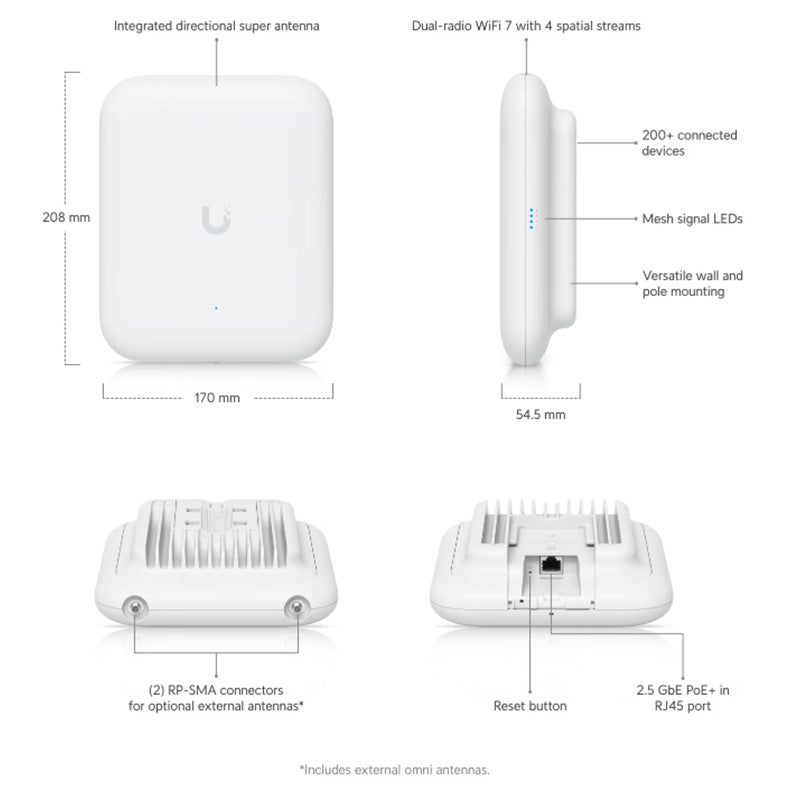

Dimensions	170 x 208 x 54.5 mm / (6.7 x 8.2 x 2.1")
WiFi Standard	WiFi 7
Spatial Streams	4
Coverage Area	465 m² (5,000 ft²)
Max. Client Count	250+
Uplink	2.5 GbE

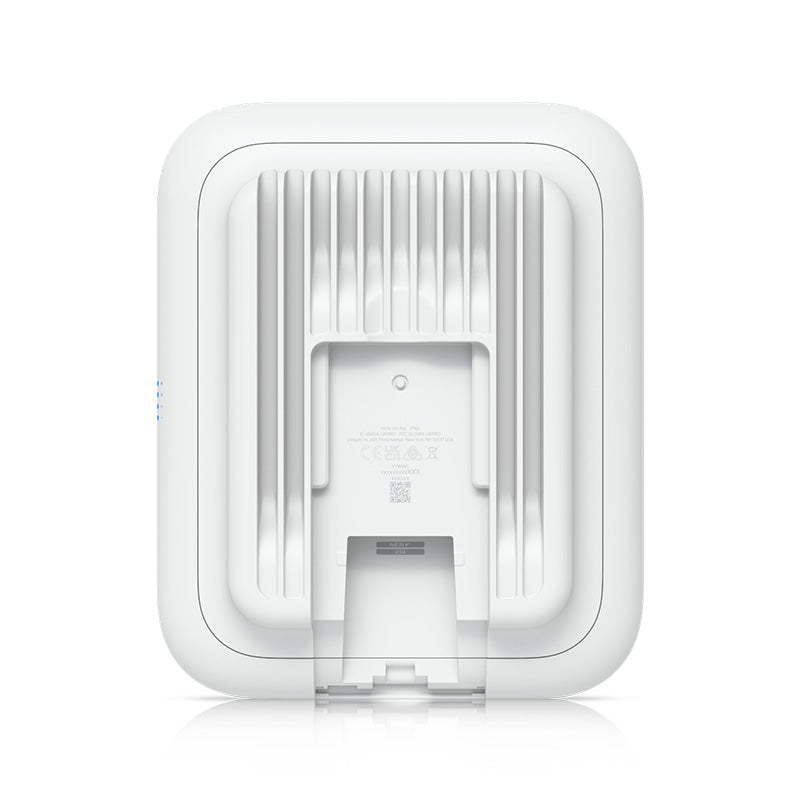

Mounting	Wall, Pole / (Mounts Included)
Weatherproofing	IPX6
Power Method	PoE+
Performance
MIMO · 5 GHz	2 x 2 (DL/UL MU-MIMO)
MIMO · 2.4 GHz	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate · 5 GHz	4.3 Gbps (BW240)
Max. Data Rate · 2.4 GHz	688 Mbps (BW40)
Antenna Gain · 5 GHz	Directional internal: 12.5 dBi, 45° x 45° / External omni: 4 dBi, 360° x 30°
Antenna Gain · 2.4 GHz	Directional internal: 8 dBi, 90° x 90° / External omni: 3 dBi, 360° x 30°
Max. TX Power · 5 GHz	26 dBm
Max. TX Power · 2.4 GHz	23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates · 802.11be (WiFi 7)	7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
Supported Data Rates · 802.11ax (WiFi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Supported Data Rates · 802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
Supported Data Rates · 802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Hardware
Max. Power Consumption	19W
Supported Voltage Range	42.5–57V DC

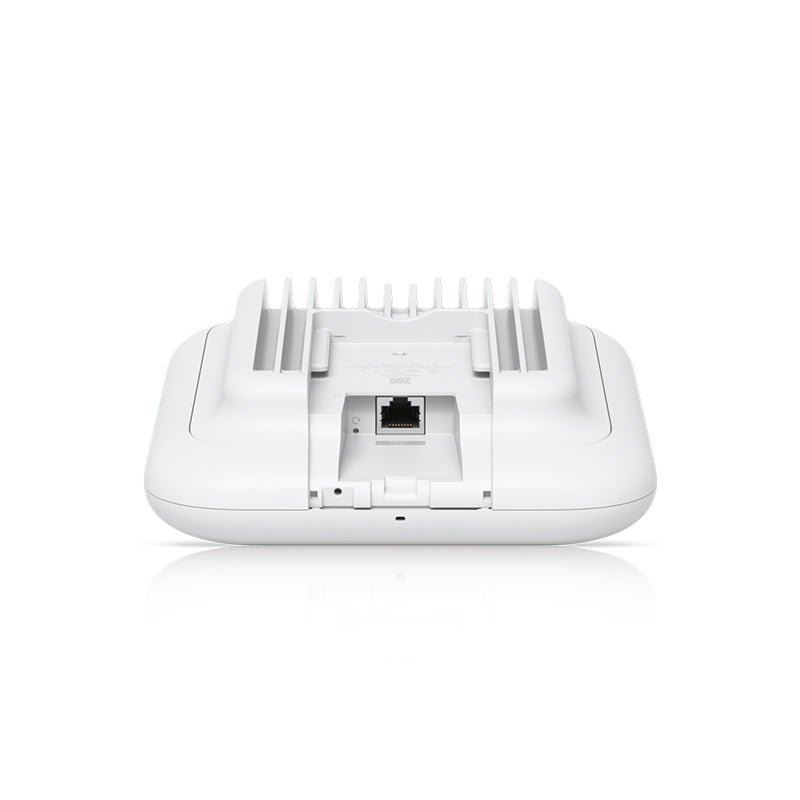

Networking Interface	(1) 1/2.5 GbE RJ45 port
Weight	1.2 kg (2.6 lb)
Wind Loading	74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter	1–2.36" (25–60 mm)

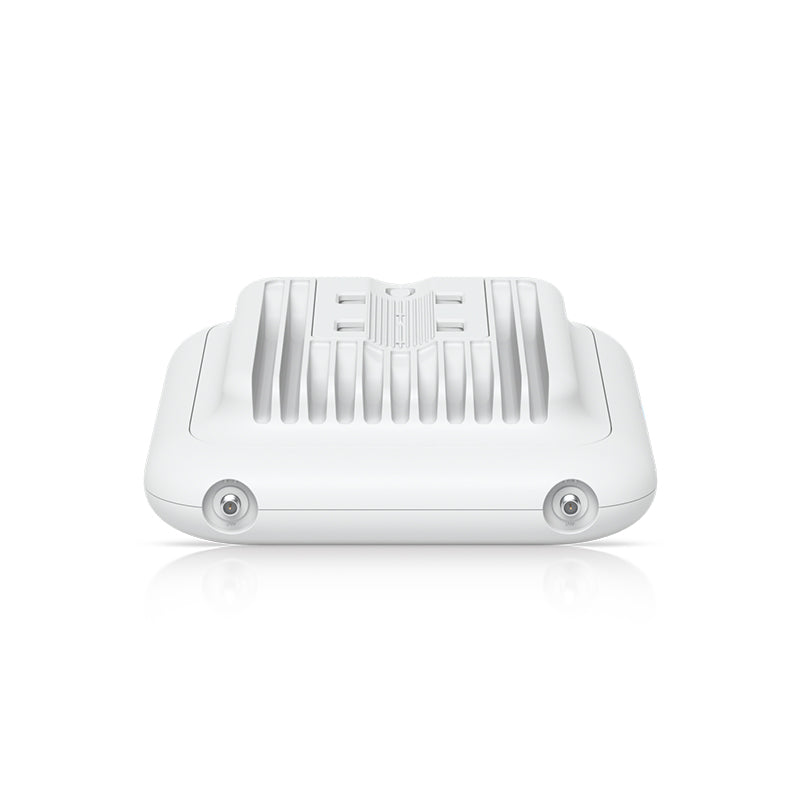

Antennas	(1) Directional internal antenna / (2) External omni antennas / (2) RP-SMA connectors for external antenna
Antenna beamwidth · 5 GHz	45°
Antenna beamwidth · 2.4 GHz	90°
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mount Material	Polycarbonate, SGCC steel

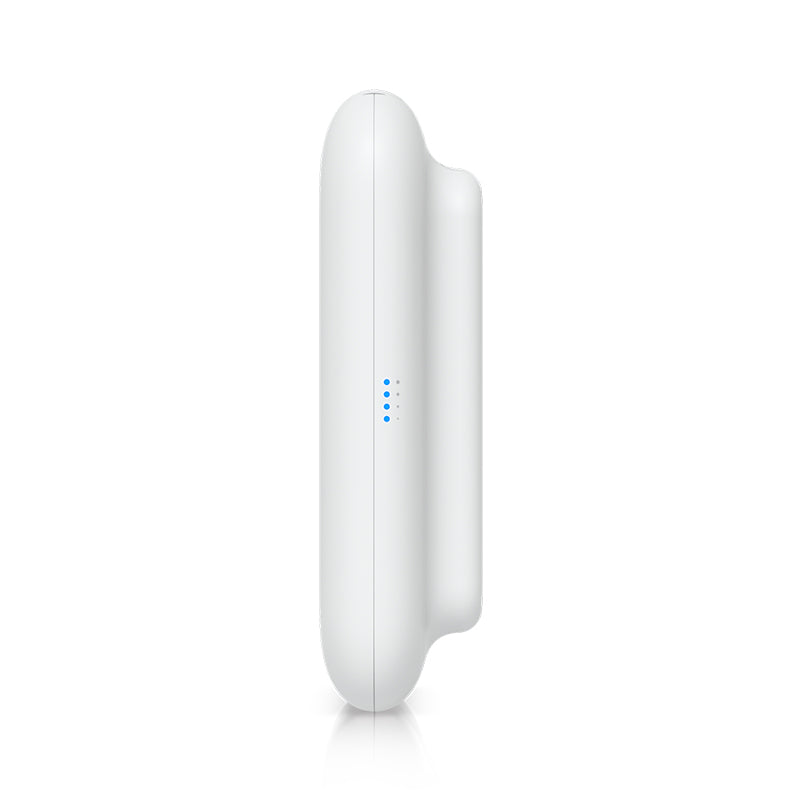

LEDs · System	(1) Power: White/Blue / (1) System: White/Blue / (4) Mesh Signal: Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Operating Frequency	US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, Anatel: 08999-24-08356
Software
Application Requirements · UniFi Network	Version 8.2.93 and later
