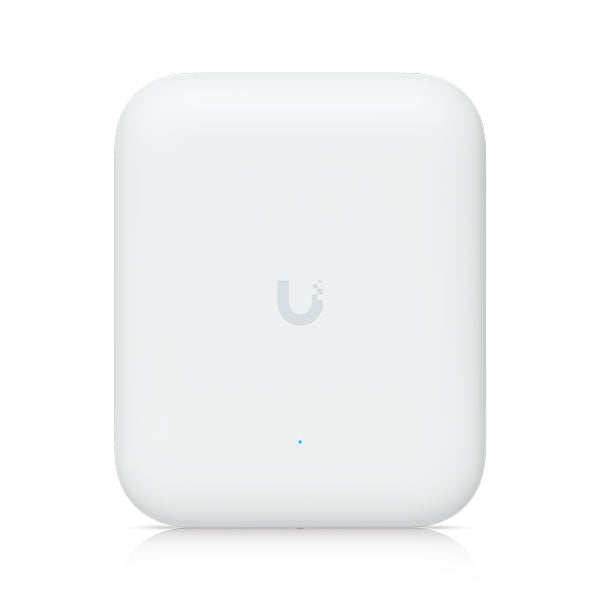

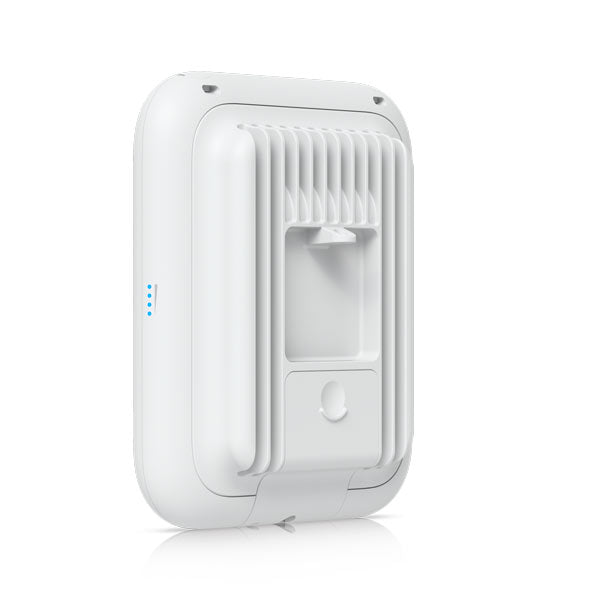

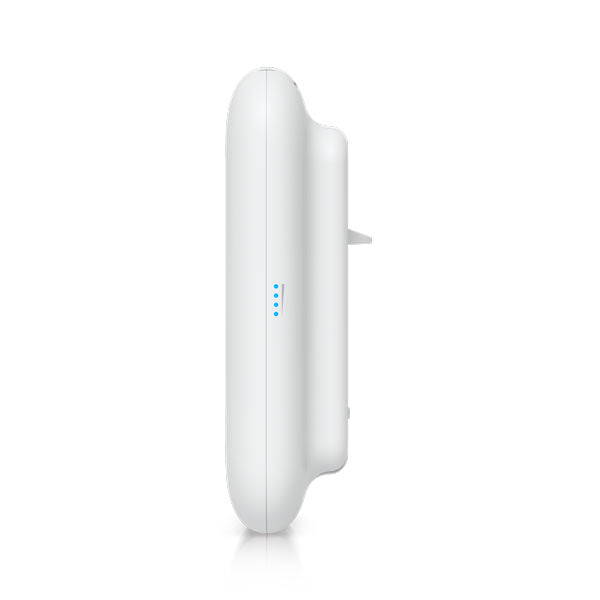

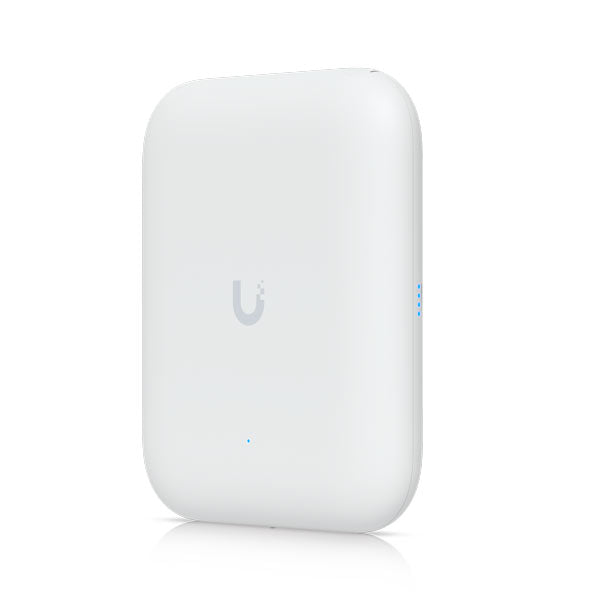

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
U7‑Pro‑Outdoor – Ubiquiti UniFi U7 Pro Outdoor WiFi 7 Access Point
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The U7‑Pro‑Outdoor is a high‑performance Ubiquiti UniFi WiFi 7 outdoor access point designed to deliver ultra‑fast, reliable wireless connectivity in demanding outdoor environments. Built with a rugged IP67 weatherproof enclosure, the U7‑Pro‑Outdoor is ideal for large outdoor areas requiring consistent coverage, high client capacity and next‑generation wireless performance.
Powered by WiFi 7 (802.11be) with 6 spatial streams, this access point supports over 300 concurrent clients while delivering exceptional throughput across the 2.4 GHz, 5 GHz and 6 GHz bands. The integrated directional super antenna, combined with optional external omni antennas, ensures focused long‑range coverage and flexible deployment options.
With a 2.5 GbE PoE+ uplink, seamless UniFi Network management and advanced roaming, security and guest networking features, the U7‑Pro‑Outdoor is built for enterprise‑grade outdoor WiFi.
Key Features:
- WiFi 7 (802.11be) tri‑band performance
- 6 spatial streams for high‑density environments
- IP67‑rated all‑weather outdoor design
- Integrated directional super antenna plus external antenna support
- 2.5 GbE PoE+ uplink for high‑speed backhaul
- Supports 300+ connected devices

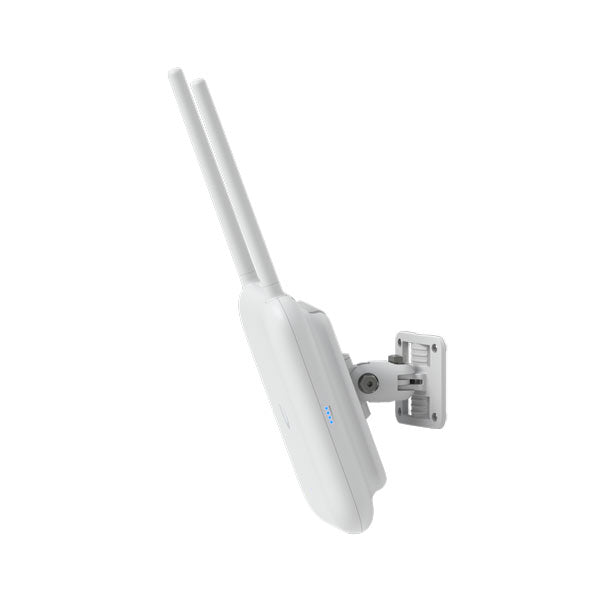

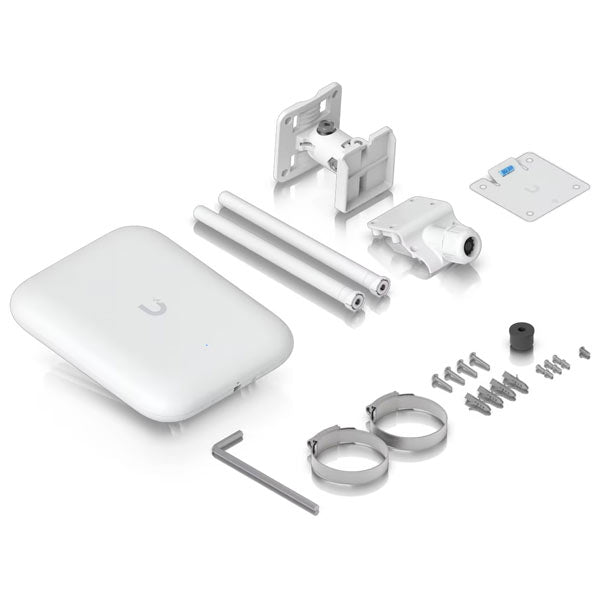

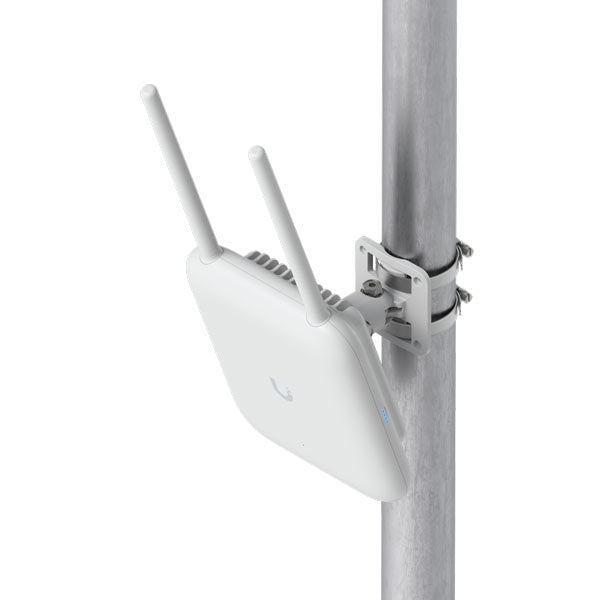

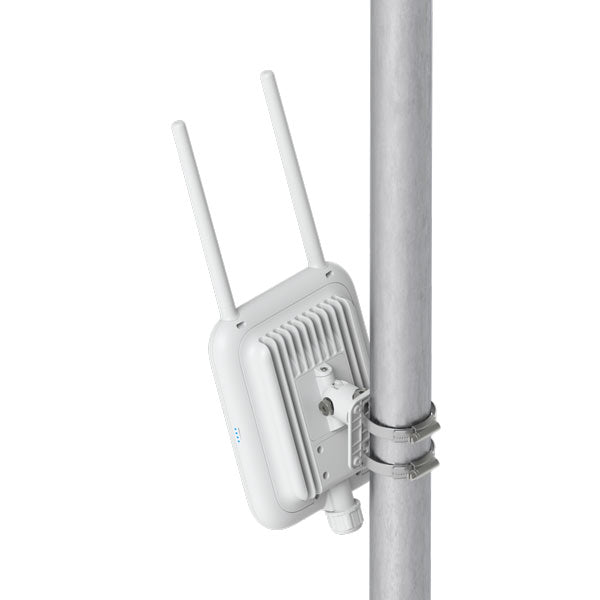

- Wall and pole mounting hardware included
Ideal For:
Outdoor hospitality venues, campuses, warehouses, car parks, sports facilities, public spaces and enterprise outdoor networks requiring fast, reliable and scalable WiFi coverage.
Compatible Products:
UniFi Network Controllers
UniFi PoE and PoE+ Switches
UniFi Cloud Gateways
UniFi External Antennas (RP‑SMA)
Frequently asked questions3 questions
Does the U7‑Pro‑Outdoor support UniFi Mesh?
How is the U7‑Pro‑Outdoor powered?
Is the U7‑Pro‑Outdoor suitable for harsh environments?
Specifications39 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | ⌀206 x 46 mm / (⌀8.1 x 1.8") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall / (Pro Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO · 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate · 6 GHz | 5.8 Gbps (BW320) |
| Max. Data Rate · 5 GHz | 4.3 Gbps (BW240) |
| Max. Data Rate · 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain · 6 GHz | 5.8 dBi |
| Antenna Gain · 5 GHz | 6 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 6 GHz | 23 dBm |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Supported Data Rates · 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Hardware | |
| Max. Power Consumption | 21W |
| Supported Voltage Range | 44–57V DC |

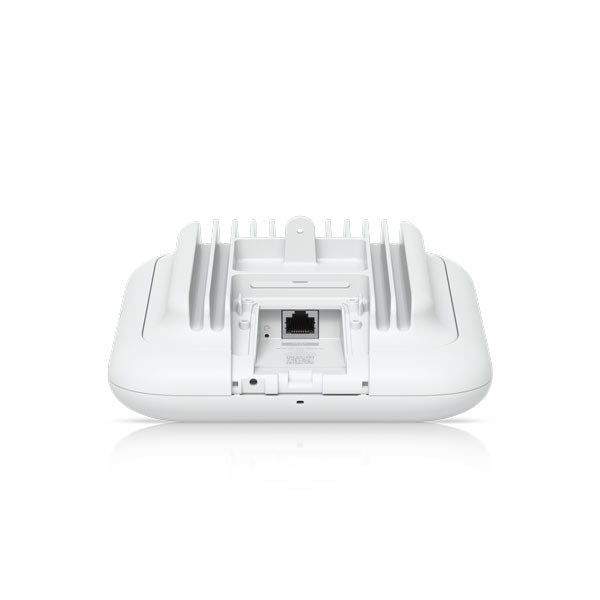

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 680 g (1.5 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs · System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Operating Frequency | US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / U-NII-5 to U-NII-8: 5925 - 7125 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz / 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06370-24-08356 |
| Software | |
| Application Requirements · UniFi Network | Version 8.0.28 and later |
