SKU: U7-Pro-Wall

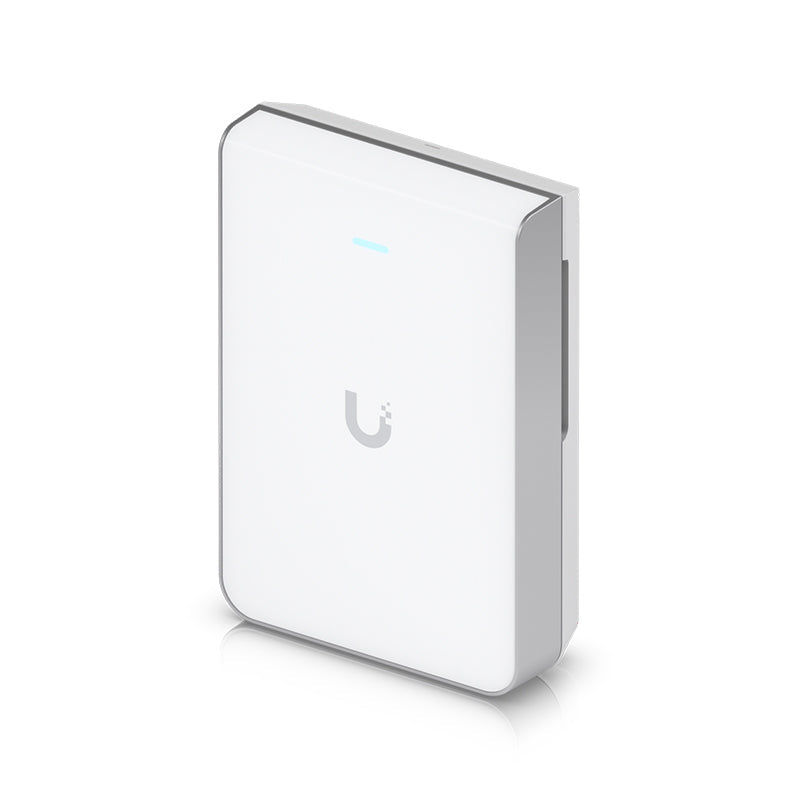

U7-Pro-Wall Ubiquiti Unifi Wireless 7 Wall Mount Access Point

Q: What network port does it have?

It has one 1\/2.5 GbE RJ45 port, which serves as the 2.5 GbE uplink. The access point is managed over Ethernet.

$398.11 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.

Experience unparalleled wireless performance with the U7-Pro-Wall. Featuring WiFi 7 technology and 6 GHz support, this access point offers superior speed and efficiency. With six (6) spatial streams and a robust coverage area of up to 140 m² (1,500 ft²), it ensures reliable connectivity for over 300 devices. The advanced MIMO technology supports 2x2 streams on 2.4 GHz, 5 GHz, and 6 GHz bands, maximising throughput rates up to 688 Mbps, 4324 Mbps, and 5764 Mbps, respectively.

The U7-Pro-Wall is engineered for both performance and durability. Its compact dimensions and lightweight build make it easy to install in various environments. The enclosure, crafted from polycarbonate and aluminium, ensures longevity, while the aluminium mounting options provide stable and flexible installation solutions.

Features:

WiFi 7 with 6 GHz support

6 spatial streams

140 m² (1,500 ft²) coverage

300+ connected devices

Powered using PoE+

2.5 GbE uplink

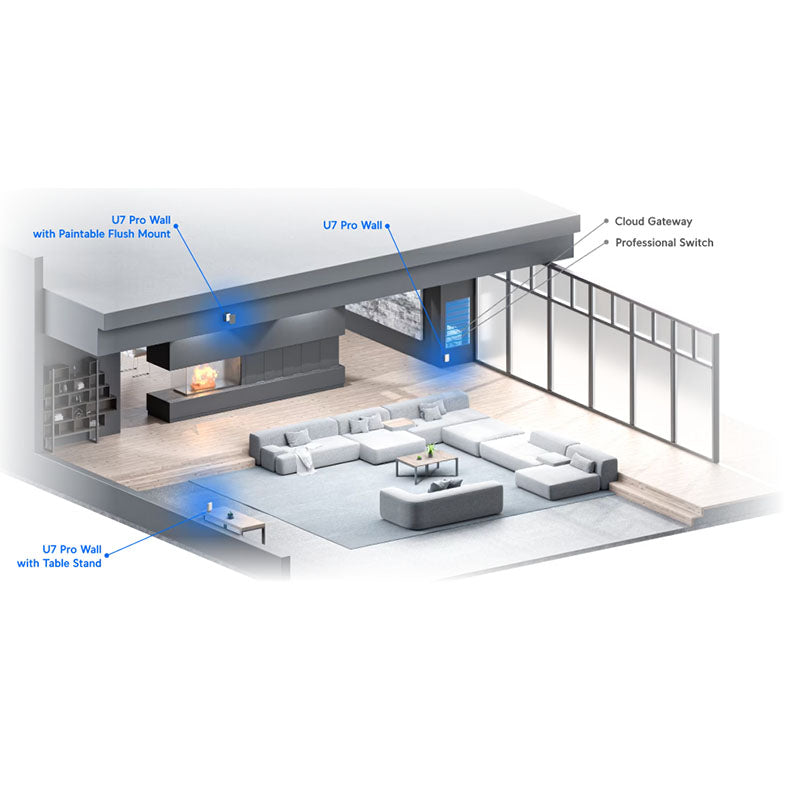

Versatile deployment with optional Flush Mount and Table Stand accessories*

_{Note. 6 GHz operation is supported in these countries.}

_{*Sold separately.}

Frequently asked questions5 questions

What Wi-Fi standard does the U7-Pro-Wall support and which bands does it use?

It is a WiFi 7 access point with 2 x 2 MU-MIMO on each of the 2.4 GHz, 5 GHz and 6 GHz bands, giving six spatial streams in total. Maximum rates are 688 Mbps on 2.4 GHz, 4.3 Gbps on 5 GHz and 5.8 Gbps on 6 GHz.

How is the U7-Pro-Wall powered?

It is powered over PoE+ and accepts 44–57V DC. Maximum power consumption is 22W.

What network port does it have?

It has one 1/2.5 GbE RJ45 port, which serves as the 2.5 GbE uplink. The access point is managed over Ethernet.

How much area and how many devices can it cover?

It is designed to cover up to 140 m² (1,500 ft²) and support 300+ connected clients.

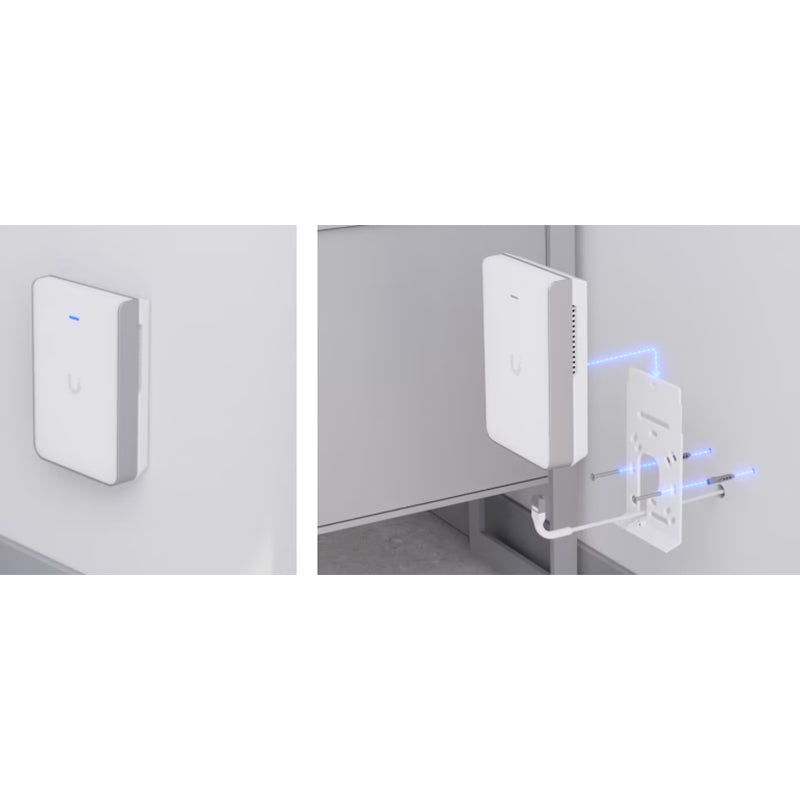

How do I mount it, and what does it need for management?

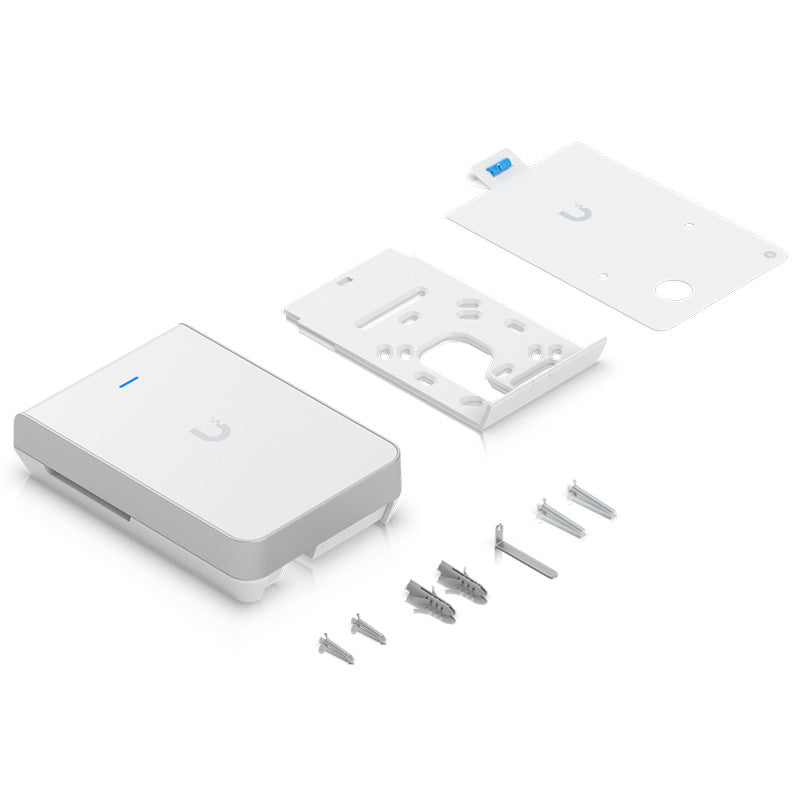

It is a wall-mount access point and a mount is included. It works with UniFi Network version 8.1.113 and later.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications39 specifications · 4 sections

Overview

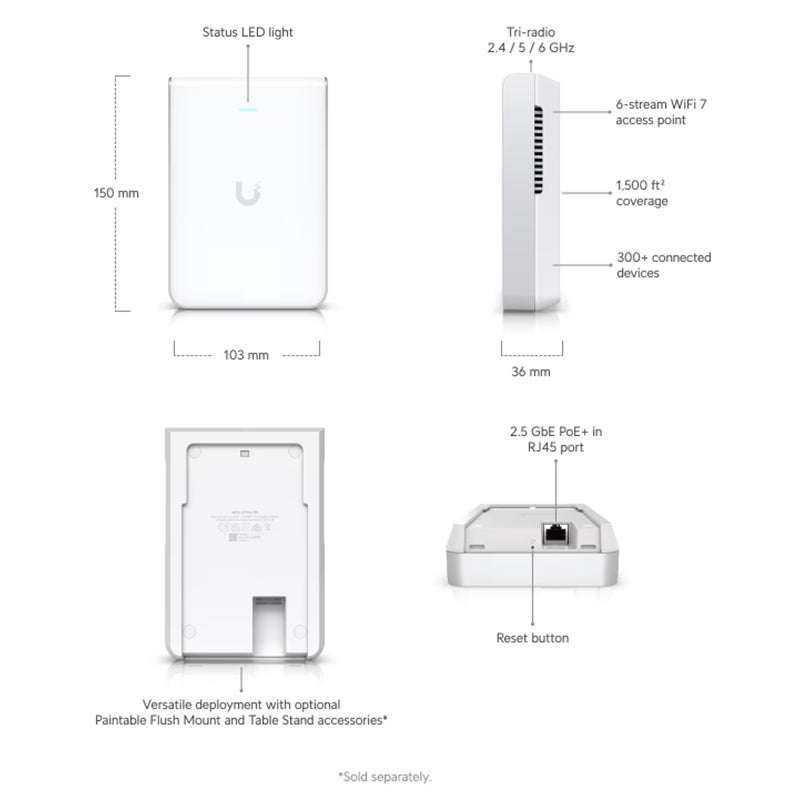

Dimensions	150 x 103 x 36 mm / (5.9 x 4.1 x 1.4")
WiFi Standard	WiFi 7
Spatial Streams	6
Coverage Area	140 m² (1,500 ft²)
Max. Client Count	300+
Uplink	2.5 GbE

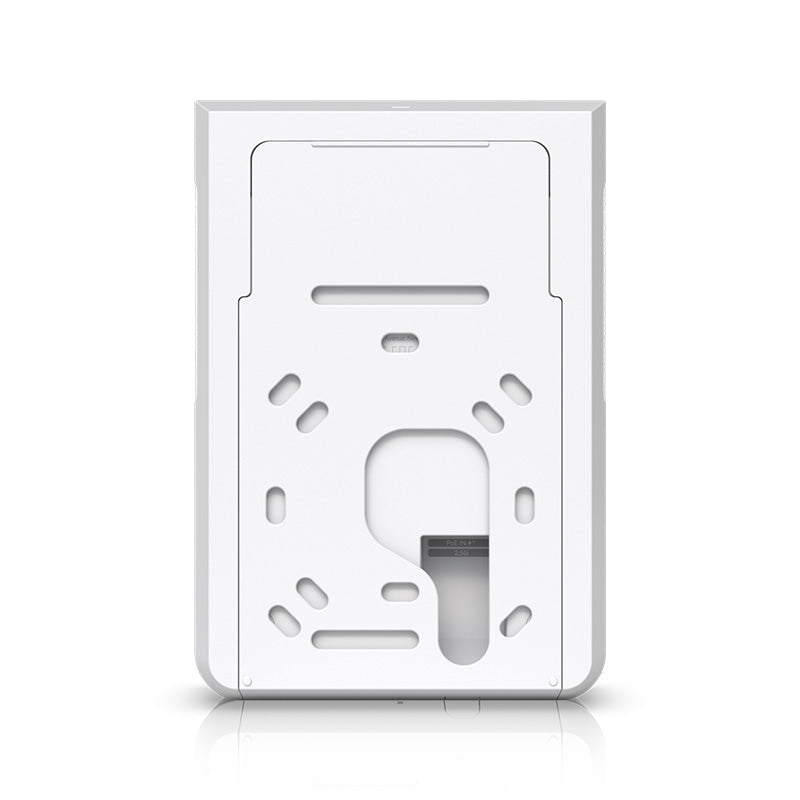

Mounting	Wall / (Mount Included)
Power Method	PoE+
Performance
MIMO · 6 GHz	2 x 2 (DL/UL MU-MIMO)
MIMO · 5 GHz	2 x 2 (DL/UL MU-MIMO)
MIMO · 2.4 GHz	2 x 2 (DL/UL MU-MIMO)
Max. Data Rate · 6 GHz	5.8 Gbps (BW320)
Max. Data Rate · 5 GHz	4.3 Gbps (BW240)
Max. Data Rate · 2.4 GHz	688 Mbps (BW40)
Antenna Gain · 6 GHz	6 dBi
Antenna Gain · 5 GHz	5 dBi
Antenna Gain · 2.4 GHz	4 dBi
Max. TX Power · 6 GHz	23 dBm
Max. TX Power · 5 GHz	26 dBm
Max. TX Power · 2.4 GHz	22 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates · 802.11be (WiFi 7)	7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Supported Data Rates · 802.11ax (WiFi 6/6E)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Supported Data Rates · 802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
Supported Data Rates · 802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Hardware
Max. Power Consumption	22W
Supported Voltage Range	44–57V DC

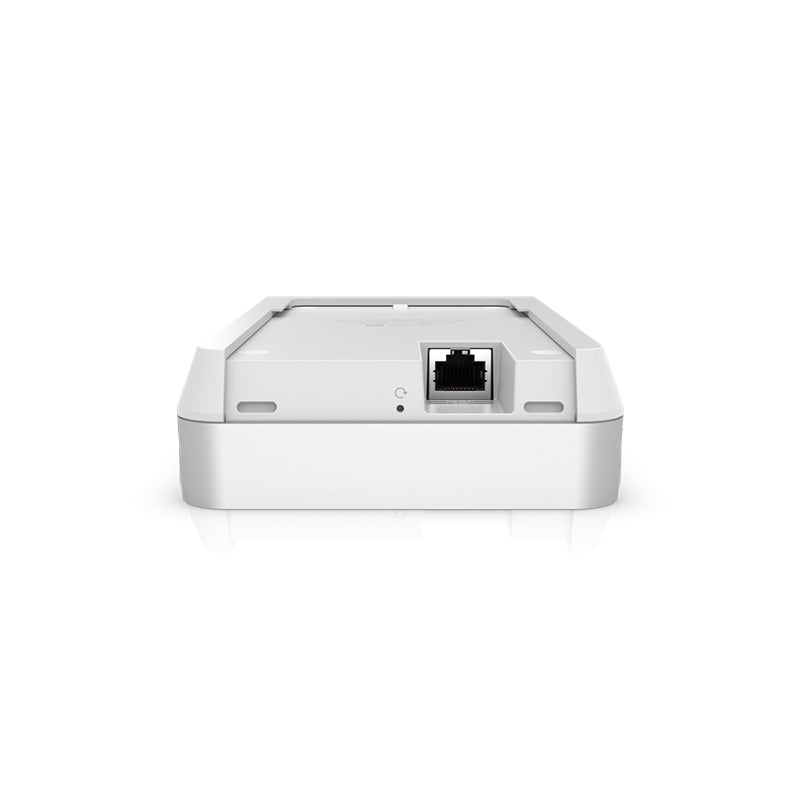

Networking Interface	(1) 1/2.5 GbE RJ45 port
Weight	580 g (1.3 lb)
Management	Ethernet
Enclosure Material	Polycarbonate, aluminum
Mount Material	Aluminum
LEDs · System	White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Operating Frequency	US/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / U-NII-5 to U-NII-8: 5925 - 7125 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz / 5925 - 7125 MHz
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, Anatel: 10022-24-08356
Software
Application Requirements · UniFi Network	Version 8.1.113 and later
