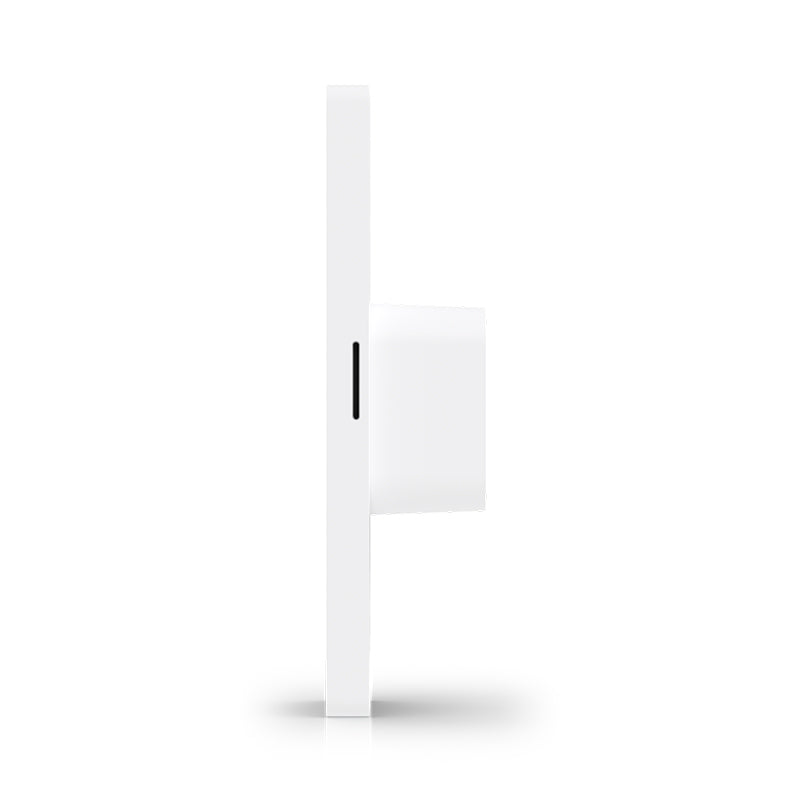

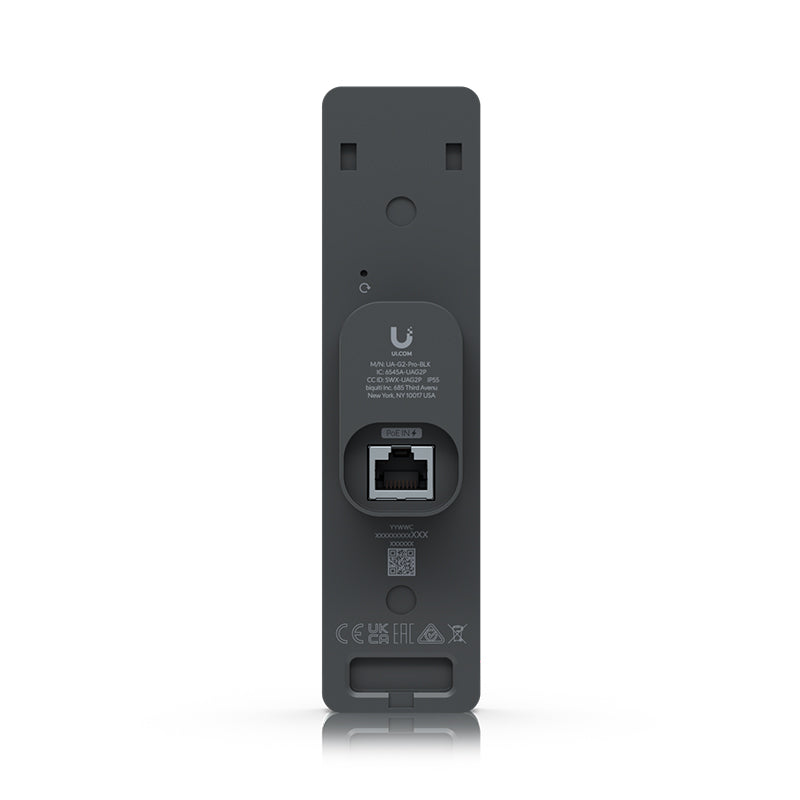

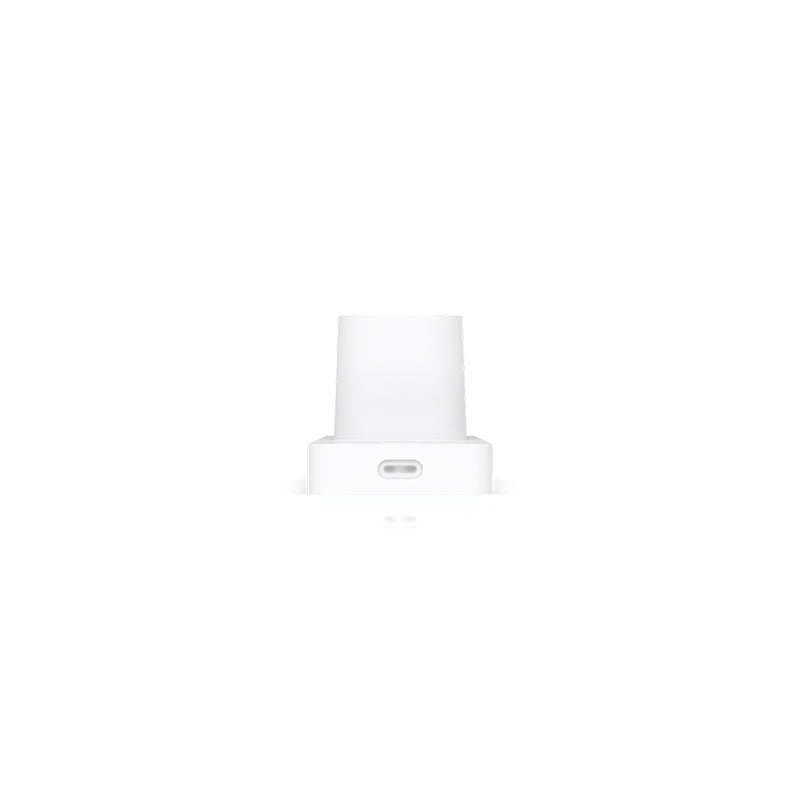

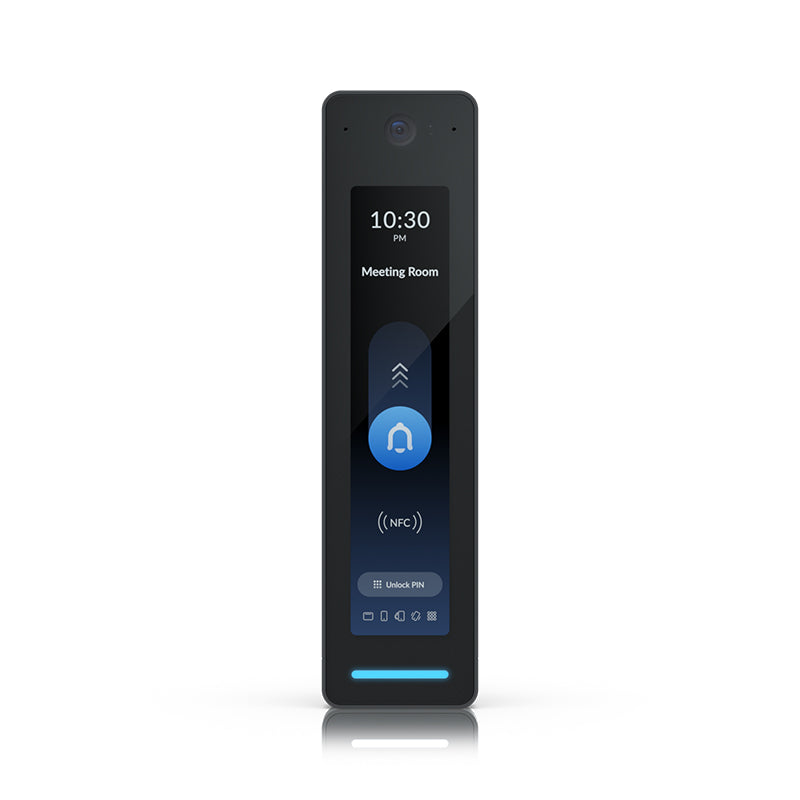

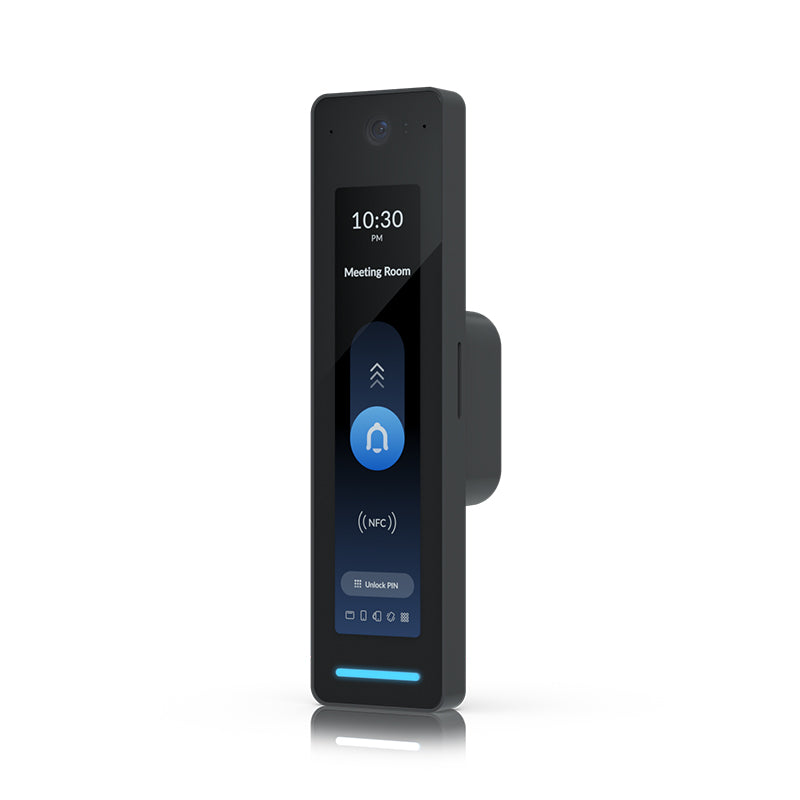

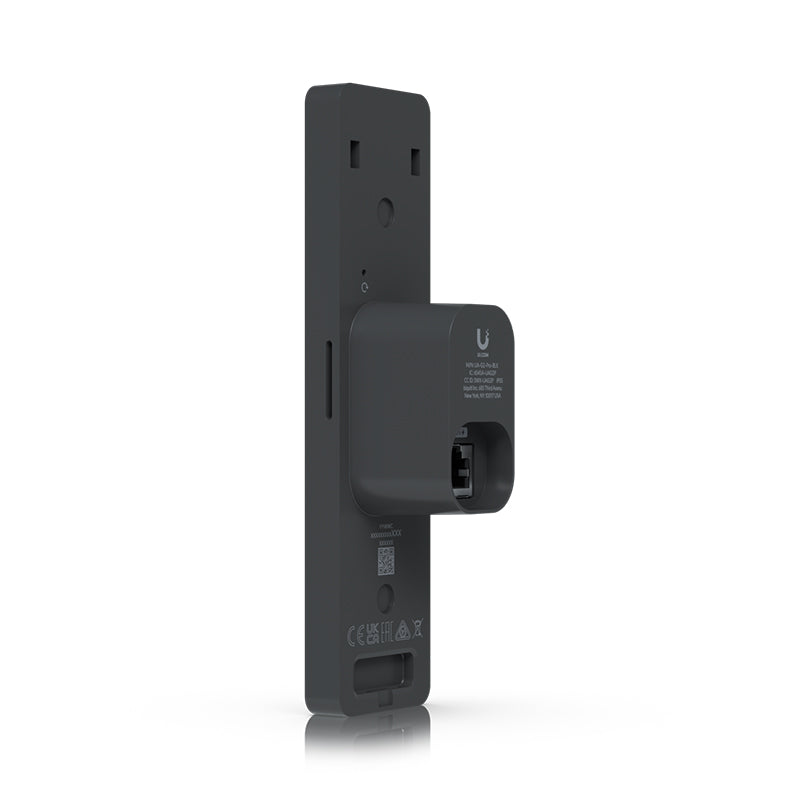

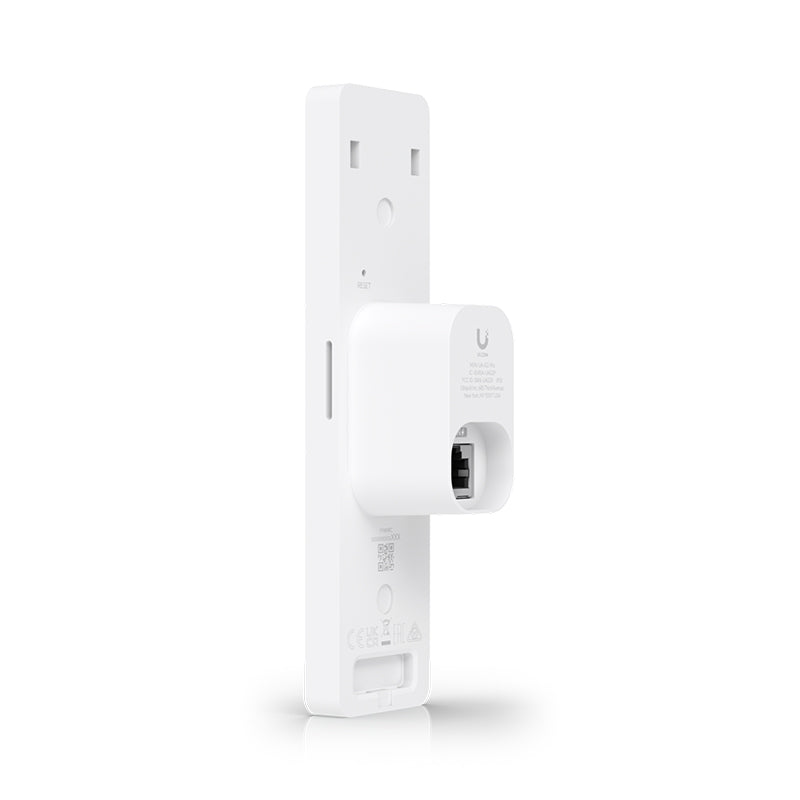

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

SKU: UA-G2-PRO

UA-G2-Pro Ubiquiti UniFi Access Reader G2 Professional

Q: Which NFC cards does it support?

It operates at 13.56 MHz and supports ISO\/IEC 14443A\/B, ISO\/IEC 15693, MIFARE Classic, MIFARE DESFire, Sony FeliCa (ID only) and NFC Forum tag types T1T to T5T. NFC read range is under 30 mm.

$744.13 AUD

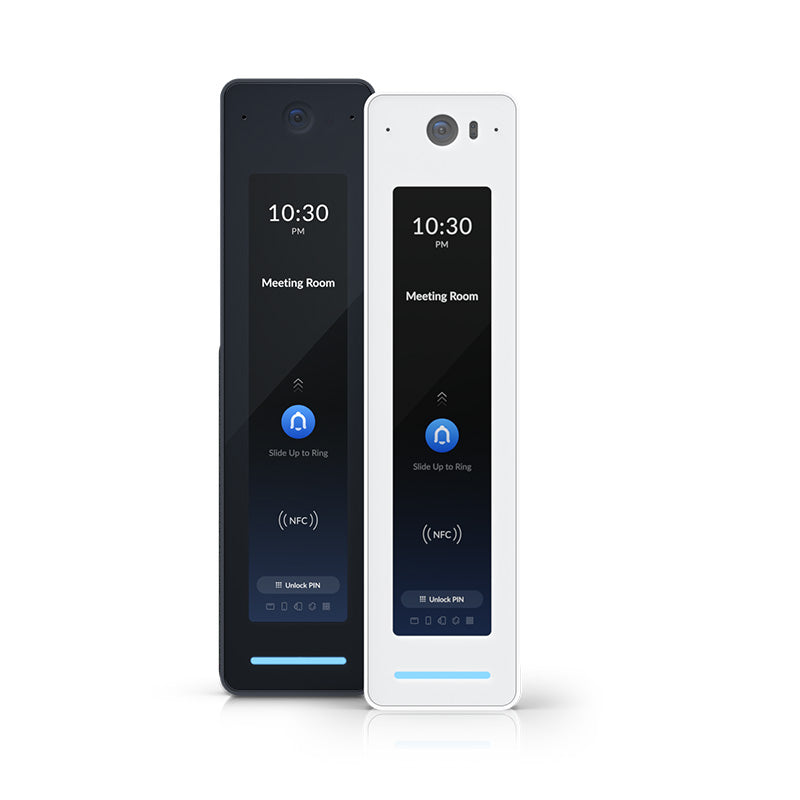

Colour

White Black

Product variants

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

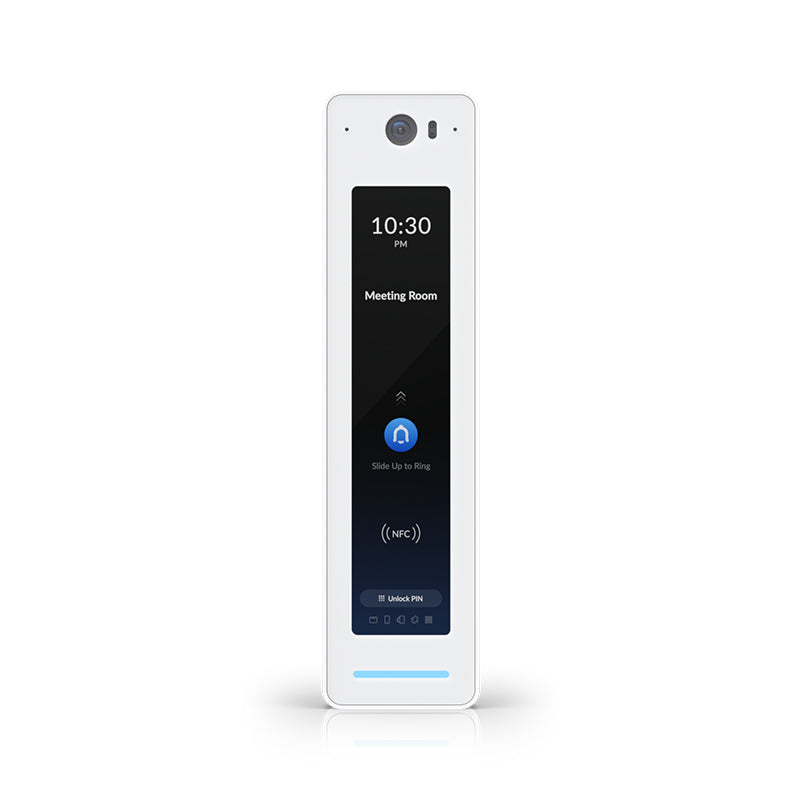

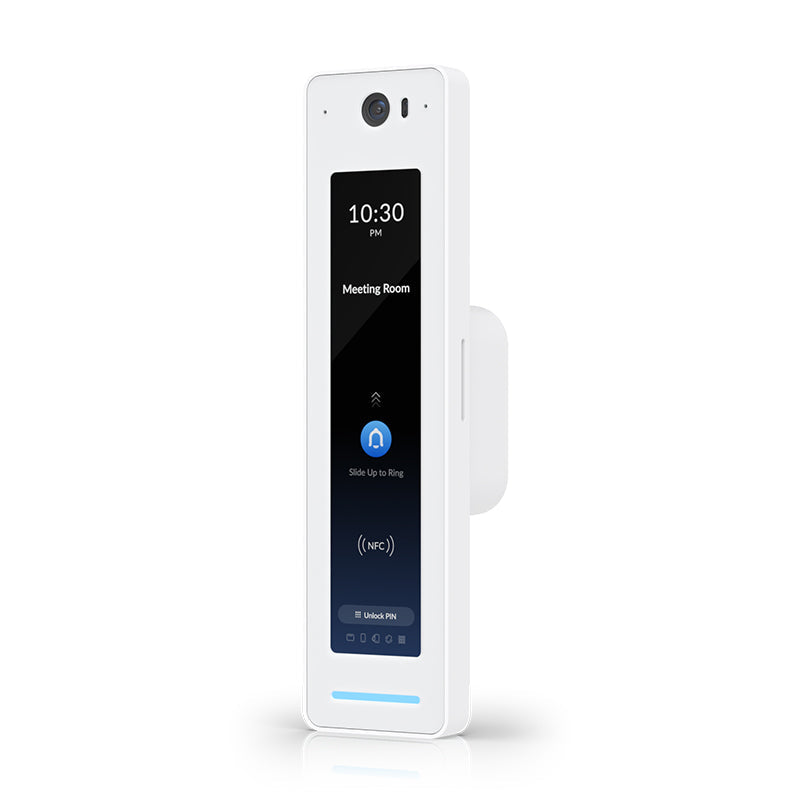

Second-generation NFC card reader and intercom.

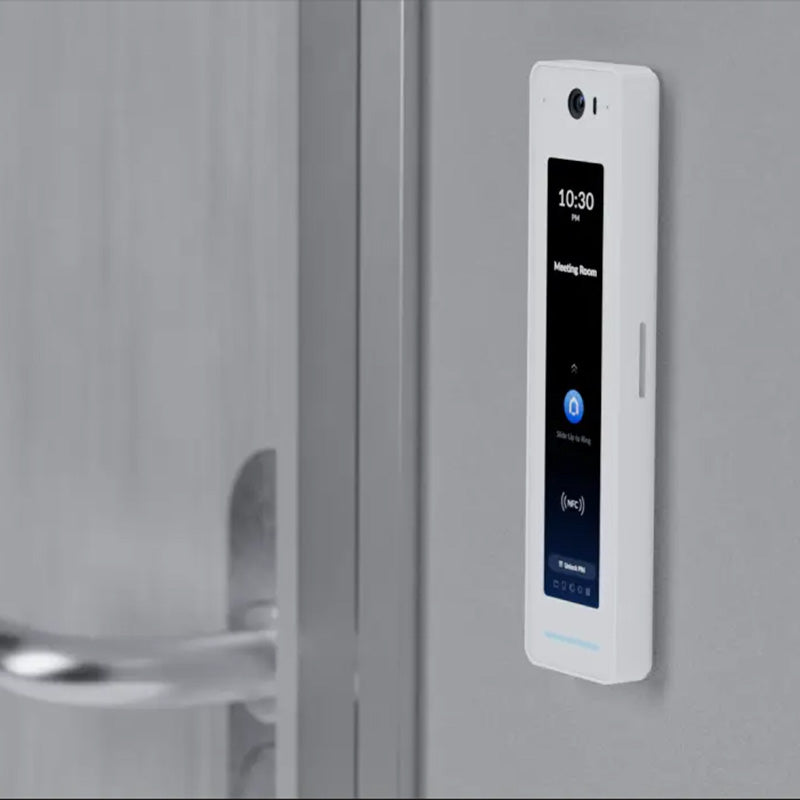

The Ubiquiti UniFi Access Reader G2 Pro is a cutting-edge access control solution that combines convenience, security, and versatility. Unlock your doors effortlessly using an NFC card or the UniFi Identity mobile app, offering flexible access options for users. The built-in doorbell feature triggers an intercom system with a video feed of the visitor, ensuring clear communication and ADA-compliant visibility. With PIN unlocking on the screen, an extra layer of authentication enhances security.

Seamless integration is made possible by connecting the UniFi Access Reader G2 Pro to the UniFi Access Hub using Power over Ethernet (PoE). This eliminates the need for additional power supplies and streamlines the installation process. Rain-resistant with an IP55 rating and capable of operating in temperatures from -10 to 40° C, this reader is suitable for indoor and outdoor use.

Features:

Unlock using an NFC card or UniFi Identity mobile app

Doorbell to unlock, triggering the intercom with a video of a visitor

Video works at ADA-compliant mounting height

PIN unlocking on the screen

Connects to UniFi Access Hub using PoE

IP55 rain resistance (-10 to 40° C)

Frequently asked questions5 questions

How can people unlock a door with the UniFi Access Reader G2 Pro?

Users can unlock with an NFC card, the UniFi Identity mobile app, or a PIN entered on the touchscreen. The built-in doorbell also triggers an intercom with a video feed of the visitor.

How is the reader powered and connected?

It connects to the UniFi Access Hub over Power over Ethernet through its single GbE RJ45 port, so no separate power supply is needed. It uses 48V DC with a maximum power consumption of 6W, and Cat 5e cabling is the minimum recommended.

Can it be used outdoors?

Yes, it is rated for both indoor and outdoor use and has an IP55 rating for rain resistance. The device operates from -30 to 45° C, and the display from -10 to 45° C.

Which NFC cards does it support?

It operates at 13.56 MHz and supports ISO/IEC 14443A/B, ISO/IEC 15693, MIFARE Classic, MIFARE DESFire, Sony FeliCa (ID only) and NFC Forum tag types T1T to T5T. NFC read range is under 30 mm.

What are the screen and camera details?

It has a 120 mm (4.7") capacitive touch screen in portrait orientation with typical luminance of 480 nits. The camera records up to 30 FPS and the video is viewable at an ADA-compliant mounting height.

Click HERE to access the Datasheet

Specifications39 specifications · 4 sections

Overview

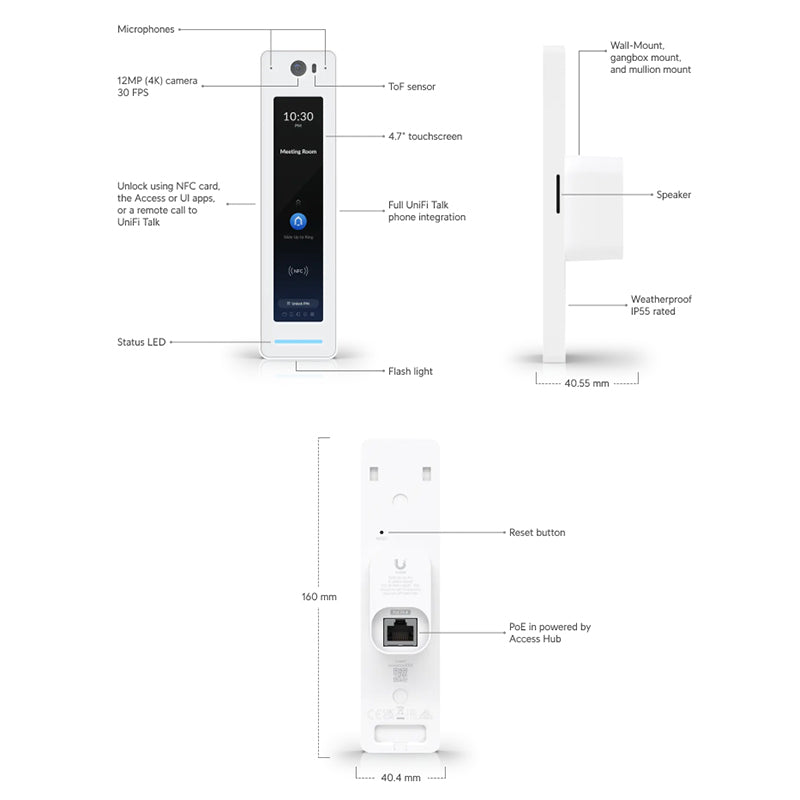

Dimensions	160 x 40.4 x 40.55 mm / (6.3 x 1.59 x 1.6")
UniFi Application Suite	Protect / Access
Weatherproofing	IP55
UL 294 Level	Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I
Mechanical
Weight	136 g (4.8 oz)
Enclosure Material	Polycarbonate, glass
Mount Material	Aluminum alloy

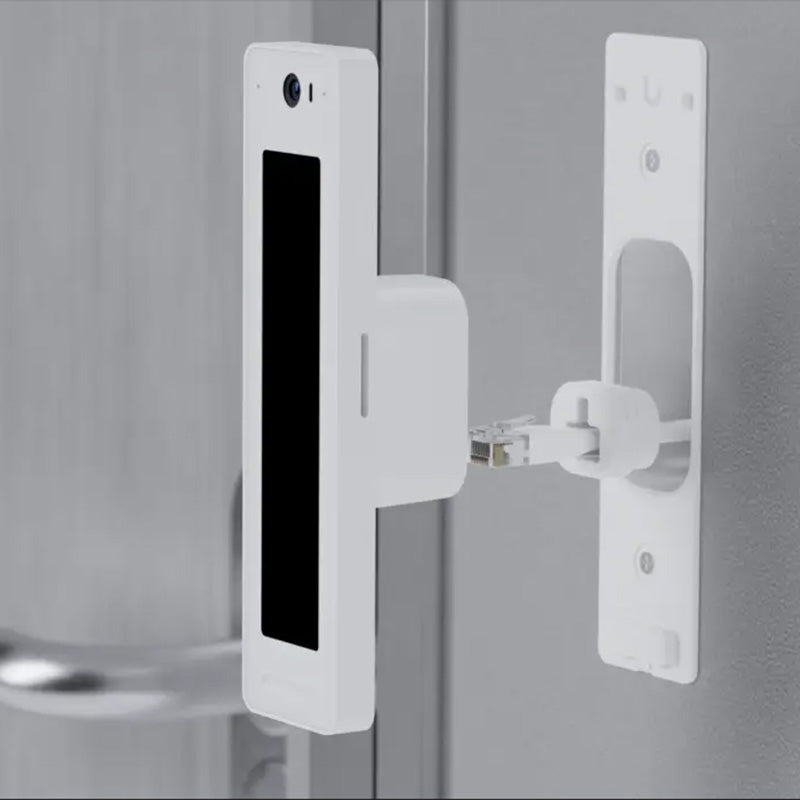

Mounting	Wall, gang-box mount (Included) / Angle mount, junction box (Optional)
Hardware
Indoor and Outdoor Use	Yes

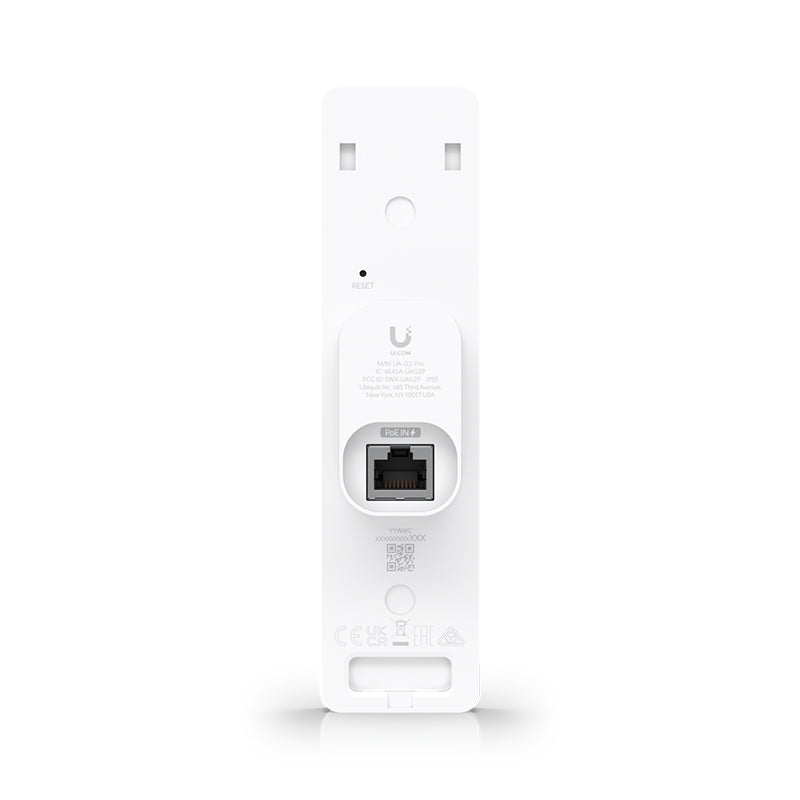

Networking Interface	(1) GbE RJ45 port
Connectivity	BLE 4.2 / NFC
Power Method	PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption	6W
Supported Voltage Range	48V DC
ESD/EMP Protection	Air: ± 15kV, contact: ± 8kV
Video · Max. Frame Rate	30 FPS
Video · Resolution	2MP 1200 x 1600 (3:4)
Optics · Resolution	12 MP (3072 × 4096)
Optics · Field of View	H: 98.6°, V: 125.7°, D: 157.8°
Sensors	Proximity sensor
Display · Size	120 mm (4.7") diagonal
Display · Screen Technology	Capacitive touch
Display · Luminance	480 nits (Typical)
Display · Screen Orientation	Portrait
Display · Resolution	1280 x 286 px
LEDs	R/G/B/W/Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a>
Button	(1) Factory reset
NFC Frequency	13.56 MHz
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-G2-Pro/UA-G2-Pro-Black, V02
Ambient Operating Temperature	Device: -30 to 45° C (-22 to 113° F) / Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity	5 to 90% noncondensing
Software
Management Application	Access
Software Information	The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a>
