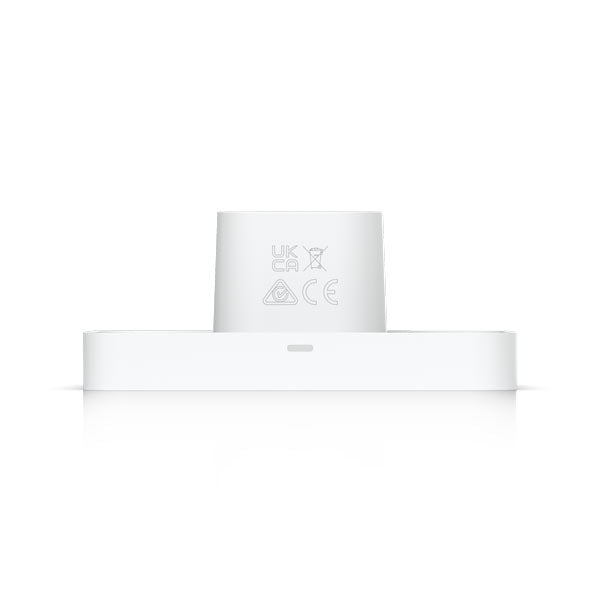

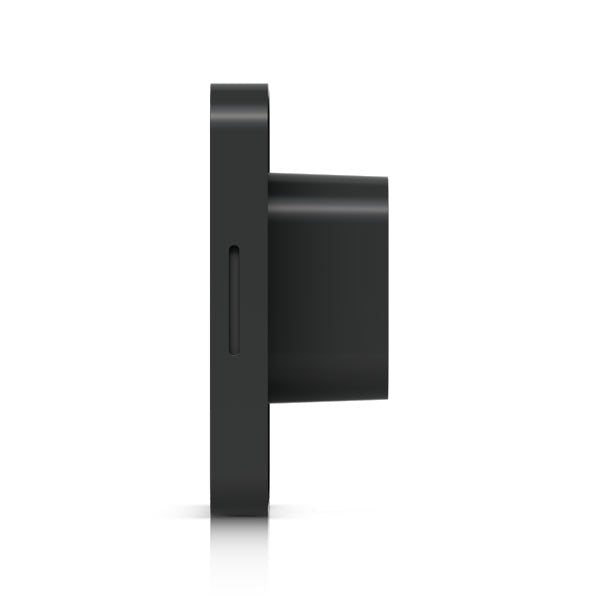

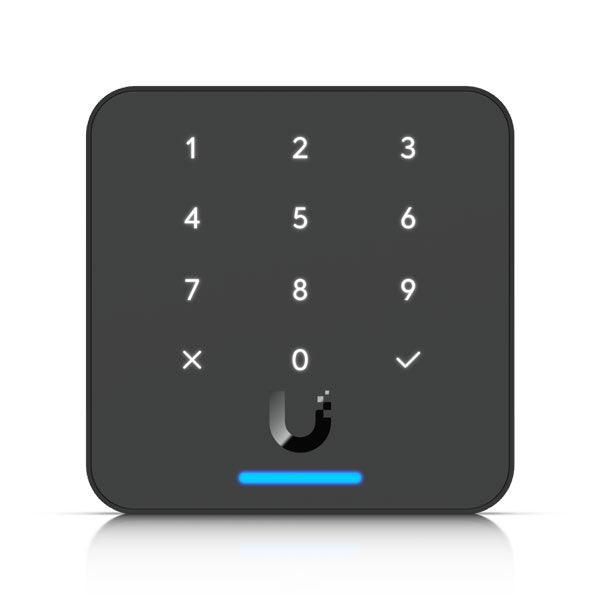

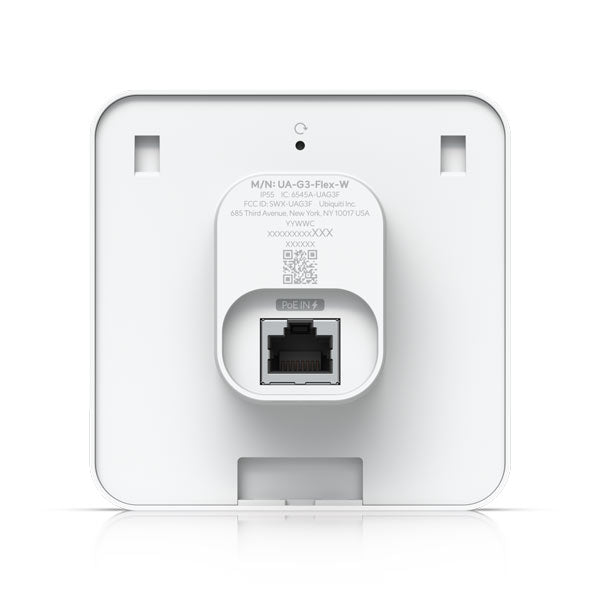

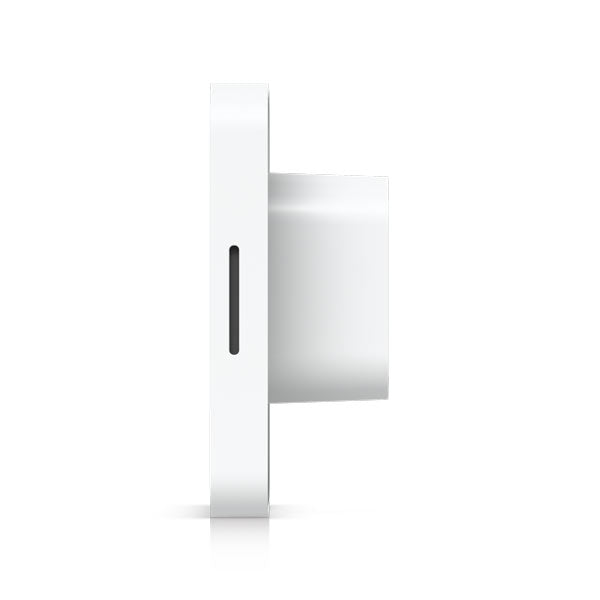

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
UA-G3-Flex Ubiquiti UniFi Access Reader Flex
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

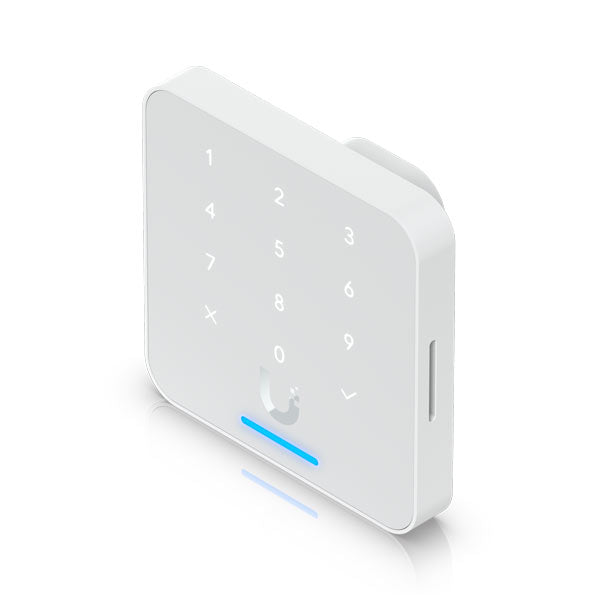

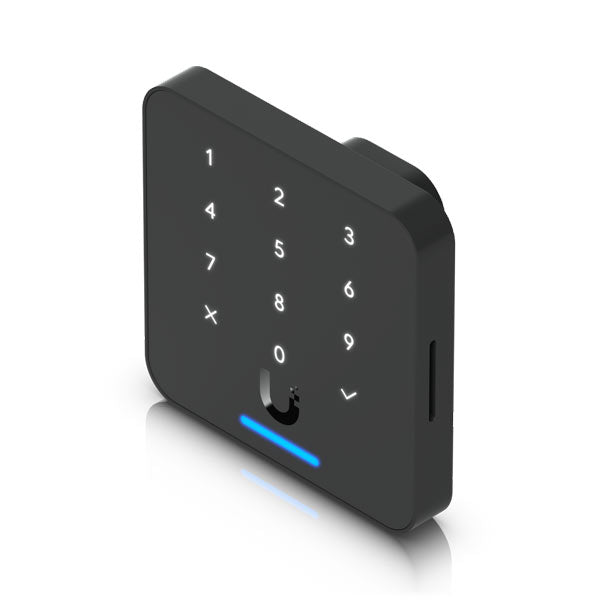

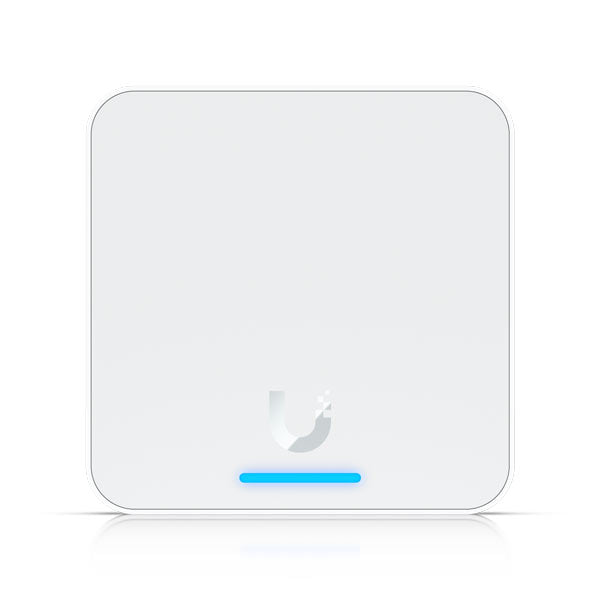

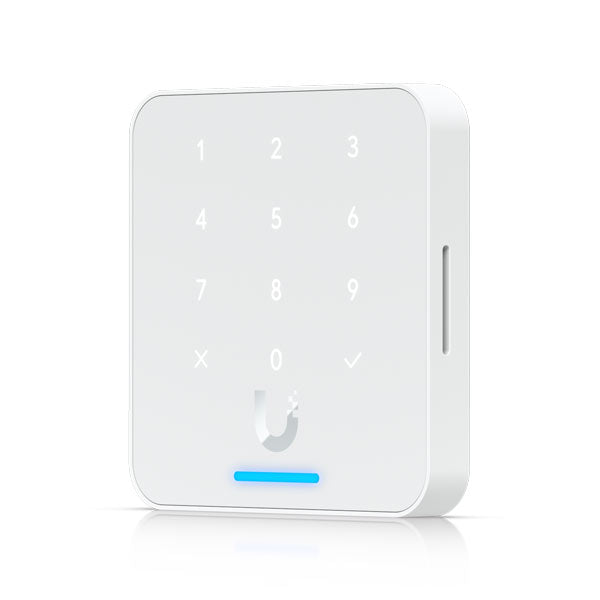

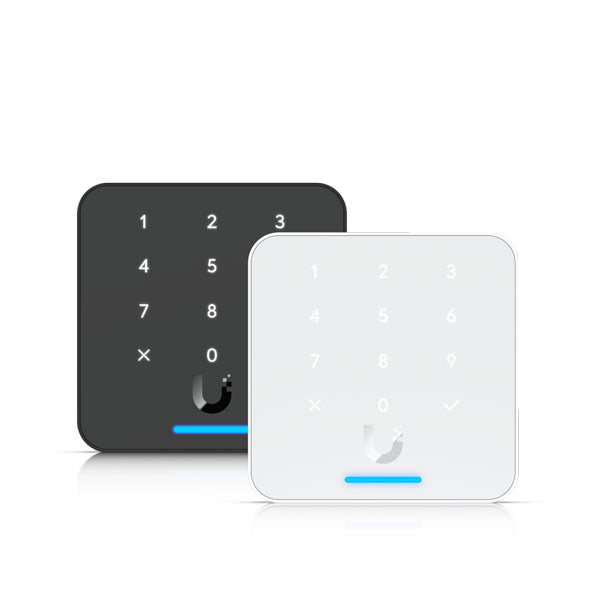

Third-generation NFC card reader with a keypad and Apple Touch Pass support.
Features:
Unlock with the keypad, NFC card, UniFi Identity mobile app, or Touch Pass
Provides entry and exit greeting messages
IP55-rated weather resistance (-30 to 60°C)
Connects to UniFi Access Hub via PoE
Specifications30 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 88 × 88 × 36.5 mm / (3.5 × 3.5 × 1.4") |
| UniFi Application Suite | Access |
| Weatherproofing | IP55 |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 165 g (5.8 oz) |
| Enclosure Material | Polycarbonate, glass, aluminium alloy |
| Mount Material | Polycarbonate, aluminum alloy |

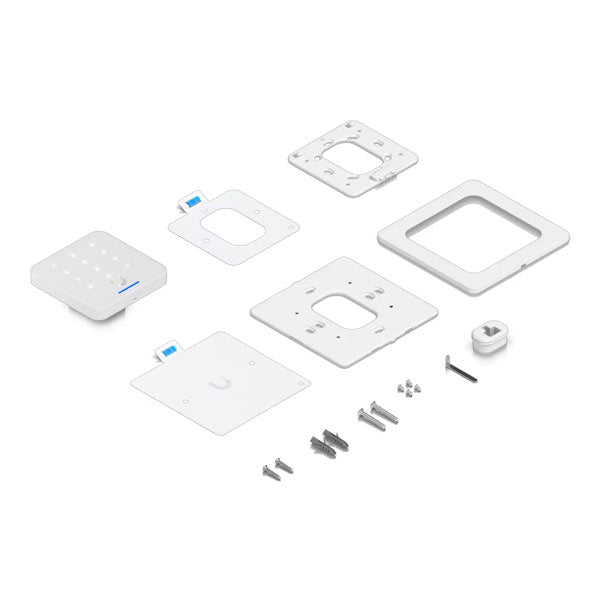

| Mounting | Wall (Included) / Gang-box, junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |

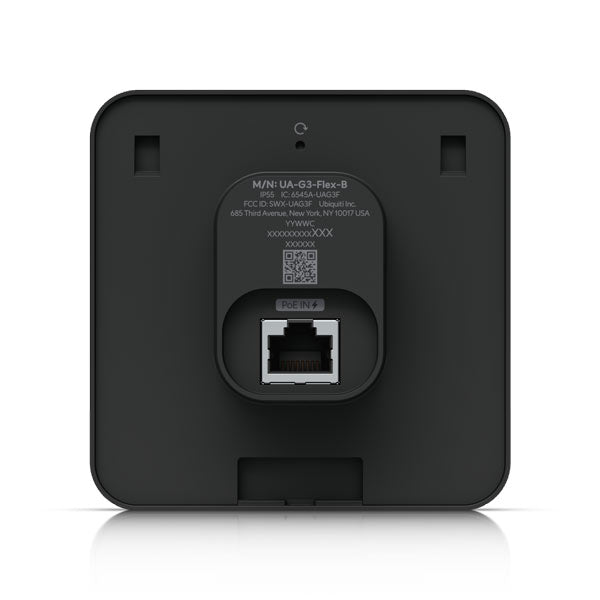

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 44–57V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Sensors | (12) Capacitive buttons |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T / ECP 2.0 |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Flex V01 |
| Ambient Operating Temperature | -30 to 60° C / (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
