Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UA-G3-Intercom

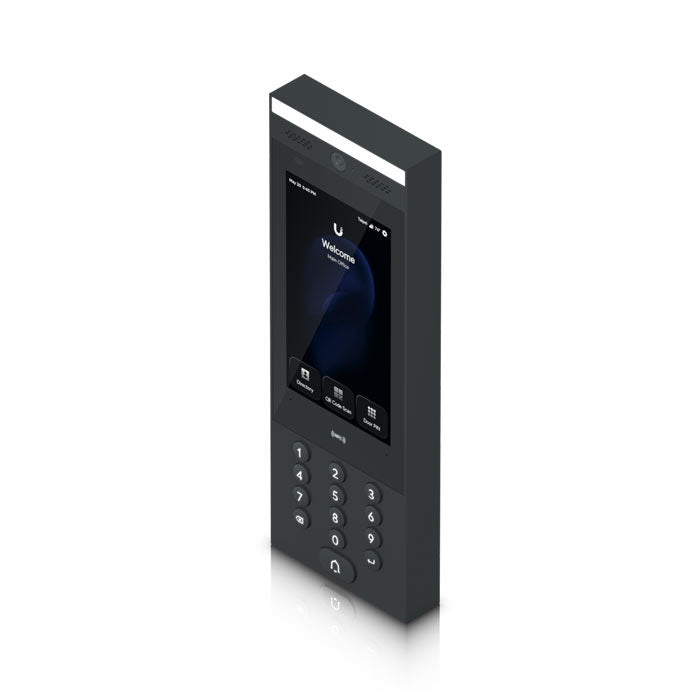

UA-G3-Intercom Ubiquiti UniFi Access Intercom G3
$819.28 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerth (none in stock)North Lakes
Pickup may be possible in North Lakes, Sydney, Brisbane, Melbourne and Adelaide
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

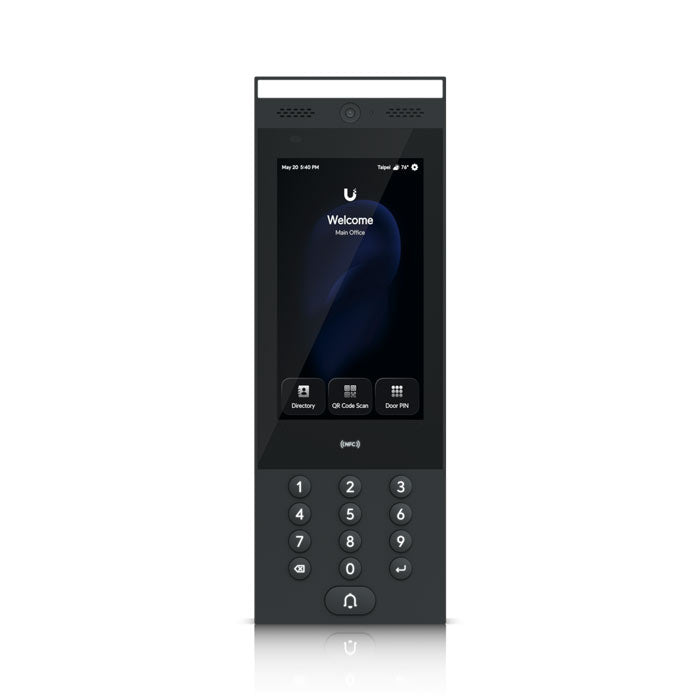

Indoor/outdoor intercom terminal for managing residential and commercial building entry requests with Touch Pass support.
Note. 10 free 1-year Touch Passes included. Click to learn more.
Please note that the Intercom must be connected to a UA-Hub for it to work.

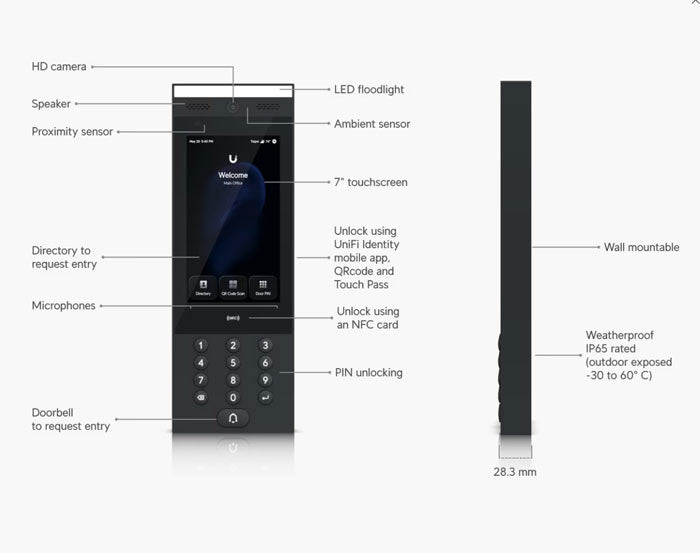

Features:
Works with Apple Wallet
Unlock using an NFC card, UniFi Identity mobile app, PIN code or QR code
Directory and doorbell to request entry
Pairs with multiple UniFi Intercom Viewers for remote access control
Connects to UniFi Access Hub series using PoE

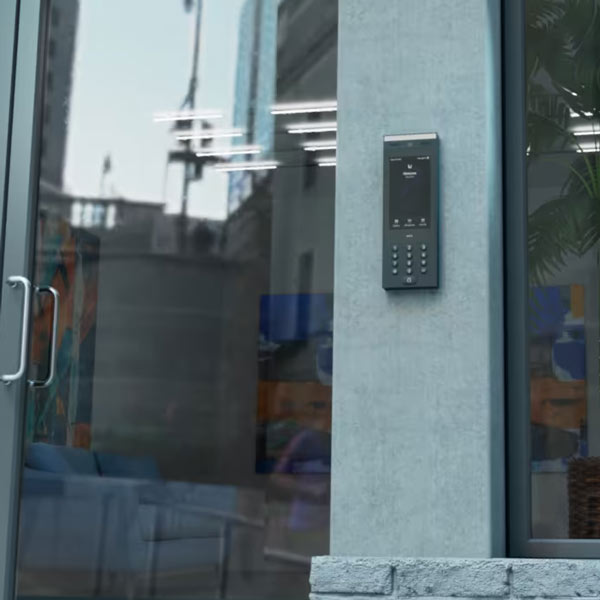

Weatherproof (outdoor exposed -30 to 60° C)
Frequently asked questions5 questions
What is the UniFi Access Intercom G3 used for?
It is an indoor/outdoor intercom terminal for managing residential and commercial building entry requests. It has a directory and doorbell for requesting entry, and supports Touch Pass.
How can people unlock the door with it?
Entry can be granted using an NFC card, the UniFi Identity mobile app, a PIN code or a QR code. It also works with Apple Wallet.
Does the Intercom G3 need any other hardware to work?
Yes. It must be connected to a UA-Hub to function, and it connects to the UniFi Access Hub series using PoE through its single GbE RJ45 port.
Is it suitable for outdoor installation?
Yes. It is rated IP65 for weatherproofing and has an ambient operating temperature of -30 to 60° C for the device, or -25 to 60° C for the display.
What display and camera does it have?
It has a 7-inch (177 mm) capacitive multi-touch screen in portrait orientation at 1024 x 600 px, with up to 1000 nits typical luminance. The camera offers up to 30 FPS with a 79.4° horizontal field of view.
Specifications38 specifications · 4 sections
| Overview | |
|---|---|

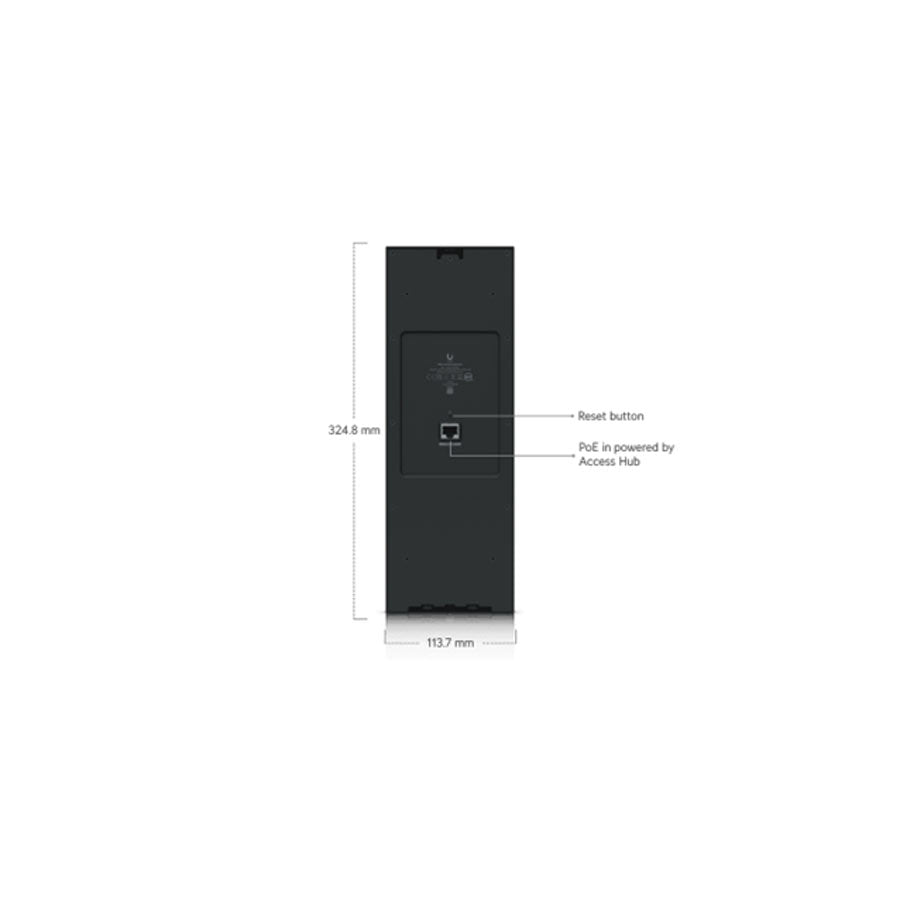

| Dimensions | 324.8 x 113.7 x 28.3 mm / (12.8 x 4.5 x 1.1") |
| UniFi Application Suite | Access |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Weatherproofing | IP65 |
| Mechanical | |
| Weight | Device: 965 g (2.1 lb) / Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |

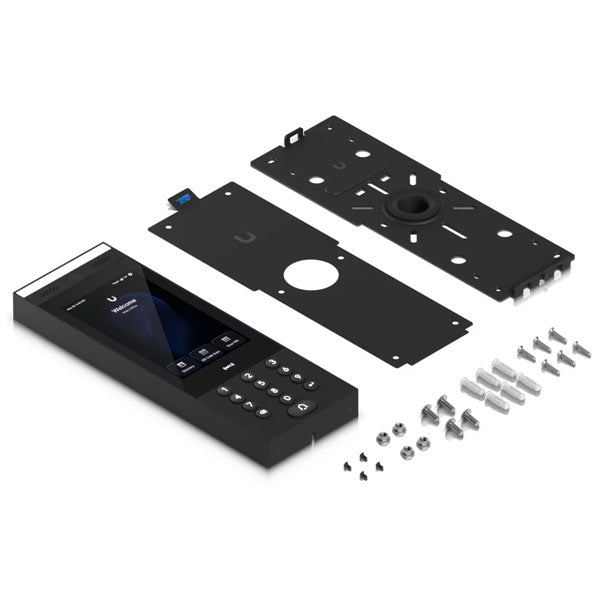

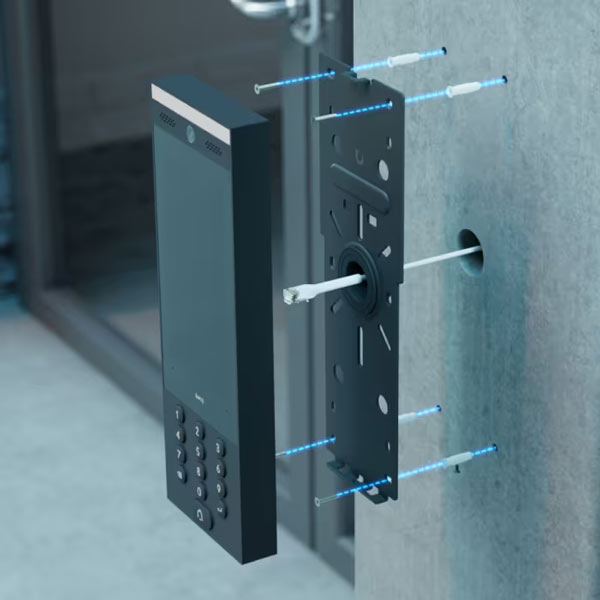

| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) / Surface angle, flush mount, sunshield kit (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |

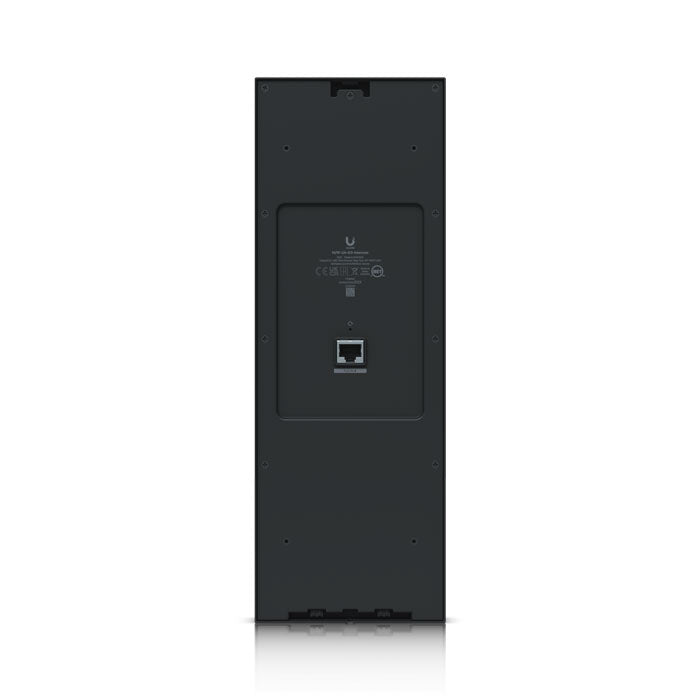

| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Video · Max. Frame Rate | 30 FPS |
| Video · Resolution | 2MP 1200 x 1600 (3:4) |
| Optics · Resolution | 8 MP (2448 × 3264) |
| Optics · Field of View | H: 79.4°, V: 97.5°, D: 118.2° |
| Sensors | Proximity sensor / ALS sensor |
| Display · Size | 177 mm (7") diagonal |
| Display · Screen Technology | Capacitive multi-touch |
| Display · Luminance | Max. 1000 nits (Typical) |
| Display · Screen Orientation | Portrait |
| Display · Resolution | 1024 x 600 px |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T / ECP 2.0 |
| LEDs | Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Intercom, V01 |
| Ambient Operating Temperature | Device: -30 to 60° C (-22 to 140° F) / Display: -25 to 60° C (-13 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UA-G3-Intercom · Ubiquiti's spec sheet
