UA-G3-SK-Elevator - Ubiquiti UniFi G3 Elevator Starter Kit
Description
Description
The Ubiquiti UA-G3-SK-Elevator is a comprehensive UniFi Access elevator starter kit designed to deliver professional access control for multi-storey buildings. This G3 Elevator Starter Kit provides seamless integration with your existing UniFi ecosystem, enabling secure floor selection authorisation through PoE-powered in-elevator readers.
Key Features
- Supports up to 18 floors with comprehensive digital inputs for elevator car status and emergency functions
- PoE connectivity for in-elevator readers, simplifying installation and reducing cabling complexity
- Touch Pass support included for modern, convenient access control via smartphones
- Digital inputs for emergency, car position (5-bit), car status (Up/Down/Stop/Full), and door status (Open/Close)
- Elevator Hub with compact dimensions of 129.3 x 244.7 x 33.6 mm
- Multiple PoE outputs: one PoE++ input and four PoE+ outputs (30W per port, 45W aggregated maximum)
- NDAA Compliant for peace of mind
- Maximum user count of 6,000 users
- Professional-grade polycarbonate enclosure for durability
Ideal for: Commercial buildings, office complexes, residential towers, hotels, and any multi-storey facility requiring secure elevator access control integrated with the UniFi Access platform.

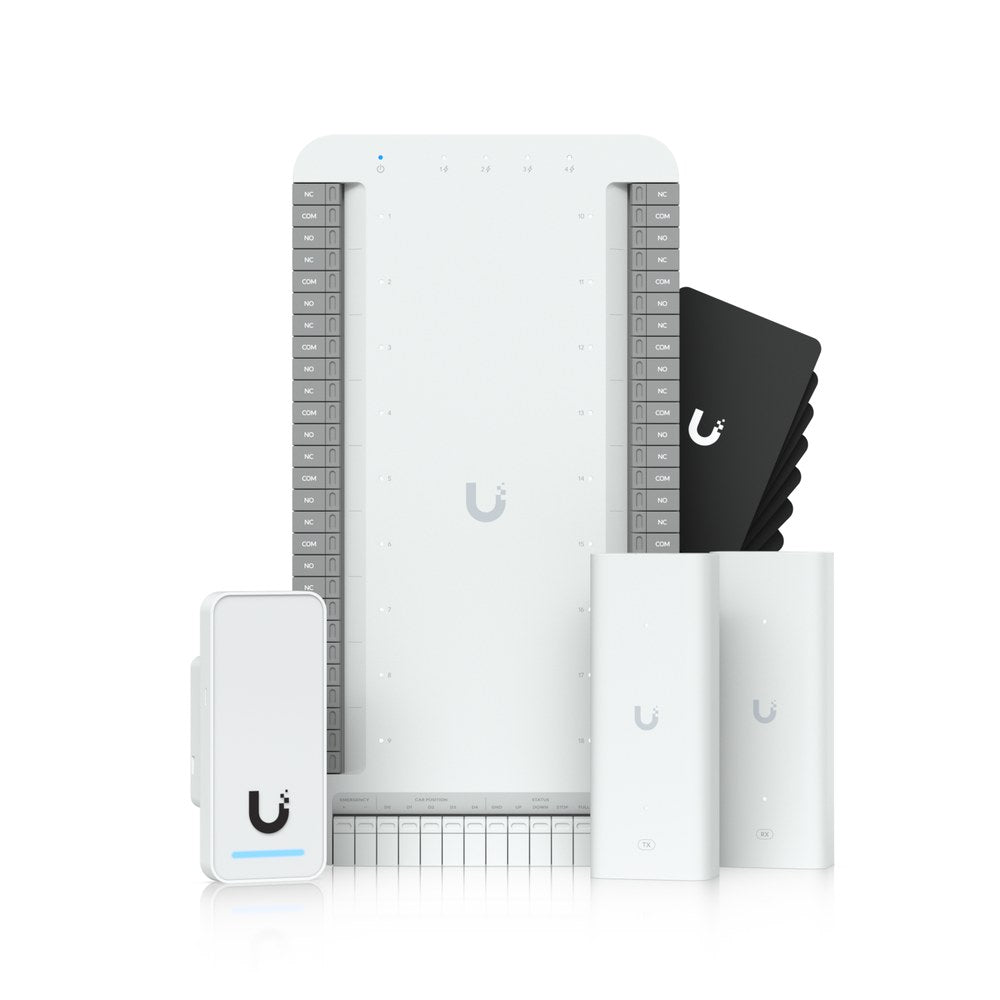

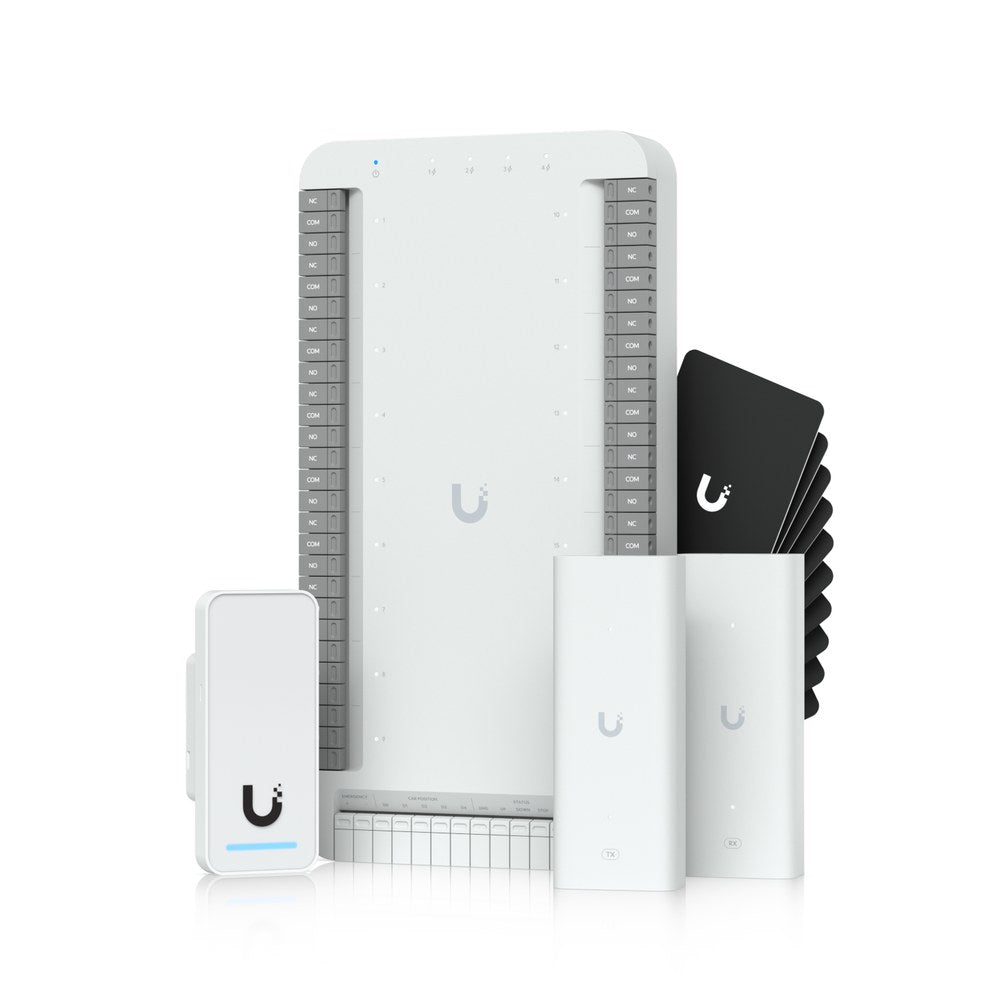

The UA-G3-SK-Elevator comes complete with everything needed to get started: one Elevator Hub, one G2 Reader, two 2-wire PoE extenders, and 10 Access Cards. The system is managed through the intuitive UniFi Access application, allowing administrators to configure floor permissions, monitor elevator usage, and respond to emergency situations with ease.
Compatible Products

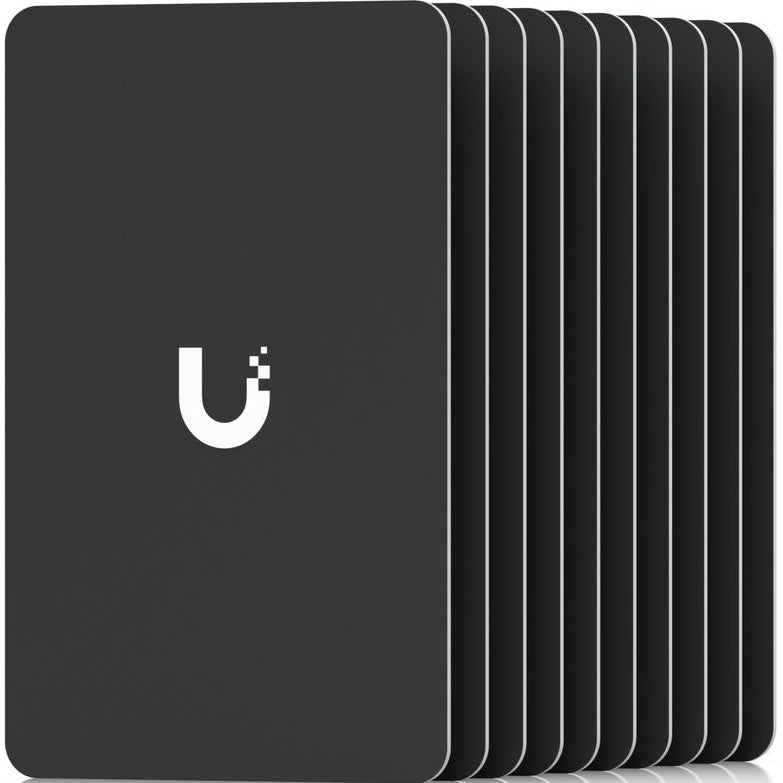

Access Cards (UA-Card) - Highly-secure NFC cards for reliable access control within UniFi systems.
Pocket Keyfob (UA-Pocket) - Compact NFC keyfobs offering an alternative credential format for users.
G3 Reader (UA-G3) and G3 Reader Pro (UA-G3-Pro) - Additional third-generation readers with fingerprint, keypad, and Touch Pass support for expanded access points.
UPS PoE Switch - Mission-critical power infrastructure ensuring uninterrupted operation during power outages.
Specifications71 specifications · 5 sections
| Overview | |
|---|---|
| In the Box | (1) Elevator Hub / (1) G3 Reader / (2) 2-wire PoE extenders / (10) Access Cards |
| Touch Pass | 10 free 1-year Touch Passes included / <a href="https://help.ui.com/hc/en-us/articles/27130425853079-UniFi-Access-Touch-Pass-Configuration" target="_blank" rel="noopener noreferrer">Learn More</a> |

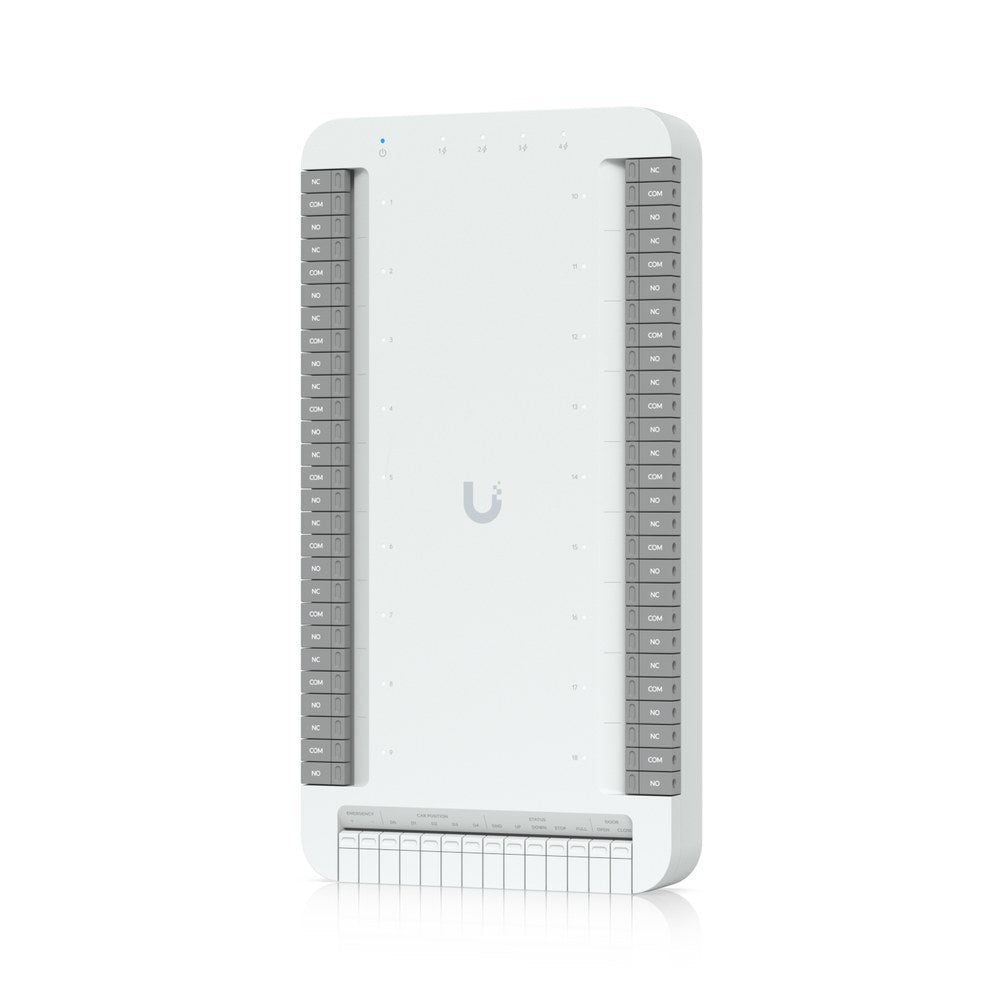

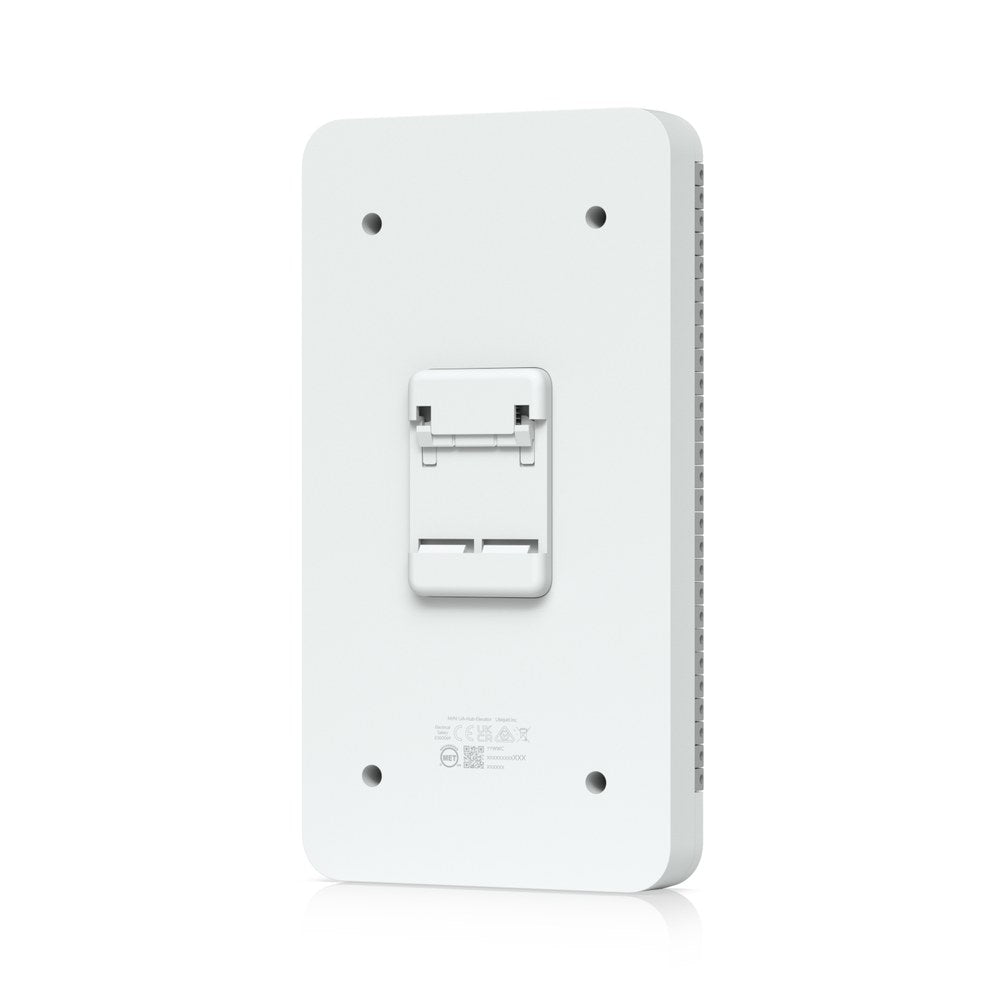

| Elevator Hub | |
| Dimensions | 129.3 x 244.7 x 33.6 mm / (5.1 x 9.6 x 1.3") |
| Maximum User Count | 6,000 |
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Weight | 537 g (1.2 lb) |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate |
| Networking Interface | (4) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1.2A / (4) PoE+ outputs, 50V DC, 30W per port / (Max 45W aggregated) |
| Management | (1) 10/100/1000 Base-T |
| Max. Power Consumption | 7W (Without PoE output) |
| Digital Input | (1) Emergency / (1) Car position (5-bit) / (1) Car status: Up/Down/Stop/Full / (1) Door status: Open/Close |
| Outputs | (18) Relays / Rating 30V DC/2A |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| LEDs | B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset / Terminal blocks |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |

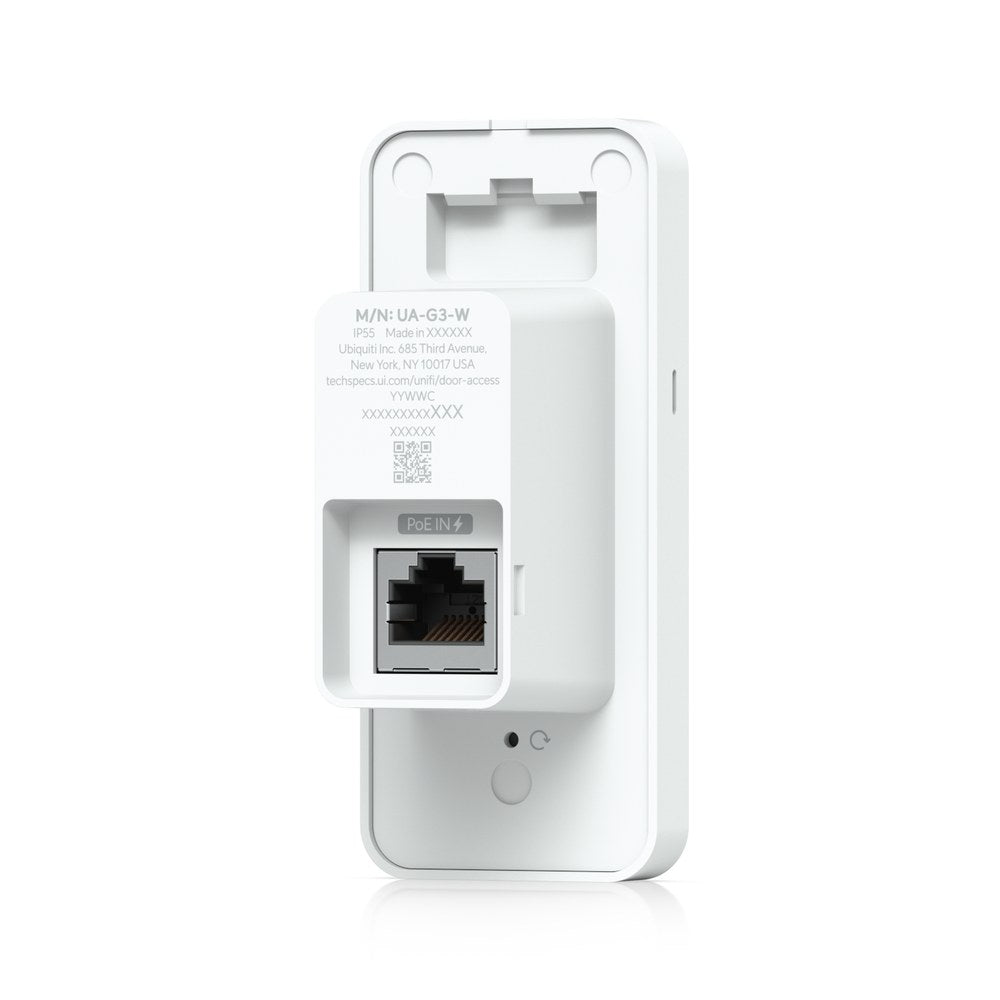

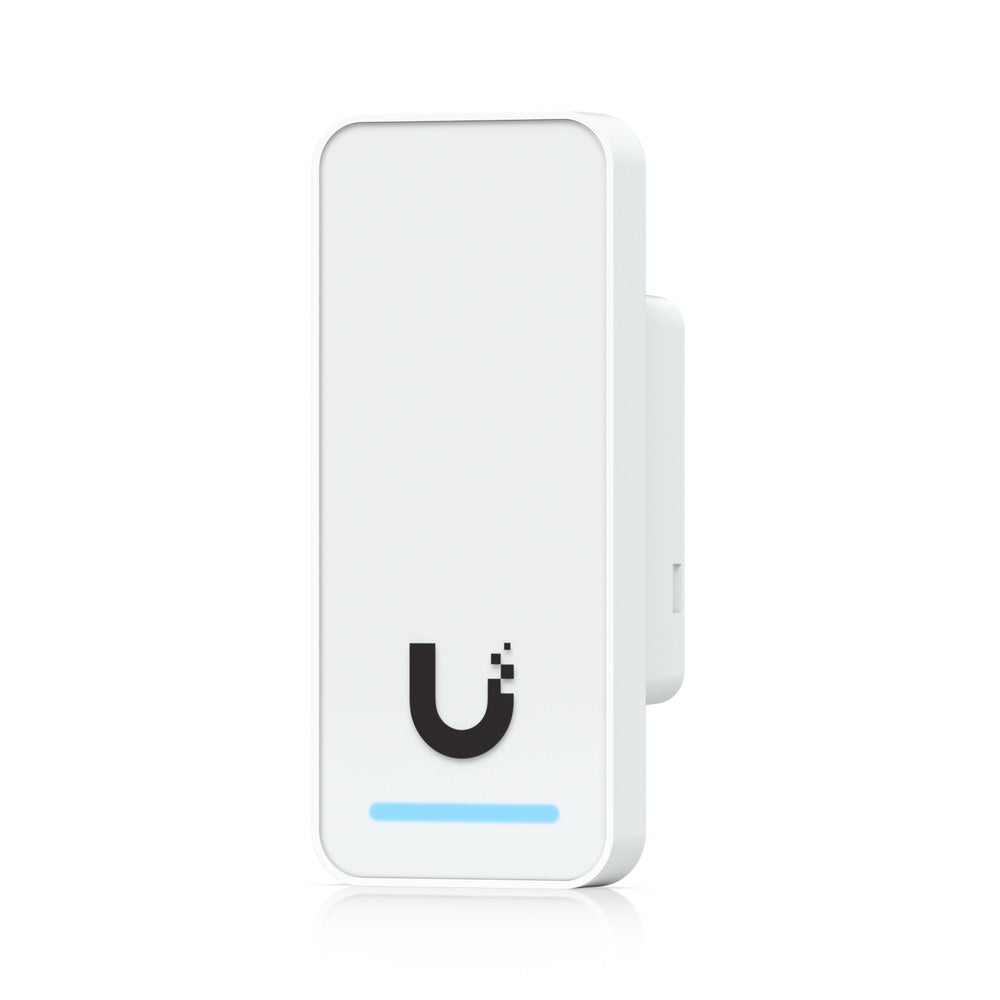

| G3 Reader | |
| Dimensions | 93 x 40 x 36.5 mm / (3.7 x 1.6 x 1.4") |
| Weatherproofing | IP55 |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | In-wall, gang box (Included) / Junction box (Optional) |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Sensors | Proximity sensor |
| Speaker | Yes |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T / ECP 2.0 |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Temperature | -30 to 45° C / (-22 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |

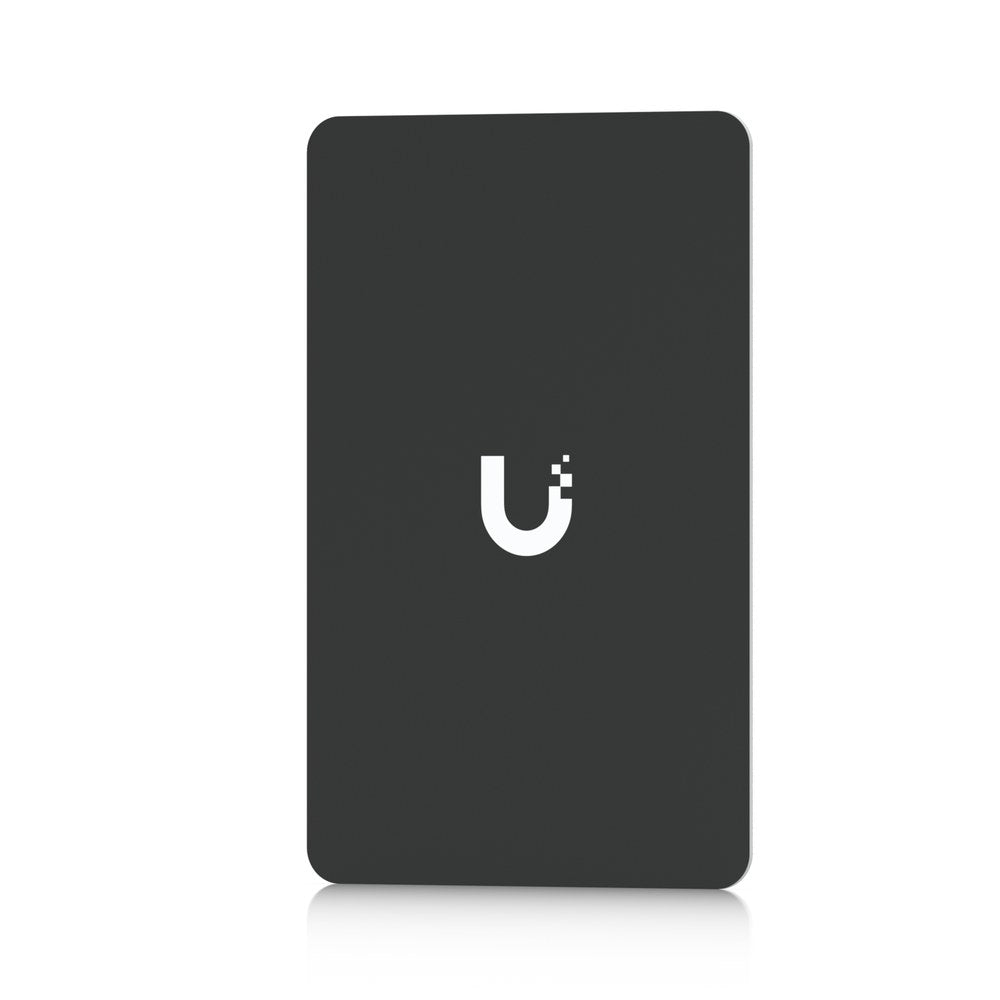

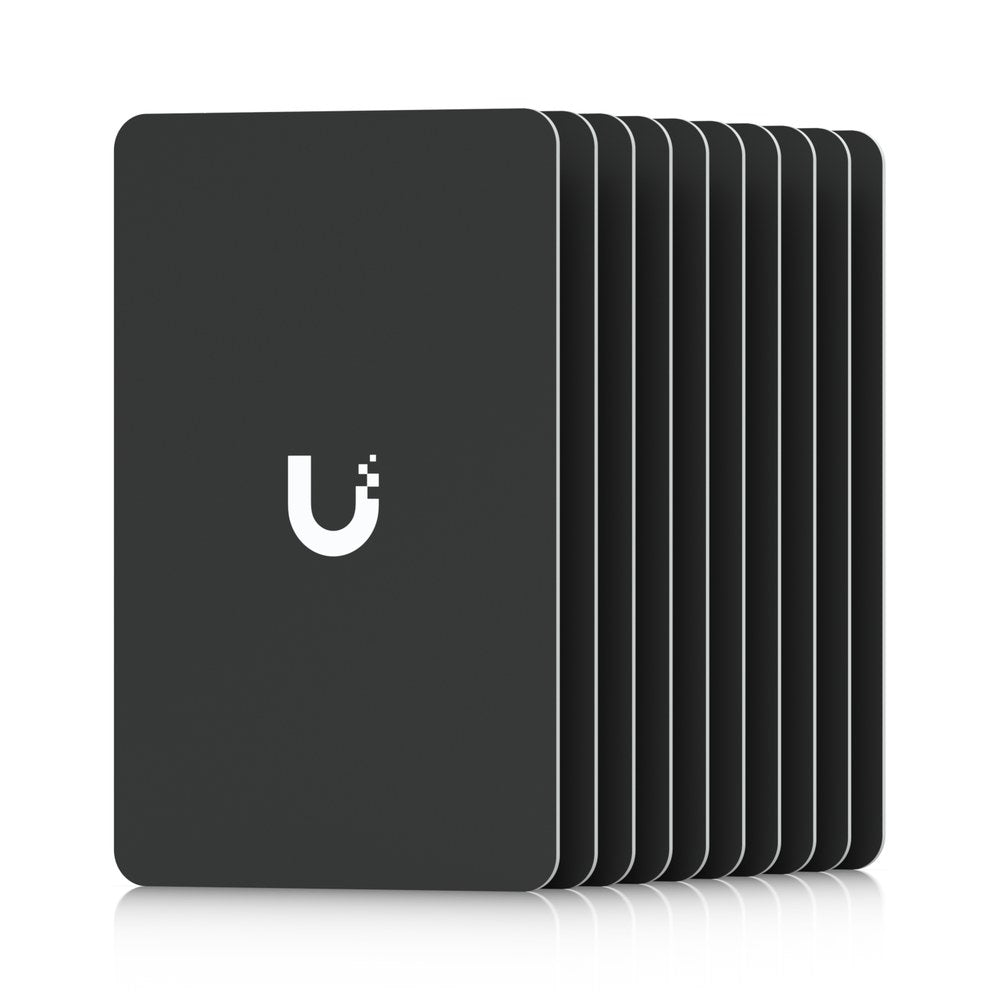

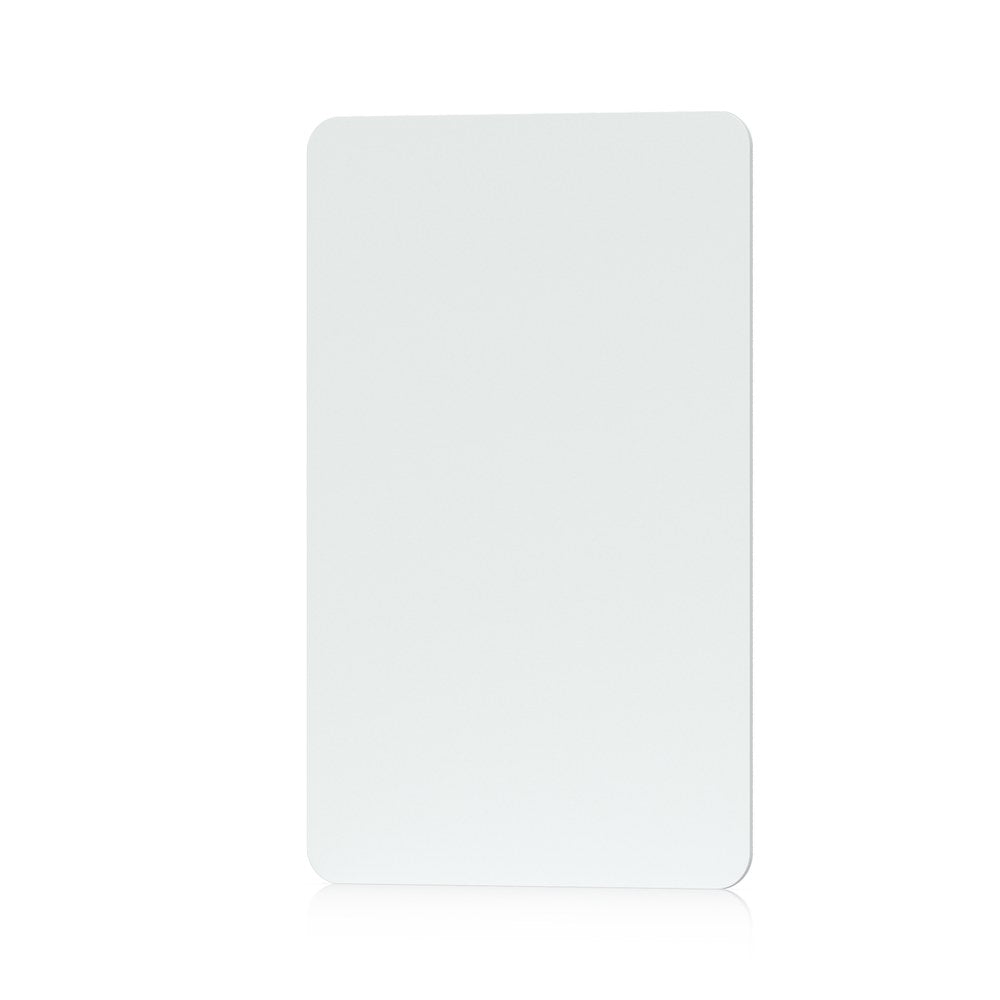

| Access Card | |
| Dimensions | 85.6 x 53.98 x 0.84 mm / (3.37 x 2.13 x 0.03") |
| Weight | 5 g (0.18 oz) |
| Format | ISO 7810 ID-1 |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443 Type A / MIFARE DESFire / UniFi Access Proprietary Security Protocol |

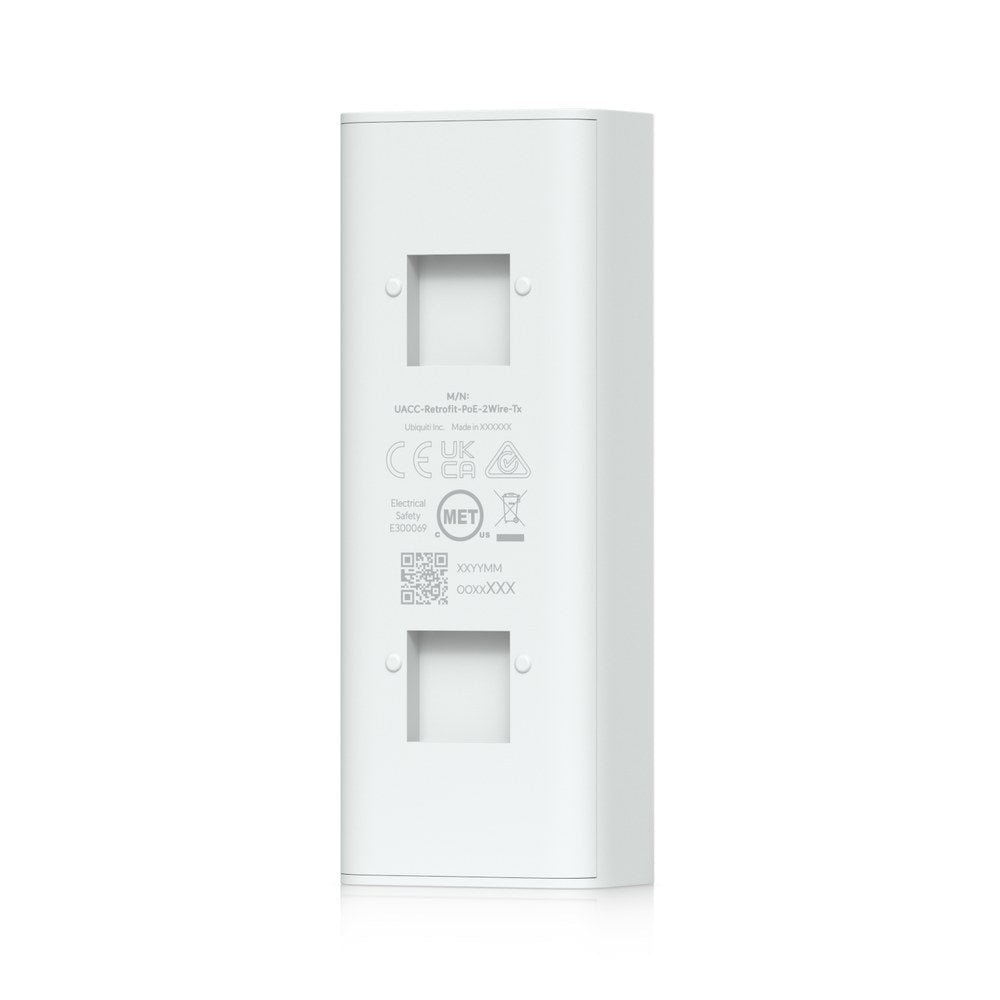

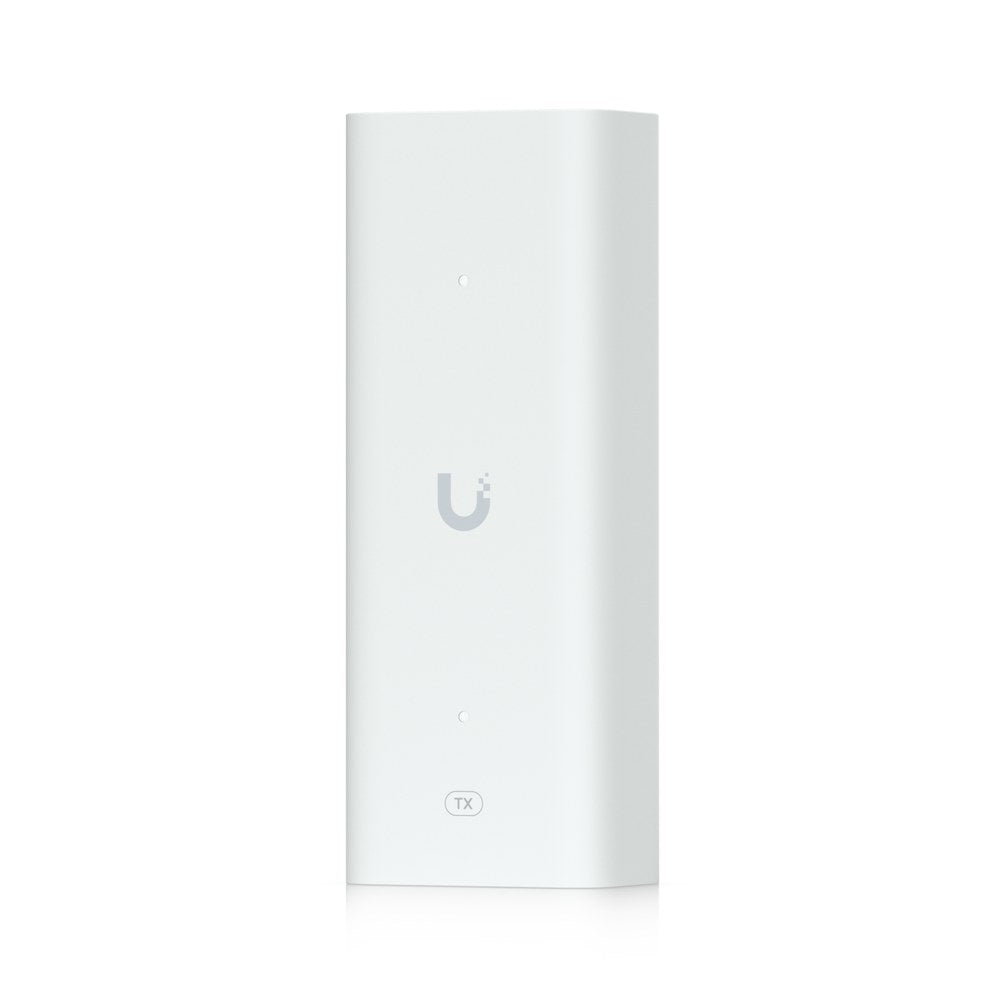

| Wire PoE Extenders | |
| Model | UACC-Extender-2Wire-PoE-Tx/Rx |
| Dimensions | 40 x 105 x 25 mm / (1.6 x 4.1 x 1") |
| Weight | PoE in: 77 g (2.7 oz) / PoE out: 79 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate |
| Networking Interface | (1) 10/100 MbE / (1) Homeplug AV |
| PoE Interface | PoE input: (1) PoE++, 50V DC, Max. 1.2A / PoE output: (1) PoE+, 48V DC, 0.72A |
| Management | (1) 10/100 MbE |
| Power Method | PoE++ |
| Max. Power Consumption | 3W (Without PoE output) |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Recommend Max. Cable Length | <a href="https://store.ui.com/products/uacc-retrofit-poe-2wire#technical" target="_blank" rel="noopener noreferrer">Learn More</a> |
| LEDs | White |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
