Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UA-G3-SK-Gate
UA-G3-SK-Gate Ubiquiti UniFi G3 Gate Access Starter Kit
$1,374.91 AUD
Unit price
/
Unavailable
6 in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)Melbourne (none in stock)Adelaide (none in stock)PerthNorth Lakes (none in stock)
Pickup may be possible in Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

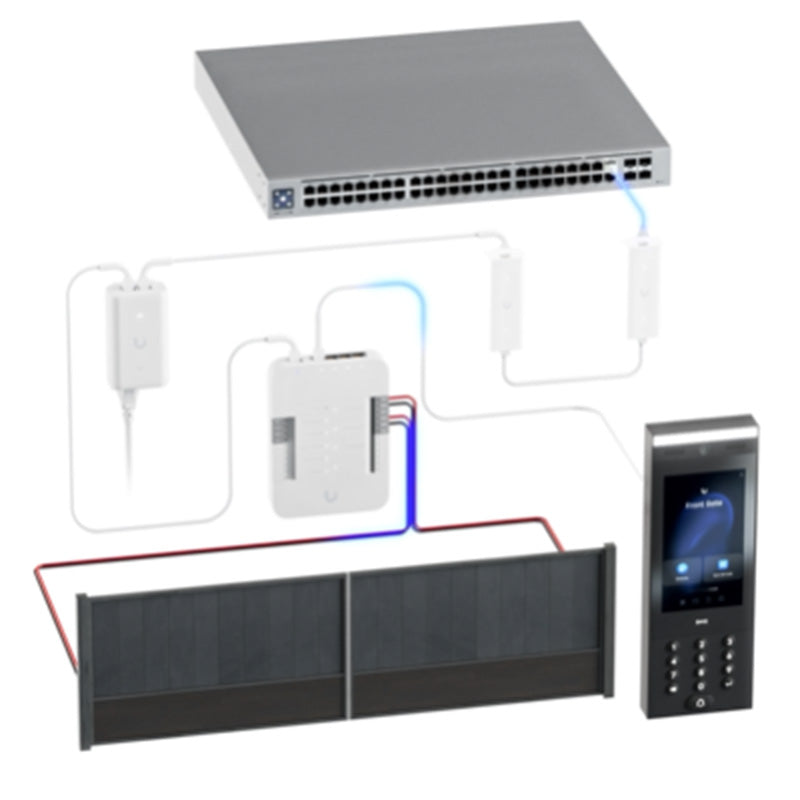

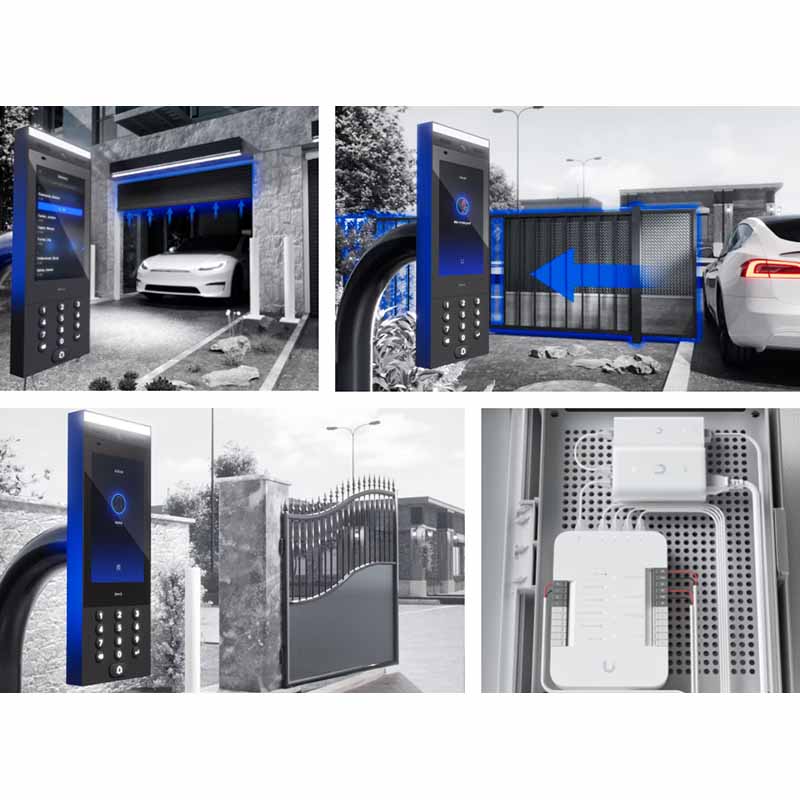

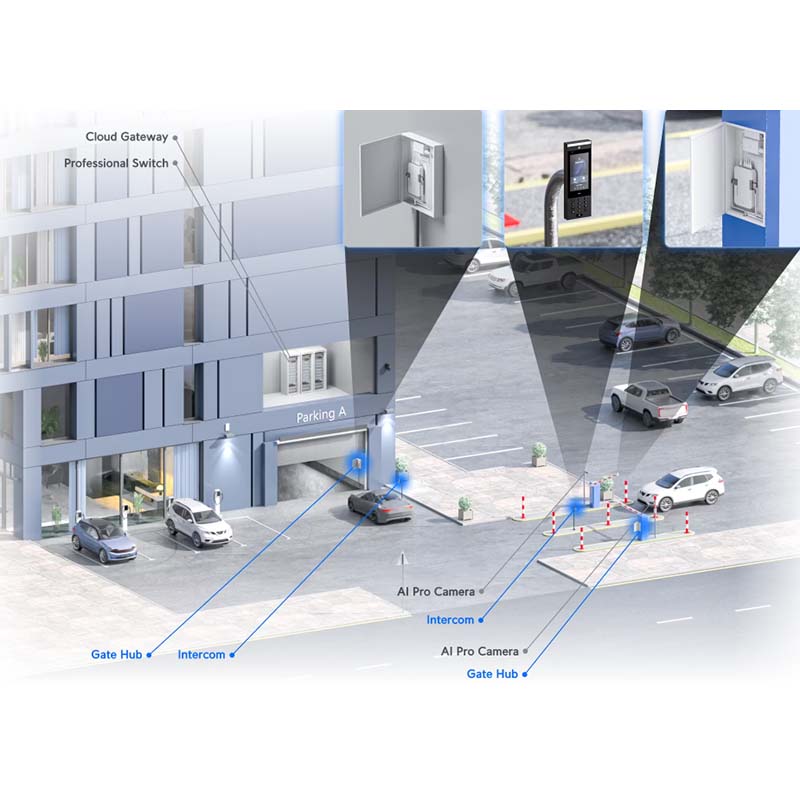

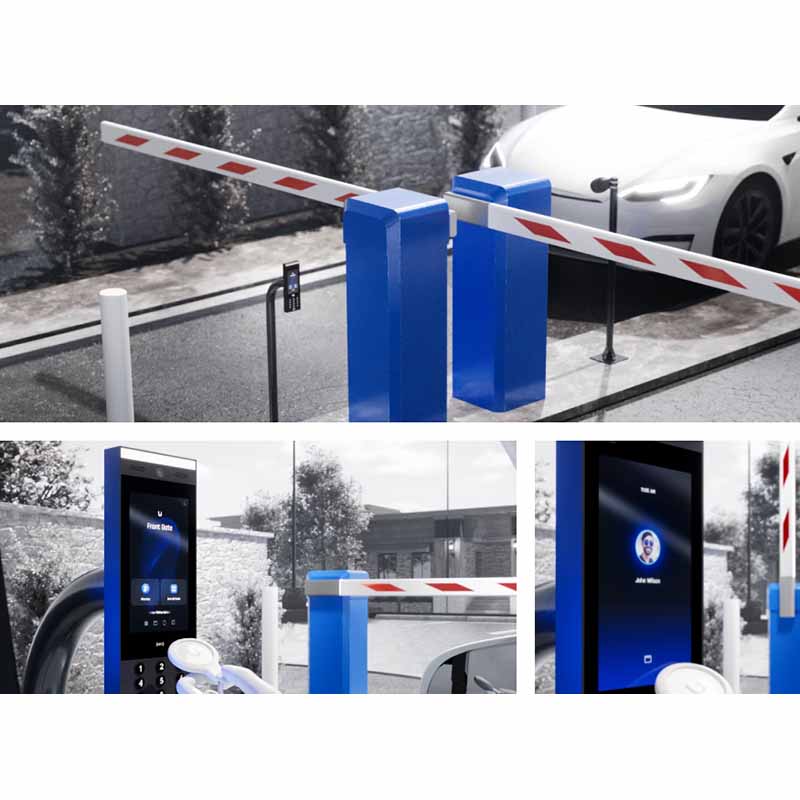

Control a vehicle gate using the connected Intercom and authorize gate access with License Plate Unlock when paired with a compatible Protect AI camera*.
Features:

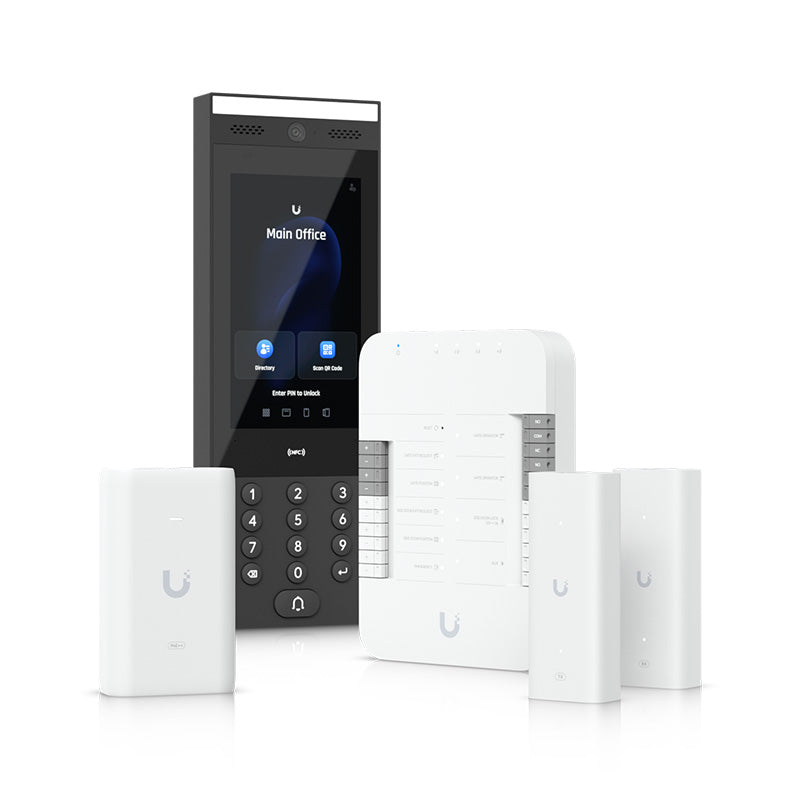

(1) Gate Hub
(1) G3 Intercom
(1) PoE++ adapter
(2) 2-wire PoE extenders
Note. 10 free 1-year Touch Passes included.
*Note. License Plate Recognition is supported on Protect AI Series cameras, excluding 360 lenses.
Compatibility
UVC-AI-Turret
UVC-AI-LPR
UVC-AI-Dome
UVC-AI-DSLR
UVC-AI-Bullet
UVC-AI-Pro
UVC-AI-Theta
UVC-G6-Turret
UVC-G6-Bullet
UVC-G6-INS
Frequently asked questions5 questions

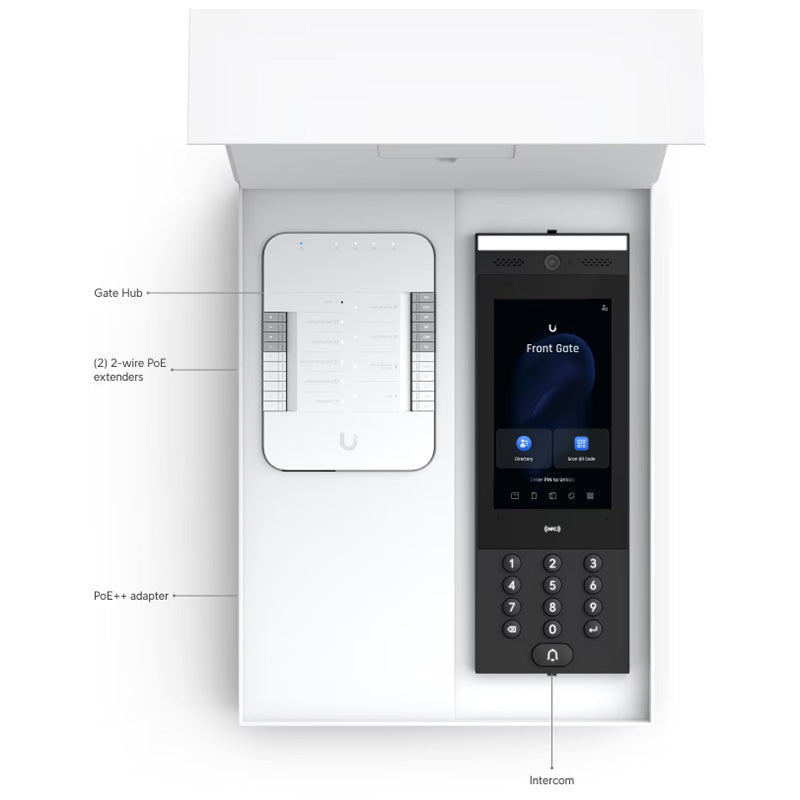

What is in the box?
The kit includes one Gate Hub, one G3 Intercom, one PoE++ adapter and two 2-wire PoE extenders. It also comes with 10 free 1-year Touch Passes.
Can it unlock the gate using licence plate recognition?
Yes, when paired with a compatible Protect AI camera, the kit supports License Plate Unlock. Recognition works on Protect AI Series cameras excluding 360 lenses, such as the UVC-AI-LPR, UVC-AI-Bullet, UVC-G6-Turret and UVC-G6-Bullet.
How many gates and doors can the Gate Hub control?
The Gate Hub supports one gate and one side door, with up to 6,000 users. It has terminals for gate exit request, gate position, side door exit, side door position and emergency inputs.
How is the Gate Hub powered, and can it be used outdoors?
The Gate Hub is powered by PoE++ and offers four PoE outputs at up to 30W per port (55W maximum combined). The hub itself is indoor only, but it can be used outdoors if installed in a waterproof junction box.
How weatherproof is the G3 Intercom?
The G3 Intercom is rated IP65 and operates from -30 to 60° C. It has a 7-inch capacitive touchscreen, NFC and BLE connectivity, and a single GbE RJ45 port powered over PoE.
Specifications111 specifications · 5 sections
| Overview | |
|---|---|
| In the Box | (1) Gate Hub / (1) G3 Intercom / (1) PoE++ adapter / (2) 2-wire Retrofit Extenders |
| Touch Pass | 10 free 1-year Touch Passes included / <a href="https://help.ui.com/hc/en-us/articles/27130425853079-UniFi-Access-Touch-Pass-Configuration" target="_blank" rel="noopener noreferrer">Learn More</a> |

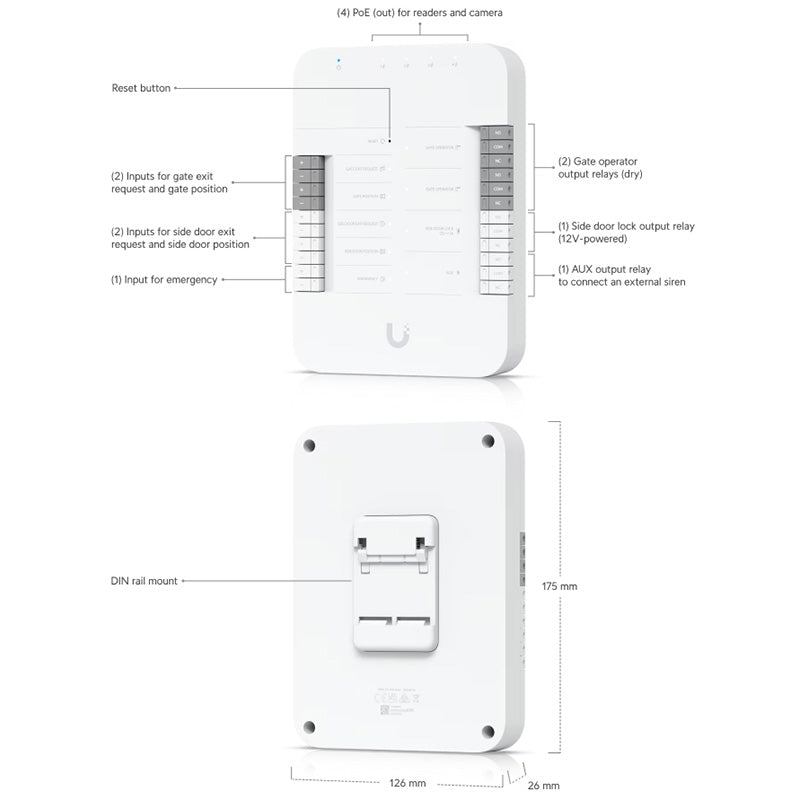

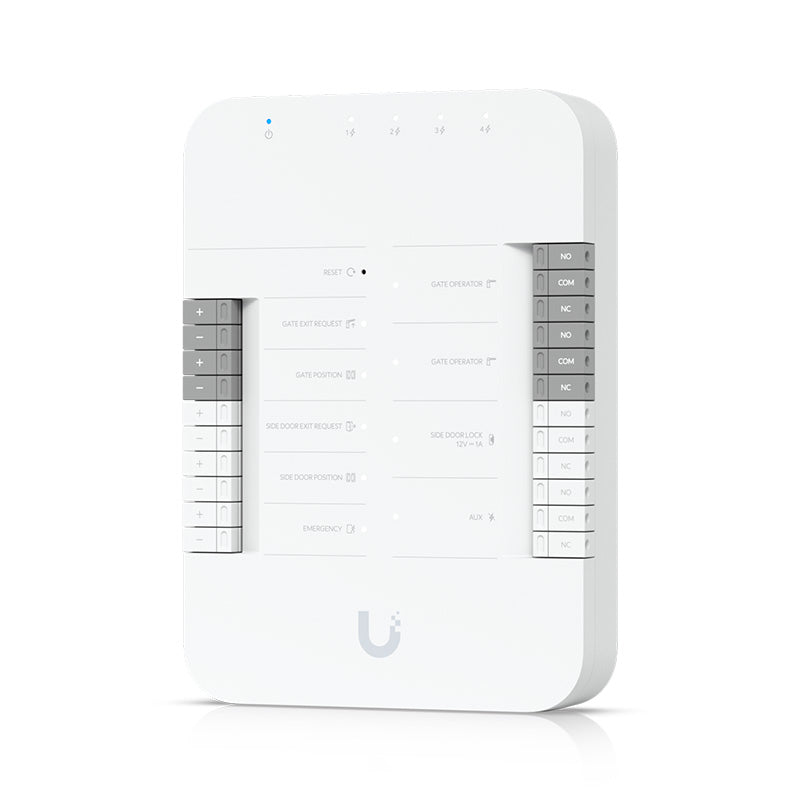

| Gate Hub | |
| Dimensions | 175 x 126 x 26 mm / (6.9 x 5 x 1") |
| Supported Doors | 1 gate, 1 side door |
| Maximum User Count | 6,000 |
| Input Terminals | (1) Gate exit request / (1) Gate position / (1) Side door exit / (1) Side door position / (1) Emergency |
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Enclosure Material | Polycarbonate |

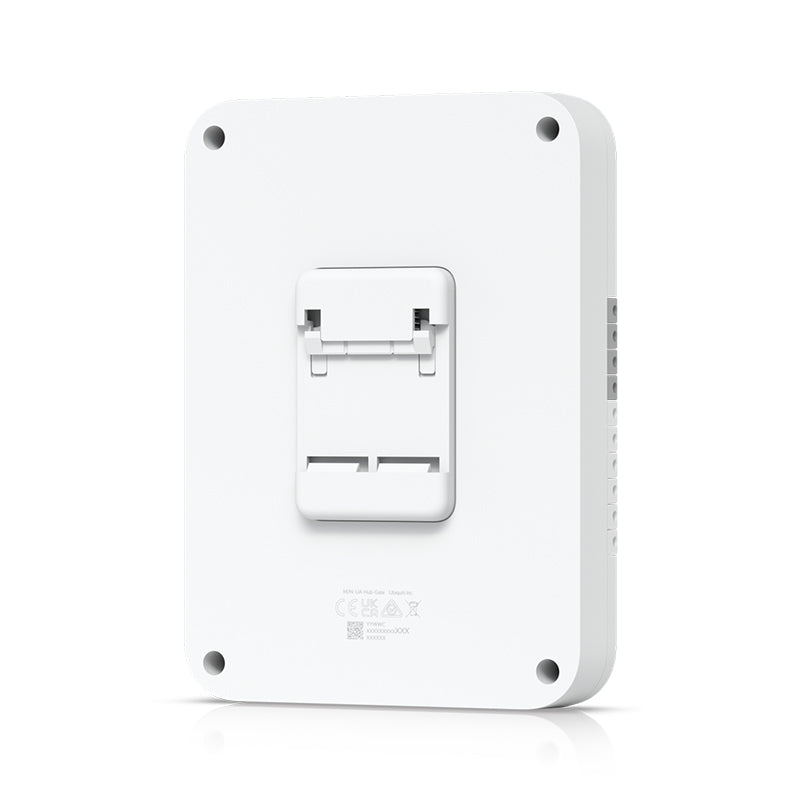

| Mounting | DIN-rail (Included) |
| Weight | 460 g (1 lb) |
| Indoor and Outdoor Use | Indoor only: device itself / Outdoor: with waterproof junction box |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A / (4) PoE outputs, 50V DC, 30W per port / (Max 55W aggregated) |
| Max. Power Consumption | 22W (Without PoE output) / 60W (With PoE output) |
| Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
| Dry Output Relay | (2) Operator: rated 30V DC, up to 1A / (1) Aux: rated 30V DC, up to 1A |
| Powered Output Relay | Side door lock: 12V DC, up to 1A |
| LEDs | W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| Recommend Max. Cable Length · UA-Lock-Electric (400mA) | 24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Recommend Max. Cable Length · Other locks (1A) | 24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Hub-Gate, V01 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |

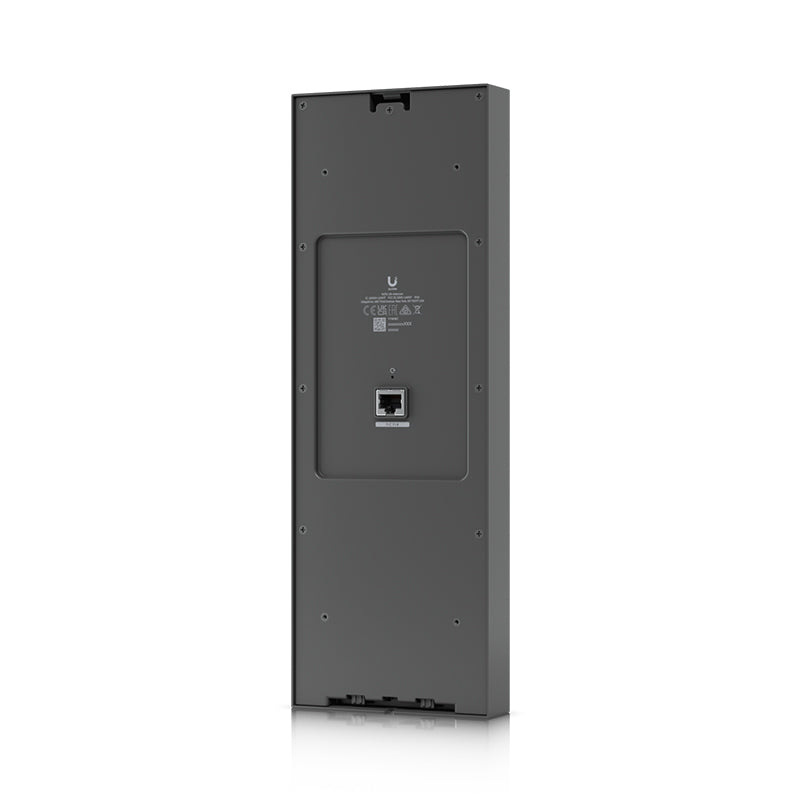

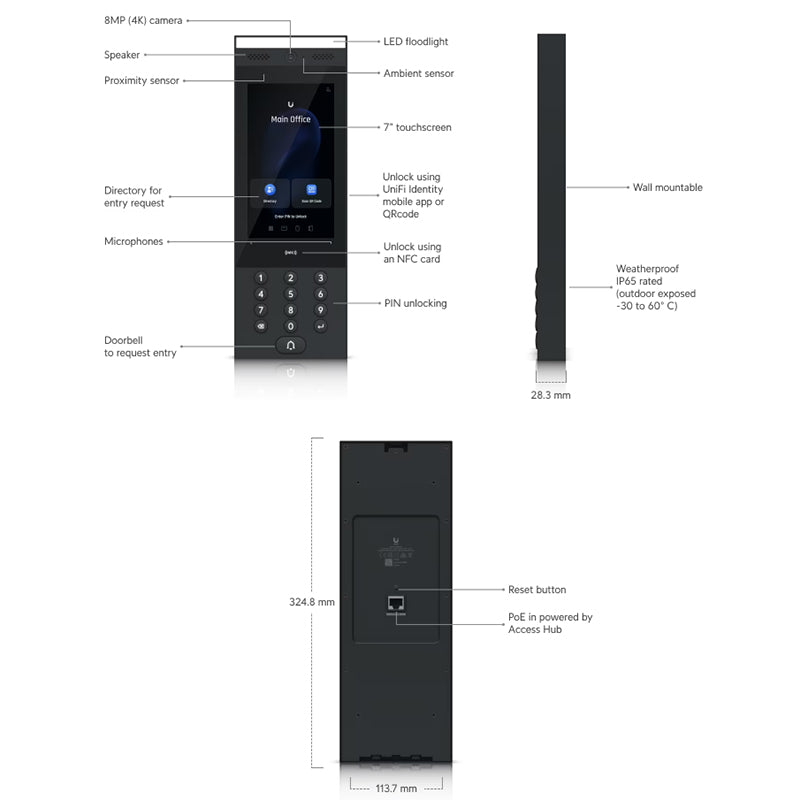

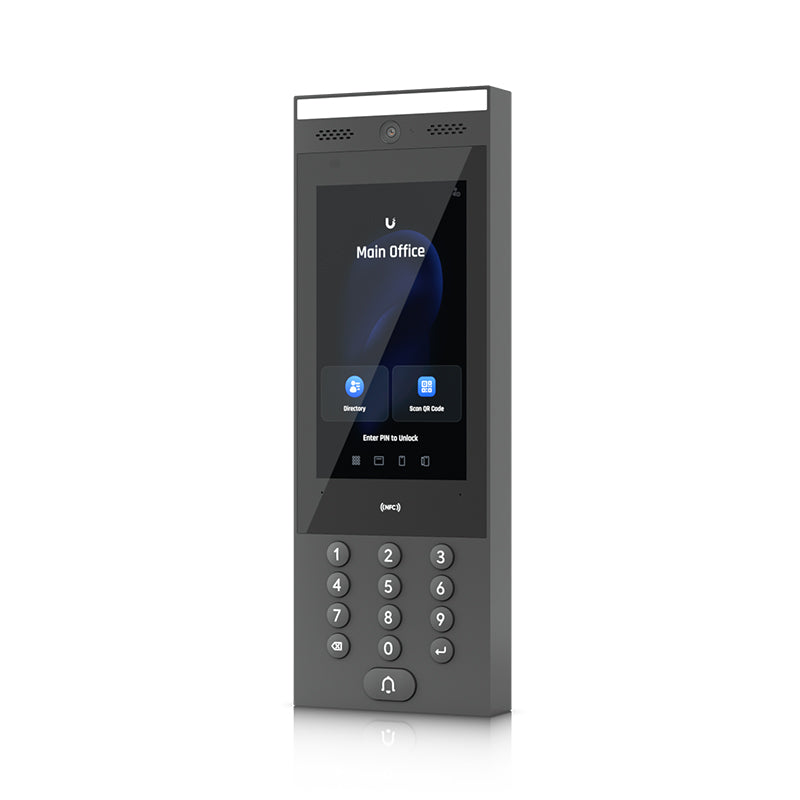

| G3 Intercom | |
| Dimensions | 324.8 x 113.7 x 28.3 mm / (12.8 x 4.5 x 1.1") |
| Weatherproofing | IP65 |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Weight | Device: 965 g (2.1 lb) / Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) / Surface angle, flush mount, sunshield kit (Optional) |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Video · Max. Frame Rate | 30 FPS |
| Video · Resolution | 2MP 1200 x 1600 (3:4) |
| Optics · Resolution | 8 MP (2448 × 3264) |
| Optics · Field of View | H: 79.4°, V: 97.5°, D: 118.2° |
| Sensors | Proximity sensor / ALS sensor |
| Display · Luminance | Max. 1000 nits (Typical) |
| Display · Resolution | 1024 x 600 px |
| Display · Screen Technology | Capacitive multi-touch |
| Display · Size | 177 mm (7") diagonal |
| Speaker | (1) Yes, 2W |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T / ECP 2.0 |
| LEDs | Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Temperature | Device: -30 to 60° C (-22 to 140° F) / Display: -25 to 60° C (-13 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
| Document number, and issue date and/or revision level | UA-G3-Intercom, V01 |

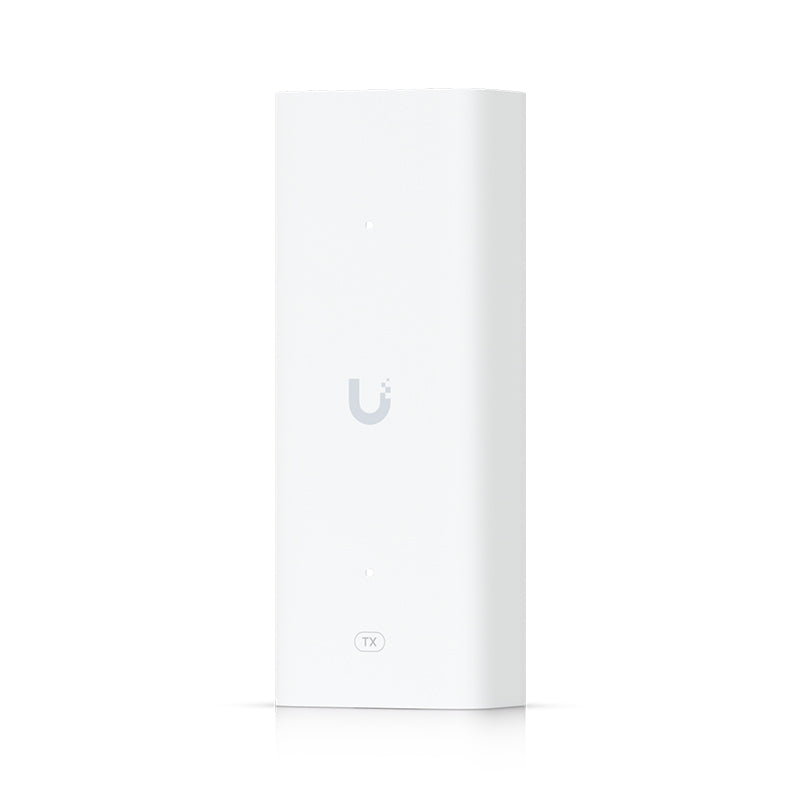

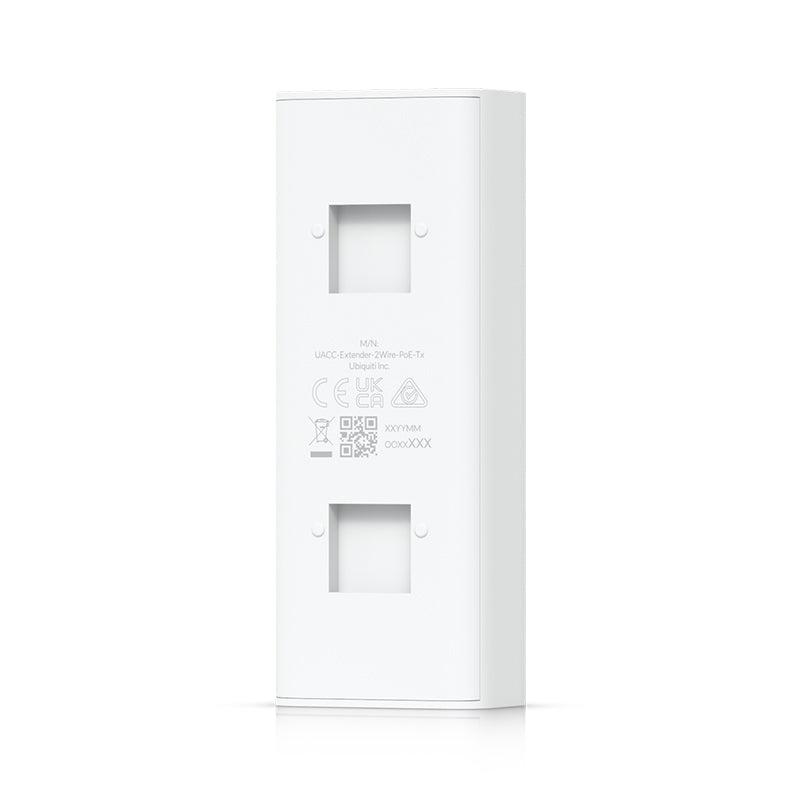

| Retrofit Extender | |
| Dimensions | PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1") / Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2") |
| Weight | PoE in: 77 g (2.7 oz) / PoE out: 79 g (2.8 oz) / Adapter: 140 g (4.9 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Coaxial Connector | BNC female |
| Networking Interface | (1) 10/100 MbE / (1) Homeplug AV |
| Power Method | PoE++ |
| PoE Interface | PoE in: (1) PoE++, 50V DC, 1.2A / PoE out: (1) PoE+, 48V DC, 0.6A |
| Max. Power Consumption | 3W (Without PoE output) |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| LEDs | White |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |

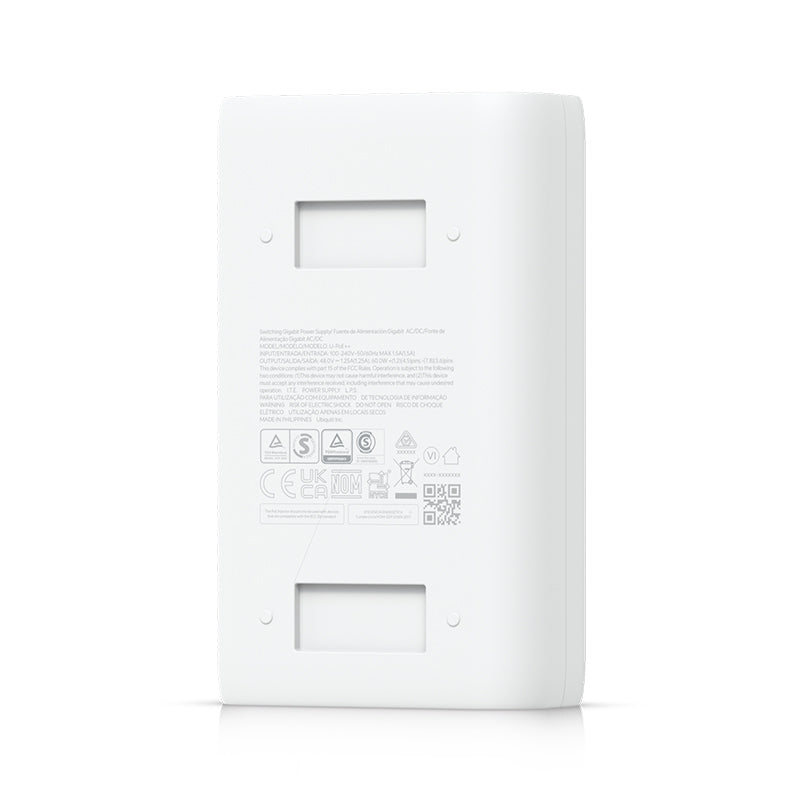

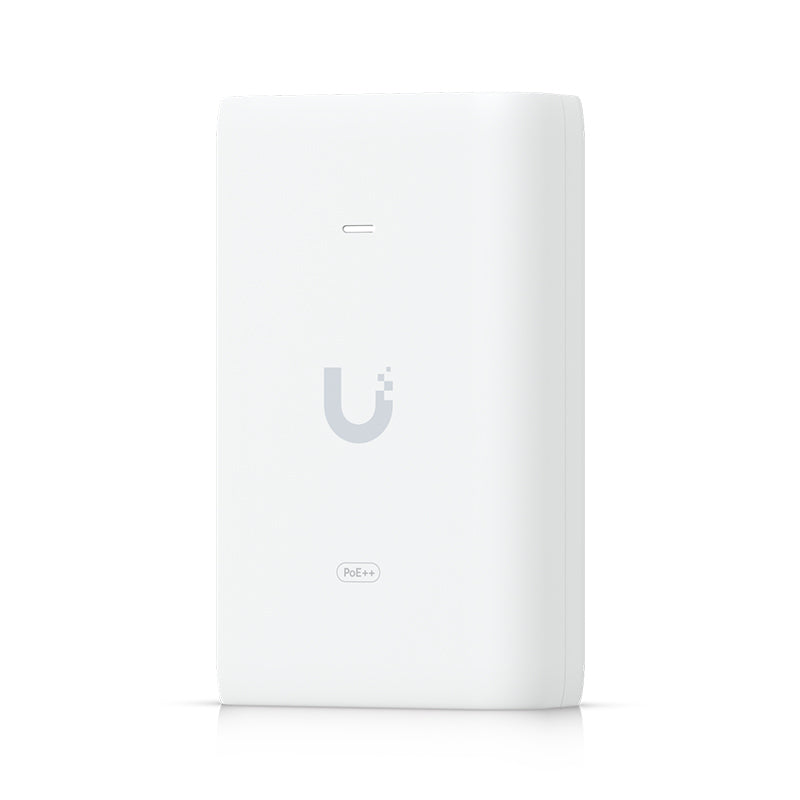

| PoE++ Adapter | |
| Model | U-PoE++ |
| Dimensions | 106 x 63 x 34 mm / (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output Voltage | 48V DC @ 1.25A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| Input Current | 1.3A @ 120V AC / 0.75A @ 230V AC |
| Inrush Current | <100A peak @ 120V AC / <200A peak @ 230V AC |
| Efficiency | 85+% |
| Output Ripple | 1% max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Power Method | Universal AC input, 100–240V AC, 50/60 Hz |
| Power Supply | AC/DC |
| Supported Voltage Range | 100–240V AC |
| Max. PoE+ Wattage per Port by PSE | 60W |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UA-G3-SK-Gate · Ubiquiti's spec sheet
