SKU:
UA-G3-SK-Pro
UA-G3-SK-Pro Ubiquiti UniFi Access G3 Starter Kit Professional
$1,022.59 AUD
Unit price
/
Unavailable
Add to cart, then request a quote for our best price.
Description
Description

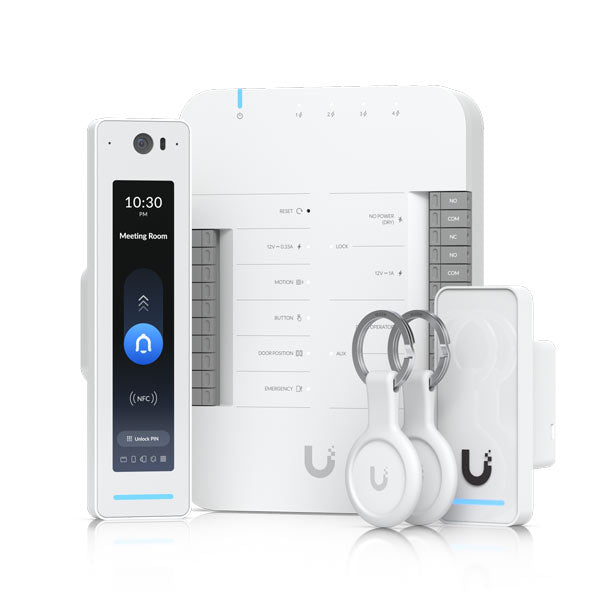

Starter kit that provides complete entry and exit control for a single door with two readers and Apple Touch Pass support.
Features:
(1) Door Hub
(1) G3 Reader Pro
(1) G3 Reader for door exit, or entry for an additional door (second Hub required)
(2) Pocket Keyfobs
Specifications109 specifications · 5 sections
| Overview | |
|---|---|

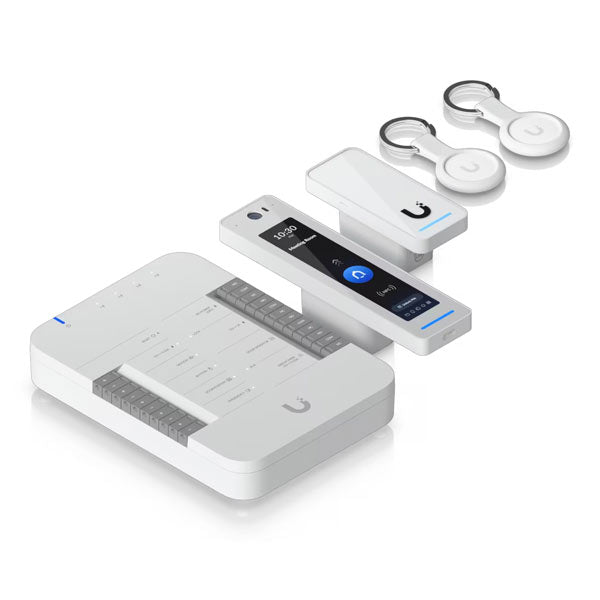

| In the Box | (1) Door Hub / (1) G3 Reader Pro / (1) G3 Reader / (2) Pocket Keyfobs |
| Touch Pass | 10 free 1-year Touch Passes included / <a href="https://help.ui.com/hc/en-us/articles/27130425853079-UniFi-Access-Touch-Pass-Configuration" target="_blank" rel="noopener noreferrer">Learn More</a> |

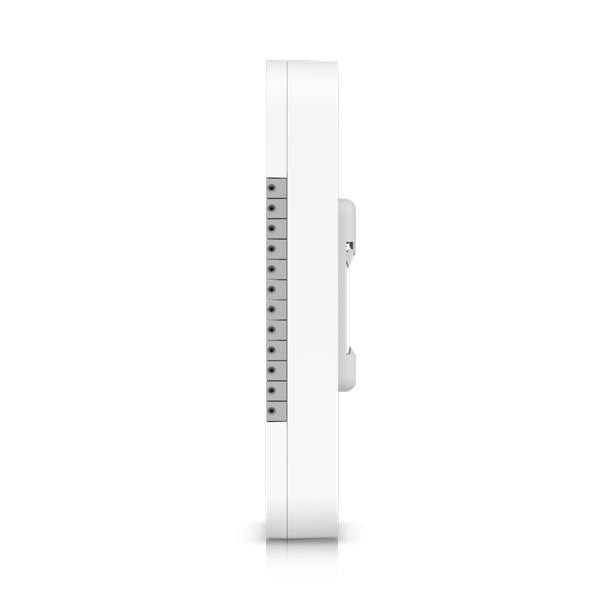

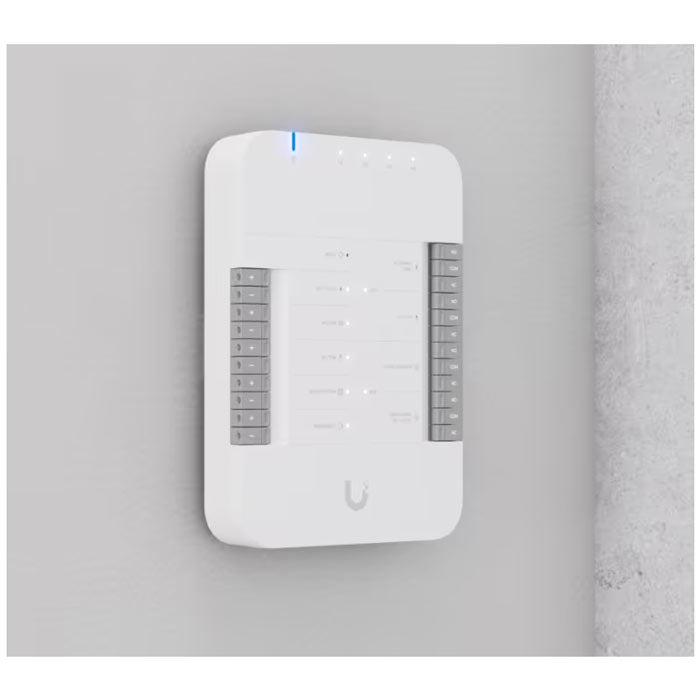

| Door Hub | |
| Dimensions | 174.9 x 126 x 32.9 mm / (6.9 x 5 x 1.3") |
| Supported Doors | 1 |
| Maximum User Count | 6,000 |

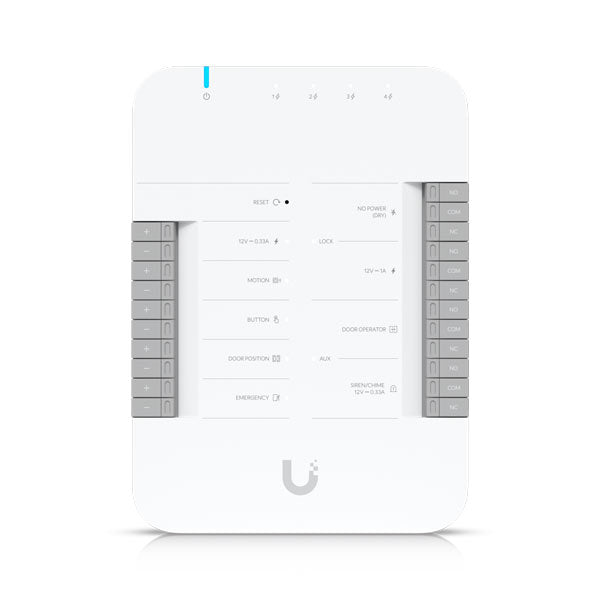

| Input Terminals | (2) Door exit request / (1) Door position / (1) Emergency |
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Weight | 363 g (12.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |

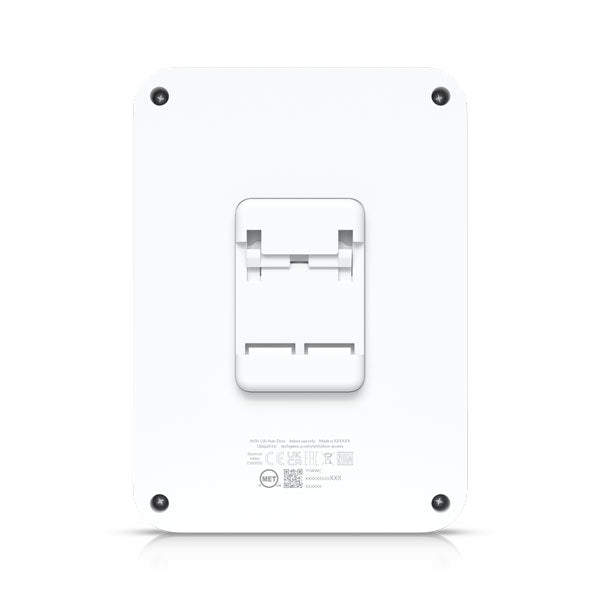

| Mounting | DIN-rail (Included) |

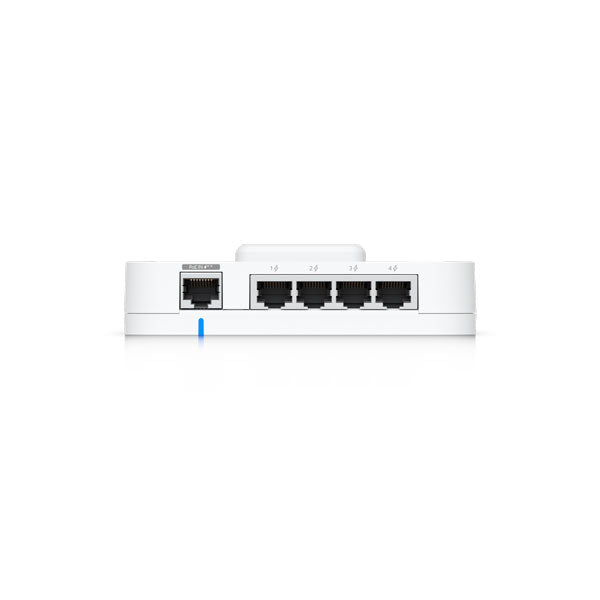

| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A / (4) PoE outputs, 50V DC, 30W per port / (Max 45W aggregated) |
| Max. Power Consumption | 30W (Without PoE output) / 50W (With PoE output) |
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay | Lock: 30V DC, 1A / Aux: 30V DC, 1A |
| Powered Output Relay | Lock: 12V DC, 1A / Aux: 12V DC, 0.33A / 12V DC, 0.33A |
| LEDs | B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| Recommend Max. Cable Length · UA-Lock-Electric (400mA) | 24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Recommend Max. Cable Length · Other locks (1A) | 24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
| Document number, and issue date and/or revision level | UA-Hub-Door002, V01 |

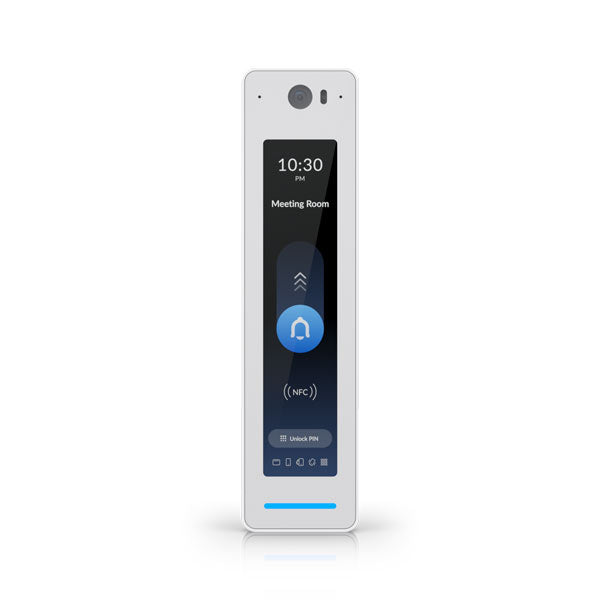

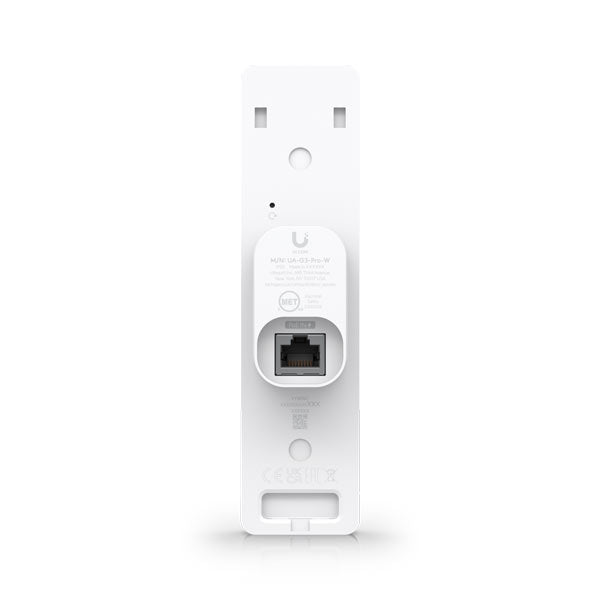

| G3 Reader Pro | |
| Dimensions | 160 x 40.4 x 40.55 mm / (6.3 x 1.59 x 1.6") |
| Weatherproofing | IP55 |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |

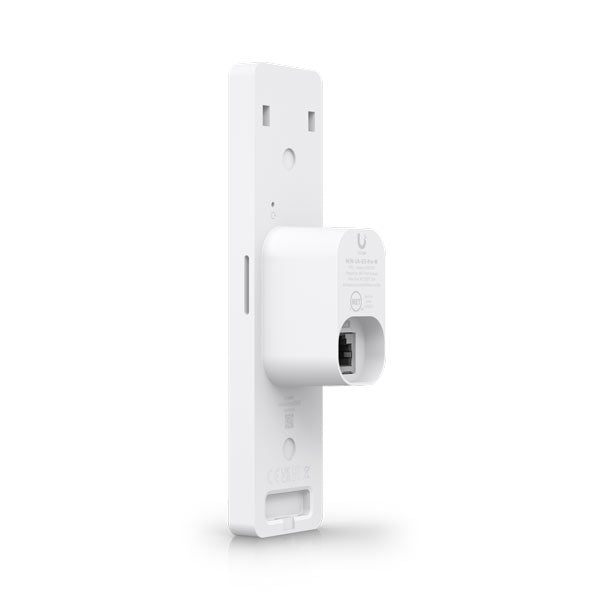

| Mounting | Wall, gang-box mount (Included) / Angle mount, junction box (Optional) |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ±15kV, contact: ±8kV |
| Video · Max. Frame Rate | 30 FPS |
| Video · Resolution | 2MP 1200 x 1600 (3:4) |
| Optics · Resolution | 12 MP (3072 × 4096) |
| Optics · Field of View | H: 98.6°, V: 125.7°, D: 157.8° |
| Sensors | Proximity sensor |
| Display · Size | 120 mm (4.7") diagonal |
| Display · Screen Technology | Capacitive touch |
| Display · Luminance | 480 nits (Typical) |
| Display · Screen Orientation | Portrait |
| Display · Resolution | 1280 x 286 px |
| Speaker | (1) Yes, 1.5W |
| LEDs | R/G/B/W/Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T / ECP 2.0 |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Temperature | Device: -30 to 45° C (-22 to 113° F) / Display: -10 to 45° C (14 to 113° F) |
| Certifications | CE, FCC, IC,UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Pro-W/UA-G3-Pro-B, V01 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
| G3 Reader | |
| Dimensions | 93 x 40 x 36.5 mm / (3.7 x 1.6 x 1.4") |
| Weatherproofing | IP55 |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | In-wall, gang box (Included) / Junction box (Optional) |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Sensors | Proximity sensor |
| Speaker | (1) Yes, 0.7W |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T / ECP 2.0 |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Temperature | -30 to 45° C (-22 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3, V01 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
| Pocket Keyfob | |
| Dimensions | 84 x 39 x 7.4 mm / (3.3 x 1.5 x 0.29") |
| Weight | 16 g (0.56 oz) |
| Enclosure Material | Polycarbonate, stainless steel, silicone rubber |
| Weatherproofing | IP54 |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443 Type A / MIFARE DESFire EV3 4K / UniFi Access Proprietary Security Protocol |
| Certification | CE |
Source: Ubiquiti technical specifications, checked 21 Oct 2026.Model UA-G3-SK-Pro · Ubiquiti's spec sheet
