Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UA-G3-SK
UA-G3-SK Ubiquiti UniFi Access G3 Starter Kit
$565.15 AUD
Unit price
/
Unavailable
14 in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)MelbourneAdelaidePerth (none in stock)North Lakes (none in stock)
Pickup may be possible in Adelaide
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

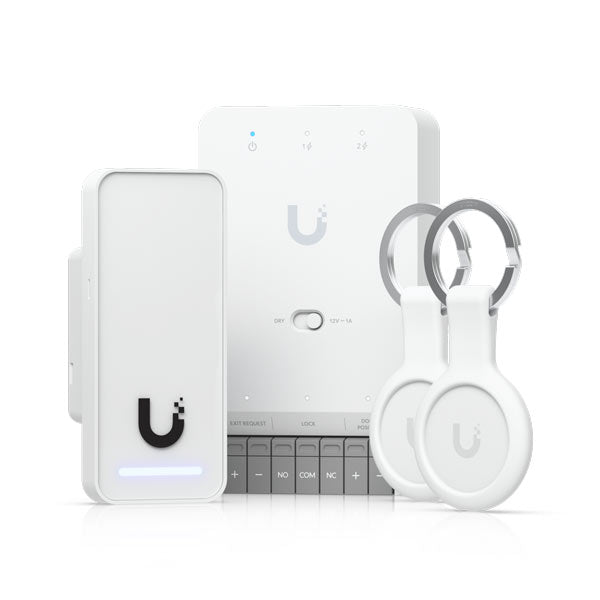

A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Apple Touch Pass for modern, secure access control.
Features:

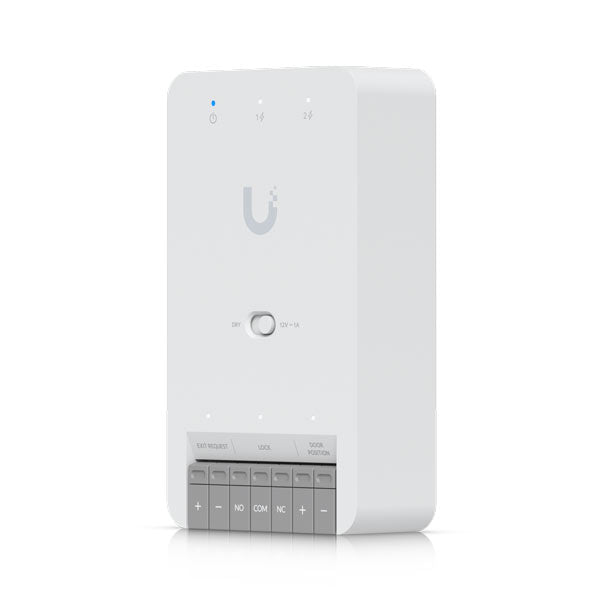

(1) Door Hub Mini

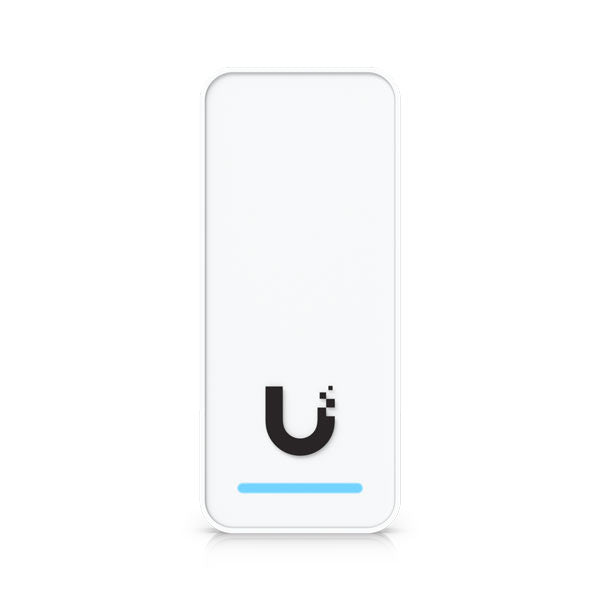

(1) G3 Reader

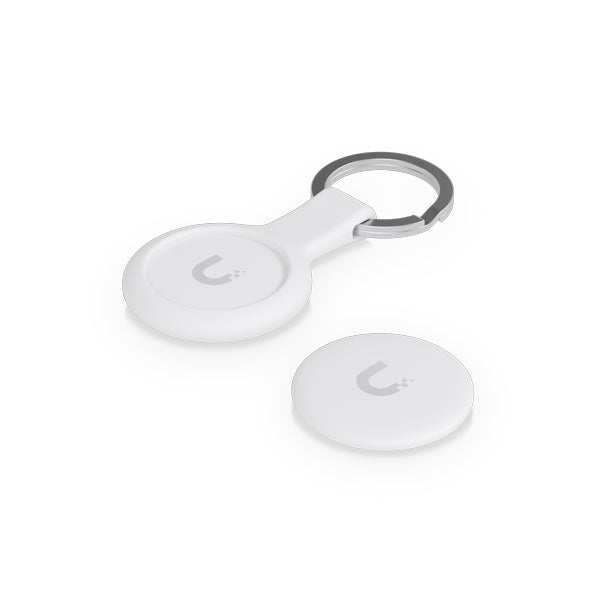

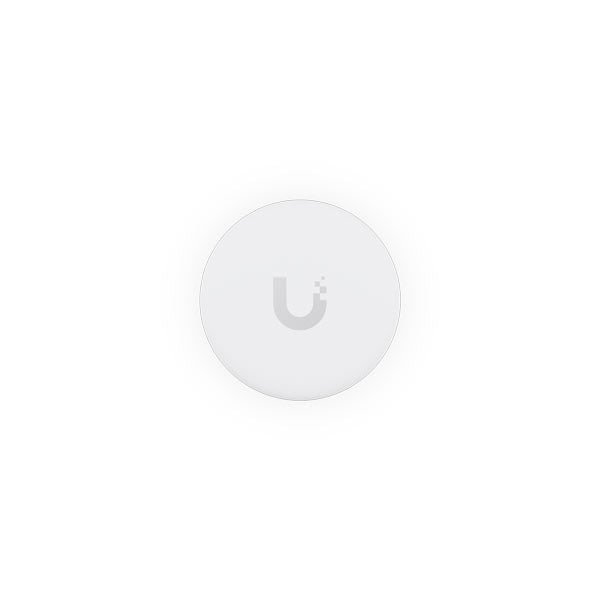

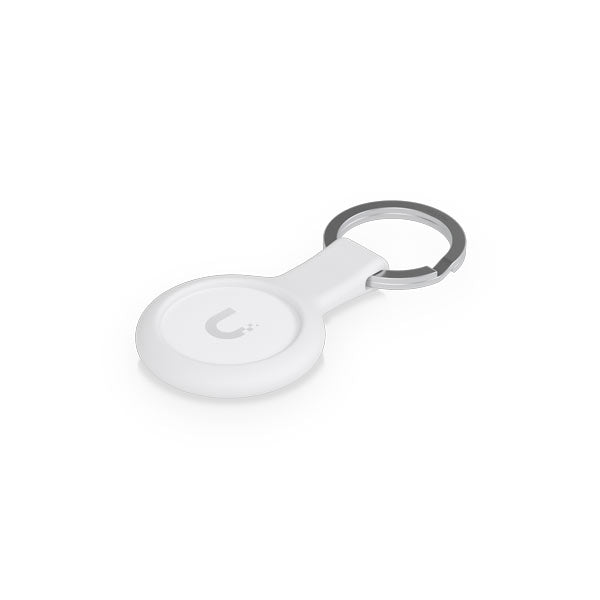

(2) Pocket Keyfobs
Frequently asked questions5 questions

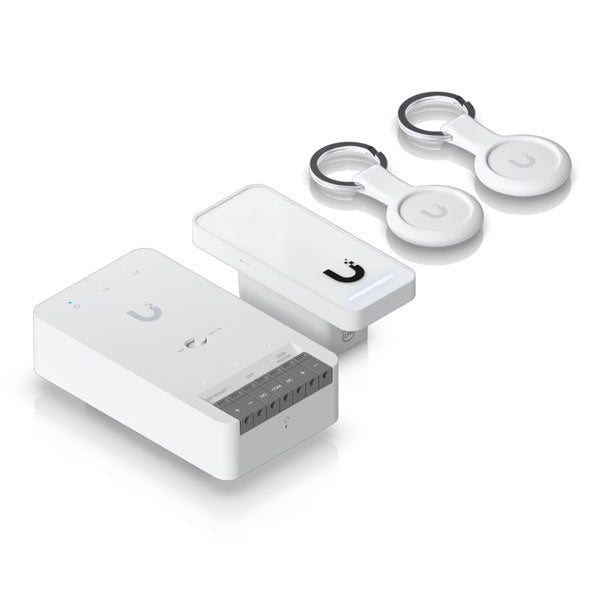

What is included in the UniFi Access G3 Starter Kit?
The kit contains one Door Hub Mini, one G3 Reader and two Pocket Keyfobs. It also includes 10 free 1-year Touch Passes for Apple Touch Pass access.
How many doors and users can this kit manage?
The Door Hub Mini supports one door, paired with one G3 Reader. It handles a maximum of 3,000 users and is managed through the UniFi Access application.
How is the kit powered?
The Door Hub Mini is powered by a PoE++ input (50V DC, 1A) or a compatible power-limited PSU. The G3 Reader is also PoE powered and draws a maximum of 5W.

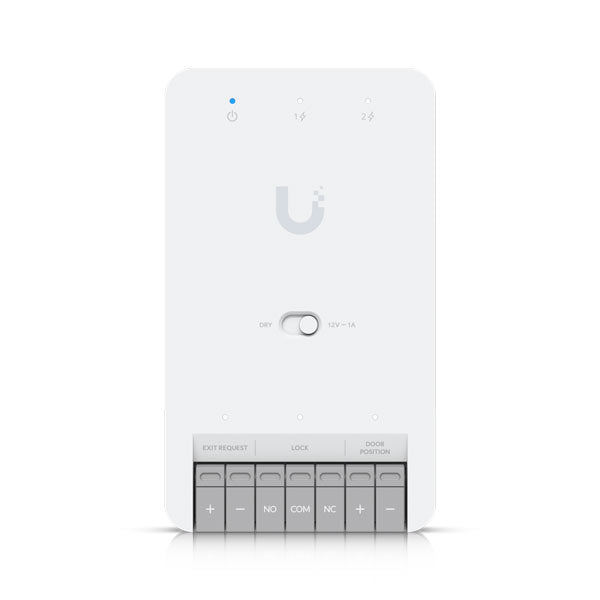

What door hardware connections does the Door Hub Mini offer?
It has three GbE RJ45 ports, a door exit request input and a door position input. It also provides a dry relay output (30V DC, 1A) and a wet relay output (12V DC, 1A), selectable with a dry/wet switch.
Is the G3 Reader suitable for outdoor use?
The G3 Reader is rated IP55 and operates from -30 to 45° C. It reads NFC credentials at under 30 mm and also supports BLE 4.1.
Specifications72 specifications · 5 sections
| Overview | |
|---|---|
| In the Box | (1) Door Hub Mini / (1) G3 Reader / (2) Pocket Keyfobs |
| Touch Pass | 10 free 1-year Touch Passes included / <a href="https://help.ui.com/hc/en-us/articles/27130425853079-UniFi-Access-Touch-Pass-Configuration" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Door Hub Mini | |
| Dimensions | 113 x 66 x 27.6 mm / (4.4 x 2.6 x 1.1") |
| Supported Doors | 1 |
| Maximum User Count | 3,000 |
| Input Terminals | (1) Door Exit Request / (1) Door Position |
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate, metal |
| Mounting | DIN-rail (Included) |

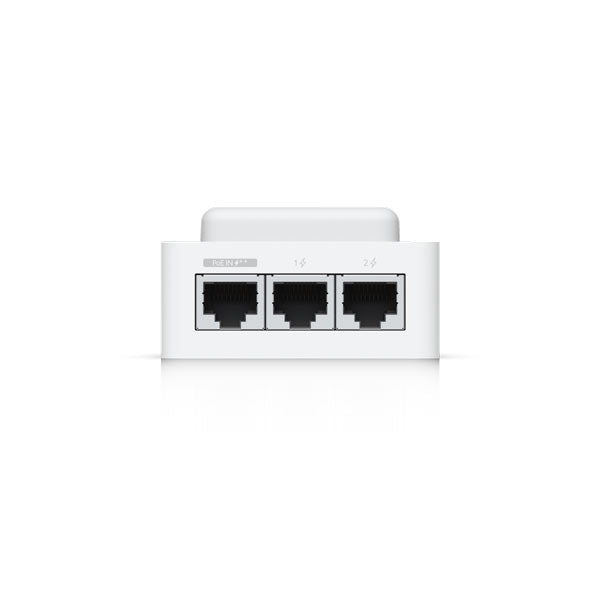

| Networking Interface | (3) GbE RJ45 ports |
| PoE Interface | (1) PoE++ input, 50V DC, 1A / (2) PoE outputs, 50V DC, 30W per port / (Max 45W aggregated) |
| Max. Power Consumption | 19W (Without PoE output) / 50W (With PoE output) |
| Digital Input | Request to exit, door position sensor |
| Dry Output Relay | 30V DC, 1A |
| Wet Output Relay | 12V DC, 1A |
| LEDs | B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset / (1) Dry/Wet switch |
| Recommend Max. Cable Length · UA-Lock-Electric (400mA) | 24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Recommend Max. Cable Length · Other locks (1A) | 24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
| Document number, and issue date and/or revision level | UA-Hub-Door-Mini, V01 |
| G3 Reader Pro | |
| Optics · Resolution | 12 MP (3072 × 4096) |
| Optics · Field of View | H: 98.6°, V: 125.7°, D: 157.8° |

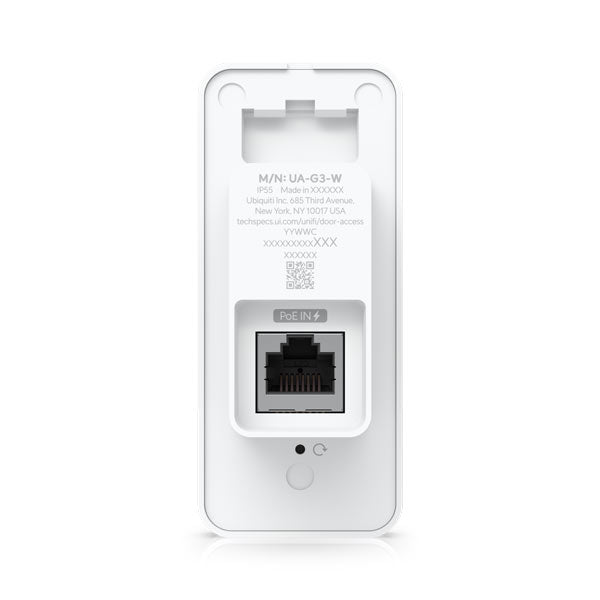

| G3 Reader | |
| Dimensions | 93 x 40 x 36.5 mm / (3.7 x 1.6 x 1.4") |
| Weatherproofing | IP55 |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | In-wall, gang box (Included) / Junction box (Optional) |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Sensors | Proximity sensor |
| Speaker | (1) Yes, 0.7W |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T / ECP 2.0 |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Temperature | -30 to 45° C (-22 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3, V01 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |

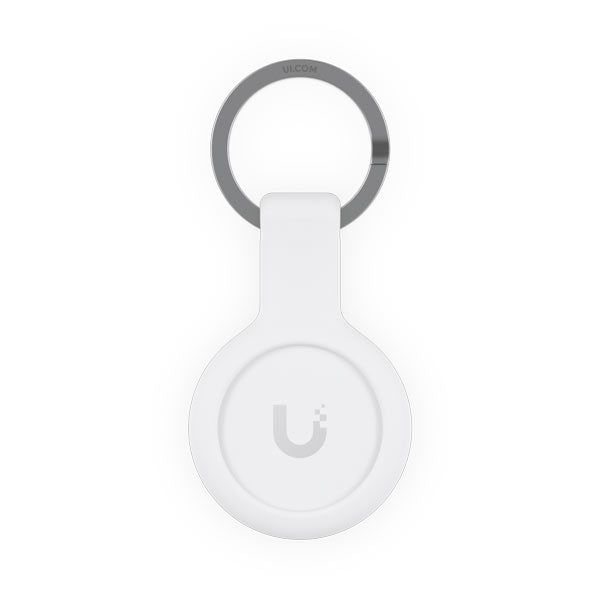

| Pocket Keyfob | |
| Dimensions | 84 x 39 x 7.4 mm / (3.3 x 1.5 x 0.29") |
| Weight | 16 g (0.56 oz) |
| Enclosure Material | Polycarbonate, stainless steel, silicone rubber |
| Weatherproofing | IP54 |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443 Type A / MIFARE DESFire EV3 4K / UniFi Access Proprietary Security Protocol |
| Certification | CE |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UA-G3-SK · Ubiquiti's spec sheet
