Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UA-HUB-DOOR
UA-Hub-Door Ubiquiti UniFi Access Hub Door
$375.59 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
Brisbane (none in stock)Sydney (none in stock)MelbourneAdelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description
A single-door mechanism that provides complete entry and exit control via connected Access Readers.
Frequently asked questions5 questions
What is the UniFi Access Hub Door used for?
It is a single-door mechanism that provides entry and exit control through connected Access Readers. It supports 1 door and up to 6,000 users, and is managed through the Access application.
How is the UA-Hub-Door powered?
It is powered by PoE++ (50V DC, 1A) or by a UL 294 Power-limited Class 2 PSU or a UL 60950-1/62368-1 LPS/PS2 PSU. Maximum consumption is 30W without PoE output and 50W with PoE output.
What ports and inputs does it have?
It has five 10/100/1000 Base-T ports, including one PoE++ input and four PoE+ outputs at up to 30W per port (45W maximum aggregated). Input terminals are two door exit request, one door position and one emergency.
Can the Access Hub Door be used outdoors?
No, it is for indoor use only. The ambient operating range is 0 to 40° C (32 to 104° F) at 5 to 95% noncondensing humidity.
How is the hub mounted and how big is it?

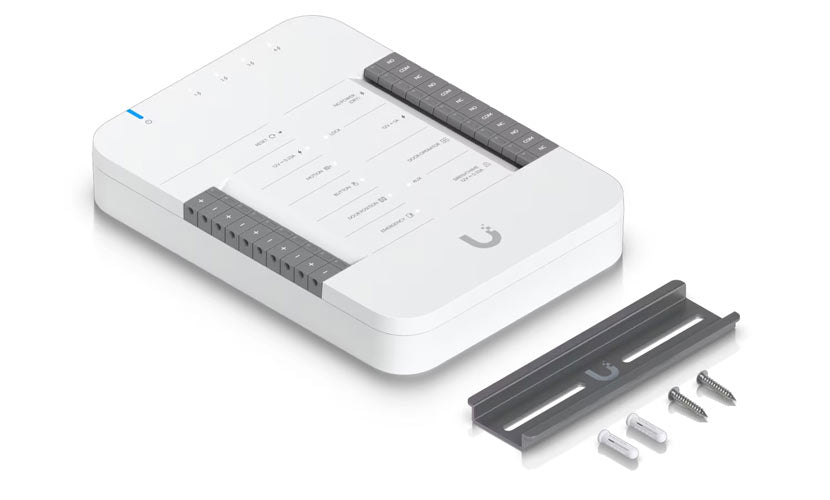

It mounts on a DIN rail, and the DIN-rail mount is included. The polycarbonate unit measures 174.9 x 126 x 32.9 mm and weighs 363 g.
Specifications32 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 174.9 x 126 x 32.9 mm / (6.9 x 5 x 1.3") |
| Supported Doors | 1 |
| Maximum User Count | 6,000 |
| Input Terminals | (2) Door exit request / (1) Door position / (1) Emergency |
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 363 g (12.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| Hardware | |
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay | Lock: 30V DC, 1A / Aux: 30V DC, 1A |
| Powered Output Relay | Lock: 12V DC, 1A / Aux: 12V DC, 0.33A / 12V DC, 0.33A |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | 0 to 40° C / (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A / (4) PoE+ outputs, 50V DC, 30W per port / (Max 45W aggregated) |
| Max. Power Consumption | 30W (Without PoE output) / 50W (With PoE output) |
| LEDs | W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset |
| Recommend Max. Cable Length · UA-Lock-Electric (400mA) | 24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
| Recommend Max. Cable Length · UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
| Recommend Max. Cable Length · Other locks (1A) | 24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Hub-Door002, V01 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
Source: Ubiquiti technical specifications, checked 29 Oct 2026.Model UA-HUB-DOOR · Ubiquiti's spec sheet
