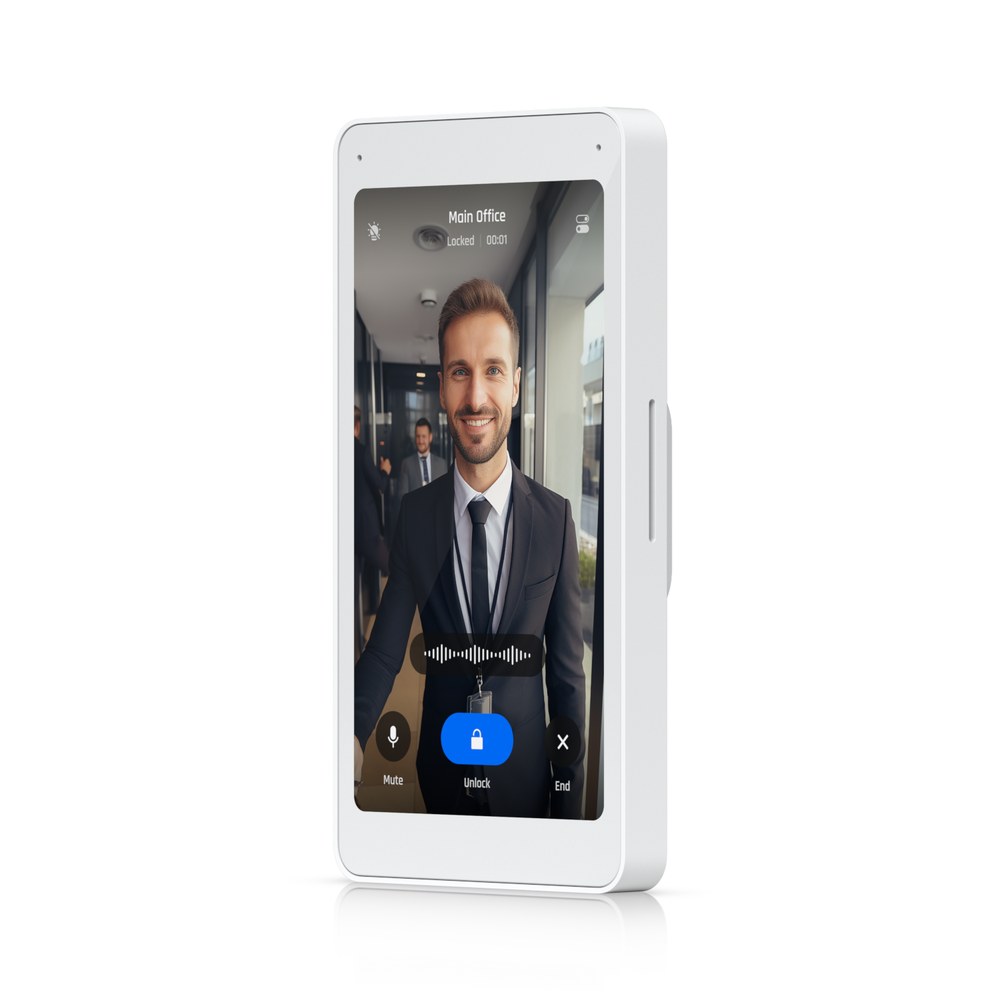

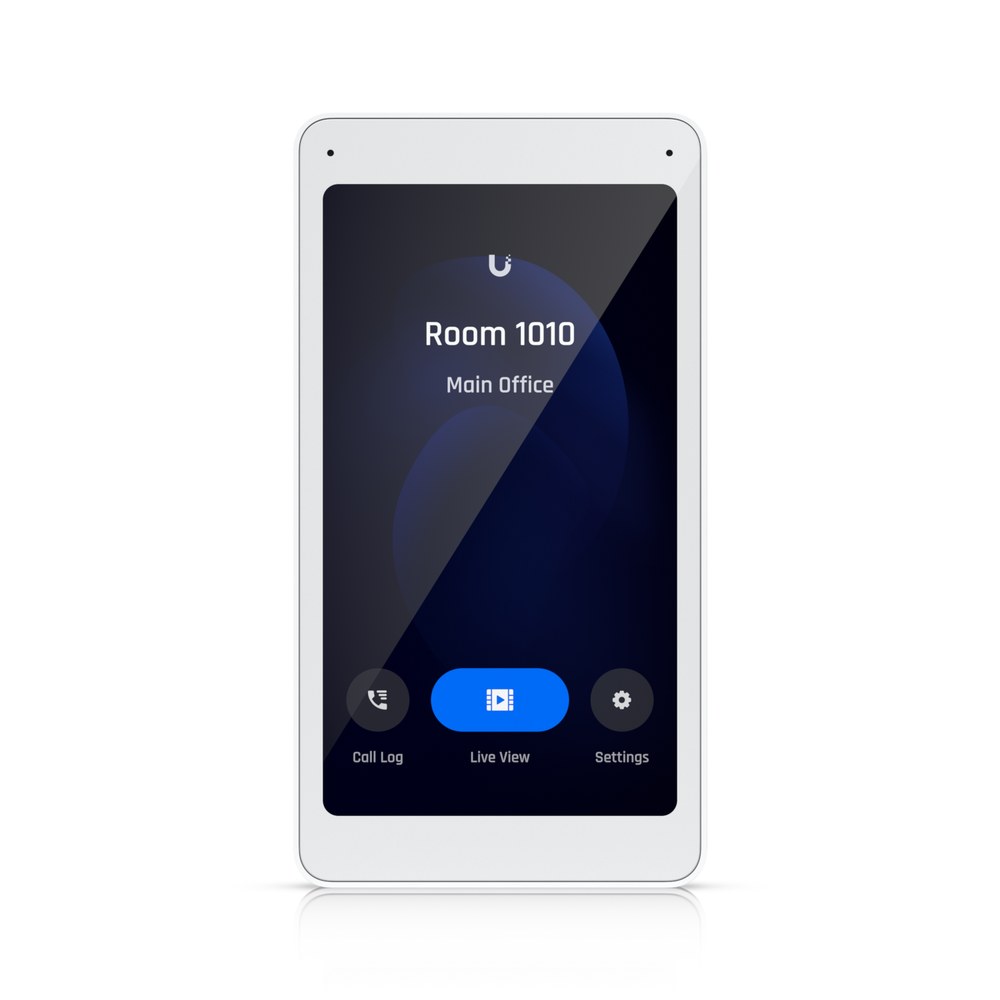

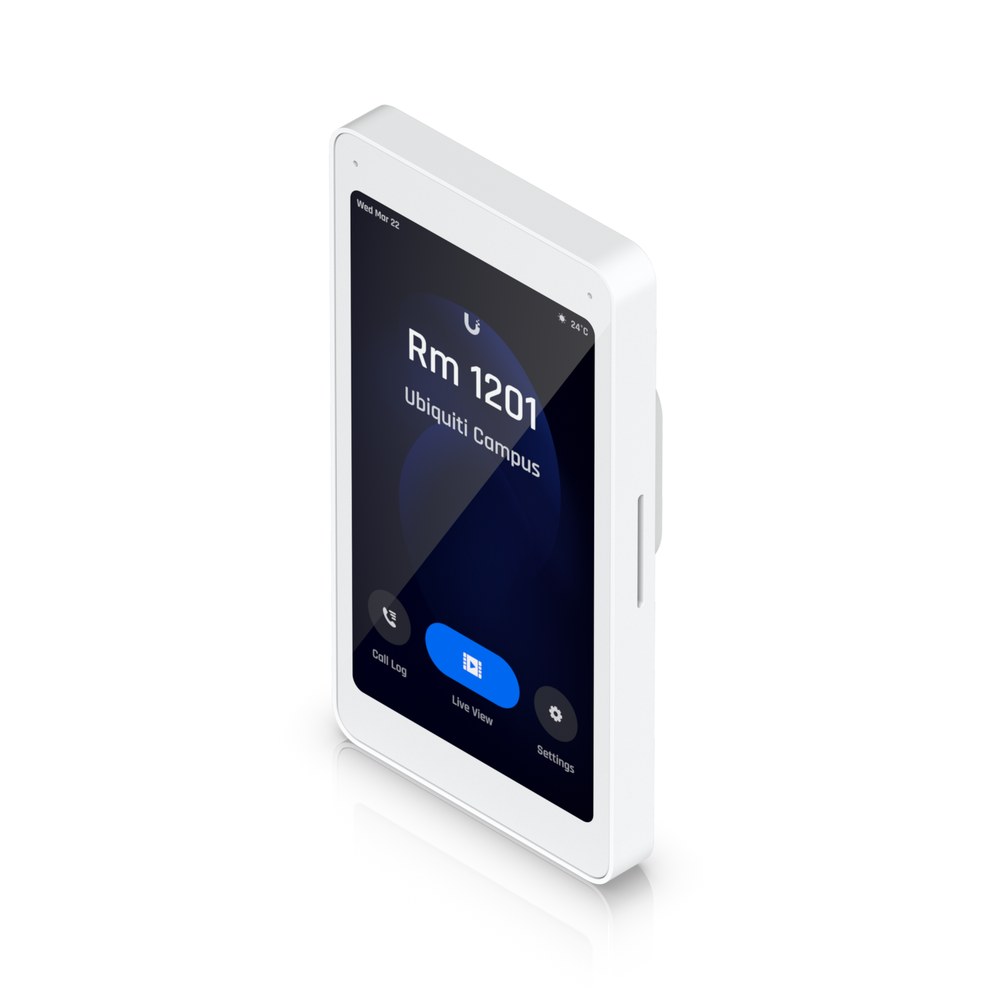

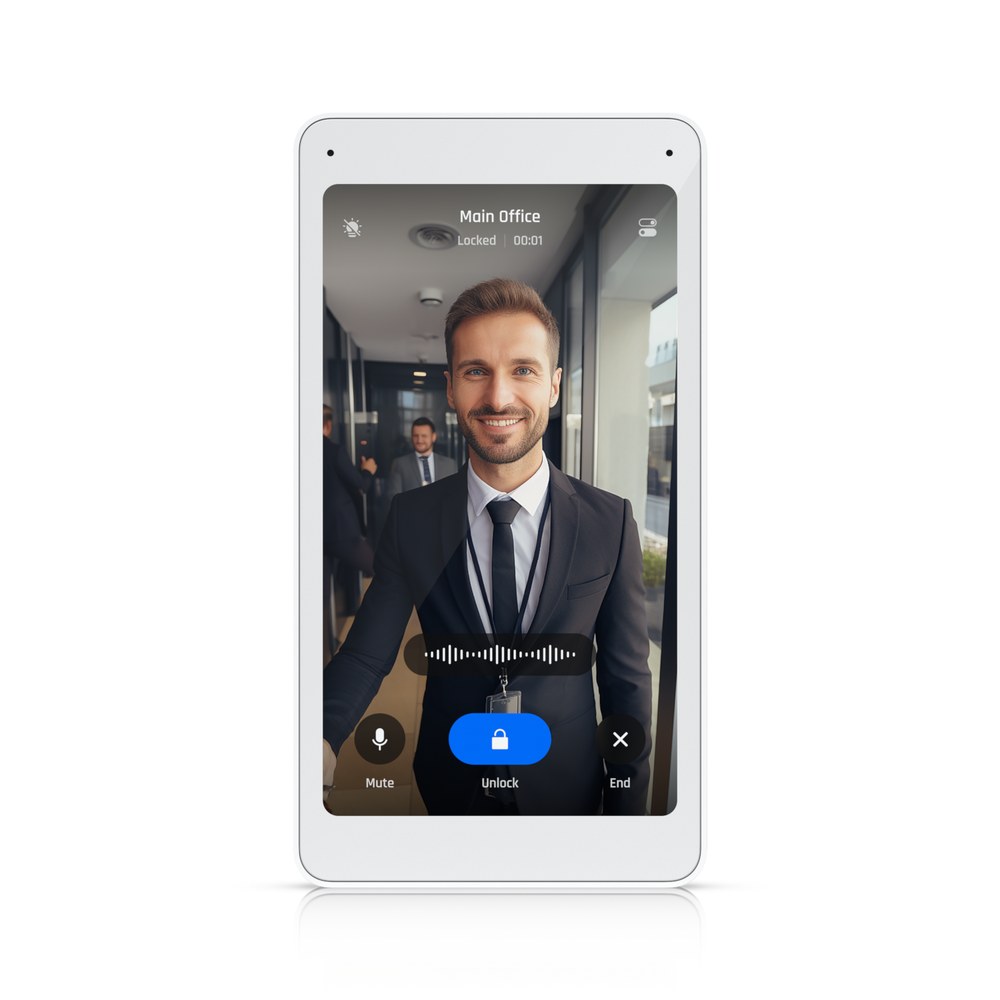

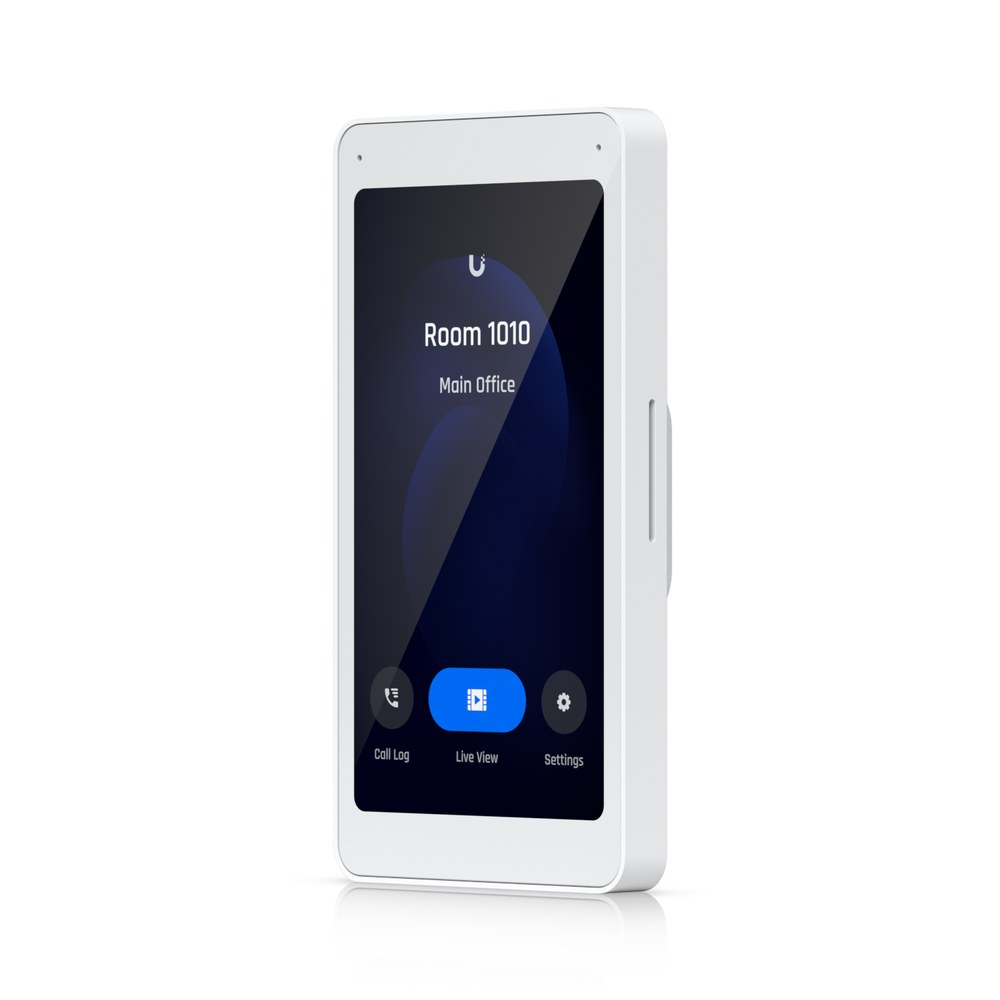

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

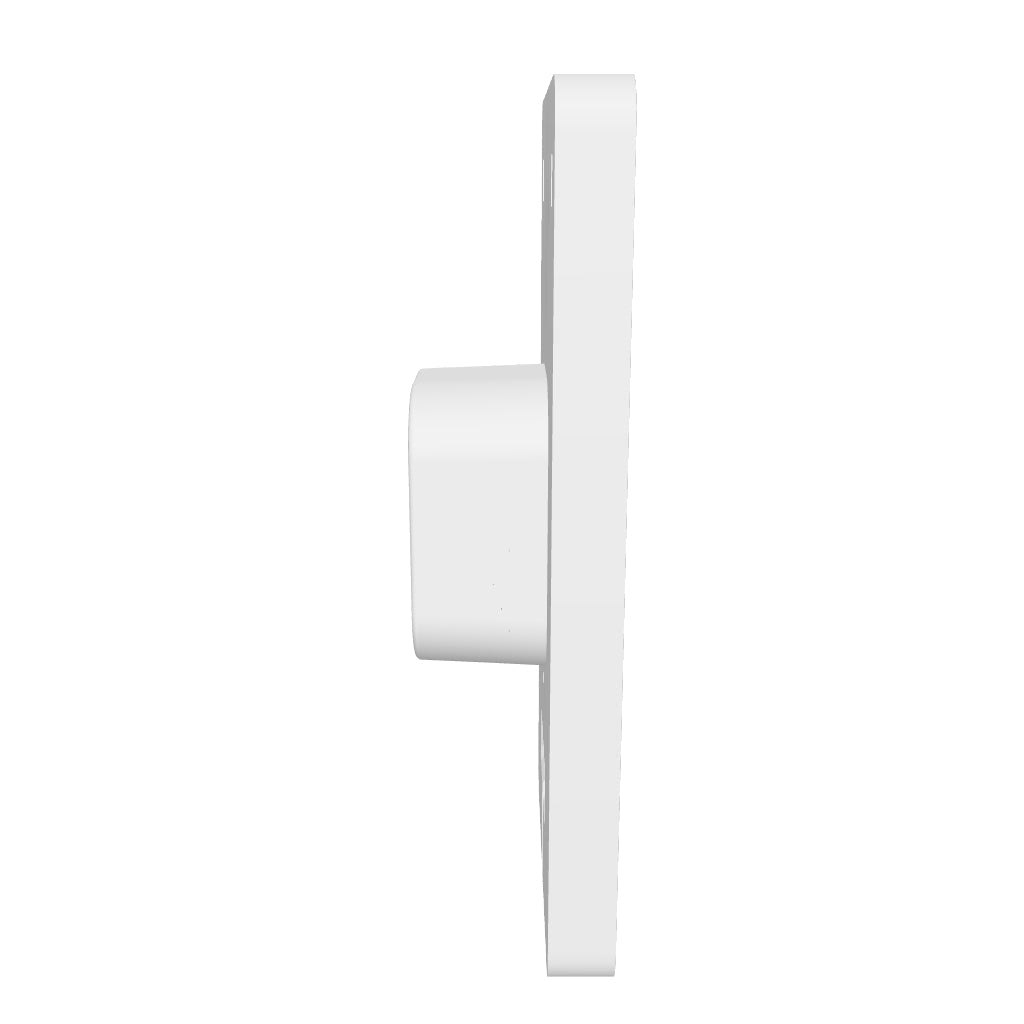

UA-Intercom-Viewer-3 - Ubiquiti UniFi Access Intercom Viewer
Description
Description
The Ubiquiti UniFi Access Intercom Viewer (model UA-Intercom-Viewer-3) is an indoor display designed to work seamlessly with UniFi Access Intercom and Reader Pro devices, providing professional visitor screening and remote access control for residential and commercial buildings.
The Intercom Viewer is a display for seamless entry point management in residential and commercial buildings. It enables live visitor screening, two-way communication, and remote door unlocking. In an apartment complex, Access Readers are installed outdoors at entry points, while Intercom Viewers are placed indoors for tenant access control. The tenant uses the Intercom Viewer to see and communicate with the visitor via audio or live video, and can remotely unlock the door.
Key Features
- Compact dimensions: 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
- Lightweight design at just 168 g (5.9 oz)
- Enclosure material: Glass and polycarbonate with aluminium alloy mount
- (1) 10/100 Mbps RJ45 Ethernet port with PoE power support
- Maximum power consumption: 5W
- Mobile unlock capability
- NDAA compliant
- UL 294 Level I certified
- Wall mounting included; gang box mount optional
- Indoor use only
- Operating temperature: 0 to 40° C (32 to 104° F)
- Operating humidity: 5 to 95% non-condensing
- Supports continuous live streaming with Access application version 3.2.42 or later

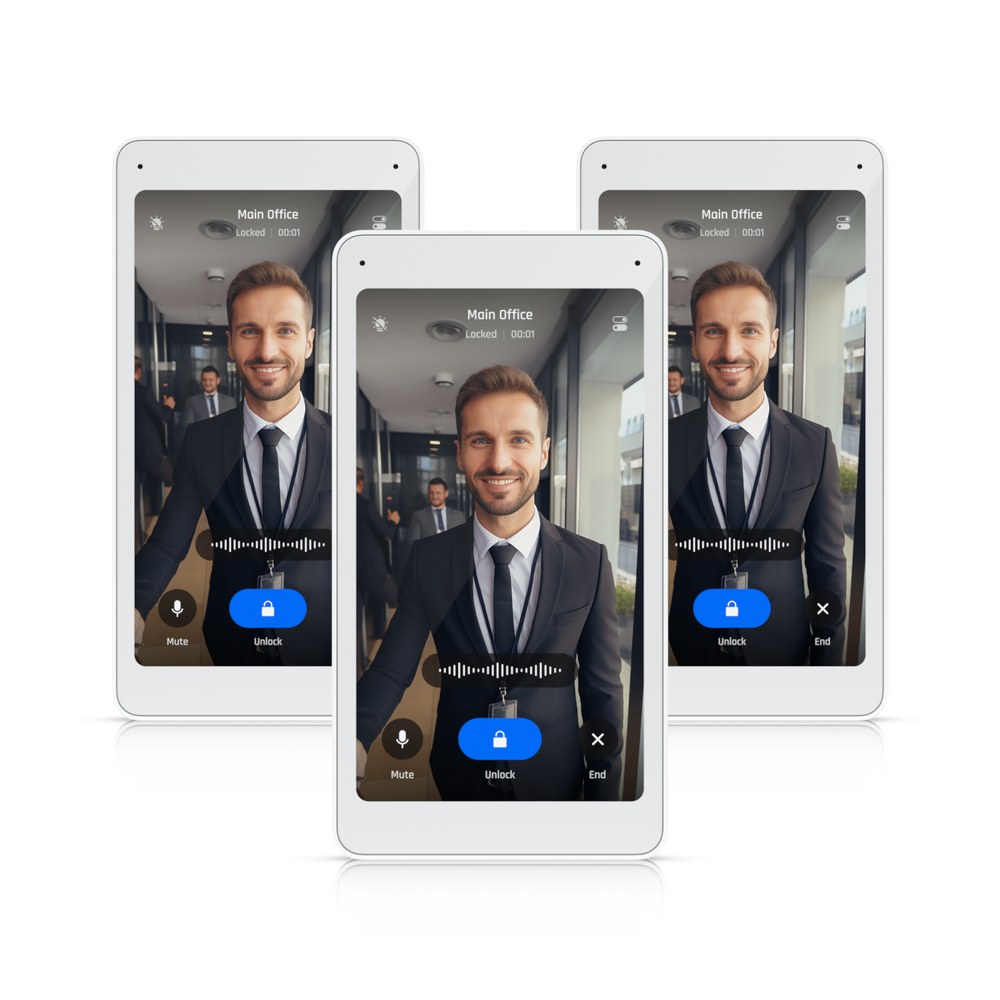

- A single Intercom Viewer can be assigned as the doorbell call receiver for multiple Intercoms and Pro Readers
- Supports existing two-wire Ethernet setup, ideal for retrofit installations
- Managed via UniFi Access application
Ideal for: Multi-tenant residential buildings, apartment complexes, commercial properties, and any facility requiring indoor visitor screening and remote door access control.
Compatible Products
UniFi Access Intercom - The Intercom Viewer works with Intercom for visitor screening and remote access control. The Intercom pairs with multiple UniFi Intercom Viewers for remote access control.
G2 Reader Pro - The Intercom Viewer works with Reader Pro for visitor screening and remote access control. The G2 Reader Pro is a second-generation, indoor/outdoor NFC reader and intercom with doorbell functionality.
G3 Intercom - The G3 Intercom is compatible with UniFi Access systems and requires a direct connection to an Access Control Hub's PoE port for initial adoption.
G6 Entry / Pro Entry - The Intercom Viewer works with the G6 Entry and G6 Pro Entry for visitor screening and remote access control. The G6 Entry and G6 Pro Entry pairs with multiple UniFi Intercom Viewers for remote access control. (Access Hub required)
UniFi Access Hub - Required for managing and controlling all UniFi Access readers and Intercom Viewers within your access control system.
Intercom Viewer Table Stand - Metal table stand accessory designed specifically for the Intercom Viewer.
Specifications26 specifications · 4 sections
| Overview | |
|---|---|
| Dimensions | 135 x 72 x 31.8 mm / (5.3 x 2.8 x 1.3") |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 168 g (5.9 oz) |
| Enclosure Material | Glass, polycarbonate |
| Mount Material | Aluminum alloy |
| Mounting | Wall (Included) / Gang box mount (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Indoor only |

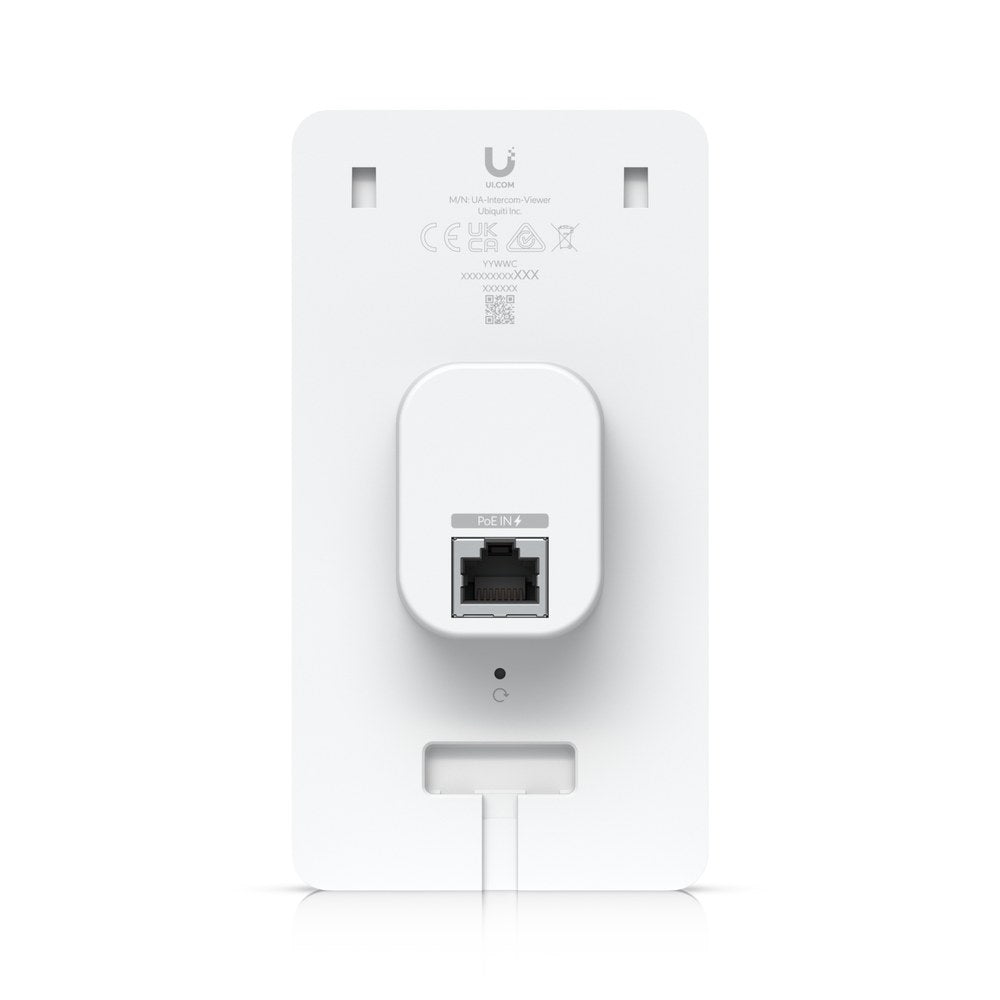

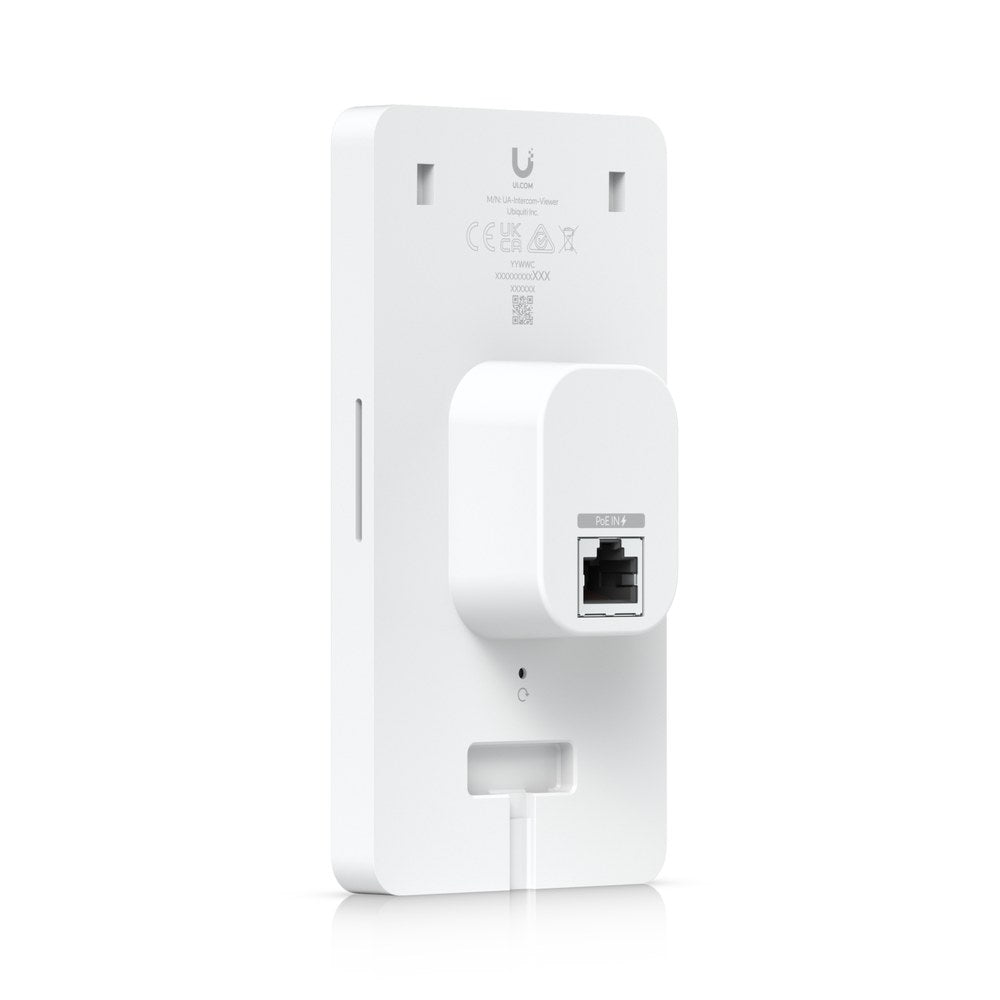

| Networking Interface | (1) 10/100 Mbps RJ45 port |
| Connectivity | Ethernet |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 44–57V DC |
| Display · Size | 127 mm (5") diagonal |
| Display · Luminance | 300 nits (Typical) |
| Display · Screen Orientation | Portrait |
| Display · Resolution | 1280 x 720 px |
| Buttons | (1) Factory reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Intercom-Viewer, V01 |
| Ambient Operating Temperature | 0 to 40° C / (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
