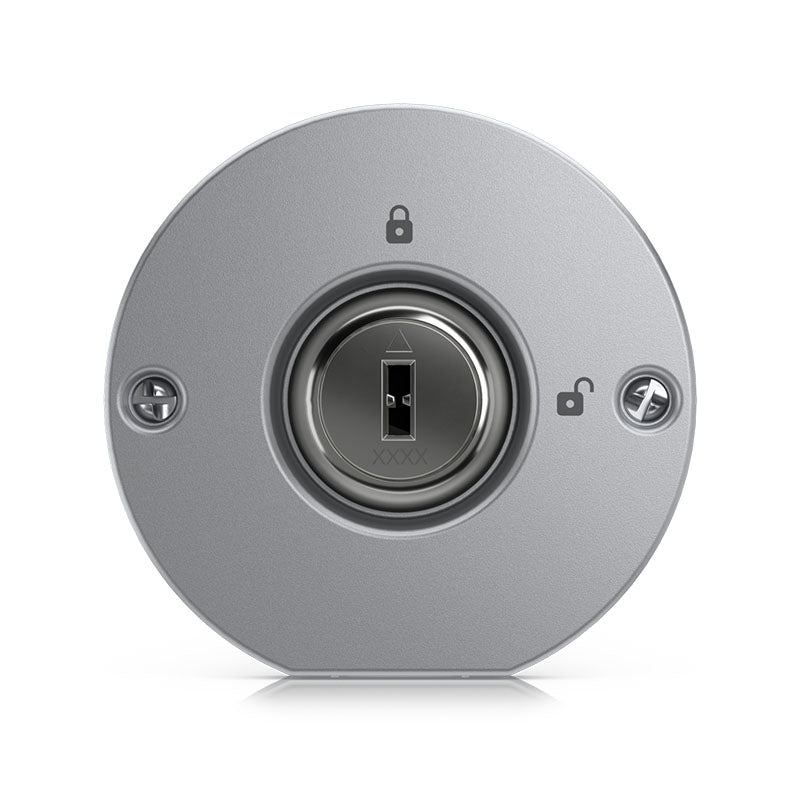

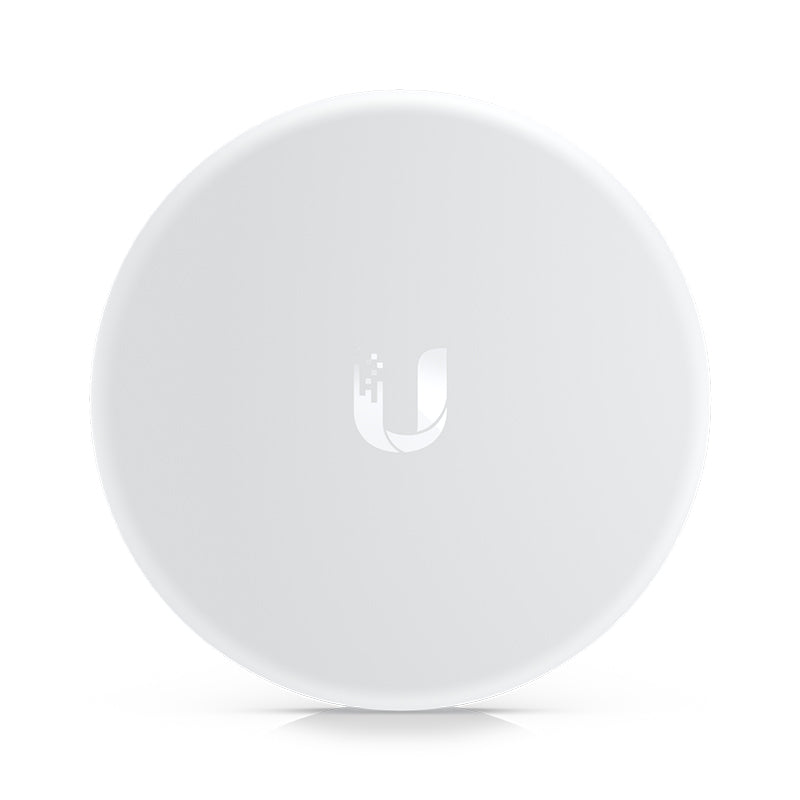

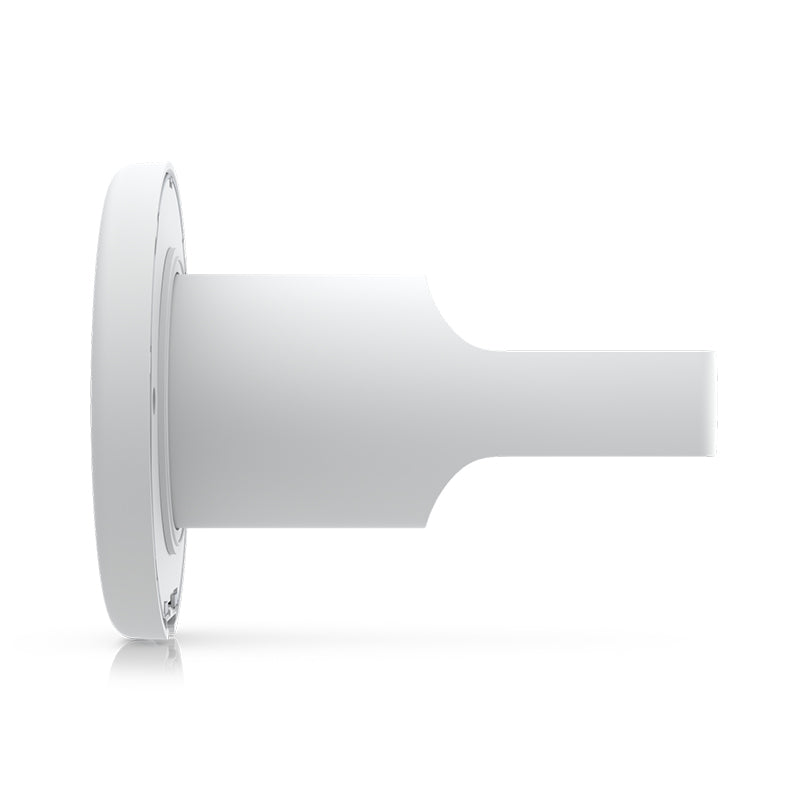

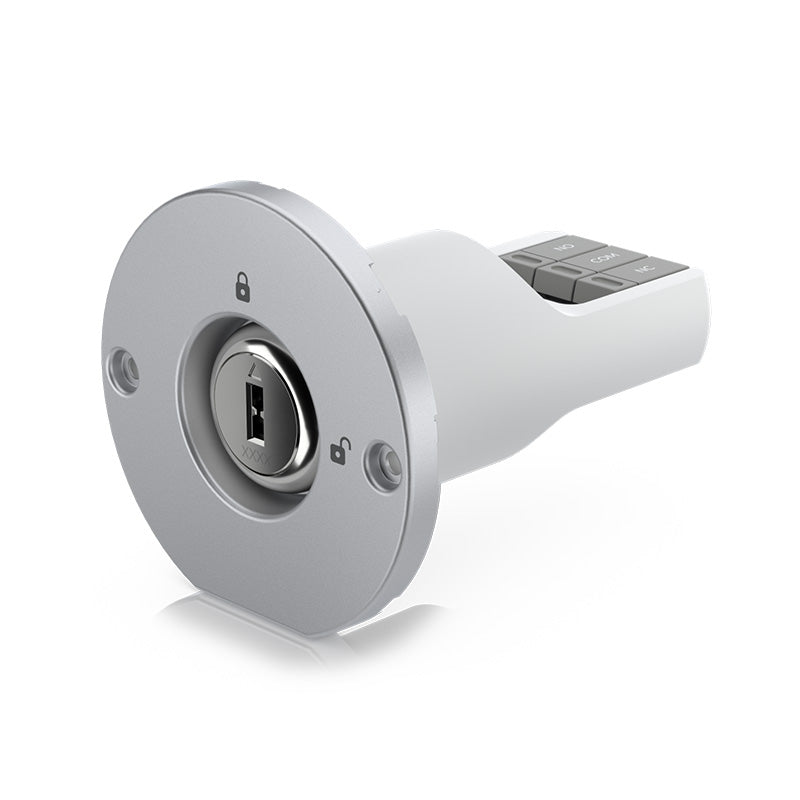

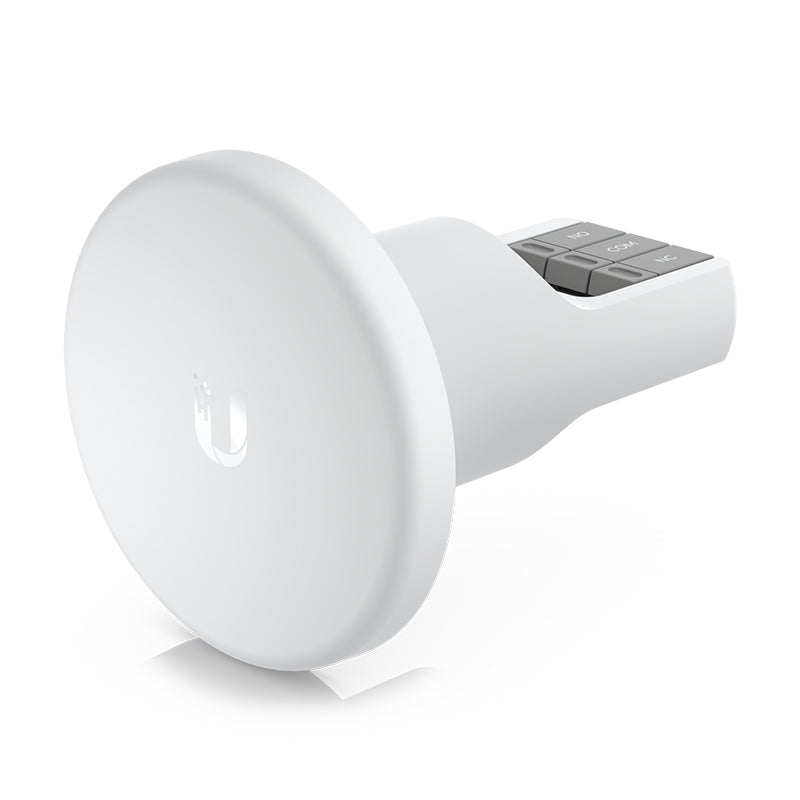

UA-Rescue Ubiquiti UniFi Access Rescue KeySwitch

$156.12 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Description

Keyed emergency override for your Access Hub.

Features:

Manual unlock port with two physical keys included

Backup entry for malfunctioning fail-safe or secure* lock systems

_{*Does not provide redundant power for fail-secure systems.}

Frequently asked questions5 questions

What is the UA-Rescue KeySwitch used for?

It is a keyed emergency override for a UniFi Access Hub. It provides a manual unlock port, so it can act as backup entry when a fail-safe or fail-secure lock system malfunctions.

Does it provide backup power for fail-secure locks?

No. It does not provide redundant power for fail-secure systems. It offers a manual key-operated unlock only.

How many keys are included?

Two physical keys are included. The key switch uses a brass internal wave key.

What are the electrical ratings and wiring terminals?

The key switch is rated at 28V DC, 4A. The terminal block provides COM, NO and NC connections and accepts 18-24 AWG wire.

What are its size, weight and operating conditions?

It measures ⌐60 x 74 mm, weighs 94 g and has a polycarbonate enclosure. It operates in ambient temperatures from -30 to 65°C and 5 to 95% noncondensing humidity.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications9 specifications · 2 sections

Mechanical

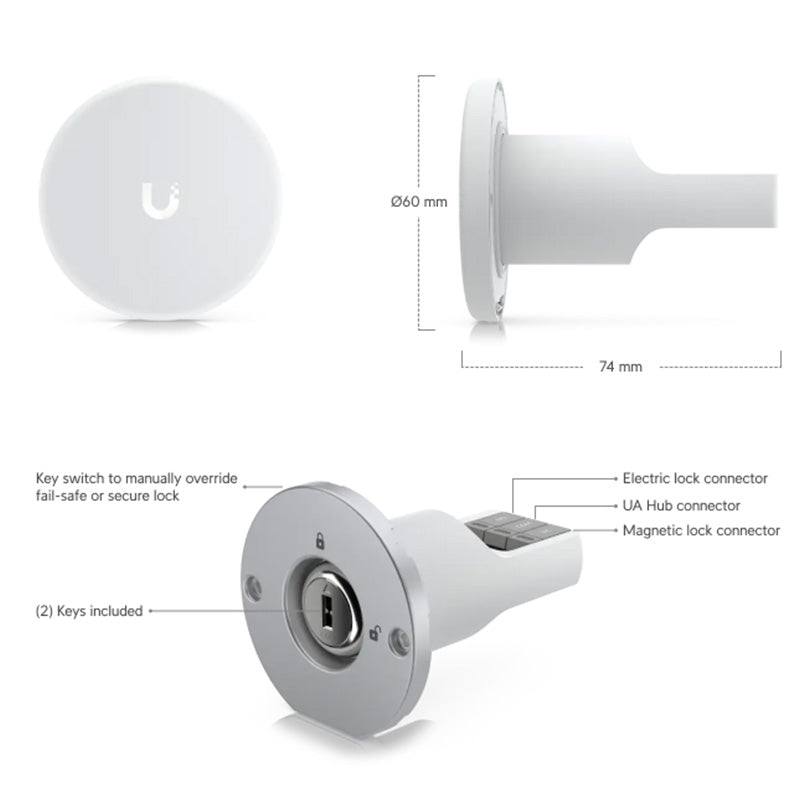

Dimensions	⌀60 x 74 mm (⌀2.4 x 2.9")
Weight	94 g (3.3 oz)
Enclosure Material	Polycarbonate
Hardware
Key Switch	Brass internal wave key, 28V DC, 4A

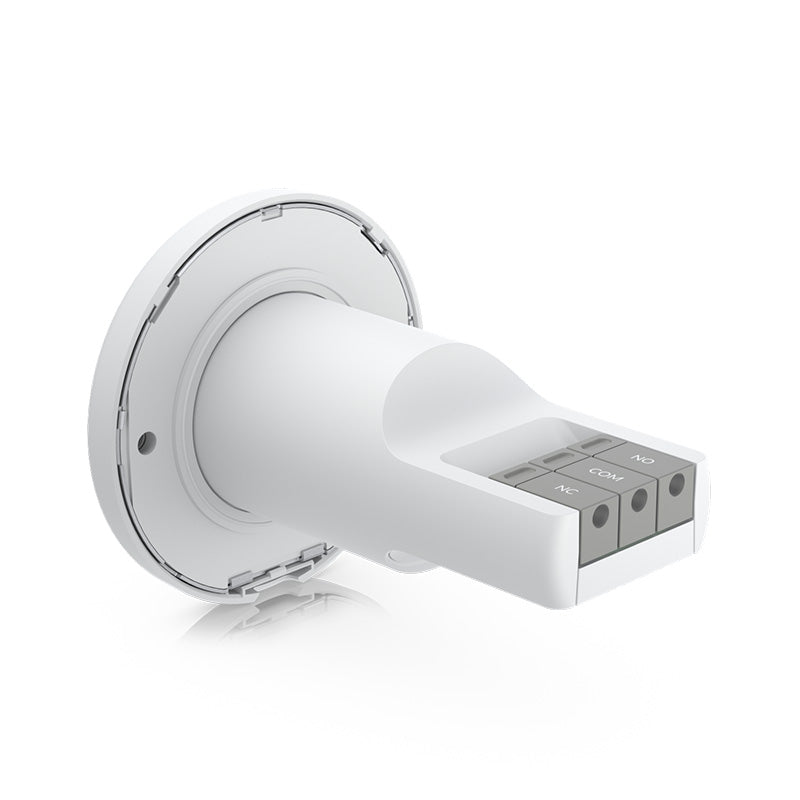

Terminal Block	COM/NO/NC / 18-24 AWG
Ambient Operating Temperature	-30 to 65° C (-22 to 149° F)
Ambient Storage Temperature	-40 to 85° C (-40 to 185° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
