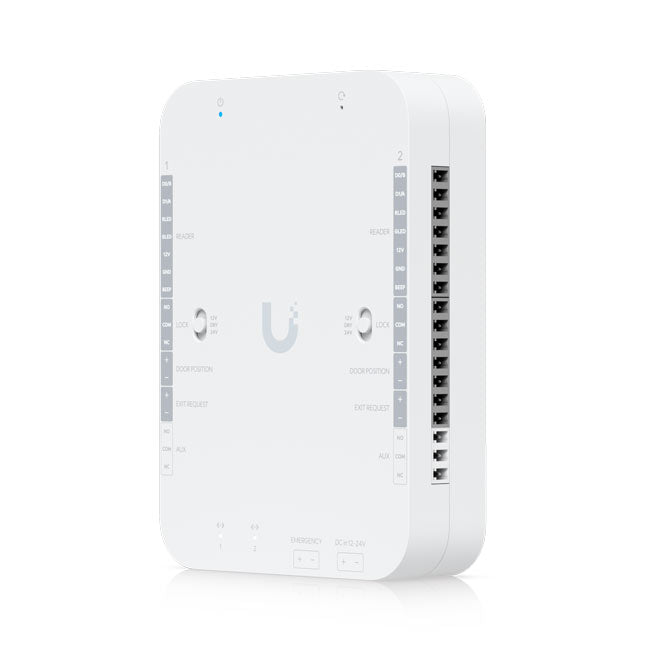

| Overview |
|---|
| Dimensions | 140 x 120 x 45 mm / (5.5 x 4.7 x 1.8") |
|---|
| Supported Doors | 2 |
|---|
| Maximum User Count | 10,000 |
|---|
| Input Terminals | (2) Third-party Wiegand Reader / UniFi Retrofit Reader / (2) Door exit request / (2) Door position / (1) Emergency |
|---|
| Power Method | 12/24V DC |
|---|
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
|---|
| Mechanical |
|---|
| Weight | 420 g (14.8 oz) |
|---|
| Enclosure Material | Polycarbonate |
|---|
| Mount Material | SGCC steel |
|---|

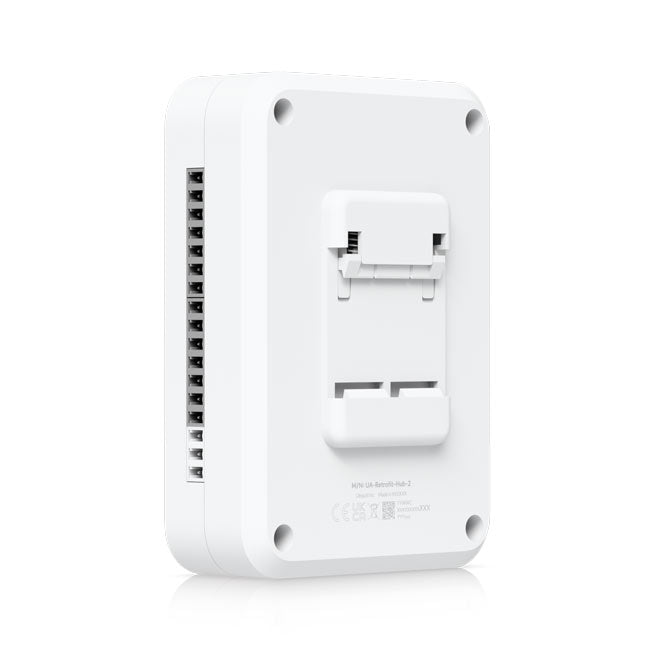

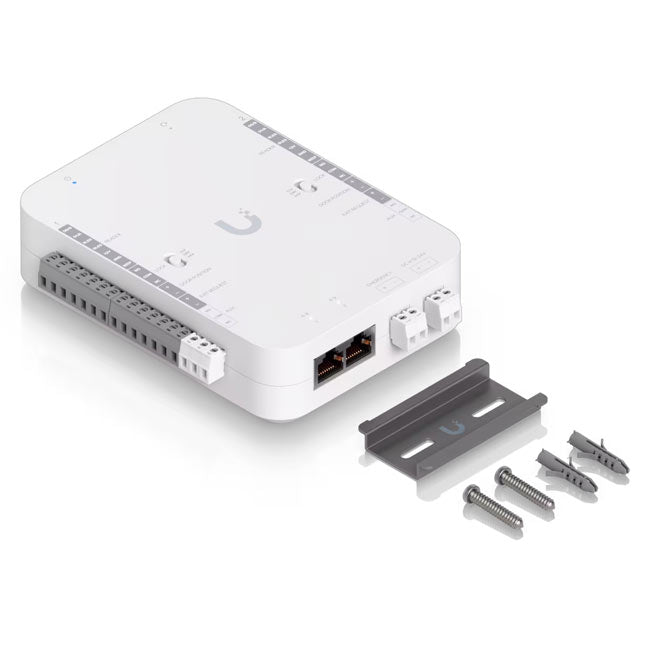

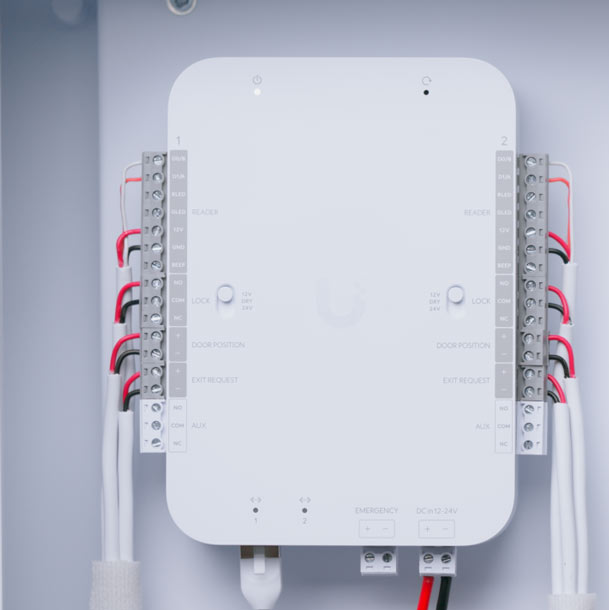

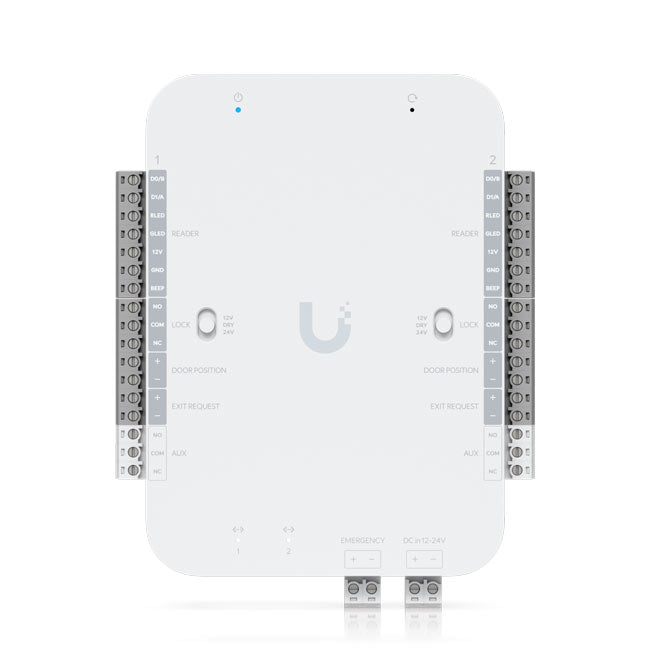

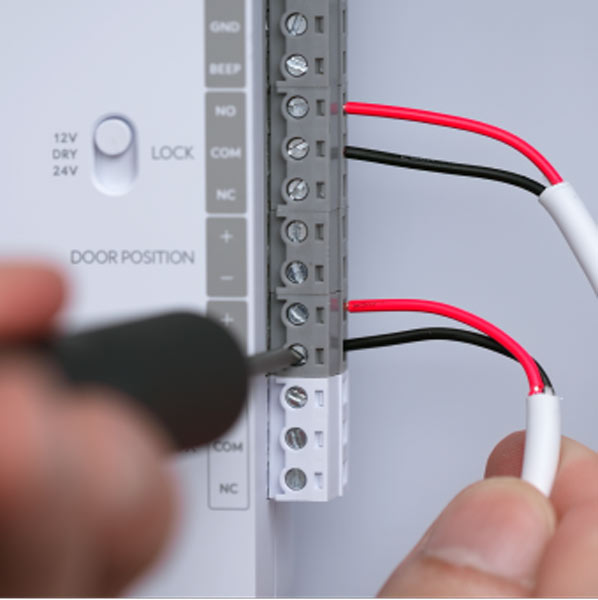

| Mounting | Din-rail (Included) |
|---|
| Hardware |
|---|
| Digital Input | (2) Third-party Wiegand Reader / UniFi Retrofit Reader / (2) Door exit request / (2) Door position / (1) Emergency |
|---|
| Dry Output Relay | Lock: rated 30V DC, up to 1A / Aux: rated 30V DC, up to 1A |
|---|
| Powered Output Relay | 12V Lock: 12V DC, up to 1A / 24V Lock: 24V DC, up to 0.5A |
|---|
| Indoor and Outdoor Use | Indoor only |
|---|
| Ambient Operating Temperature | -10 to 40° C / (14 to 104° F) |
|---|
| Ambient Operating Humidity | 5 to 90% noncondensing |
|---|

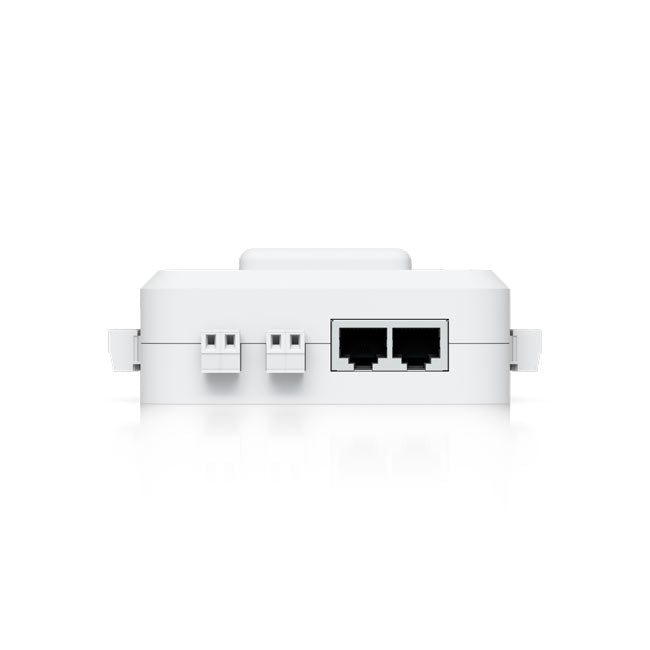

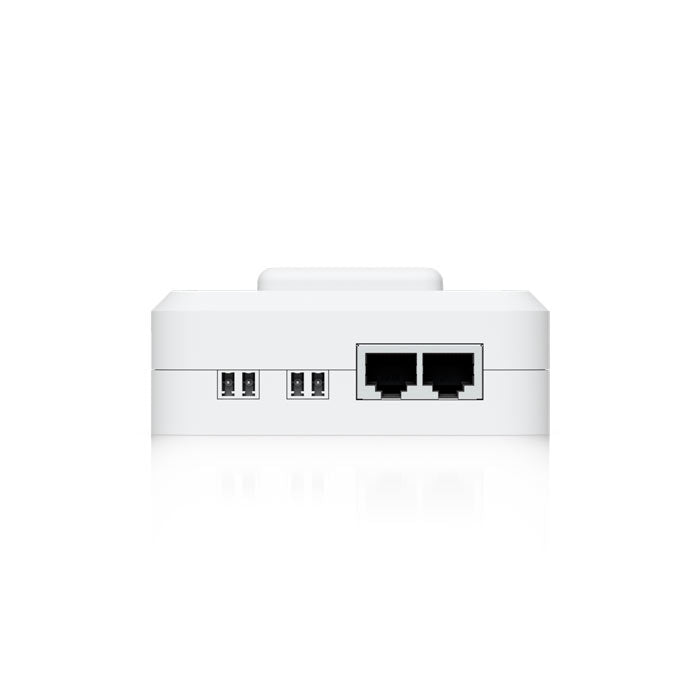

| Networking Interface | (2) 10/100 MbE RJ45 ports |
|---|
| Power Supply | DC 12/24V |
|---|
| Max. Power Consumption | 50W |
|---|
| Reader Power Output | 12V DC, up to 0.5A |
|---|
| LEDs | W/B <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
|---|
| Buttons | (1) Factory reset / (2) 12V/Dry/24V switch |
|---|
| Recommend Max. Cable Length · UA-Retrofit-Reader (250mA) | 18 UACC-Cable-DoorLockRelay length: 152.4 m (500 ft) |
|---|
| Recommend Max. Cable Length · UA-Lock-Electric
(400mA) | 24 AWG length: 25 m (82 ft) / 22 AWG length: 42 m (138 ft) / 20 AWG length: 66 m (217 ft) / 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) |
|---|
| Recommend Max. Cable Length · UA-Lock-Magnetic-540kg (500mA) | 24 AWG length: 20 m (66 ft) / 22 AWG length: 32 m (105 ft) / 20 AWG length: 51 m (167 ft) / 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) |
|---|
| Recommend Max. Cable Length · UA-Lock-Magnetic-270kg (800mA) | 24 AWG length: 12 m (39 ft) / 22 AWG length: 20 m (66 ft) / 20 AWG length: 30 m (98 ft) / 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) |
|---|
| Recommend Max. Cable Length · Other locks
(1A) | 24 AWG length: 9 m (30 ft) / 22 AWG length: 15 m (49 ft) / 20 AWG length: 24 m (79 ft) / 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) |
|---|
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
|---|
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
|---|
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
|---|
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
|---|
| Document number, and issue date and/or revision level | UA-Retrofit-Hub-2, V01 |
|---|
| Software |
|---|
| Management Application | Access |
|---|
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
|---|
