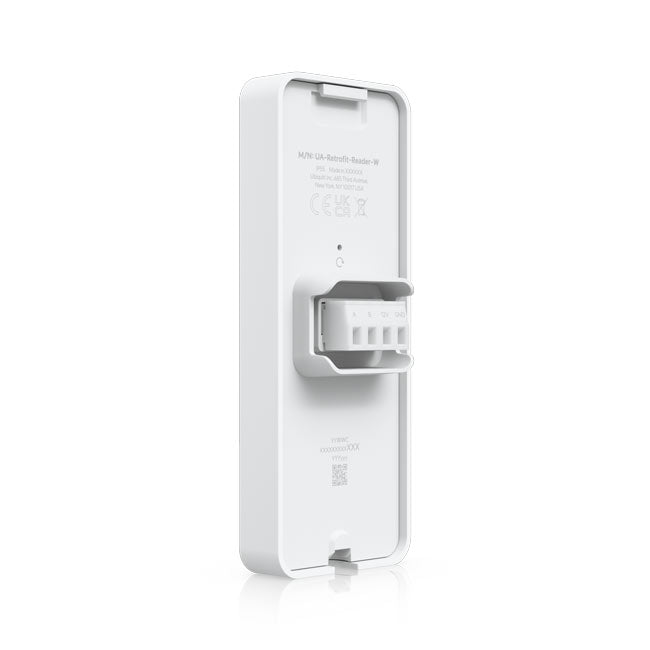

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

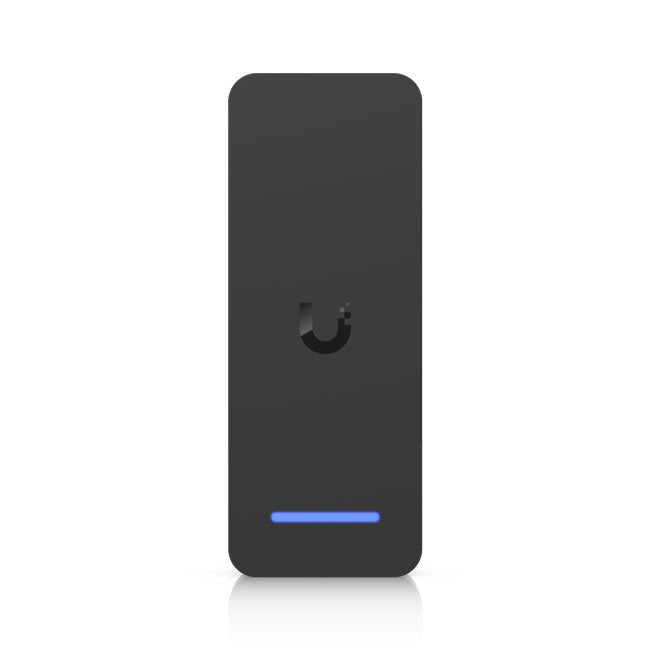

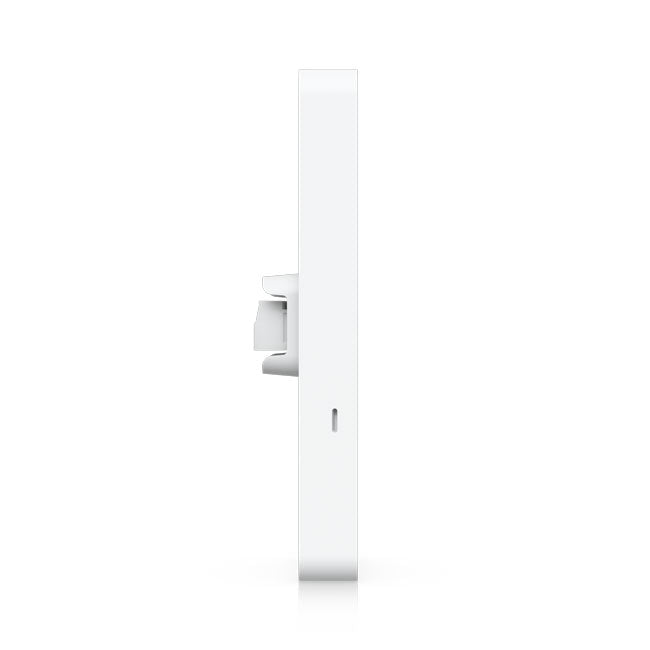

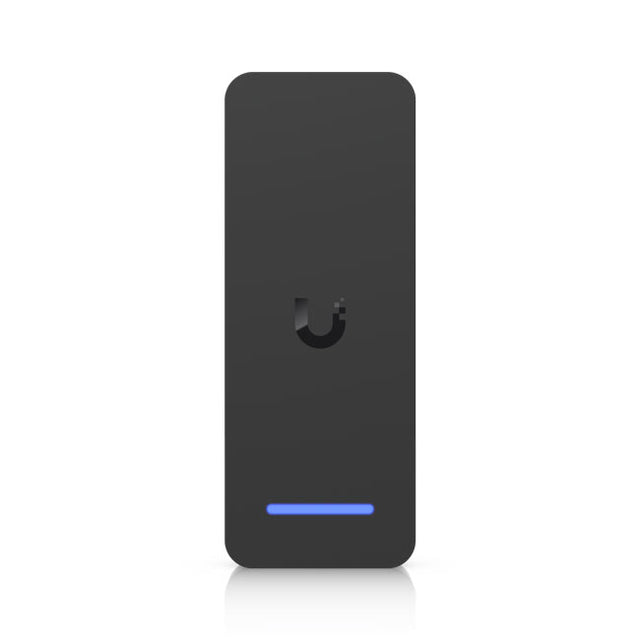

G3 Retrofit Reader: Smartphone-Ready Access
The G3 Retrofit Reader turns legacy wiring into mobile-first access.
If you want frictionless entry, the G3 Retrofit Reader delivers. It is an indoor/outdoor OSDP reader with NFC Card and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling.
It brings BLE smartphone unlock, NFC and TouchPass to the wiring you already have, making secure entry faster and more convenient.

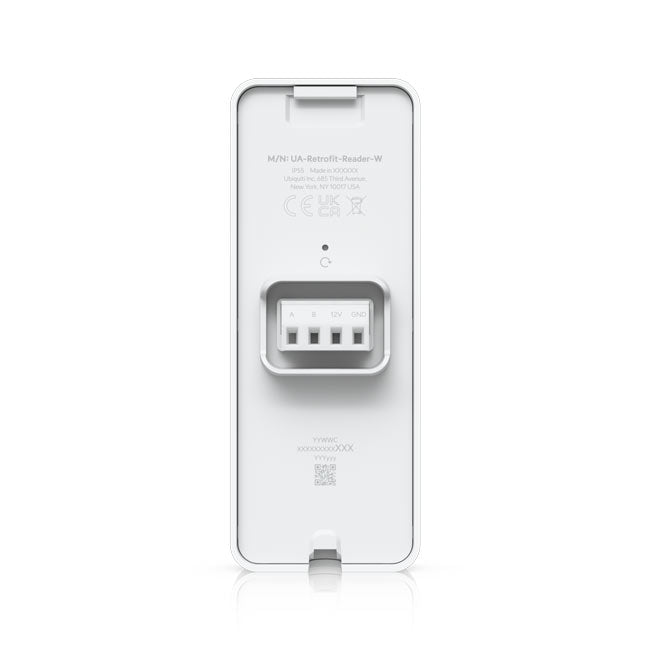

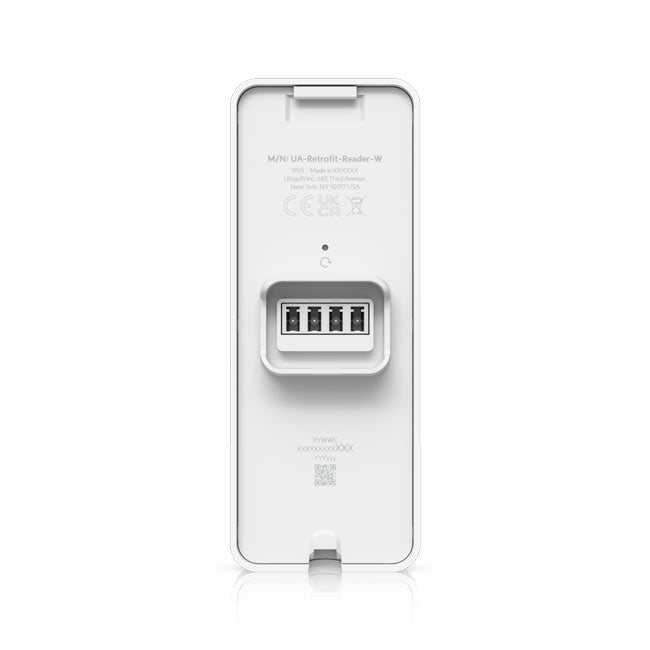

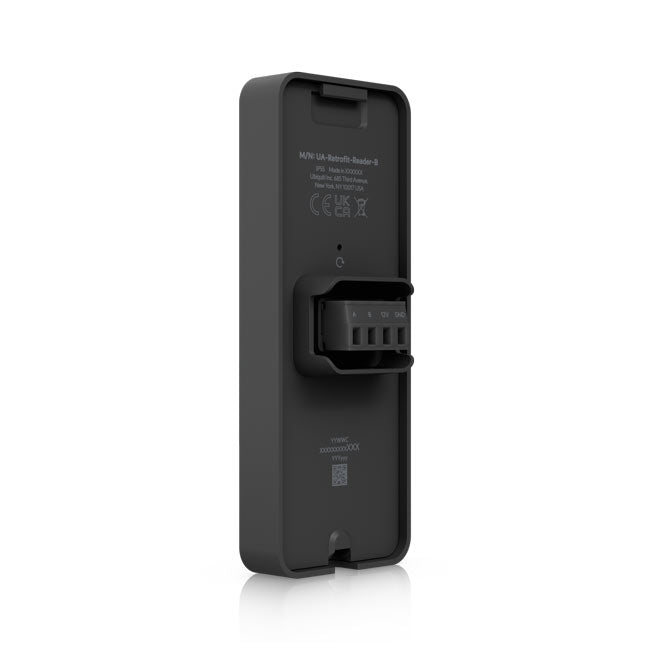

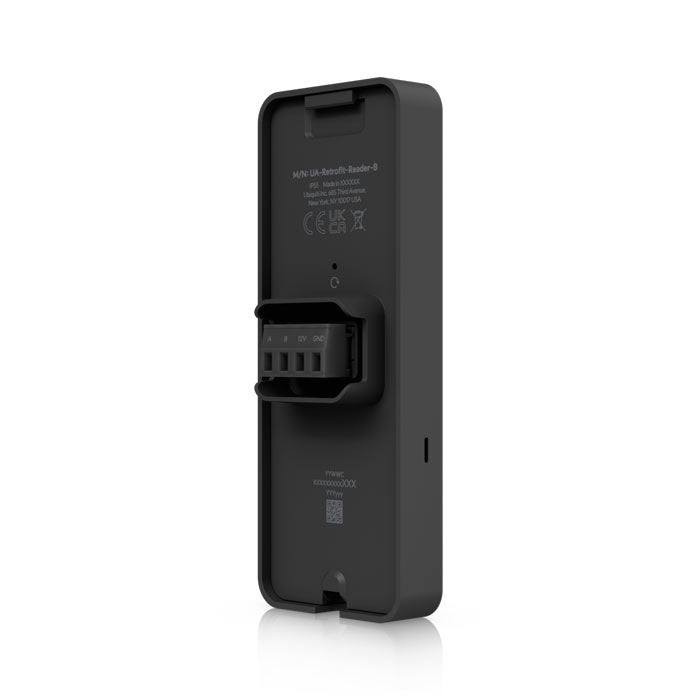

To use, connect the Retrofit Reader with the provided RS-485 wiring instructions. It must be connected directly to the designated ports on the Retrofit Hub. You can daisy-chain up to two Retrofit Readers per door.
Please note that daisy-chaining is only available for UniFi Retrofit Readers. Wiegand readers are not supported.
| Overview | |
|---|---|
| Dimensions | 117 x 45 x 13.3 mm / (4.6 x 1.8 x 0.5") |
| UniFi Application Suite | Access |
| Weatherproofing | IP55 |
| Mechanical | |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |

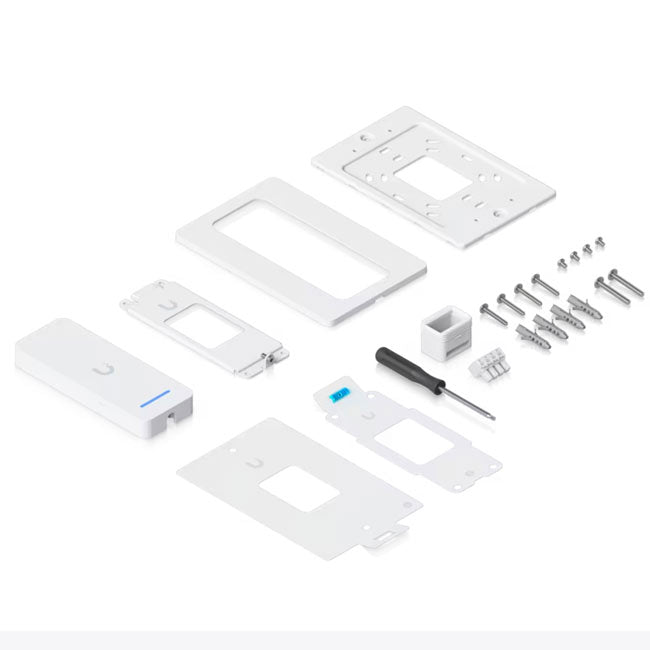

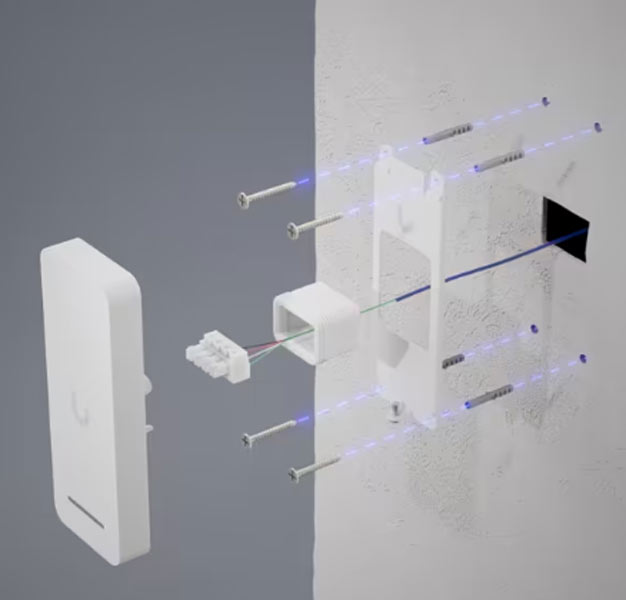

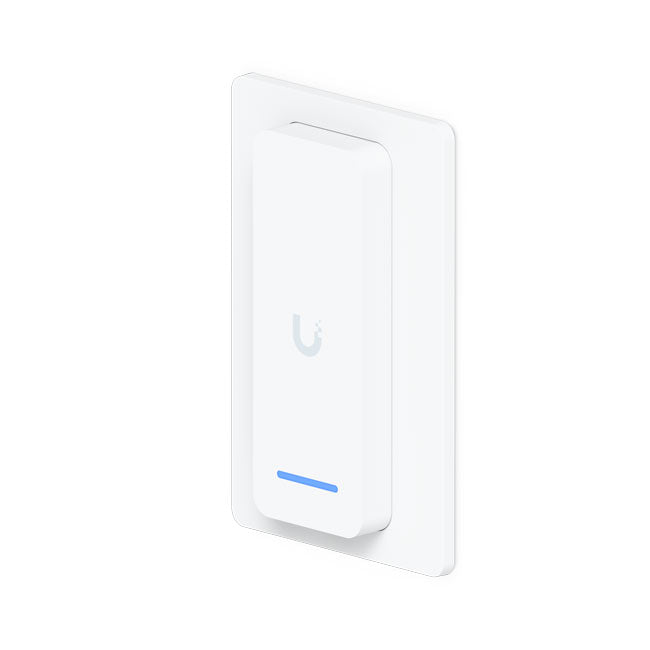

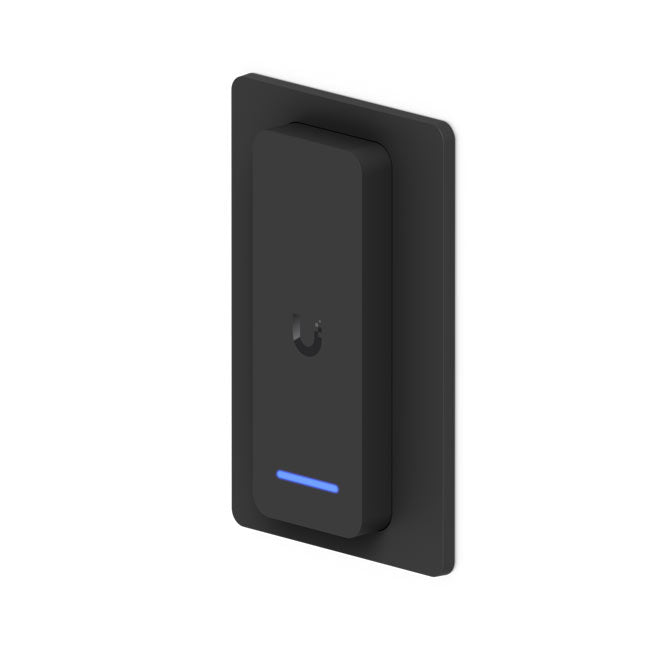

| Mounting | Wall, gang-box mount (Included) / Junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Connectivity | RS-485 / BLE 4.1 / NFC |
| Security | OSDP v2 |
| Power Method | DC 12V |
| Max. Power Consumption | 2.5W |
| Supported Voltage Range | 12V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO 14443A, 14443B, 15693 / NFC Tag 1,2,3,4,5 / MIFARE Classic / MIFARE Plus / MIFARE Ultralight / MIFARE DESFire |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50° C / (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
