Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UA-SK-Elevator
UA-SK-Elevator Ubiquiti UniFi Access Elevator Starter Kit
$1,825.82 AUD
Unit price
/
Unavailable
8 in stockShips from the warehouse closest to you
Brisbane (none in stock)SydneyMelbourneAdelaide (none in stock)PerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Melbourne and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

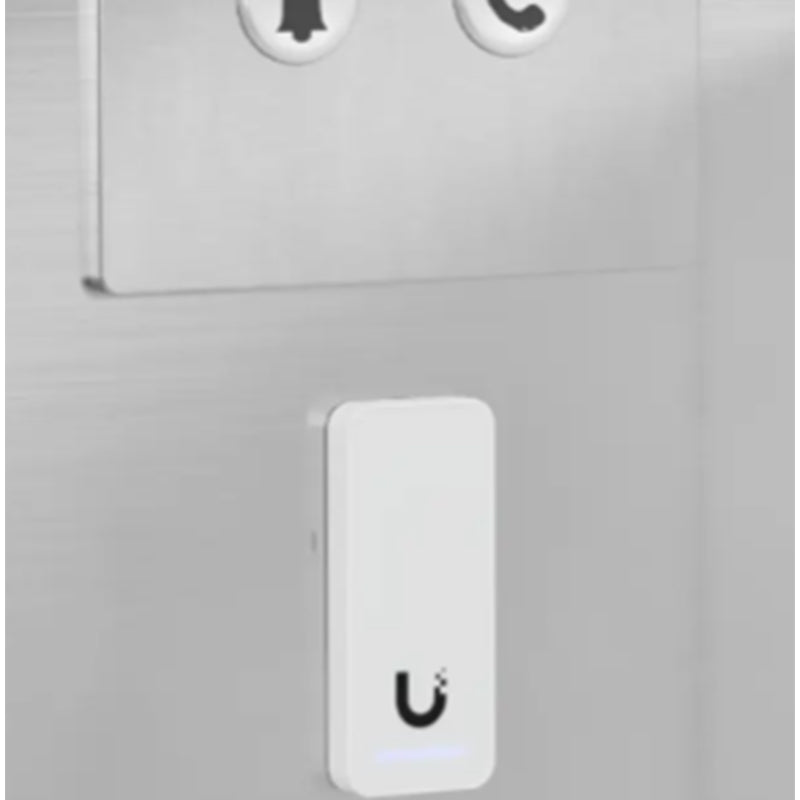

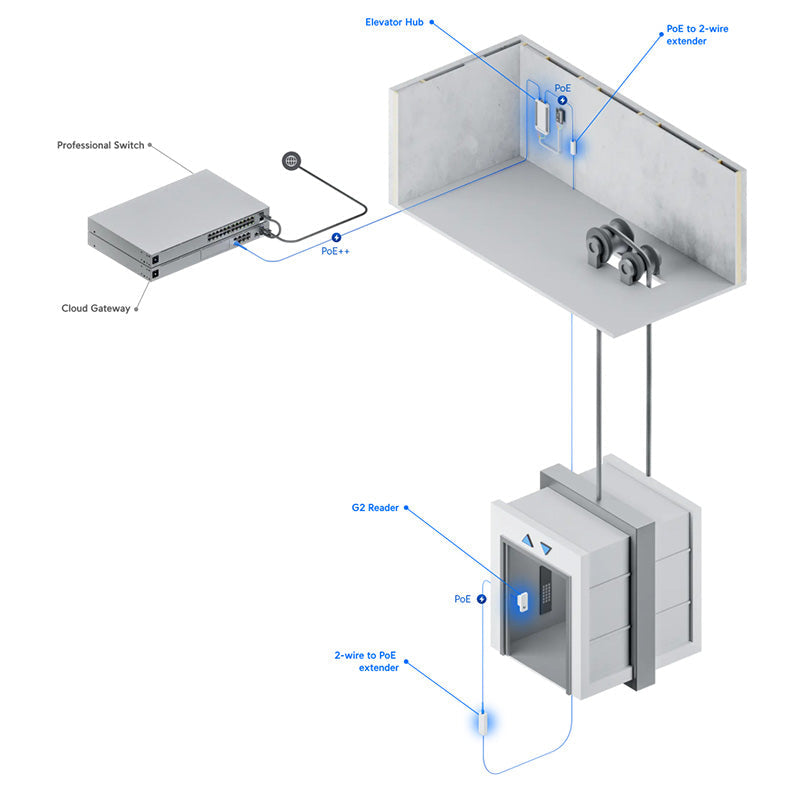

Connects to in-elevator readers using PoE to authorize user's floor selection. Support for up to 18 floors and digital inputs for car status and emergency.
Features:
(1) Elevator Hub
(1) G2 Reader
(2) 2-wire PoE extenders
(10) Access Cards
Frequently asked questions5 questions
What is the UniFi Access Elevator Starter Kit used for?
It connects to in-elevator readers over PoE to authorise a user's floor selection. It supports up to 18 floors and has digital inputs for car status and emergency.
What is included in the kit?
The kit contains one Elevator Hub, one G2 Reader, two 2-wire PoE extenders and ten Access Cards.
How is the Elevator Hub powered, and what outputs does it have?
The Elevator Hub is powered by a PoE++ input (50V DC, 1.2A). It has four PoE+ outputs at 30W per port, up to 45W aggregated, and 18 relay outputs rated 30V DC/2A. It draws a maximum of 7W without PoE output.
How many users can the Elevator Hub support?
The Elevator Hub supports a maximum of 6,000 users and is managed through the UniFi Access application.
What card and NFC technologies does the G2 Reader support?
The G2 Reader supports NFC at 13.56 MHz, including ISO/IEC 14443A/B, MIFARE Classic and MIFARE DESFire, and also has BLE 4.1. NFC read range is under 30 mm.
Specifications70 specifications · 5 sections
| Overview | |
|---|---|

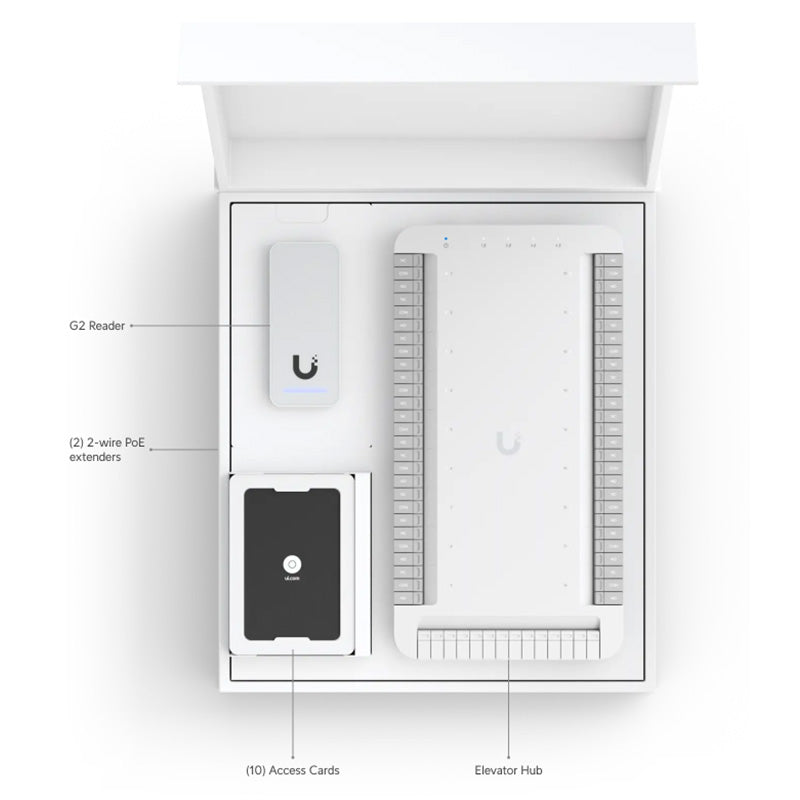

| In the Box | (1) Elevator Hub / (1) G2 Reader / (2) 2-wire PoE extenders / (10) Access Cards |

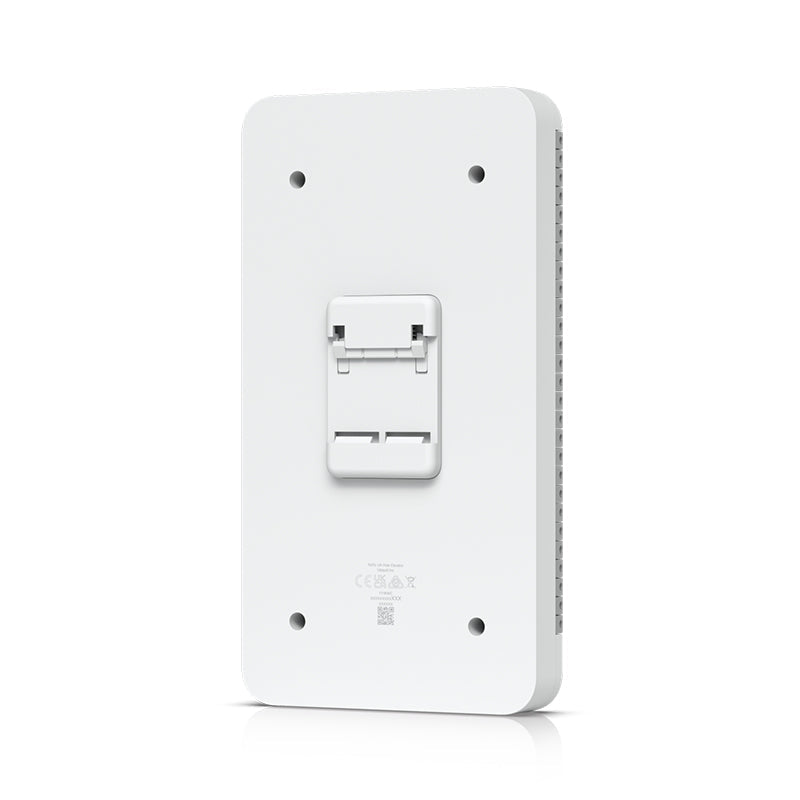

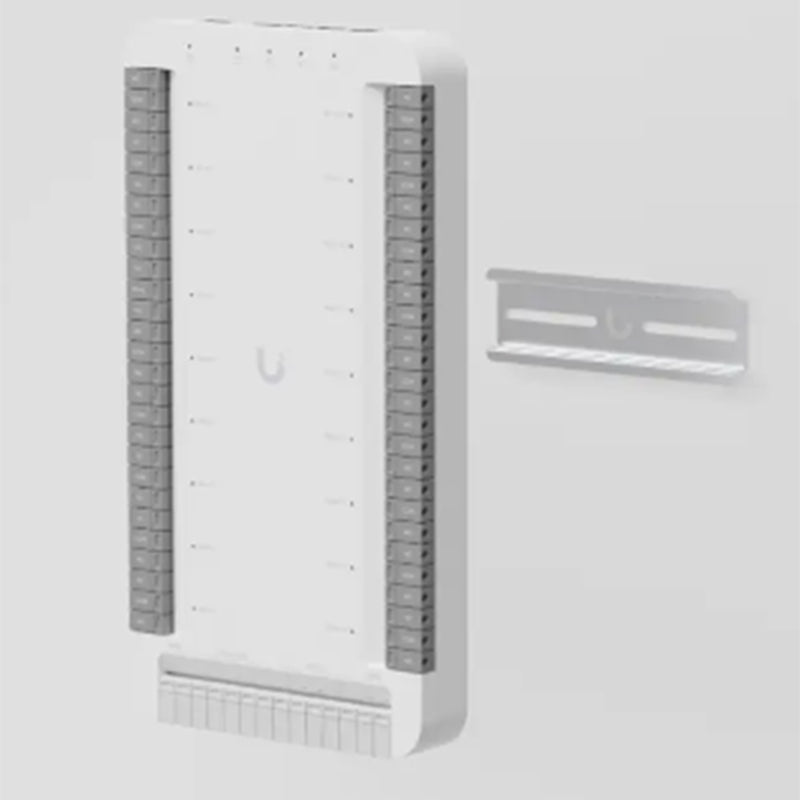

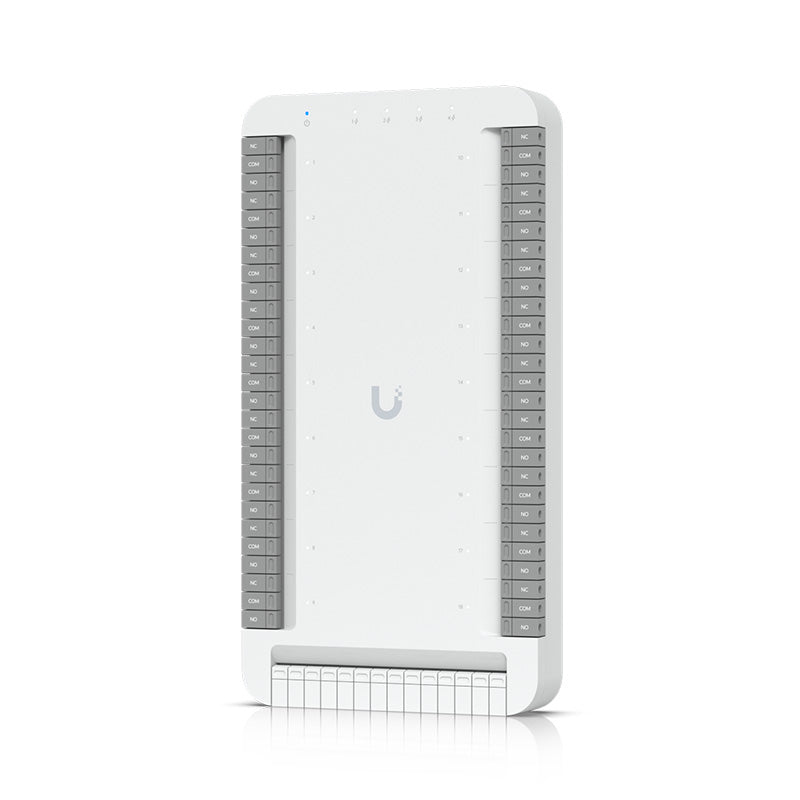

| Elevator Hub | |

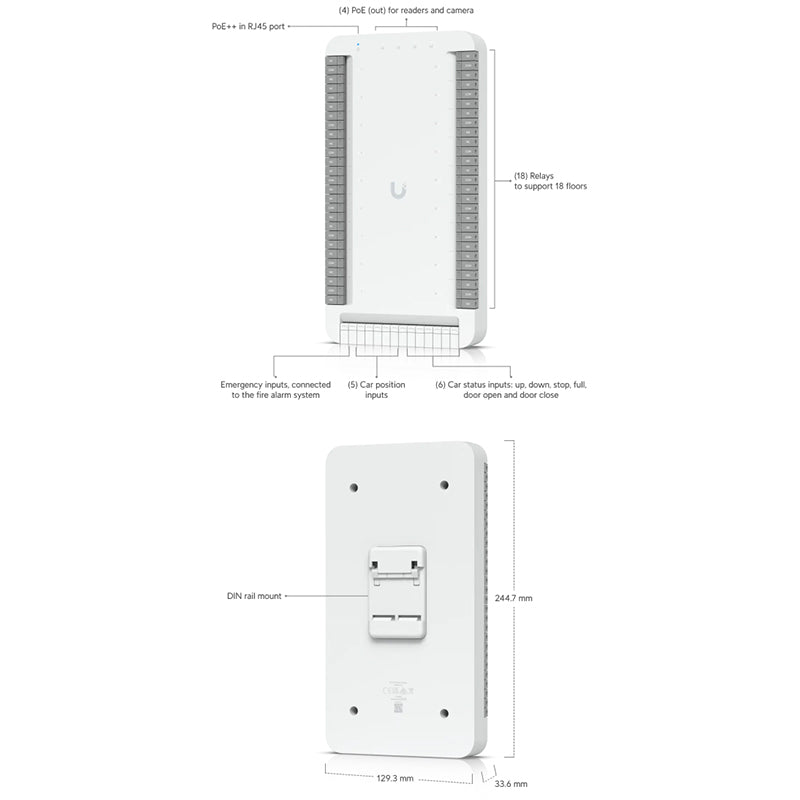

| Dimensions | 129.3 x 244.7 x 33.6 mm / (5.1 x 9.6 x 1.3") |
| Maximum User Count | 6,000 |
| Power Method | PoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Weight | 537 g (1.2 lb) |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate |
| Networking Interface | (4) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1.2A / (4) PoE+ outputs, 50V DC, 30W per port / (Max 45W aggregated) |
| Management | (1) 10/100/1000 Base-T |
| Max. Power Consumption | 7W (Without PoE output) |
| Digital Input | (1) Emergency / (1) Car position (5-bit) / (1) Car status: Up/Down/Stop/Full / (1) Door status: Open/Close |
| Outputs | (18) Relays / Rating 30V DC/2A |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| LEDs | B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset / Terminal blocks |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |

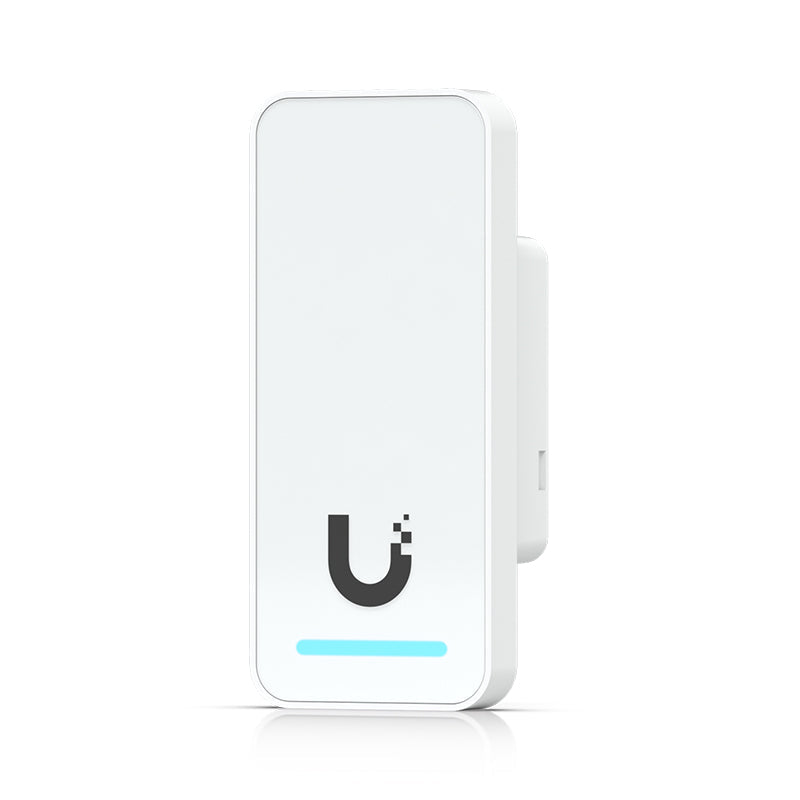

| G2 Reader | |
| Dimensions | 93 x 40 x 36.5 mm / (3.7 x 1.6 x 1.4") |
| Weatherproofing | IP55 |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |

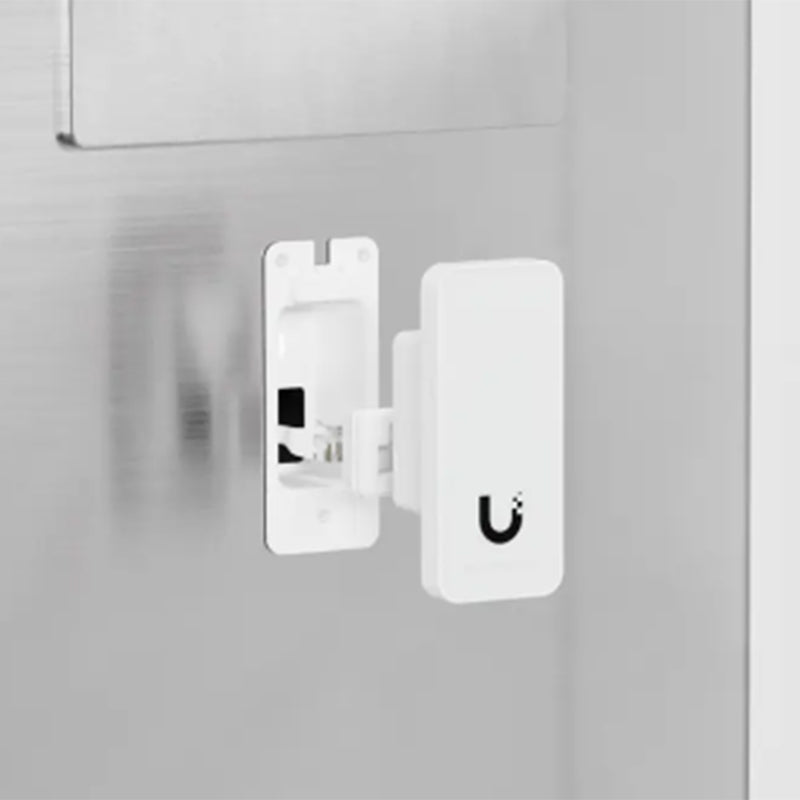

| Mounting | In-wall, gang box (Included) / Junction box (Optional) |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Sensors | Proximity sensor |
| Speaker | (1) Yes, 0.7W |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Ambient Operating Temperature | -30 to 45° C (-22 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G2/UA-G2-Black, V02 |
| Management Application | UniFi Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |

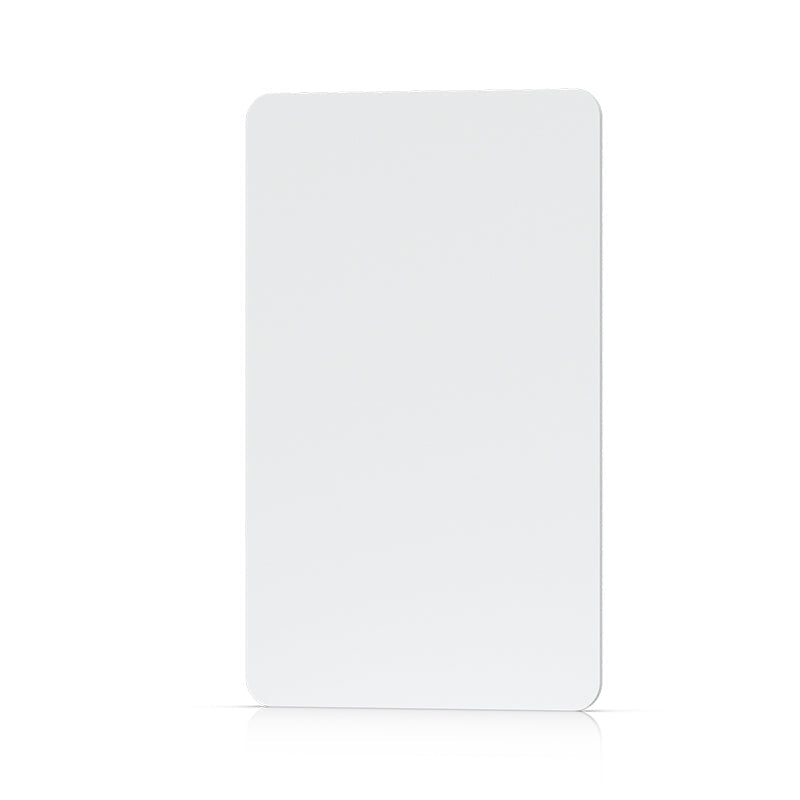

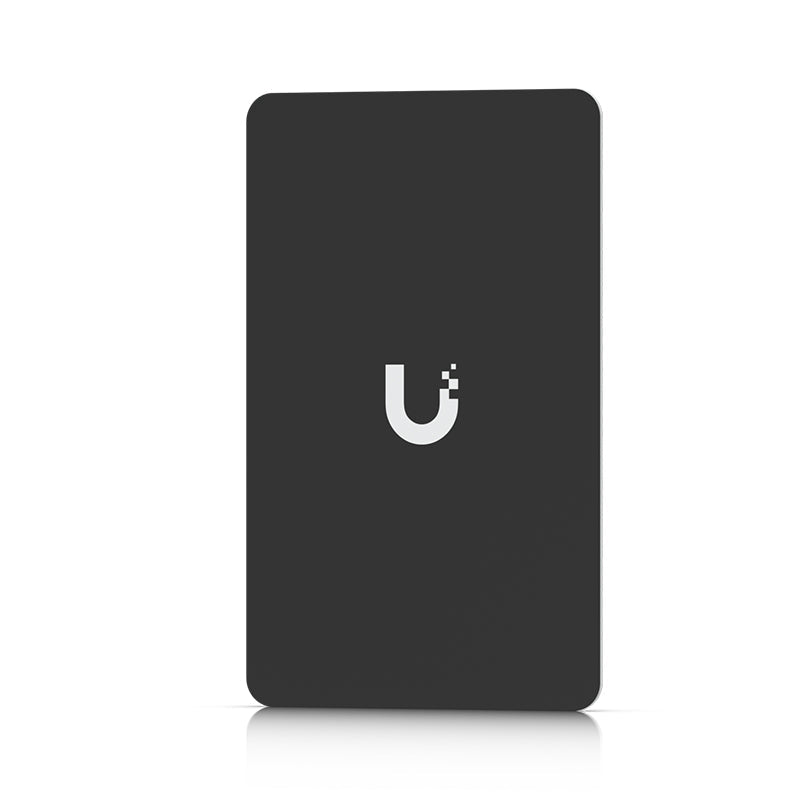

| Access Card | |
| Dimensions | 85.6 x 53.98 x 0.84 mm / (3.37 x 2.13 x 0.03") |
| Weight | 5 g (0.18 oz) |
| Format | ISO 7810 ID-1 |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443 Type A / MIFARE DESFire / UniFi Access Proprietary Security Protocol |

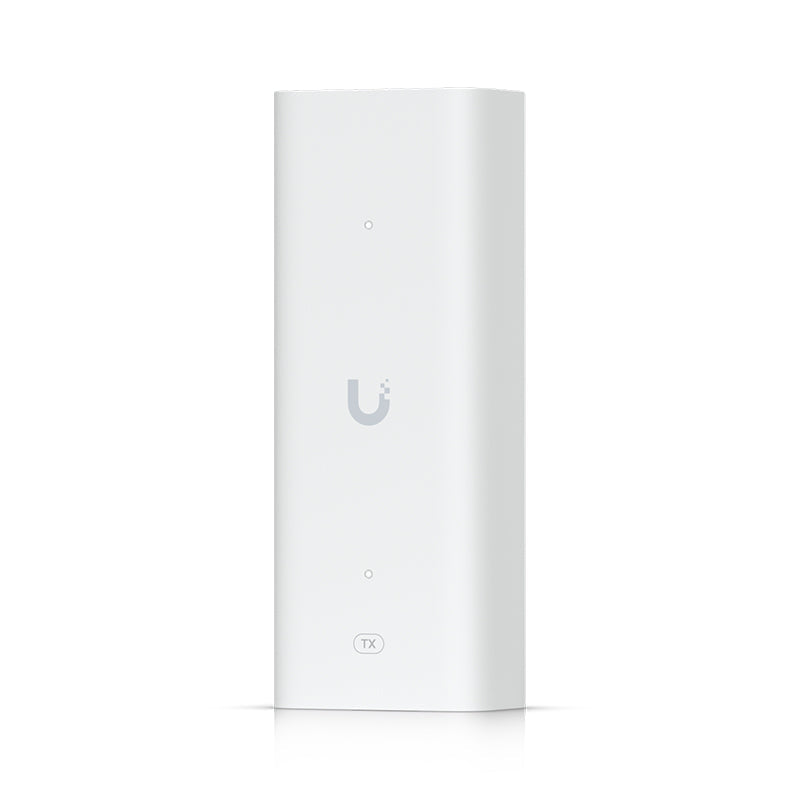

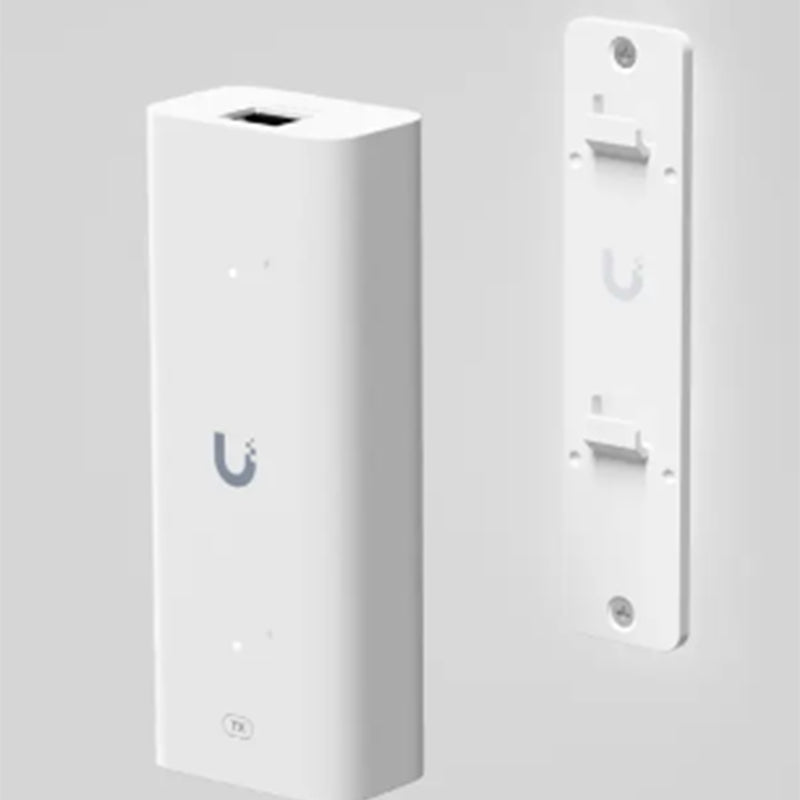

| Wire PoE Extenders | |

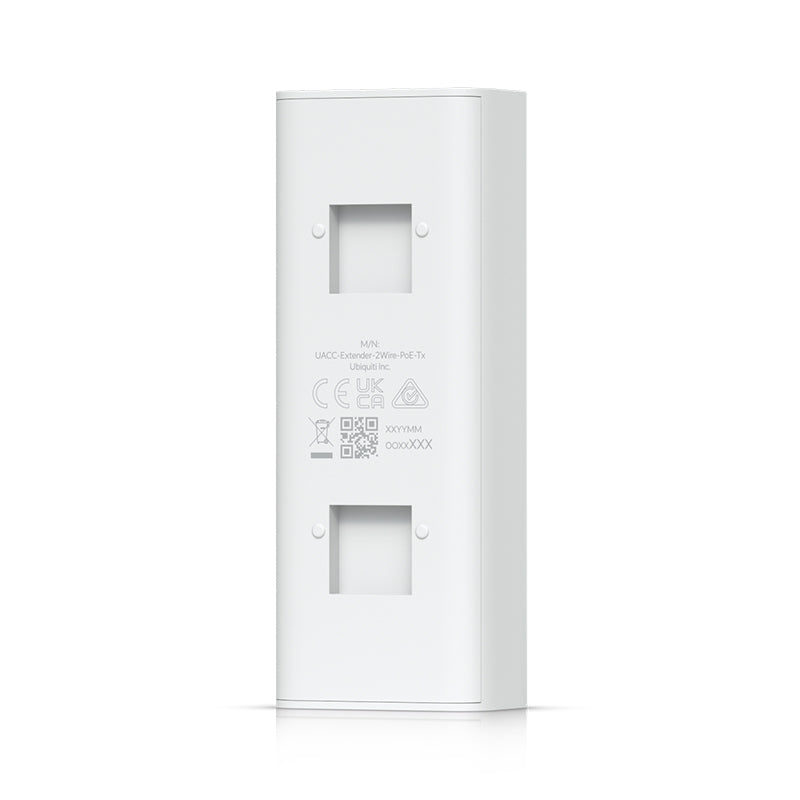

| Model | UACC-Extender-2Wire-PoE-Tx/Rx |

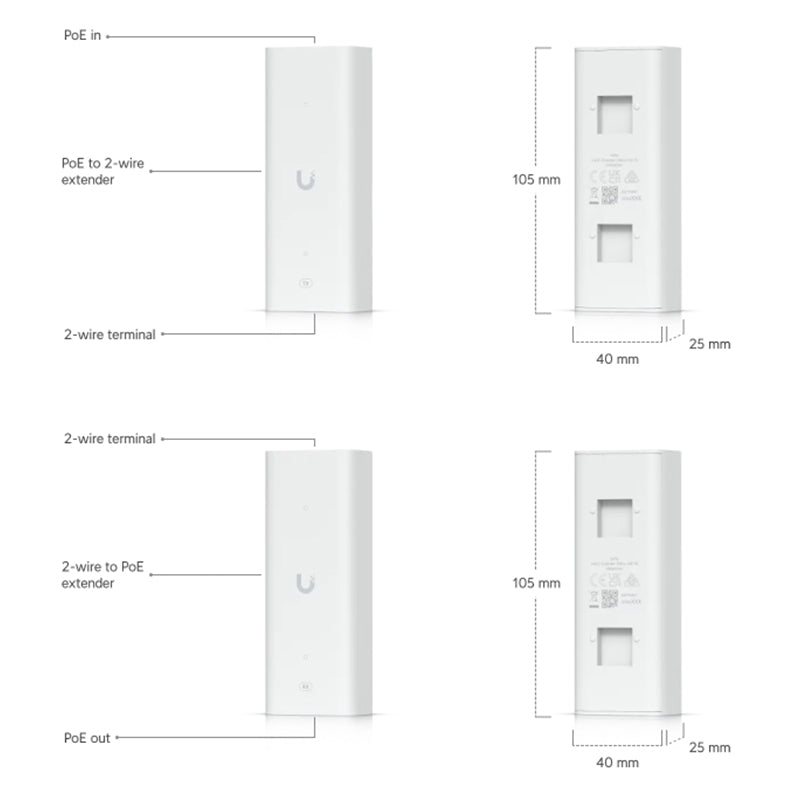

| Dimensions | 40 x 105 x 25 mm / (1.6 x 4.1 x 1") |
| Weight | PoE in: 77 g (2.7 oz) / PoE out: 79 g (2.8 oz) |
| Enclosure Material | Polycarbonate |
| Mounting Material | Polycarbonate |
| Networking Interface | (1) 10/100 MbE / (1) Homeplug AV |
| PoE Interface | PoE input: (1) PoE++, 50V DC, Max. 1.2A / PoE output: (1) PoE+, 48V DC, 0.72A |
| Management | (1) 10/100 MbE |
| Power Method | PoE++ |
| Max. Power Consumption | 3W (Without PoE output) |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| LEDs | White |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Source: Ubiquiti technical specifications, checked 29 Oct 2026.Model UA-SK-Elevator · Ubiquiti's spec sheet
