SKU:
UA-Ultra

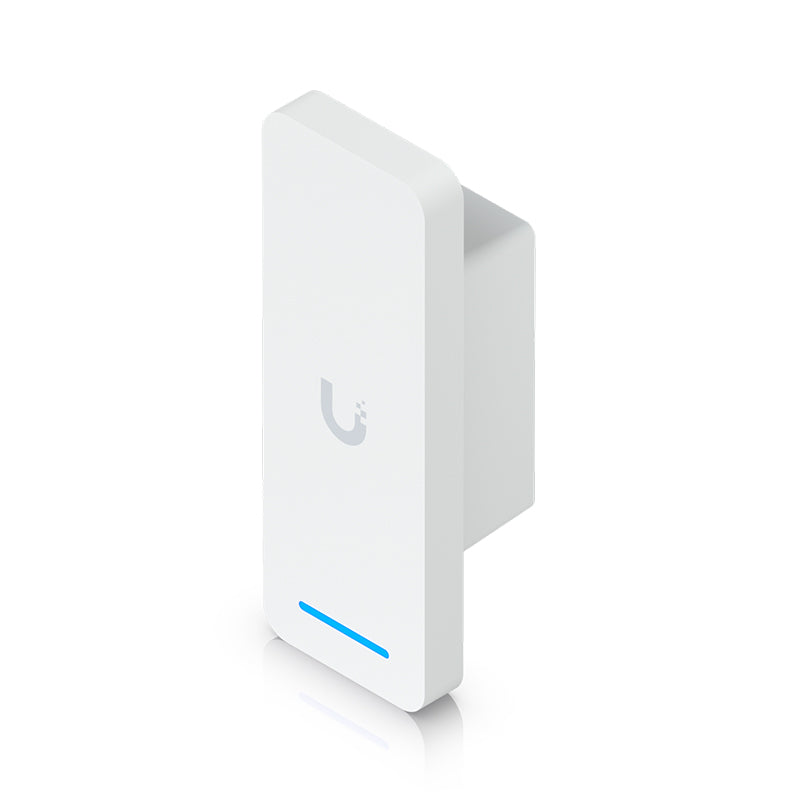

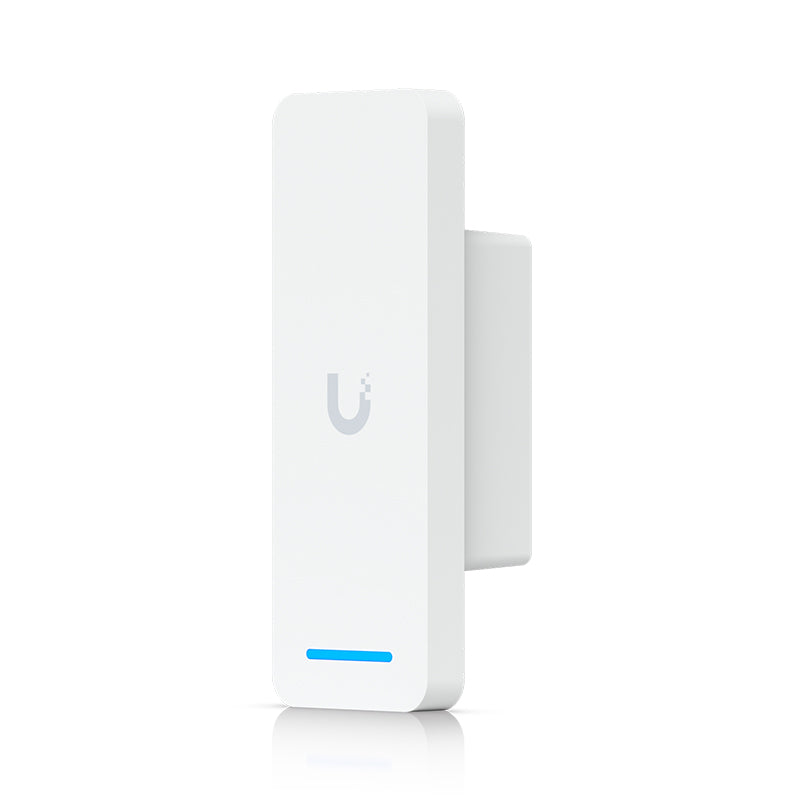

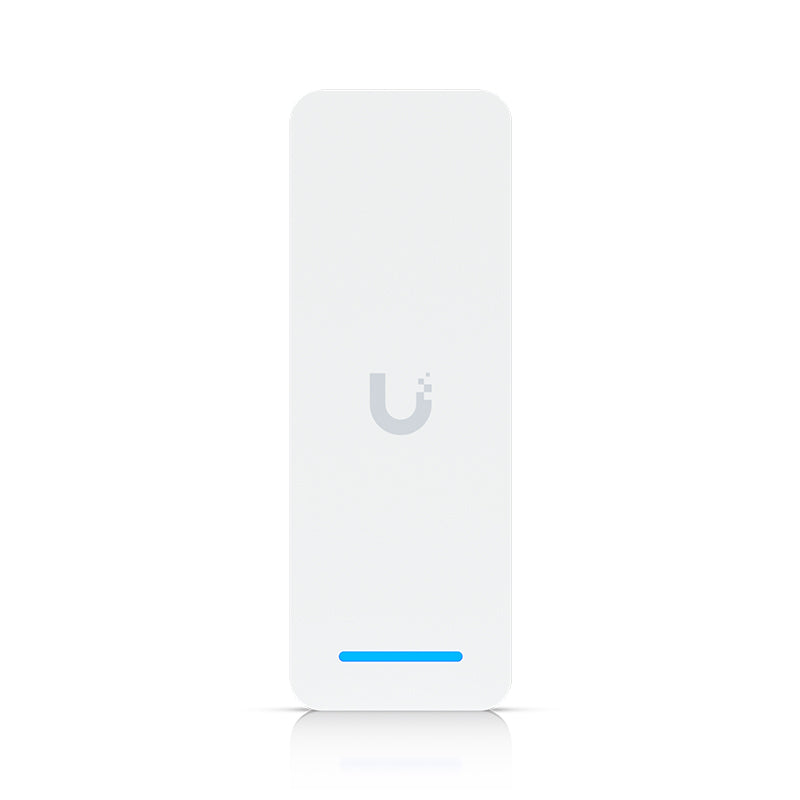

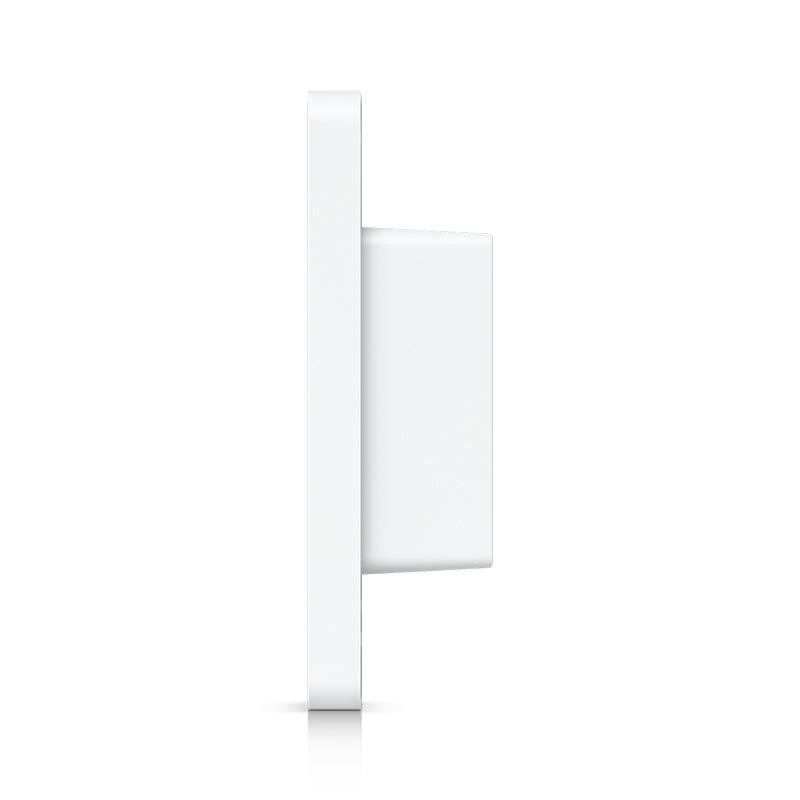

UA-Ultra Ubiquiti UniFi Access Ultra
$218.57 AUD
Unit price
/
Unavailable
Add to cart, then request a quote for our best price.
Description
Description

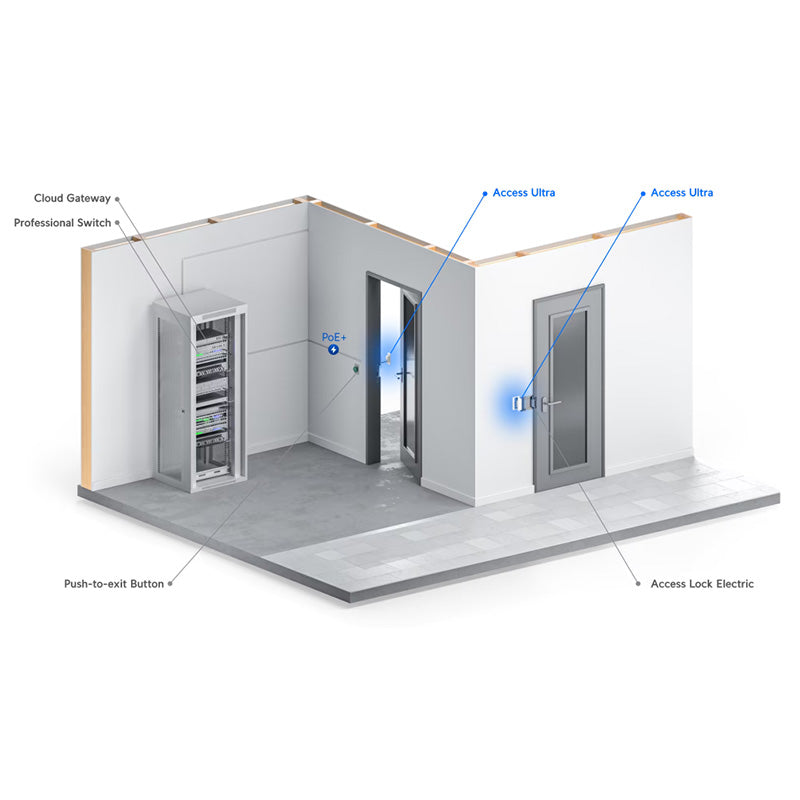

Tamper-resistant access reader with a built-in hub for complete, single-door entry control from one device.
Features:

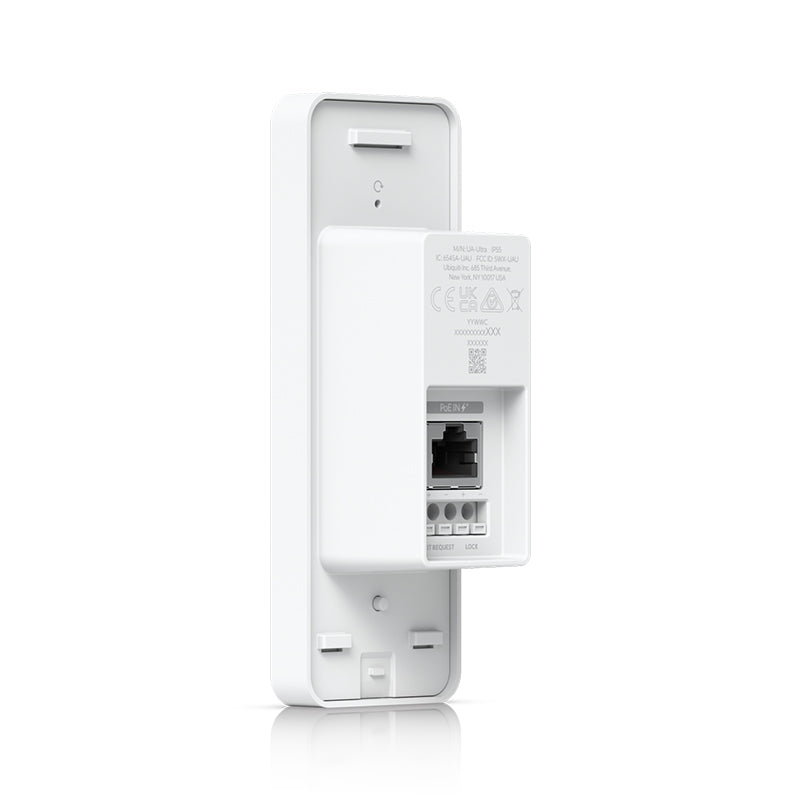

(1) Lock terminal (12V/1A)
(1) Exit request input
Unlock using an NFC card or UniFi Identity mobile app
IP55 weather resistance (-30 to 40° C)
Specifications30 specifications · 4 sections
| Overview | |
|---|---|

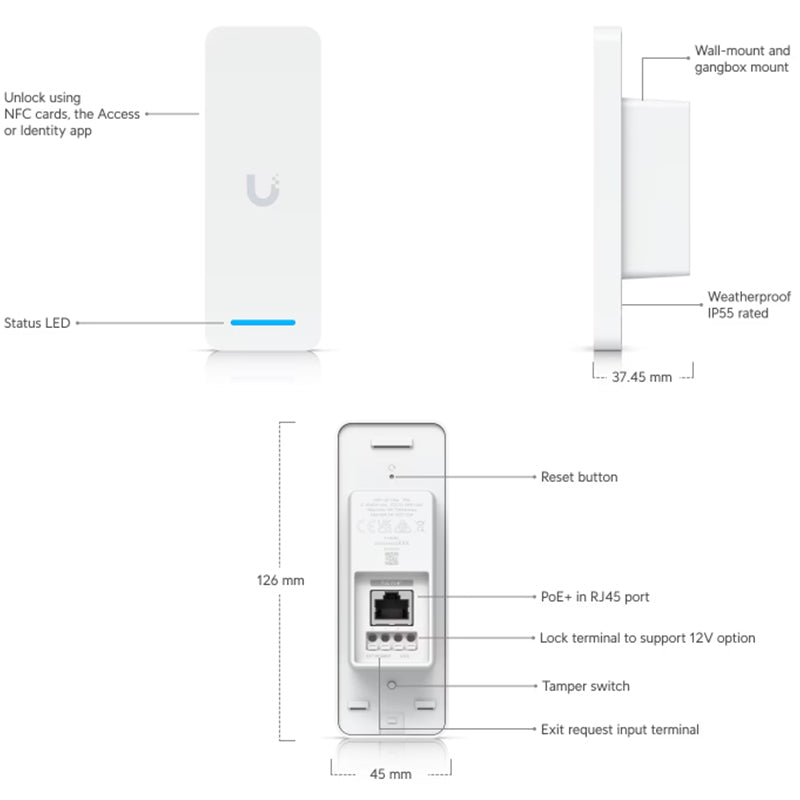

| Dimensions | 126 x 45 x 37.45 mm / (4.9 x 1.8 x 1.5") |
| Weatherproofing | IP55 |
| Maximum User Count | 3,000 |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 140 g (4.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |

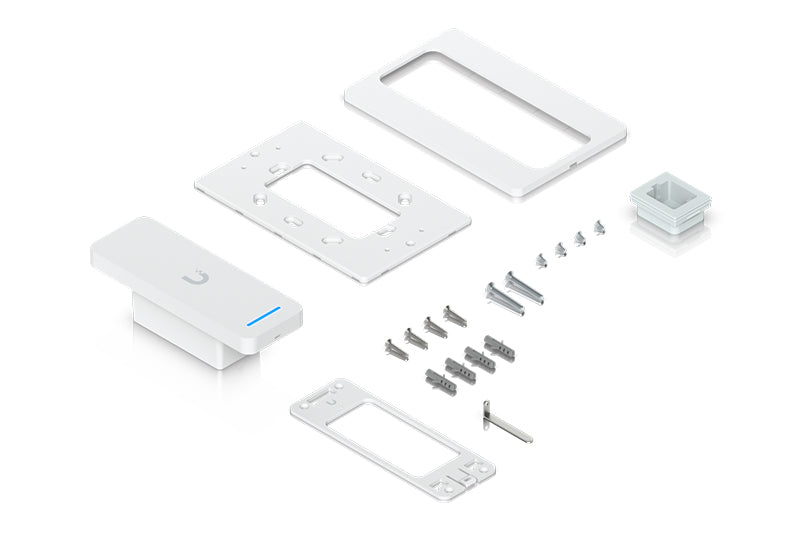

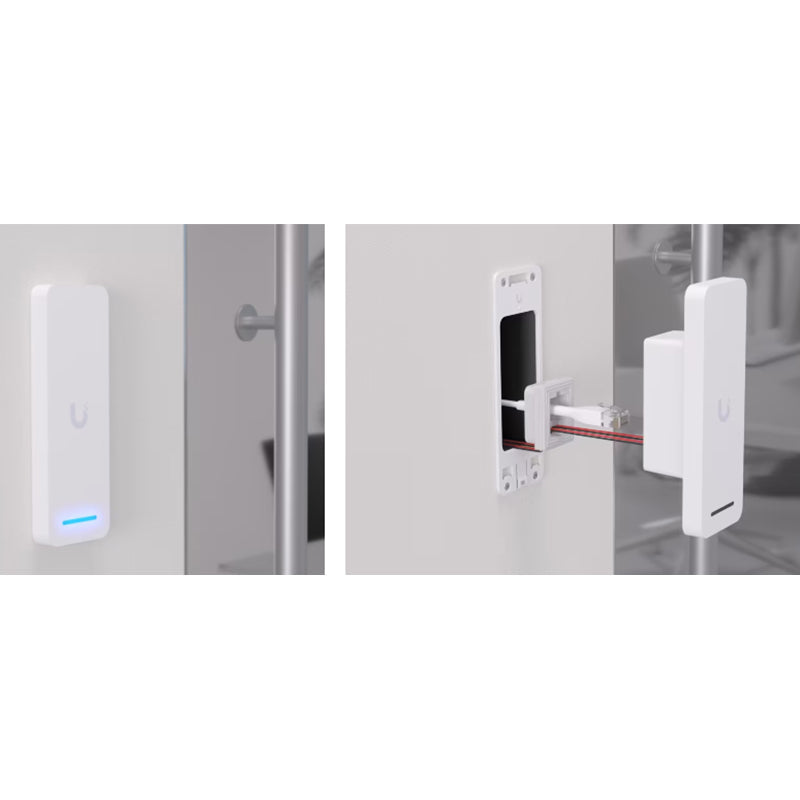

| Mounting | Wall mount, gang box mount (Included) / Junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |

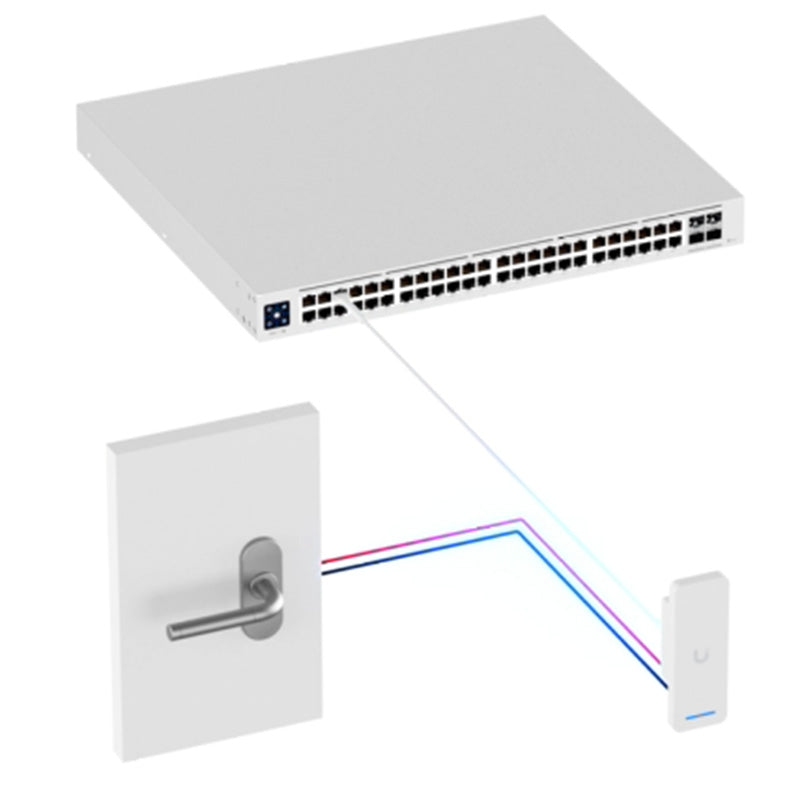

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.2 / Ethernet |
| Power Method | PoE+ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 18W |
| Supported Voltage Range | 44–57V DC |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Powered Output Relay | Lock: 12V DC, 1A |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 Mhz |
| NFC Read Range | < 50 mm (1.95'') |
| NFC Technology | ISO 14443A, 14443B, 15693 / NFC Tag 1,2,3,4,5 / MIFARE Classic / MIFARE Plus / Mifare Ultralight / MIFARE DESFire |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, Anatel: 06371-24-08356, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Ultra, V01 |
| Ambient Operating Temperature | -30 to 40° C / (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
Source: Ubiquiti technical specifications, checked 21 Oct 2026.Model UA-Ultra · Ubiquiti's spec sheet
