Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
UACC-Cable-DoorLockRelay Ubiquiti Door Lock Relay Cable
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

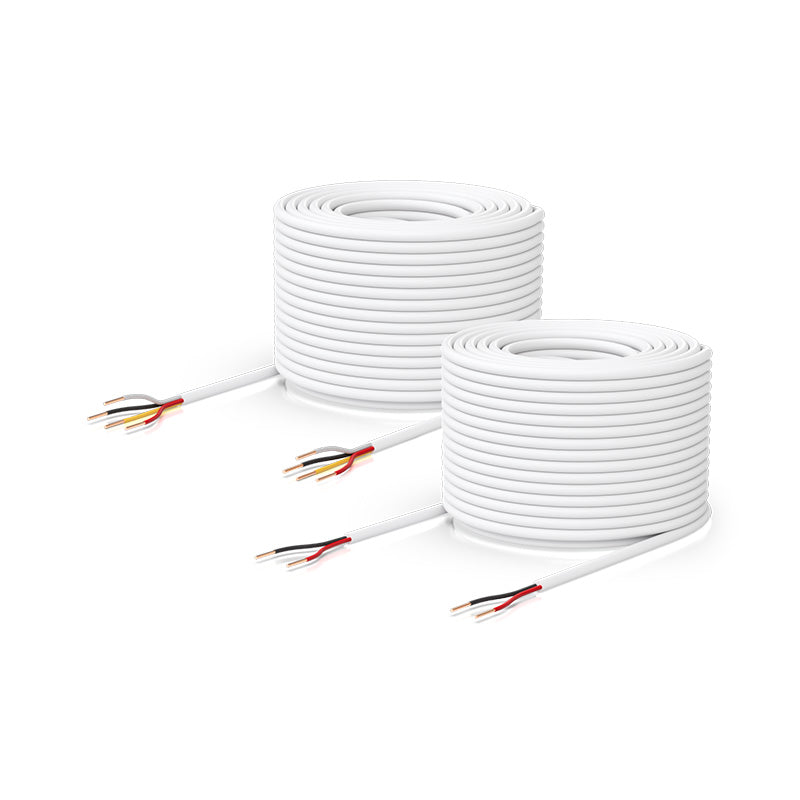

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.
Features:
1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub
2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub

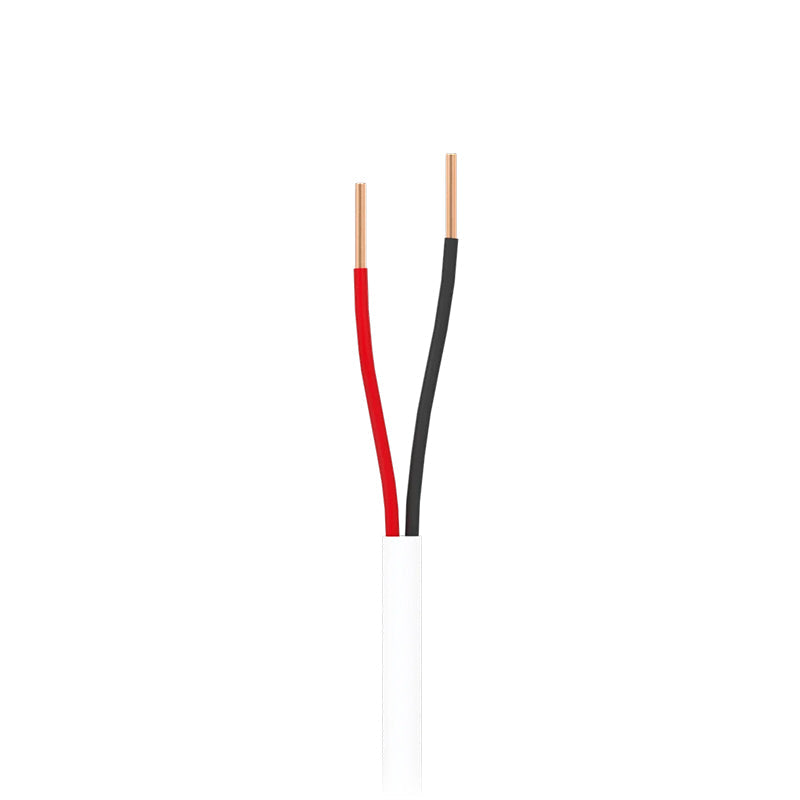

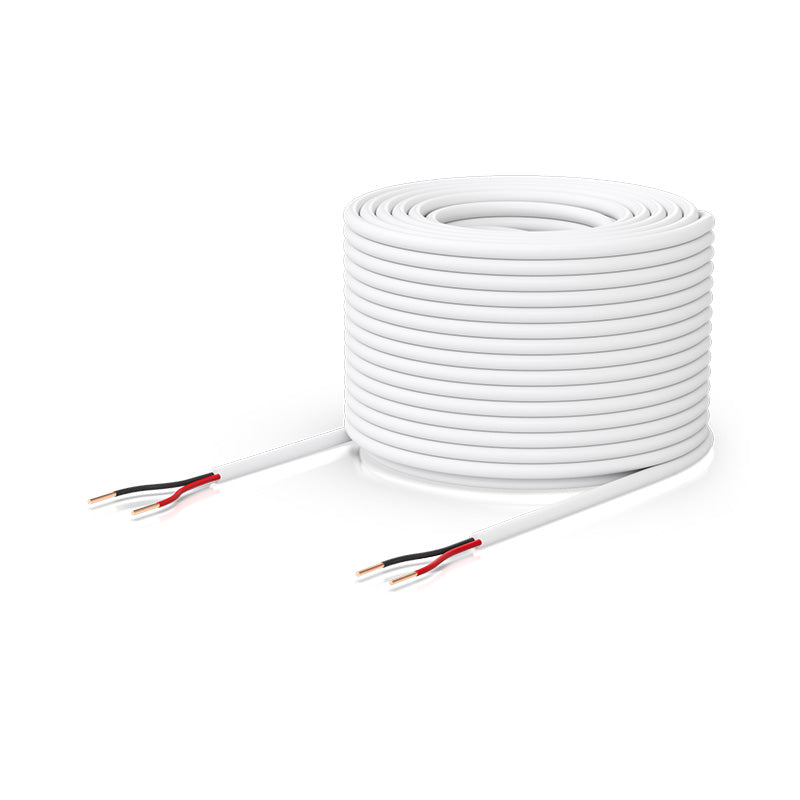

1-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock

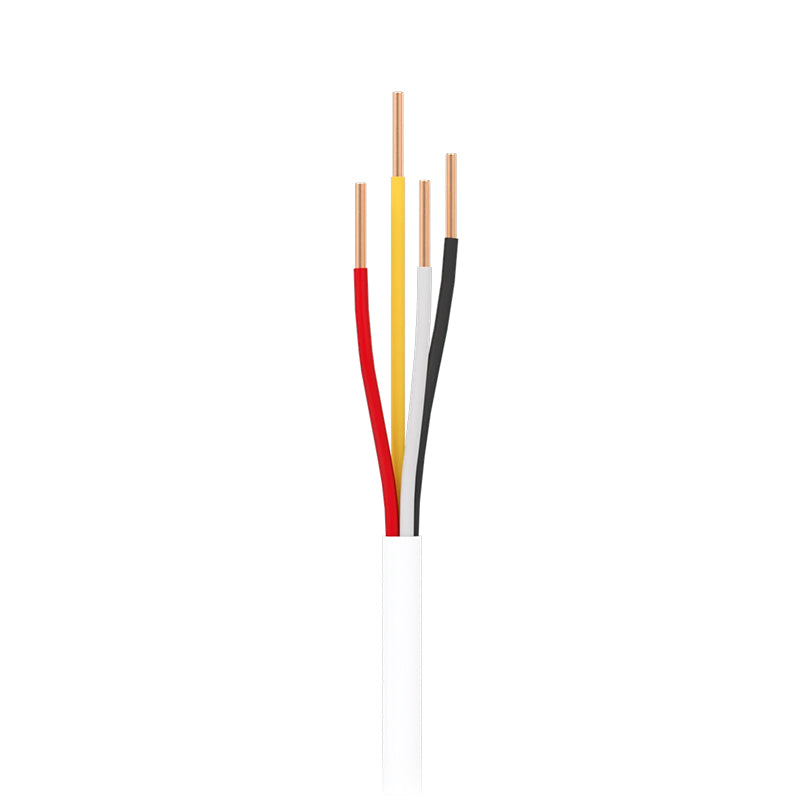

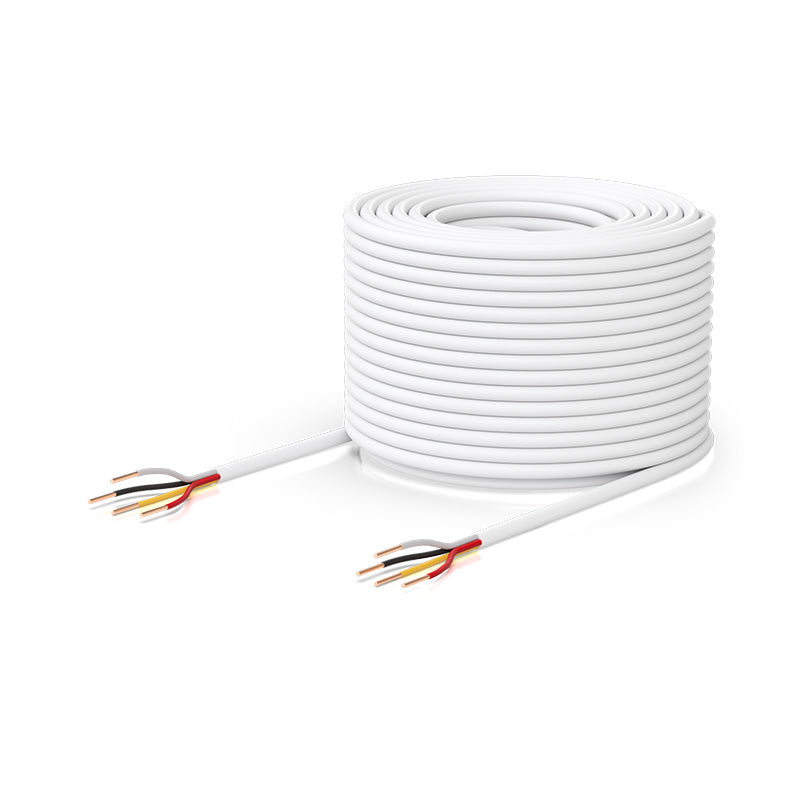

2-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock
— (2) 22 AWG conductors for a door position sensor
Cable length 152.4 m
Plenum-rated
Frequently asked questions4 questions
What is the Ubiquiti Door Lock Relay Cable used for?
How much cable is supplied?
What is the difference between the 1-pair and 2-pair cable?
Is this cable plenum-rated?
Specifications16 specifications · 1 sections
| Overview | |
|---|---|
| Length | 152.4 m (500 ft) |
| Material | Conductor: Solid bare copper / Jacket: Thermoplastic elastomer (TPE) / Insulation: Semi-rigid polyvinyl chloride (SR-PVC) |
| Insulation | UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) / UACC-Cable-DoorLockRelay-1P: black/red (18AWG) |
| Current Rating | 18AWG: 2A for 500 ft length / 22AWG: 1A for 500 ft length |
| Flame Rating | VW-1 |
| Conductor Wire Gauge | UACC-Cable-DoorLockRelay-2P: 18/22 AWG / UACC-Cable-DoorLockRelay-1P: 18 AWG |
| Weight | UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) / UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb) |
| Cable · Jacket Outer Diameter | UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") / UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17") |
| Cable · Jacket Color | White |
| Cable · Bend Radius | UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") / UACC-Cable-DoorLockRelay-1P: 33 mm (1.3") |
| Pulling Tension | UACC-Cable-DoorLockRelay-2P: 24.2 kgf / UACC-Cable-DoorLockRelay-1P: 16.4 kgf |
| Conductor DCR | UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) / UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) |
| Supported Voltage Range | 36V DC |
| Number of Conductors | UACC-Cable-DoorLockRelay-2P: 4 / UACC-Cable-DoorLockRelay-1P: 2 |
| Ambient Storage Temperature | -45 to 65° C (-49 to 149° F) |
| Ambient Operating Temperature | -45 to 65° C (-49 to 149° F) |
