UACC-DAC-QSFP28 Ubiquiti UniFi 100G Direct Attach Cable

$78.85 AUD

Product Options

0.5M 1M 3M 5M 10M 20M 30M 0.5m 10-pack 1m 10-pack

Product variants

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

100Gps max data rate network cables by Ubiquiti. Choose from a range of cable lengths and pack amounts.

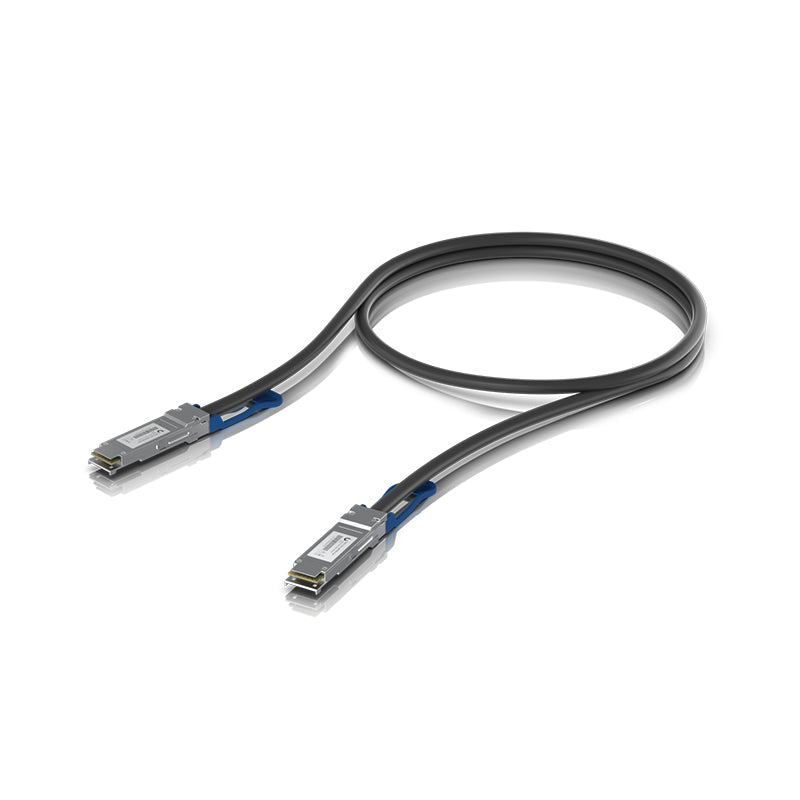

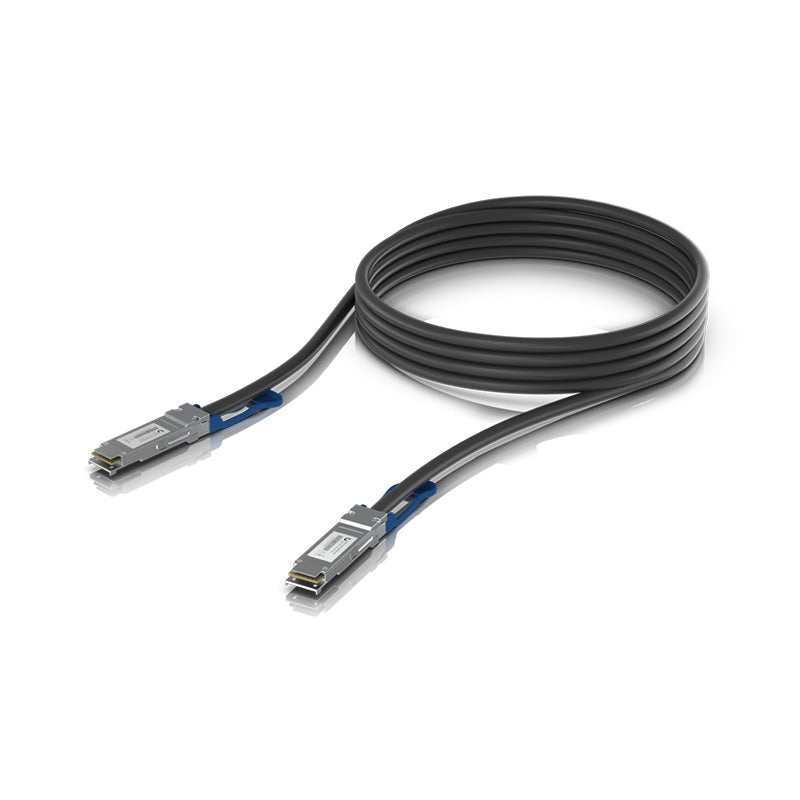

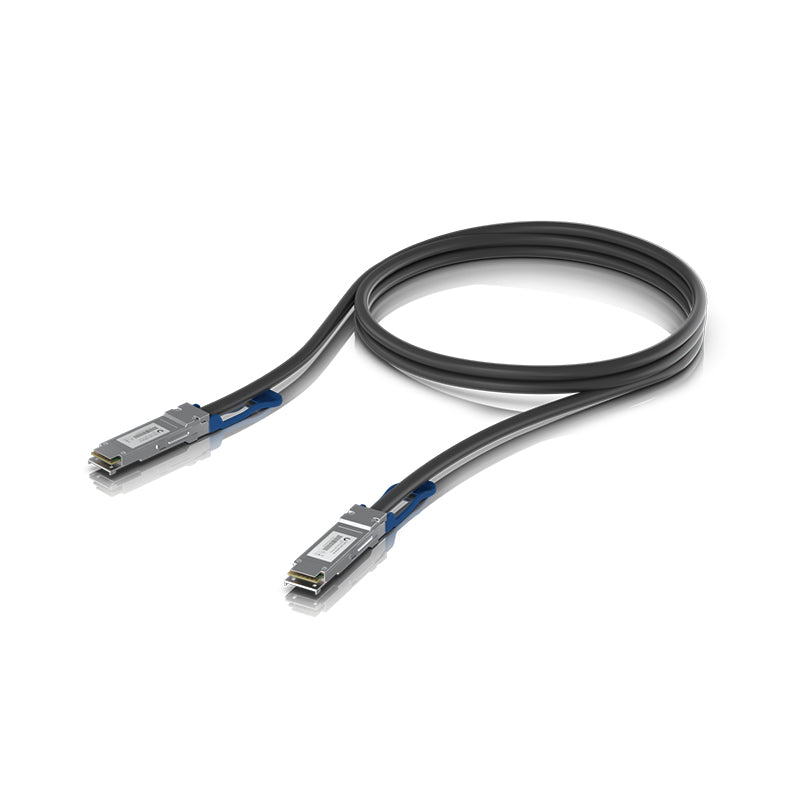

100G Direct Attach Cable

QSFP28 direct attach cable with a 100 Gbps max data rate.

Pack Options: Single Unit or 10-Pack (0.15 /1 m cables only)

Features:

Supported data rates: 100 / 40 Gbps

Compatible with QSFP28 and QSFP+ interfaces

Available Cable Lengths: 0.5, 1, 3 m (1.6, 3.3, 9.8 ft)

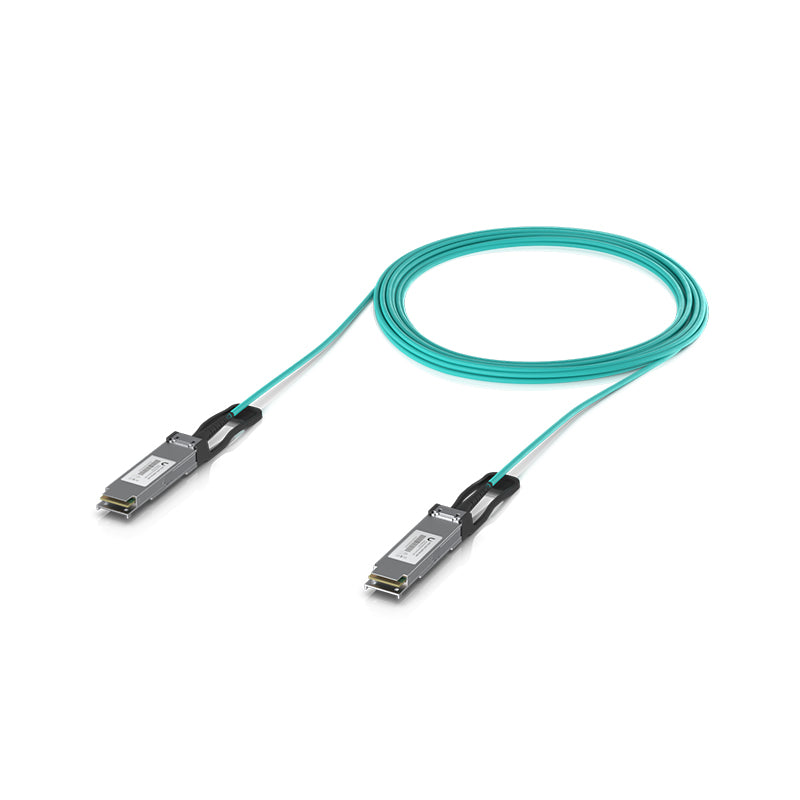

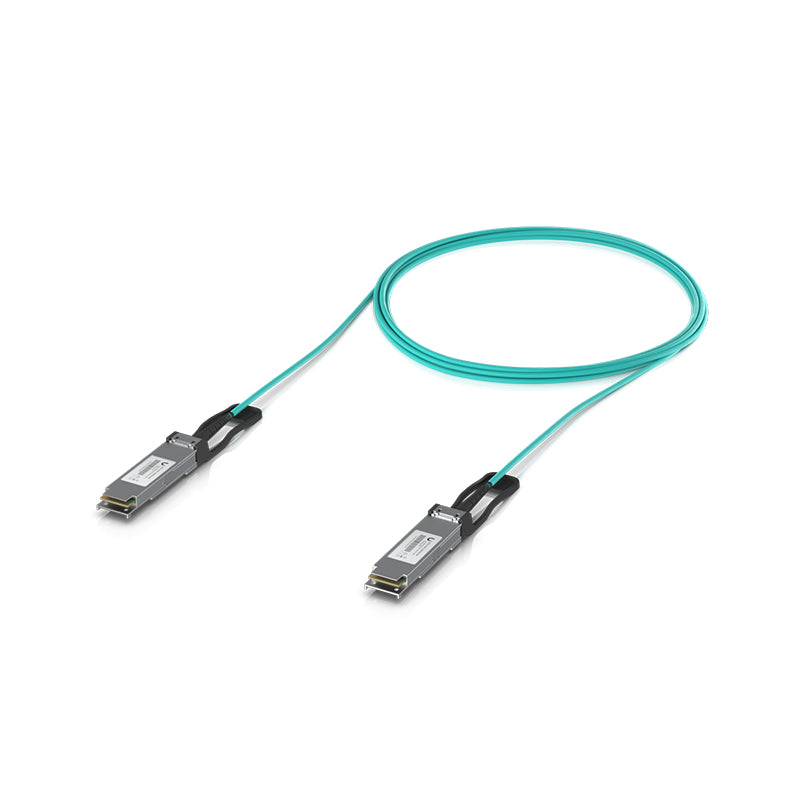

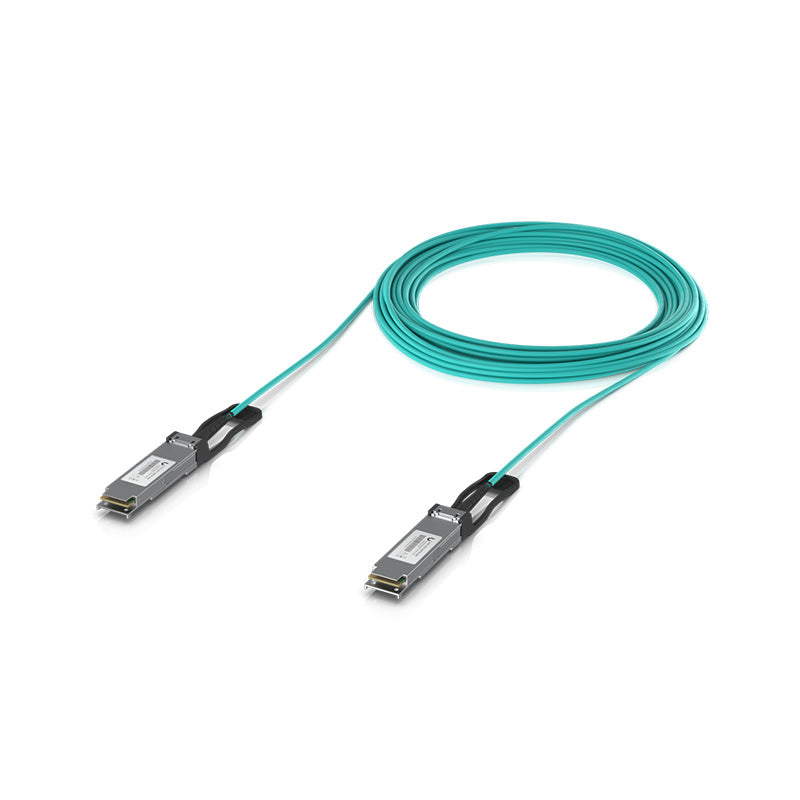

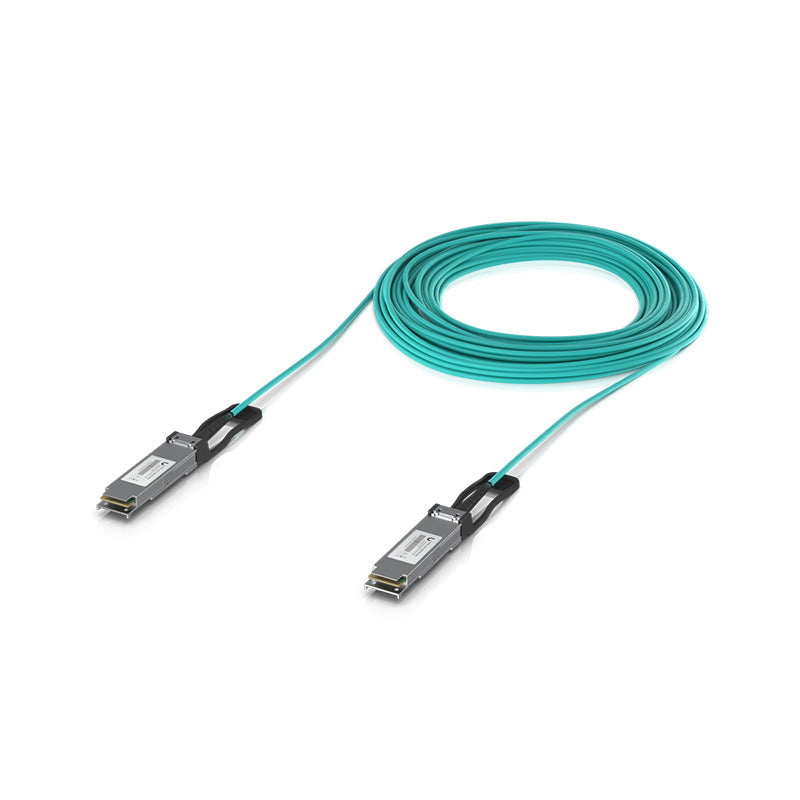

100G Long-Range Direct Attach Cable

Long-range QSFP28 direct attach cable with a 100 Gbps max data rate.

Pack Options: Single Unit

Features:

Supported data rates: 100 / 40 Gbps

Compatible with QSFP28 and QSFP+ interfaces

Available Cable Lengths: 5, 10, 20, 30 m (16.4, 32.8, 65.6, 98.4 ft)

Frequently asked questions4 questions

What is the maximum data rate of this cable?

It is a QSFP28 direct attach cable with a maximum data rate of 100 Gbps. It also supports 40 Gbps.

Is it compatible with QSFP+ ports as well as QSFP28?

Yes. It is compatible with both QSFP28 and QSFP+ interfaces, supporting 100 Gbps and 40 Gbps data rates respectively.

What length is this particular cable?

This SKU (UACC-DAC-QSFP28-0.5M) is the 0.5 m (1.6 ft) cable. The range also includes 1 m and 3 m lengths, plus long-range versions at 5, 10, 20 and 30 m.

Can I buy this cable in multi-packs?

Pack options of a single unit or a 10-pack apply to the 0.15 m and 1 m cables in the standard range. The long-range cables are available as a single unit only.

Click HERE to access the Datasheet for 100G Direct Attach Cable

Click HERE to access the Datasheet for 100G Long-Range Direct Attach Cable

Specifications10 specifications · 1 sections

Overview
Available Lengths	0.5, 1, 3 m (1.6, 3.3, 9.8 ft)
Pack Options	Single Unit / 10-Pack (0.5 /1 m)
Supported Data Rate	100 / 40 Gbps
Cable Features · Wire	Copper
Cable Features · Connector Type	QSFP28 to QSFP28
Cable Features · Jacket Color	Black
Cable Features · Jacket Material	PVC
Cable Features · Jacket Outer Diameter	0.5/ 1 m: 7.0 mm (0.28") / 3 m: 8.9 mm (0.35")
Cable Features · Bend Radius	0.5/ 1 m: Min. 37 mm (1.46") / 3 m: Min. 47 mm (1.85")
Ambient Operating Temperature	0 to 70° C (32 to 158° F)
