SKU: UACC-ESE-16

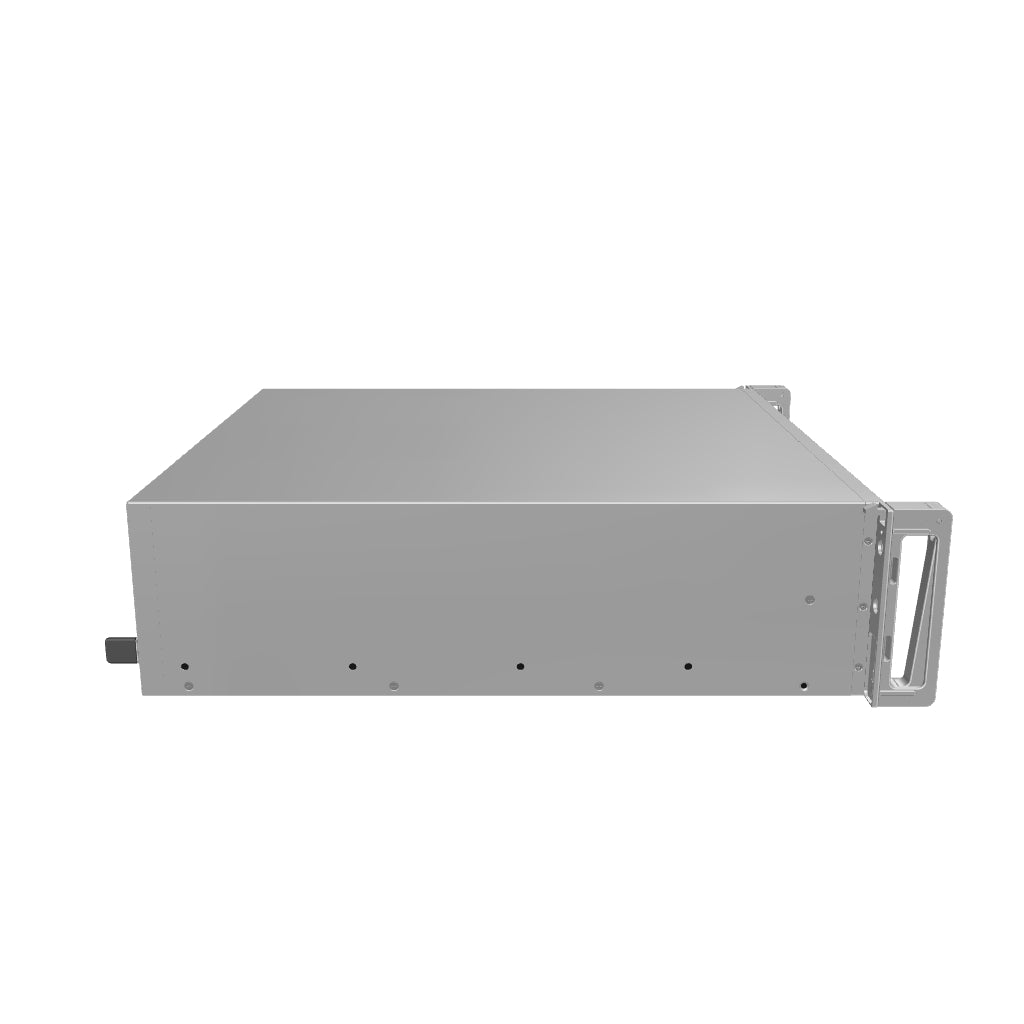

UACC-ESE-16 - Ubiquiti Enterprise Storage Expansion

$3,495.00 AUD
We'll get it for you.400 Ubiquiti pre-orders delivered in the last 90 days.
PRE-ORDEROn order with Ubiquiti · ship date by email
  1. Order today · 20 NovAdded to our next Ubiquiti order
  2. Ship date confirmedBy email once Ubiquiti allocates stock
  3. Delivered · by 10 – 21 DecOur aim: 14–21 working days from your order

Confirmation now, tracking the moment it ships.

How pre-orders work

We are just not quite the same as many of the other online stores.  I know it is easy to say that, but we just aren't.

The Tech Geeks, under their parent company Twelve Times (Worldwide) Pty Ltd trade in Australia, New Zealand and the United Kingdom.

This allows us to purchase stock from suppliers from locations where they have it available.    We are then able to import those products directly, along with providing localised Warranty and Replacement as required.

We only list items that we know have been, or are about to be released to us and since we purchase only in small batches these are often flown in on short time frames.

We list on each product our expected shipments and ones that we have already sent out to customers.   Please use these dates as a guideline as we always suggest 14-21 days just to allow for air freight or customs hold ups.

Want to know when new product stock is released? why not sign up here to our alerts.

Description

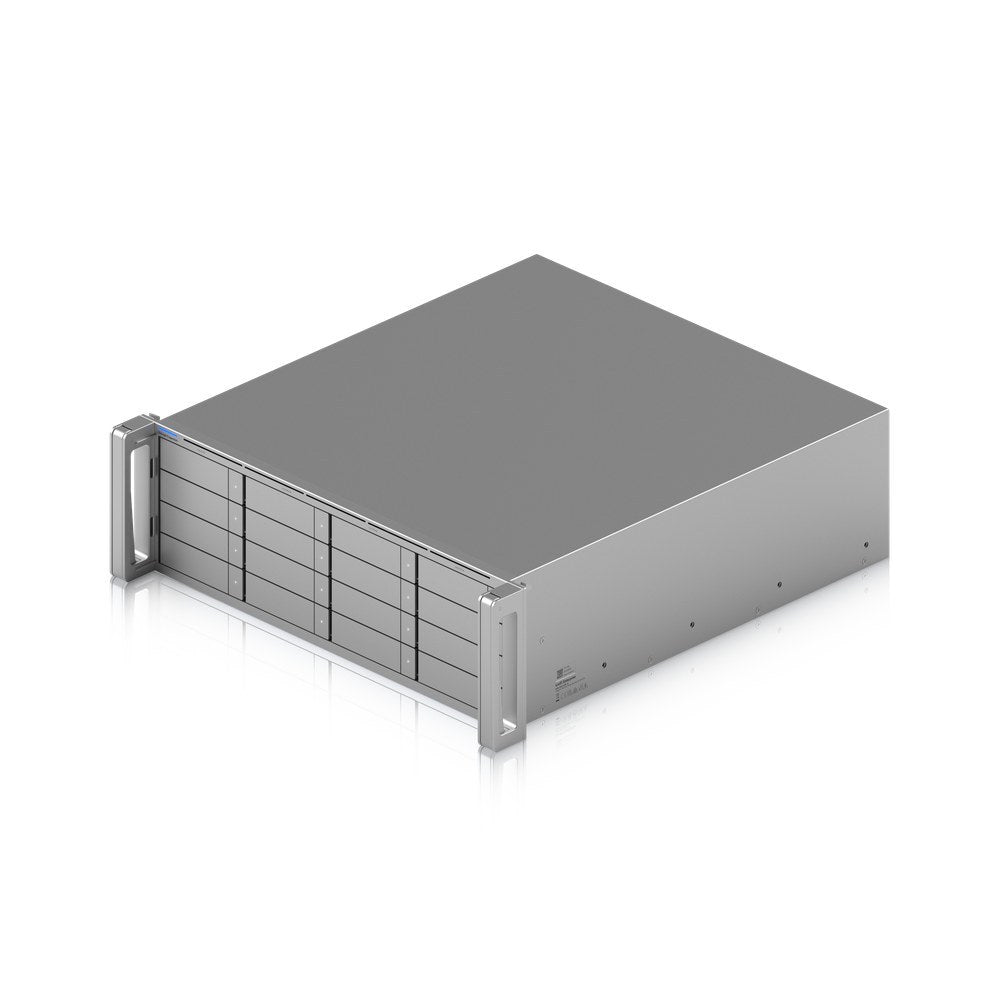

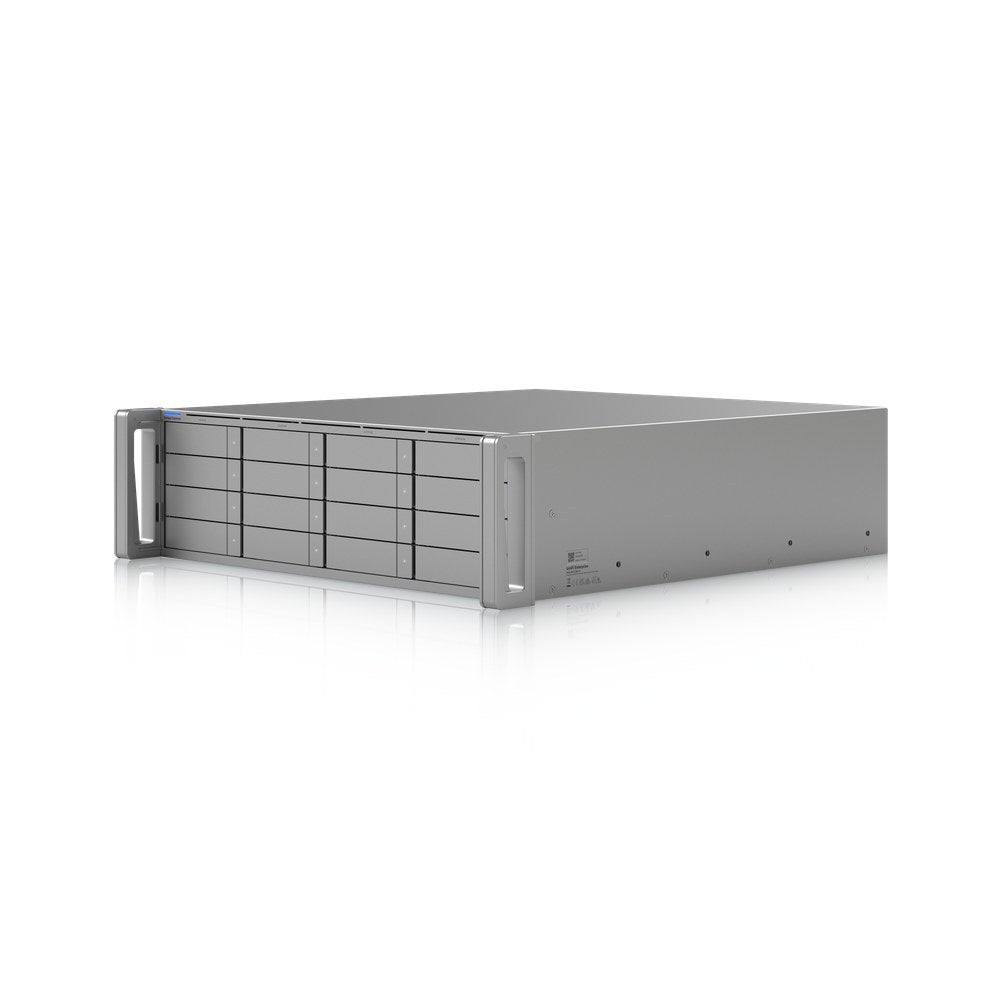

The Ubiquiti UACC-ESE-16 Enterprise Storage Expansion is a professional storage expansion unit engineered to extend the capacity of your ENAS and ENVR-Core systems. Featuring 16 drive bays that support both 2.5-inch and 3.5-inch drives, the UACC-ESE-16 delivers seamless HDD storage expansion for enterprise-grade surveillance and network-attached storage deployments.

Designed for scalability, this expansion chassis connects to compatible Ubiquiti devices via Mini-SAS HD ports, enabling you to extend total storage capacity up to 48 drives when combined with the base unit. This makes it ideal for organisations requiring extended retention periods for high-density camera deployments or large-scale data storage applications.

Key Features:

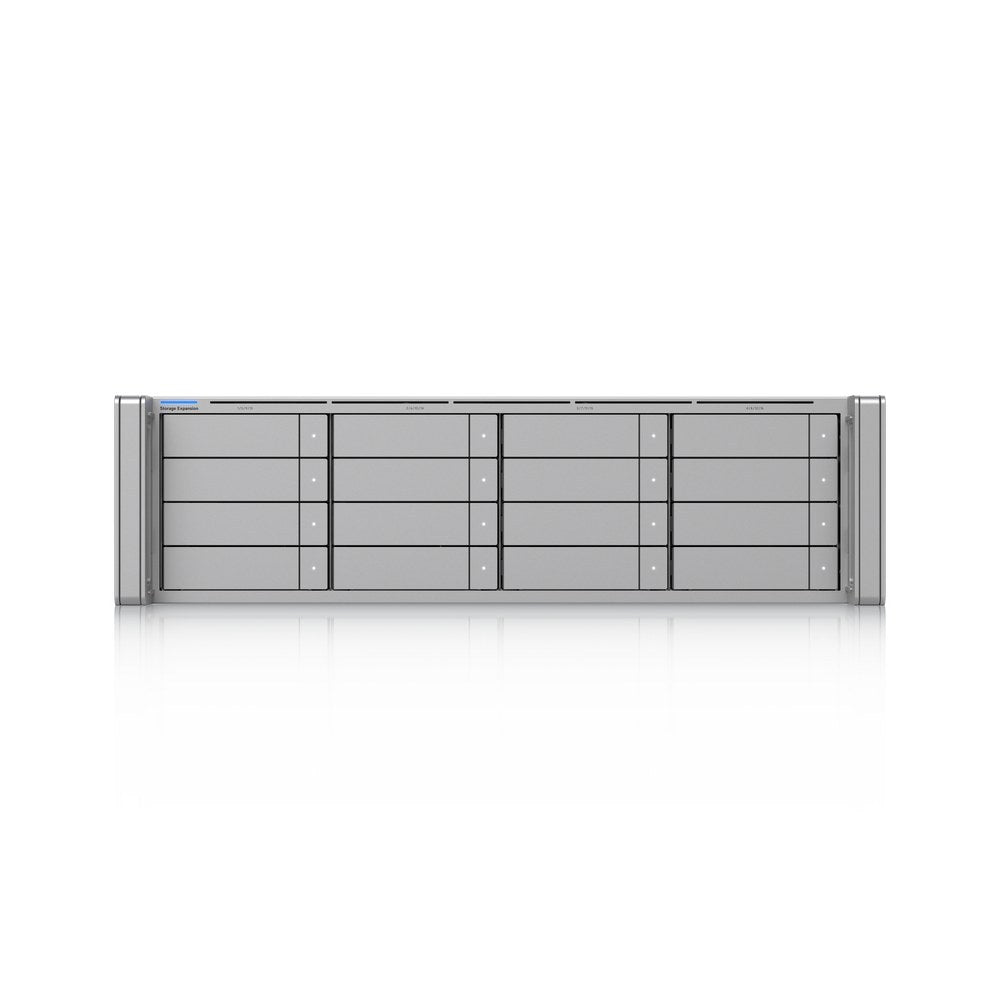

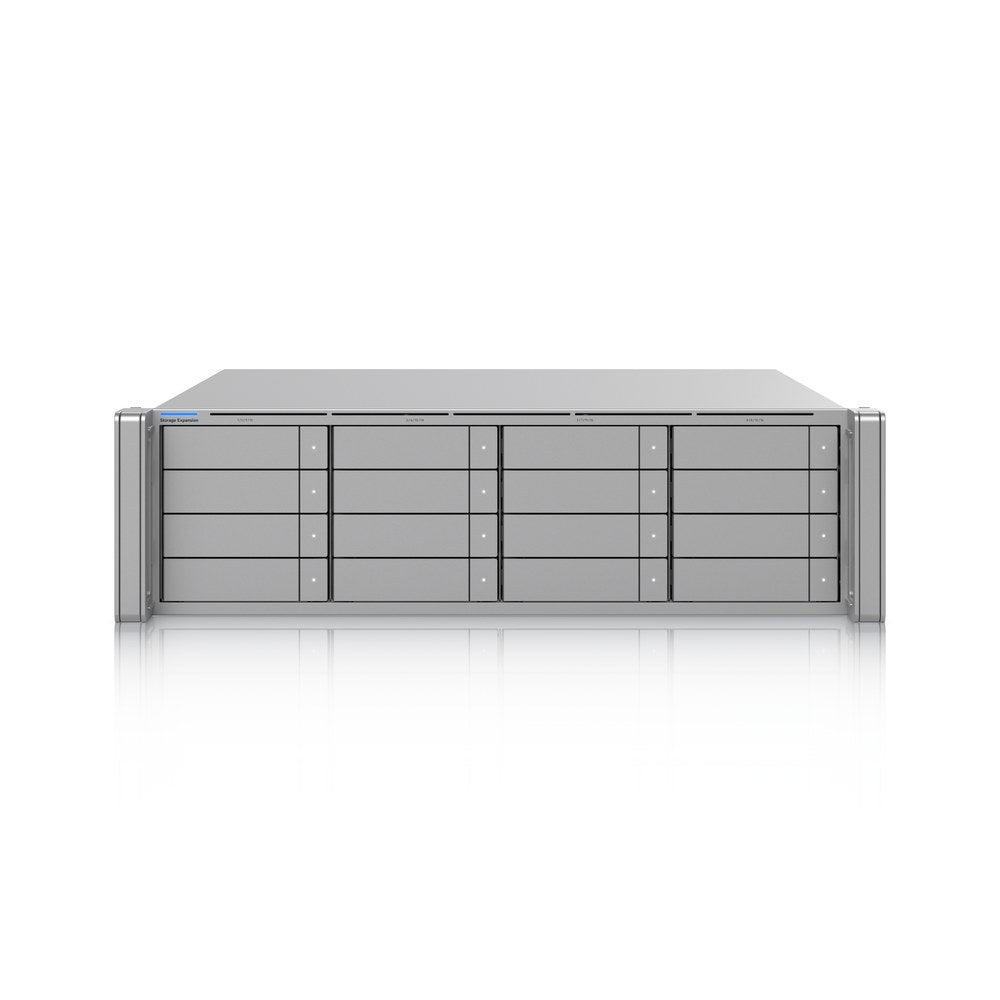

  • 16 drive bays supporting 2.5-inch and 3.5-inch HDDs/SSDs
  • Compatible with ENAS (Enterprise NAS) and ENVR-Core (Enterprise Network Video Recorder)
  • Seamless storage expansion through Mini-SAS HD connectivity
  • Enables up to 48 total drives when combined with base units
  • Enterprise-grade design for professional surveillance and NAS environments
  • Hot-swappable drive support for maintenance without downtime
  • Optimised for UniFi Protect and UniFi Access applications

Ideal for: Enterprise surveillance deployments requiring extended video retention, large-scale UniFi Protect installations managing hundreds of cameras, data centres needing scalable NAS capacity, and organisations seeking reliable, expandable storage infrastructure.

Compatible Products

ENVR-Core - The Enterprise Storage Expansion seamlessly integrates with the ENVR-Core 3U network video recorder, which supports up to 300 4K cameras or 500 Full HD cameras and features dual Mini-SAS HD expansion ports.

ENAS - Compatible with Ubiquiti's Enterprise Network-Attached Storage system, providing scalable storage for business-critical data and UniFi applications.

Ubiquiti Enterprise HDDs - Pairs perfectly with Ubiquiti's enterprise-grade hard drives (UACC-HDD-E series) in 8TB, 16TB, and 24TB capacities, all optimised for continuous surveillance workloads with 550TB/year ratings and 2.5-million-hour MTBF.

Frequently asked questions5 questions
What is the UACC-ESE-16 used for?
It is a 16-bay storage expansion unit that extends the capacity of ENAS and ENVR-Core systems. It suits enterprise surveillance, large UniFi Protect deployments and scalable NAS storage.
Which drives does it support?
It has 16 bays supporting 2.5-inch and 3.5-inch HDDs or SSDs, with hot-swappable drive support for maintenance without downtime. It pairs with Ubiquiti's UACC-HDD-E series enterprise drives in 8TB, 16TB and 24TB capacities.
How does it connect to the base unit, and how many drives can be reached?
It connects to compatible Ubiquiti devices through its Mini-SAS HD (SFF-8644, 24G) expansion port. Combined with the base unit, it enables up to 48 total drives.
What are the power and rack requirements?

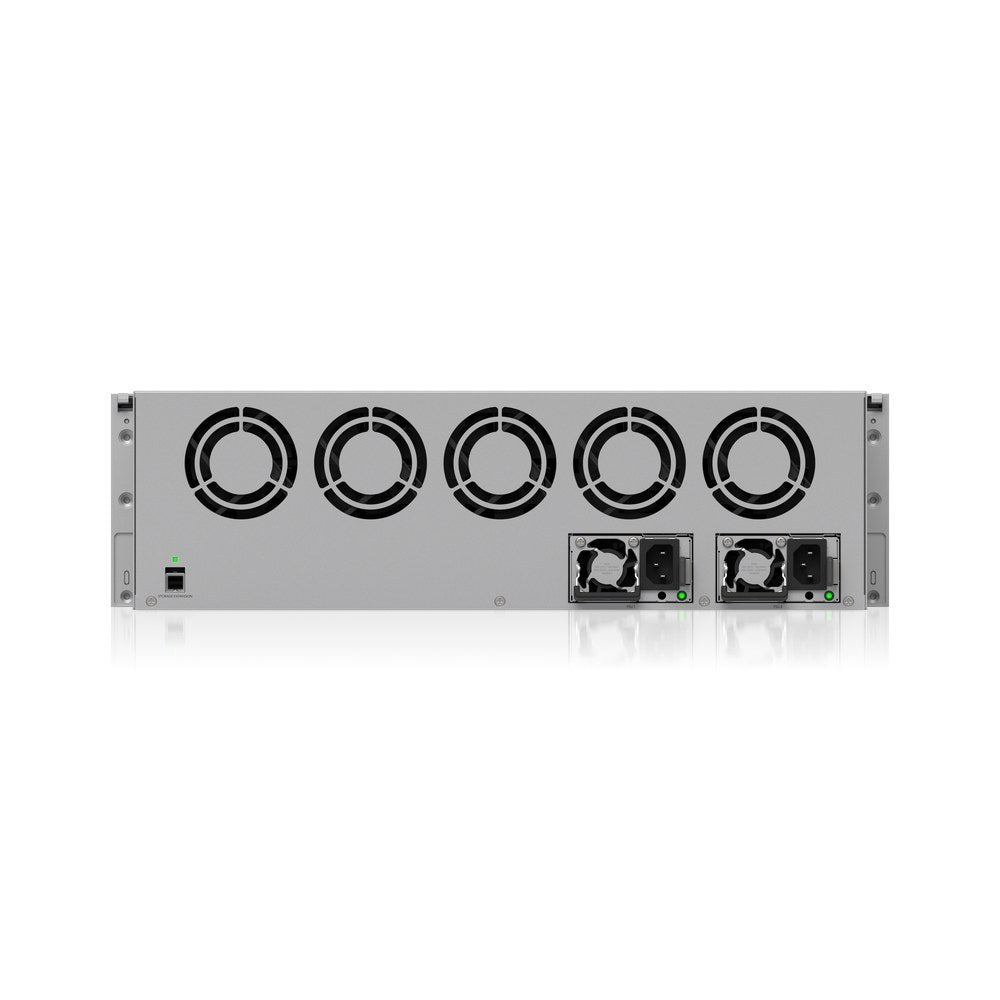

It uses two hot-swappable 550W AC/DC power modules with AC input, with a 500W maximum power budget for drives. It is a 3U rack-mount unit whose rails fit 600 mm four-post racks with square holes, for post depths of 600–1066 mm.
What are its dimensions and operating conditions?
It measures 481.4 x 480 x 132 mm and weighs 15.5 kg. It operates at ambient temperatures of -5 to 40°C and 5 to 95% non-condensing humidity.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications18 specifications · 2 sections
Overview
Dimensions481.4 x 480 x 132 mm / (19 x 18.9 x 5.2")
Storage Capacity(16) 2.5"/3.5" drive bays
Expansion Port(1) SFF-8644 (24G)
Form FactorRack mount (3U)
Hardware
Hard Drive Capacity(16) 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives500W
Max. Power Consumption550W
Power Method(2) AC input, Hot-swappable power modules
Power Supply(2) Hot-swappable AC/DC 550W power modules
ManagementMaster console
Weight15.5 kg (34.2 lb)
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel

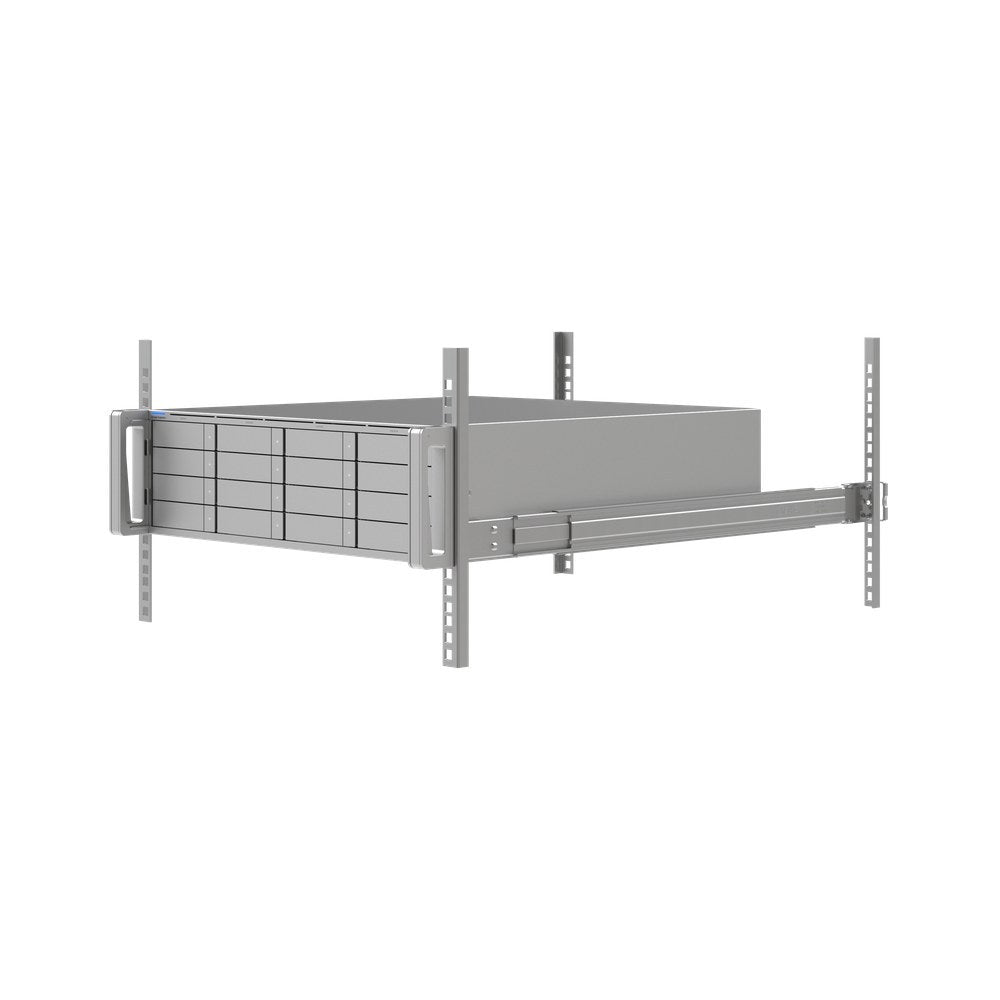

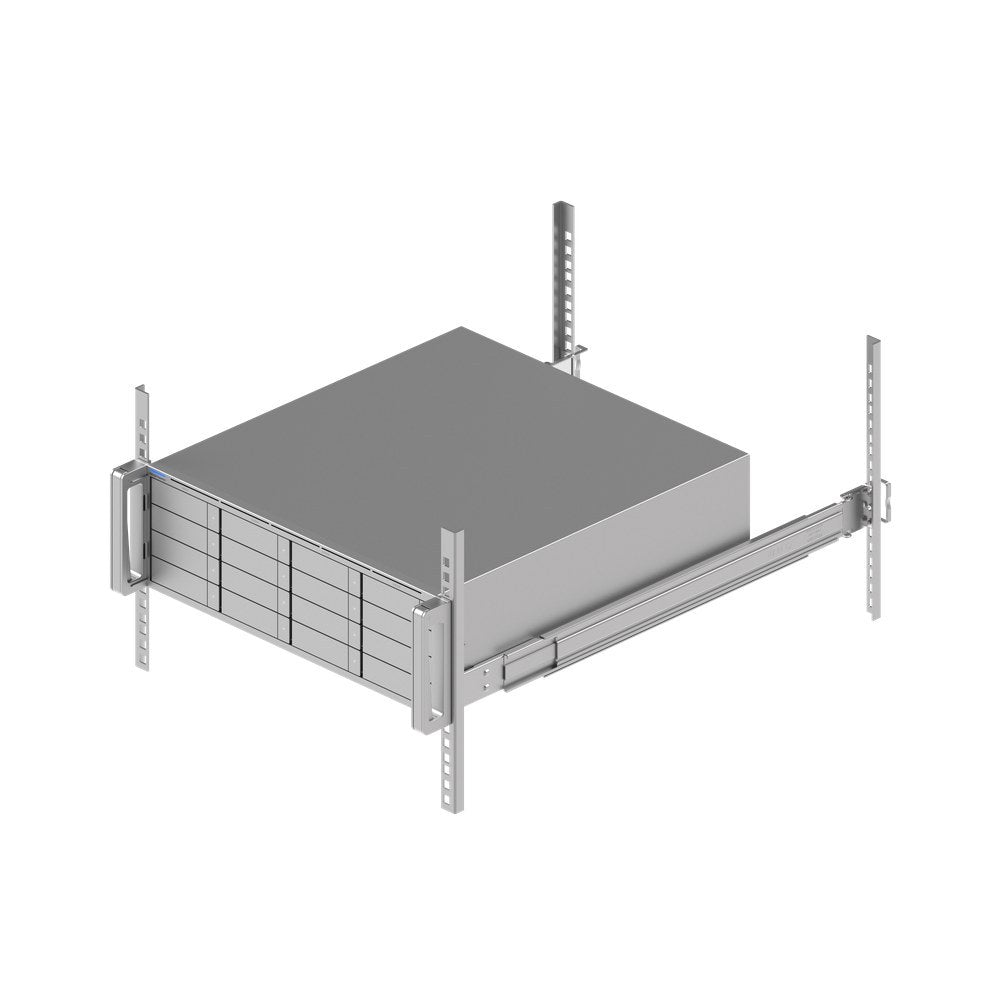

Supported Rack DepthThe rails support 600 mm (23.6") four-post racks with square holes (9.5 x 9.5 mm) / Posts depths ranging from 600–1066 mm (23.6–42")
Faceplate3U Bezel Lite (Optional)
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, CE, IC
Source: Ubiquiti technical specifications, checked 14 Nov 2026.Model UACC-ESE-16 · Ubiquiti's spec sheet
