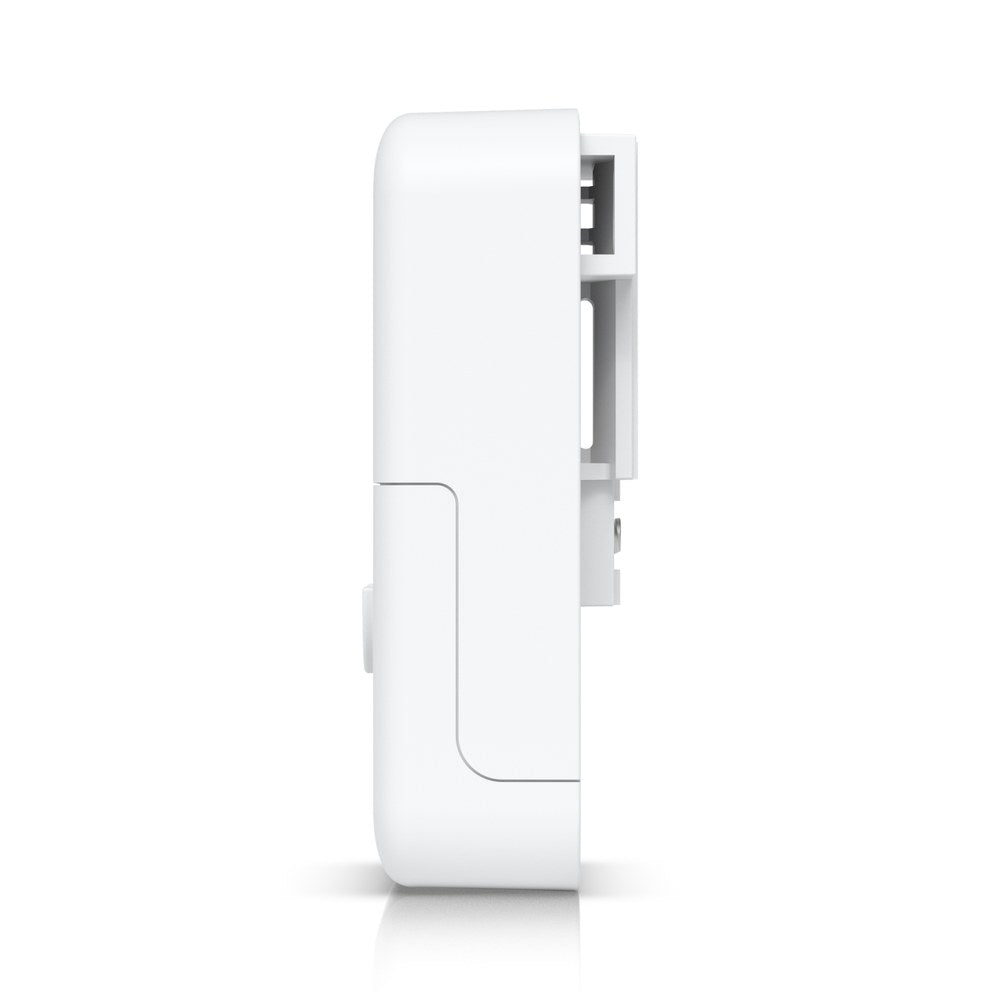

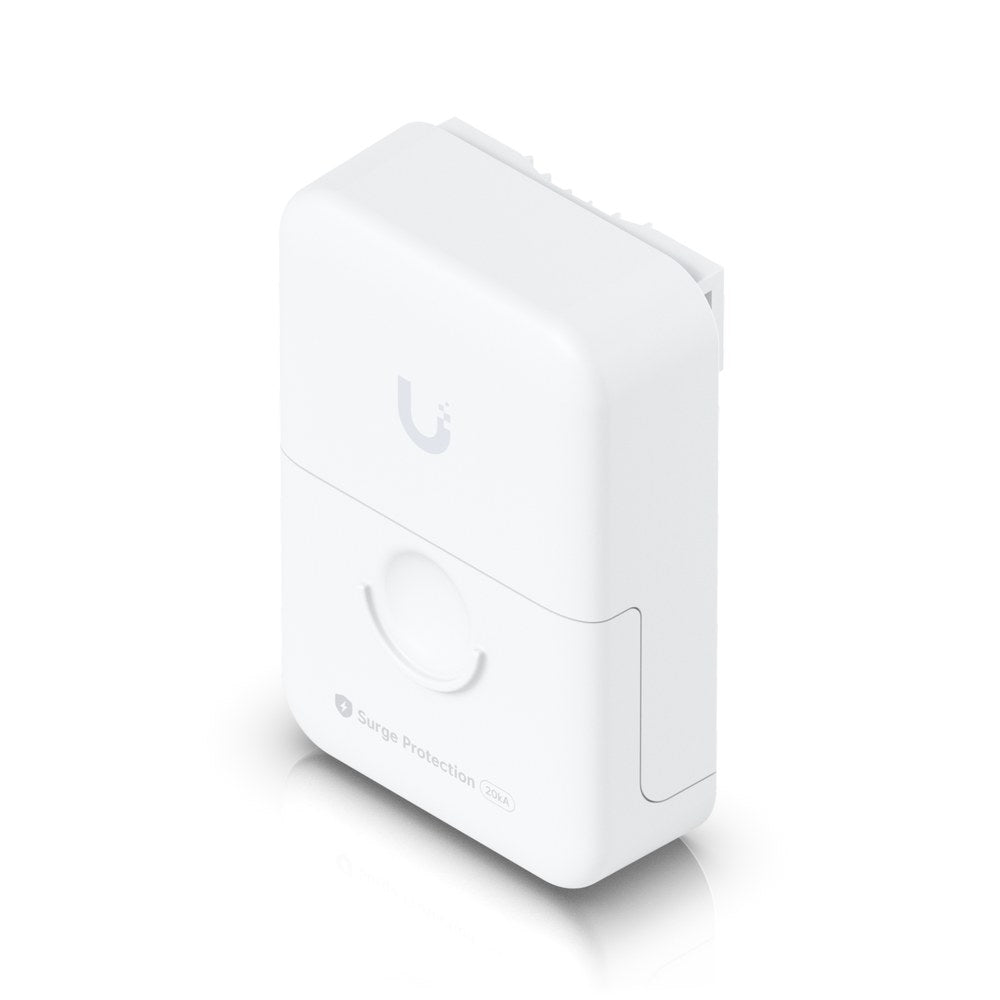

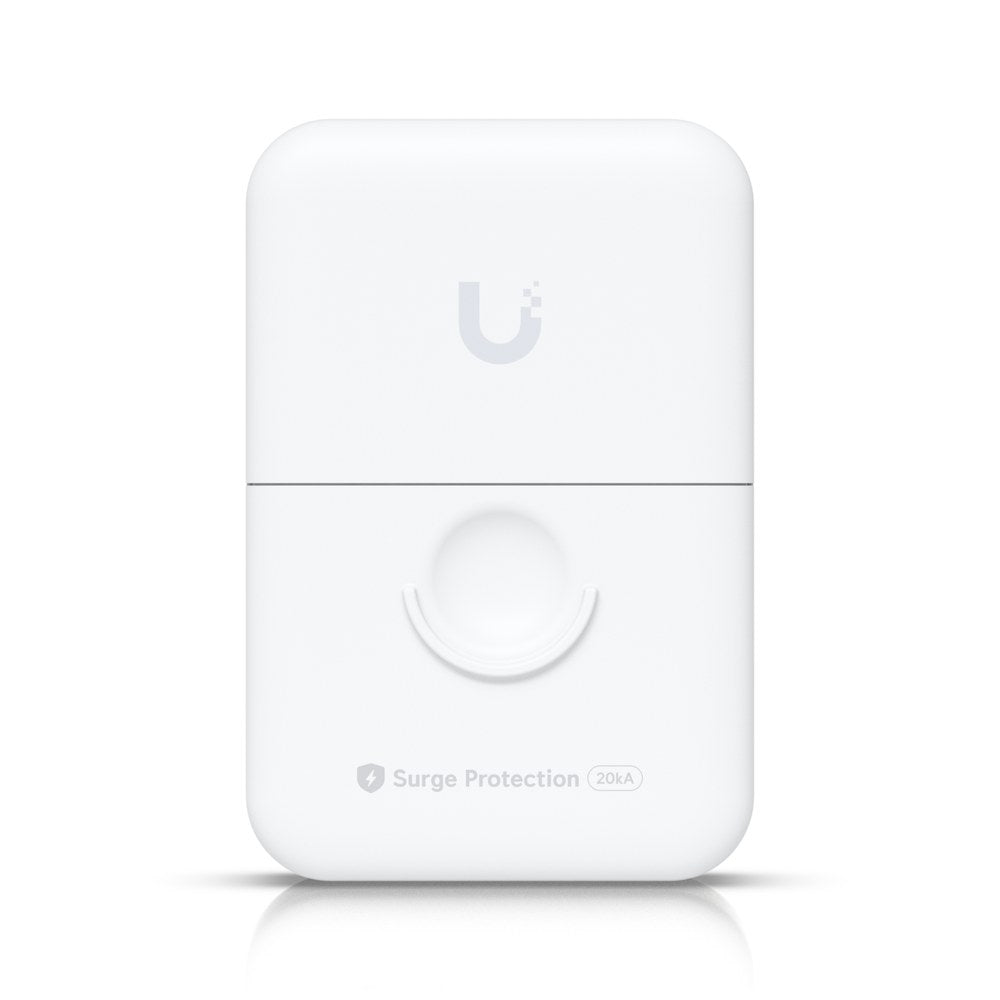

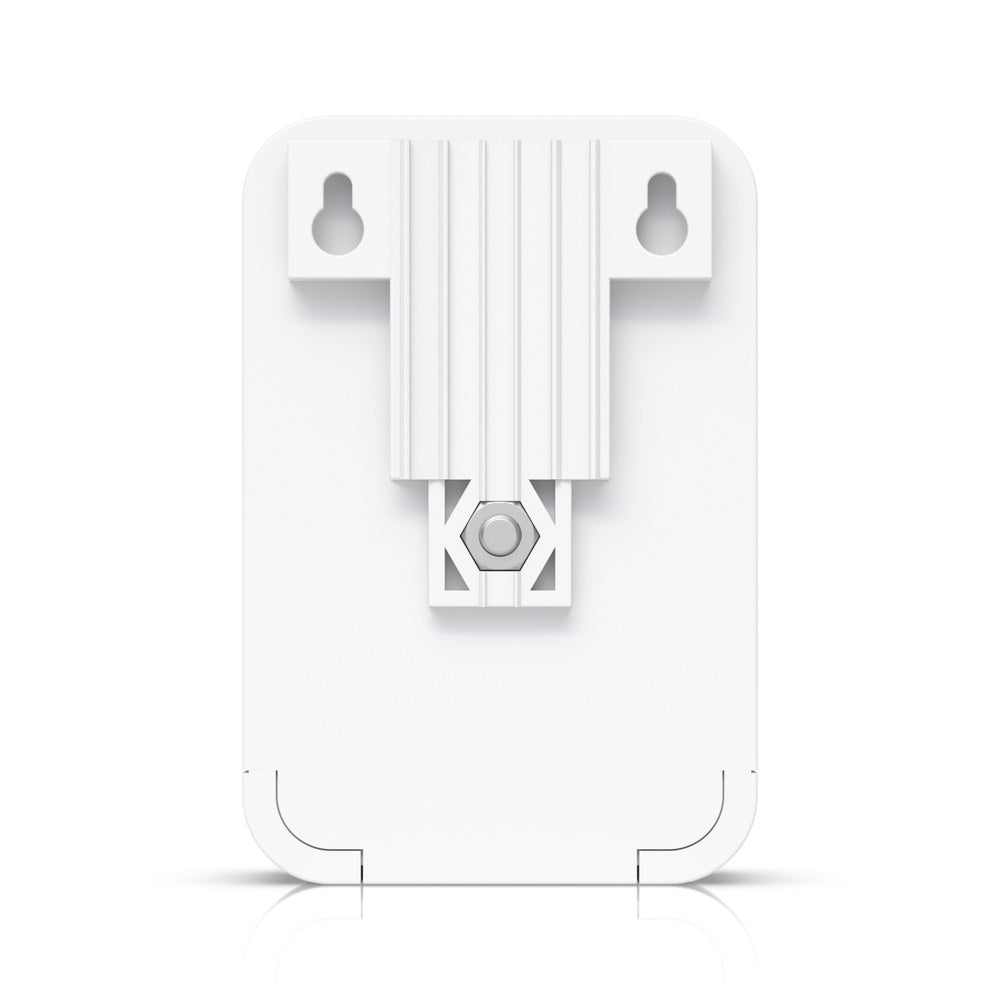

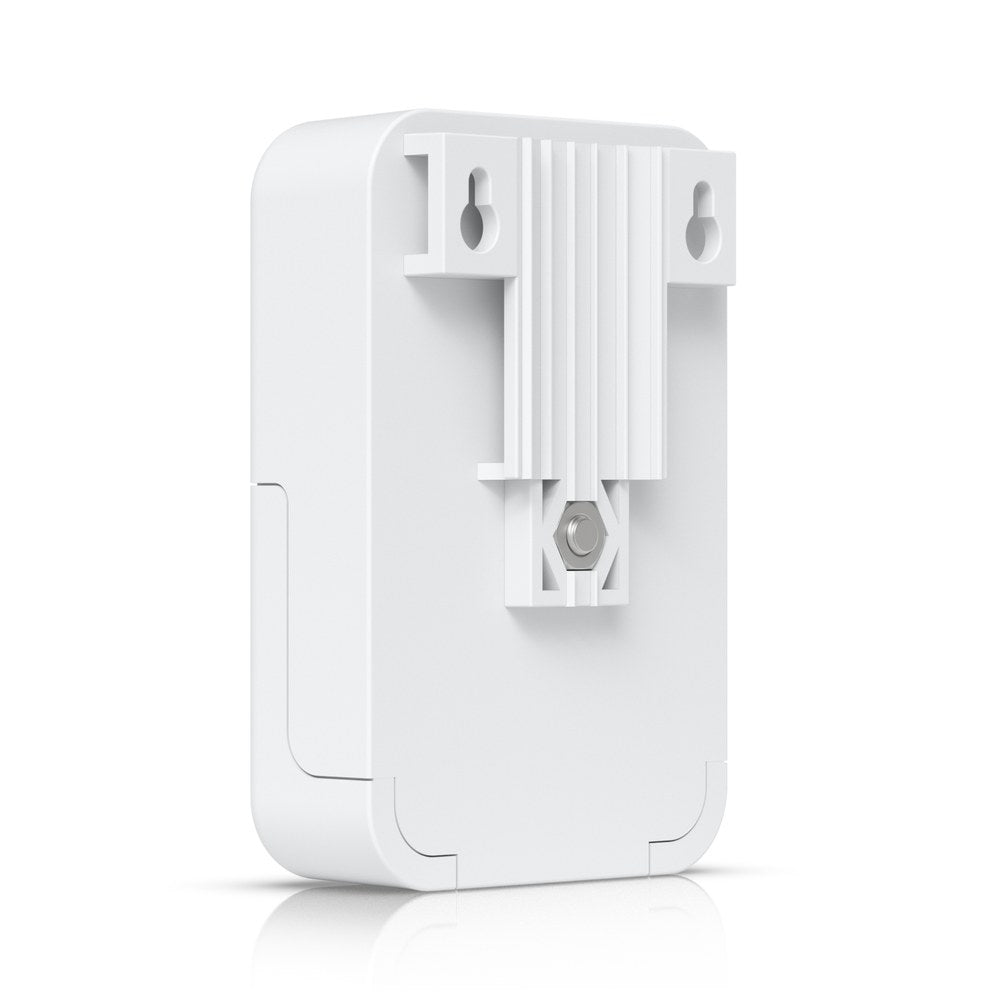

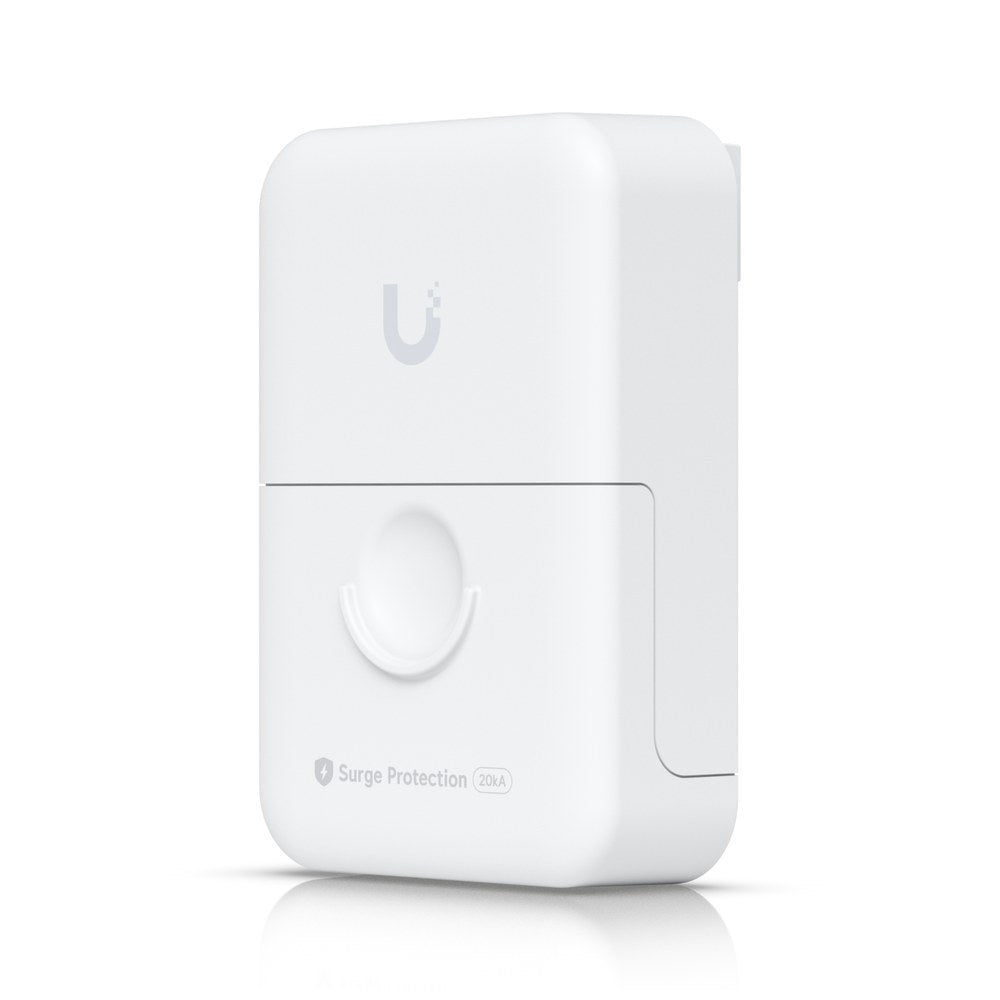

UACC-ETH-SP-Pro - Ubiquiti Ethernet Surge Protection Outdoor (20kA)

The Ubiquiti UACC-ETH-SP-Pro delivers ESD protection for outdoor high-speed networks, safeguarding your outdoor Ethernet devices against damaging electrical surges and lightning strikes. This outdoor surge protector is specifically designed for professional network deployments, offering protection up to 20kA discharge current whilst supporting 10 Gigabit Ethernet and PoE++ passthrough.

Built with a rugged polycarbonate enclosure rated IPX5 for weatherproofing, the UACC-ETH-SP-Pro withstands harsh outdoor conditions across an ambient operating temperature range of -30 to 65° C. The device features two passive, surge-protected RJ45 female connectors, enabling quick and easy inline installation between your network equipment and outdoor devices such as access points, cameras, and point-to-point bridges.

Ideal for: Network installers, system integrators, and IT professionals deploying outdoor wireless access points, IP cameras, building-to-building links, and other PoE-powered devices requiring robust surge protection in exposed environments.

Key Features

• 20kA surge discharge protection - defends against powerful electrical surges and lightning-induced transients
• 10 GbE network compatibility - supports data line protection up to 10 Gbps for high-speed outdoor networks
• Full PoE support - PoE++ passthrough ensures powered devices receive uninterrupted power delivery

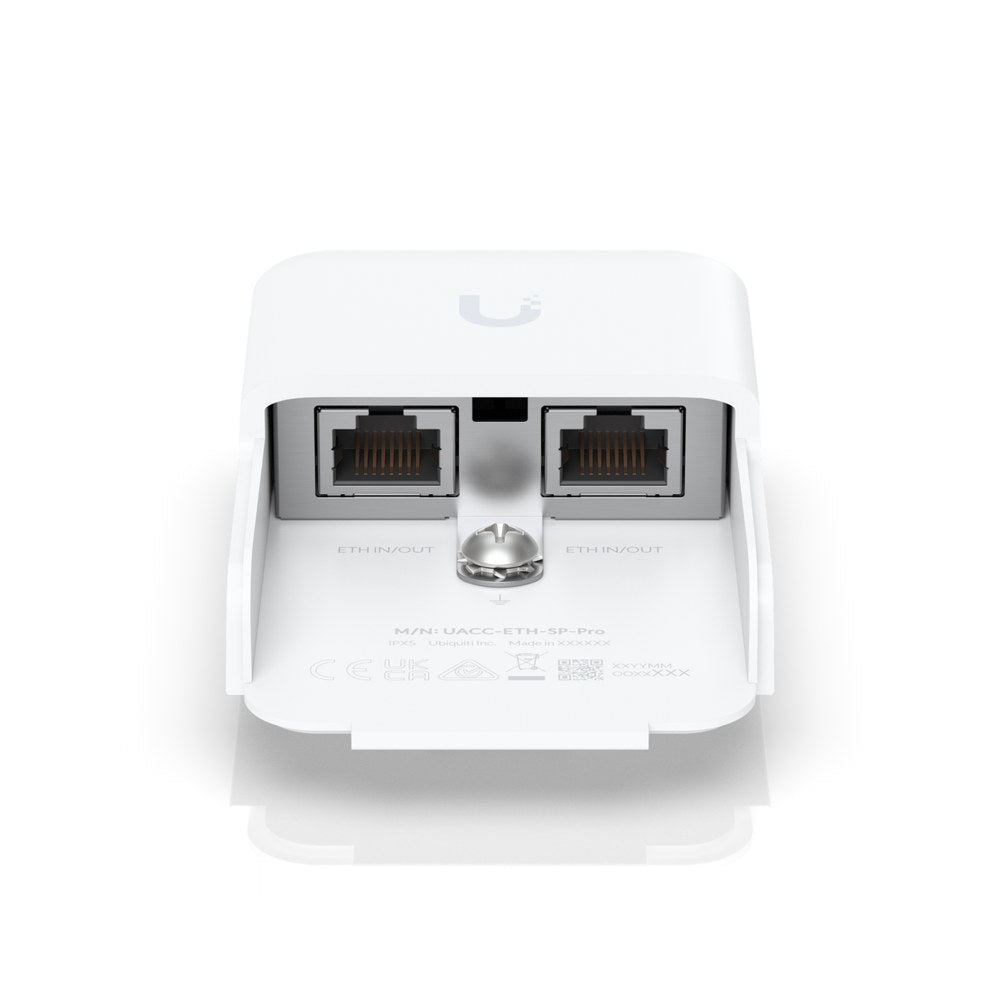

• Two passive RJ45 connections - surge-protected female connectors for straightforward inline deployment
• IPX5 weatherproof rating - durable polycarbonate housing withstands rain, dust, and outdoor elements
• ESD/EMP protection - absorbs transient current with response to surge voltage from 100V/s to 1kV/µs
• Wide operating temperature - functions reliably from -30 to 65° C (-22 to 149° F)
• Compact and lightweight - measures just 91 x 61 x 32.5 mm and weighs only 95 g
• Maximum impulse spark-over voltage - 600V @ 1kV/µs
• High insulation resistance - 1G ohm @ 50V with max capacitance of 1.0 pF @ 1 MHz

Compatible Products

The UACC-ETH-SP-Pro pairs seamlessly with UniFi outdoor access points including WiFi 6 and WiFi 7 models, UniFi outdoor cameras requiring PoE power, airMAX and UISP radios for point-to-point and point-to-multipoint links, and any outdoor Ethernet device supporting 10 Gigabit connectivity and PoE power delivery. Use with UniFi Patch Cable Outdoor for complete outdoor-rated network installations.
