Description
Description

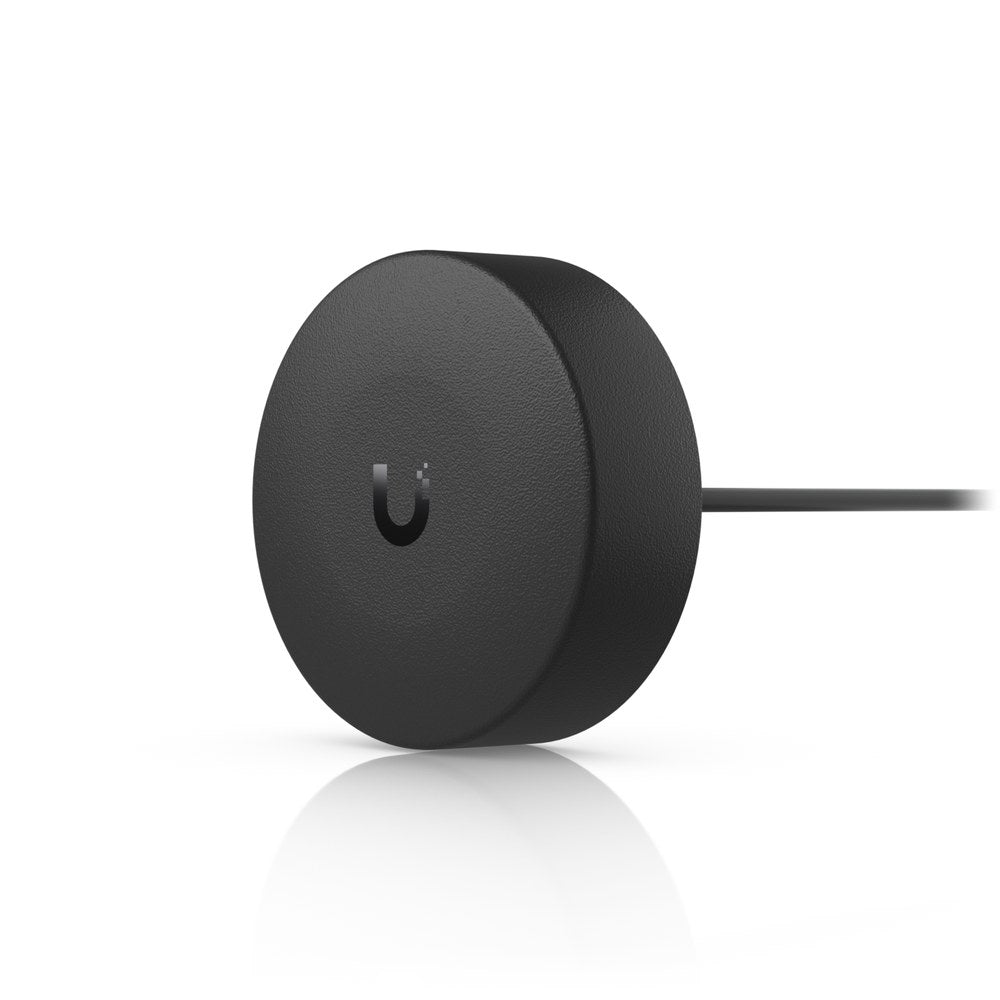

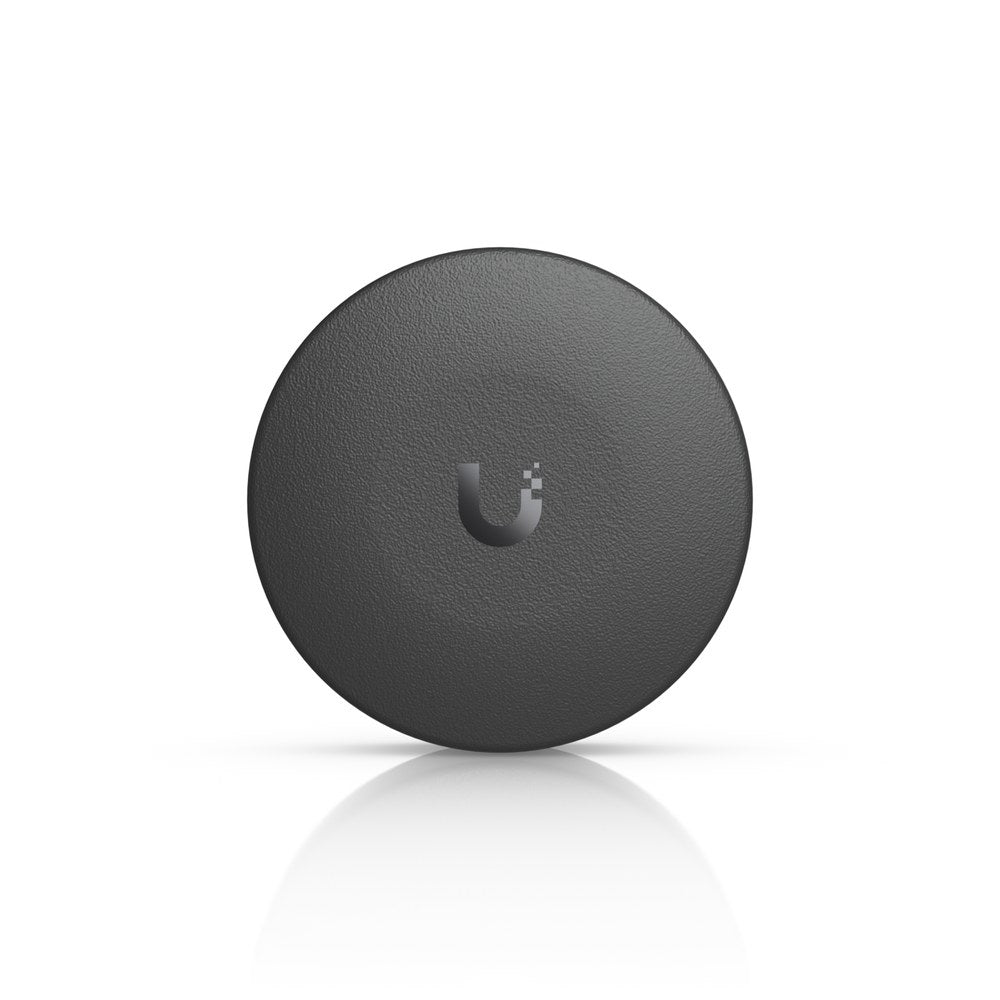

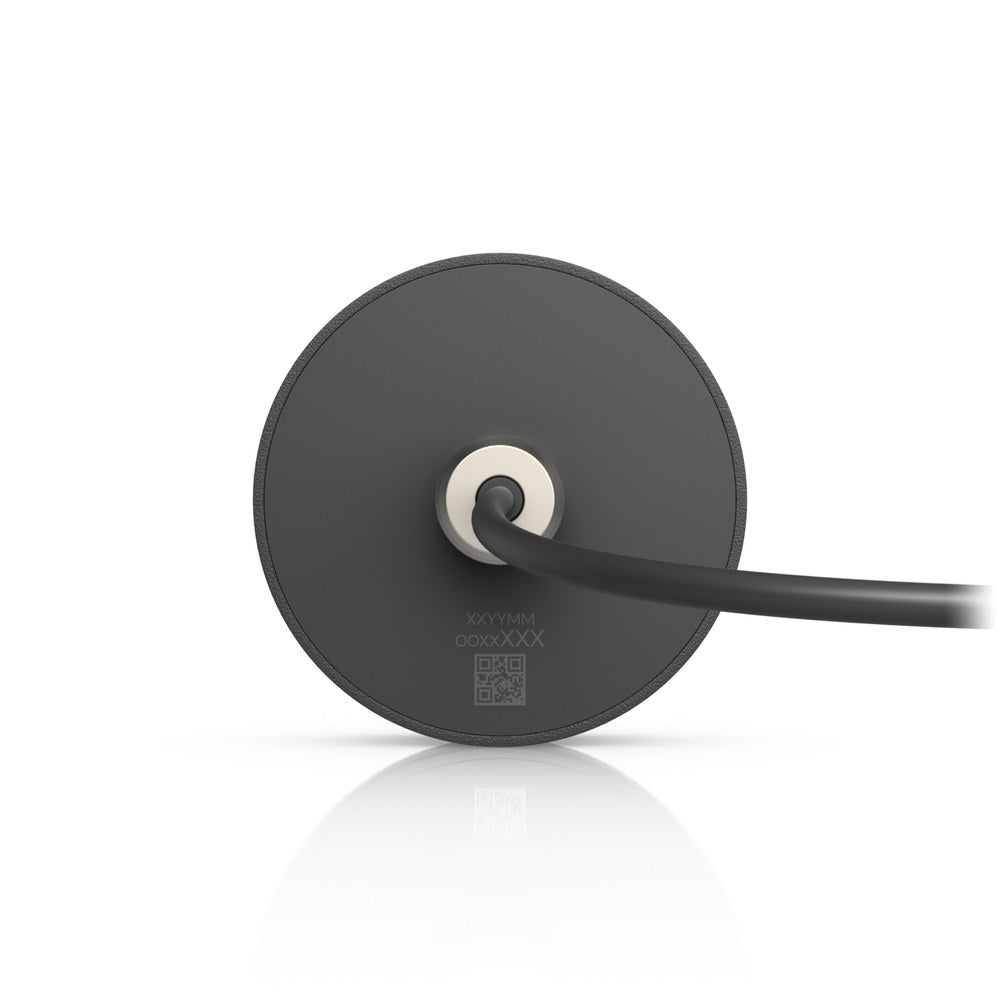

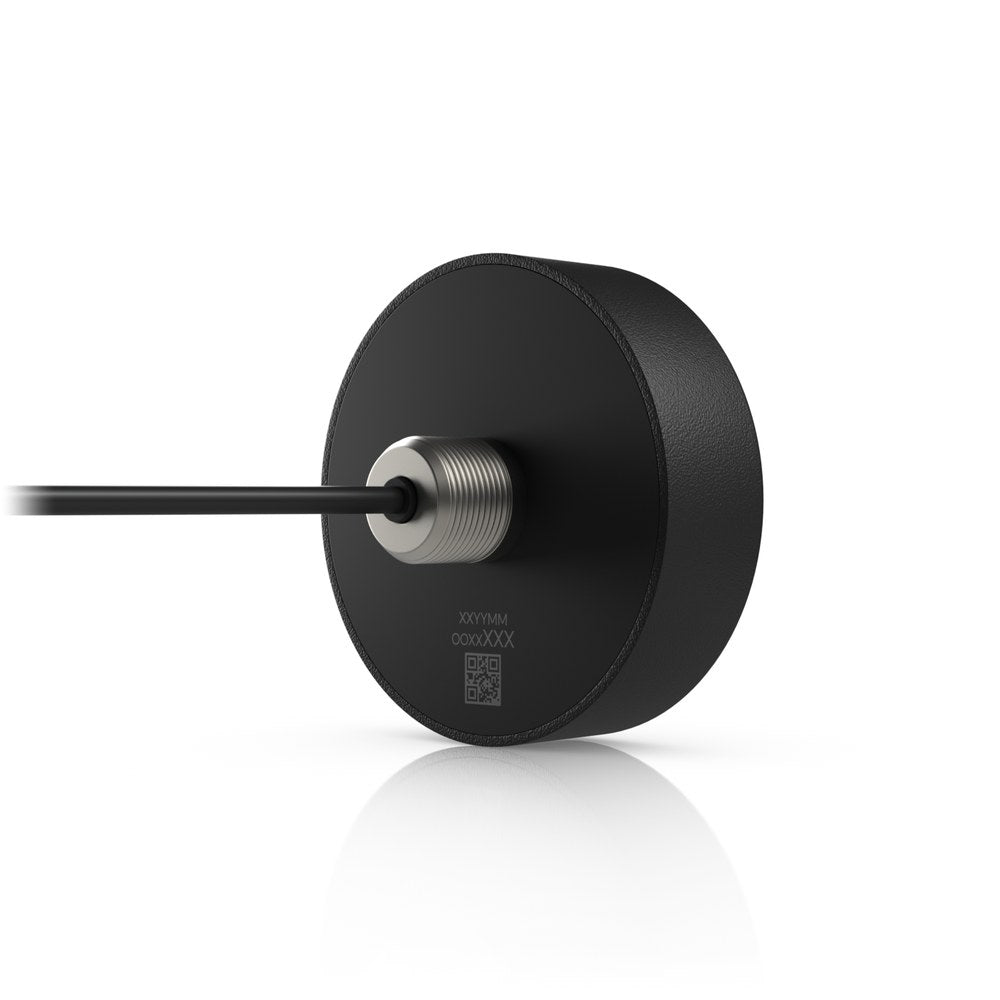

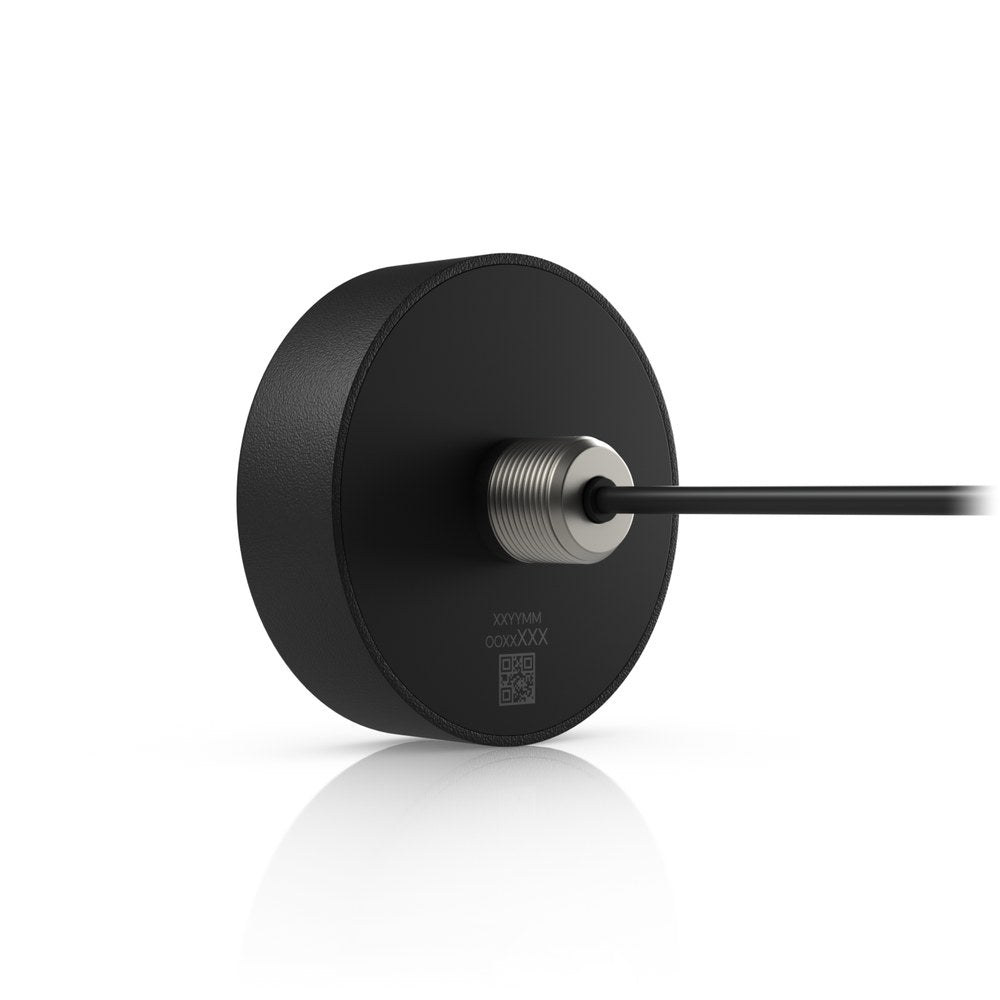

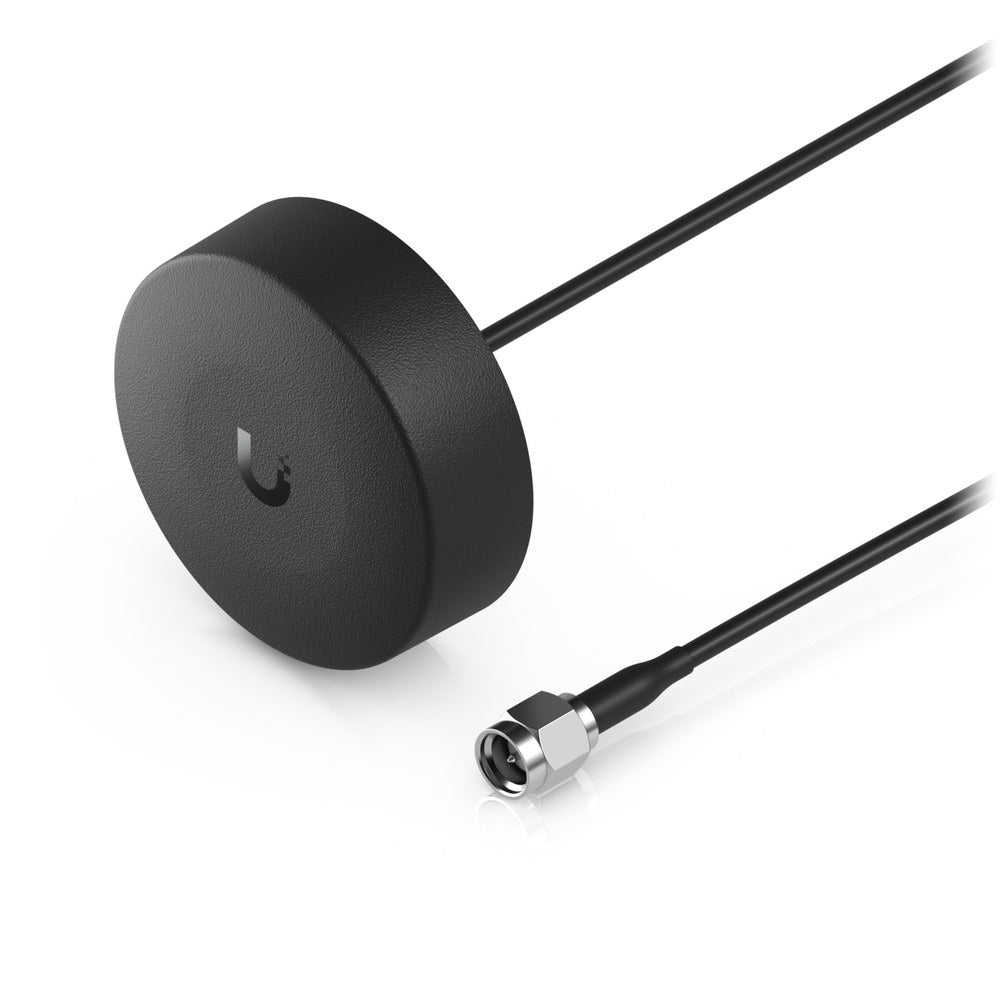

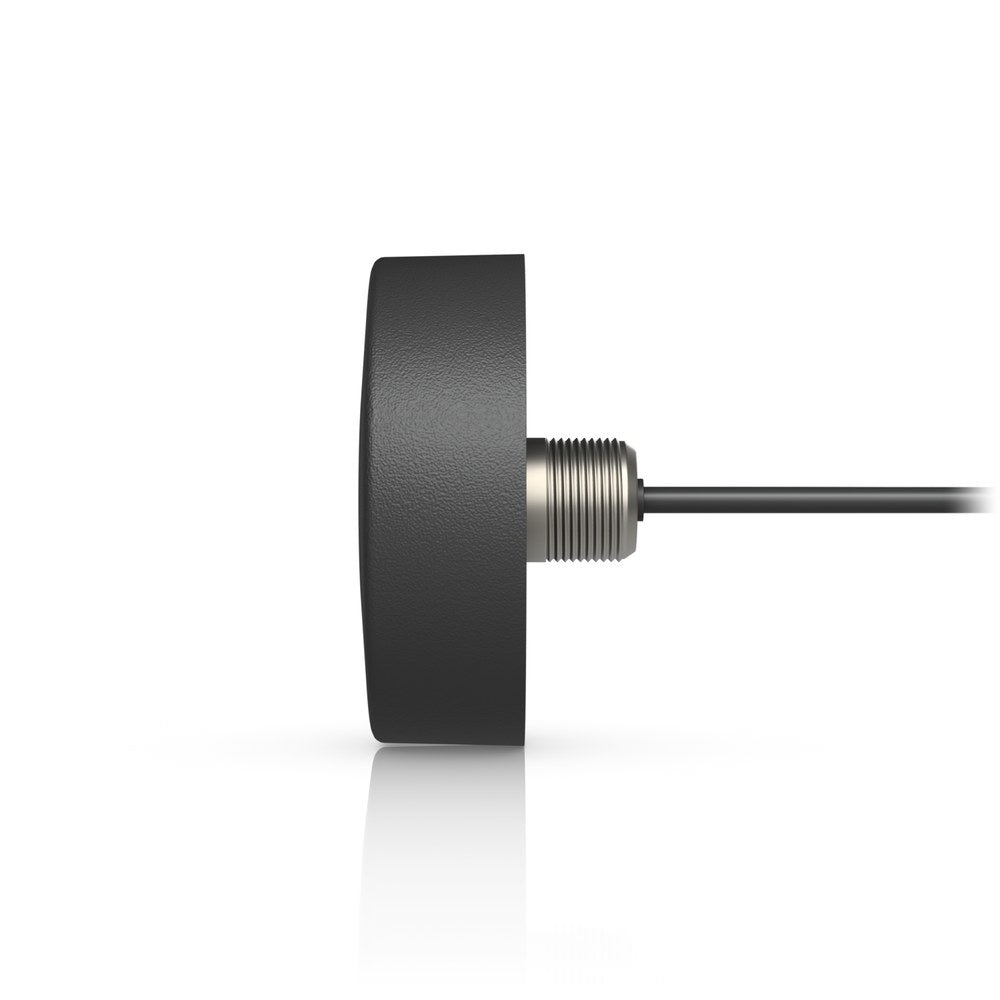

The Ubiquiti GNSS Antenna (UACC-GNSS-Antenna) is a compact active IP67-rated GNSS antenna with an integrated low-noise LNA. This professional-grade antenna accessory is designed to provide precise global navigation satellite system positioning for compatible UniFi networking devices.
Key Features:
- Compact active design with integrated low-noise LNA
- IP67-rated weatherproof construction
- GNSS satellite signal reception
- Professional UniFi accessory
Ideal for: Network administrators and system integrators requiring precise time synchronisation and location services for UniFi Cloud Gateway deployments.
The UACC-GNSS-Antenna provides reliable satellite positioning capabilities in a ruggedised, weatherproof enclosure suitable for outdoor installation. The integrated low-noise amplifier ensures optimal signal reception and accuracy.
Specifications20 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | ⌀46 x 15 mm / (⌀1.8 x 0.6") |
| Weight | 84 g (3 oz) |
| Enclosure Material | Acrylonitrile butadiene styrene thermoplastic / (ABS PA-757) |
| Mount Material | Stainless steel |
| Wind Survivability | 60–70 m/s (134–157 mph) |
| Wind Loading | 1.5–3.0 kPa |

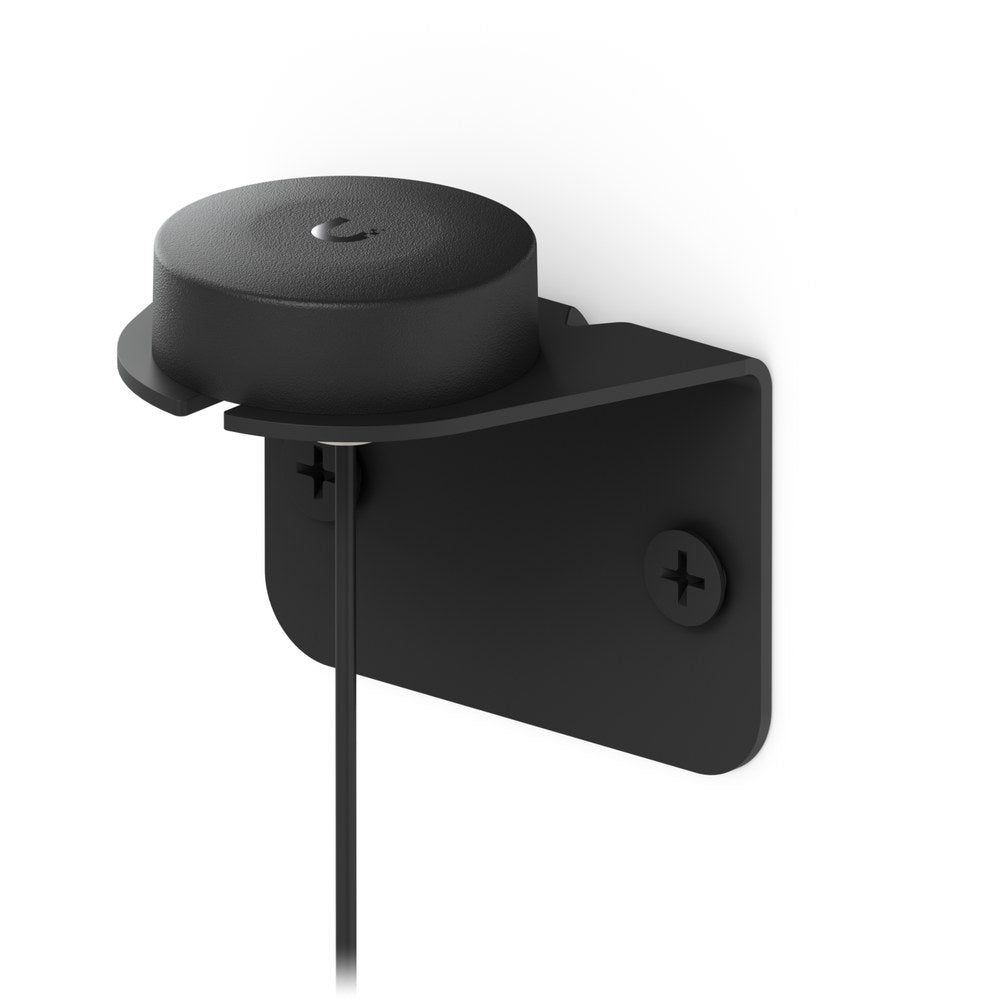

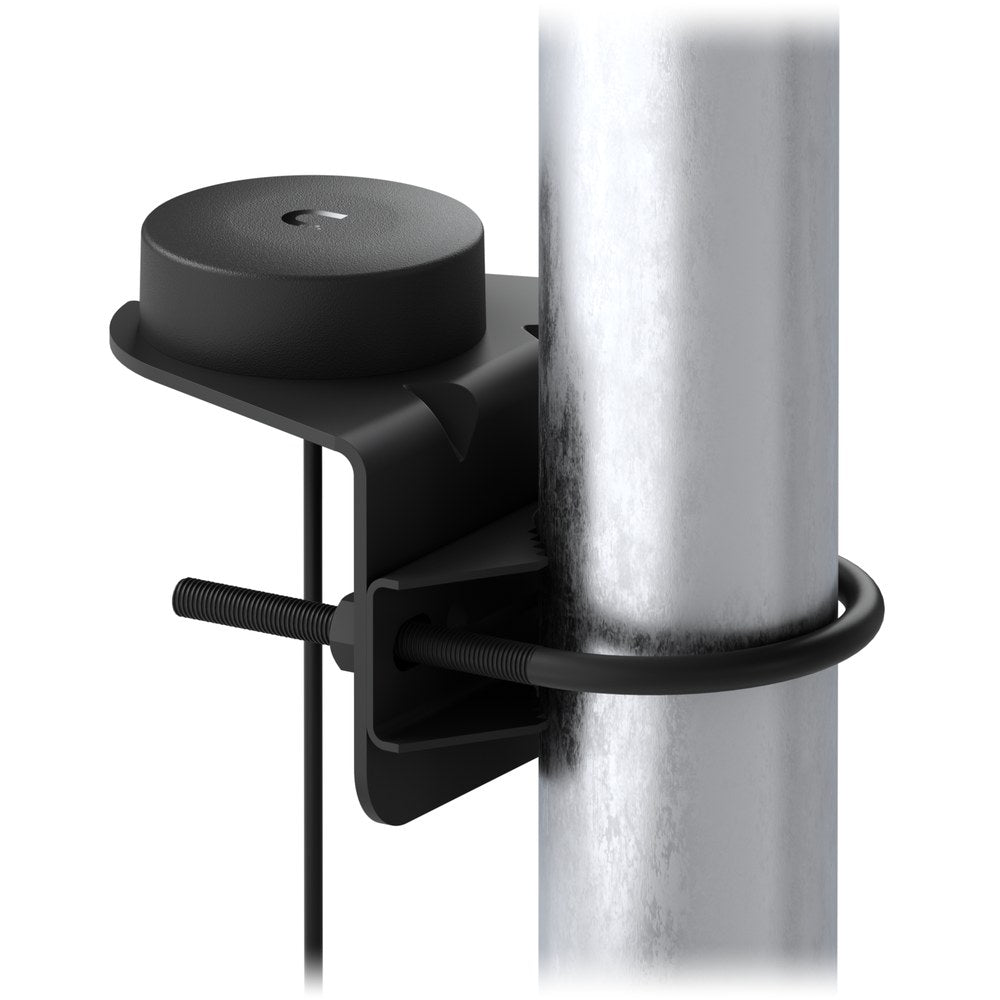

| Mounting | Pole, wall mount |

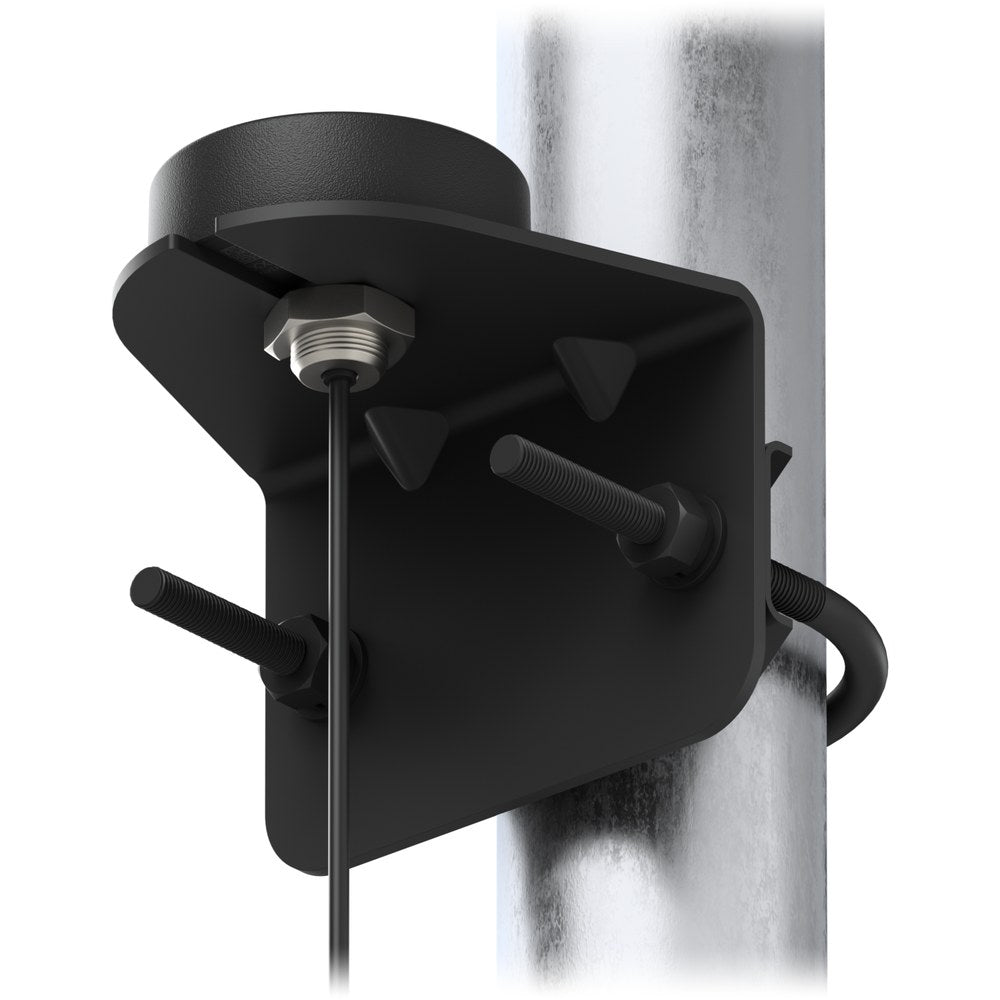

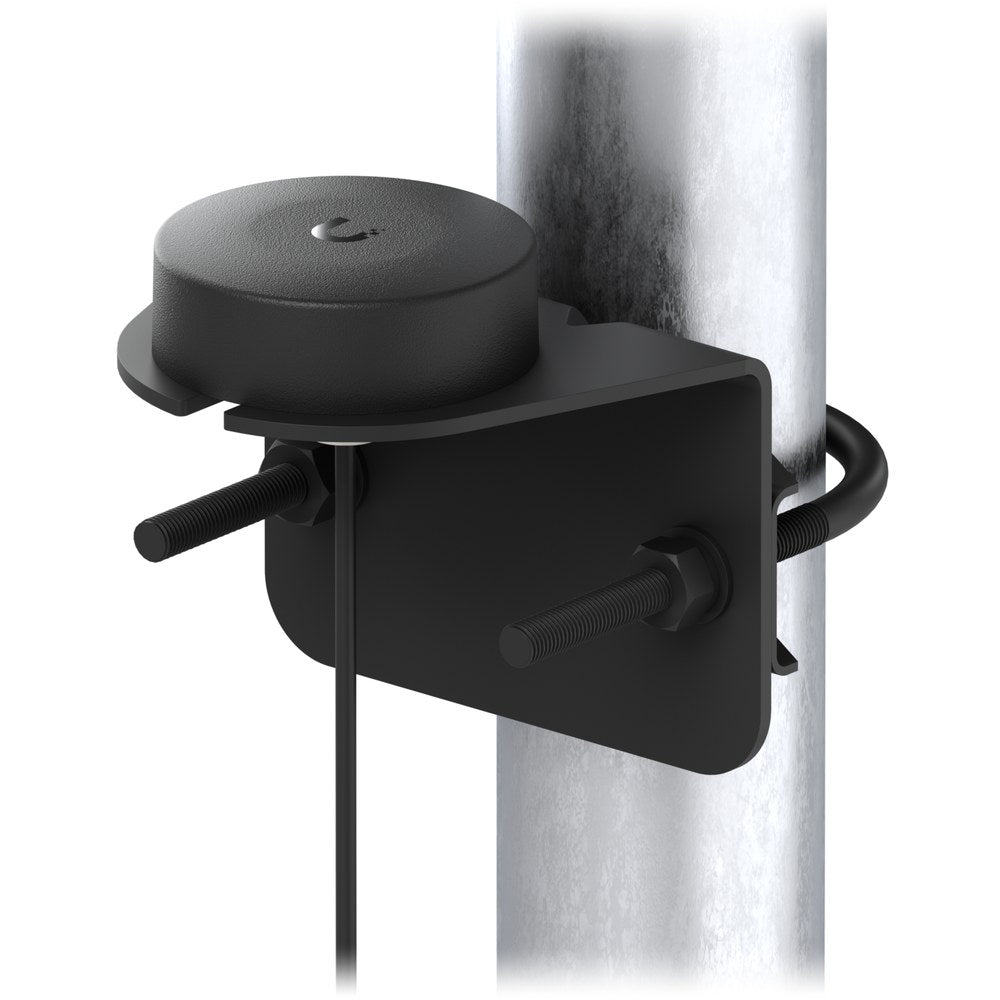

| Pole Mount Diameter | ⌀0.75–1.42" (⌀19–36 mm) |
| Weatherproofing | IP67 |
| Hardware | |
| Supported Voltage Range | 3.0-5.0V DC , 3.3V typ. |
| Frequency Range | 1559–1606 MHz |
| Gain | 2 dBi |
| LNA Gain | 38dB typ. |
| Max. VSWR | ＜2.0 |
| Polarization | RHCP |
| RF Connectors | SMA Male |
| RF Cable | RG174 |

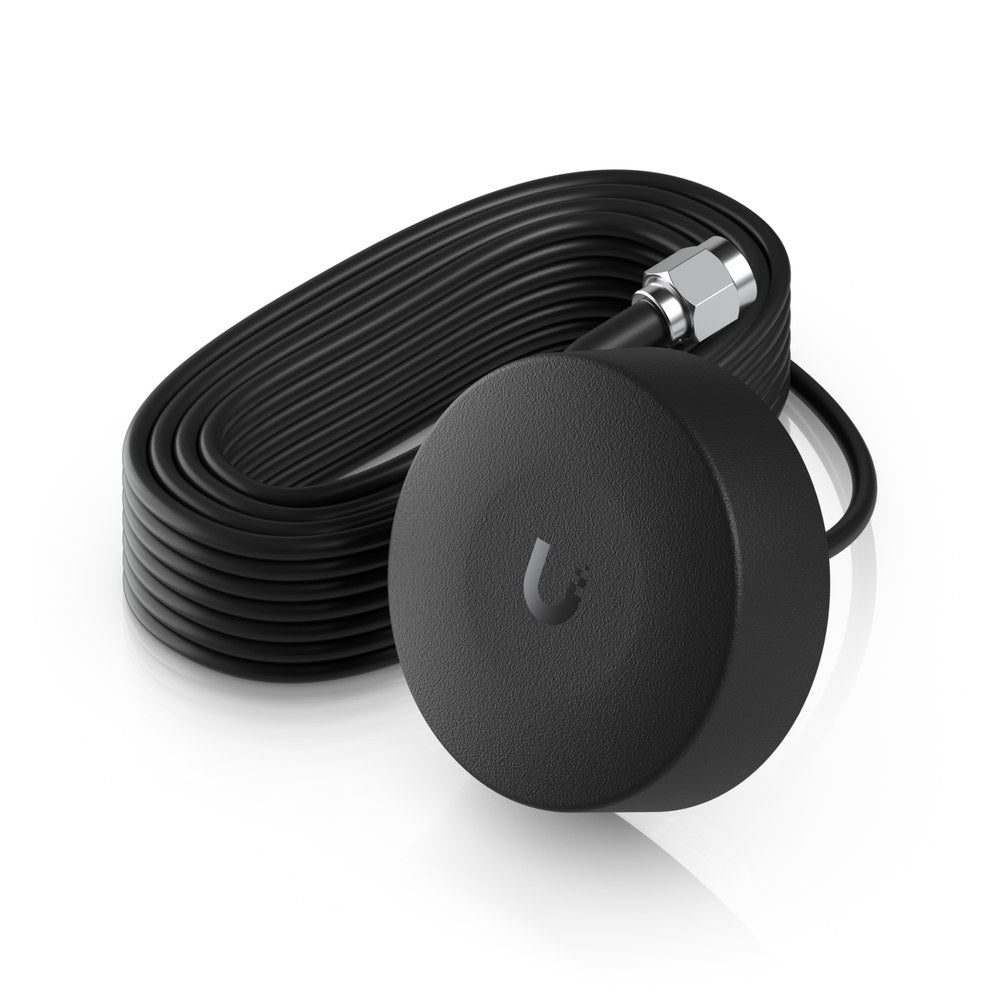

| Cable · Cable Length | 5 m (16,4 ft) |
| Cable · Delay | 25 ns |
| Ambient Operating Temperature | -40 to 85° C (-40 to 185° F) |
