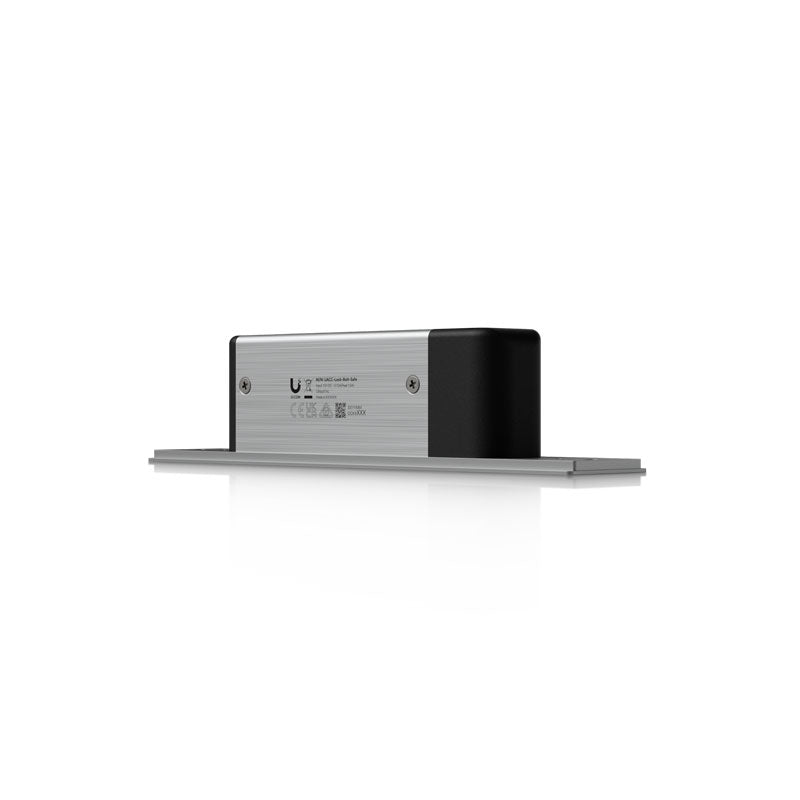

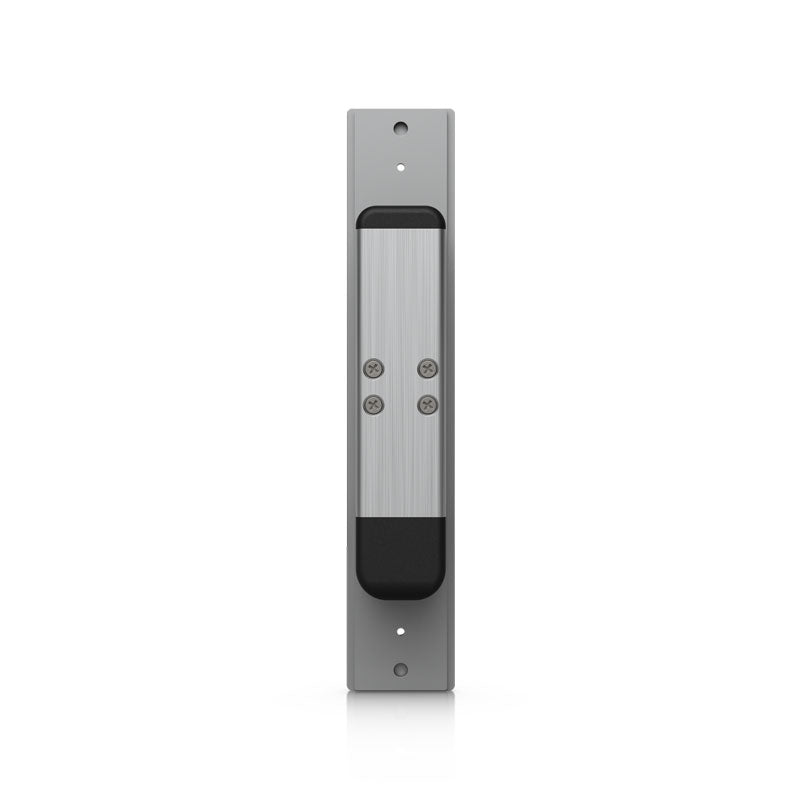

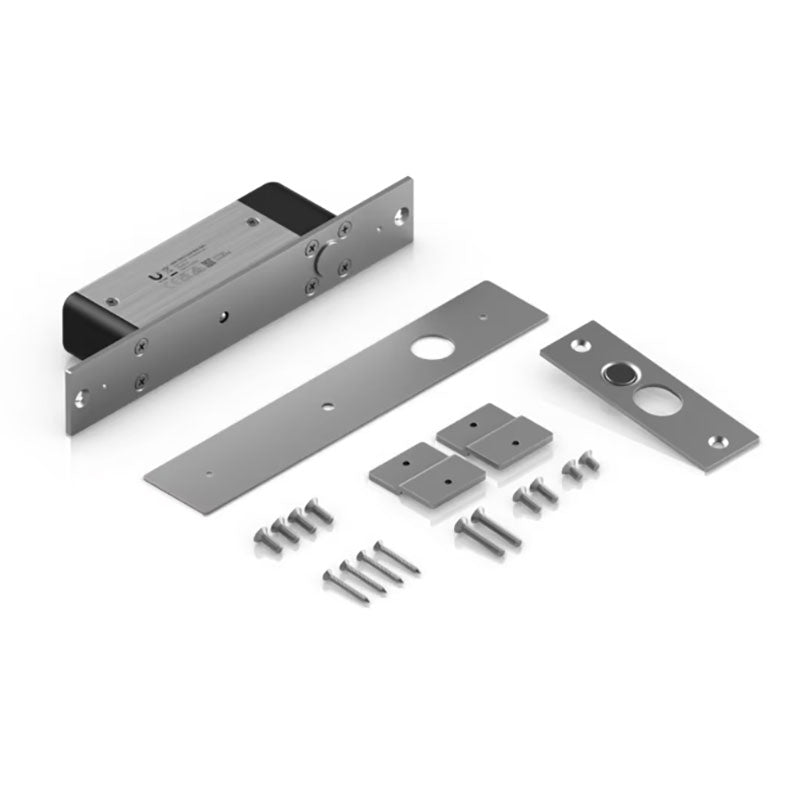

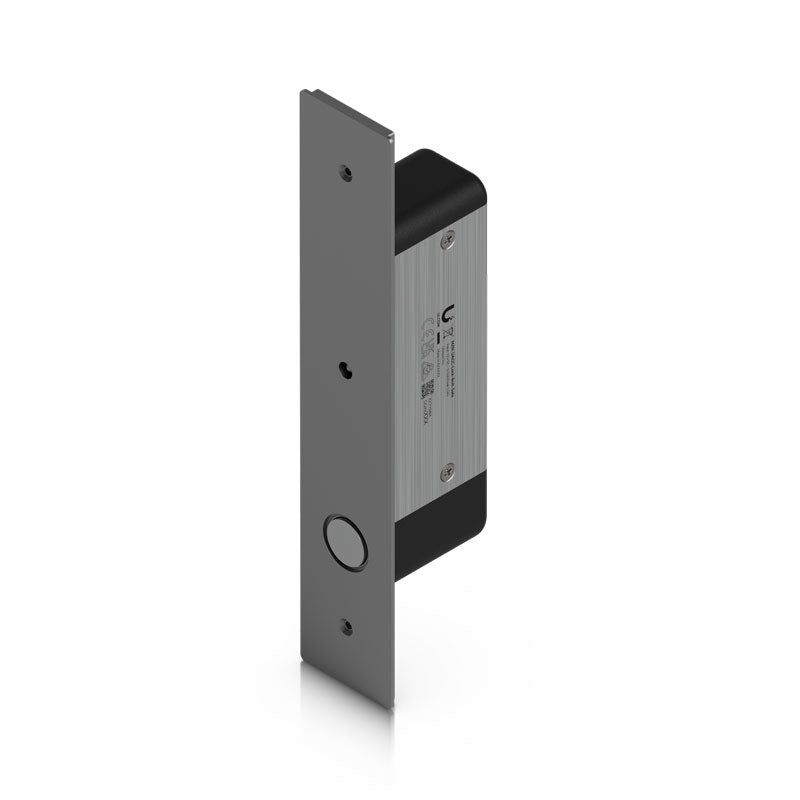

UACC-Lock-Bolt-Safe Ubiquiti Access Fail-Safe Bolt Door Lock
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The Ubiquiti Fail-Safe Bolt Lock is an electric drop bolt lock that connects to a UniFi Access Hub (UA Hub) and is designed to unlock during power failure. This ensures safe exit or entry in an emergency.
Built for strength and longevity, the Fail-Safe bolt lock remains unlocked when there is no power, only locking again when electricity is applied.
This versatile lock can be installed on an aluminium, steel, or wooden door frame, so you can place it wherever you need to enhance your door security. With voltage support of 12V DC, the lock also meets all applicable ANSI safety standards and can be connected to a UA Hub in minutes.
Features:
Unlocks during power outage
Can be installed on an aluminium, steel, or wooden door frame
ANSI-compliant design
Specifications18 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | Lock body: 132 x 30 x 42 mm (5.2 x 1.2 x 1.7") / Door frame plate: 82 x 32 x 3 mm (3.2 x 1.3 x 0.1") / Door plate: plate: 204 x 33 x 3 mm (8 x 1.3 x 0.1") |
| Weight | Lock body: 350 g (12.3 oz) / Door frame plate: 22 g (0.7 oz) / Door plate: 46 g (1.6 oz) |
| Enclosure Material | Lock body: aluminum alloy / Door frame plate/Door plate: aluminum alloy |
| Lock Features · Lock Type | Fail safe |
| Lock Features · Support Door Type | Single door (Wooden/metal) |
| Lock Features · DPS | Embedded |
| Lock Features · Current Power | Max. 900mA |
| Lock Features · Support Voltage Range | 12V DC ±10% |
| Lock Features · Wiring | (1) Lock 12V/NC (red) / (1) Lock 12V/COM (black) / (1) DPS/- (white) / (1) DPS/+ (orange) |
| Lock Features · Mounting | Door frame recess mount |
| Lock Features · LED Indicator | Red: locked / Green: unlocked & power indicator |
| Door Status Contact · Type | Dry contact |
| Door Status Contact · Logic | Door Open: DPS/+ & DPS/- = Open / Door Close: DPS/+ & DPS/- = Short |
| Door Status Contact · Rating | Max. 30V DC, 0.5A |
| Ambient Storage Temperature | -20 to 70° C (-4 to 158° F) |
| Ambient Operating Temperature | -10 to 60° C (14 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
