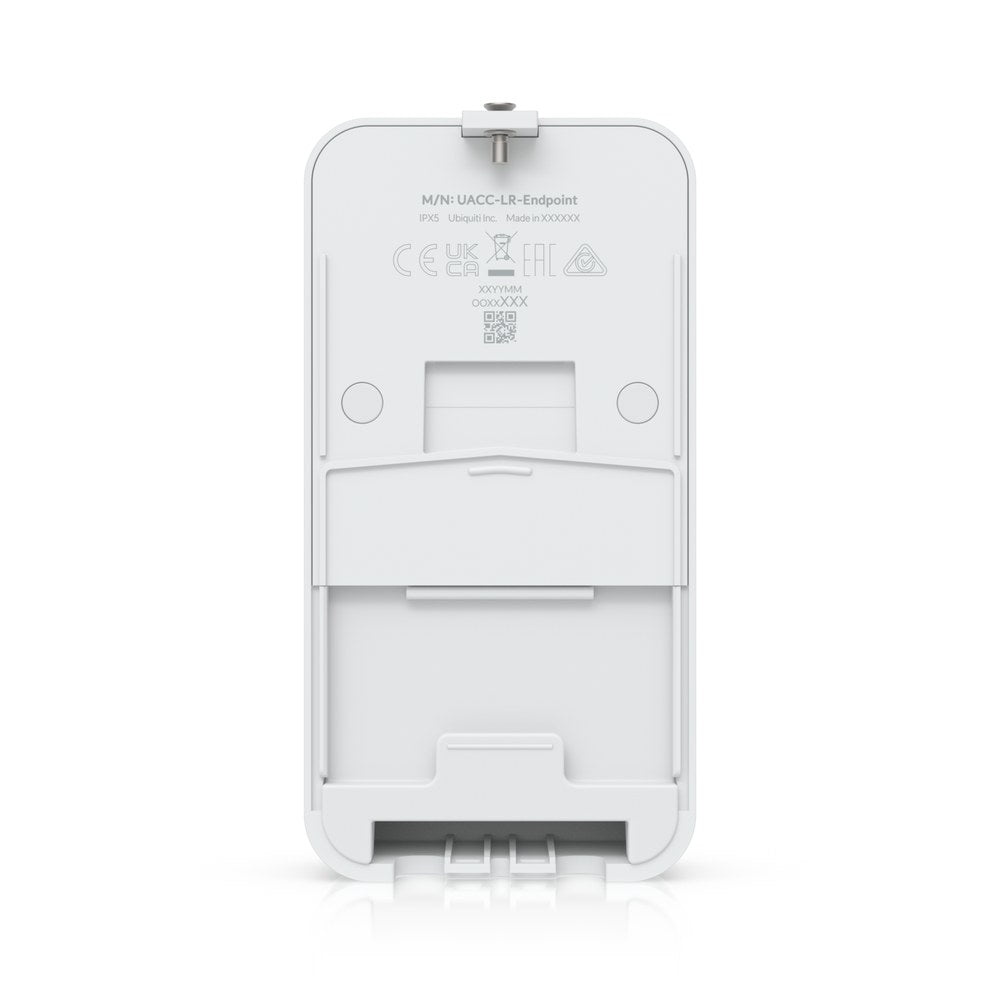

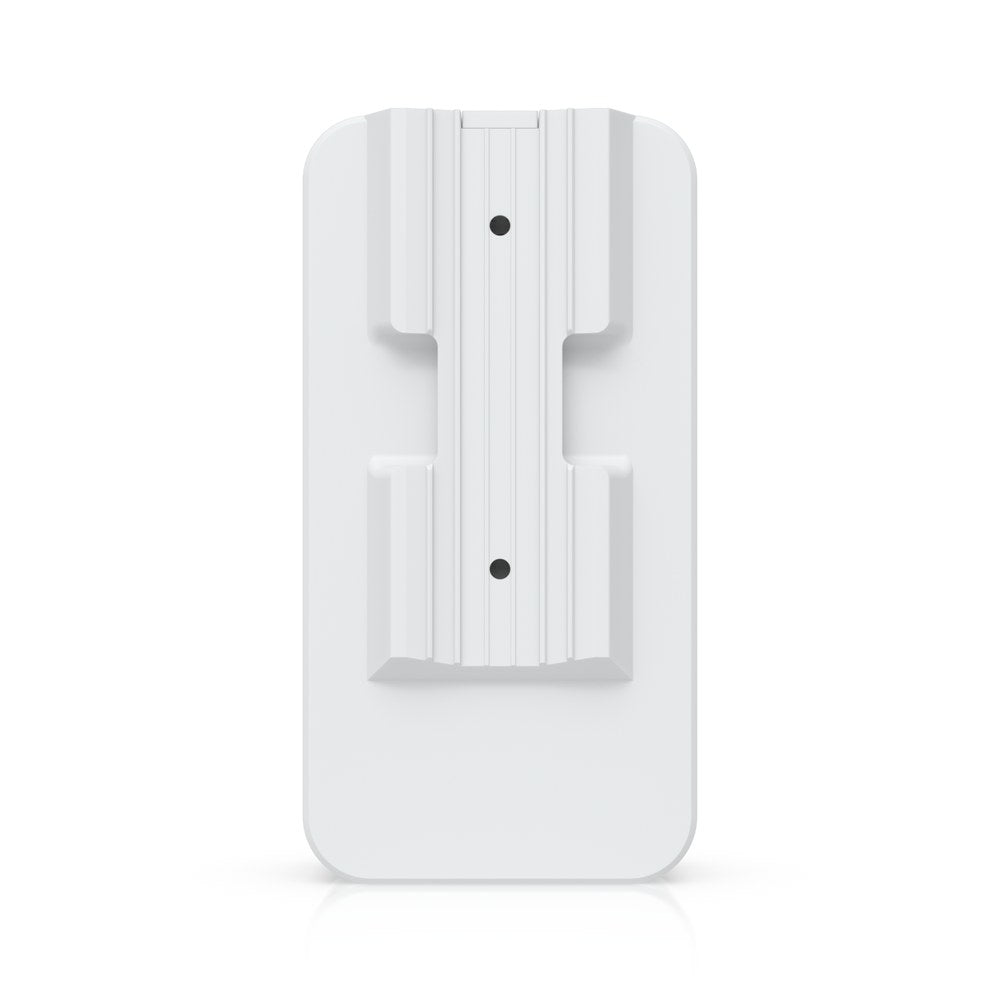

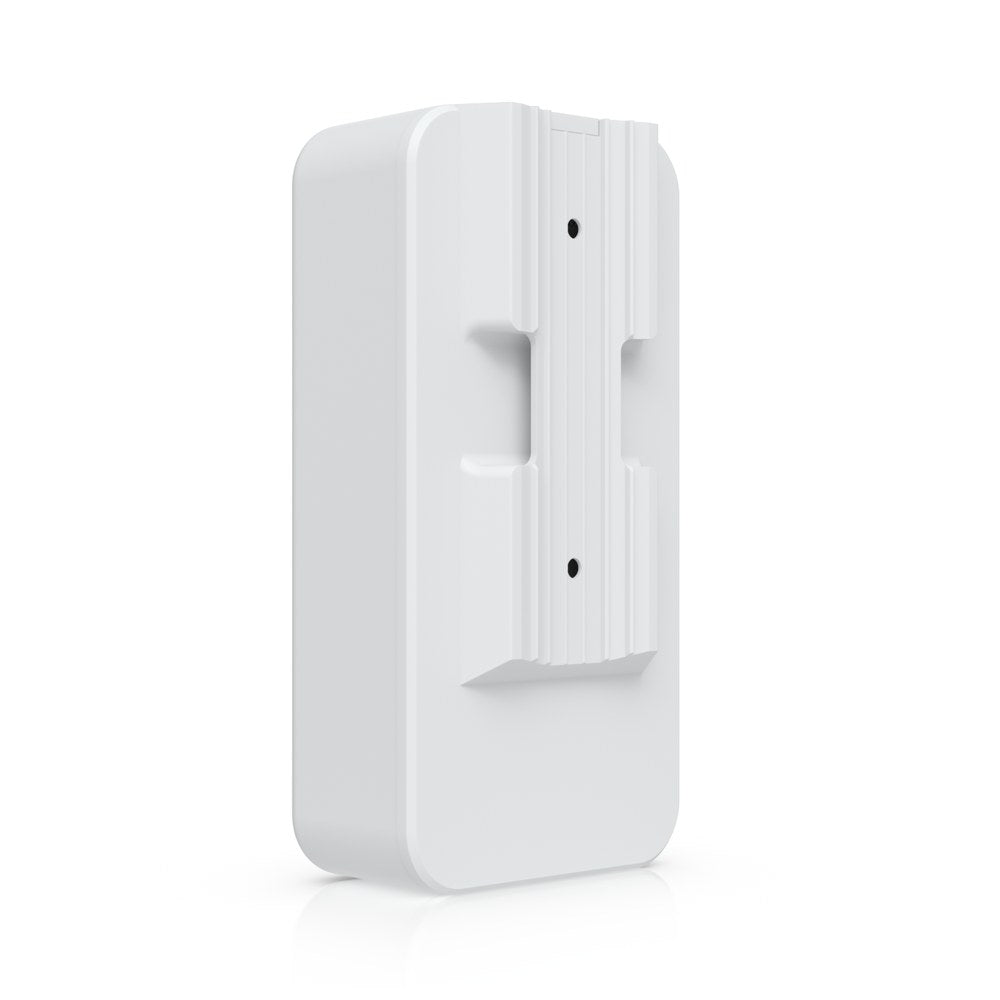

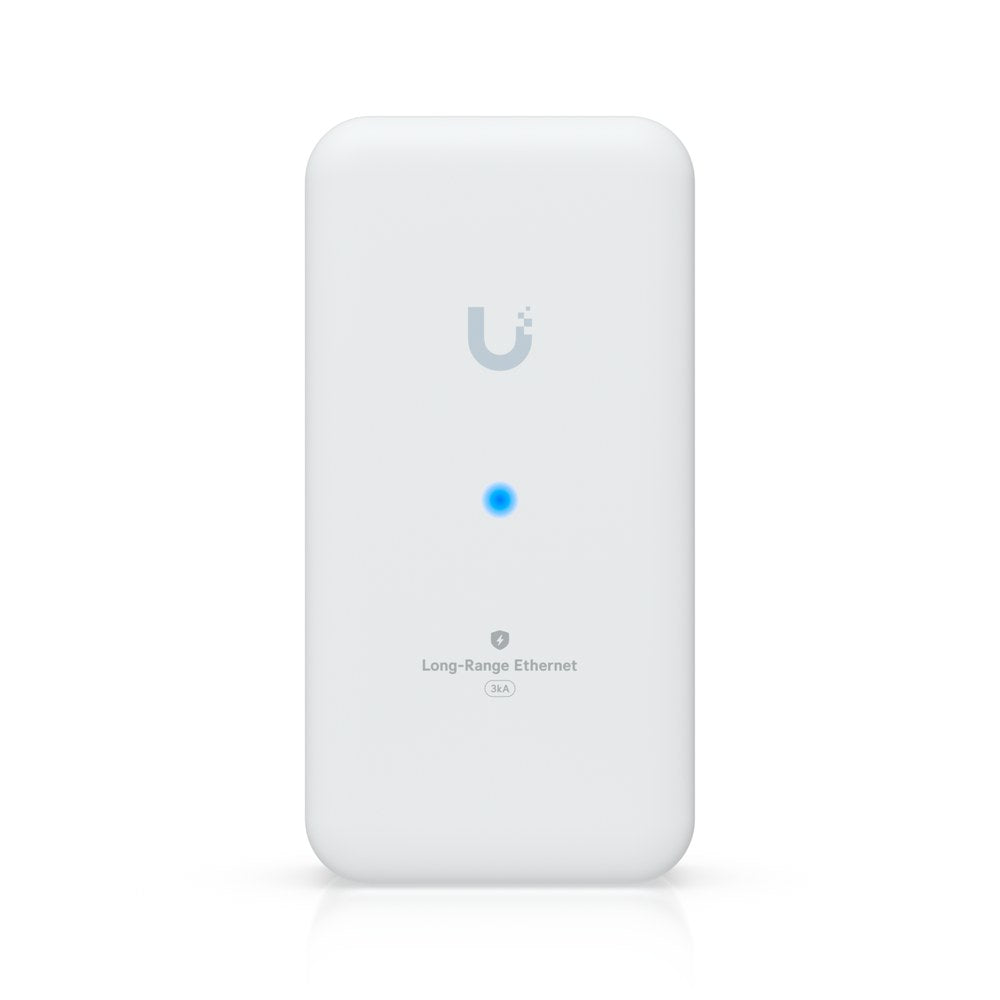

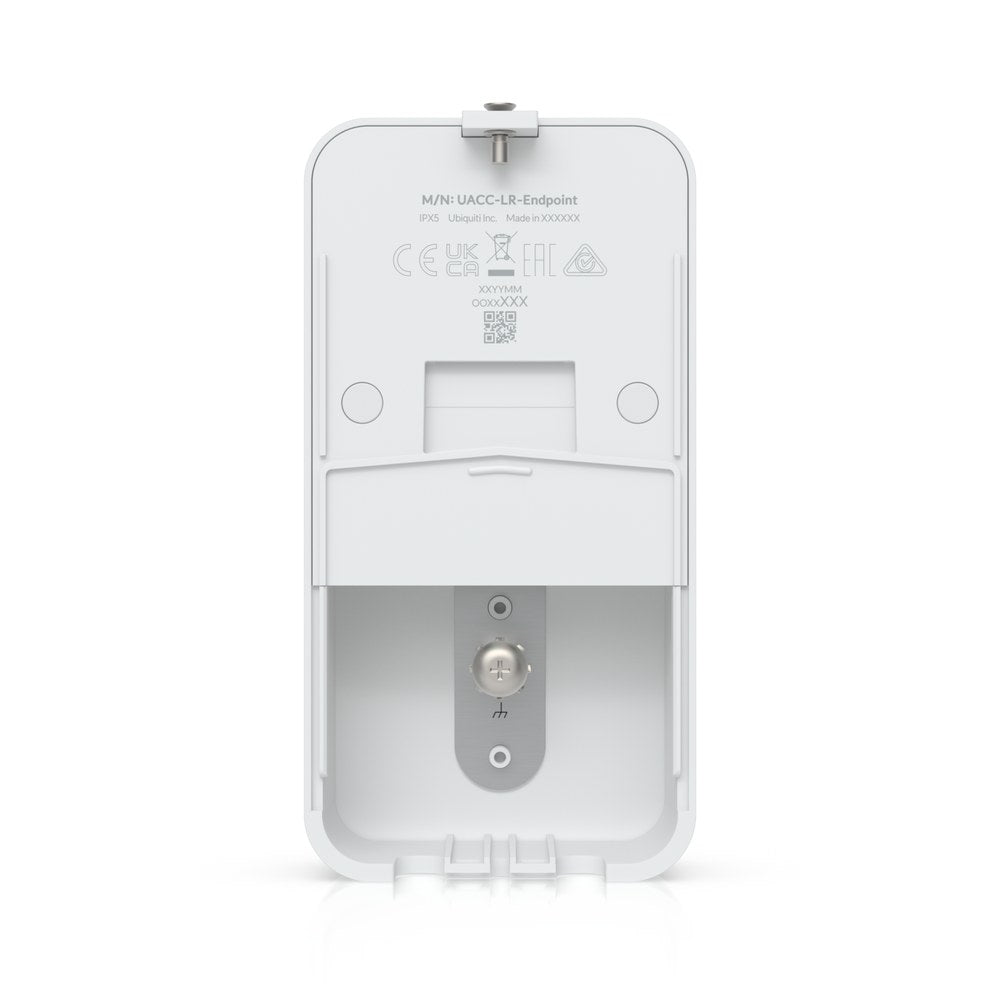

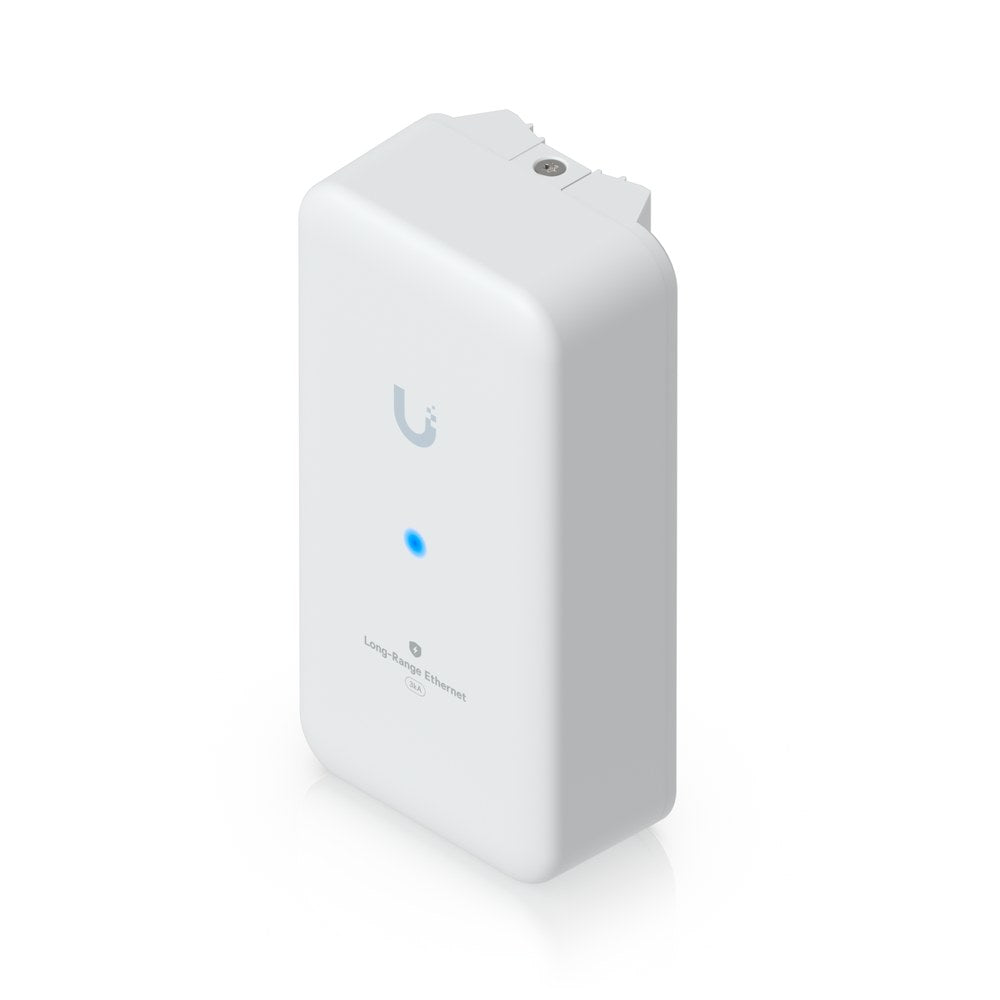

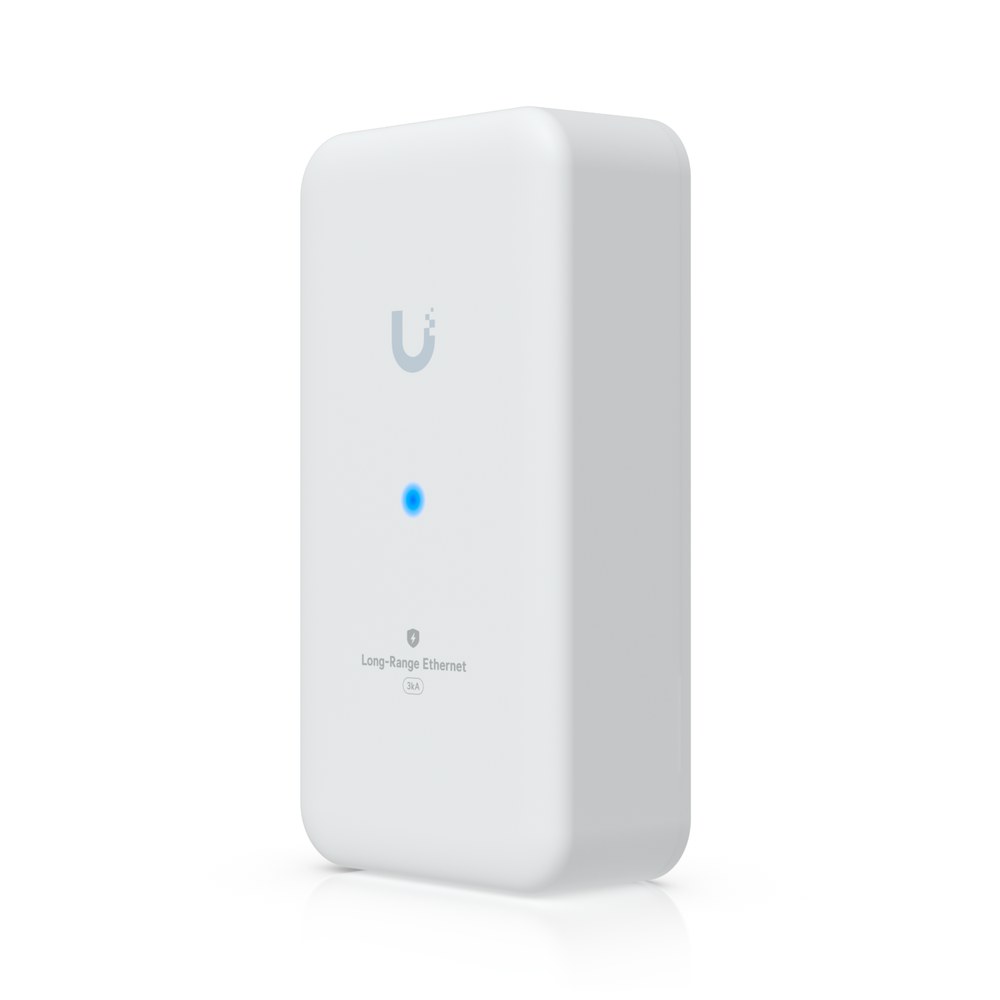

UACC-LR-Endpoint - Ubiquiti Outdoor Long-Range Endpoint
- Order today · 29 OctAdded to our next Ubiquiti order
- Ship date confirmedBy email once Ubiquiti allocates stock
- Delivered · by 18 – 27 NovOur aim: 14–21 working days from your order
Confirmation now, tracking the moment it ships.
How pre-orders work
How pre-orders work
We are just not quite the same as many of the other online stores. I know it is easy to say that, but we just aren't.
The Tech Geeks, under their parent company Twelve Times (Worldwide) Pty Ltd trade in Australia, New Zealand and the United Kingdom.
This allows us to purchase stock from suppliers from locations where they have it available. We are then able to import those products directly, along with providing localised Warranty and Replacement as required.
We only list items that we know have been, or are about to be released to us and since we purchase only in small batches these are often flown in on short time frames.
We list on each product our expected shipments and ones that we have already sent out to customers. Please use these dates as a guideline as we always suggest 14-21 days just to allow for air freight or customs hold ups.
Want to know when new product stock is released? why not sign up here to our alerts.
Description
Description
The Ubiquiti Outdoor Long-Range Endpoint (UACC-LR-Endpoint) is a purpose-built outdoor PoE+++ endpoint that extends the reach of the UniFi Long-Range Switch 8 PoE up to 800 m (2,625 ft) over a single Ethernet cable. It is an IPX5-rated unit with built-in surge protection, so it suits exposed installations at the edge of a site, where standard copper Ethernet would normally stop at 100 m.
Standard copper Ethernet reaches 100 metres, and going beyond that to connect remote cameras, access devices or IoT sensors often means fibre and a separate electrical supply. The UACC-LR-Endpoint removes that complication by receiving both power and data from the Long-Range Switch 8 PoE through one cable, with a familiar PoE interface at the remote end.
Key Features
- Long-range reach: receives power and data from a Long-Range Switch 8 PoE at distances up to 800 m (2,625 ft)
- Long-range PoE+++ input: (1) long-range 10/100 MbE PoE+++ port
- IPX5-rated outdoor design for exposed installations
- Built-in surge protection at the endpoint
- Single-cable deployment: power and data over one Ethernet cable, ideal where local power is unavailable
- Optional 5-year coverage available at the point of purchase for faster replacement and priority support
Ideal for
Installers, system integrators and IT teams deploying remote CCTV cameras, access control devices and IoT sensors across large sites, car parks, campuses, farms and other outdoor locations beyond the reach of standard 100 m Ethernet runs.
Compatible Products
Designed exclusively for the Ubiquiti UniFi Long-Range Switch 8 PoE (USW-LR-Switch-8-PoE, 630W). The endpoint is required for long-range performance, and long-range is enabled on one of the switch's eight ports per endpoint. For the longest runs, use it with the UniFi Outdoor Cable.
Why choose the Outdoor Long-Range Endpoint?
If you need to push PoE and network connectivity well beyond the building, the Ubiquiti UACC-LR-Endpoint offers a simple, surge-protected way to do it without extra fibre or remote power supplies. Please note it is not a general-purpose PoE extender and works only with the Long-Range Switch 8 PoE.
FAQs
Which switch does the UACC-LR-Endpoint work with?
It is designed exclusively for the Ubiquiti Long-Range Switch 8 PoE (USW-LR-Switch-8-PoE).
How far can the endpoint be from the switch?
Up to 800 m (2,625 ft), using UniFi Official Outdoor Cable.
Is it suitable for outdoor use?
Yes. It is IPX5-rated and includes built-in surge protection.
Is the endpoint required for long-range performance?
Yes. Long-range endpoints are required for long-range performance, with long-range enabled on 1 of the switch's 8 ports per endpoint.

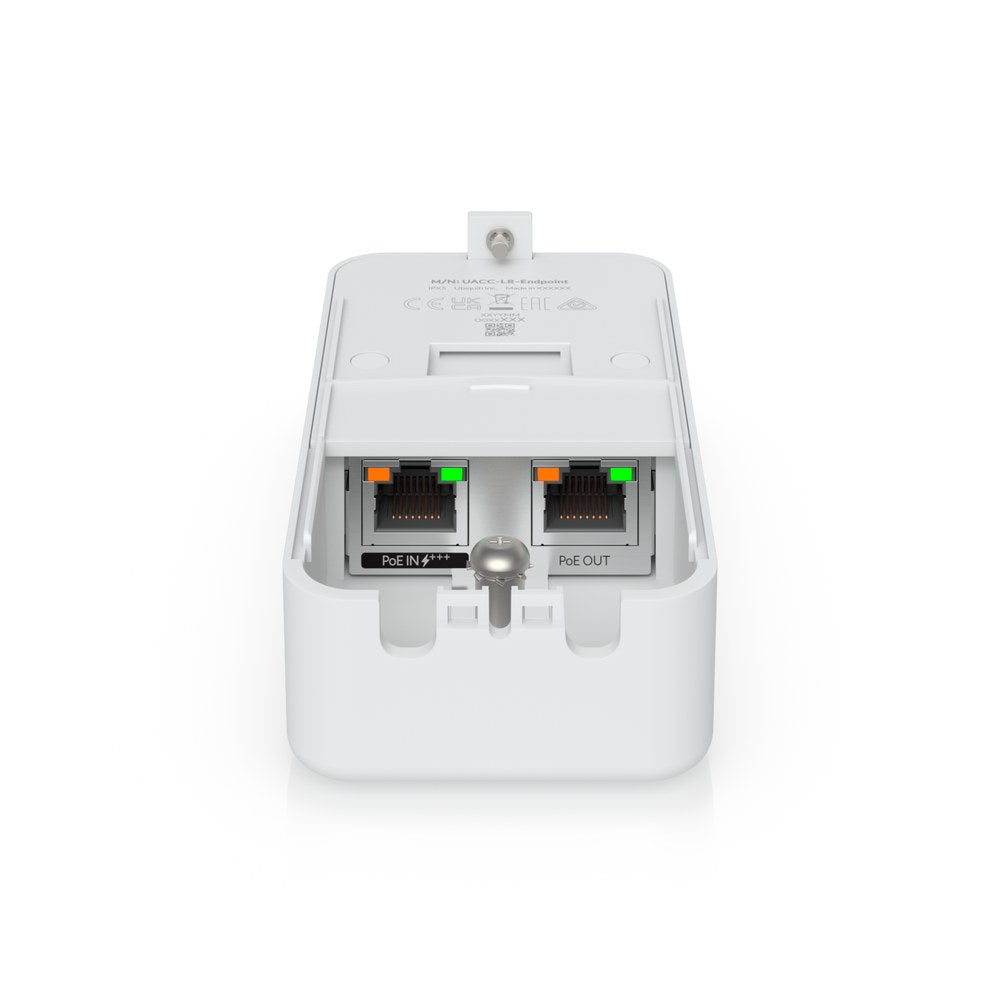

What port does the endpoint have?
It has (1) long-range 10/100 MbE PoE+++ port that receives power and data from the switch.
