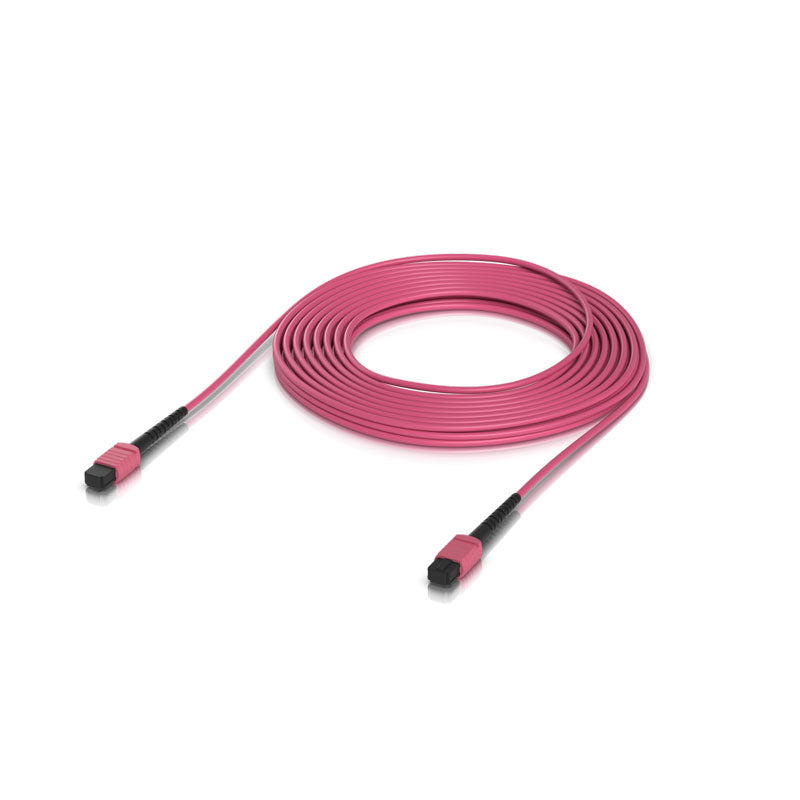

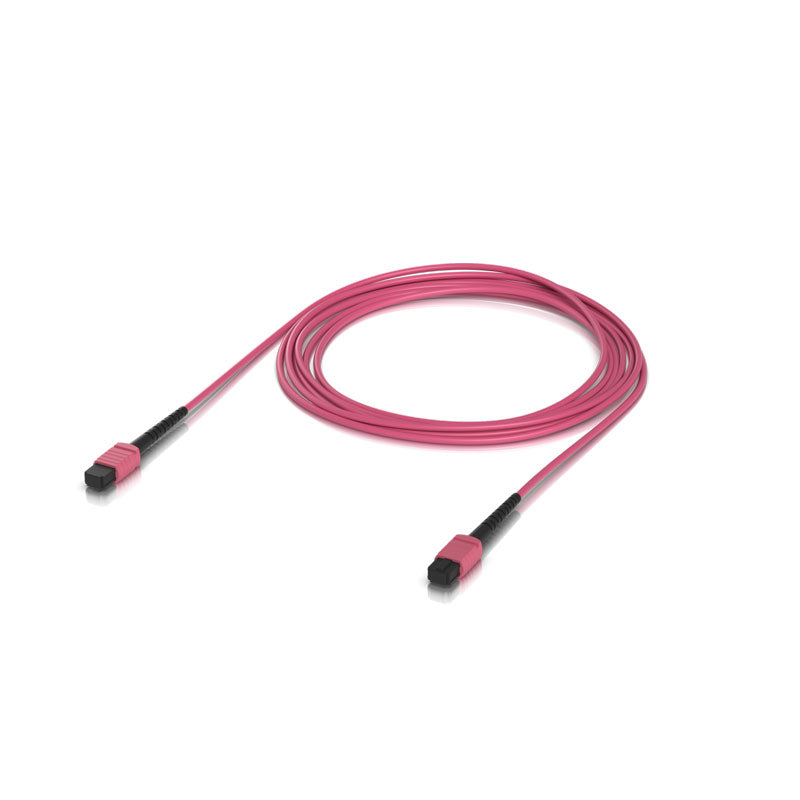

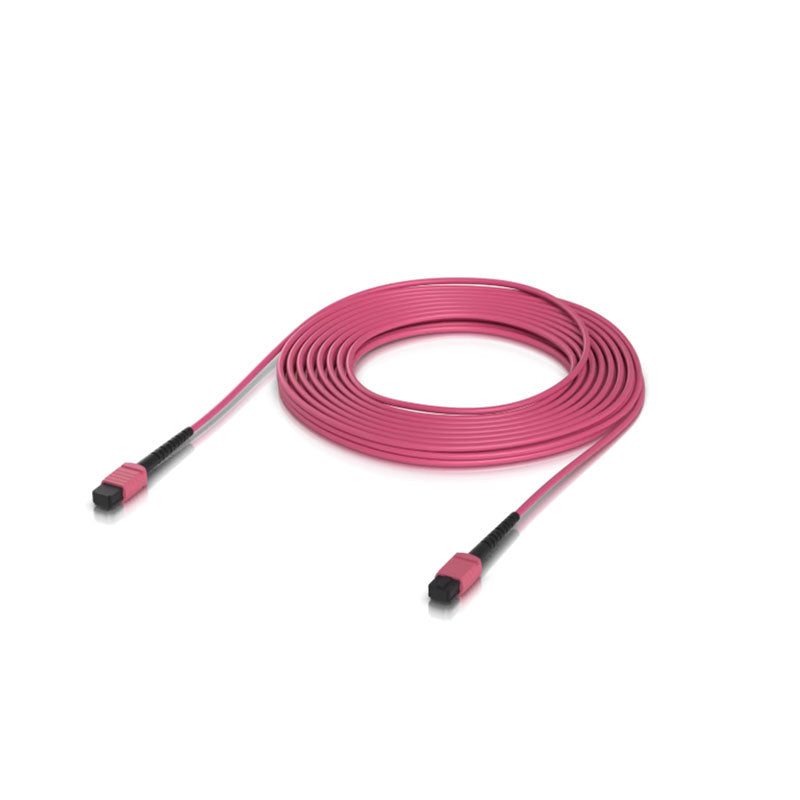

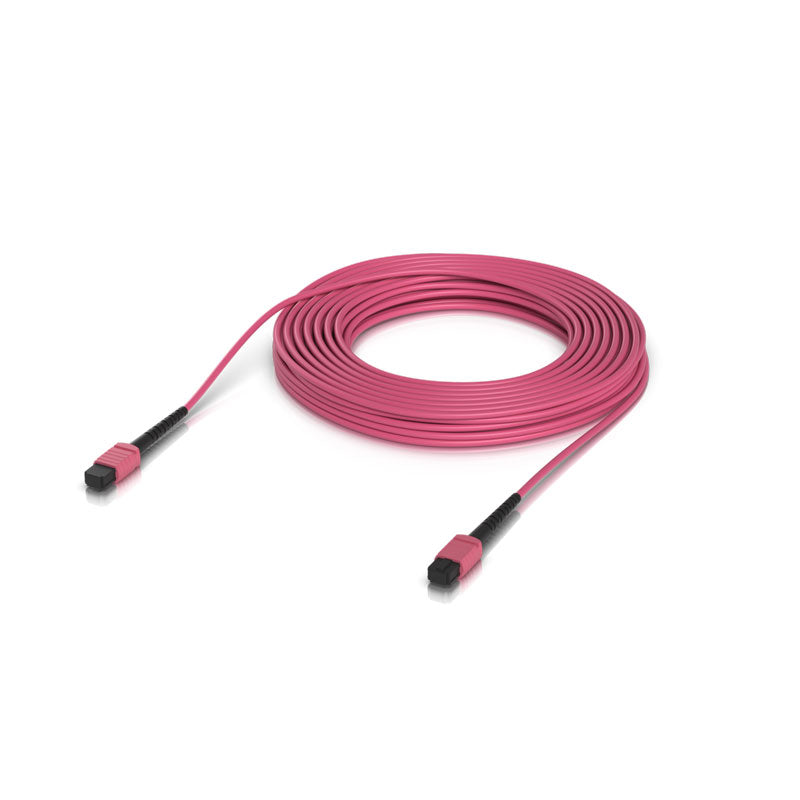

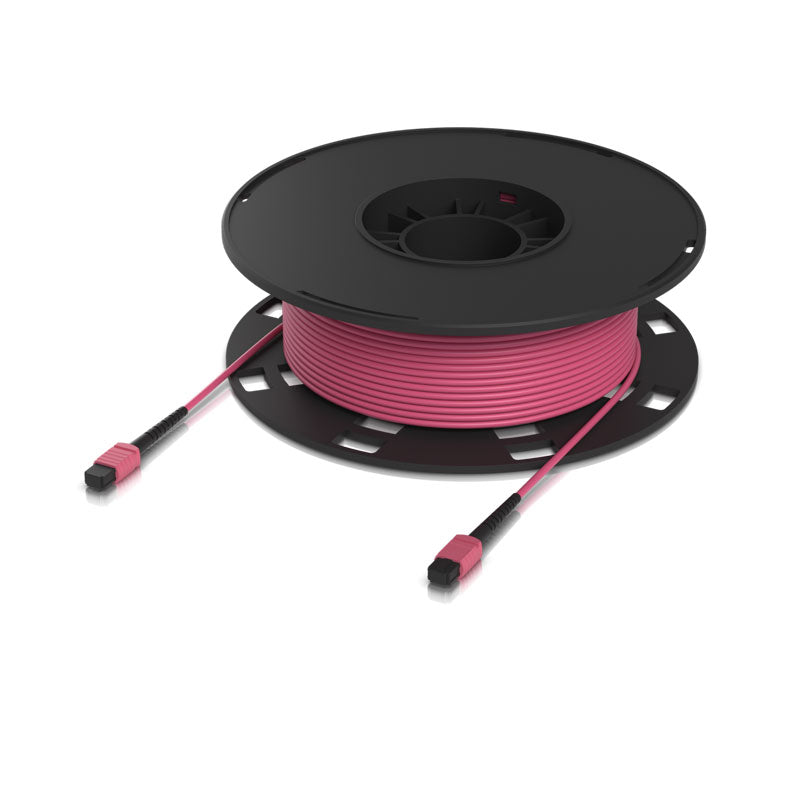

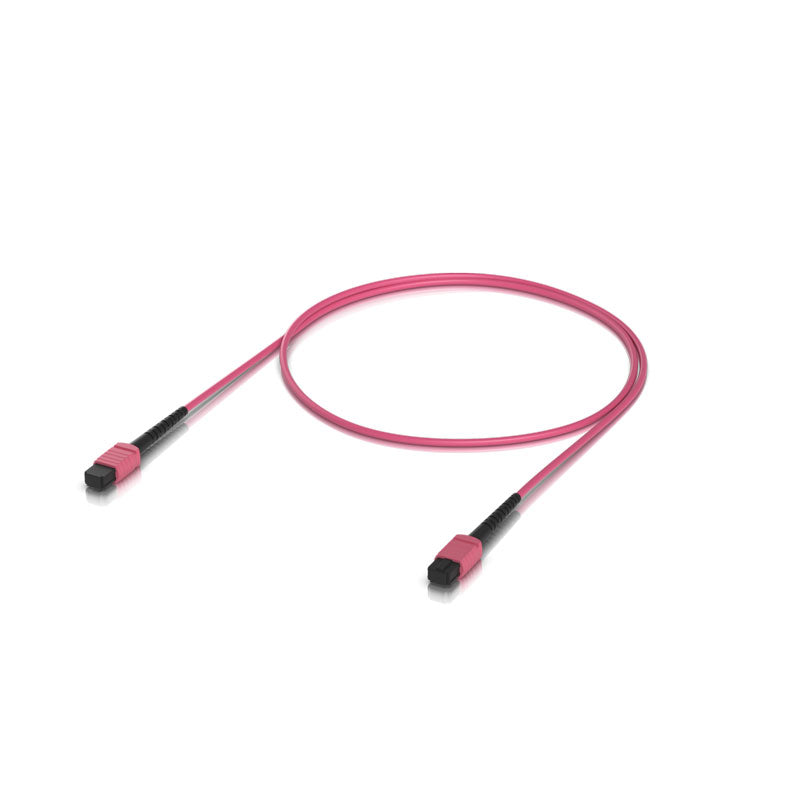

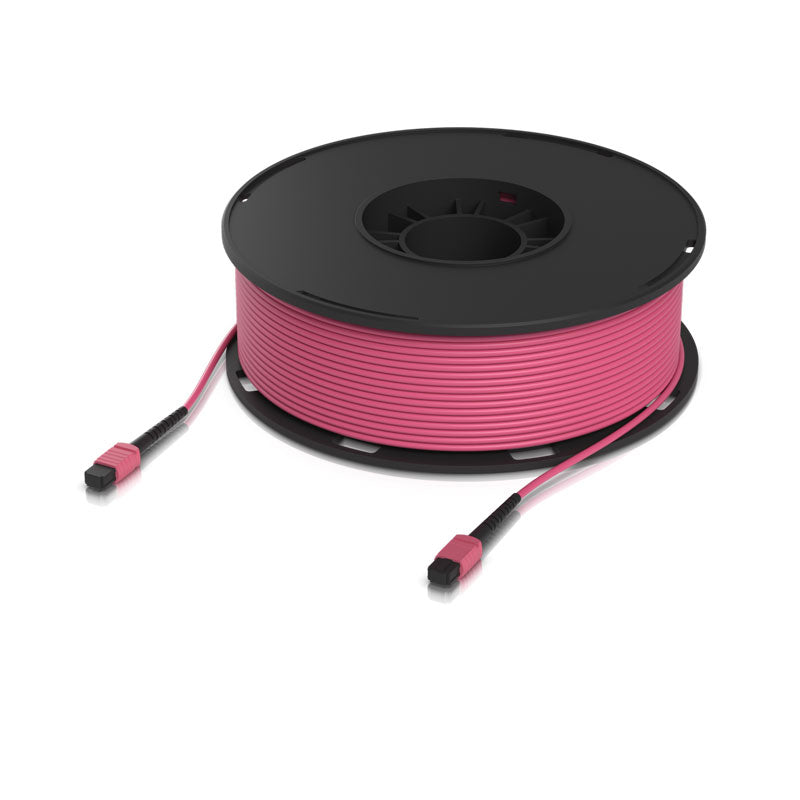

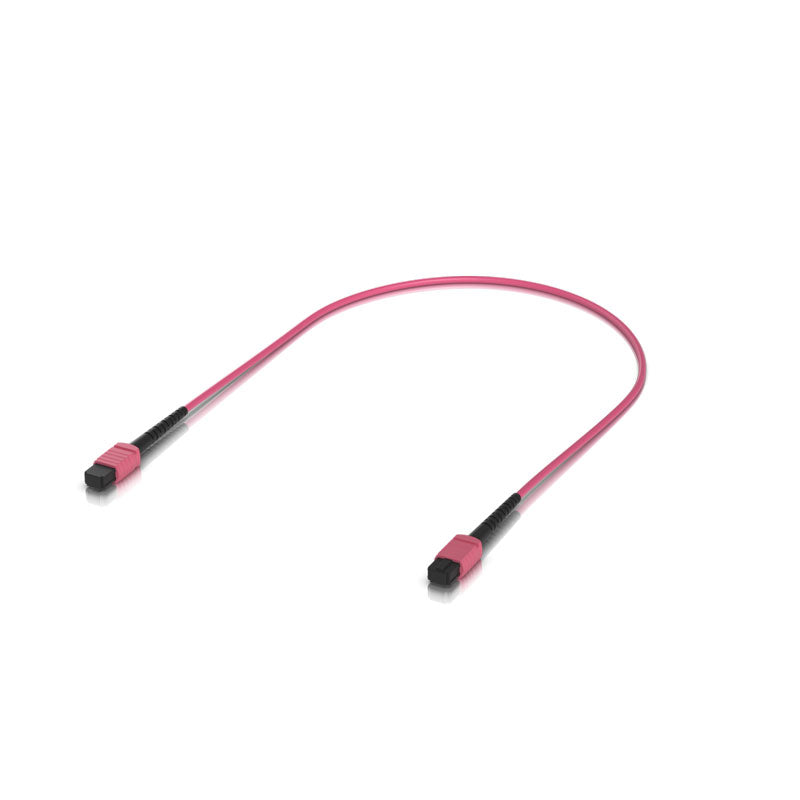

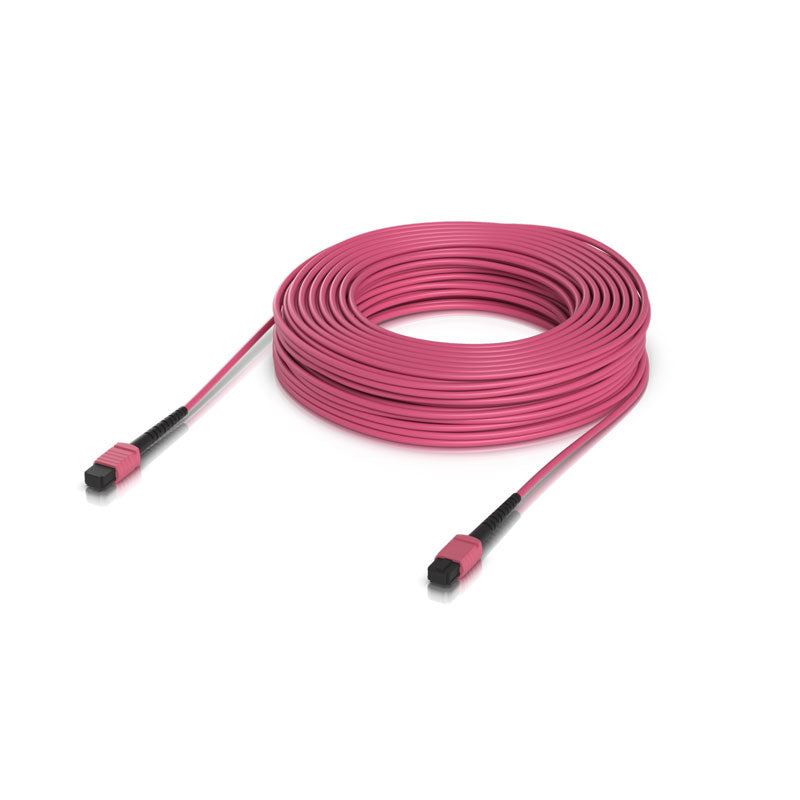

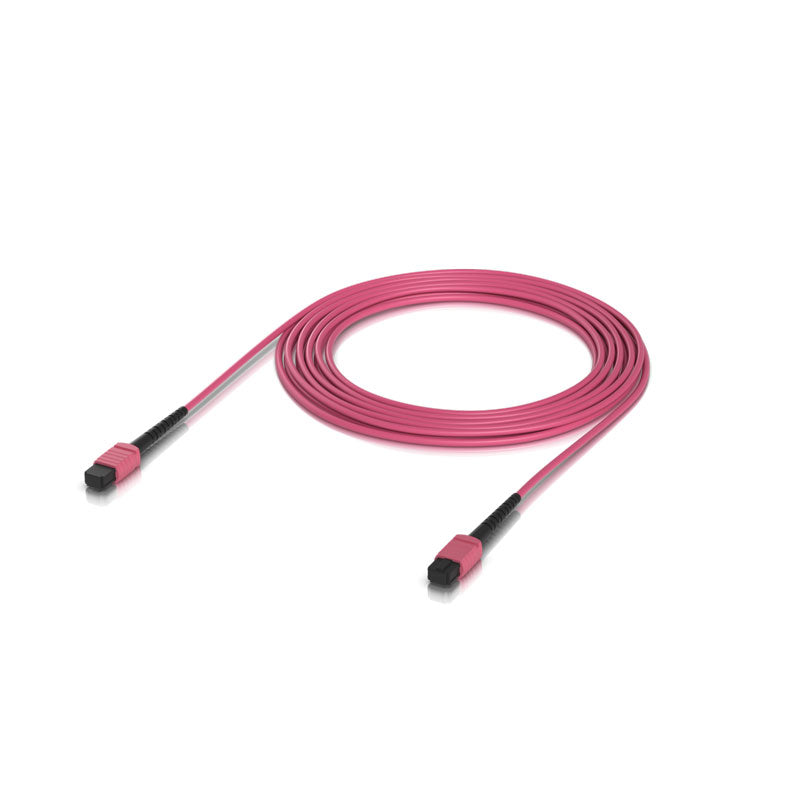

UACC-OFC-MA-MPMP Ubiquiti UniFi OM4 MPO-12 UPC Fiber Patch Cable
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
Description
Description
Features:
OM4 multi-mode fiber
MPO-12 Type B UPC connectors
Available Lengths: 0.5, 1, 3, 5, 10, 15, 30, 60, 100 m
Click HERE to access the Datasheet
Specifications14 specifications · 1 sections
| Overview | |
|---|---|
| Available Lengths | 0.5, 1, 3, 5, 10, 15, 30, 60, 100 m / (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4, 196.9, 328 ft) |
| Pack Options | Single Unit / 10-Pack (0.5/1/3 m) |
| Connector | (2) MPO-12 Type B UPC |
| Operating Environment | Indoor |
| Cable · Fiber Mode | OM4 |
| Cable · Jacket Diameter | 3 mm (0.12") |
| Cable · Jacket Material | Low smoke zero halogen (LSZH) |
| Cable · Jacket Color | Rose |
| Wavelength | 850 nm |
| Insertion Loss | ≤ 0.6 dB |
| Return Loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient Operating Temperature | -40 to 75° C (-40 to 167° F) |
