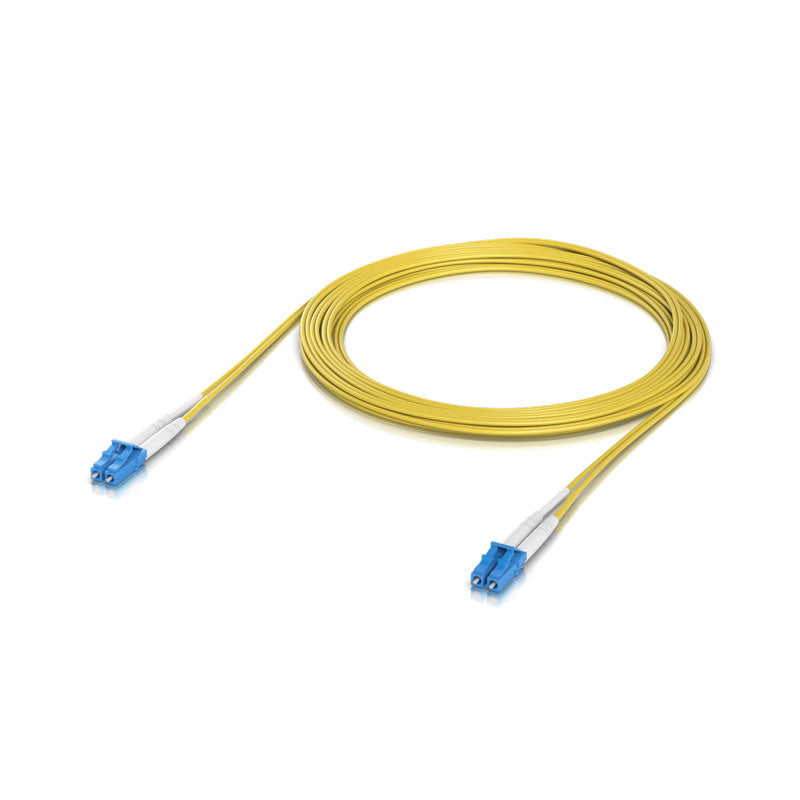

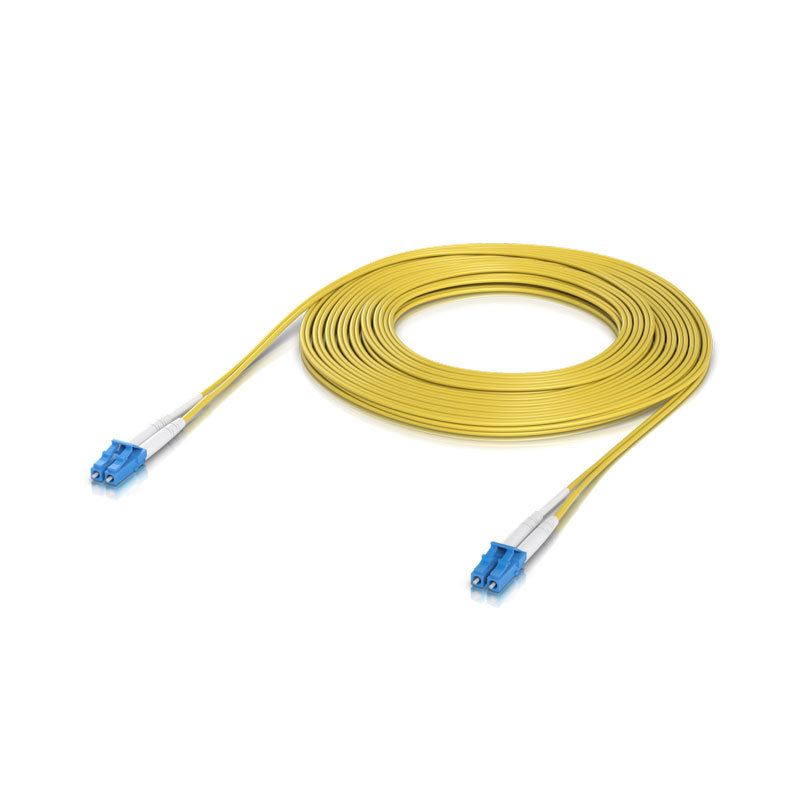

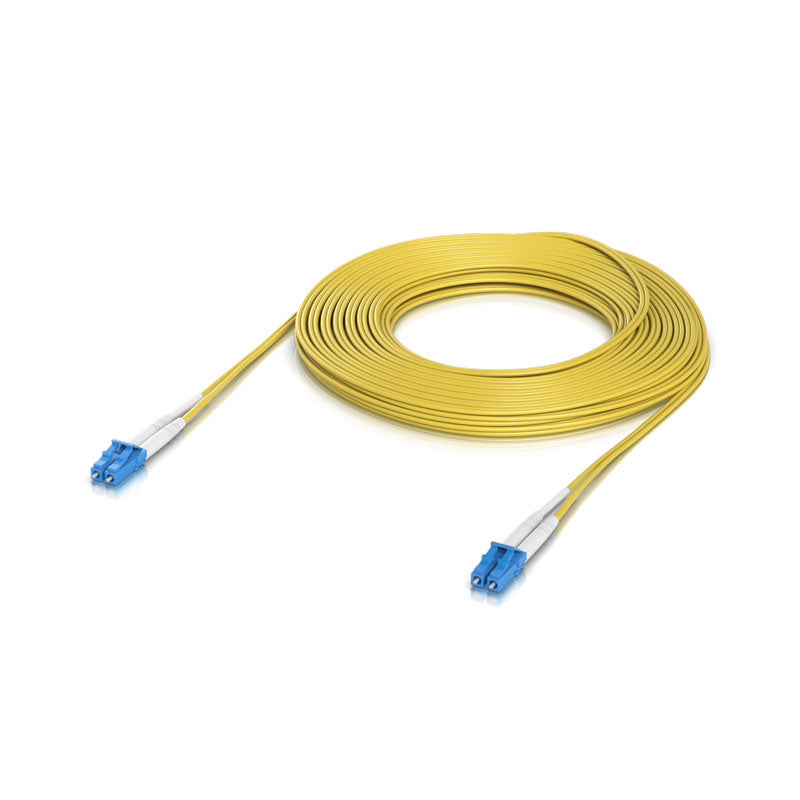

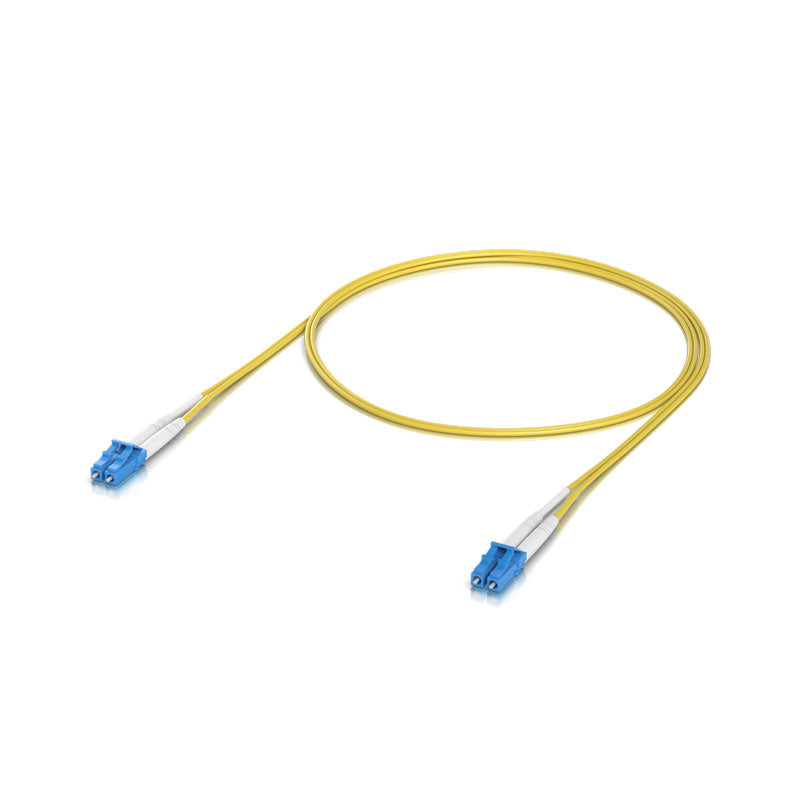

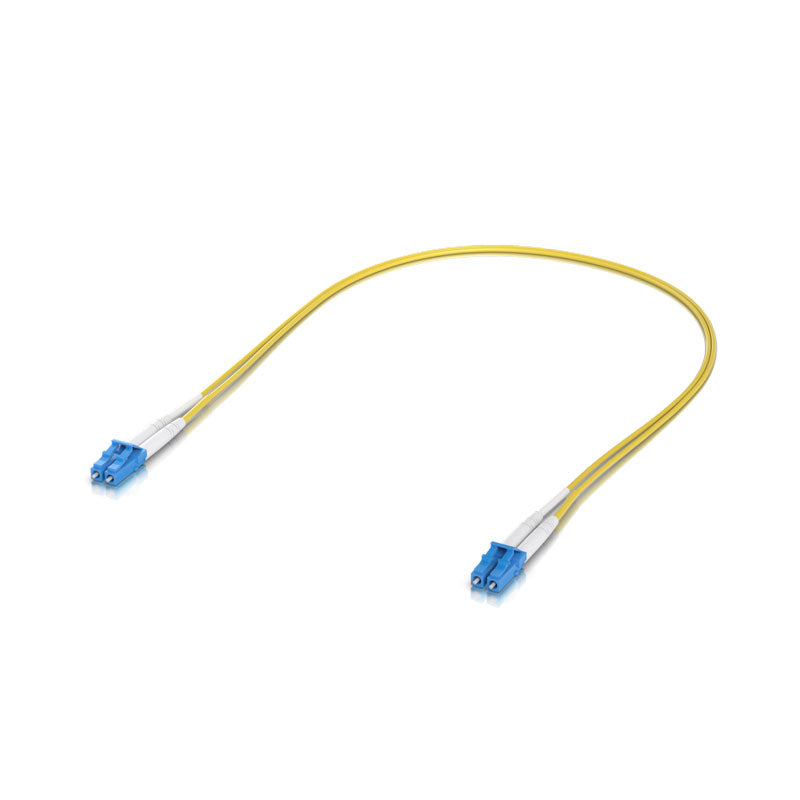

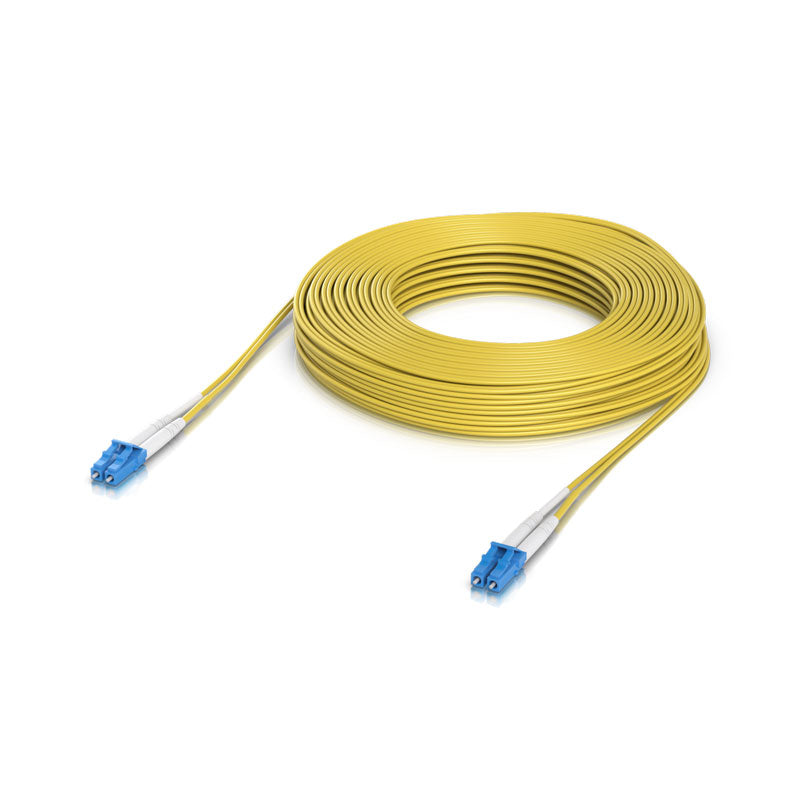

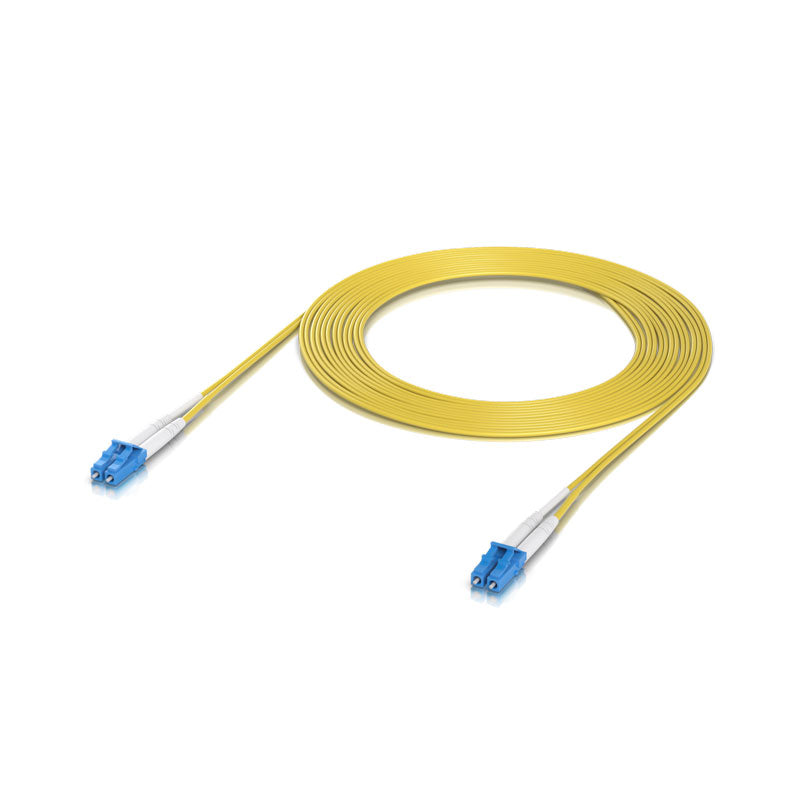

UACC-OFC-S2-LULU Ubiquiti OS2 Duplex LC UPC Fiber Patch Cable with options 0.5 to 30m
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
Description
Description
Lightweight fiber patch cable for up to 100G connections.
Features:
OS2 single-mode fiber
Duplex LC UPC connectors
Cable length 0.5 to 30 m
Available Lengths: 0.5, 1, 3, 5, 10, 15, 30m (1.6, 3.3, 9.8, 16.4, 32.8 ft)
Click HERE to access the Datasheet
Specifications14 specifications · 1 sections
| Overview | |
|---|---|
| Available Lengths | 0.5, 1, 3, 5, 10, 15, 30 m / (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4 ft) |
| Pack Options | Single Unit / 50-Pack (0.5/1/3m) |
| Connector | (2) Duplex LC UPC |
| Operating Environment | Indoor |
| Cable · Fiber Mode | OS2 |
| Cable · Jacket Diameter | 2 mm (0.08") |
| Cable · Jacket Material | Low smoke zero halogen (LSZH) |
| Cable · Jacket Color | Yellow |
| Wavelength | 1310/1550 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient Operating Temperature | -40 to 75° C (-40 to 167° F) |
