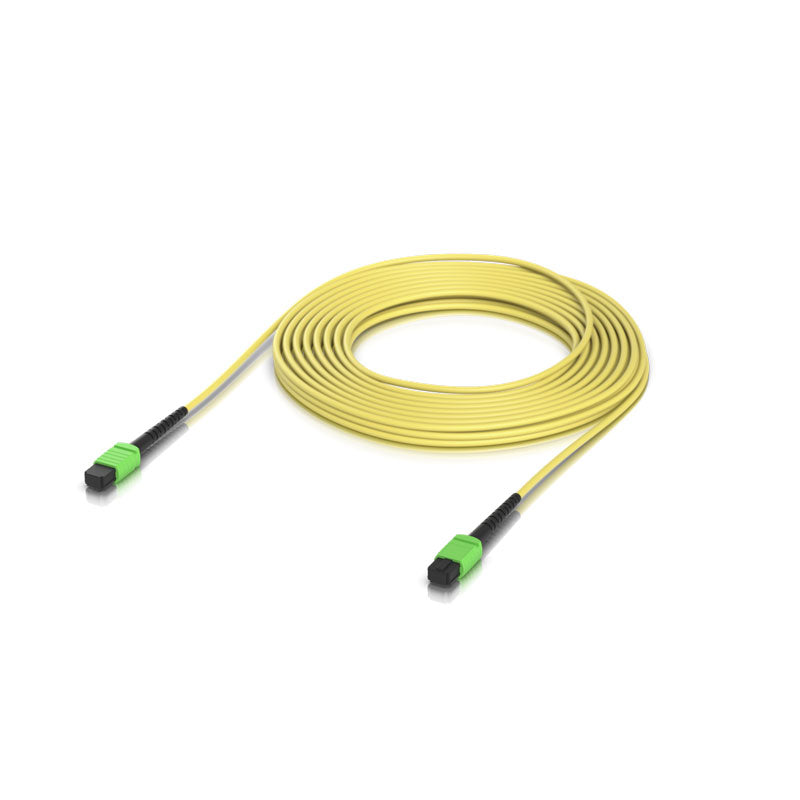

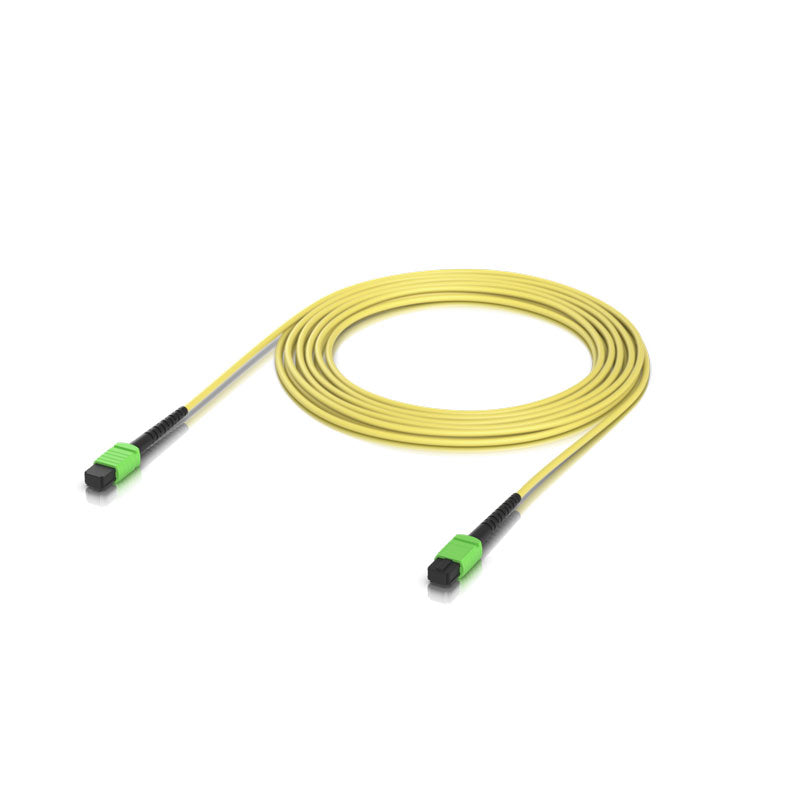

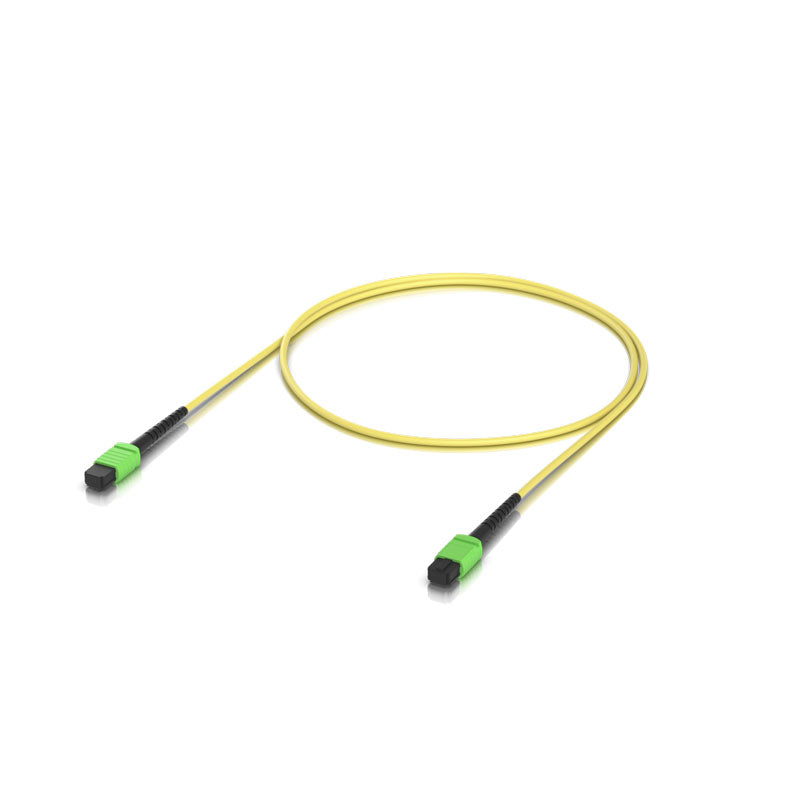

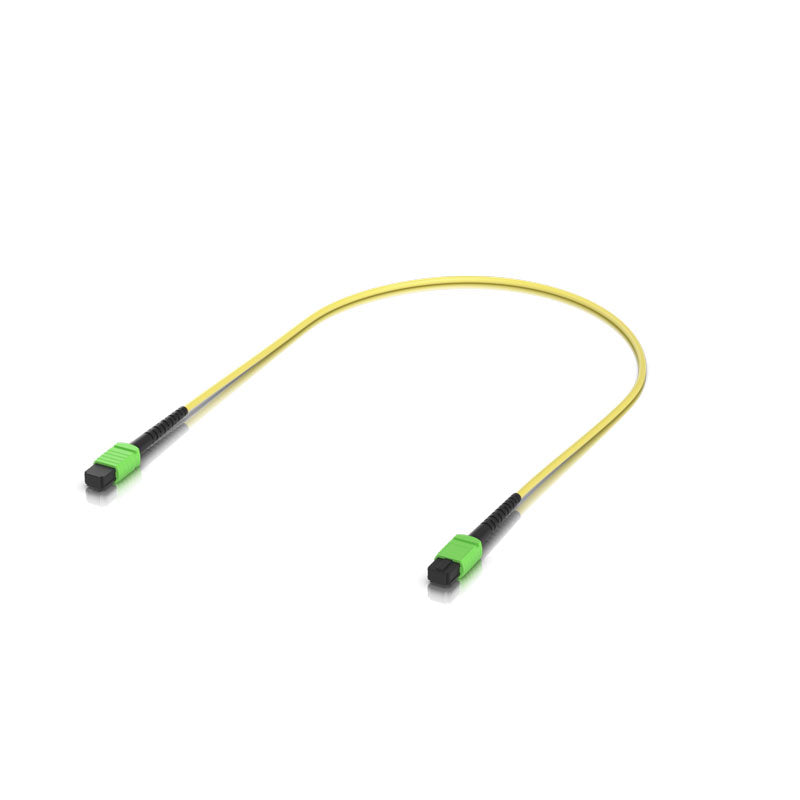

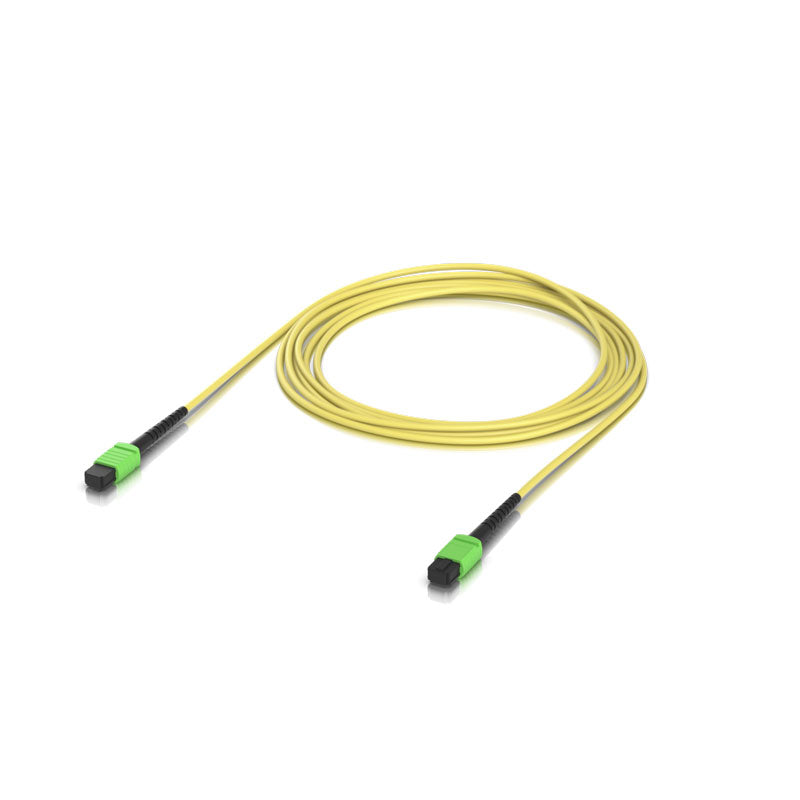

UACC-OFC-SA-MPMP Ubiquiti OS2 MPO-12 APC Fiber Patch Cable
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
Description
Description
Indoor OS2 single-mode fiber patch cable with MPO-12 Type B APC connectors designed for 100G applications.
OS2 single-mode fiber
MPO-12 Type B APC connectors
Cable length: 0.5 to 10 m
Available Lengths: 0.5, 1, 3, 5, 10m
Click HERE to access the Datasheet
Specifications14 specifications · 1 sections
| Overview | |
|---|---|
| Available Lengths | 0.5, 1, 3, 5, 10 m / (1.6, 3.3, 9.8, 16.4, 32.8 ft) |
| Pack Options | Single Unit / 10-Pack (0.5/1/3m) |
| Connector | (2) MPO-12 Type B APC |
| Operating Environment | Indoor |
| Cable · Fiber Mode | OS2 |
| Cable · Jacket Diameter | 3 mm (0.12") |
| Cable · Jacket Material | Low smoke zero halogen (LSZH) |
| Cable · Jacket Color | Yellow |
| Wavelength | 1310/1550 nm |
| Insertion Loss | ≤ 0.6 dB |
| Return Loss | ≥ 20 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Ambient Operating Temperature | -40 to 75° C (-40 to 167° F) |
