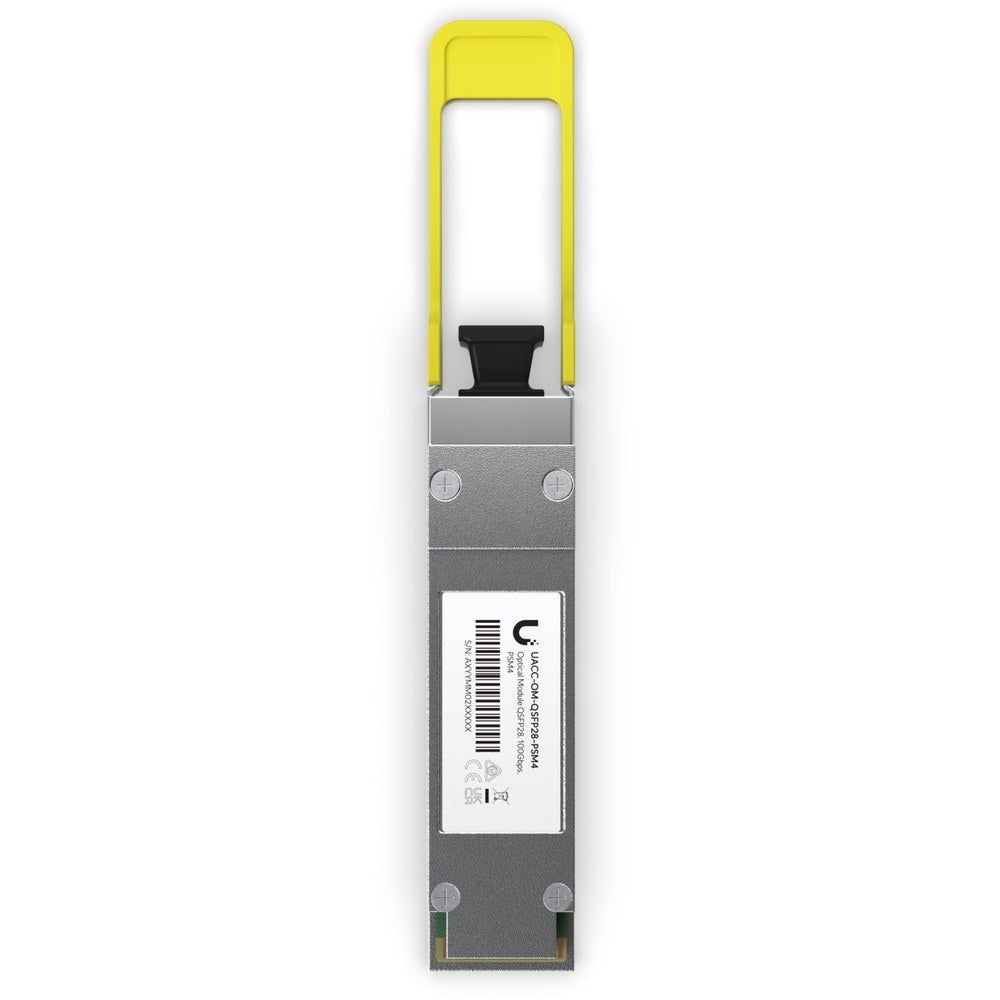

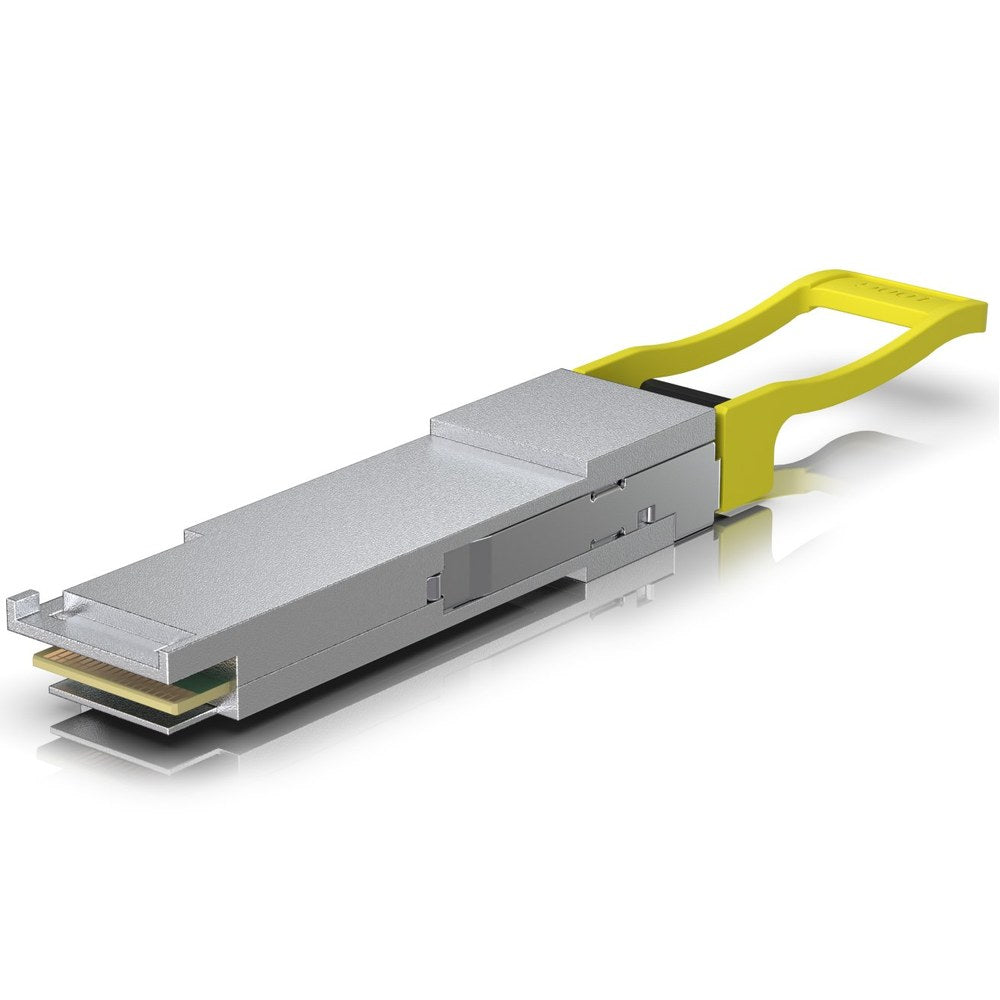

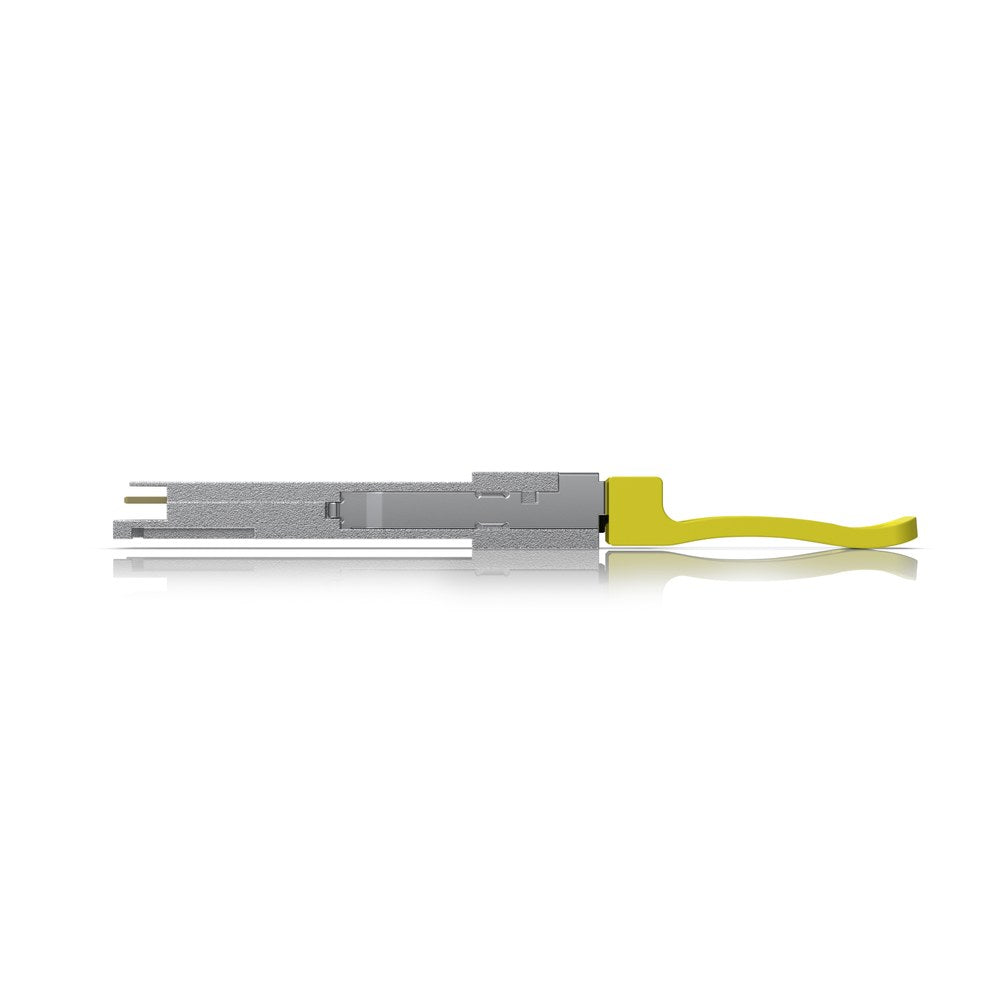

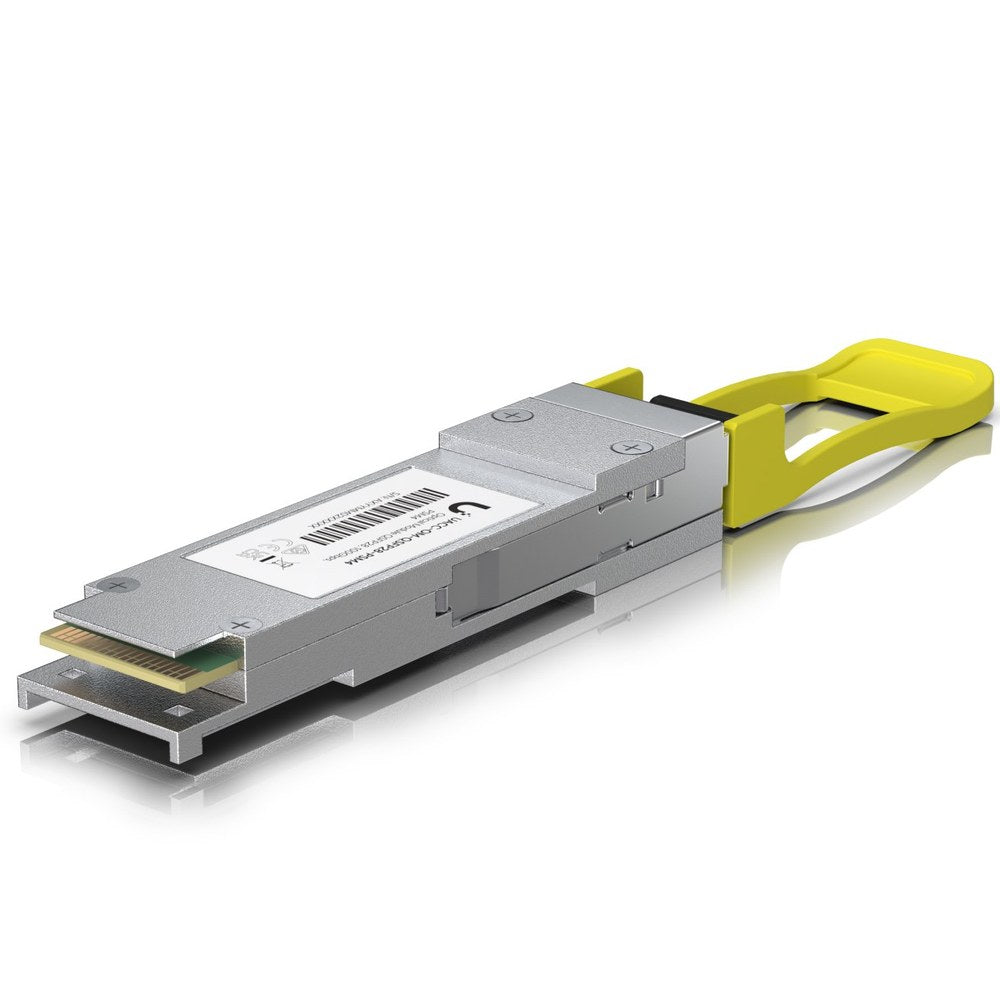

UACC-OM-QSFP28-PSM4 - Ubiquiti 100G PSM4 Single-Mode Optical Module
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The Ubiquiti 100G PSM4 Single-Mode Optical Module (UACC-OM-QSFP28-PSM4) is a high-performance QSFP28 transceiver designed to deliver ultra-fast 100 Gbps connectivity over distances up to 2 km using single-mode fibre. Ideal for enterprise networks, data centres, and aggregation layer deployments, this optical module provides reliable, high-bandwidth connectivity for demanding network infrastructures.
Featuring an MPO-12 Type B APC connector and operating at a 1310 nm wavelength, the UACC-OM-QSFP28-PSM4 is compatible with both QSFP28 and QSFP+ interfaces, offering flexibility for modern UniFi networking equipment. This module requires OS2 single-mode fibre for full 2 km range; transmission distance is limited to 500 m with OS1 single-mode fibre.
Key Features
- 100 Gbps maximum data rate for ultra-high-speed connections
- QSFP28 form factor with MPO-12 Type B APC connector
- Supports single-mode fibre connections up to 2 km (with OS2 fibre)
- Compatible with QSFP28 and QSFP+ interfaces
- 1310 nm TX/RX wavelength
- 3.5 W maximum power consumption
- Operating temperature range: 0 to 70° C
Ideal for: Network administrators and IT professionals managing high-capacity aggregation switches, enterprise campus networks, data centre interconnects, and 100G backbone infrastructure requiring long-distance single-mode fibre connectivity.
Compatible Products
UniFi Enterprise Campus Aggregation (ECS-Aggregation)
This flagship aggregation switch features six 100G QSFP28 ports (100G/40G) and 48 x 25G SFP28 ports, delivering 1.8 Tbps switching capacity with MC-LAG support for high-availability system design.
UniFi Enterprise Campus Switches
The ECS-48S-PoE and ECS-24S-PoE enterprise switches feature two 100G QSFP28 uplink ports, providing high-speed backbone connectivity for demanding enterprise environments.
UniFi Pro AV Switches
The EAV-XG-24-PoE includes four 100G QSFP28 uplinks, whilst the EAV-Fiber features two 100G QSFP28 uplinks, both designed for professional audio/video installations with PTP timing support.
Note: Fibre cable is not included with this module.
Click HERE to access the Datasheet
Specifications11 specifications · 1 sections
| Overview | |
|---|---|
| Form Factor | QSFP28 |
| Connector | MPO-12 Type B APC |
| Supported Media | Single-Mode Fiber |
| TX Wavelength | 1310 nm |
| RX Wavelength | 1310 nm |
| Supported Data Rate | 100 Gbps |
| Supported Cable Distance | 2 km (1.2 mi) |
| Max. Power Consumption | 3.5 W |
| Pack Options | Single Unit |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 / Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
