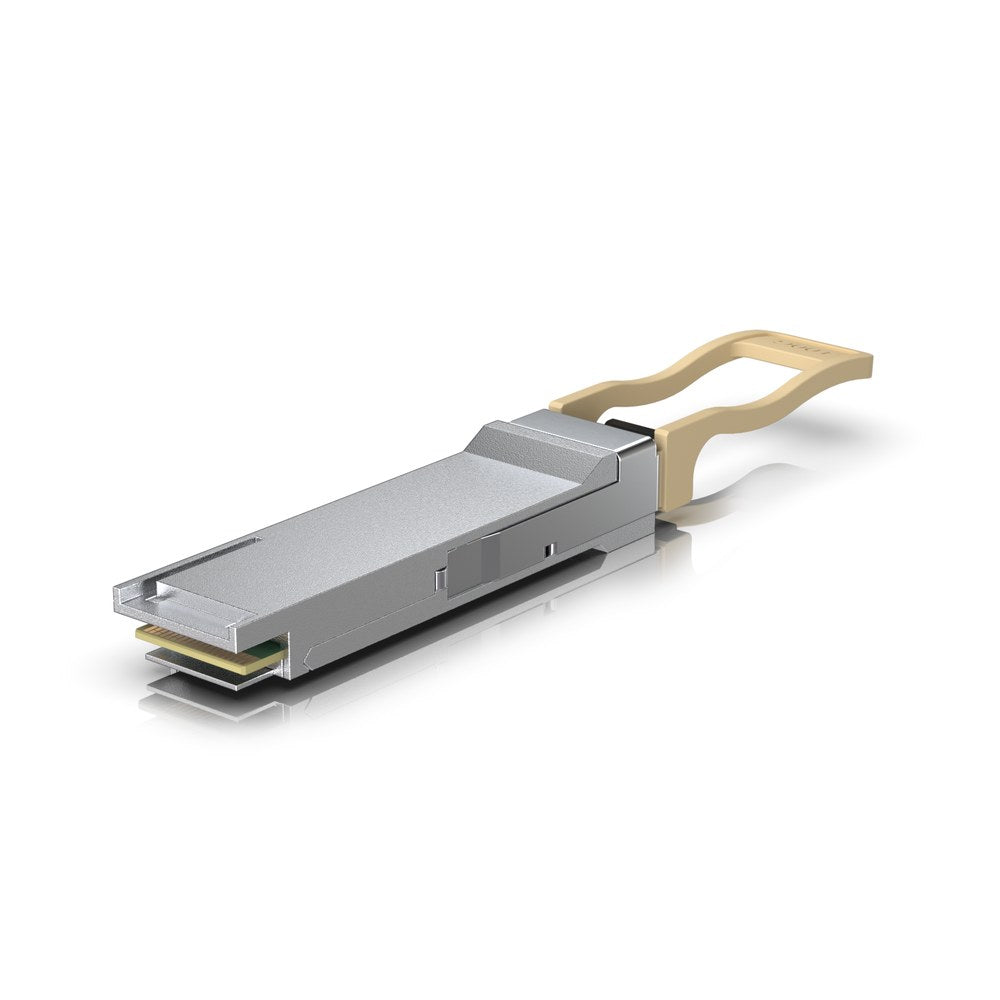

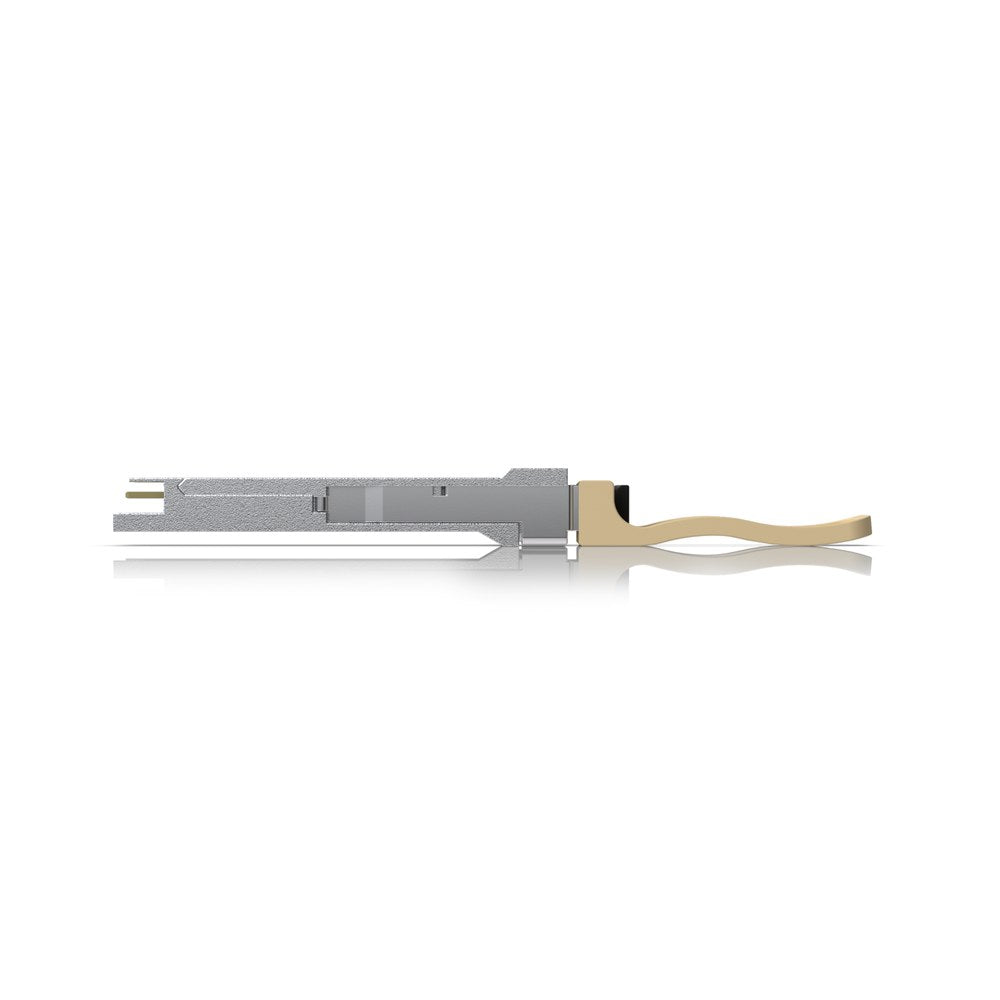

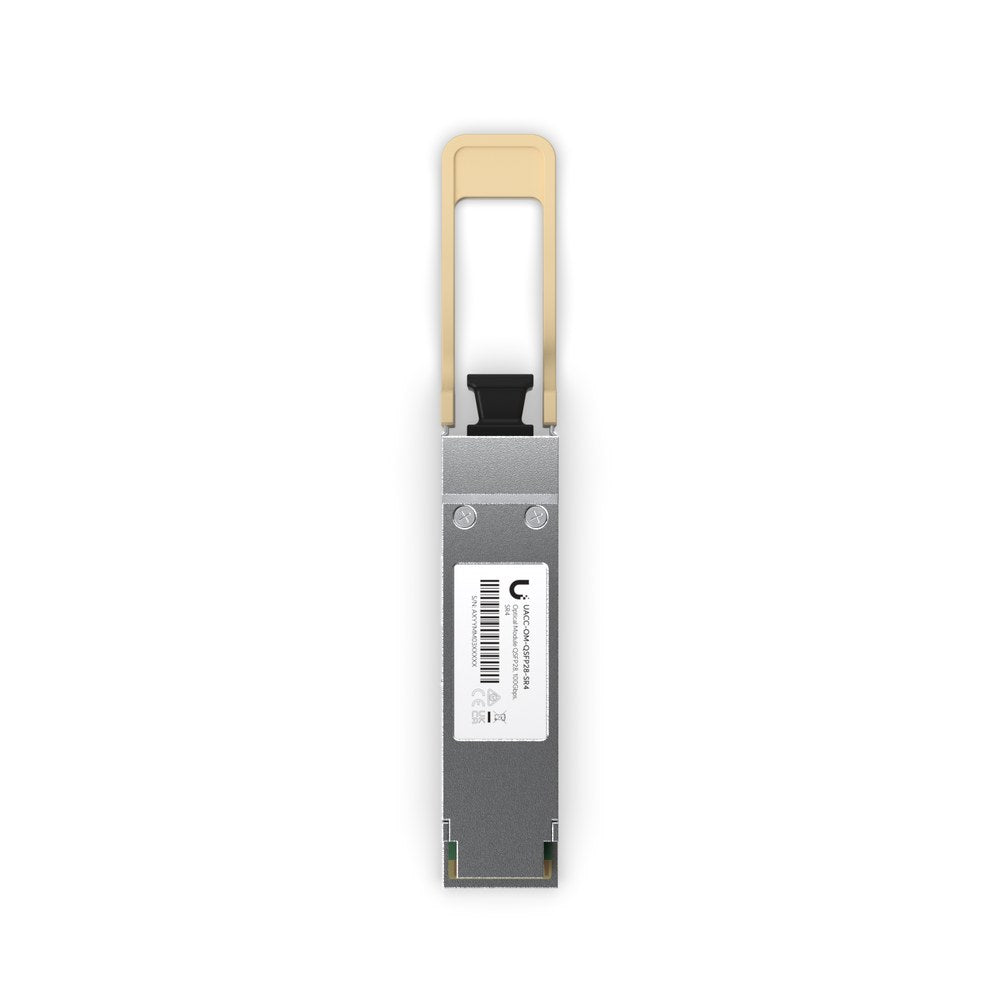

UACC-OM-QSFP28-SR4 - Ubiquiti 100G SR4 Multi-Mode Optical Module
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The Ubiquiti 100G SR4 Multi-Mode Optical Module (UACC-OM-QSFP28-SR4) is a high-performance QSFP28 transceiver designed for ultra-fast 100G connections over multi-mode fibre. Ideal for data centres, enterprise aggregation networks, and professional AV installations, this optical module delivers reliable, low-latency connectivity for demanding applications.
Key Features
- 100 Gbps maximum data rate for ultra-high-speed network performance
- QSFP28 form factor compatible with QSFP28 and QSFP+ interfaces
- MPO-12 Type B UPC connector for multi-mode fibre connections
- Supports 40/100 Gbps data rates with flexible deployment options
- Up to 100 m transmission distance with OM4 fibre (70 m with OM3)
- 850 nm wavelength for both TX and RX operations
- Low power consumption of just 2.5 W maximum
- Operating temperature range: 0 to 70° C
Ideal for: Network administrators and IT professionals building high-capacity backbone connections between aggregation switches, enterprise campus networks, and professional audio/video installations requiring 100G uplinks.
Compatible Products
The UACC-OM-QSFP28-SR4 works seamlessly with Ubiquiti switches featuring 100G QSFP28 ports, including:
Enterprise Campus Aggregation (ECS-Aggregation) – High-density aggregation switch with 6× 100G QSFP28 ports and 48× 25G SFP28 ports, featuring MC-LAG support for high-availability system design.
Enterprise Audio/Video Fiber (EAV-Fiber) – Professional AV switch with 2× 100G QSFP28 uplinks and 20× 10G SFP+ ports, supporting PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio protocols.
Enterprise Audio/Video XG 24 PoE (EAV-XG-24-PoE) – Enterprise AV switch with 4× 100G QSFP28 uplinks and 24× 10G PoE+++ ports for professional broadcast and live production environments.
The module pairs perfectly with multi-mode MPO fibre cables and can also be used with the SFP Wizard (UACC-SFP-Wizard) for universal compatibility and seamless configuration across different network vendors.
Note: Fibre cable sold separately. Distance specifications apply to OM4 multi-mode fibre (100 m) and OM3 multi-mode fibre (70 m).
Click HERE to access the Datasheet
Specifications11 specifications · 1 sections
| Overview | |
|---|---|
| Form Factor | QSFP28 |
| Connector | MPO-12 Type B UPC |
| Supported Media | Multi-Mode Fiber |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Data Rate | 40 / 100 Gbps |
| Supported Cable Distance | OM4 - 100 m (328 ft) / OM3 - 70 m (229 ft) |
| Max. Power Consumption | 2.5 W |
| Pack Options | Single Unit |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 / Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
