UACC-OM-SM-10G-S-20 - Ubiquiti Single-Mode Fiber Module 10G BiDi (20-Pack)
We do not hold this locally right now, but it is in stock in the UK. Contact us and we will tell you what is possible.
Description
Description
The Ubiquiti UACC-OM-SM-10G-S-20 is a professional-grade SFP+ bidirectional single-mode optical module designed to deliver high-performance 10 Gbps fiber connectivity over long distances. This 20-pack offers exceptional value for medium to large-scale network deployments requiring reliable, cost-effective single-mode fiber connectivity.
Featuring advanced BiDi (bidirectional) technology, the UACC-OM-SM-10G-S uses a single fiber strand to transmit and receive data simultaneously, reducing fiber infrastructure requirements and installation costs. The module utilises a simplex LC UPC connector and supports cable distances up to 10 km (6.2 miles), making it ideal for campus networks, inter-building connections, and long-distance uplinks.

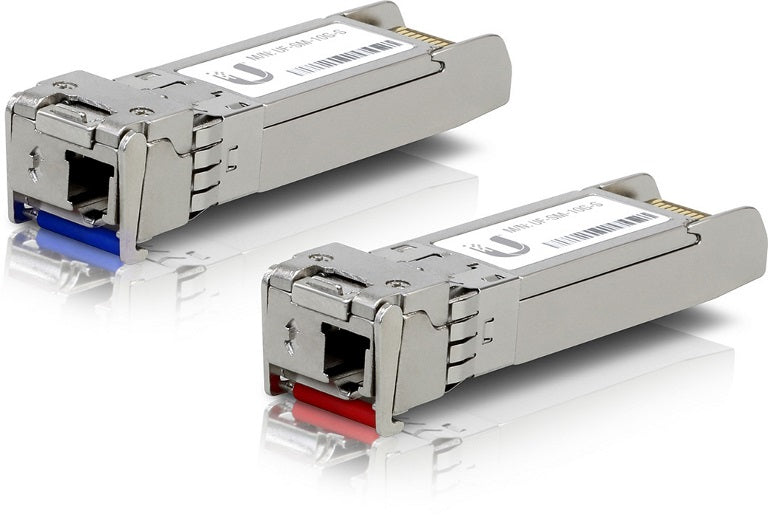

The transceiver operates at dual wavelengths – transmitting at 1270 nm or 1330 nm and receiving at 1330 nm or 1270 nm depending on the module (blue or red latch) – ensuring efficient bidirectional communication. With support for both 1 Gbps and 10 Gbps data rates, this module offers flexibility for various network configurations and is compatible with SFP+ and SFP interfaces.
Key Features
- 10 Gbps throughput with 1 Gbps backward compatibility
- BiDi technology – single fiber strand for TX and RX
- Simplex LC UPC connector for simplified cabling
- 10 km maximum cable distance on single-mode fiber
- TX wavelength: 1270 nm / 1330 nm
- RX wavelength: 1330 nm / 1270 nm
- SFP+ form factor compatible with SFP+ and SFP ports
- Low power consumption: 1 W maximum
- Operating temperature: 0 to 70° C (32 to 158° F)
- 20-pack configuration for large deployments
Ideal for: Network administrators, system integrators, and IT professionals deploying enterprise networks, data centres, campus connectivity, or building-to-building links requiring cost-effective long-distance fiber connectivity with minimal fiber infrastructure.
Compatible Products
The UACC-OM-SM-10G-S is officially supported and compatible with all UniFi Switch models, UniFi Dream Machine Pro, UniFi Security Gateway, EdgeSwitch, and EdgeRouter models featuring SFP or SFP+ ports. Pair these modules with single-mode fiber patch cables (sold separately) for complete connectivity solutions.
Note: Fiber cable is not included. CLASS 1 LASER PRODUCT – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
Frequently asked questions5 questions
What is the UACC-OM-SM-10G-S-20 used for?
How far can these modules reach?
Why does BiDi technology use only one fibre strand?
Do these modules work at 1 Gbps as well as 10 Gbps?
Which Ubiquiti products are these modules compatible with?
Click HERE to access the Datasheet
Specifications11 specifications · 1 sections
| Overview | |
|---|---|
| Form Factor | SFP+ |
| Connector | Simplex LC UPC |
| Supported Media | Single-Mode Fiber |
| TX Wavelength | 1270 / 1330 nm |
| RX Wavelength | 1330 / 1270 nm |
| Supported Data Rate | 1 / 10 Gbps |
| Supported Cable Distance | 10 km (6.2 mi) |
| Max. Power Consumption | 1 W |
| Pack Options | 2-Pack / 20-Pack |
| Ambient Operating Temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 / Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
