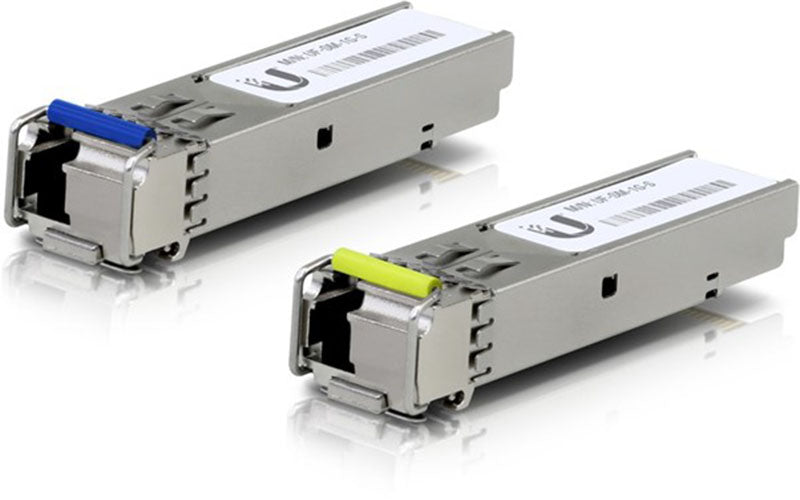

UACC-OM-SM-1G-S-2 Ubiquiti UFiber BiDi Single-Mode 1G Module 2-Pack

$48.40 AUD

20+ in stockShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney, Brisbane, Adelaide and Perth

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

Single-mode, simplex, fiber transceiver module 2 Pack

The 1 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 1.25 Gbps speed over distances up to 3 kilometers.

Deploy a BiDi BiDirectional) model to maximize re-use of existing infrastructure. You must deploy a BiDi model as a paired set of modules because the pair uses two different wavelengths, upstream and downstream, on a single fiber.

Features:

Supported Media: Single-Mode Fiber
Connector Type: 1x LC
TX Wavelength: 1310 nm Blue 1550nm Yellow
RX Wavelength: 1550 nm Blue 1310nm Yellow
Data Rate: 1.25 Gbps SFP+
Cable Distance: 3 km

Frequently asked questions5 questions

What is the UACC-OM-SM-1G-S-2 used for?

It is a single-mode, simplex BiDi fibre transceiver module that delivers up to 1.25 Gbps over distances up to 3 kilometres. BiDi models help maximise re-use of existing fibre infrastructure.

Do I need to use these modules as a pair?

Yes. A BiDi model must be deployed as a paired set, because the two modules use different wavelengths for upstream and downstream on a single fibre. This pack contains two modules.

What wavelengths do the two modules use?

One module transmits at 1310 nm and receives at 1550 nm (marked blue), while the other transmits at 1550 nm and receives at 1310 nm (marked yellow). The two must be matched as a pair.

What type of fibre and connector does it use?

It supports single-mode fibre and has a single LC connector. Because it is a simplex BiDi module, both directions run over one fibre.

What is the maximum speed and distance?

The data rate is 1.25 Gbps and the maximum cable distance is 3 km.

Click HERE to access the Datasheet

Specifications11 specifications · 1 sections

Overview
Form Factor	SFP
Connector	Simplex LC UPC
Supported Media	Single-Mode Fiber
TX Wavelength	1310 / 1550 nm
RX Wavelength	1550 / 1310 nm
Supported Data Rate	1 Gbps
Supported Cable Distance	3 km (1.9 mi)
Max. Power Consumption	0.66 W
Pack Options	2-Pack / 20-Pack
Ambient Operating Temperature	0 to 70° C (32 to 158° F)
WARNING	CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 / Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
