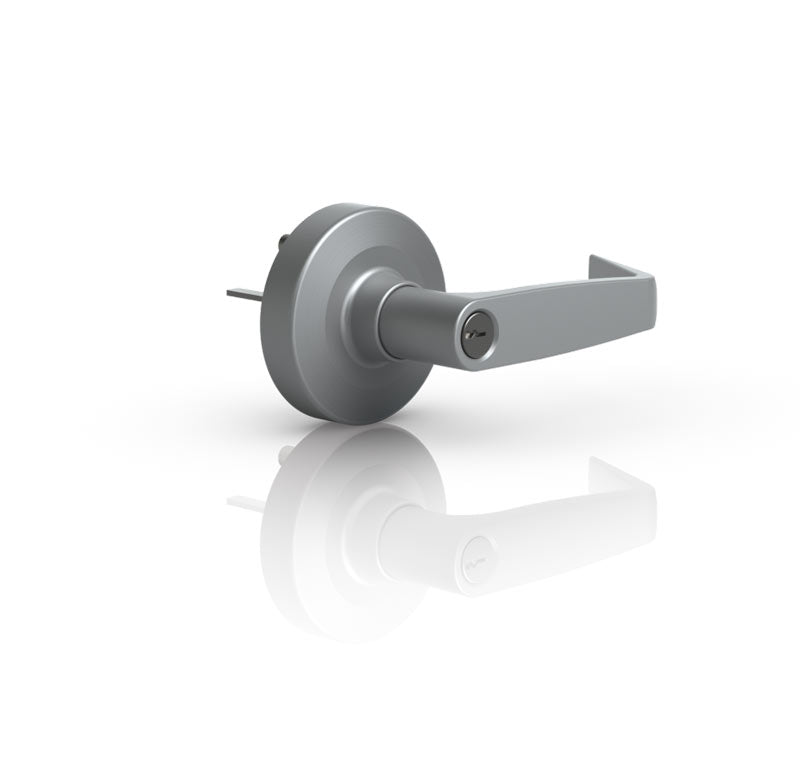

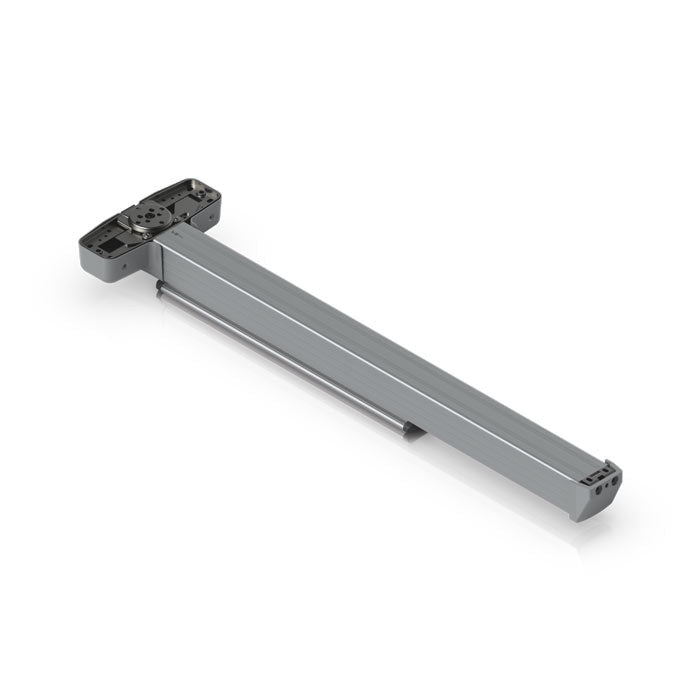

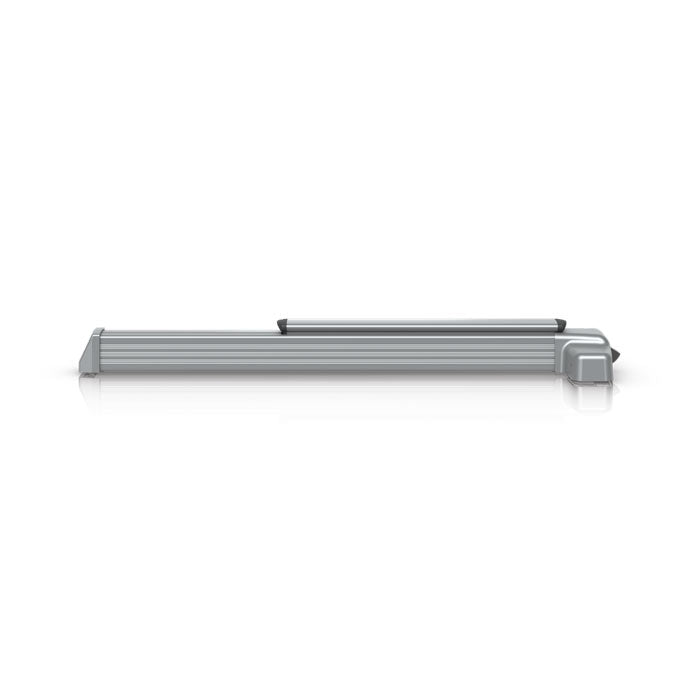

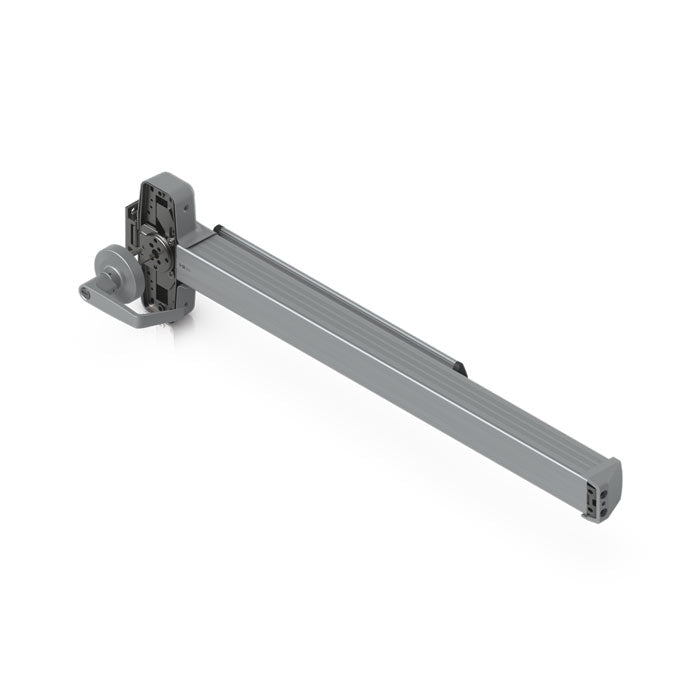

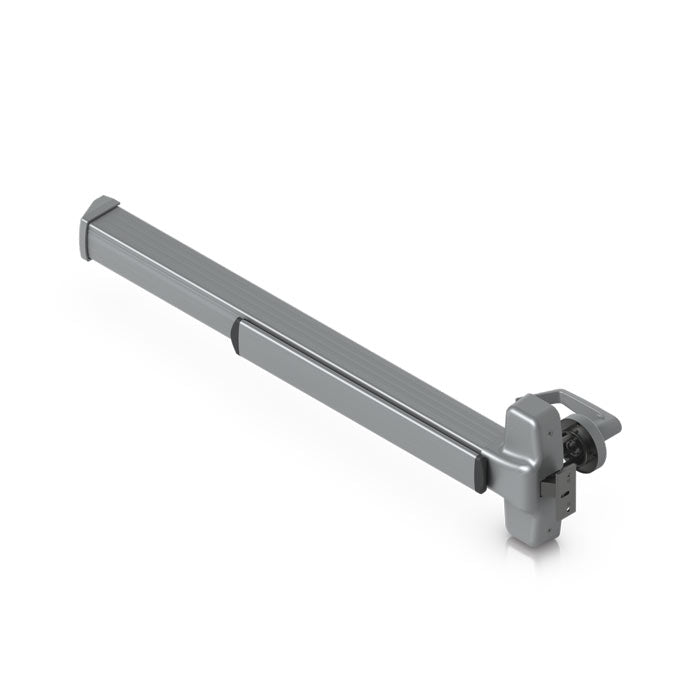

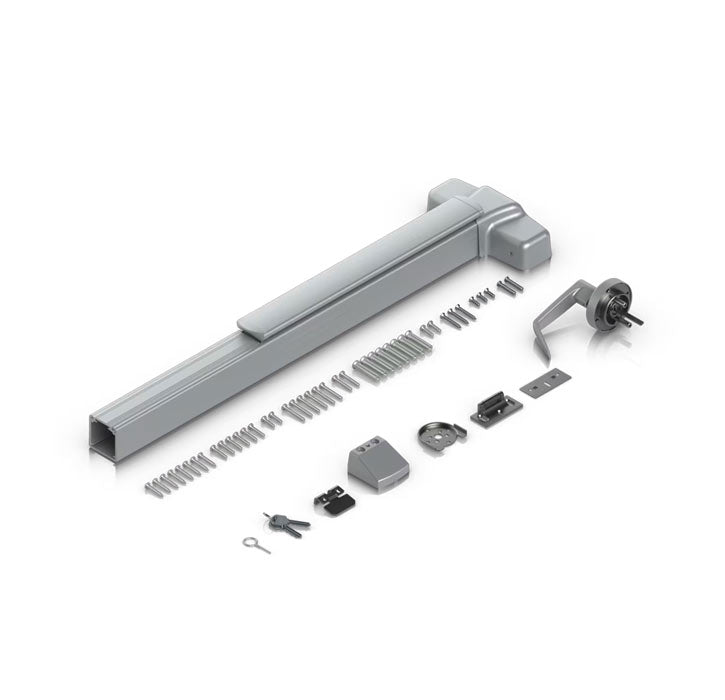

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-PanicBar
UACC-PanicBar Ubiquiti UniFi Access Panic Bar
$776.16 AUD
Unit price
/
Unavailable
In stock · Last fewShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

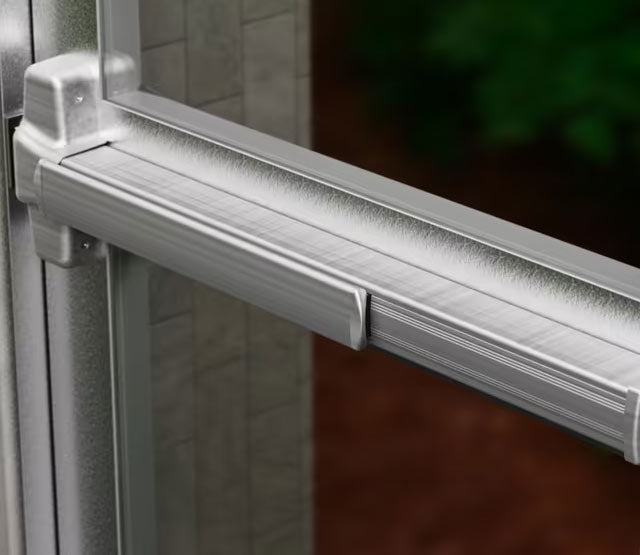

A single-latched bar installed on emergency exit doors, allowing quick and easy egress by pushing the bar to open the door during emergencies.
Frequently asked questions5 questions
What is the UniFi Access Panic Bar used for?
It is a single-latched bar fitted to emergency exit doors. Pushing the bar opens the door, allowing quick and easy egress in an emergency.
What door sizes does the panic bar suit?
It suits doors 711 to 914 mm (2'4" to 3') wide and either 44 mm (1-3/4") or 51 mm (2") thick, in metal or wood. The strike is designed for a 19 mm (3/4") stop.
How does the panic bar connect to an access system?
It has a two-line dry relay connection with a dry output rated at 30V DC, 1A. Pushing the bar gives a short and releasing it gives an open.
Can it be fitted to either hand of door?
Yes. It is non-handed and reversible for all functions and trims.
What certifications does the panic bar carry?
It is certified to UL 305, UL 10C and CAN/ULC-S132, and is an ANSI/BHMA A156.3 Grade 1 exit device. It also meets California Building Code Sec. 11B-309.4.
Specifications11 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 838 x 294 x 94 mm / (33 x 11.6 x 3.7") |
| Weight | 5.8 kg (12.8 lb) |
| Enclosure Material | Aluminum, stainless steel |
| Supported Door Width | 3′ standard for door width of 2′4″ to 3′ (711 to 914 mm) |
| Supported Door Thickness | 1-3/4” (44 mm) and 2” (51 mm) thick of metal or wood door |
| Strike | For 3/4” (19 mm) stop |
| Reversible | Non-handed, reversible for all functions and trims |
| Stiley | 4-1/4” (108 mm) minimum |
| Connection | 2 lines for dry relay |
| Wiring Connection | Dry output / Contact rating: 30V DC, 1A / Push = Short/Release = Open |
| Hardware | |
| Certifications | UL 305, UL 10C, CAN/ULC-S132 / ANSI/BHMA A156.3 Grade 1 Exit Devices / Meets California Building Code Sec. 11B-309.4. |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-PanicBar · Ubiquiti's spec sheet
