Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-PoE++-10G
UACC-PoE++-10G Ubiquiti UniFi 10G PoE++ Adapter (60W)
$78.06 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit (1/2.5/5/10Gb/s) LAN connection.
Features:
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection

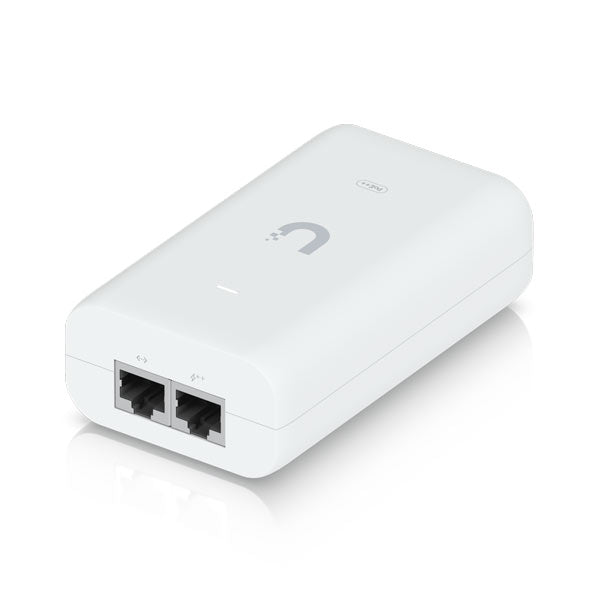

Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring
Frequently asked questions5 questions
What is the UACC-PoE++-10G used for?
It powers UniFi PoE++ devices and reduces dependence on PoE switch power. It also provides a Multi-Gigabit (1/2.5/5/10Gb/s) LAN connection.
How much power does it deliver, and which PoE standards does it support?
It delivers up to 60W of PoE++, with an output of 54V DC at 1.12A. It supports IEEE 802.3af (15.4 W), 802.3at (PoE+ 30 W) and 802.3bt Type 3 (PoE++ 60 W).
Which UniFi devices is it compatible with?
It is listed as compatible with the E7, E7-Campus and E7-Audience.
What connections does it have, and is a power cable included?
It has a shielded RJ45 data input, an AC cable with earth ground, and a PoE++ output. The power cable is included, and an LED indicator shows status.
What surge protection does it provide?
It has surge, peak pulse and overcurrent protection, covering difference and common mode. Clamping protection is 11V on data and 60V on power, with a maximum surge discharge of 1500A (8/20 μs) on power.
Specifications26 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | 106 x 63 x 34 mm / (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Power Cable | Included |
| Output Voltage | 54V DC at 1.12A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection | 11V Data, 60V power |
| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 1.5A Max. |
| Inrush Current | <150A peak at 230V AC |
| Efficiency | >88% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 2% |
| Load Regulation | ≤ 5% |
| Max. PoE+ Wattage per Port by PSE | 60W |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Supported IEEE Standards | 802.3af (PoE 15.4 W) / 802.3at (PoE+ 30 W) / 802.3bt Type 3 (PoE++ 60 W) |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-PoE++-10G · Ubiquiti's spec sheet
