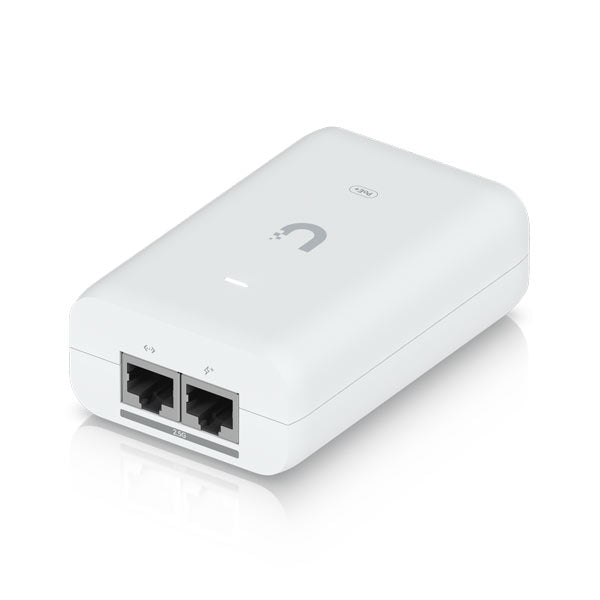

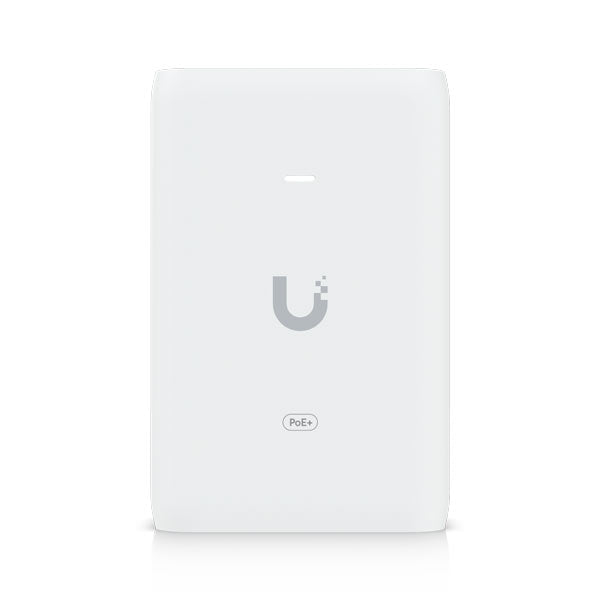

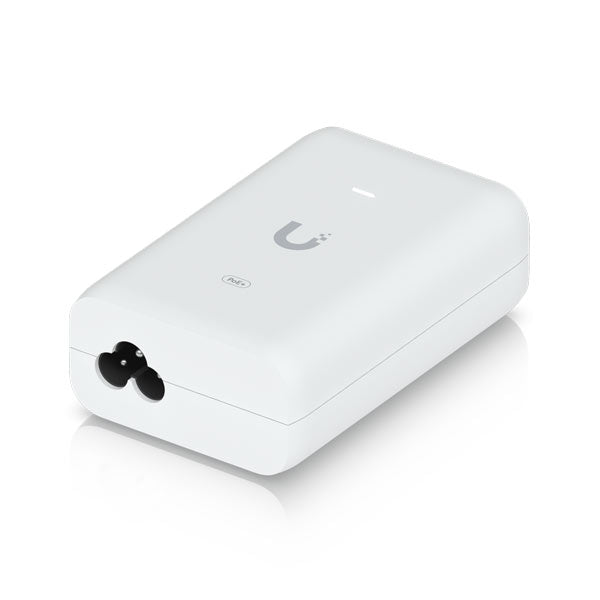

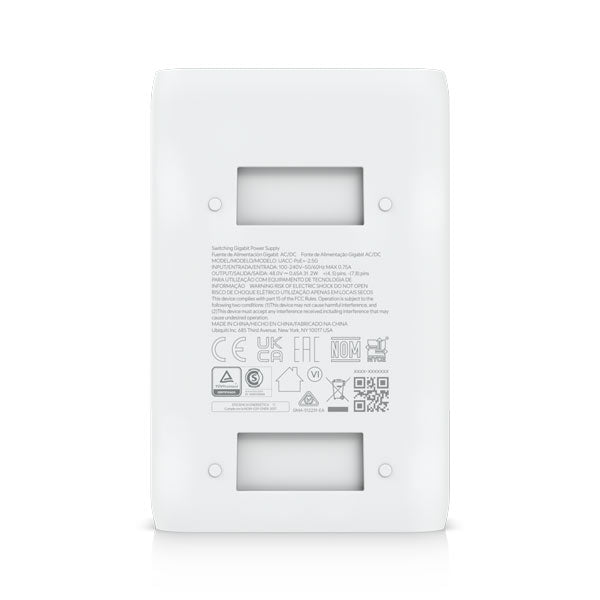

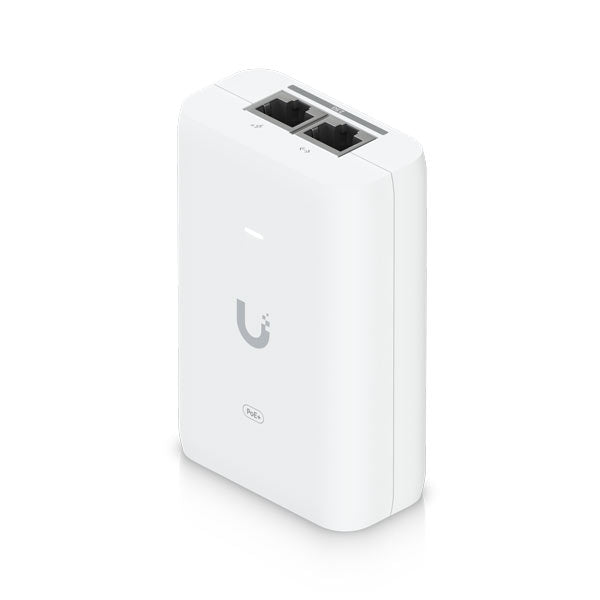

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-PoE+-2.5G
UACC-PoE+-2.5G Ubiquiti UniFi 2.5G PoE+ Adapter (30W)
$38.41 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes
Pickup may be possible in North Lakes, Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Features:
Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
Frequently asked questions5 questions
What does the UACC-PoE+-2.5G adapter do?
It powers UniFi PoE+ devices, reduces reliance on PoE switch power, and provides a Multi-Gigabit LAN connection. It delivers up to 30W of PoE+.
Which UniFi devices is it compatible with?
It is listed as compatible with the U7-Pro, U7-Pro-Max, U7-Pro-Outdoor, U7-Outdoor, U7-Pro-Wall, U6-Enterprise and U6-Enterprise-IW.
What connections does the adapter have?
It has an RJ45 data input, an AC cable with earth ground, and a PoE+ output. The Data In / PoE connection is a shielded RJ45 socket, and an LED indicator shows status.
What power input and output does it use?
It is rated for 100–240V AC at 50/60Hz with a maximum input current of 0.75A. The output is 48V DC at 0.65A, with power on pins 4, 5 (+) and 7, 8 (-).
What protection and operating conditions does it support?
It has surge, peak pulse and overcurrent protection. It operates from 0 to 40°C at 10 to 95% noncondensing humidity.
Specifications23 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") |
| Weight | 156 g (5.5 oz) |
| Output Voltage | 48V DC @ 0.65A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| 2-pair Powering | Pins 4, 5 (+) and 7, 8 (-) |
| Clamping Protection | 11V Data, 60V power |
| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 0.75A Max. |
| Inrush Current | <150A peak @ 230V AC |
| Efficiency | >87% |
| Switching Frequency | 65 kHz Max. |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-PoE+-2.5G · Ubiquiti's spec sheet
