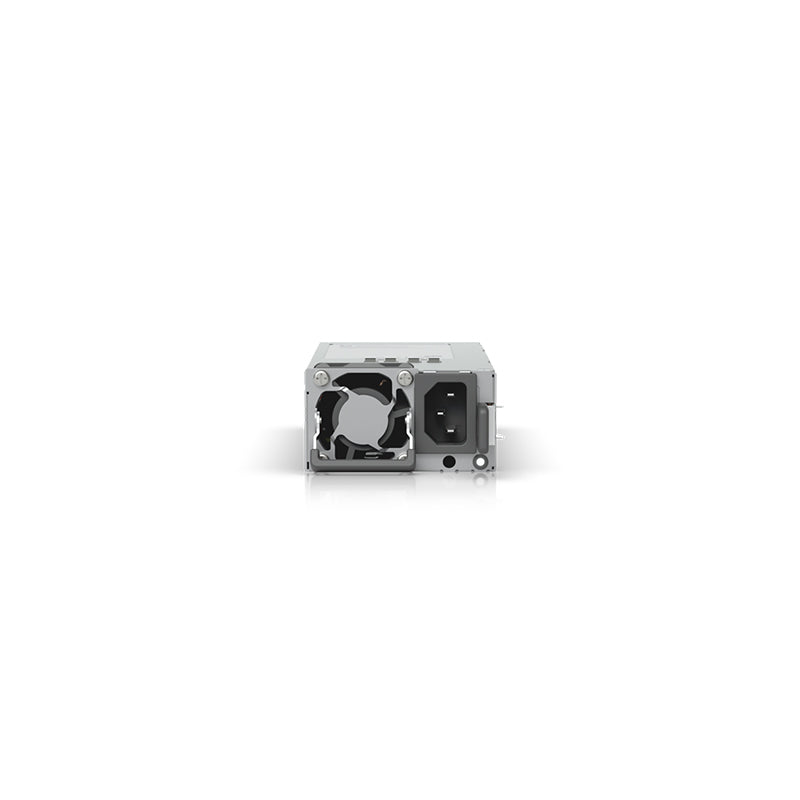

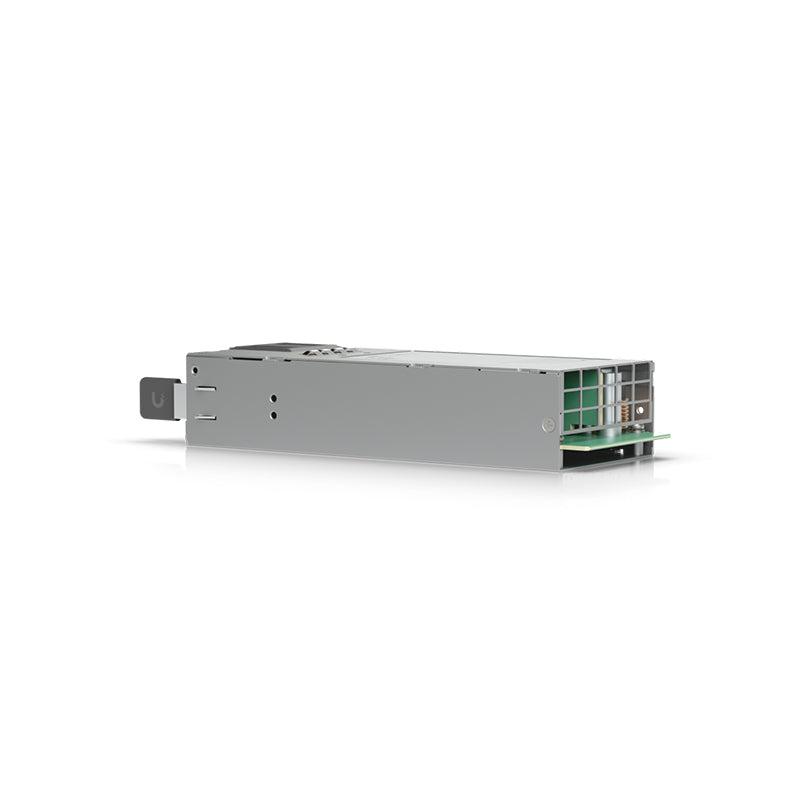

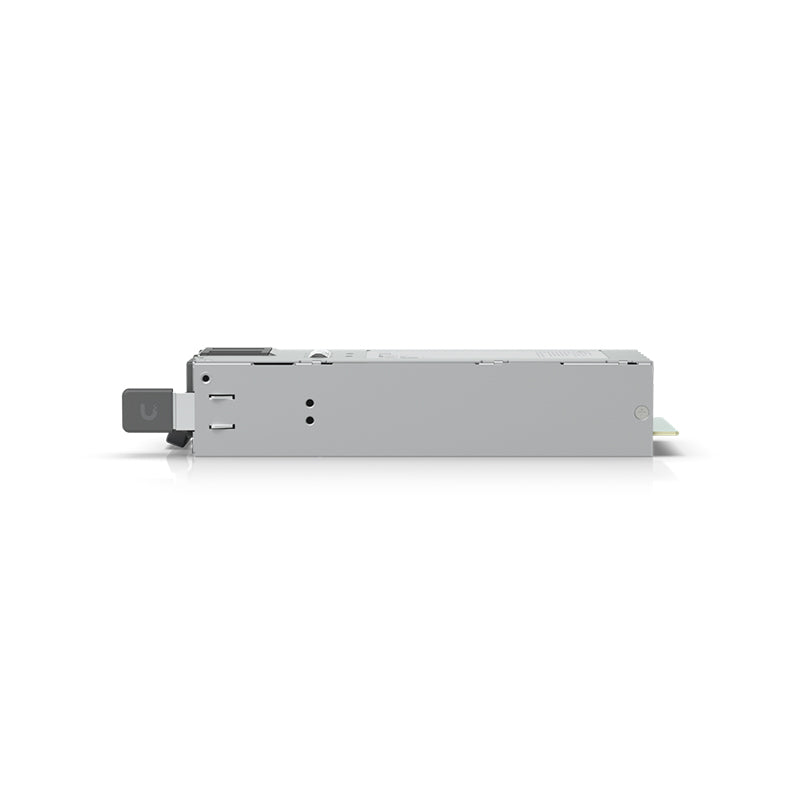

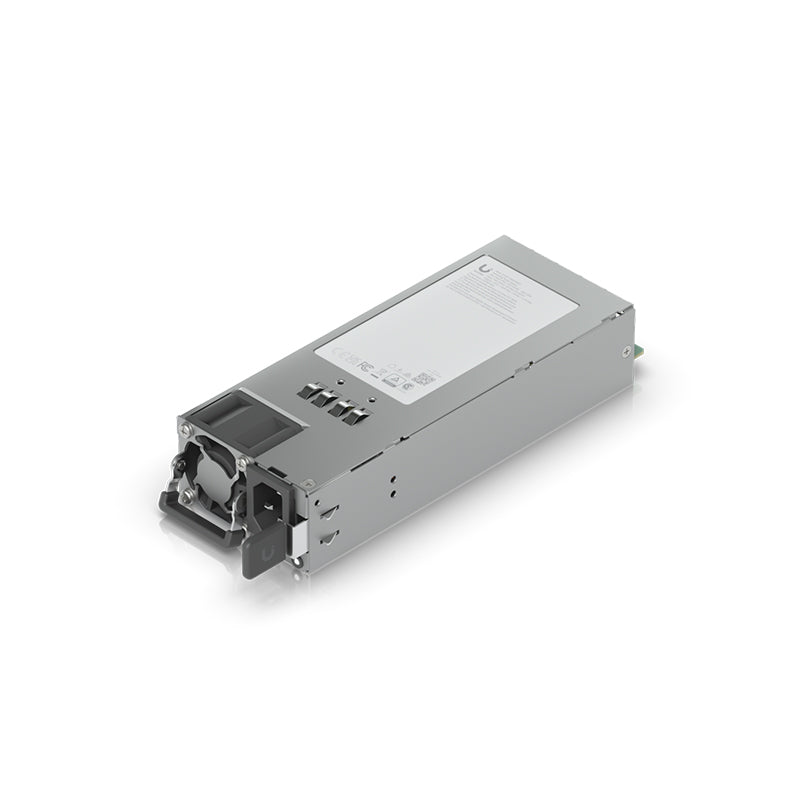

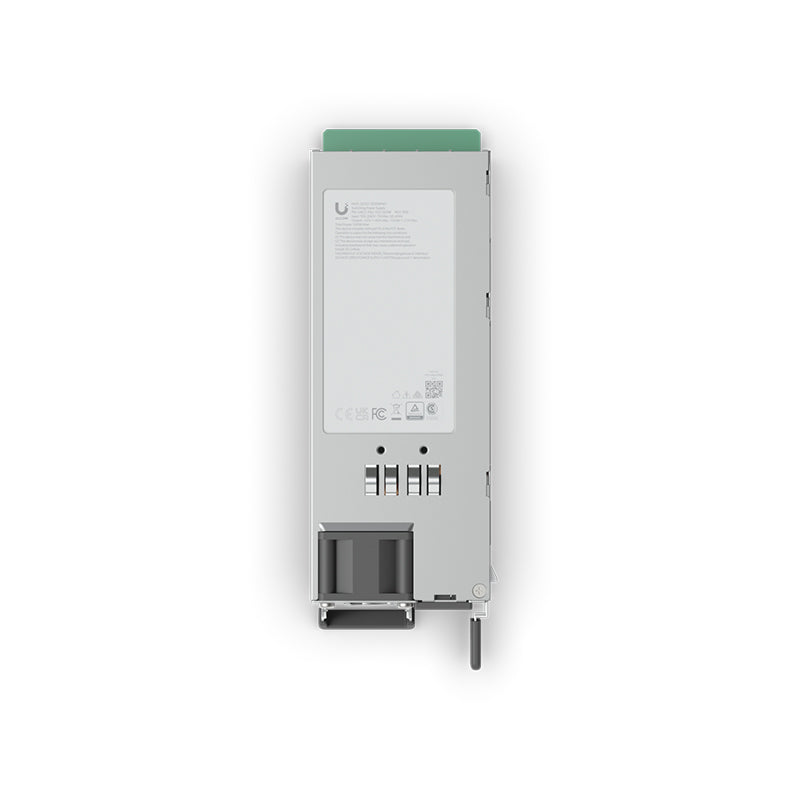

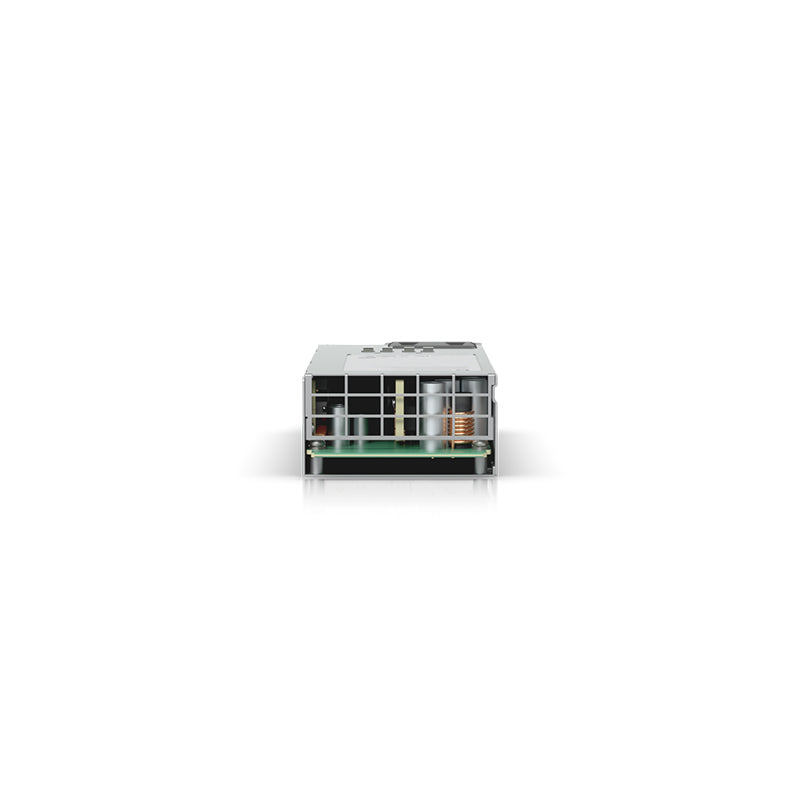

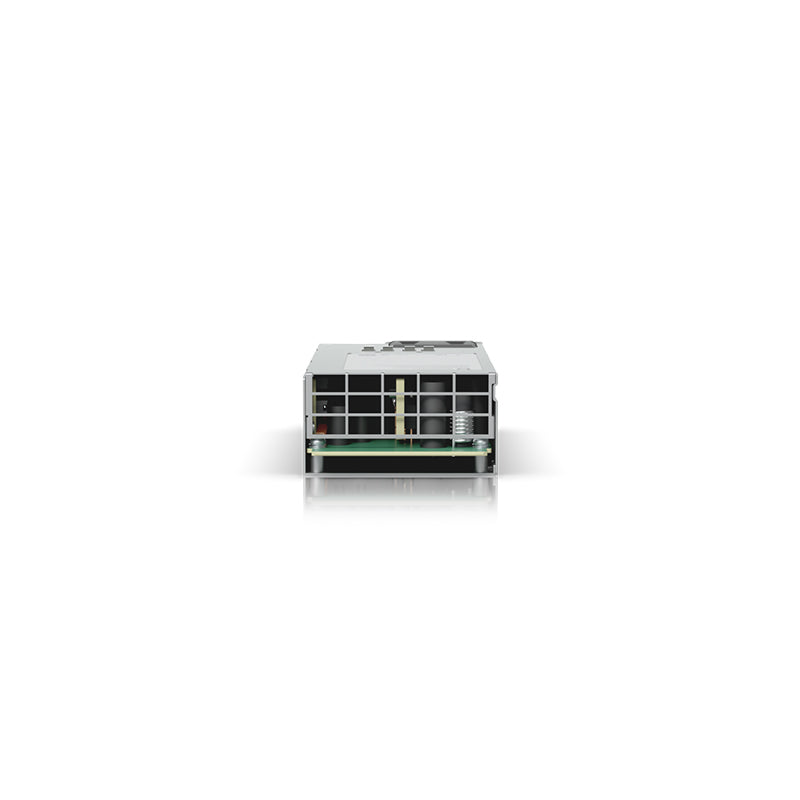

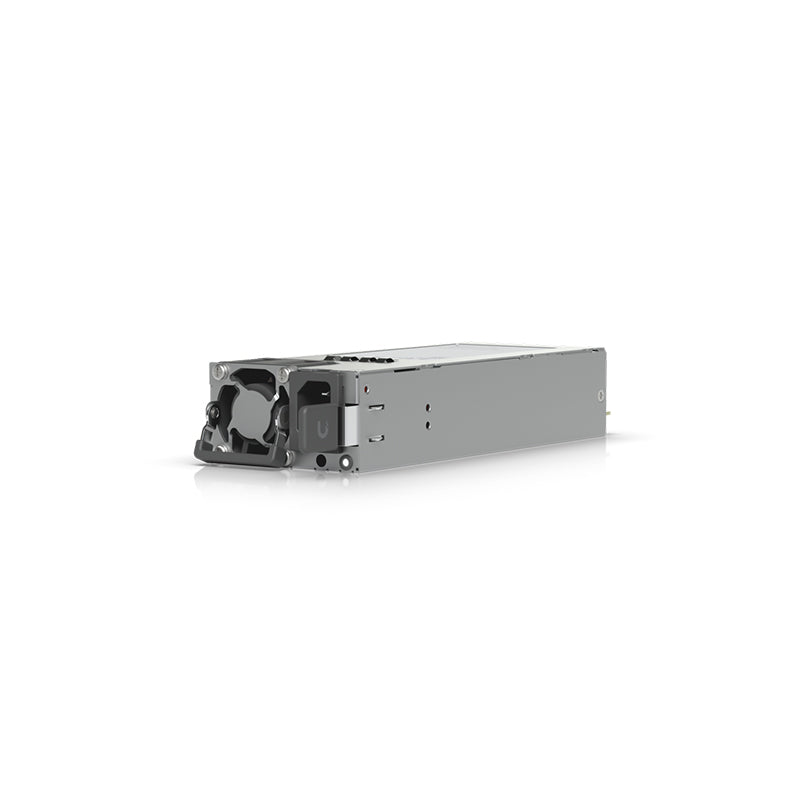

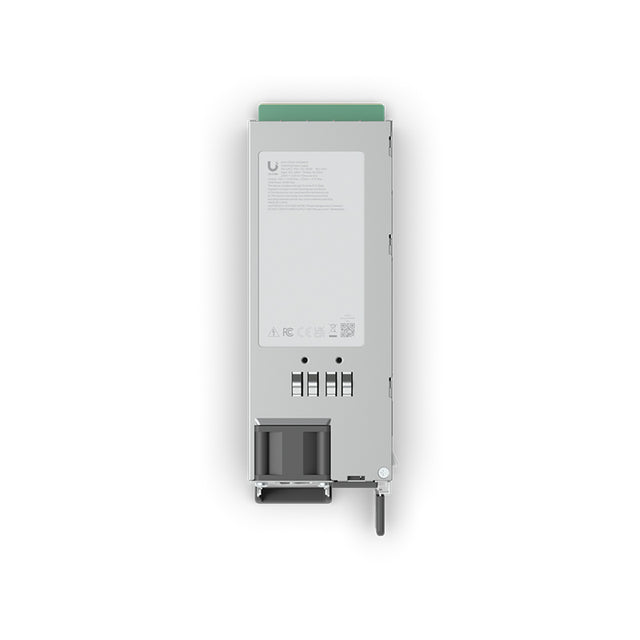

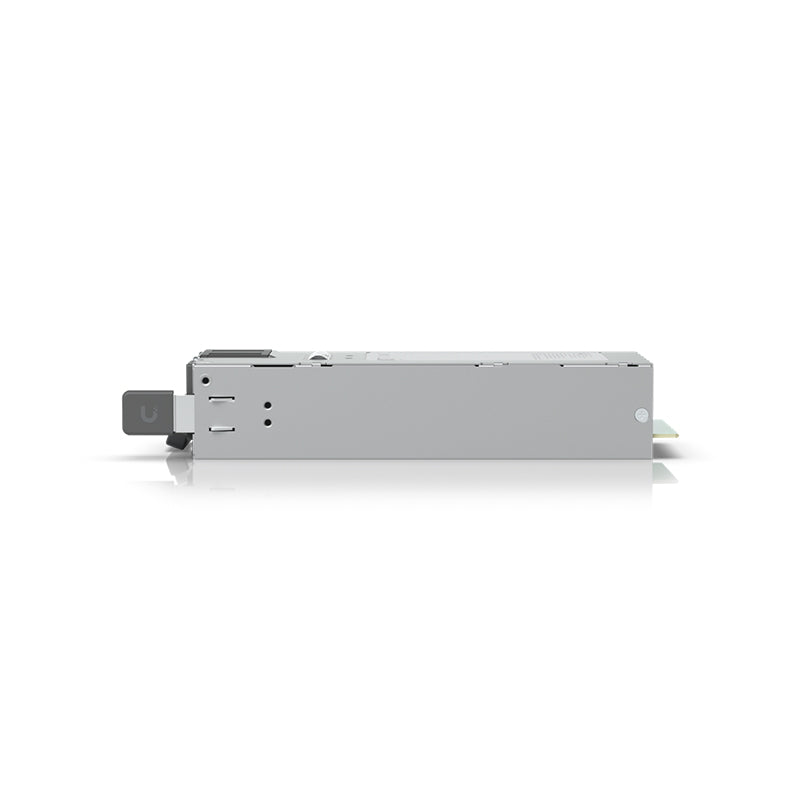

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.

SKU: UACC-PSU-12V-550W

UACC-PSU-12V Ubiquiti UniFi Hot-Swappable Power Module

Q: What input power does it accept?

It accepts 100-240V AC at 50\/60 Hz. Maximum input current is 7A at 120V AC or 3.6A at 230V AC, and it converts this to 12V DC output at 12.5A.

$379.50 AUD

Size

550W 150W

Product variants

In stock · Last fewShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in North Lakes

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

UACC-PSU-12V-550W

Replacement hot-swappable power module for CloudKey Enterprise, Enterprise Aggregation and Enterprise NVR.

Features:

550W (12V) AC-to-DC power supply

Included power cable

Compatibility:
ECS-Aggregation
ENVR
CK-Enterprise

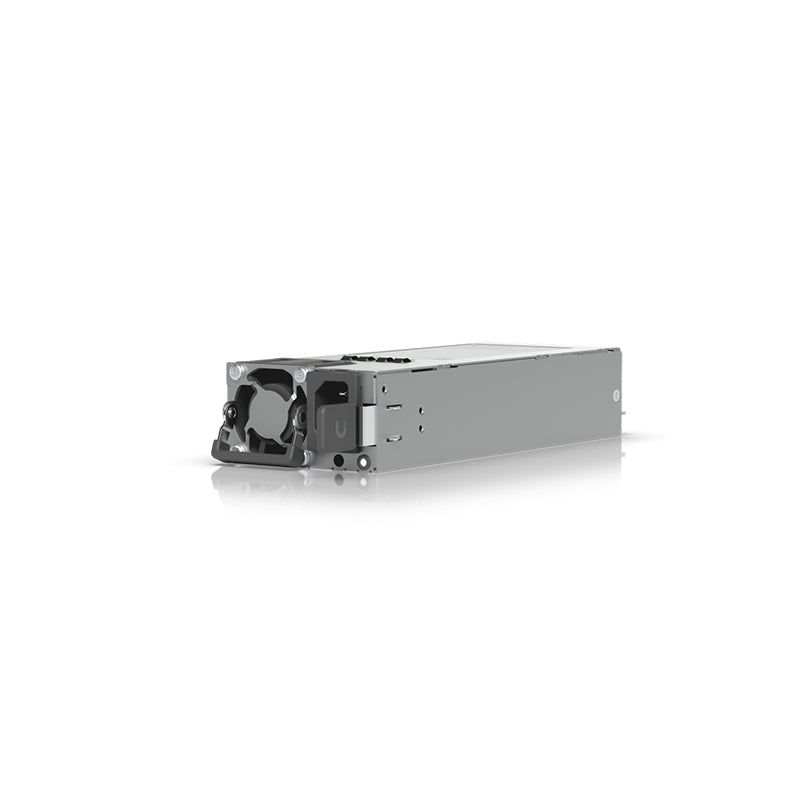

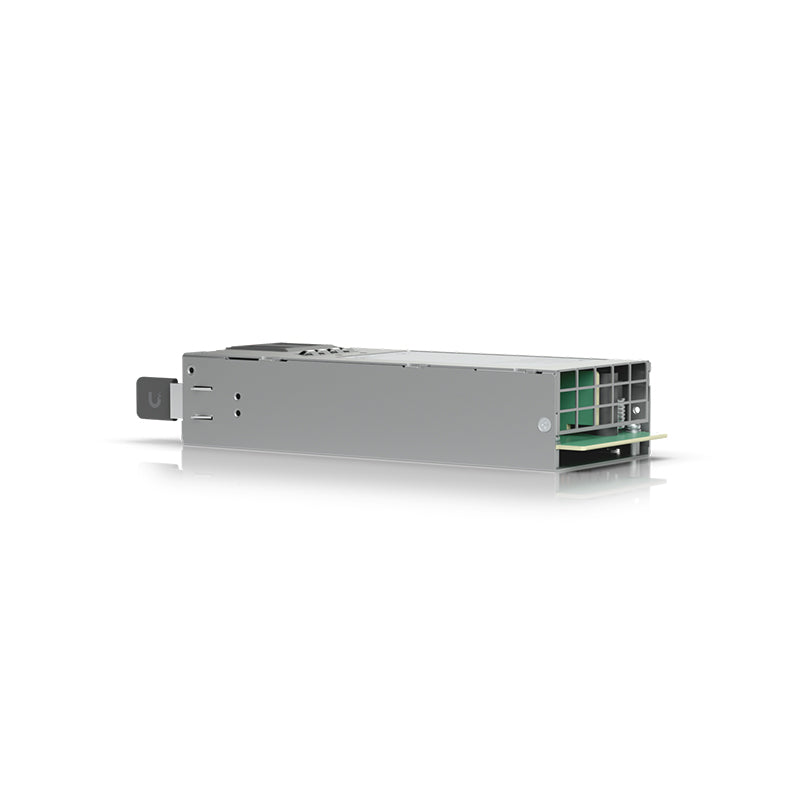

UACC-PSU-12V-150W

Replacement hot-swappable power module for Enterprise Fortress Gateway and Gateway Enterprise.

Features:

150W (12V) AC-to-DC power supply

Compatibility:
EFG
UXG-Enterprise

Frequently asked questions5 questions

Which devices is this power module compatible with?

The 550W (12V) module is listed for the ECS-Aggregation, ENVR and CK-Enterprise. The related 150W (12V) module, UACC-PSU-12V-150W, is listed for the EFG and UXG-Enterprise.

Is this power module hot-swappable?

Yes, it is a replacement hot-swappable power module. It is intended as a replacement for the power module in the compatible CloudKey Enterprise, Enterprise Aggregation and Enterprise NVR units.

What input power does it accept?

It accepts 100-240V AC at 50/60 Hz. Maximum input current is 7A at 120V AC or 3.6A at 230V AC, and it converts this to 12V DC output at 12.5A.

Does it include a power cable?

Yes, a power cable is included with the 550W (12V) AC-to-DC power supply.

What operating conditions is it rated for?

It is rated for an ambient operating temperature of -5 to 50°C (23 to 122°F) and 5 to 95% noncondensing humidity. It has over-voltage protection at 13.5V and over-current protection at 18.5-22.5A.

Click HERE to access the Installation Guide - 550W

Click HERE to access the Installation Guide - 150W

Specifications10 specifications · 1 sections

Overview
Dimensions	185 x 73.5 x 40 mm (7.3 x 2.9 x 1.6")
Weight	744 g (1.6 lb)
Enclosure Material	SGCC steel
Input Connector	C14
Input Voltage Range	100–240V AC
Input Frequency	50/60 Hz
Output Voltage	12V
Output Current	45.8A
Total Output Power	550W
Certifications	CE, FCC, IC
