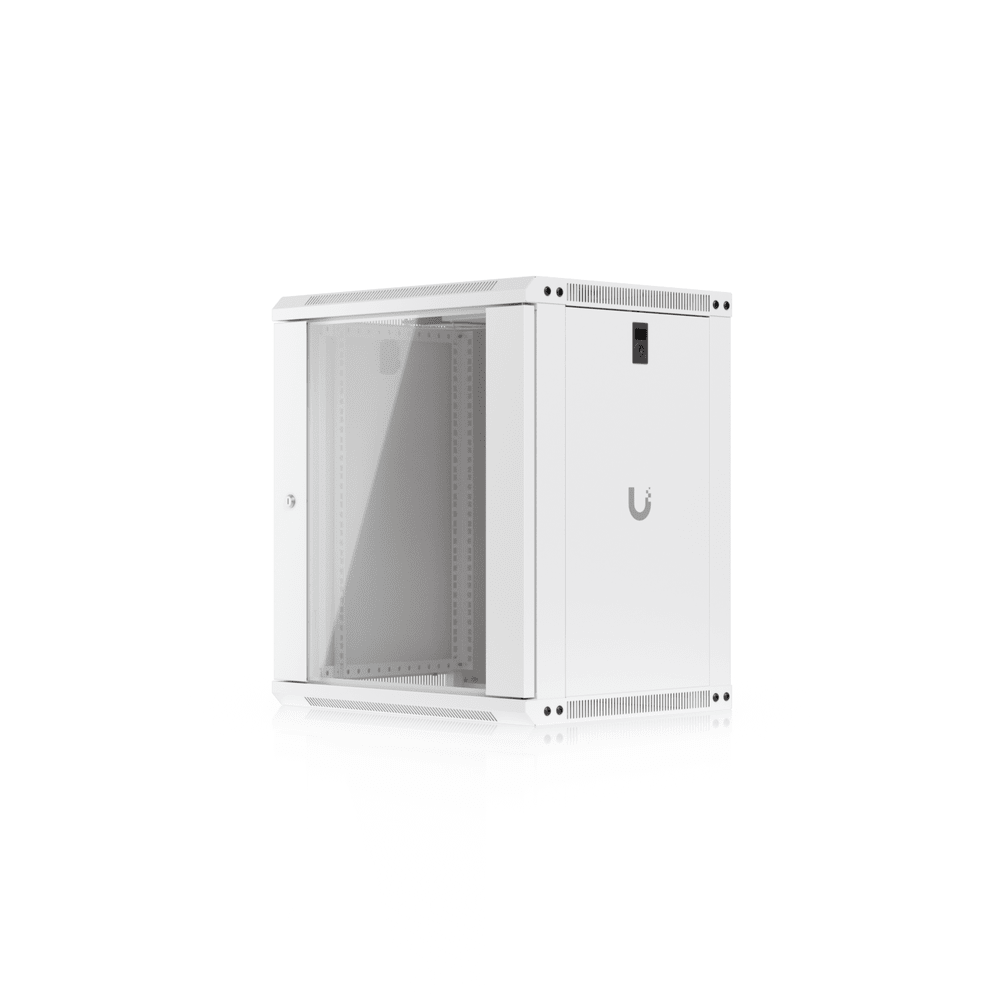

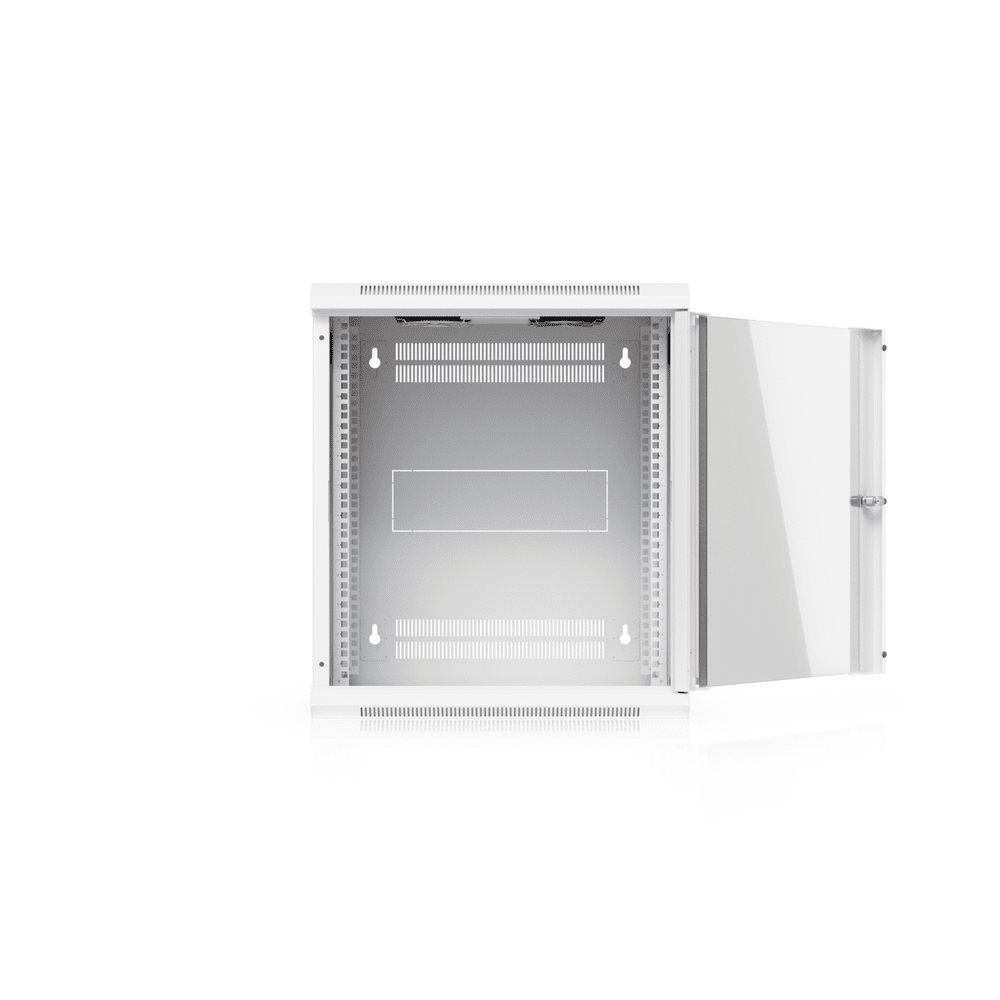

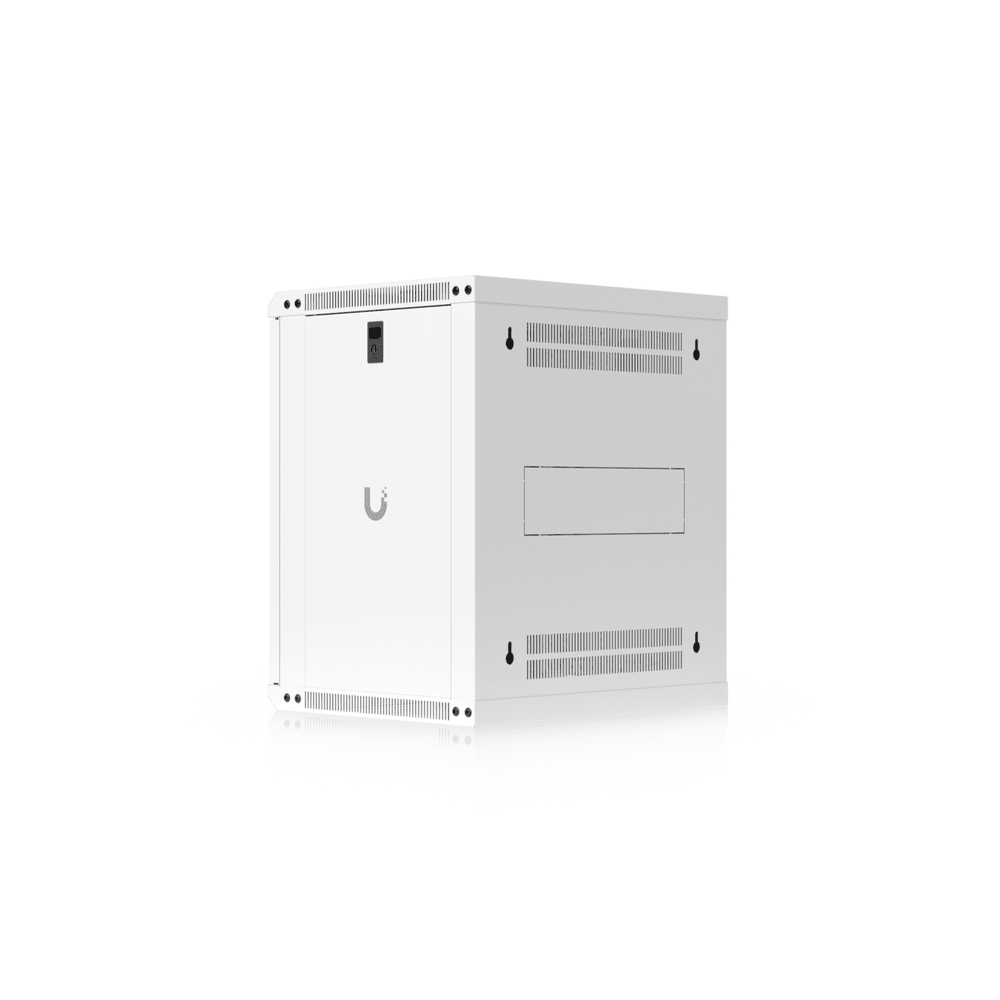

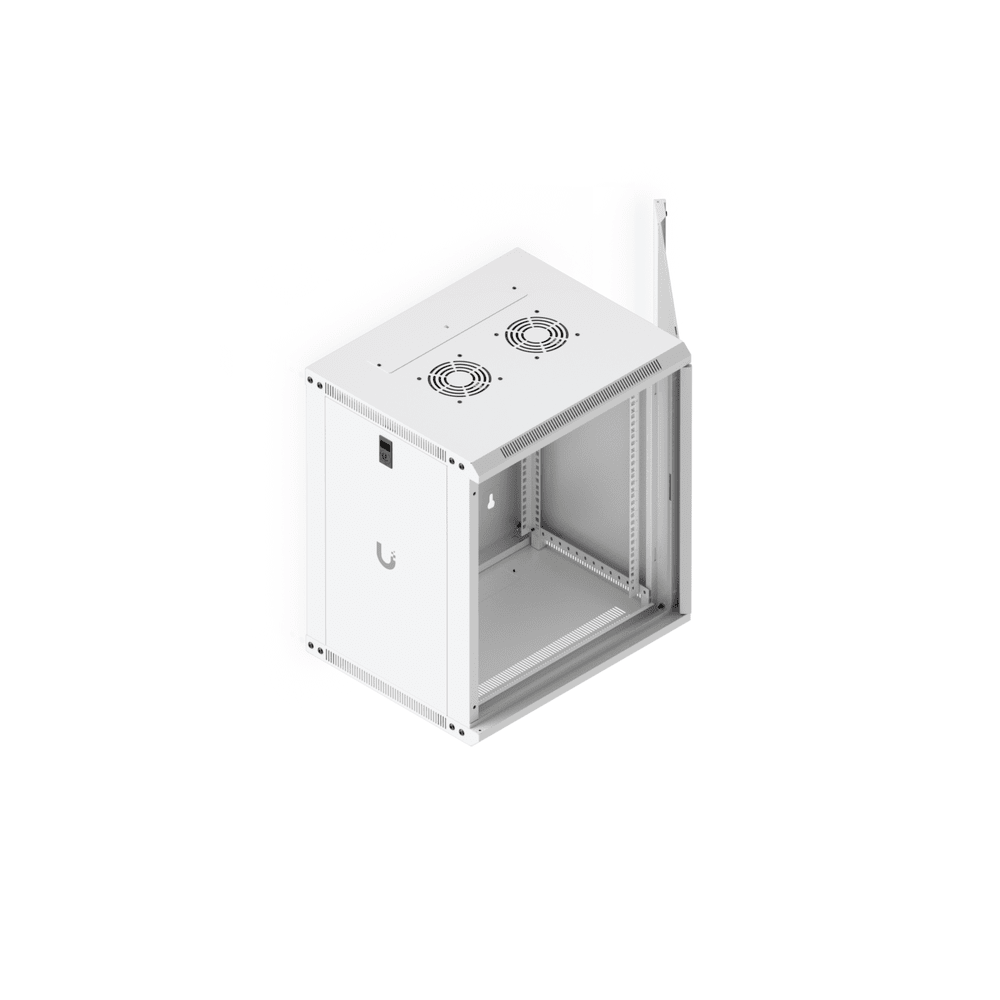

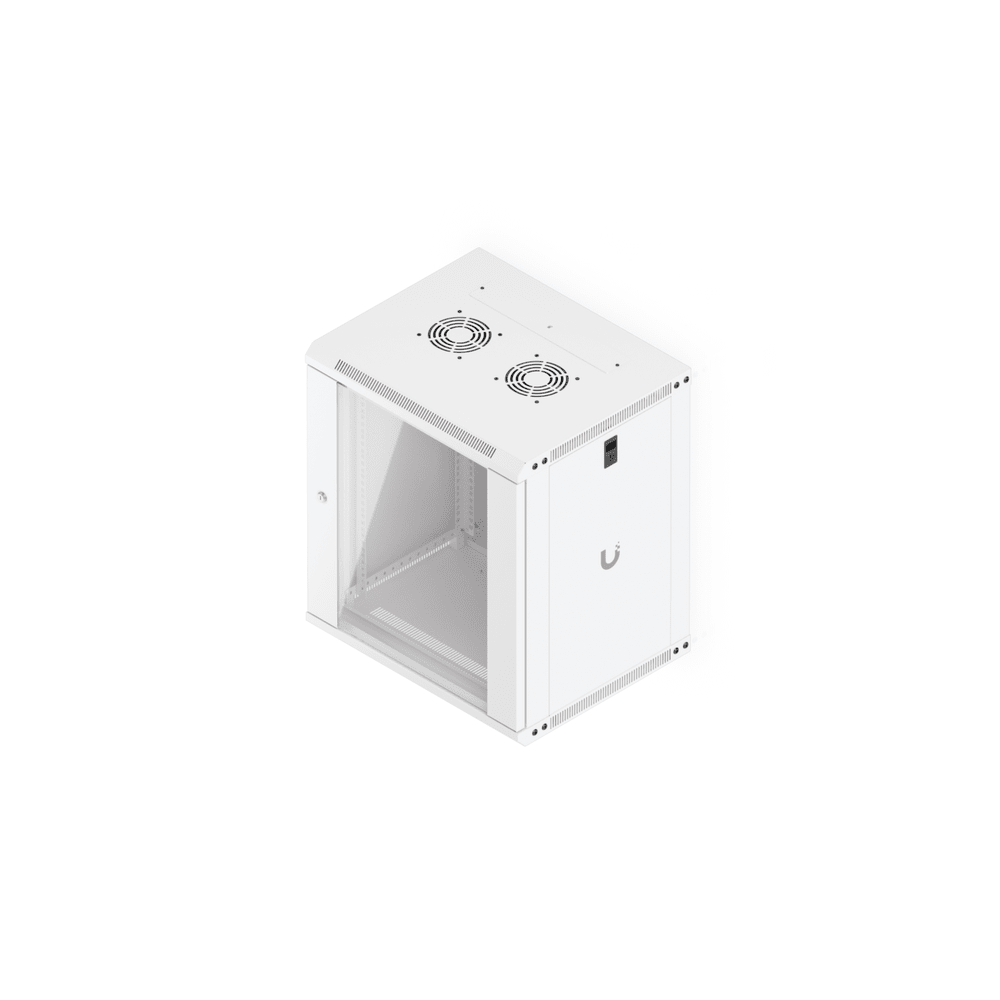

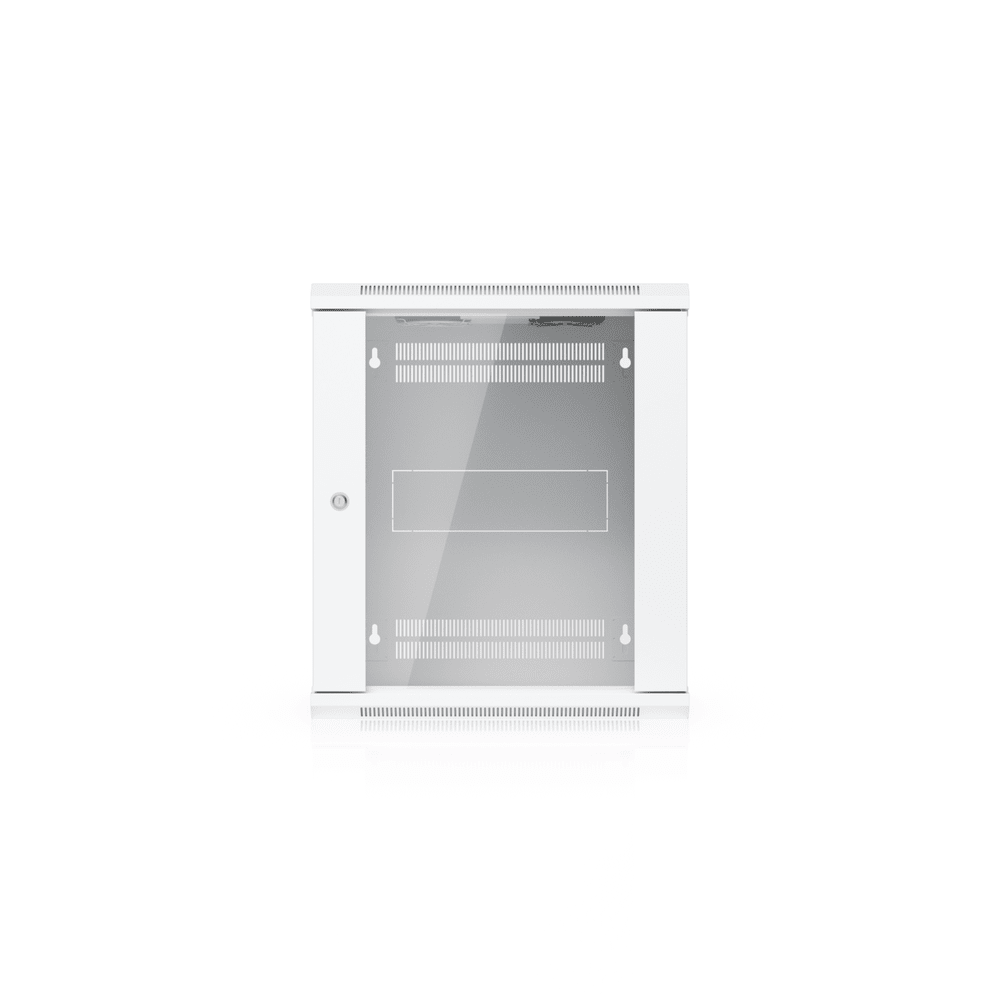

UACC‑Rack‑12U‑Wall‑450‑G – Ubiquiti 12U Wall‑Mount Rack Cabinet (Glass Door)
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
The Ubiquiti UACC‑Rack‑12U‑Wall‑450‑G is a professional‑grade 12U wall‑mount rack cabinet designed for clean, secure and space‑efficient network installations. Constructed from durable SPCC steel with a white powder‑coated finish, this cabinet provides reliable protection while maintaining a modern appearance.
Supplied fully assembled, the UACC‑Rack‑12U‑Wall‑450‑G features a lockable tempered glass front door that allows clear visibility of installed equipment. Integrated cooling fans, removable lockable side panels and adjustable mounting rails ensure excellent airflow, easy access and straightforward maintenance.
Key Features:
- 12U wall‑mount rack cabinet with 50 kg load capacity
- Tempered glass front door, lockable and reversible
- Integrated fan module with ≤50 dB acoustic noise
- Adjustable mounting depth from 283–305 mm
- Removable and lockable side panels
- Fully assembled for rapid deployment
Ideal for:
Small and medium businesses, offices, retail environments, schools and home labs requiring a secure and professional wall‑mounted network solution.
Compatible Products:
Ubiquiti UniFi rack‑mount switches
Ubiquiti Cloud Gateways
Ubiquiti NVR and security appliances
Ubiquiti rack shelves and accessories
FAQs:
Is the rack supplied assembled? Yes, it ships fully assembled.
Does it include cooling? Yes, integrated fans are included.
What device depth is supported? Up to 325 mm with adjustable rails.
Frequently asked questions3 questions
Is the rack supplied assembled?
Does it include cooling?
What device depth is supported?
Specifications19 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | Packaging: 580 x 675 x 735 mm (22.8 x 26.6 x 28.9") / Rack: 550 x 450 x 635 mm (21.7 x 17.7 x 25") |
| Weight | Packaging: 23.2 kg (51.1 lb) / Rack: 19 kg (41.9 lb) |
| Enclosure Material | SPCC steel / Door/side panels: 0.8 mm (0.03") / Main body: 0.8 mm (0.03") / Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| Rack Features · U Height | 12U |
| Rack Features · Rack Type | 4 post, enclosed cabinet |
| Rack Features · Mounting Hole Type | Square |
| Rack Features · Adjustable Mounting Depth | Default 283 mm (11.1") / Max. 305 mm (12") / Adjustable pitch 22 mm (0.9") |
| Rack Features · Max. Weight Capacity | 50 kg (110 lb) |
| Rack Features · Front Door | Tempered glass / Default left-hand outswing, reversible |
| Rack Features · Side Panels | (2) Solid, removable and lockable |
| Rack Features · Mounting | Wall mount |
| Rack Features · Fan Module | (2) Pre-installed 120 x 120 x 38 mm AC fan units |
| Rack Features · Acoustic Noise | ≤ 50 dB(A) sound pressure level |
| Rack Features · Cable Entry Opening | (1) Rear wall: 350 x 100 mm (13.8 x 3.9") / (1) Top: 336.5 x 52.5 mm (13.2 x 2.1") / (1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1") |
| Rack Features · Security | (1) Front door lock / (4) Side panel locks / (2) Keys |
| Rack Features · Standard | CE; EIA/ECA-310-E; RoHS |
| Supported Devices | Compatible with Ubiquiti rack-mount devices up to 325 mm in depth. / / Note: 325 mm devices can be installed when the mounting depth is set to 305 mm (max), but DC power backup is not supported due to limited rear-side clearance. |
