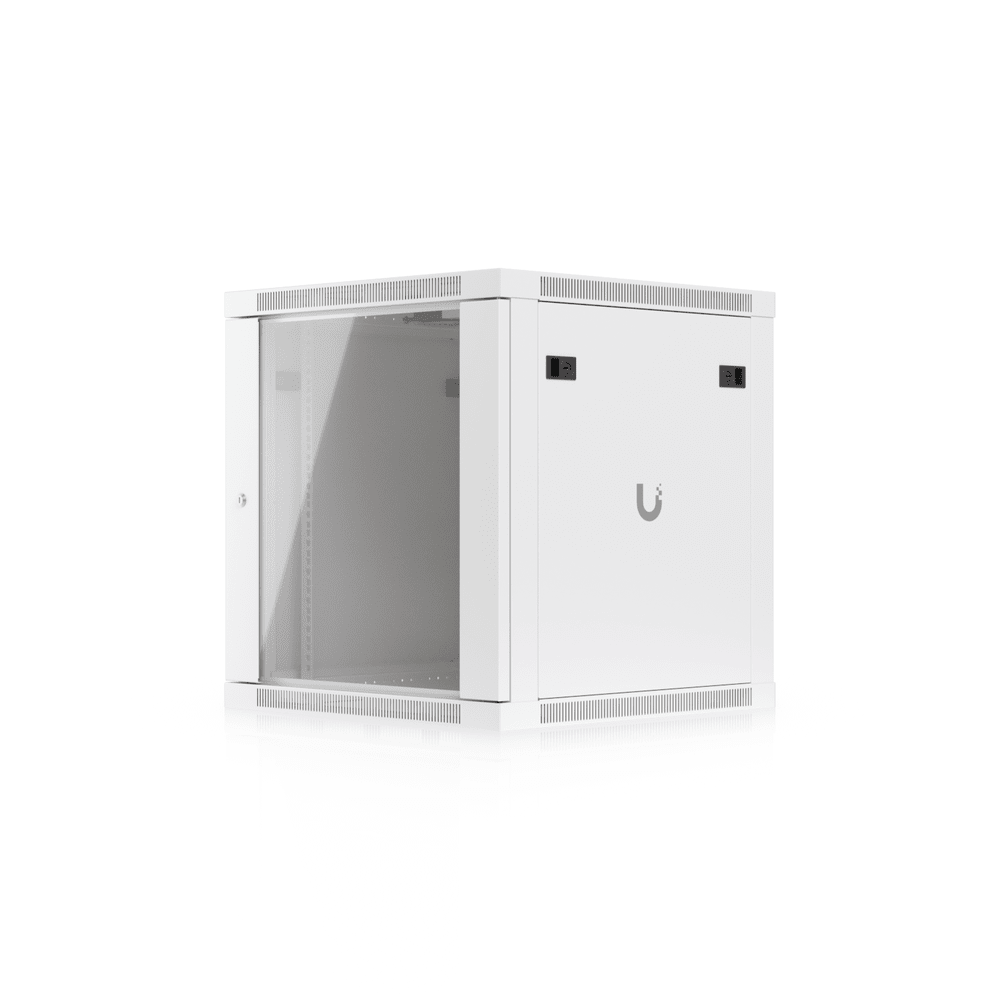

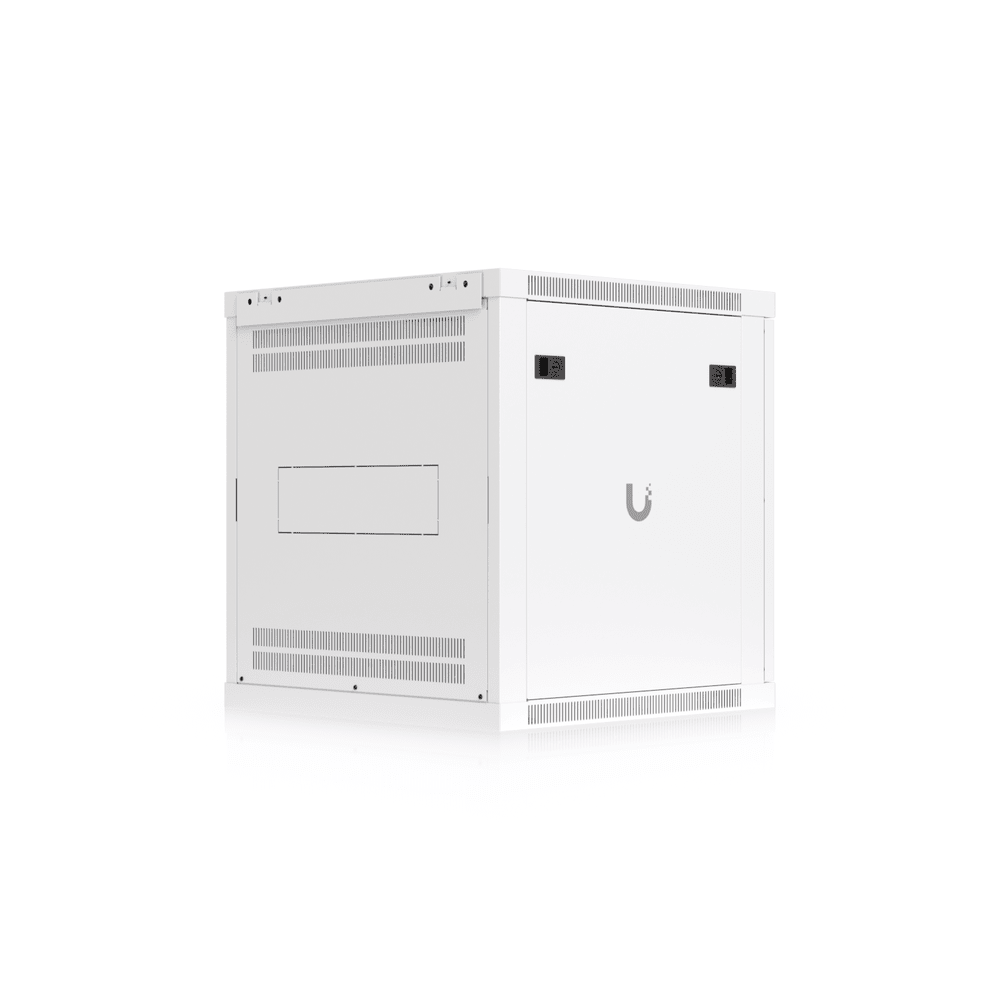

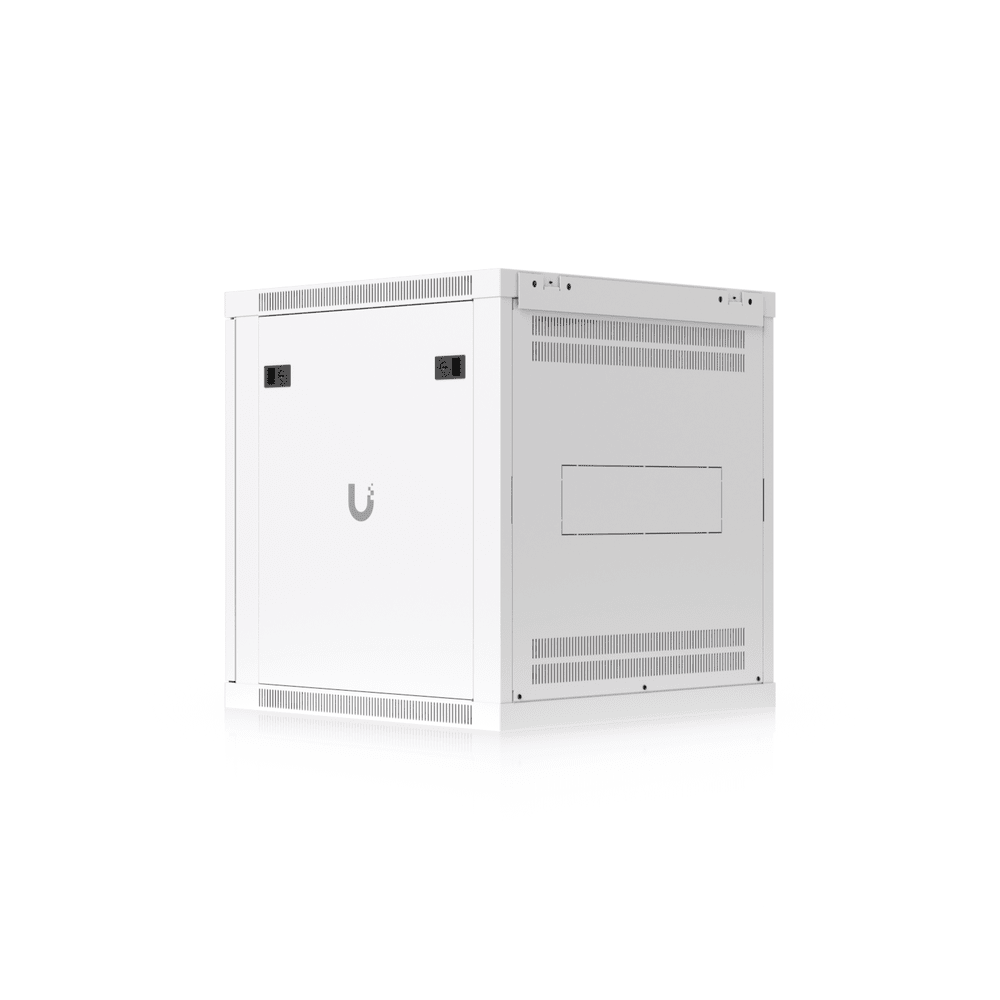

UACC‑Rack‑12U‑Wall‑600‑G – Ubiquiti 12U Wall‑Mount Rack Cabinet with Glass Door
Description
Description
The Ubiquiti UACC‑Rack‑12U‑Wall‑600‑G is a robust and professional 12U wall‑mount rack cabinet designed for secure, space‑efficient network deployments requiring additional depth. Manufactured from durable SPCC steel and finished in a clean white powder coat, this cabinet delivers excellent strength, airflow and a modern appearance.

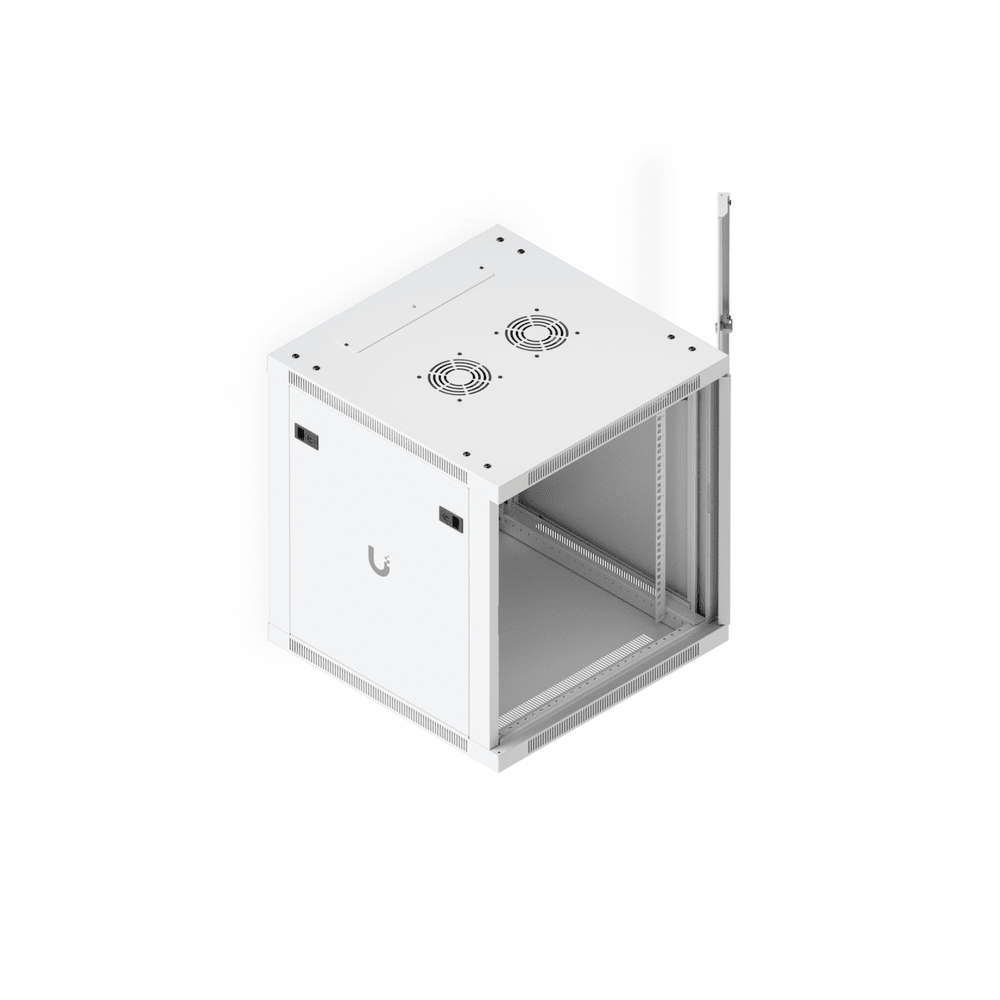

Supplied fully assembled, the UACC‑Rack‑12U‑Wall‑600‑G features a lockable tempered glass front door that provides clear visibility of installed equipment while maintaining security. Integrated cooling fans, removable lockable side panels and adjustable mounting rails allow for efficient ventilation, simple installation and easy ongoing maintenance.
Key Features:
- 12U wall‑mount rack cabinet with up to 80 kg load capacity
- 600 mm depth to support deeper rack‑mount equipment
- Tempered glass front door, lockable and reversible
- Integrated fan module with ≤50 dB acoustic noise
- Adjustable mounting depth from 448–508 mm
- Removable and lockable side panels
Ideal for:
Small to medium businesses, offices, equipment rooms, retail sites and advanced home labs requiring additional rack depth and professional cable management.
Compatible Products:
Ubiquiti UniFi rack‑mount switches
Ubiquiti Cloud Gateways
Ubiquiti NVR and security appliances
Ubiquiti rack shelves and mounting accessories
FAQs:
Is the rack supplied assembled? Yes, the UACC‑Rack‑12U‑Wall‑600‑G ships fully assembled.
Does it include active cooling? Yes, integrated fans are included.
What device depth is supported? Rack‑mount devices up to 508 mm deep are supported.
Frequently asked questions3 questions
Is the rack supplied assembled?
Does it include active cooling?
What device depth is supported?
Specifications18 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | Packaging: 740 x 730 x 735 mm (29.1 x 28.7 x 28.9") / Rack: 598 x 600 x 639 mm (23.5 x 23.6 x 25.2") |
| Weight | Packaging: 33.6 kg (74.1 lb) / Rack: 28.2 kg (62.2 lb) |
| Enclosure Material | SPCC steel / Door/side panels: 1.2 mm (0.05") / Main body: 1.2 mm (0.05") / Posts: 2 mm (0.08") |
| Color | White |
| Treatment | Powder coating |
| Rack Features · U Height | 12U |
| Rack Features · Rack Type | 4 post, enclosed cabinet |
| Rack Features · Mounting Hole Type | Square |
| Rack Features · Adjustable Mounting Depth | Default 448 mm (17.6") / Max. 508 mm (20") / Adjustable pitch 20 mm (0.8") |
| Rack Features · Max. Weight Capacity | 80 kg (176 lb) |

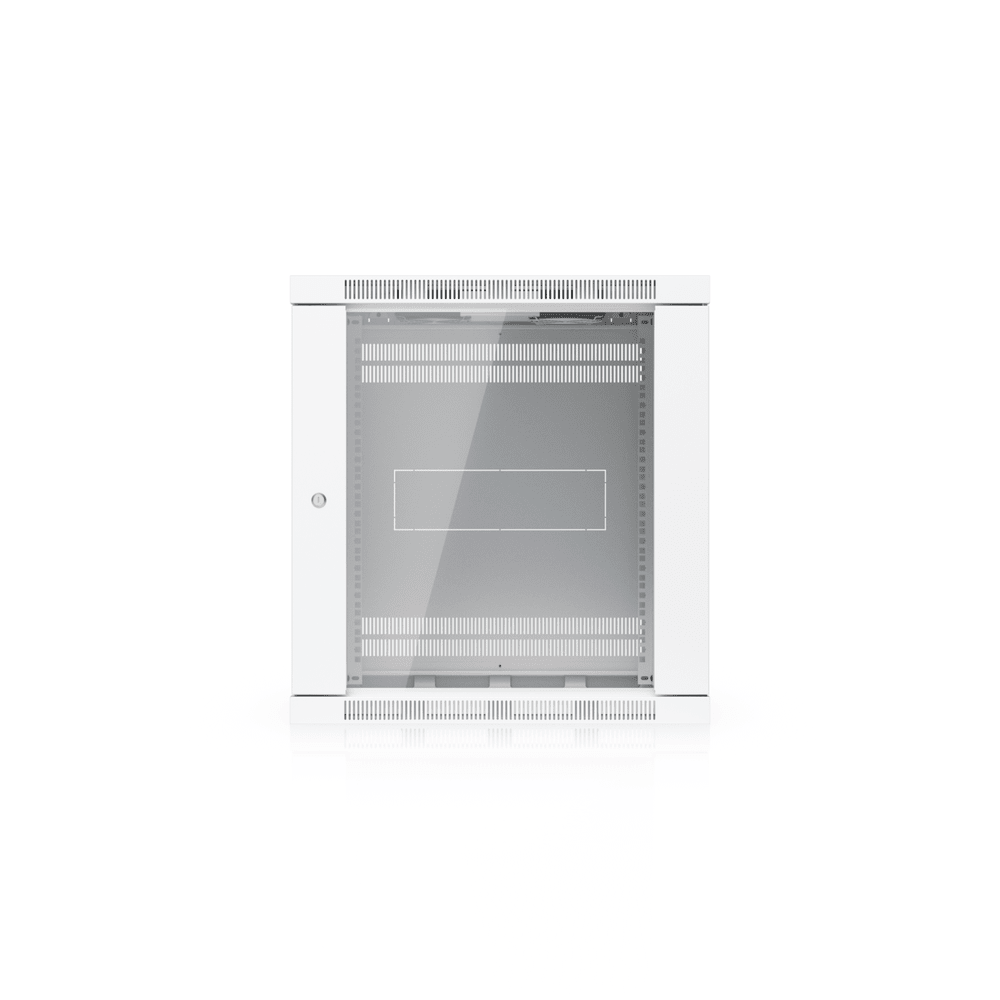

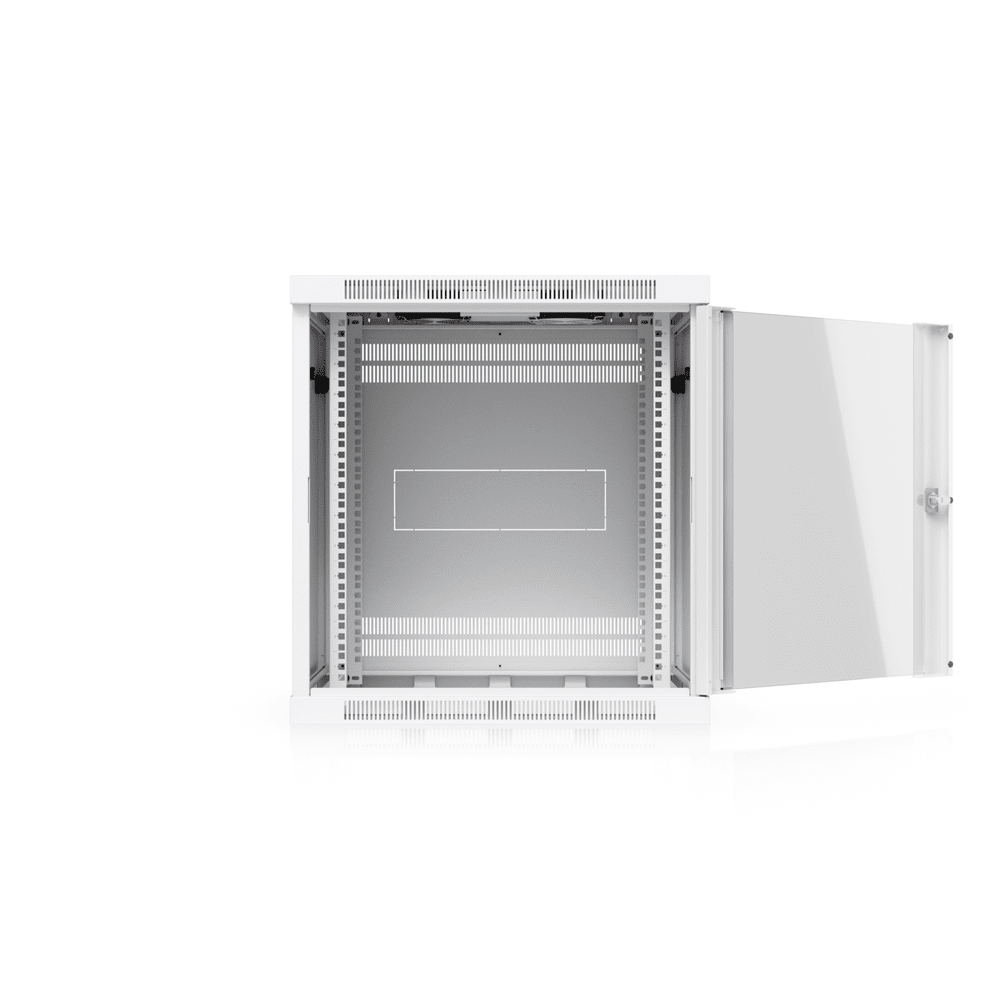

| Rack Features · Front Door | Tempered glass / Default left-hand outswing, reversible |
| Rack Features · Side Panels | (2) Solid, removable and lockable |
| Rack Features · Mounting | Wall mount |

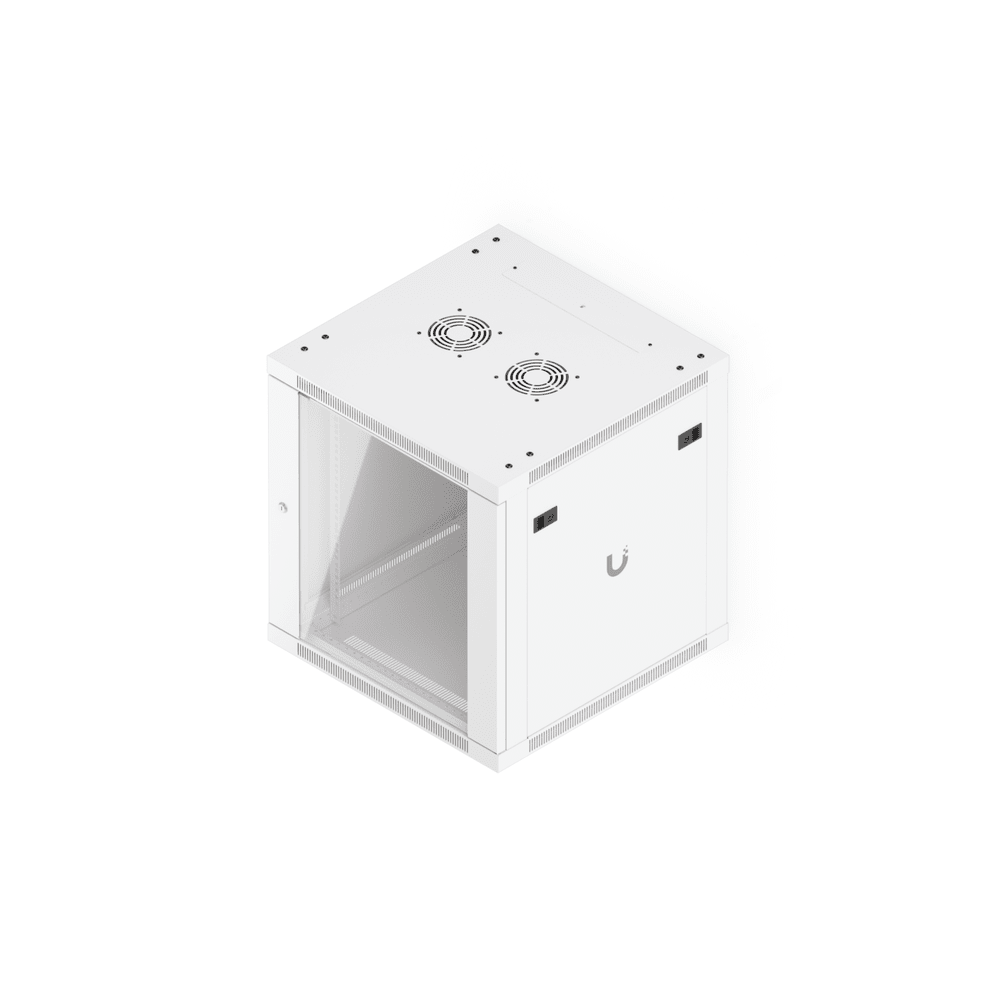

| Rack Features · Fan Module | (2) Pre-installed 120 x 120 x 38 mm AC fan units |
| Rack Features · Acoustic Noise | ≤ 50 dB(A) sound pressure level |
| Rack Features · Cable Entry Opening | (1) Rear wall: 350 x 100 mm (13.8 x 3.9") / (1) Top: 336.5 x 52.5 mm (13.2 x 2.1") / (1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1") |
| Rack Features · Security | (1) Front door lock / (4) Side panel locks / (2) Keys |
| Rack Features · Standard | CE; EIA/ECA-310-E; RoHS |
