UACC‑Rack‑42U‑1000‑G – Ubiquiti 42U Floor‑Standing Rack Cabinet with Glass Door

$3,240.16 AUD

In stock · Last fewShips from the warehouse closest to you

BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes

Pickup may be possible in Sydney and Melbourne

We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.

Description

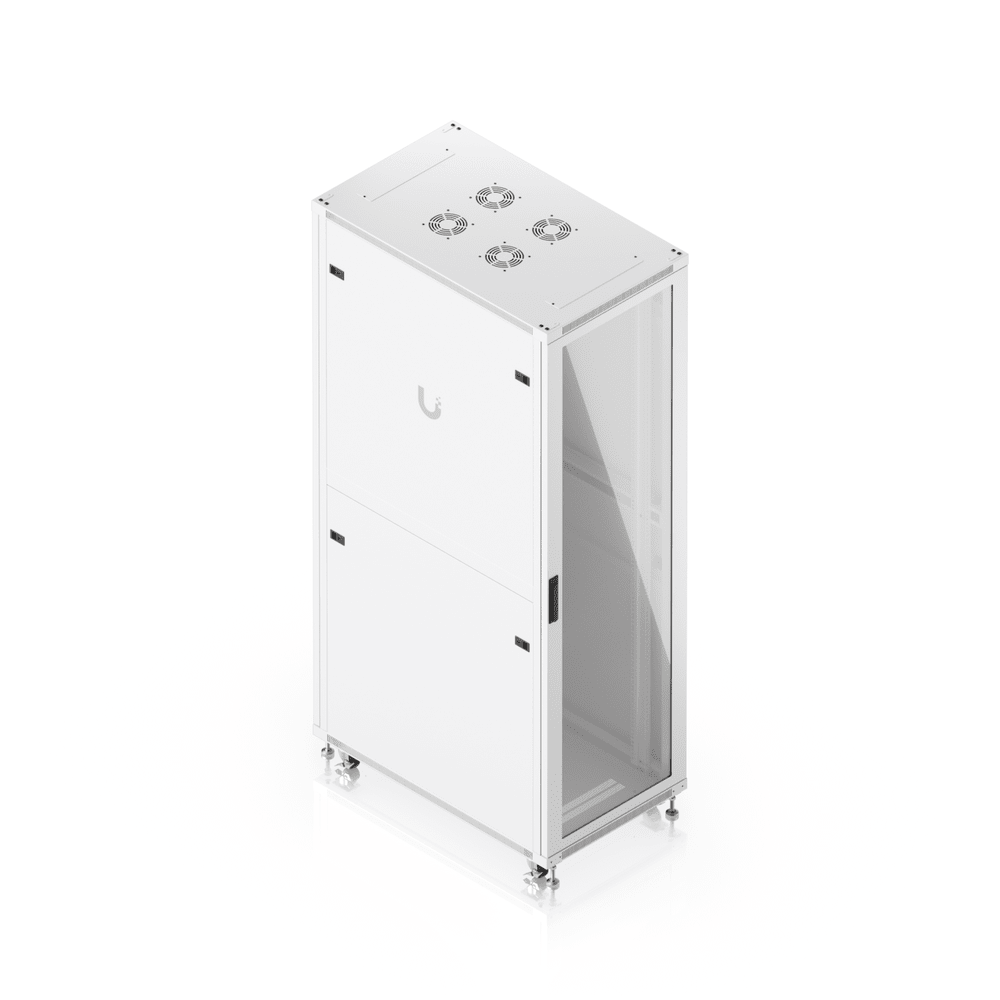

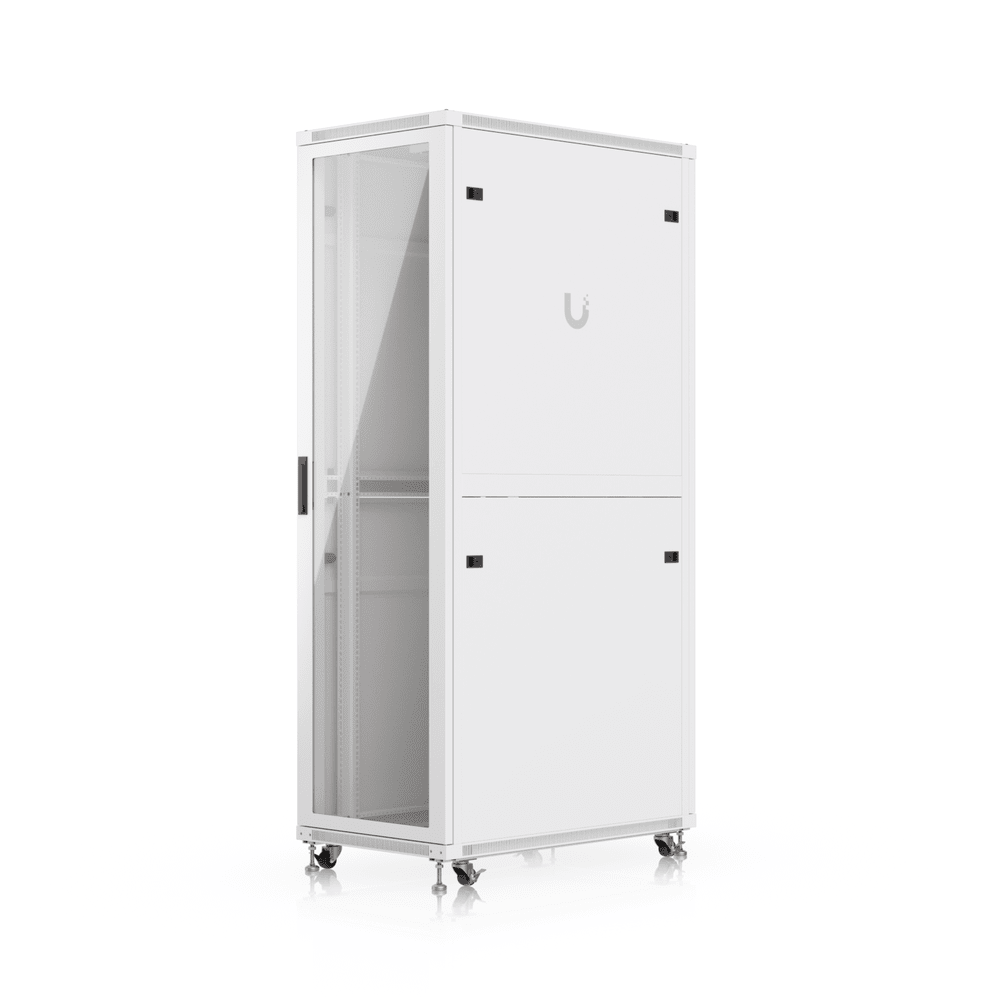

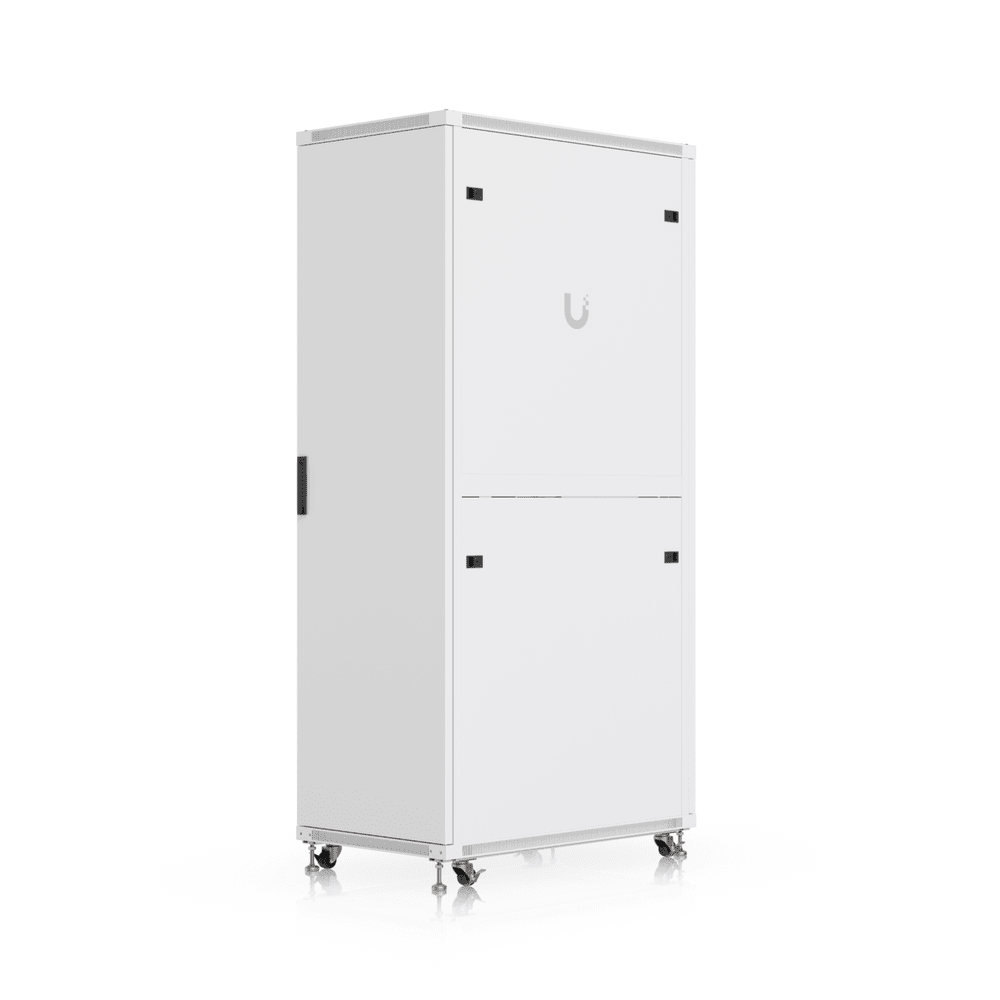

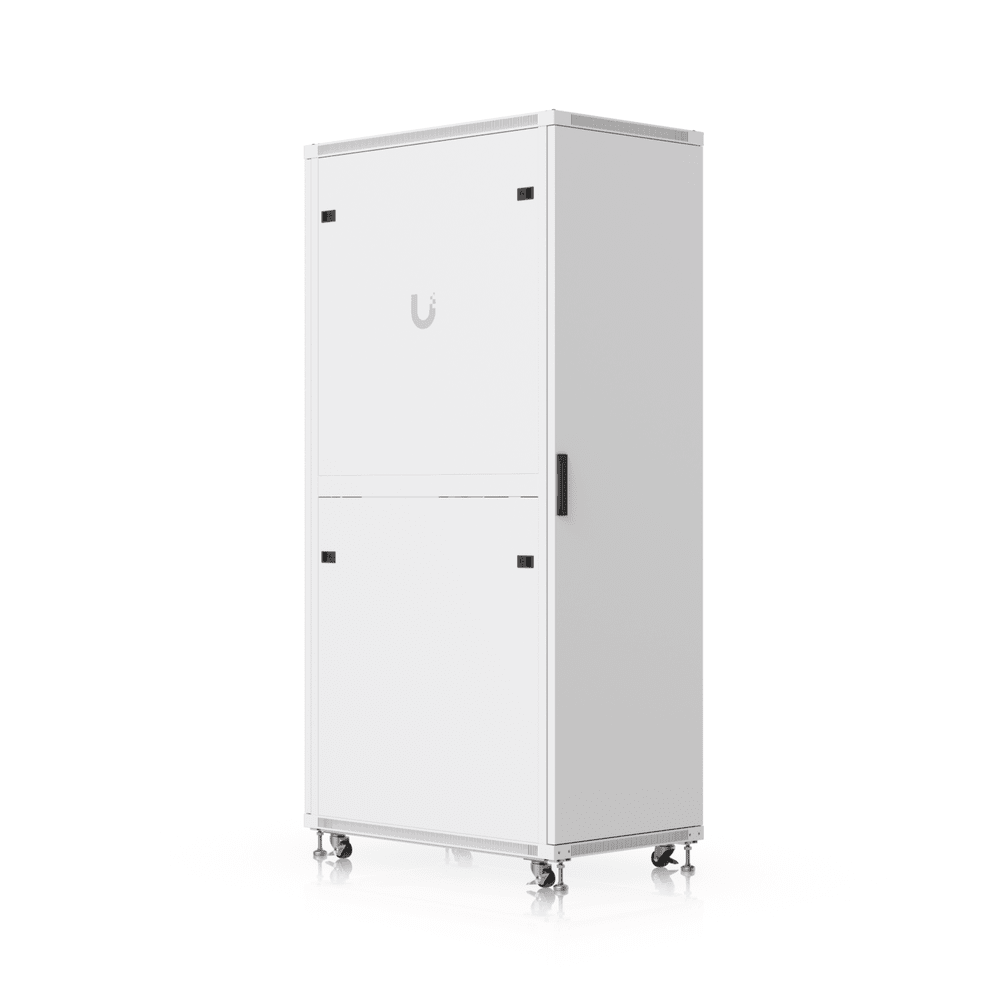

The Ubiquiti UACC‑Rack‑42U‑1000‑G is a heavy‑duty, professional 42U floor‑standing rack cabinet engineered for enterprise‑grade network infrastructure and large‑scale UniFi deployments. Built from robust SPCC steel with a white powder‑coated finish, this cabinet delivers exceptional strength, stability and long‑term reliability.

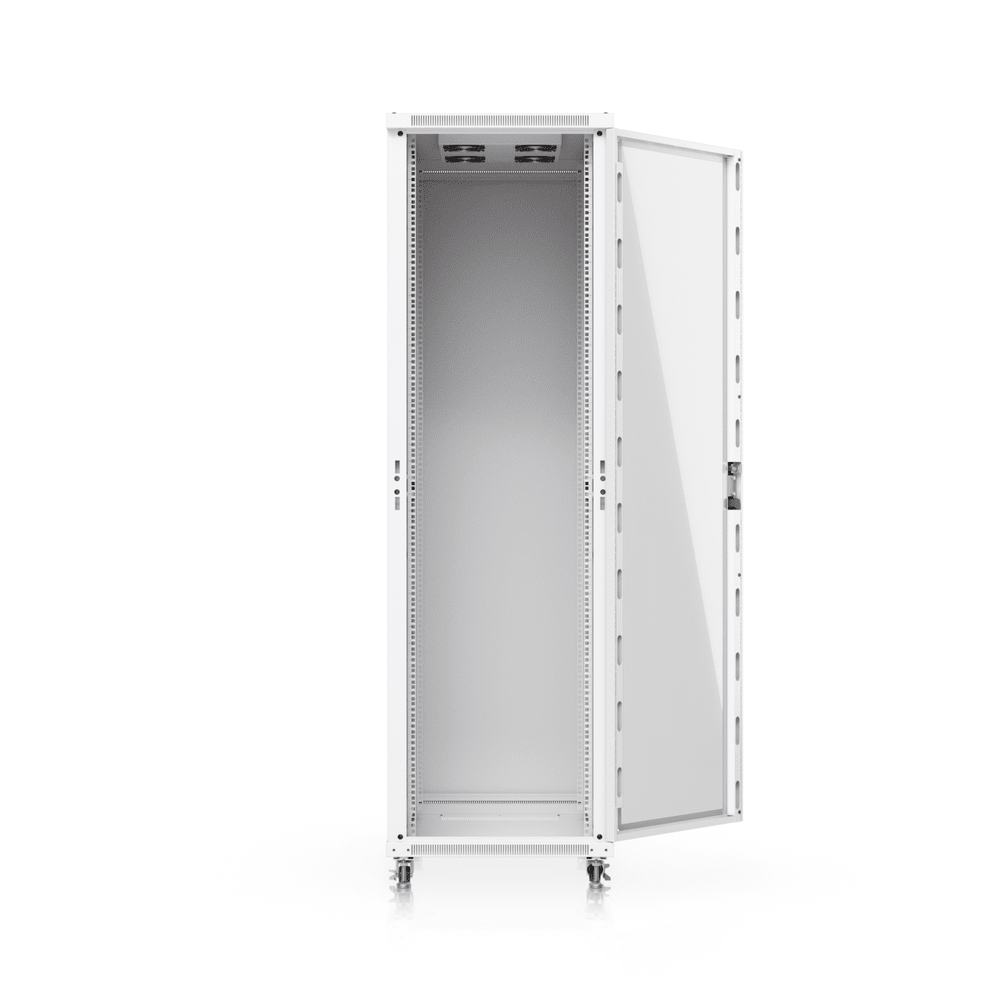

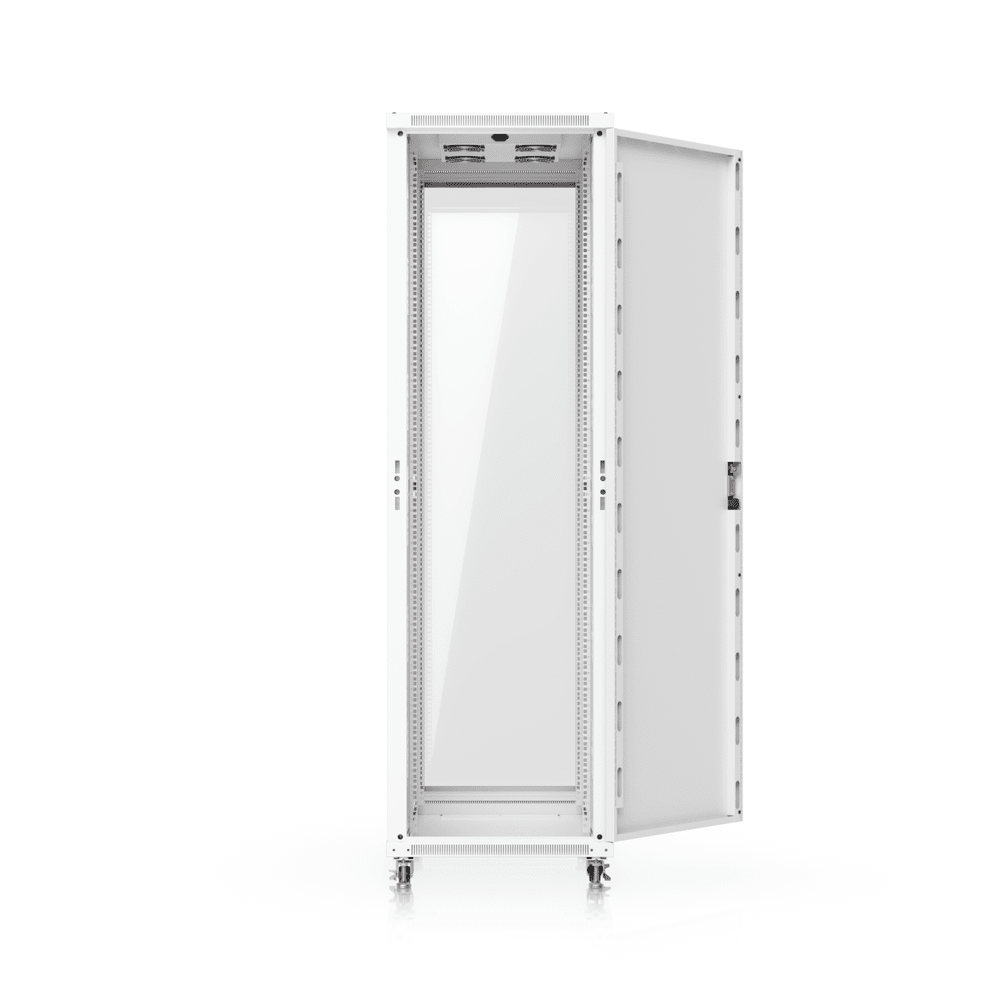

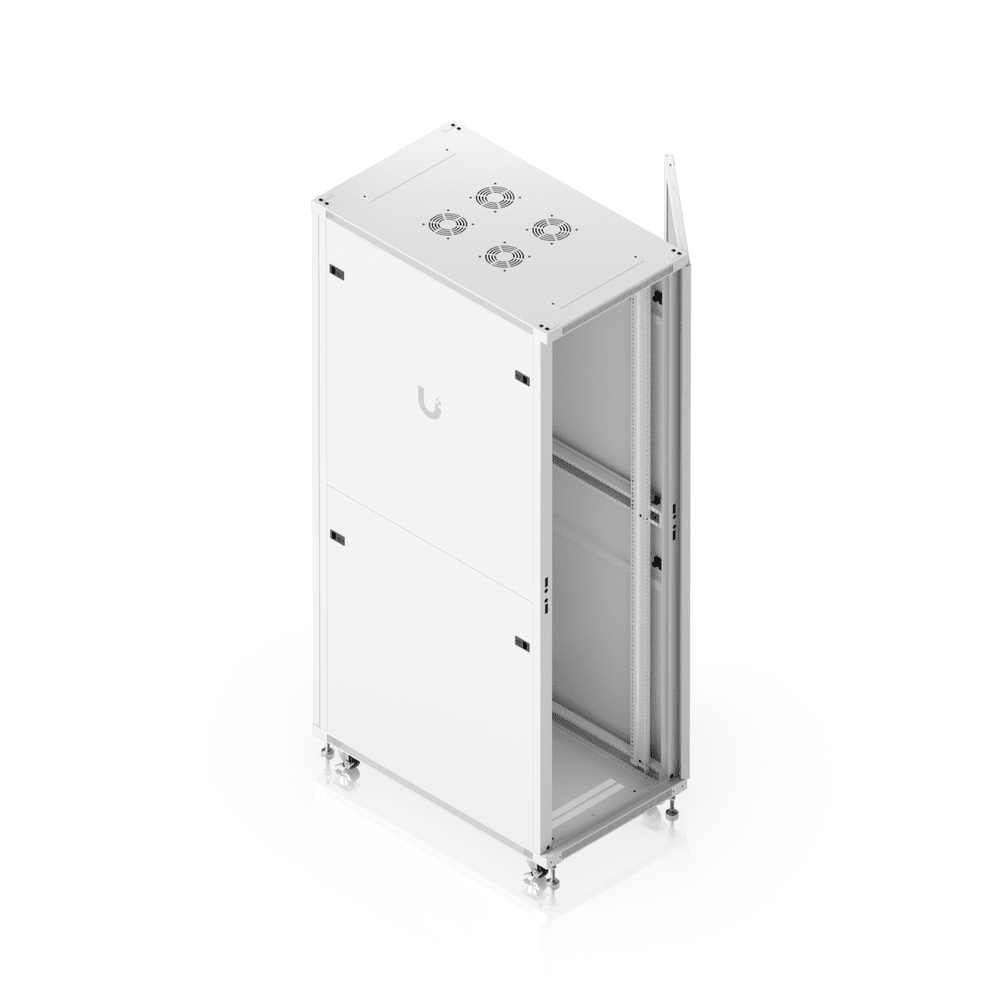

Supplied fully assembled, the UACC‑Rack‑42U‑1000‑G features a lockable tempered glass front door and a lockable rear door for secure equipment housing and clear visibility. Integrated fan modules, vertical cable management, removable lockable side panels and adjustable mounting rails ensure excellent airflow, efficient organisation and straightforward maintenance.

Key Features:

42U floor‑standing rack cabinet with up to 800 kg static load capacity
1,000 mm depth supporting devices up to 877 mm deep

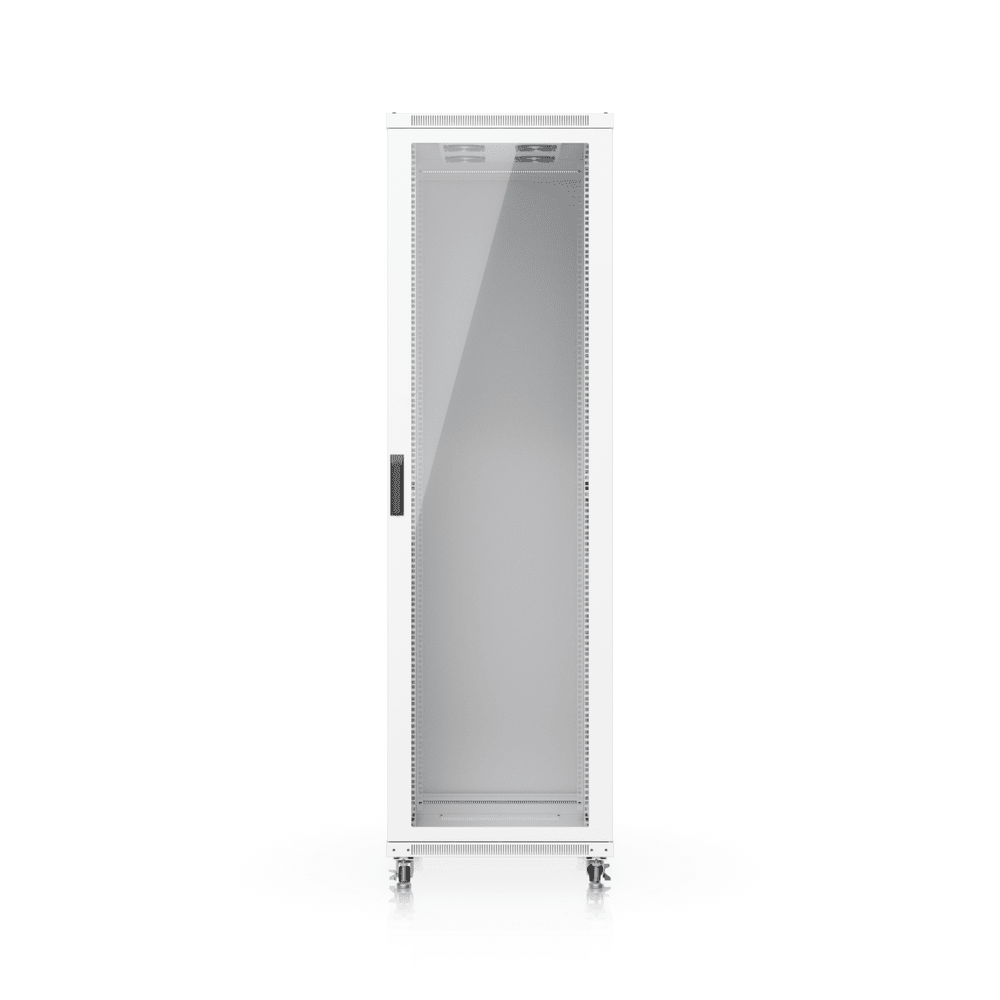

Tempered glass front door, lockable and reversible
Integrated cooling fans for optimal airflow
Lockable castors and levelling feet for stability and positioning
Removable, lockable side panels and vertical cable management

Ideal for:

Frequently asked questions5 questions

How much equipment can this cabinet hold?

It offers 42U of rack space with a static load capacity of up to 800 kg. When rolling on its castors, the maximum load is 320 kg.

How deep can the mounted devices be?

The cabinet is 1,000 mm deep and the mounting rails are adjustable from a default of 652.3 mm up to 877.3 mm, in 15 mm steps. Devices up to 877 mm deep are supported.

How is the cabinet secured and can the doors be reversed?

The front glass door, rear door and four side panels are all lockable, with three keys supplied. Both the front and rear doors default to left-hand outswing and are reversible.

What cooling and cable management does it include?

Four 120 x 120 x 38 mm AC fan units are pre-installed. It also has vertical cable management and two cable entry openings each at the top and bottom, measuring 335 x 52.5 mm.

Can the cabinet be moved and levelled once installed?

Yes, it has lockable castors and levelling feet. With the castors fitted the cabinet stands 2,050 mm high, or 1,966 mm without them.

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications18 specifications · 1 sections

Overview
Dimensions	Packaging: 740 x 1,165 x 2,223 mm (29.1 x 45.9 x 87.5") / Rack with caster: 600 x 1,000 x 2,050 mm (23.6 x 39.4 x 80.7") / Rack without caster: 600 x 1,000 x 1,966 mm (23.6 x 39.4 x 77.4")
Weight	Packaging: 120.6 kg (265.9 lb) / Rack: 92.4 kg (203.7 lb)
Enclosure Material	SPCC steel / Door/side panels: 1.2 mm (0.05") / Main body: 1 mm (0.04") / Posts: 2 mm (0.08")
Color	White
Treatment	Powder coating
Rack Features · U Height	42U
Rack Features · Rack Type	4 post, enclosed cabinet
Rack Features · Mounting Hole Type	Square
Rack Features · Adjustable Mounting Depth	Default 652.3 mm (25.7") / Max. 877.3 mm (34.5") / Adjustable pitch 15 mm (0.6")
Rack Features · Max. Weight Capacity	Static 800 kg (1764 lb) / Rolling 320 kg (705 lb)
Rack Features · Front Door	Tempered glass / Default left-hand outswing, reversible
Rack Features · Rear Door	Solid / Default left-hand outswing, reversible
Rack Features · Side Panels	(4) Solid, removable and lockable
Rack Features · Mounting	Floor stand
Rack Features · Fan Module	(4) Pre-installed 120 x 120 x 38 mm AC fan units
Rack Features · Cable Entry Opening	(2) Top: 335 x 52.5 mm (13.2 x 2.1") / (2) Bottom: 335 x 52.5 mm (13.2 x 2.1")
Rack Features · Security	(1) Front door lock / (1) Rear door lock / (8) Side panel locks / (3) Keys
Rack Features · Standard	CE; EIA/ECA-310-E; RoHS
