Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-Rack-PM-Kit
UACC-Rack-PM-Kit Ubiquiti Precision Rack Mount Kit, 20-Pack
$98.56 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description

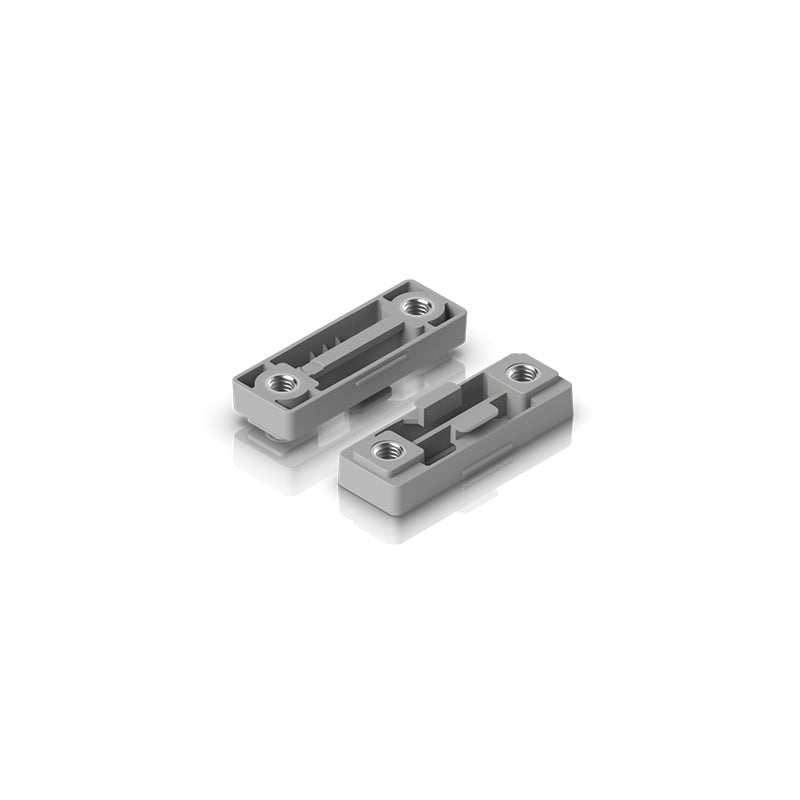

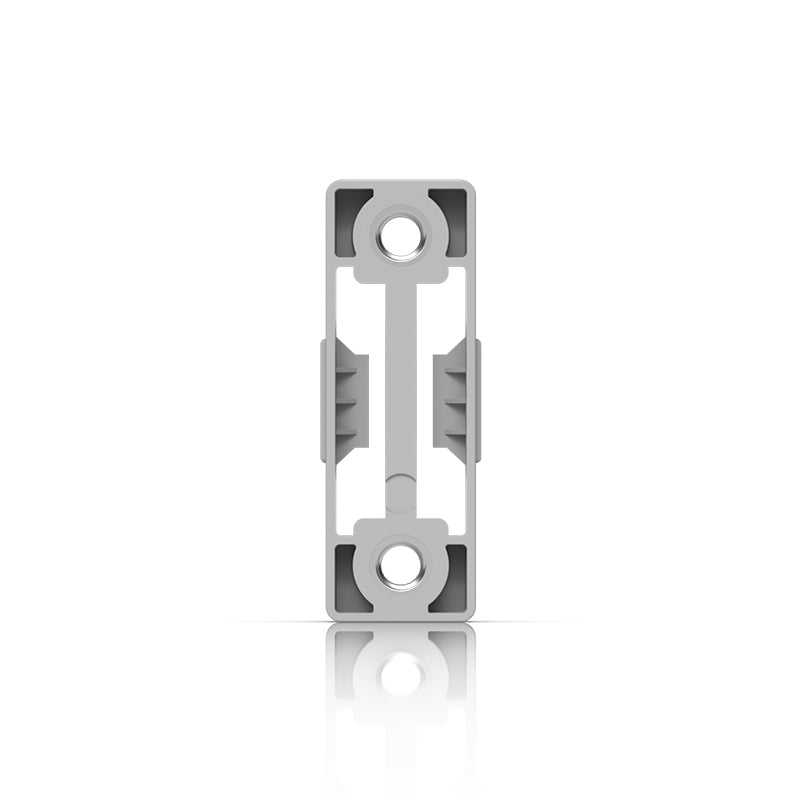

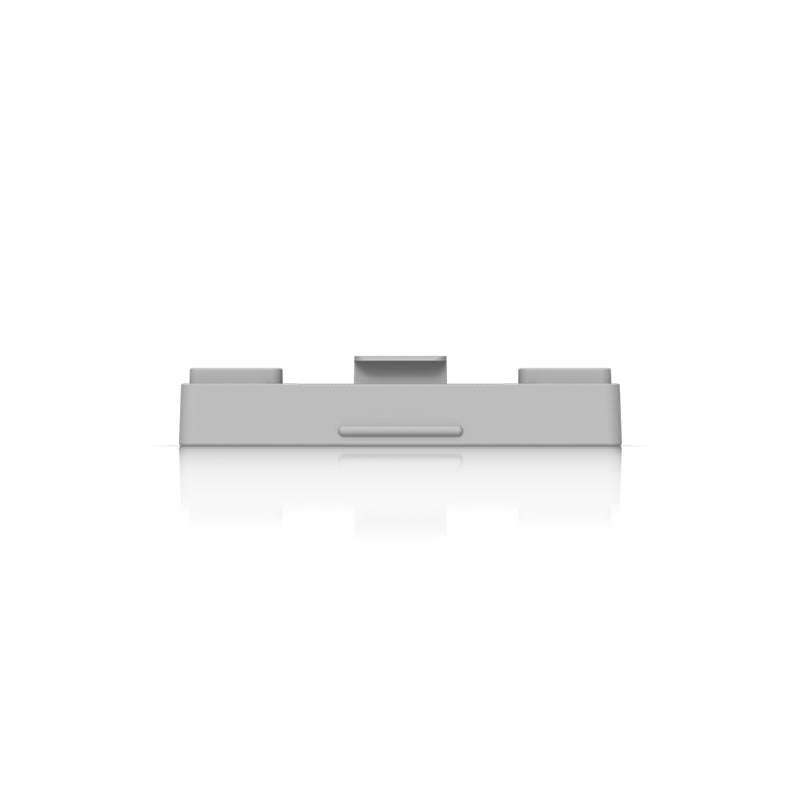

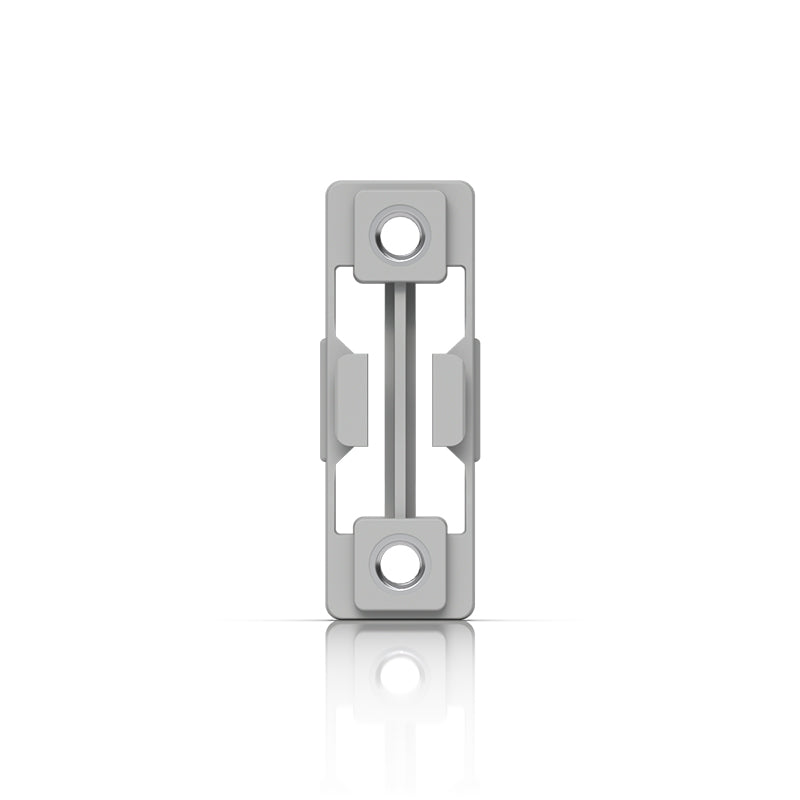

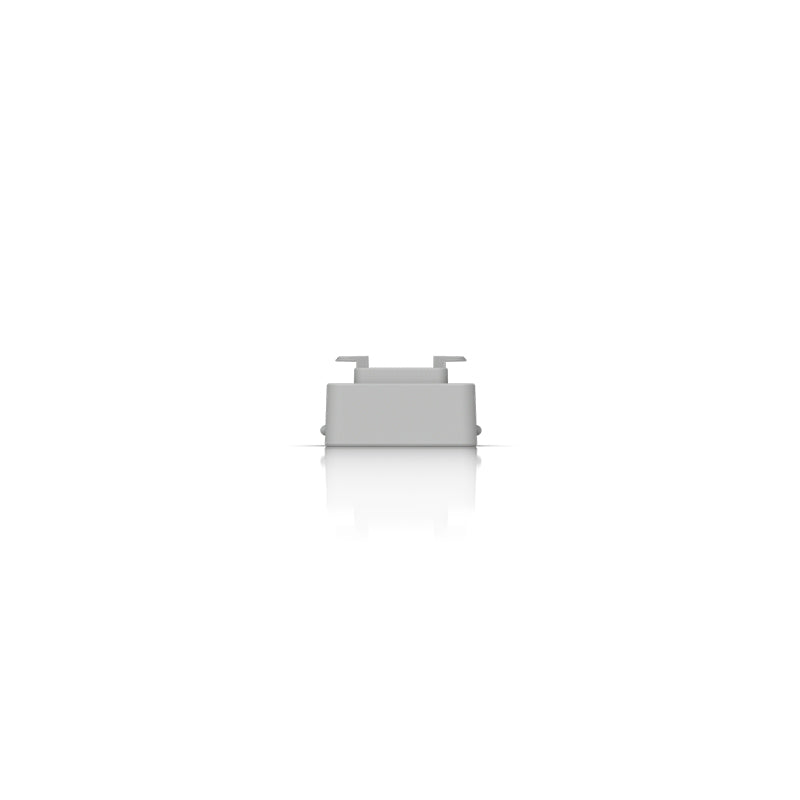

1U snap-in inserts with two vertically aligned cage nuts designed to ensure uniform rack installations.
Features:
Easy installation and removal

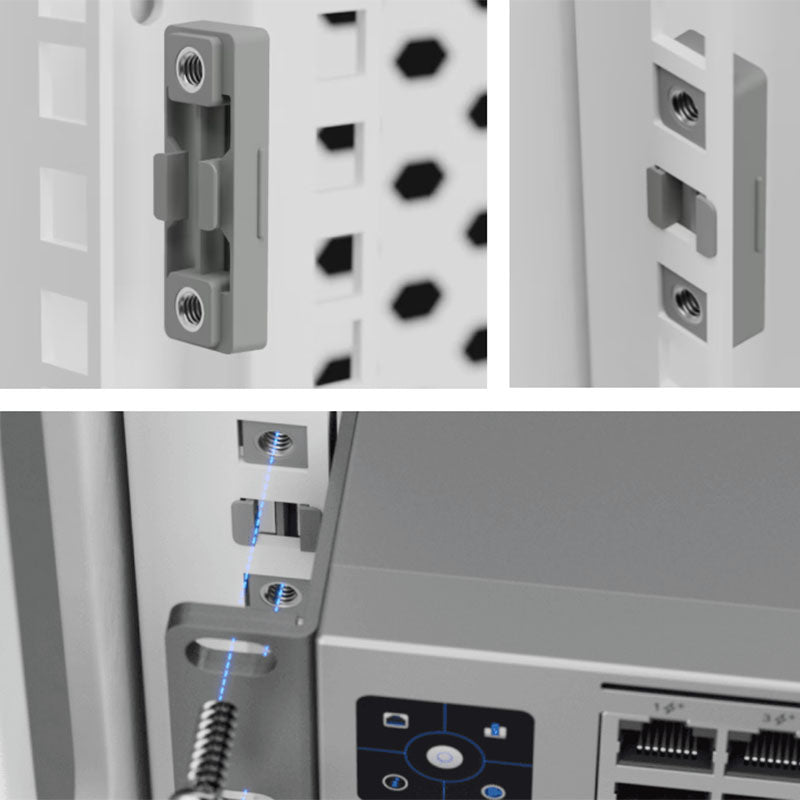

Pair multiple inserts to mount larger devices

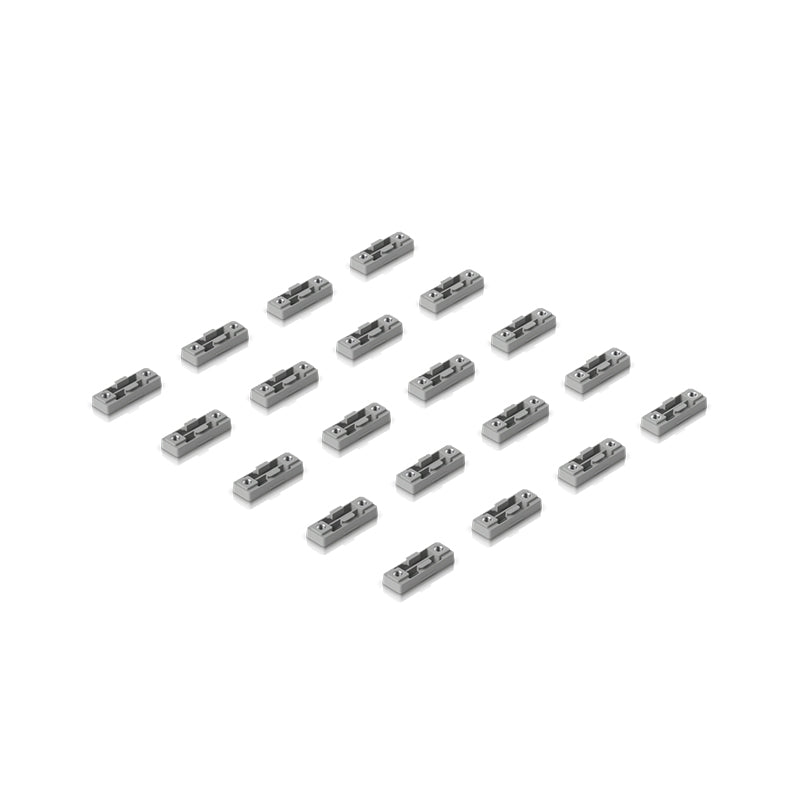

(20) Precision Rack Mount inserts per kit
Frequently asked questions5 questions
What is the Ubiquiti Precision Rack Mount Kit used for?
It provides 1U snap-in inserts, each with two vertically aligned cage nuts, designed to keep rack installations uniform. Inserts can be paired to mount larger devices, and they are easy to install and remove.
How many inserts come in the kit, and how much rack space does it cover?
Each kit contains 20 Precision Rack Mount inserts. The 20-pack is intended for a 10U installation.
What size screws and rack rail thickness does it suit?
The inserts use #10-32 screws and suit rack rails up to 2.2 mm (0.08") thick.
What are the inserts made from and how big are they?
They are made from textured thermoplastic (PA66). Each insert measures 42.7 x 15.5 x 8.7 mm (1.7 x 0.6 x 0.34") and weighs 4 g (0.14 oz).
What load can a 1U insert support?
The SnapMount inserts have been tested and qualified for shear forces. A 1U mount supports devices up to 400 mm deep with a maximum weight of 10 kg.
Click HERE to access the Installation Guide
Specifications8 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | 42.7 x 15.5 x 8.7 mm (1.7 x 0.6 x 0.34") |
| Weight | 4 g (0.14 oz) |
| Material | Thermoplastic (PA66) |
| Treatment | Texture |
| Rack Rail Thickness | Up to 2.2 mm (0.08") |
| Screws | #10-32 |
| Strength | SnapMount rack inserts have been tested and qualified with the following shear forces: / / 1U: Supports devices with a depth of up to 400 mm and a maximum weight of 10 kg. / / 2U: Supports devices with a depth of up to 325 mm and a maximum weight of 20 kg. / / It is recommended to support installed devices from the rear if depth exceeds 400 mm for 1U or 325 mm for 2U. |
| Pack Options | 20-Pack (for 10U installation) |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-Rack-PM-Kit · Ubiquiti's spec sheet
