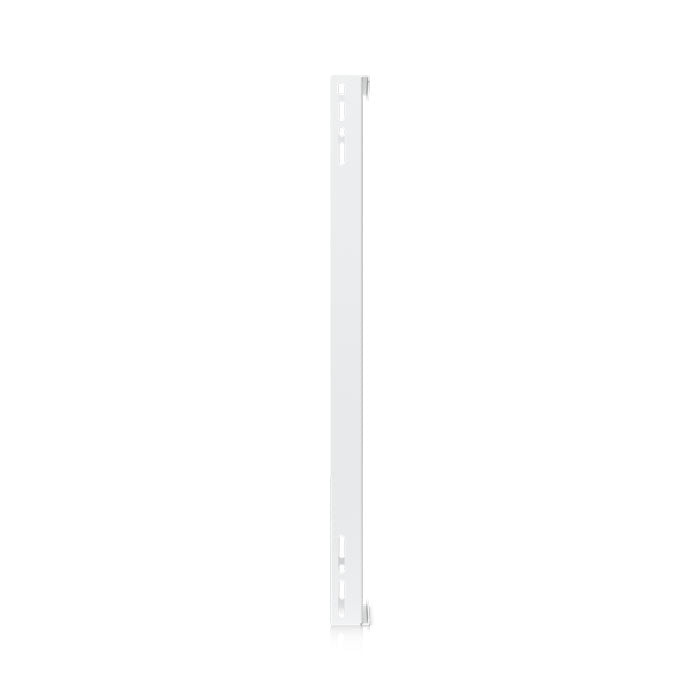

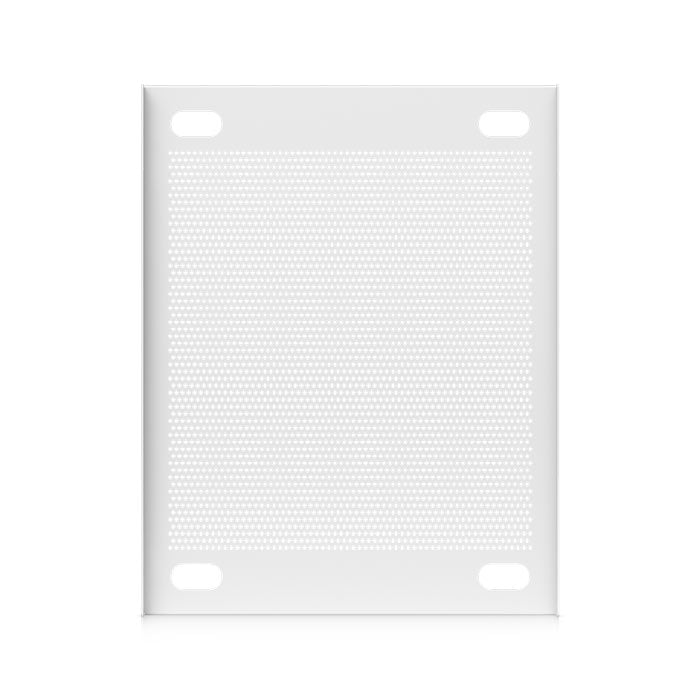

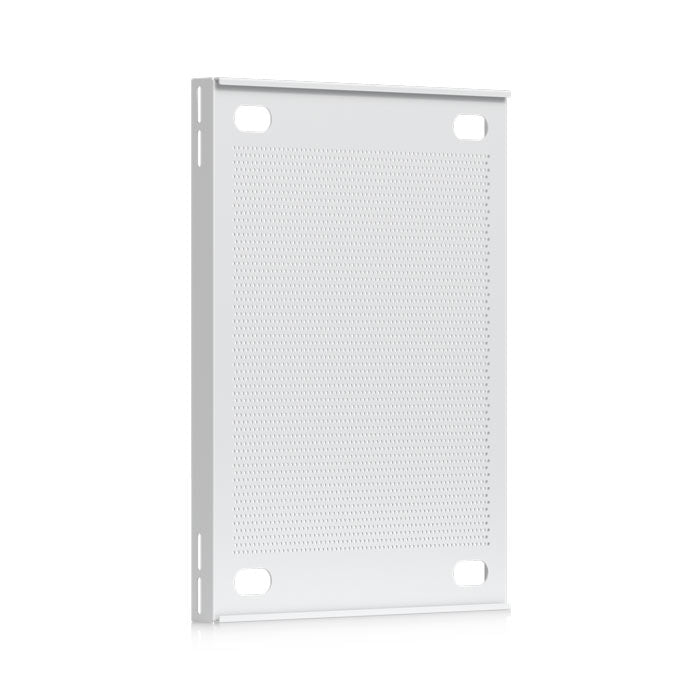

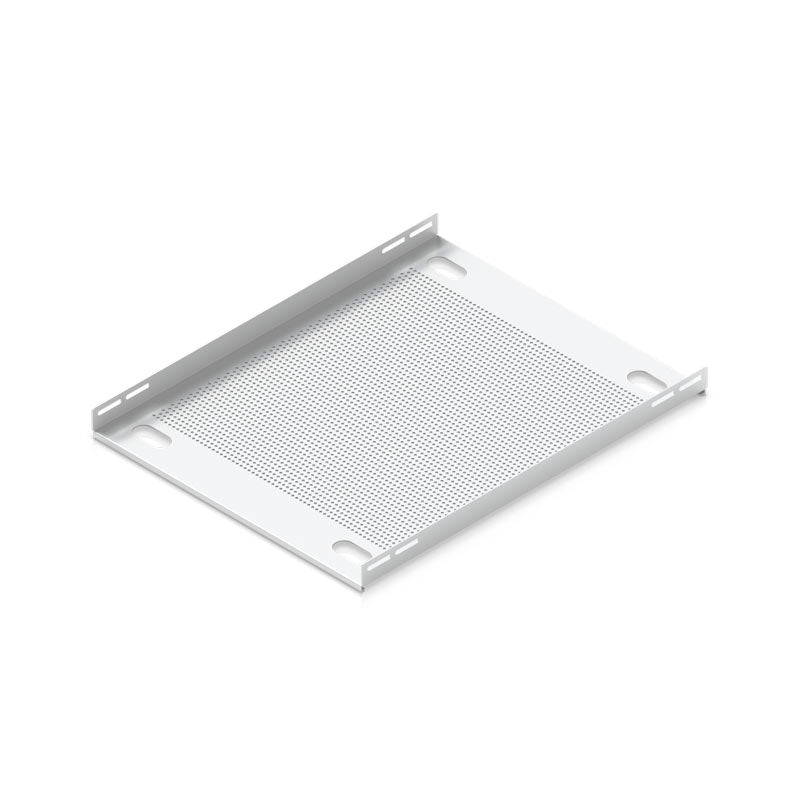

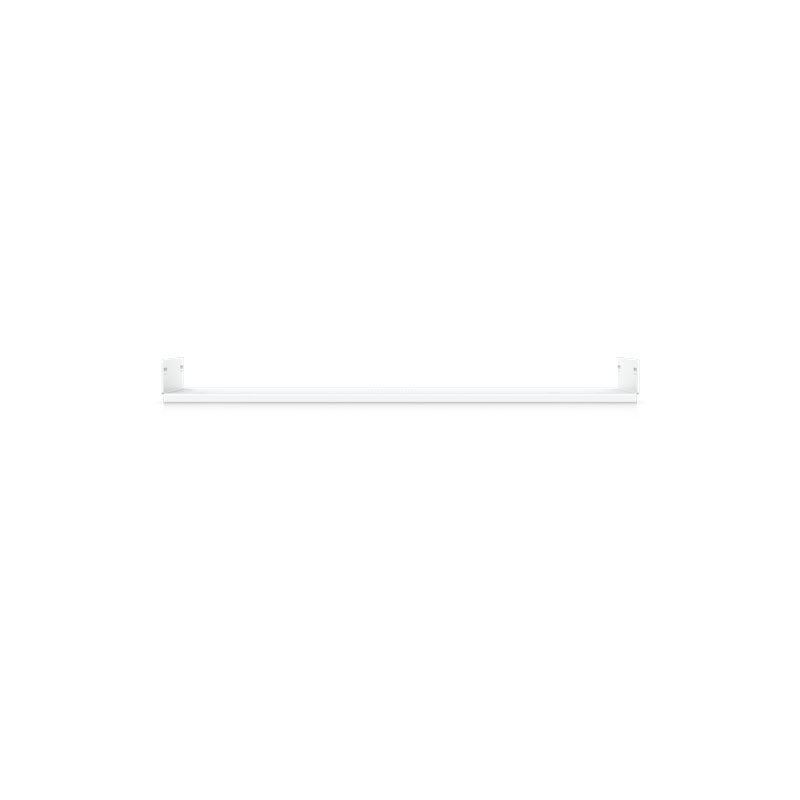

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-Rack-Shelf-FD
UACC-Rack-Shelf-FD Ubiquiti Full Depth Rack Shelf
$198.00 AUD
Unit price
/
Unavailable
Out of stock
Brisbane (none in stock)Sydney (none in stock)Melbourne (none in stock)Adelaide (none in stock)Perth (none in stock)North Lakes (none in stock)
Description
Description
1U fixed shelf for 42U Rack Cabinet.
Features:
Patterned vented holes for improved ventilation
Side-mount design for easy rack cabinet integration
Supports up to 80 kg of weight for durability
Frequently asked questions5 questions
What is the UACC-Rack-Shelf-FD used for?
It is a 1U fixed shelf designed for a 42U rack cabinet. It gives you a flat surface inside the rack for equipment that does not have its own rack-mount ears.
How much weight can this rack shelf hold?
It supports up to 80 kg (176 lb). The shelf itself weighs 3.6 kg (7.9 lb).
What are the dimensions and how much rack space does it take up?
It occupies 1U of rack height. Overall dimensions are 486 x 620 x 44.5 mm (19.1 x 24.4 x 1.8").
What is the shelf made of, and does it help with airflow?
It is made from powder-coated sheet steel in white. Patterned vented holes in the shelf improve ventilation.
How is the shelf mounted in the rack?
It uses a side-mount design for integration into the rack cabinet. It is rated to the EIA/ECA-310-E standard and is also CE and RoHS compliant.
Specifications9 specifications · 1 sections
| Overview | |
|---|---|
| Dimensions | 486 x 620 x 44.5 mm / (19.1 x 24.4 x 1.8") |
| Weight | 3.6 kg (7.9 lb) |
| Enclosure Material | Sheet steel |
| Color | White |
| Treatment | Powder coating |
| Rack Features · U Height | 1U |
| Rack Features · Max. Weight Capacity | 80 kg (176 lb) |
| Rack Features · Mounting | Side Mount |
| Rack Features · Standard | CE; EIA/ECA-310-E; RoHS |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-Rack-Shelf-FD · Ubiquiti's spec sheet
