Loading...
Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-Retrofit-PSU-12V

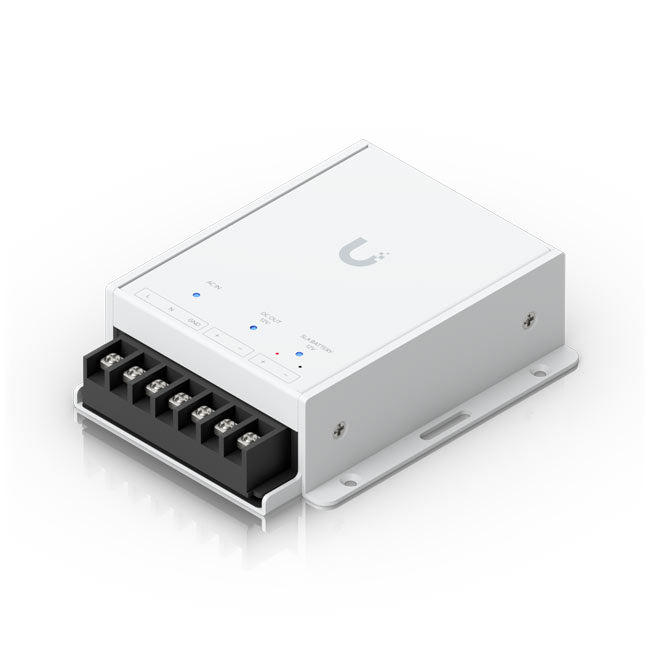

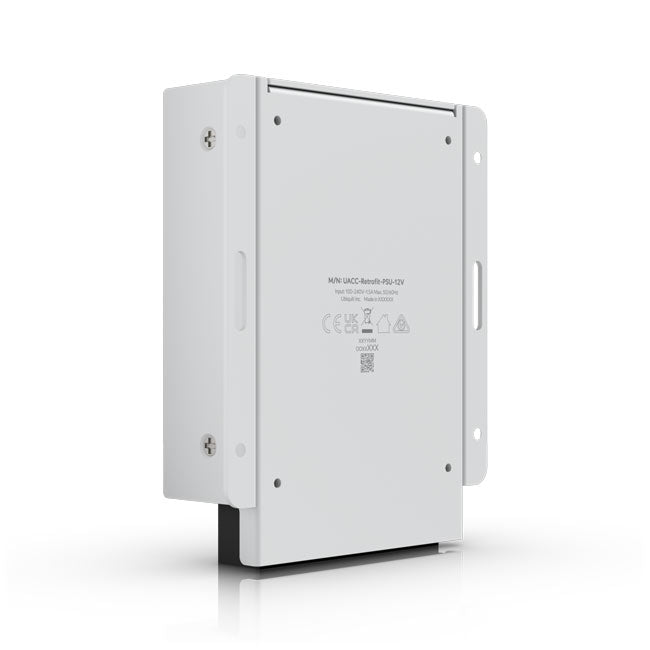

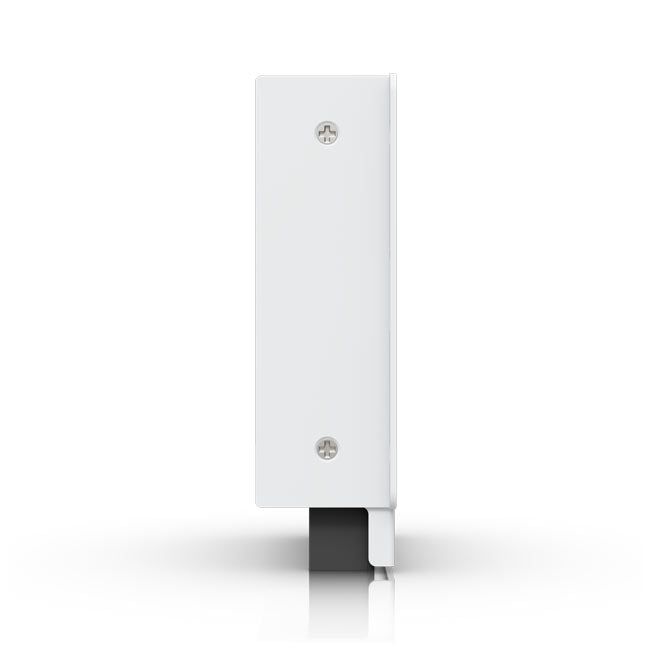

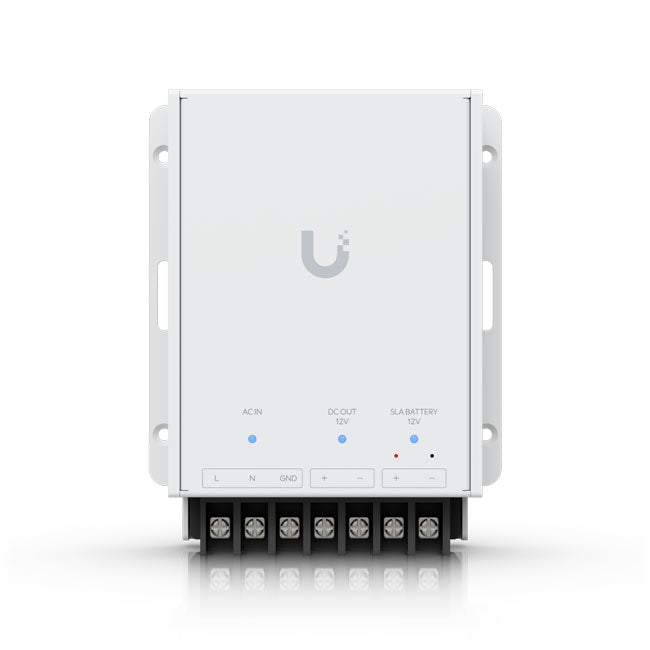

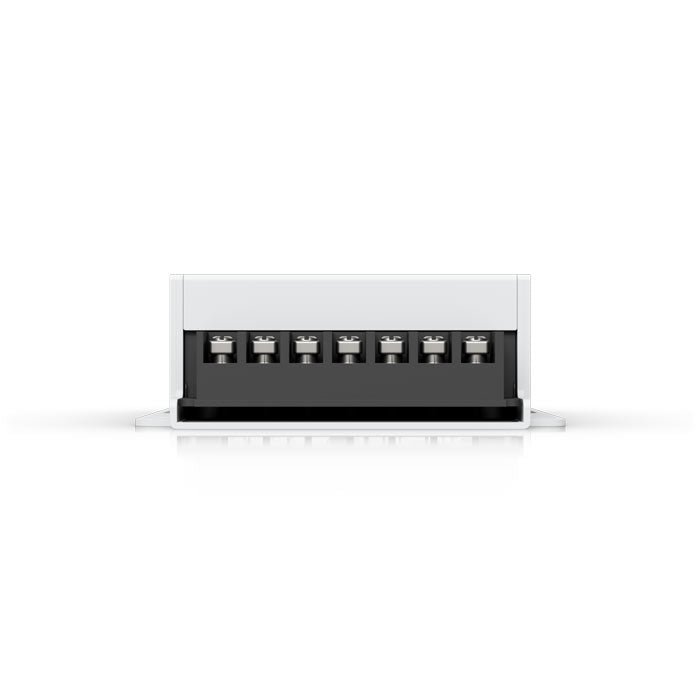

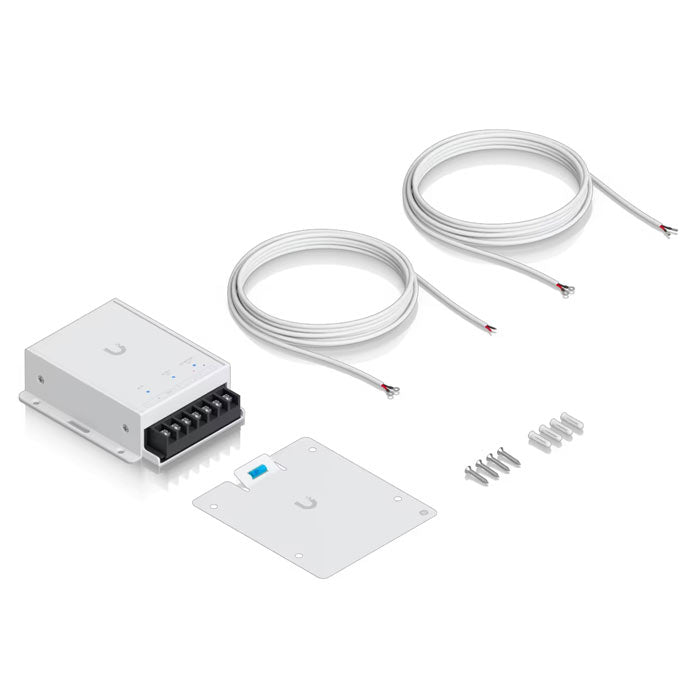

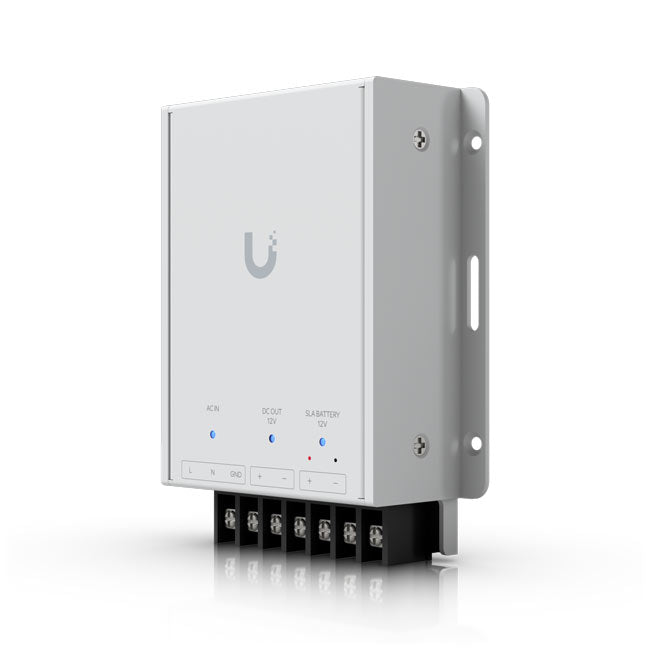

UACC-Retrofit-PSU-12V Ubiquiti UniFi Retrofit PSU 12V Power Supply
$178.64 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
12V power supply with optional SLA backup battery support, compatible with the UniFi Retrofit Hub.
Compatibility: UA-Retrofit-Hub-2
Frequently asked questions5 questions
What is the UACC-Retrofit-PSU-12V used for?
It is a 12V power supply designed for the UniFi Retrofit Hub. It also supports an optional 12V SLA backup battery.
Which Ubiquiti hub is this power supply compatible with?
It is compatible with the UA-Retrofit-Hub-2.
What are the power input and output ratings?
It accepts 100–240V AC at 50/60 Hz and provides a 12V DC, 5A output. Maximum power consumption is 80W with 85% efficiency.
Can I connect a backup battery?
Yes, it supports a 12V SLA backup battery with a charging current of 0.5A. There is a dedicated DC input/output connection for the battery.
What connections and indicators does it have?
It has one AC input, one DC output for the Retrofit Hub, and one DC input/output for the battery. Three status LEDs are fitted.
Specifications13 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 127 x 76 x 35 mm (5 x 3 x 1.4") |
| Weight | 350 g (12.3 oz) |
| Hardware | |
| Power Method | 100–240V AC, 50/60 Hz / 12V SLA battery |
| SLA Backup Battery | Voltage: 12V / Charging current 0.5A |
| Wiring Connection | (1) AC input / (1) DC output (For Retrofit Hub) / (1) DC input/output (For Battery) |
| Max. Power Consumption | 80W |
| Efficiency | 85% |
| Output Rating | 12V DC, 5A |
| LEDs | (3) Status |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Storage Temperature | -40 to 70 C (-40 to 158 F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-Retrofit-PSU-12V · Ubiquiti's spec sheet
