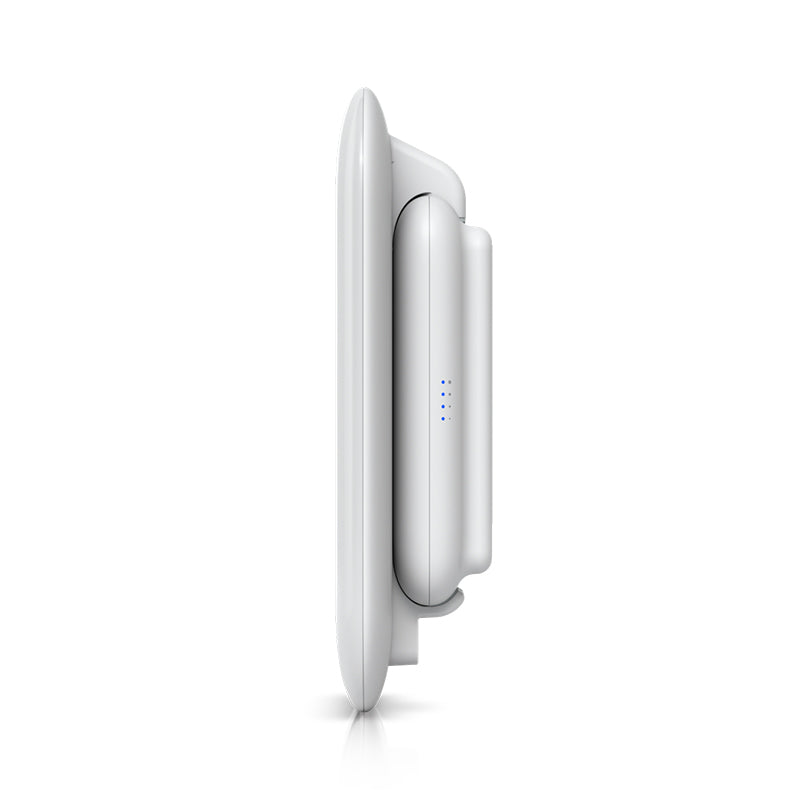

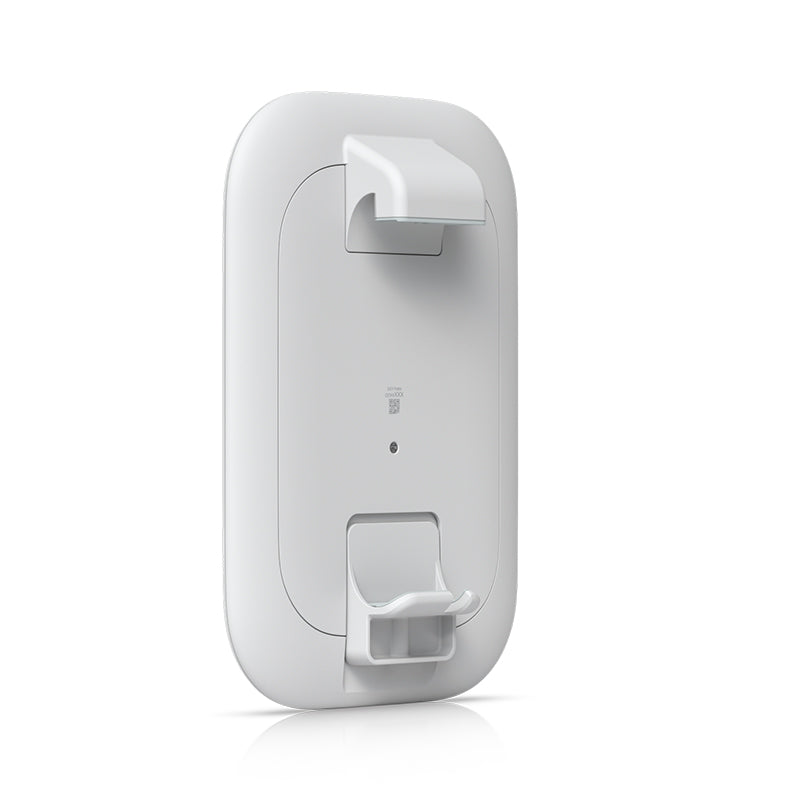

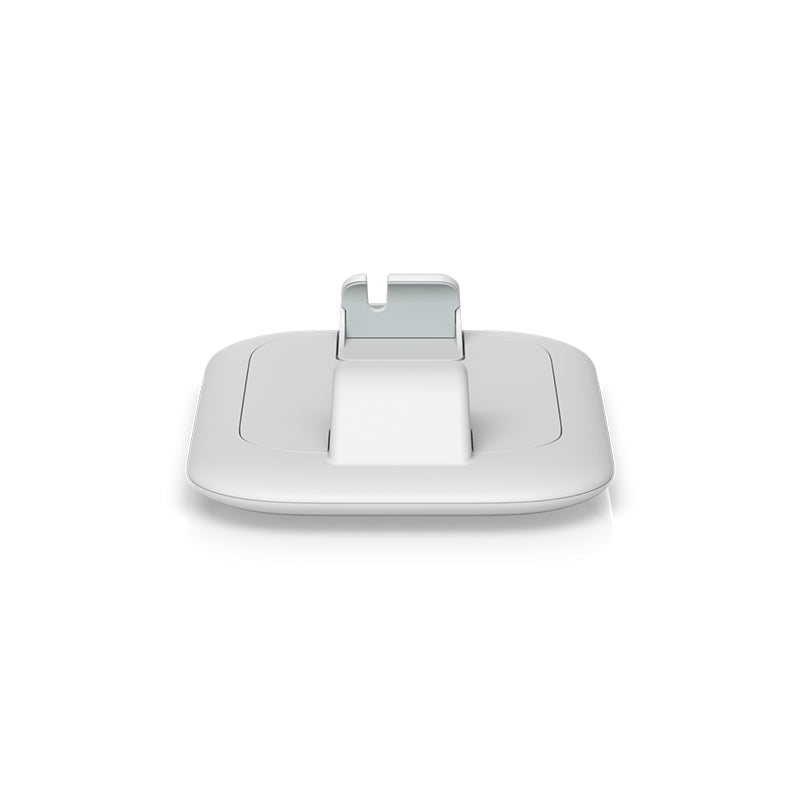

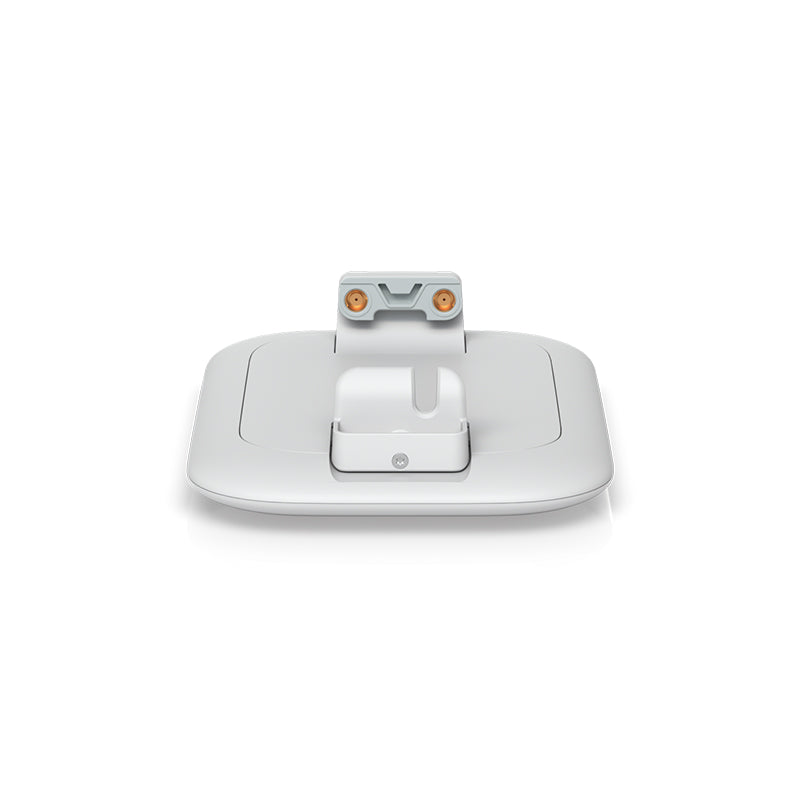

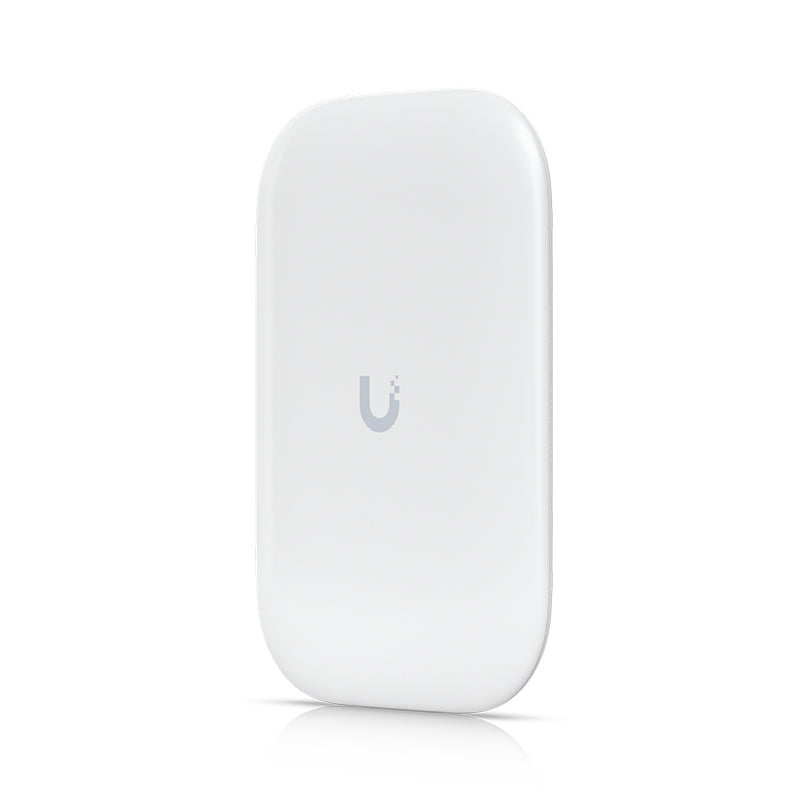

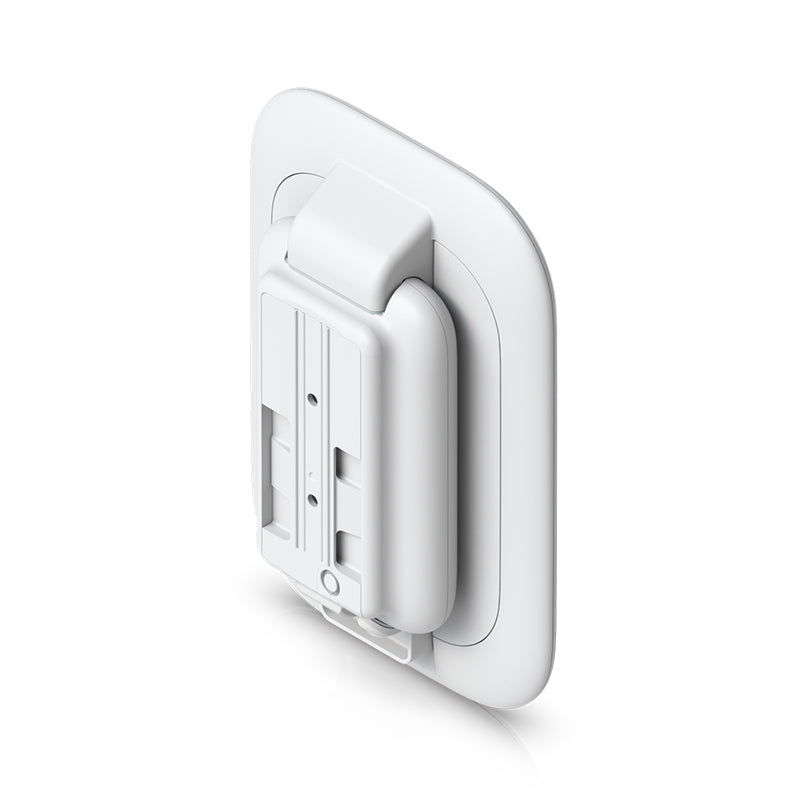

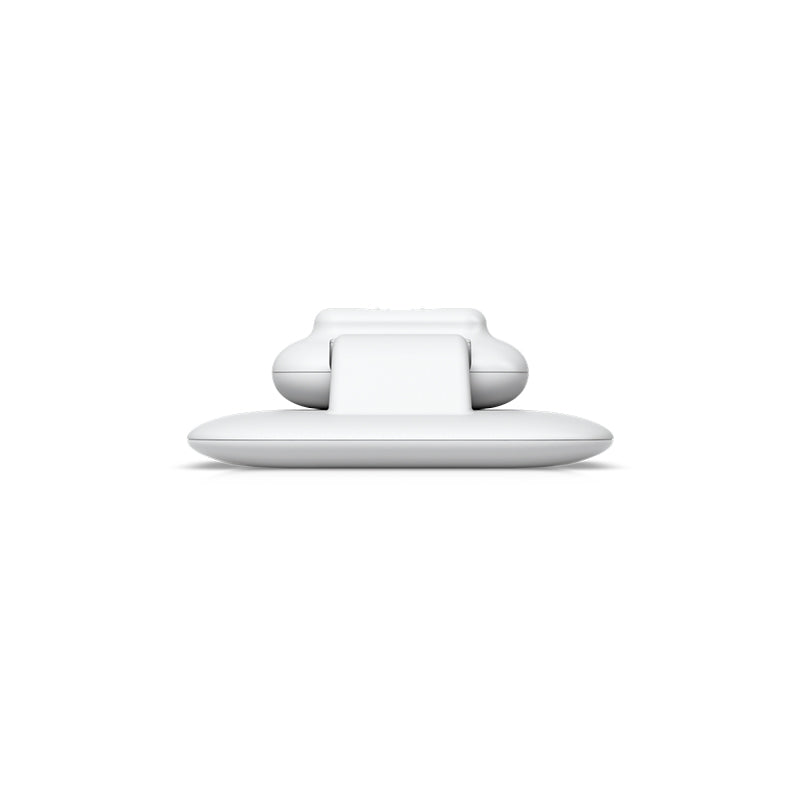

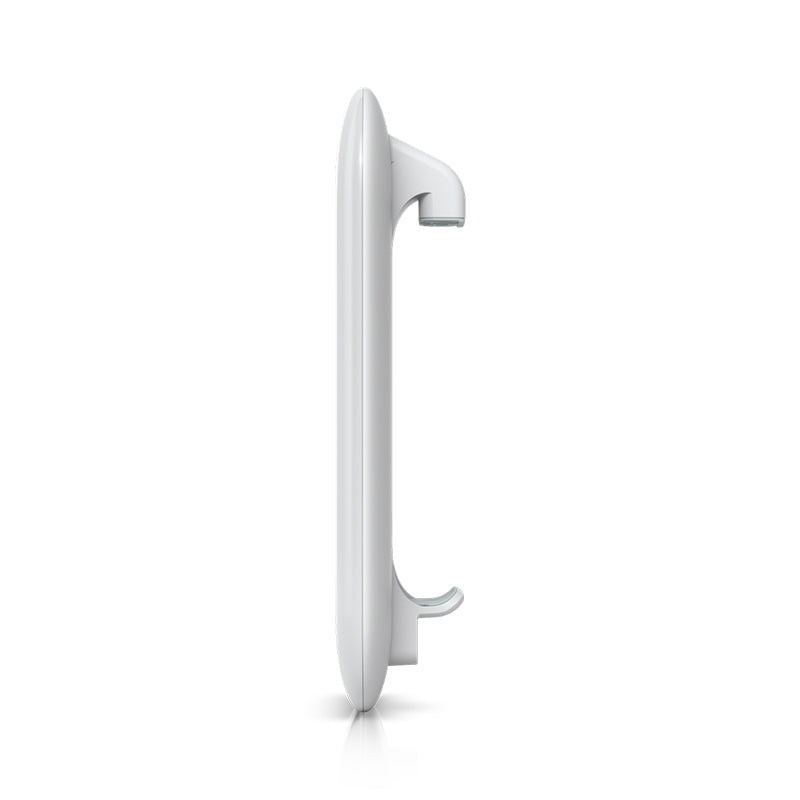

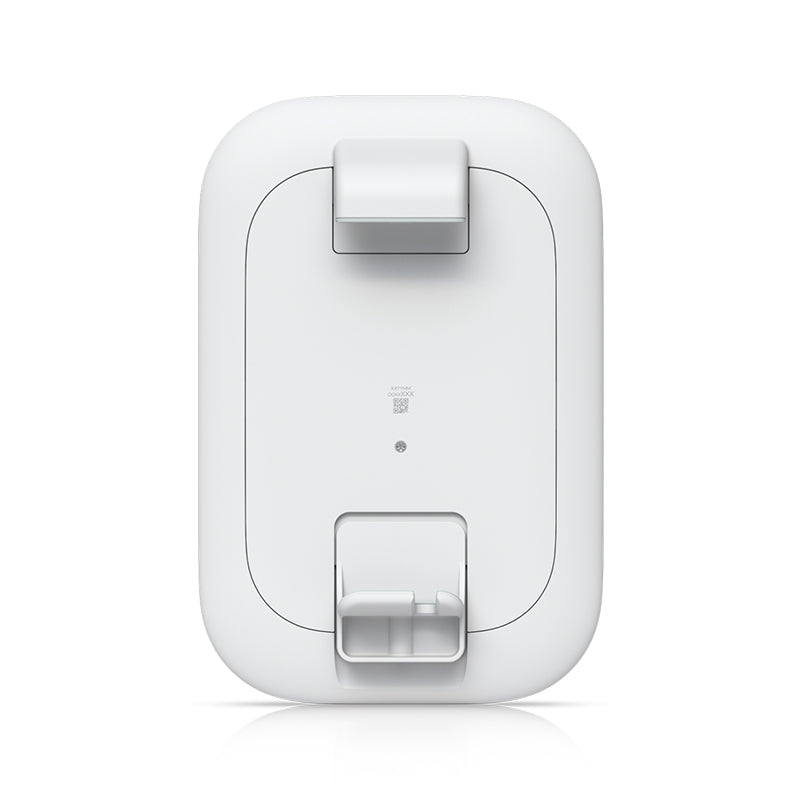

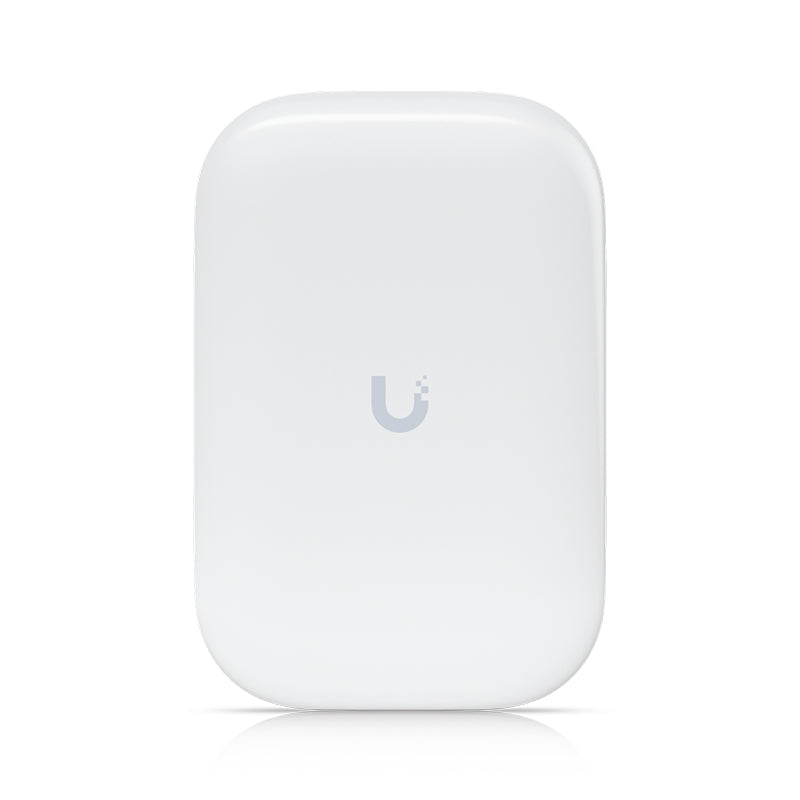

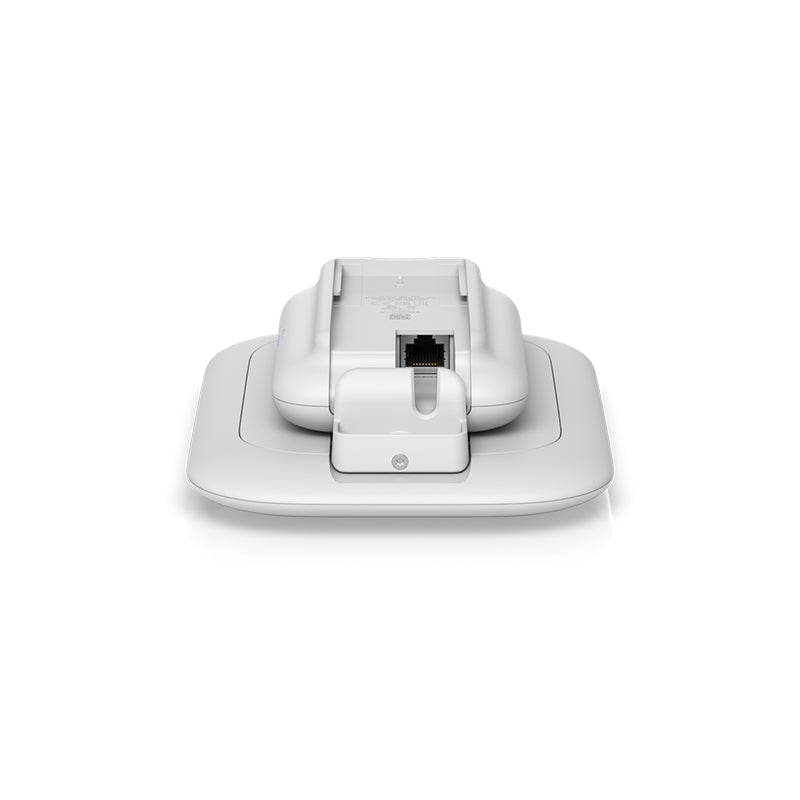

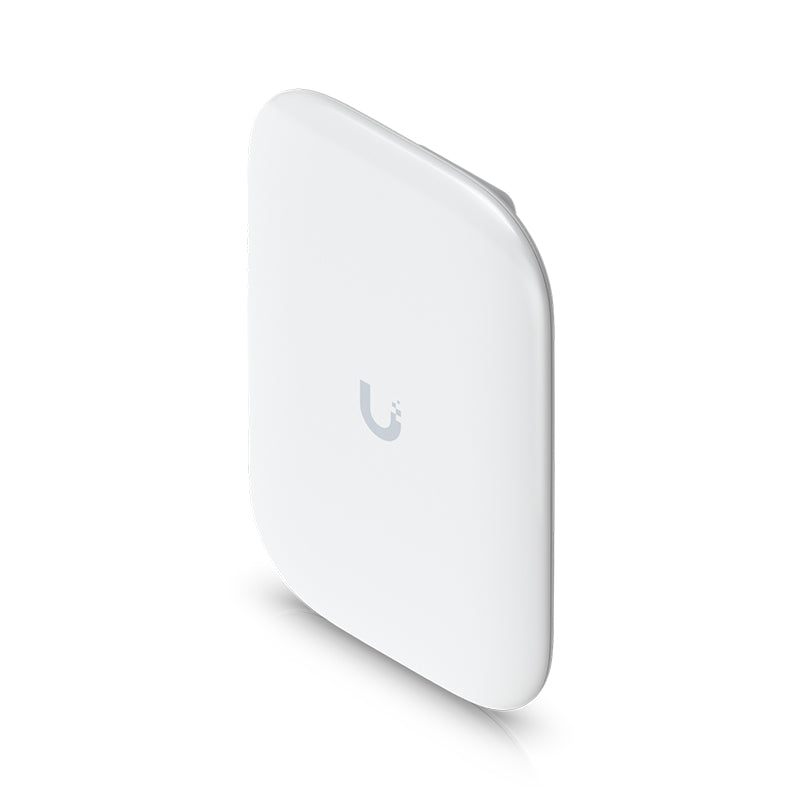

Manufacturer's photos. Where a power lead is pictured, an AU one is provided.
SKU:
UACC-UK-Ultra-Panel-Antenna
UACC-UK-Ultra-Panel-Antenna Ubiquiti Panel Antenna
$85.01 AUD
Unit price
/
Unavailable
20+ in stockShips from the warehouse closest to you
BrisbaneSydneyMelbourneAdelaidePerthNorth Lakes (none in stock)
Pickup may be possible in Sydney, Brisbane, Melbourne, Adelaide and Perth
We ship from partner warehouses, so pickup is not automatic. Choose delivery at checkout and contact us if you would like to arrange pickup.
Description
Description
Sleek, clip-on external antenna for the Swiss Army Knife that provides 90-degree directional, extended range coverage.
Features:
High-efficiency 90° directional radiation pattern
Optimized for dual-band, extended range coverage

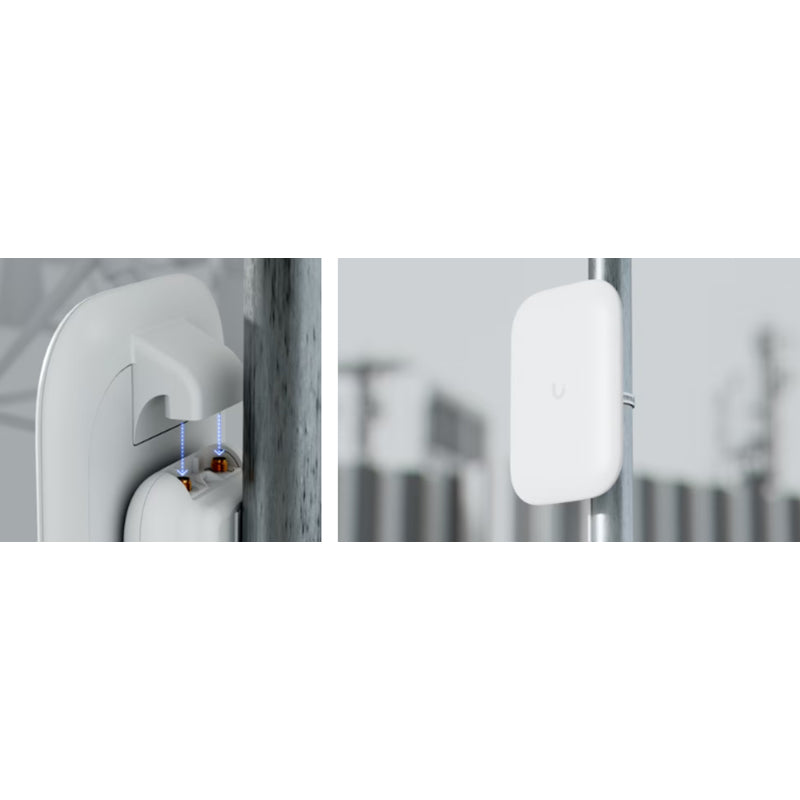

Clip-on attachment with support for all Swiss Army Knife mounting methods
Weatherproof (outdoor exposed)
Frequently asked questions5 questions
What is this antenna used for?
It is a clip-on external antenna for the Swiss Army Knife, providing 90-degree directional, extended range coverage. It is optimised for dual-band use.
Which device is it compatible with?
It is compatible with the UK-Ultra. It clips on and supports all Swiss Army Knife mounting methods.
What is the antenna gain on each band?
The antenna provides 15 dBi on 5 GHz and 10 dBi on 2.4 GHz. It uses a high-efficiency 90° directional radiation pattern.
Is it suitable for outdoor installation?
Yes, it is weatherproof and rated IPX6 for outdoor exposed use. The enclosure is UV-stabilised polycarbonate and aluminium, and it has a wind survivability of 75 N at 200 km/h.
What are its size, weight and pipe mounting range?
It measures 138 x 207 x 43 mm and weighs 450 g. Mounting is supported on pipes of 1 to 2 inches outer diameter.
Click HERE to access the Installation Guide
Specifications8 specifications · 2 sections
| Mechanical | |
|---|---|
| Dimensions | 138 x 207 x 43 mm / (5.4 x 8.1 x 1.7") |
| Weight | 450 g (1 lb) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum |
| Mounting | 1~2" on pipe outer diameter / Compatible with the UK-Ultra |
| Wind Survivability | 75 N at 200 km/h (16.7 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Antenna Gain · 5 GHz | 15 dBi |
| Antenna Gain · 2.4 GHz | 10 dBi |
Source: Ubiquiti technical specifications, checked 6 Nov 2026.Model UACC-UK-Ultra-Panel-Antenna · Ubiquiti's spec sheet
