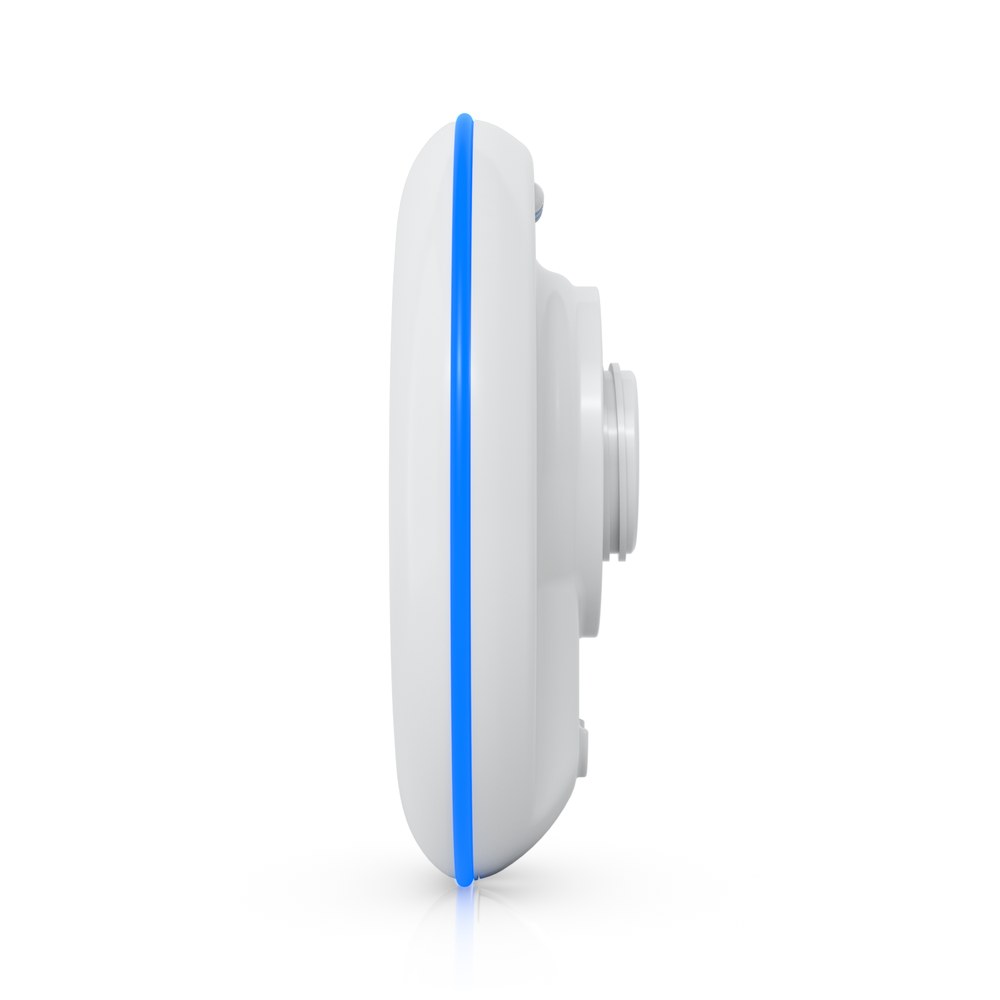

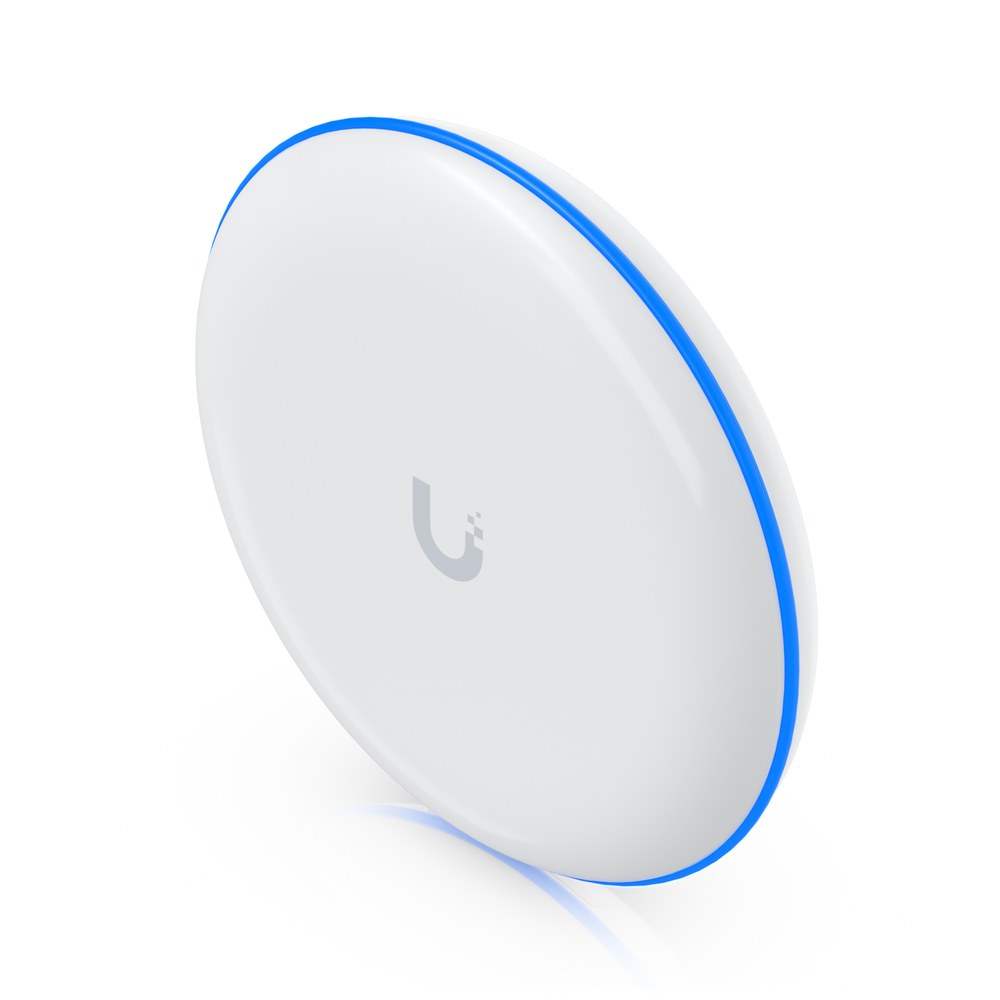

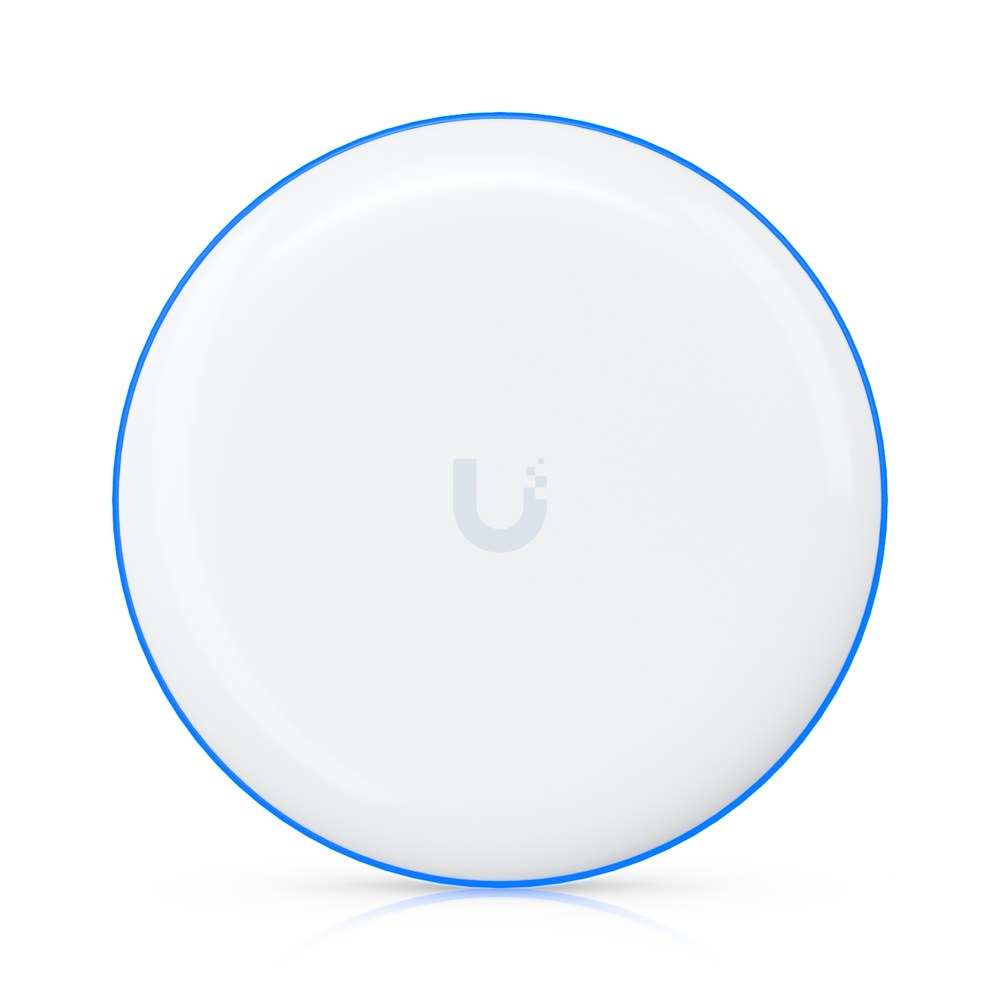

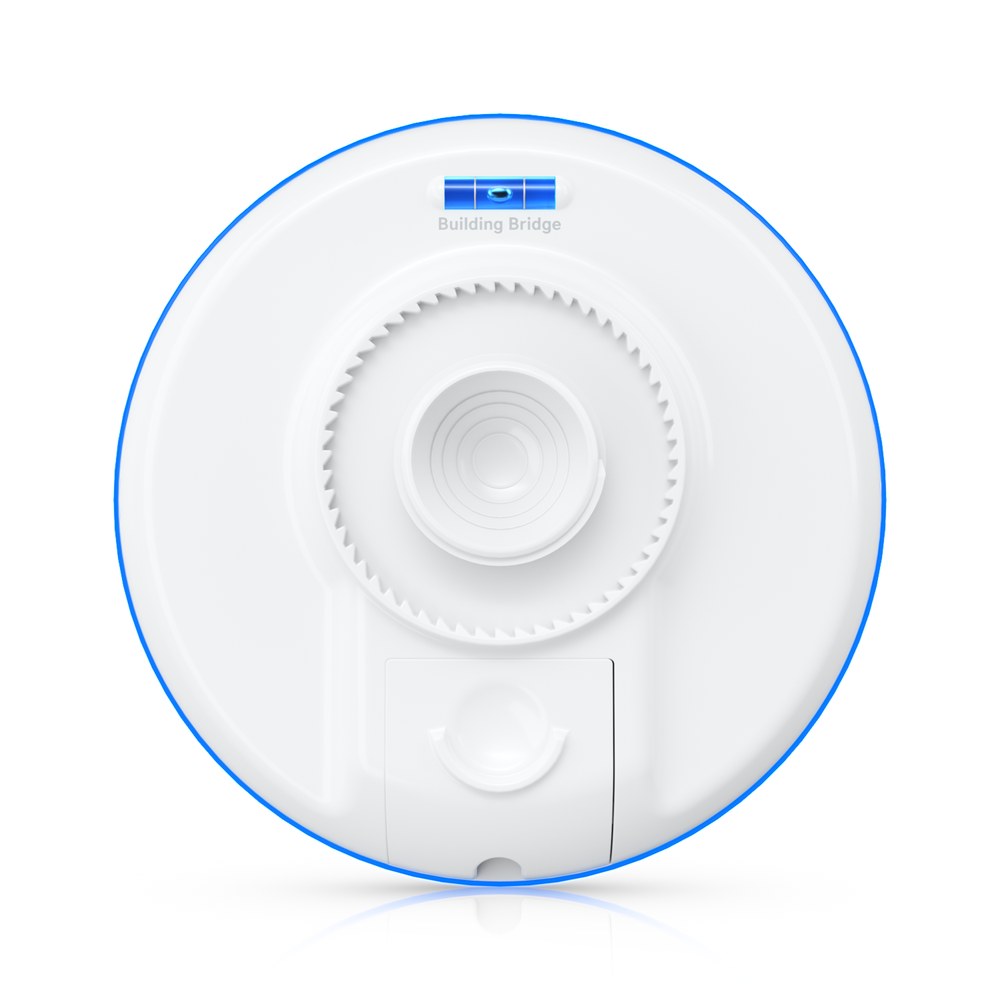

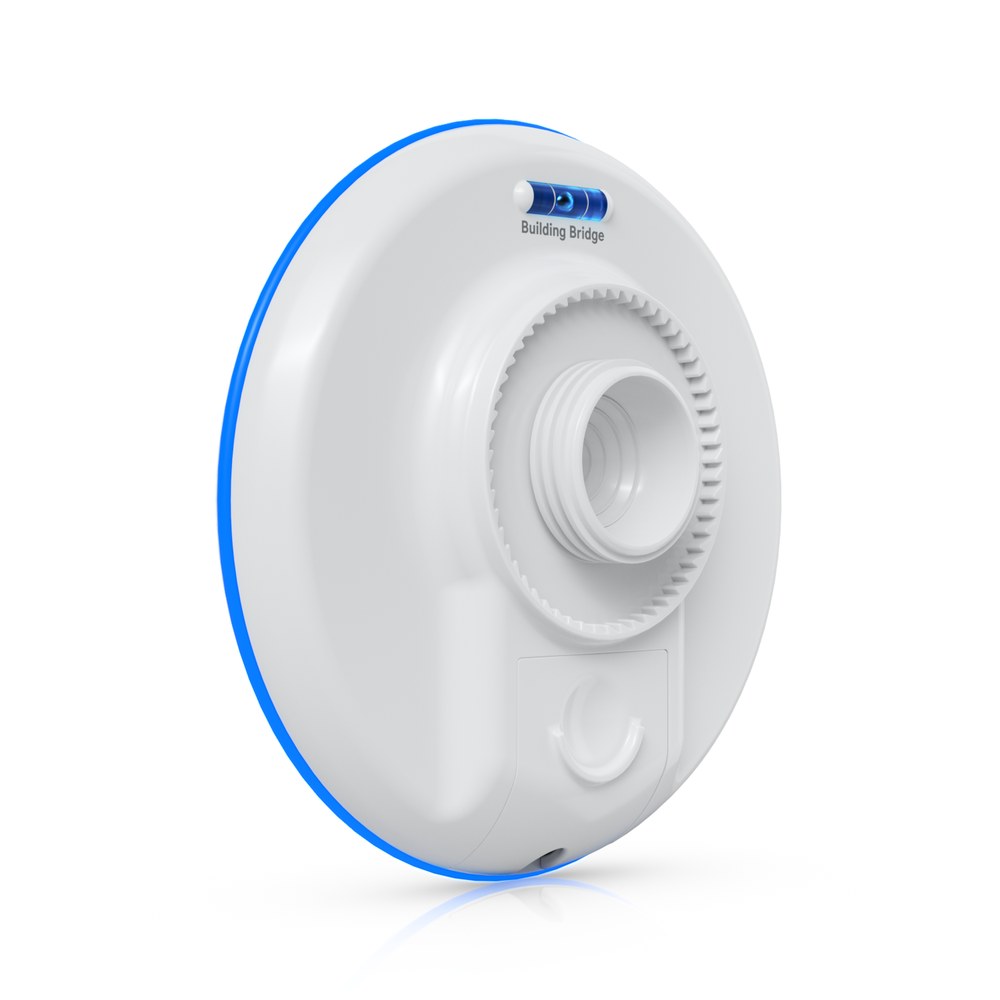

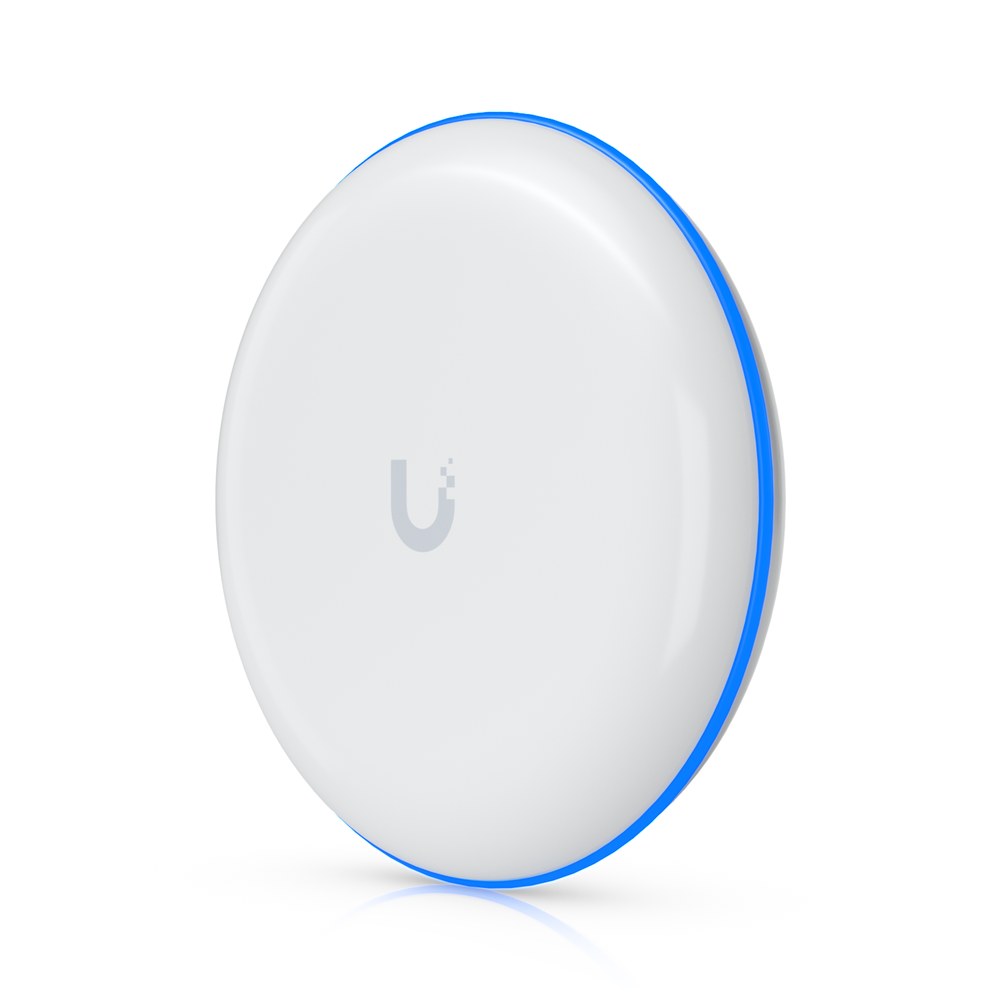

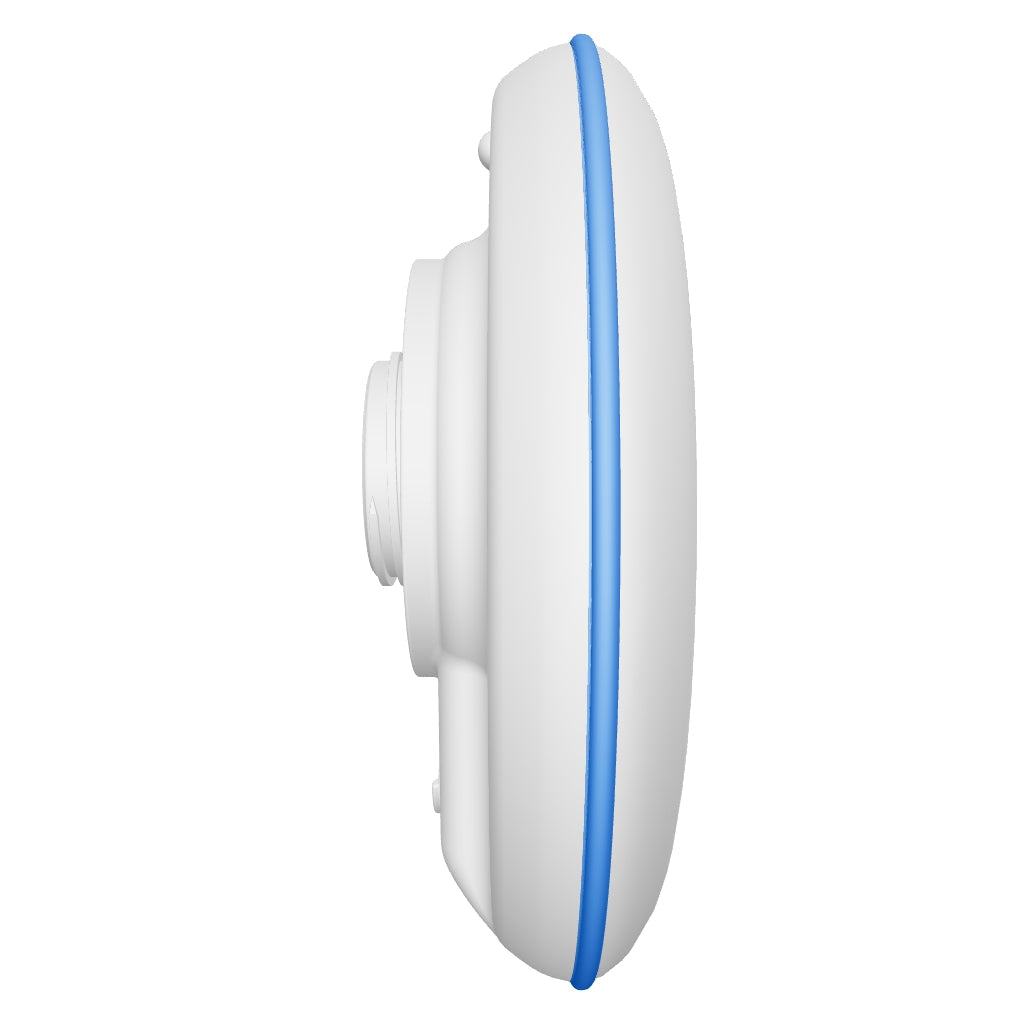

UBB-Single - Ubiquiti Building-to-Building Bridge
Description
Description
The Ubiquiti Building Bridge (UBB-Single) is a 60 GHz wireless point-to-point bridge designed for high-speed building-to-building connectivity with an integrated 5 GHz backup radio for enhanced reliability. This single unit is ideal as a replacement or spare and includes one PoE power adapter.
Key Features
- 60 GHz wireless technology delivering up to 1.7 Gbps maximum data rate
- 5 GHz backup radio with up to 866.6 Mbps (BW80) for failover connectivity
- Coverage area up to 500 m (1,640 ft) for reliable building-to-building links
- WiFi 5 (802.11ac) standard with 2x2 DL MU-MIMO spatial streams
- IPX6 weatherproofing for outdoor deployments in harsh conditions
- 17.2 dBi antenna gain at 60 GHz and 10 dBi at 5 GHz for optimal performance
- PoE powered for simplified installation with single cable deployment
- Wall or pole mounting options with compact dimensions (⌀140 x 90 mm)
- Managed via UniFi Console, Official UniFi Hosting, or Self-Hosted UniFi Network Server
Ideal for: Network administrators and system integrators requiring reliable, high-throughput wireless links between buildings, campuses, or facilities where cabling is impractical or cost-prohibitive.
Advanced Performance Specifications
The UBB-Single delivers exceptional wireless performance with its dual-radio architecture. The primary 60 GHz radio provides maximum TX power of 19 dBm, whilst the 5 GHz backup radio offers 25 dBm TX power. The device supports comprehensive data rates including 802.11ac (WiFi 5) from 6.5 Mbps to 867 Mbps, 802.11n from 6.5 Mbps to 300 Mbps, and legacy 802.11g rates.
Compatible Products

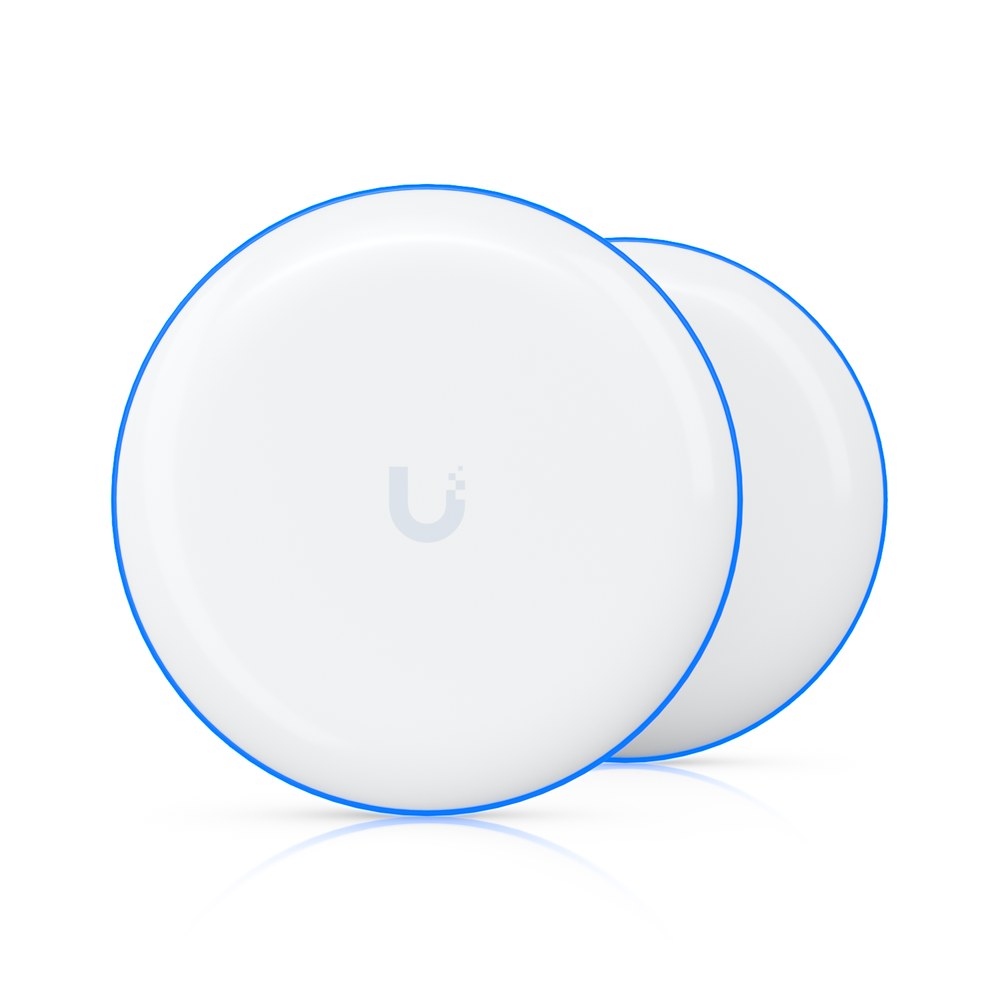

The UBB-Single works seamlessly with another Building Bridge unit to create a complete point-to-point link. For enhanced performance requirements, consider the Building Bridge XG (UBB-XG) which features a 10G SFP+ uplink and 6 Gbps maximum throughput. Integration with UniFi Consoles enables centralised management and monitoring. Pair with Ethernet Surge Protection Outdoor accessories for additional protection in lightning-prone areas.
Specifications35 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | ⌀140 x 90 mm / (⌀5.5 x 3.5") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 500 m (1,640 ft) |
| Mounting Locations | Wall, pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| Performance | |
| MIMO · 5 GHz | 2 x 2 (DL MU-MIMO) |
| Max. Data Rate · 60 GHz | 1.7 Gbps |
| Max. Data Rate · 5 GHz | 866.6 Mbps (BW80) |
| Antenna Gain · 60 GHz | 17.2 dBi |
| Antenna Gain · 5 GHz | 10 dBi |
| Antenna Gain · 2.4 GHz | 2 dBi (BLE) |
| Max. TX Power · 60 GHz | 19 dBm |
| Max. TX Power · 5 GHz | 25 dBm |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
| Hardware | |
| Max. Power Consumption | 11W |
| Supported Voltage Range | 44–57V DC |

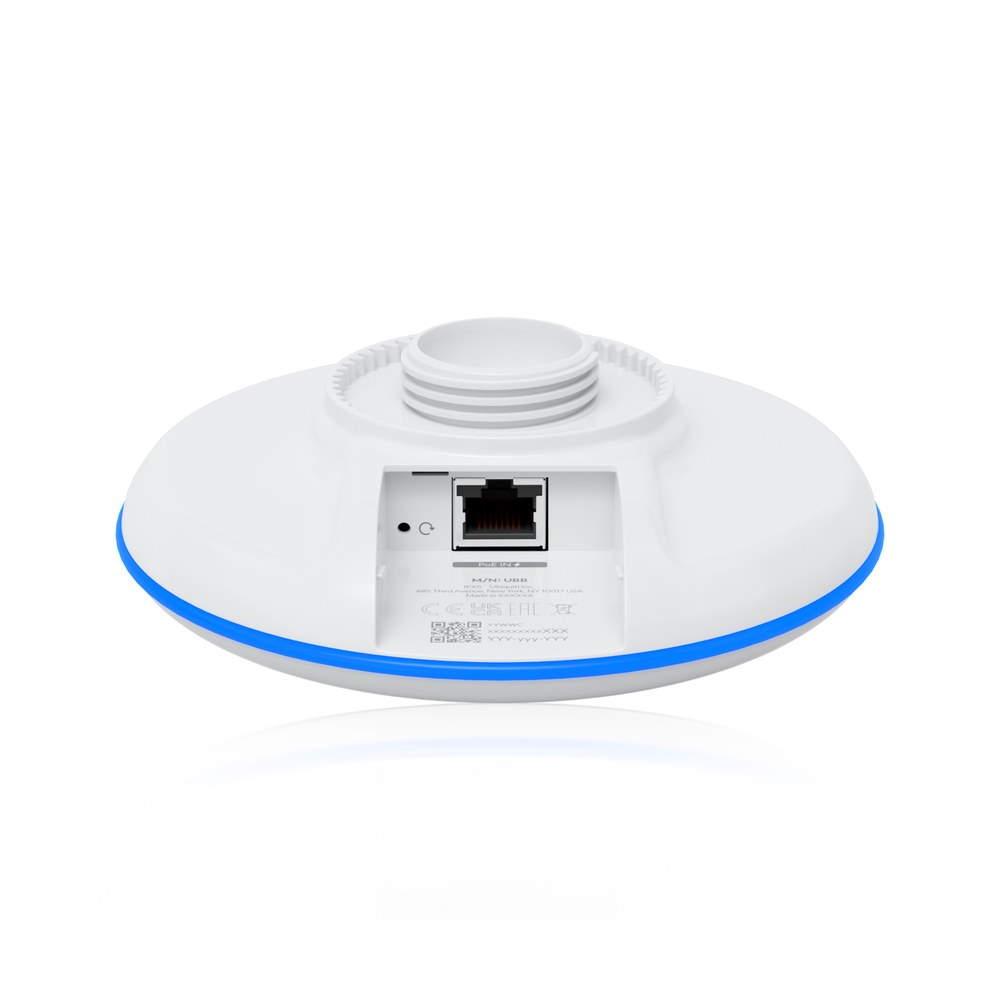

| Networking Interface | (1) GbE RJ45 port |
| Weight | 376 g (13.3 oz) |
| Operating Modes | PtP |
| Wind Loading | 56 N at 200 km/h (12.6 lbf at 125 mph) |
| Management | Ethernet / Bluetooth |
| Channel Bandwidth | Main radio (60 GHz): 1,080/2,160 MHz / Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz |
| Enclosure Material | UV-resistant polycarbonate |
| Button | (1) Factory reset |
| LEDs · System | R/G/B |
| Operating Frequency | Main radio (60 GHz): 57 - 66 GHz / Backup radio (5 GHz): / US/CA / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide / 5150 - 5850 MHz |
| Bluetooth (MHz) | Worldwide: 2400 - 2483.5 MHz |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
